ZX3 - Audio module Bogen - Free user manual and instructions

Product Type	3-Zone Expansion Module
Brand	Bogen
Model	ZX3
Number of Zones	3
Maximum Speakers per Zone	Up to 150 self-amplified speakers
Compatible Host System	UTI312 Universal Telephone Interface
Maximum Modules per Host	4
Music Source Selection	Music Bus A, Music Bus B, or None (jumper configurable per zone)
Installation Method	Slide into card guides, secure with mounting screws
Warranty Period	2 years from date of sale to original purchaser
Warranty Coverage	Defects in material or workmanship under normal use
Return Authorization	Required for all returns; obtain from Bogen Factory Service Department
Out-of-Warranty Repair	Available; parts and labor warranted for 90 days
Shipping for Warranty Service	Ship insured and prepaid to Bogen Factory Service Department
Service Address	50 Spring Street, Ramsey, NJ 07446, USA
Service Phone	201-934-8500
Recommended Documentation	UTI312 manual for additional capabilities and use
Cleaning	Use a dry cloth; avoid liquids and abrasives
Safety Precautions	Install in a dry, ventilated area; disconnect power before servicing
Repairability	Serviceable only by authorized Bogen personnel or factory service

Frequently Asked Questions - ZX3 Bogen

What is the Bogen ZX3?

The Bogen ZX3 is a 3-Zone Expansion Module designed for the UTI312 Universal Telephone Interface system, providing up to 150 self-amplified speakers per zone.

How many ZX3 modules can be installed in a UTI312?

The UTI312 can accommodate up to four ZX3 modules in its module bay.

How do I set the music source for a zone?

Use the onboard jumpers to select Music Bus A, Music Bus B, or No music for each zone before installing the module.

What is the warranty period for the ZX3?

The ZX3 is warranted for 2 years from the date of sale to the original purchaser against defects in material or workmanship.

How do I obtain warranty service?

Ship the product insured and prepaid to the Bogen Factory Service Department at 50 Spring Street, Ramsey, NJ 07446, USA, with a Return Authorization number.

What is not covered by the warranty?

Damage from abuse, misuse, improper installation, modification, or unauthorized repair is not covered. Also, if the serial number is removed, the warranty is void.

Can I repair the ZX3 myself?

No, the ZX3 should only be serviced by the Bogen Factory Service Department or authorized personnel to maintain warranty and safety.

What tools are needed for installation?

Basic tools such as a screwdriver for the mounting screws. No special tools are required; the module slides into the UTI312 card guides.

How do I know which zones correspond to each slot?

Each module slot on the UTI312 is marked on the lower left-hand corner to indicate the corresponding zone numbers for that slot.

Where can I find more information about the ZX3?

Refer to the UTI312 manual for additional details on ZX3 capabilities, configuration, and use.

USER MANUAL ZX3 Bogen

3-Zone Expansion Module

Description

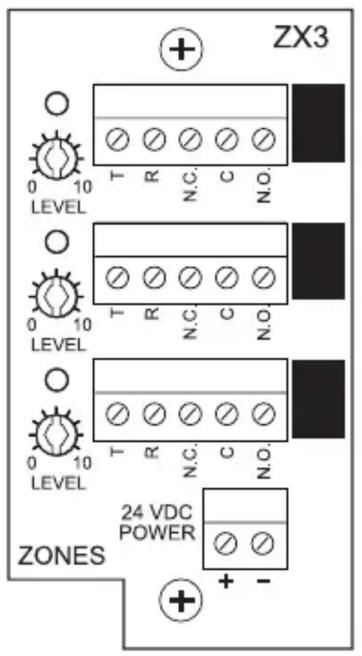

Each ZX3 module provides 3 zones of paging capability (up to 150 self-amplified speakers) to the UTI312 Universal Telephone Interface system.

Installation

The UTI312 module bay can accommodate up to four ZX3 modules. Each module slot on the UTI312 is marked on the lower left-hand corner to indicate which zones correspond with each slot.

1. Before installing, select Music Bus A or B or no music for each zone using the jumpers.
2. Slide the ZX3 module into the card guides and push the module all the way home.
3. Install the top and bottom mounting screws.

See UTI312 manual for additional information on ZX3 capabilities and use.

Limited Warranty

The ZX3 is warranted to be free from defects in material or workmanship for two (2) years from the date of sale to the original purchaser. Any part of the product covered by this warranty that, with normal installation and use, becomes defective will be repaired or replaced by Bogen, at our option, provided the product is shipped insured and prepaid to: Bogen Factory Service Department, 50 Spring Street, Ramsey, NJ 07446, USA. The product will be returned to you freight prepaid. This warranty does not extend to any of our products that have been subjected to abuse, misuse, improper storage, neglect, accident, improper installation or have been modified or repaired or altered in any manner whatsoever, or where the serial number or date code has been removed or defaced.

THE FOREGOING LIMITED WARRANTY IS BOGEN'S SOLE AND EXCLUSIVE WARRANTY AND THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY. BOGEN MAKES NO OTHER WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, AND ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED AND EXCLUDED TO THE MAXIMUM EXTENT ALLOWABLE BY LAW. Bogen's liability arising out of the manufacture, sale or supplying of products or their use or disposition, whether based upon warranty, contract, tort or otherwise, shall be limited to the price of the product. In no event shall Bogen be liable for special, incidental or consequential damages (including, but not limited to, loss of profits, loss of data or loss of use damages) arising out of the manufacture, sale or supplying of products, even if Bogen has been advised of the possibility of such damages or losses. Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

Products that are out of warranty will also be repaired by the Bogen Factory Service Department -- same address as above or call 201-934-8500. The parts and labor involved in these repairs are warranted for 90 days when repaired by the Bogen Factory Service Department. All shipping charges in addition to parts and labor charges will be at the owner's expense. All returns require a Return Authorization number.

07/20/2004
