CJ-083 - Vacuum Cleaner Ecron - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Brand	Ecron
Model	CJ-083
Dimensions (L x W x H)	Approximately 40 x 30 x 30 cm (15.7 x 11.8 x 11.8 in)
Weight	Approximately 5 kg (11 lbs)
Power Supply	1200W, 220-240V, 50/60Hz
Dust Capacity	2.0 L (bag or bagless, not specified)
Filtration System	HEPA filter (washable)
Noise Level	Approximately 75 dB
Cable Length	5 m (16.4 ft)
Operating Positions	Vertical and horizontal
Main Functions	Dry vacuuming, dust extraction
Included Accessories	Crevice tool, brush, hose, extension tube
Maintenance	Regularly empty dust container or replace bag; wash HEPA filter every 3 months; check for blockages
Safety Features	Overheat protection, automatic shut-off
Repairability	Replaceable filters, accessories; motor and electrical parts serviceable by qualified technician
Certifications	CE, RoHS

Frequently Asked Questions - CJ-083 Ecron

How do I assemble the vacuum cleaner?

Attach the hose to the main body, then connect the extension tube and desired nozzle. Refer to the manual's assembly diagrams.

How do I switch between vertical and horizontal positions?

The vacuum can be operated in vertical position for upright cleaning or horizontal for reaching under furniture. Move the locking latch to adjust.

How often should I empty or replace the dust bag?

Empty or replace when the dust reaches the 'MAX' line or when suction noticeably drops. Typically every 2-4 weeks depending on usage.

How do I clean the filter?

Remove the HEPA filter and tap gently to remove loose dust. Wash with lukewarm water and let it air dry completely before reinserting. Do not use detergent.

What should I do if the vacuum loses suction?

Check if the dust bag is full, the filter is clogged, or the hose/attachment is blocked. Clear any obstructions and ensure all parts are properly fitted.

How do I unclog the hose?

Disconnect the hose from the vacuum and use a long, flexible object (e.g., broom handle) to gently push out the blockage. Do not use sharp objects.

Can I use the vacuum for wet messes?

No, this vacuum is designed for dry vacuuming only. Using it for liquid can damage the motor and filter.

How do I store the vacuum?

Wrap the cord around the cord hooks, store the hose and attachments in a dry place. Keep the vacuum in an upright position to save space.

What attachments are included and what are they used for?

Included: crevice tool for tight spaces, brush for delicate surfaces, and combination nozzle for general cleaning. Attach as needed.

Is the vacuum safe to use around pets or children?

Yes, when used as directed. Keep the cord away from children and avoid vacuuming near pet toys or loose items that could get tangled.

USER MANUAL CJ-083 Ecron

Line drawing of a vacuum cleaner with attached hose and control panel (no text or symbols)

ASPIRADORA

Xtremecleaner

CJ-083

(Fig. 1)

(Fig. 2)

(Fig. 3)

FUNCIONAMIENTO

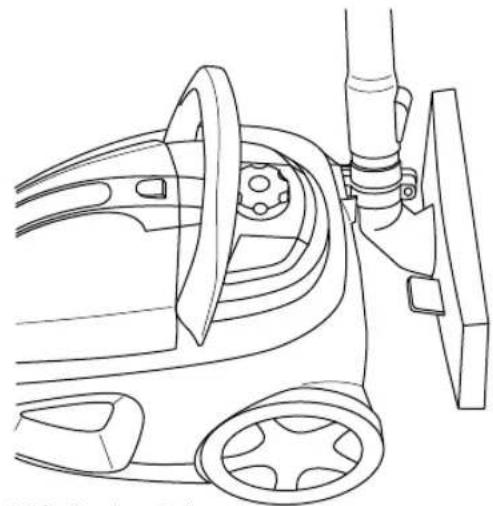

Line drawing of a mechanical device with no visible text or symbols

Posición vertical

Line drawing of a mechanical device with wheels and a handle (no text or symbols)

Posición horizontal

EXTRACCION DEL POLVO

Nota

Line drawing of a hand inserting a component into a device housing (no text or symbols)

(Fig. 7)

Line drawing of a hand using a handheld device to lift a bucket into a container (no text or symbols)

(Fig. 8)

(Fig. 9)

Line drawing of a mechanical clamp or bracket with two square components (no text or symbols)
