Product Type	Canister Vacuum Cleaner
Model	HV-120 KA
Brand	Koblenz
Power Consumption	1200 W
Suction Power	Adjustable up to 300 AW
Dust Capacity	2.5 L
Filtration System	HEPA HEPA H13 Filter
Cord Length	6 m
Operating Radius	9 m
Dimensions (L x W x H)	40 x 28 x 30 cm
Weight	5.2 kg
Noise Level	72 dB(A)
Included Accessories	Crevice tool, brush, upholstery nozzle
Bag Type	Reusable cloth bag
Power Cord Type	Automatic retractable
Maintenance	Clean filters every 3 months
Safety Features	Overheat protection, thermal cut-off
Repairability Index	7.5/10

Frequently Asked Questions - HV-120 KA Koblenz

How do I replace the HEPA filter on my Koblenz HV-120 KA?

To replace the HEPA filter, first unplug the vacuum. Open the filter compartment located on the back of the canister. Remove the old filter and insert the new HEPA H13 filter. Close the cover securely.

What does it mean when the vacuum cleaner overheats and shuts off?

The Koblenz HV-120 KA has an overheat protection feature. If it shuts off, allow it to cool for at least 30 minutes. Check for blockages in the hose, filter, or dust bag. Ensure the filter is clean.

Can I use the Koblenz HV-120 KA to pick up liquids?

No, this is a dry vacuum cleaner only. Using it to pick up liquids can damage the motor and void the warranty.

How often should I clean the filters?

For optimal performance, clean the HEPA filter every 3 months. The exhaust filter should be washed every 6 months. Let them dry completely before reinstalling.

What is the capacity of the dust bag?

The dust bag has a capacity of 2.5 liters. Replace the bag when it appears full or when suction is reduced.

How do I release the power cord?

The power cord is automatic retractable. To release, pull the cord to the desired length. To retract, press the cord rewind button with one hand and guide the plug with the other.

Does the Koblenz HV-120 KA come with a warranty?

Yes, this vacuum cleaner comes with a 1-year limited warranty against manufacturing defects. Keep your receipt.

What accessories are included?

The package includes a crevice tool, a dusting brush, and an upholstery nozzle for versatile cleaning.

Where can I find replacement bags and filters?

Replacement bags and HEPA filters are available at authorized Koblenz dealers or online. Use only genuine parts for best performance.

Why is the vacuum losing suction?

Loss of suction can be due to a full dust bag, clogged filter, or blockage in the hose. Check and clean these components. Also ensure the hose is not punctured.

USER MANUAL HV-120 KA Koblenz

This warranty gives you specific legal rights, and you may also have other rights that vary from state to state. This product is warranted against malfunctions and defects in material and workmanship for a period of one year for domestic use.

THIS WARRANTY SHALL NOT APPLY to any products or parts there of which have been damaged by tampering, misuse or abuse or which have been altered or repaired by an unauthorized person or service center.

THIS WARRANTY SHALL NOT APPLY to brushes or accessories since their life depends upon the amount of

FOR REPAIR the inoperative machine must be delivered with shipping and delivery charges prepaid together with satisfactory evidence of the purchase date to an authorized service center or Thorne Electric Company at the address that appears below. Koblenz will either repair or replace, at its election, all defective machines during the warranty period.

The foregoing obligations are in lieu of all other obligations and liabilities including negligence and state Koblenz's entire and exclusive liability and purchaser's exclusive remedy. Koblenz will in no event be liable for any direct, indirect, special, incidental or consequential damages or losses whatsoever. Koblenz's liability under no circumstances will exceed the contract price for the goods or parts for which liability is claimed. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above

may not apply to you.

Thorne Electric, Co.

610 Lanark Suite 205

San Antonio, TX.

78218-0363 U.S.A.

Tel: [phone]

Made in Mexico

Canada Call:

Tel: [phone]

GARANTÍA

Line drawing of two different handwashers with control knobs and buttons (no text or symbols)

For models / Para modelos:

HV-12-HDN, HV-120-HDB, HV-120 KA, HV-120-HD, HV-120 HDC, HV-120 CM, HV-120 KAS,

HV-120-KG2, HV-120-ST

Congratulations!

You have just purchased a Koblenz ^® Vacuum Cleaner. Please read this manual carefully before operating the machine. Model and serial number may be found on the back of your vac. You should record both model and serial numbers to and keep them in a safe place for future use. Keep this manual.

Felicidades!

IMPORTANT SAFETY INFORMATION

This owner's manual contains IMPORTANT SAFETY INSTRUCTIONS. First and foremost, when using a 120 volt appliance, basic precautions should always be followed, including the following:

1. Do not use to pick up flammable or combustible liquids, such as gasoline or use in areas where such items may be present.
2. Use products only as described in this manual, use only manufacture's recommended attachments.
3. Do not pick up anything that is burning or smoking; such as cigarettes, matches or hot ashes.
4. Do not leave vacuum plugged in. Unplug from outlet when not in use and before servicing.
5. Turn unit off before unplugging.
6. Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, lint hair and anything that may reduce airflow.
7. Do not use without filter in place
8. Do not allow vacuum to be used as a toy, or to run unattended at any time. If used by children or near them, close supervision is necessary.
9. Do not store outdoors
10. Do not use with damage cord or plug. If vacuum is not working as it should, or if it has been dropped, damaged, or sumerged into water, return it to an authorized service center.
11. Do not pull or carry by cord, use cord as a handle, close a door on a cord or pull cord around sharp edges or corners, do not run vacuum over cord. Keep away from heated surfaces.
12. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
13. Do not unplug or vacuum with wet hands. Use extra care when cleaning stairs
14. Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts
15. Do not use to pick up any liquids
16. If the line cord is damaged it must be replaced by the manufacturer or an authorized center

OPERATION

1. Connect the power plug to the electricity outlet.
2. Push the power switch forward to operate.
   Unit will continue to run as long as the power switch is held forward.
3. To use with accessories firmly push accessory into the open end of dust cup.

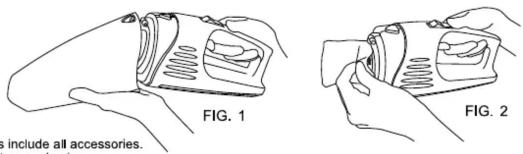

4. To empty dust cup, press the release button and remove the dust cup by pulling it downward away from the unit (Fig. 1).
5. Empty the cup and brush off the filter. The filter may be removed, (Fig. 2) and washed in water.
   Replace dust filter only after it is completely dry. Replace dust cup.
   NEVER OPERATE WITH FILTER OR DUST CUP REMOVED.
6. The body may be cleaned with dampened cloth. Do not clean with solvents.

a) Not all models include all accessories. Check side panel on packaging.

UNITS WITH STRECH HOSE

HV-120 KA, HV-120-HD, HV-120 HDC & HV-120 CM HAND VAC SPECIFICATIONS
The above models include the unit and a crevice tool.
Model HV-120 KAS includes: the unit and a stretch hose, upholstery tool and crevice tool. Model HV-120 ST includes: unit, metal handle, adaptor, upholstery tool and combination floor tool.
Power supply: 120 V 60 Hz 400 W
Operating Tem. (Environment): 40-100 degrees F (4-49°C)
Cord Length: 18 ft
