CompactCyclonic CA1400 - Vacuum Cleaner Somela - Free user manual and instructions

Product Type	Bagless Cyclonic Vacuum Cleaner
Model	CompactCyclonic CA1400
Brand	Somela
Dimensions (approx.)	28 x 25 x 35 cm
Weight	4.2 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	1400 W
Suction Technology	Cyclonic separation (bagless)
Filtration System	HEPA washable filter
Dust Container Capacity	1.5 L
Cord Length	5 m
Accessories Included	Crevice tool, brush nozzle, upholstery tool
Noise Level	78 dB
Filter Maintenance	Washable, clean every 3 months
Overheat Protection	Automatic shut-off
Housing Material	ABS plastic
Color	White and gray
Safety Certifications	CE, RoHS
Warranty	2 years
Origin	Chile (Somela S.A.)

Frequently Asked Questions - CompactCyclonic CA1400 Somela

How often should I clean the filter?

It is recommended to clean the HEPA filter every 3 months to maintain optimal suction. Wash with cold water and let it dry completely before reinstalling.

Why did my vacuum suddenly stop working?

The vacuum may have activated overheat protection. Turn off and unplug, let it cool for 30 minutes, then restart. Check for blockages in the hose or brush.

How do I empty the dust container?

Press the release button on the dust container and pull it out. Hold over a trash bin and press the bottom flap to empty. Rinse with water if needed.

Can I use the vacuum without a bag?

Yes, the CompactCyclonic CA1400 is bagless. Dirt collects in the transparent dust container. Empty when it reaches the MAX line.

What accessories are included?

The vacuum comes with a crevice tool for tight spaces, a brush nozzle for furniture, and an upholstery tool for fabrics.

How do I clean the cyclone unit?

Remove the dust container, then twist the cyclone separator to detach. Rinse with water and dry thoroughly before reassembly.

Is the filter washable?

Yes, both the pre-motor and HEPA filters are washable. Do not use detergent or put them in the dishwasher.

What should I do if suction is weak?

Check for clogged hose, full dust container, or dirty filter. Also ensure the brush roll is free of hair and debris.

Can I use extension cords?

Yes, but use a 14 AWG or heavier cord with a rating of at least 10 A. Keep the cord fully unwound to avoid overheating.

Where is the serial number located?

The serial number is on a label at the back of the vacuum body. It is needed for warranty service.

USER MANUAL CompactCyclonic CA1400 Somela

CompactCyclonic CA1400

Aspiradora sin bolsa

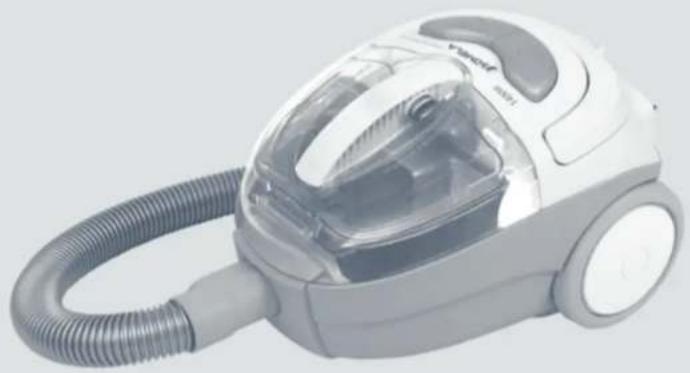

Exterior view of a white and gray vacuum cleaner with coiled hose (no text or symbols visible)

SOMELA

SOMELA S.A.

A. Escobar Williams 600, Cerritos Santiago - Chile Tel: [phone] Fax: [phone] E-mail: [e-mail] www.somela.cl

Close-up of a Canonica vacuum cleaner with coiled tube (no visible text or symbols)

Two line drawings of a mobile device with hands performing maintenance, labeled Fig. 9 and Fig. 10 (no text or symbols on the devices themselves)

Limpieza

Line drawing of a hand using a device to lift a cup (no text or symbols)
