Product Type	Gas Cooktop (Hob)
Brand	Haceb
Model	Appiani CE 30 2P RB 120
Fuel Type	LPG / Natural Gas (convertible)
Number of Burners	2
Burner Types	2 Semi-rapid burners
Dimensions (W x D x H)	28 cm x 48 cm x 12 cm (approx.)
Weight	8 kg (approx.)
Ignition	Electronic ignition (piezo or battery)
Safety Features	Flame failure safety device (thermocouple)
Control Type	Front knobs
Hob Surface Material	Stainless steel
Pan Supports	Removable cast iron grates
Warranty	2 years (refer to manual)
Installation Requirements	Gas connection by qualified technician
Gas Connection	1/2" BSP male thread
Cleaning	Wipe with damp cloth; avoid abrasive cleaners
Spare Parts Availability	Through Haceb authorized service centers
Certification	CE, GS (if applicable)
Power Supply for Ignition	1 x AA battery (not included)

Frequently Asked Questions - Appiani CE 30 2P RB 120 Haceb

How do I install the gas cooker?

Installation must be carried out by a qualified technician. Ensure the gas connection is secure and the area is well-ventilated. Refer to the manual for specific clearances and gas type requirements.

What type of gas can I use?

The cooker is designed for LPG (propane/butane) or natural gas. It may come pre-set for one type; conversion requires a kit and professional adjustment.

How do I clean the hob?

Clean with a soft damp cloth and mild detergent. Do not use abrasive cleaners or scouring pads. Dry thoroughly. Remove and clean pan supports separately.

What should I do if the flame is uneven?

Check that burner caps are correctly placed and clean. Ensure gas supply is steady. If problem persists, contact a technician.

How do I replace the battery for ignition?

Locate the battery compartment (usually on the back or bottom). Replace with one AA battery (1.5V), ensuring correct polarity.

Is the cooker safe to use around children?

Supervise children at all times. The hob surfaces become hot. Keep them away from the appliance during and after use.

What is the warranty period?

Haceb offers a 2-year warranty from the date of purchase. Keep your receipt and warranty card.

How do I convert from LPG to natural gas?

Conversion requires a specific kit (often available from Haceb). A qualified technician must adjust the gas regulator and burner nozzles.

Why does the gas smell?

Immediately shut off the gas supply and do not use any electrical switches. Ventilate the area. Check connections for leaks using soapy water. If smell persists, call a technician.

Can I use it with a gas cylinder?

Yes, but use an appropriate regulator (classified for LPG). Ensure the cylinder is placed in a ventilated area and away from heat sources.

USER MANUAL Appiani CE 30 2P RB 120 Haceb

Close-up of fresh leafy greens with visible stems, labeled 'Refer' in bottom right corner (no other text or symbols)

Referencias

CUB AP CG 90INOX 5P GN MF - CUB AP CG 70 INOX 5P GN MF CUB AS CG 60 INOX CROS GN MF - CUB AS CG 60 INOX LINE GN ML CUB AP CG 30 INOX 2P GN MF - CUB AP CM 90 INOX 4XI RB GN 120 CUB AP CE 30 INOX 2P RB 120 - CUB AP CE 30 INOX 2P RB 220 CUB ASSENTO 64 GAS 4P INOX GP - CUB ASSEN 75 GAS 5P INOX WOK GP

ÍNDICE

GARANTÍA....2

CUB AP CG 90 INOX 5P GN MF

Line drawing of a gas stove with four panes and control knobs (no text or symbols)

CUB ASCG60INOX CROS GN MF

4 Puestos a gas

Top-down diagram of a gas stove with four panes and control buttons (no text or symbols)

IMPORTANTE

Illustration of a four-gas stove with four panes and control knobs (no text or symbols)

CUB AP CG 70 INOX 5P GN MF CUB ASSEN 75 GAS 5P INOX WOK GP

5 Puestos a gas

Line drawing of a gas stove with four fans and three internal chambers, labeled Figura 7 (no text or symbols on the stove itself)

CUB AP CG 30 INOX 2P GN MF

2 Puestos a gas.

Illustration of a gas stove with three chambers and a side vent (no text or symbols)

CUB AP CM 90 INOX 4XIRB GN 120

4 Puestos a gas

2 Quemadores semirápidos

Line drawing of a gas stove with three fans and a central vent (no text or symbols)

CUB AP CM 30 INOX 2P RB 120

Illustration of a portable stove with two circular top fixtures and three small blocks on the front panel (no text or symbols)

CUB AP CE 30 INOX 2P RB 220

Illustration of a portable electric stove with two circular top covers and a side-mounted control panel (no text or symbols)

Illustration of a gas stove with a pipette and paper base, no text or symbols present

Illustration of a hand holding a small object over a flat surface, labeled 'Figura 26.' (no text or symbols on the diagram itself)

Modelo	Ancho x Profundo
CUB AP CG 90 INOX 5P MF	75 x43
CUB AS CG 60 INOX CROS MF	55 x47
CUB AS CG 60 INOX LINE ML	55.5x47.5
CUB ASSENTO 64 GAS 4P INOX GP	55.5x47.5
CUB AP CG 70 INOX 5P MF	56x47.5
CUB ASSEN 75 GAS 5P INOX WOK GP	56x47.5
CUB AP CG 30 INOX 2P MF	28x47.7
CUB AP CM 90 INOX 4XI RB	76x47.5
CUB AP CE INOX 2P RB | 20	28x48
CUB AP CE INOX 2P RB 220	28x48

3D diagram of a mechanical component with two circular features and downward arrows indicating force or movement (no text or symbols)

Illustration of a hand holding a cup with a curved arrow indicating rotation (no text or symbols)

Illustration of a hand pressing a button on a curved surface with directional arrows indicating motion (no text or symbols)

ADVERTENCIA

Illustration of a hand holding a cup with an arrow indicating rotation (no text or symbols)

Illustration of hands holding a cup with a prohibition symbol and curved arrows indicating motion (no text or symbols on the diagram itself)

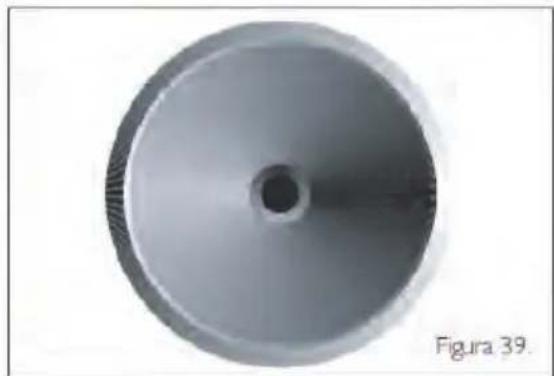

Circular mechanical component with a central hole, labeled 'Figura 39.' (no other text or symbols visible)

ADVERTENCIA

Abstract 3D letter 'S' shape with gradient shading (no text or symbols)
