Product Type	Upright Vacuum Cleaner
Model	AirSpeed AS3030A
Brand	Eureka
Dimensions (H x W x D)	107 cm x 30 cm x 25 cm
Weight	5.8 kg
Power Supply	120 V, 60 Hz, 12 A
Power Cord Length	7.6 m
Suction Power	12 kPa (max)
Dust Capacity	1.5 L (bagless)
Filtration System	HEPA media filter
Cleaning Path Width	28 cm
Brush Roll	Motorized with on/off switch
Attachments Included	Crevice tool, dusting brush, upholstery tool
Height Adjustment	5 positions for different carpet heights
Handle Type	Ergonomic with fingertip controls
Maintenance	Empty dust cup after each use; clean filter monthly; replace filter every 6 months
Filter Type	Washable foam filter and HEPA filter
Safety Features	Motor thermal overload protection; cord strain relief
Spare Parts Available	Filters, belt, brush roll, dust cup assembly
Repairability	User-replaceable parts: belt, filters, brush roll; authorized service for motor
General Information	Upright vacuum for carpets and hard floors; bagless operation; multi-surface adjustment

Frequently Asked Questions - AirSpeed AS3030A EUREKA

How do I empty the dust cup?

Press the release button on the dust cup handle, then pull the dust cup away from the vacuum. Hold over a trash bin and press the bottom release to empty. Rinse the dust cup with water if needed, and let it dry completely before reattaching.

How often should I clean or replace the filter?

Clean the foam filter every month under running water and let it dry for 24 hours. Replace the HEPA filter every 6 months or sooner if visibly dirty. Never operate the vacuum without all filters in place.

What should I do if the brush roll stops spinning?

First, check if the brush roll switch is on. Then turn off and unplug the vacuum. Remove the brush roll cover and clear any hair or debris wrapped around the brush roll. If the belt is broken, replace it. If the motor is seized, contact customer support.

Can I use this vacuum on hard floors?

Yes, the AirSpeed AS3030A has a height adjustment setting for hard floors. Turn the dial to the lowest setting to avoid scratching. You can also turn off the brush roll if you prefer not to use it on delicate surfaces.

The vacuum loses suction. What could be wrong?

Check if the dust cup is full and empty it. Inspect the filters for clogs and clean or replace them. Also examine the hose and attachments for blockages. A full dust cup or dirty filter is the most common cause.

How do I replace the belt?

Turn off and unplug the vacuum. Remove the brush roll cover and take out the brush roll. Remove the old belt from the motor shaft and brush roll. Thread the new belt around the motor shaft and brush roll, then reassemble. Refer to the manual for a diagram.

What attachments come with the vacuum?

The package includes a crevice tool for tight spaces, a dusting brush for delicate surfaces, and an upholstery tool for furniture. These attach to the hose or wand as needed.

How do I adjust the height for different carpet types?

Locate the height adjustment dial on the front of the vacuum base. Turn the dial to one of five positions: low for bare floors, medium for short carpet, high for thick carpet. Adjust while the vacuum is upright and parked.

The vacuum overheats and shuts off. What should I do?

This indicates a blockage or full dust cup. Turn off and unplug the vacuum. Empty the dust cup and clean the filters. Check the hose and attachments for obstructions. Allow the vacuum to cool for 30 minutes before restarting.

Where can I purchase replacement parts?

Replacement parts such as filters, belts, and brush rolls are available on the Eureka website or from authorized retailers. Use only genuine Eureka parts to ensure compatibility and performance.

USER MANUAL AirSpeed AS3030A EUREKA

Thank you for purchasing your new Eureka vacuum!

Important instructions

To view an assembly video, go to Eureka.com/videos or scan QR code. If you have questions about your

new vacuum, please contact our customer service helpline at 1-800-282-2886. We're here to help!

8 a.m. to 7:30 p.m. (CST), Monday - Friday 10 a.m. to 6:30 p.m. (CST), Saturday - Sunday

Promotional code: eurekaad15

Special Offer – receive 15% off parts and accessories when ordering online. Promotion excludes vacuums.

8 a.m. a 7:30 p.m. (CST), de lunes a viernes 10 a.m. a 6:30 p.m. (CST), sábado y domingo

© 2014 Electrolux Home Care Products, Inc. Printed in China PN88305_rev1

eureka®

Where to find important vacuum information

Keep this information

Write the model, type and serial number here:

Date of purchase (keep your receipt) ____

Model number and type ____

Serial number ____

Find these numbers on a label on the middle back side of the vacuum cleaner. Refer to these numbers when ordering parts and accessories or if service is needed.

Close-up of a black industrial vacuum cleaner with a white arrow pointing to a component (no visible text or symbols)

Before you start your vacuum cleaner

Refer to Quick Start Guide for assembly and use. This Owner's Guide provides important instructions to prolong the life of your Eureka vacuum cleaner.

Registration: To register your product visit www.eureka.com and click on the 'Register Your Product' link in the top right corner.

Inspection: Carefully unpack and inspect your new Eureka vacuum cleaner for shipping damage. Each unit is tested and thoroughly inspected before shipping. For instructions regarding any shipping damage, call Eureka Customer Service HELPLINE 1-800-282-2886 immediately.

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER WARNING

To reduce the risk of fire, electric shock, or injury:

• Do not use outdoors or on wet surfaces.
• Do not leave vacuum cleaner when plugged in. Turn off the switch and unplug the electrical cord when not in use and before servicing.

• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

• Use only as described in this manual. Use only manufacturer's recommended attachments.

• Do not use with damaged cord or plug. If vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center before using.
• Do not pull or carry by cord. Do not use cord as a handle. Do not close a door on cord or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.
• Do not use extension cords or outlets with inadequate current carrying capacity.
• Turn off all controls before unplugging.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Cord rewind models: Hold plug when rewinding into cord reel. Do not allow plug to whip when rewinding.
• Do not handle plug or vacuum cleaner with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
• This vacuum cleaner creates suction and contains a revolving brush roll. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not place vacuum cleaner on furniture or stairs as the brush roll may cause damage. Use extra care when cleaning stairs. Place vacuum cleaner on floor with the handle in storage position while using attachments.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without dust cup, filter, screen and exhaust filter in place.
• Belt pulleys can become hot during normal use. To prevent burns, avoid touching the belt pulley when servicing the drive belt.
• Do not use to pick up flammable or combustible liquids such as gasoline, or use in areas where they may be present.
• Store your vacuum cleaner indoors in a cool, dry area.
• Keep your work area well lighted.
• Unplug electrical appliances before vacuuming them.
• Unplug before connecting turbo nozzle.

SAVE THESE INSTRUCTIONS

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

Motor

Do Not Oil the motor or the brush roll at any time. The bearings are permanently lubricated and sealed.

Eureka Customer Service HELPLINE 1-800-282-2886

www.eureka.com 3

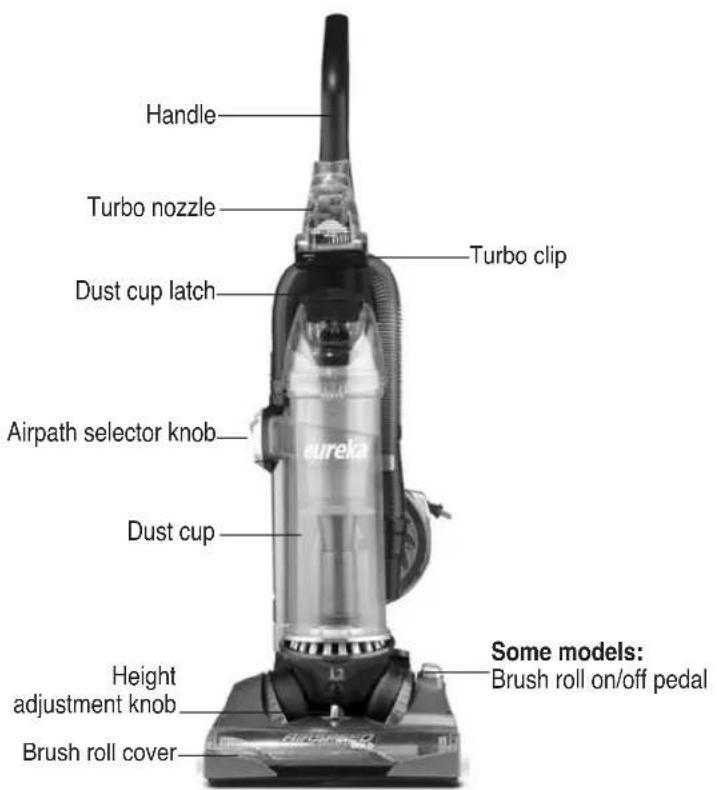

How to identify parts of your vacuum cleaner

NOTE: For further instructions, see Owners Guide at www.eureka.com

Problem solving

Make sure vacuum is turned off and power cord is unplugged.

A NOTICE: Thermal cut-off

This vacuum cleaner has a special thermostat that protects the vacuum in case of motor overheating. If the vacuum suddenly shuts off, proceed as follows: 1) Push the power switch to off and unplug the vacuum. 2) Check the vacuum for a possible source of overheating such as a full dust cup, blocked hose or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum. 3) After the 30 minute period, plug the vacuum back in and turn on the switch. If the vacuum still does not work, call the Eureka customer service helpline.

Problem	Solution
Motor will not start.	Push plug securely into outlet, try another outlet or check circuit breaker.Step on power switch to turn vacuum on.See detailed "thermal cut-off" instructions above.
Vacuum does not clean carpet or bare floor.	Turn air path selector knob to 'FLOORS.'Empty dust cup, clean and/or change filter.Clean or replace filters regularly to maintain suction. See www.eureka.com.
No suction at the end of hose.	Make sure airpath selector knob is set to 'TOOLS.'Remove clogs from the hose that restrict the airflow. See www.eureka.com.See other solutions above.
Burning smell; brush roll will not turn.	Check brush roll for debris.Replace broken or out of shape belt. See www.eureka.com.
Cord will not rewind fully.	Pull out entire cord removing any kinks, and push cord rewind button to rewind completely.
Turbo nozzle will not turn.	Check turbo nozzle for debris.Make sure air path selector knob is set to 'TOOLS.'
Vacuum is hard to push.	Adjust vacuum height knob to a higher position.

The Eureka limited warranty

Eureka warrants this vacuum cleaner to be free from defects in material and workmanship for a term of three years for normal household use. Warranty is granted only to the original purchaser and members of immediate household.

This warranty is good for three years from the date of purchase only when the vacuum cleaner is used in the accordance with Eureka operating instructions. Note: refurbished or remanufactured products have a one year limited warranty.

This warranty does not cover

Parts of the vacuum that require replacement under normal use such as disposable dust bags, filters, drive belts, light bulbs, brush roll, bristles, impellers and cleaning.

• Damages or malfunctions caused by negligence, abuse, and use not in accordance with the Owner's Guide.
• Defects or damages caused by unauthorized service or the use of other than Genuine Eureka, ARM & HAMMER™ and Filtrete™ by 3M parts.

What Eureka will do

Eureka will, at its option, repair or replace a defective vacuum or vacuum part that is covered by this warranty. As a matter of warranty policy, Eureka will not refund the consumer's purchase price.

Obtaining warranty service

To obtain warranty service you must return the vacuum or vacuum part along with "proof of purchase" to any Eureka Authorized Warranty Station. For Eureka Authorized Warranty Station or Service Information, visit www.eureka.com, write or telephone toll free:

USA: 1-800-282-2886

Electrolux Home Care North America Service Division P.O. Box 3900 Peoria, IL 61612

Mexico: (55) 5343-4384

Electrolux Home Care

Canada: 1-800-282-2886

Electrolux Home Care

North America Service Division

5855 Terry Fox Way

Mississauga, Ontario L5V 3E4

Obtaining warranty service outside your community

You must pay the shipping charges to the Eureka Authorized Warranty Station.

Return shipping charges will be paid by the Warranty Station. When returning parts for repair, please include the model, type and serial number located on the rating plate on the lower backside of the vacuum.

Further limitations and exclusions

Any warranty that may be implied in connection with your purchase or use of the vacuum, including any warranty of Merchantability or any warranty for Fitness For A Particular Purpose is limited to the duration of this warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.

Your relief for the breach of this warranty is limited to the relief expressly provided above. In no event shall the manufacturer be liable for any consequential or incidental damages you may incur in connection with your purchase or use of the vacuum.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights. You may also have other rights, which may vary by state.
