Brand	KitchenAid
Model	720-0826
Product Type	Gas Barbecue Grill
Fuel Type	Liquid Propane (LP) or Natural Gas (NG) convertible
Main Burners	3 stainless steel burners
BTU Output	Total 30,000 BTU (approx.)
Cooking Area	450 sq. in. primary + 150 sq. in. warming rack
Ignition	Electronic ignition with push-button start
Cooking Grates	Porcelain-coated cast iron
Material	Stainless steel hood and cart
Dimensions (L x W x H)	48 x 24 x 45 inches (approx.)
Weight	85 lbs (approx.)
Side Burner	One side burner (10,000 BTU)
Grease Management	Removable grease tray and drip pan
Thermometer	Built-in lid thermometer
Wheels	4 locking caster wheels
Assembly Required	Yes, basic tools needed
Warranty	Limited lifetime for burners, 5 years for other parts

Frequently Asked Questions - 720-0826 KITCHENAID

What is the fuel type for KitchenAid 720-0826?

The KitchenAid 720-0826 is a gas barbecue grill that can be used with liquid propane (LP) or converted to natural gas (NG) using a conversion kit (sold separately).

How do I clean the cooking grates?

After grilling, brush the porcelain-coated cast iron grates with a brass wire brush while warm. For deep cleaning, remove grates and wash with mild soap and water, then dry thoroughly and apply a thin layer of cooking oil to prevent rust.

What is the total cooking area?

The primary cooking area is 450 square inches, plus a 150 square inch warming rack, providing a total cooking space of 600 square inches.

How do I replace the propane tank?

Ensure all burners are off and the gas is shut at the tank. Disconnect the regulator from the old tank, remove it, and attach the new tank. Hand-tighten the regulator nut, then leak-test the connection with soapy water while the tank valve is open (no bubbles = safe).

Does the grill have a side burner?

Yes, it includes a 10,000 BTU side burner on the left side, perfect for sauces or side dishes.

Is assembly difficult?

Assembly is moderate and typically takes 1-2 hours with two people. The manual provides step-by-step instructions and a list of required tools (screwdriver, wrench).

What is the warranty coverage?

The stainless steel burners have a limited lifetime warranty against rust-through. Other parts (hood, cart, grates) are covered for 5 years from the date of purchase.

Can I use the grill in cold weather?

Yes, but allow extra preheat time (15-20 minutes) for the thermometer to reach desired temperature. Keep the grill sheltered from wind for best performance.

How do I maintain the grease tray?

Remove and empty the grease tray after each use to prevent flare-ups. Wash it with warm soapy water and place aluminum foil for easier cleanup. Check the drip pan underneath regularly.

Where can I find replacement parts?

Authorized KitchenAid parts retailers or the KitchenAid website. Use the model number 720-0826 to order specific parts like burners, grates, or the ignition module.

USER MANUAL 720-0826 KITCHENAID

Installation Instructions and Use & Care Guide

For questions about features, operation/performance, parts, accessories or service, call: 1-877-373-2301 or visit our website at www.Kitchenaidgrills.com

Tools and Parts....5

Location requirements.... 5

Product Dimensions....6

Electrical Requirements....6

Gas Supply Requirements....7

Gas Connection Requirements....8

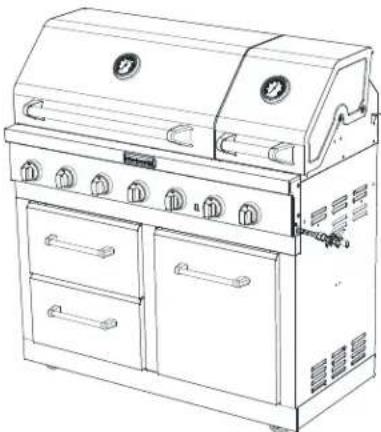

PACKAGE CONTENTS LIST ......9

REPLACEMENT PARTS.... 10

INSTALLATION INSTRUCTIONS.... 13

Freestanding Outdoor Grill Installation....13

Make Gas Connection....17

GAS CONVERSION....18

Tools and Parts for Gas Conversion.... 18

Conversion from LP Gas to Natural Gas.... 19

Check and Adjust the burners....23

OUTDOOR GRILL USE....24

Using Your Outdoor Grill.... 24

Prepare Your Grill for Lighting.... 25

TIPS FOR OUTDOOR GRILLING....29

Cooking Methods....29

Grilling Chart.... 30

OUT DOOR GRILL CARE.... 32

Replacing the Igniter Battery.... 32

Changing the Grill Light Bulb....32

General Cleaning....33

TROUBLE SHOOTING.... 35

ASSISTANCE.... 35

WARRANTY....36

ÍNDICE

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

!DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

DANGER

If you smell gas:

1.Shut off gas to the appliance.

1. Extinguish any open flame.

3.Open lid.

1. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department

WARNING

1. Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.

2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

In the State of Massachusetts, the following installation instructions apply:

■ Installations and repairs must be performed by a qualified or licensed contractor, plumber, or gasfitter qualified or licensed by the State of Massachusetts.
■ If using a ball valve, it shall be a T-handle type.
■ A flexible gas connector, when used, must not exceed 3 feet.

IMPORTANT: This grill is manufactured for outdoor use only. For grills that are to be used at elevations above 2,000ft (609.6 m) orifice conversion is required. See "Gas Supply Requirements" section. It is the responsibility of the installer to comply with the minimum installation clearances specified on the model/serial rating plate. The model/serial rating plate for freestanding models can be found on the inside cabinet door.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electrical shock, Injury to persons, or damage when using the outdoor cooking gas appliance, follow basic precautions, including the following:

■ Do not install portable or built-in outdoor cooking gas appliances in or on a recreational vehicle, portable trailer, boat or in any other moving installation.
■ Always maintain minimum clearances from combustible construction, see “Location Requirements” section.
■ The outdoor cooking gas appliance shall not be located under overhead unprotected combustible construction.
■ This outdoor cooking gas appliance shall be used only outdoors and shall not be used in a building, garage, or any other enclosed area.
- Keep any electrical supply cord and fuel supply hose away from any heated surfaces.
- Keep outdoor cooking gas appliance area clear and free from combustible material, gasoline and other flammable vapors and liquids.
■ Do not obstruct the flow of combustion and ventilation air. Keep the ventilation openings of the cylinder enclosure free and clear from debris.

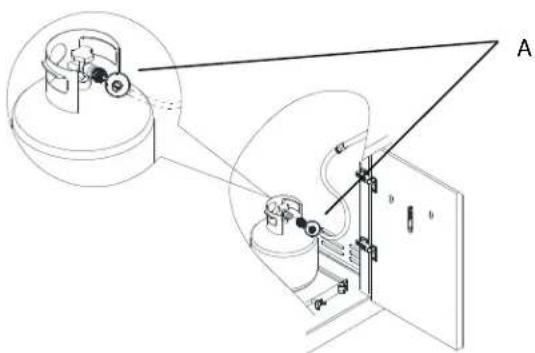

■ Open the cabinet door and Inspect the gas cylinder supply hose before each use of the outdoor cooking gas appliance. If the hose shows excessive abrasion or wear, or is cut, it MUST be replaced before using the outdoor cooking gas appliance. Contact your dealer and use only replacement hoses specified for use with the outdoor cooking gas appliance.
■ Visually check the burner flames. They should be blue. Slight yellow tipping is normal for LP gas. The flames should Be approximately 1" (2.5 cm) high
■ Check and clean burner/venturi tube for insects and insect nest. A clogged tube can lead to fire under the outdoor cooking gas appliance.

■ The LP gas supply cylinder to be used must be:
- constructed and marked in accordance with the Specification for LP Gas cylinders of the U.S. Department of Transportation (DOT) or the National Standard of Canada, CAN/CSA-b339, Cylinders, Spheres, and Tubes for Transportation of Dangerous Goods; and Commission.
- provided with a listed overfilling prevention device. - provided with a cylinder connection device compatible with the connection for outdoor cooking gas appliances.
■ Always check connections for leaks each time you connect and disconnect the LP gas supply cylinder. See "Installation Instructions" section.
■ When the outdoor cooking gas appliance is not in use, the gas must be turned off at the supply cylinder.
■ Storage of an outdoor cooking gas appliance indoors is permissible only if the cylinder is disconnected and removed from the outdoor cooking gas appliance Cylinders must be stored outdoors and out of the reach of children and must not be stored in a building, garage, or any other enclosed area.
■ The pressure regulator and hose assembly supplied with the outdoor cooking gas appliance must be used. A replacement pressure regulator and hose assembly specific to your model is available from your outdoor cooking gas appliance dealer.
■ Gas cylinder must include a collar to protect the cylinder valve.

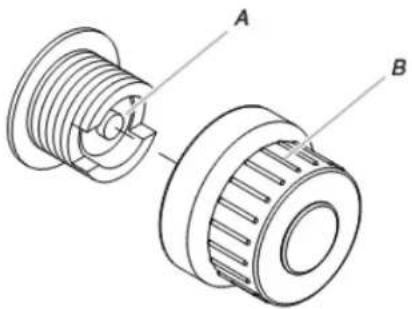

■ For appliances designed to use a CGA791 Connection: Place a dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result in leakage of propane.
If the following information is not followed exactly, a fire causing death or serious injury may occur.
■ Do not store a spare LP gas cylinder under or near this outdoor cooking gas appliance.
■ Never fill the cylinder beyond 80 percent full.

SAVE THESE INSTRUCTIONS

Installation Requirements

Tools and Parts

Gather these required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools needed

■ Phillip screwdriver
■ Wrench or pliers
■ Pipe wrench

■ Scissors or cutting pliers (to remove tie-downs)
■ Noncorrosive leak-detection solution

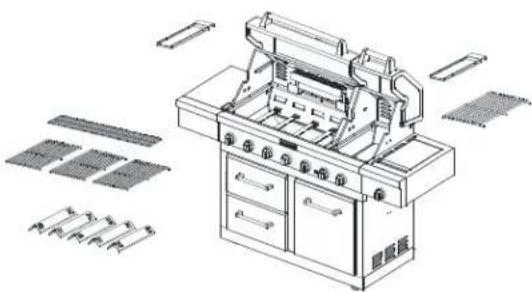

Parts Supplied

■ Gas pressure regulator/hose assembly set for 11" WCP LP gas
■ Side shelf, left
■ Side burner assembly
■ "AA" Battery (1)

■ Warming rack
■ Cooking grids with hole
■ Main burner grease tray
■ Sear burner grease tray
■ Flame tamers

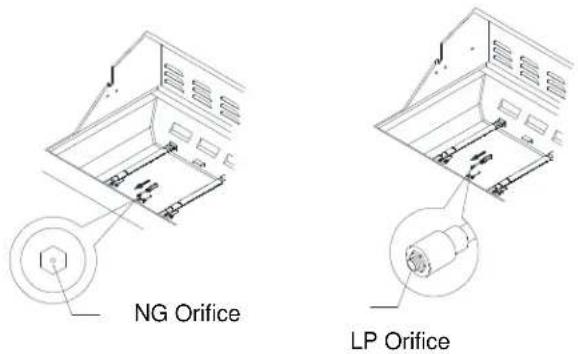

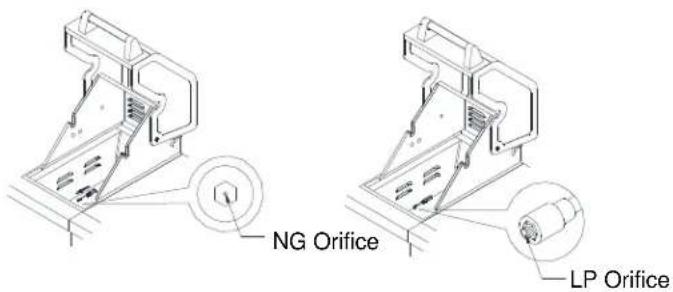

■ Natural gas orifice for sear burner, side burner and rear burner

Parts Needed

■ 20 lb LP gas fuel tank-approximately 18" (45.7cm) height.

Parts Needed for Conversion to Natural Gas

■ Natural gas conversion kit Part Number 710-0003. See
■ "Assistance" section to order. The conversion kit includes:

• Natural gas regulator 4" W.C. (marked "Natural Gas Regulator")
• 10 ft (3.0 m) Natural gas hose with quick connector
• 5.9" (150 mm) Natural gas regulator hose
• 6 mm nut driver
• 6 mm wrench
• Hex key

■ Gas line shutoff valve
■1/2" male pipe thread nipple for connection to pressure regulator.
■ LP gas-resistant pipe-joint compound
■CSA design-certified outdoor flexible stainless steel appliance connector (4-5 ft [1.2-1.5 m]) or rigid gas supply line as needed.

Location Requirements

⚠ WARNING

Explosion Hazard

Do not store fuel tank in a garage or indoors.

Do not store grill with fuel tank in a garage or indoors.

Failure to follow these instructions can result in death, explosion, or fire.

WARNING

Fire Hazard

Do not use grill near combustible materials.

Do not store combustible materials near grill.

Doing so can result in death or fire.

Select a location that provides minimum exposure to wind and traffic paths. The location should be away from strong draft areas.

Do not obstruct flow of combustion and ventilation air.

Clearance to combustible construction for grill:

A minimum of 24" (61 cm) must be maintained between the front of the grill hood, sides and back of the grill and any combustible construction.
■ A 24" (61 cm) minimum clearance must also be maintained below the cooking surface, and the grill shall not be used under overhead combustible construction.

Product Dimension

Electrical Requirements

WARNING

Electrical Shock Hazard

Use only a UL listed, 14 gauge, 3 wire extension cord approved for outdoor use, marked W-A, with a maximum length of 50 ft.

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Failure to follow these instructions can result in death, fire, or electrical shock.

Electrical Requirements

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

Check with a qualified electrician if you are not sure whether the grill is properly grounded.

A 120-volt, 60-Hz, AC-only, 15-amp, fused electrical supply is required.

It is recommended that a separate circuit servicing only this grill be provided.

■ To avoid electrical shock, do not immerse cord or plugs in
■ water or other liquid.

■ Unplug from the outlet when not in use and before cleaning. Allow to cool before attaching or taking off parts.
■ Do not operate any outdoor cooking gas appliance with a damaged cord, damaged plug, or after the appliance malfunctions or has been damaged in any manner. Contact the manufacturer for repair.
■ Do not let the cord hang over the edge of a table or touch hot surfaces.
■ Do not use an outdoor cooking appliance for purposes other than intended.
■ When connecting, first connect plug to the outdoor cooking gas appliance then plug appliance into the outlet.
■ Use only a Ground Fault Interrupter (GFI) protected circuit with this outdoor cooking gas appliance.
■ Do not remove the ground prong or use with an adapter of 2 prongs.
■ Use extension cords with a 3 prong grounding plug rated for the power of the equipment and approved for outdoor use with a W-A marking.

The model/serial number rating plate is located on the inside of the left cabinet door. See the following illustration.

A. Model/Serial number plate

Recommended Ground Method

The outdoor grill, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes with the National Electrical Code ANSI/NFPA 70, or Canadian Electrical Code, CSA C22.1.

Copies of the standards listed above may be obtained from: CSA International

8501 East Pleasant Valley Rd.

Cleveland, Ohio 44131-5575

National Fire Protection Association

One Batterymarch Park

Quincy, Massachusetts 02269

A. 3-prong ground plug
B. 3-prong polarized type outdoor GFI outlet
C. Ground prong

Gas Supply Requirements

WARNING

Explosion Hazard

Use a new CSA International approved "outdoor" gas supply line.

Install a shut-off valve.

Securely tighten all gas connections.

If connected to LP, have a qualified person make sure gas pressure does not exceed 14" (36 cm) water column.

Examples of a qualified person include:

licensed heating personnel, authorized gas company personnel, and authorized service personnel.

Failure to do so can result in death, explosion, or fire.

Observe all governing codes and ordinances.

IMPORTANT: This installation must conform with all local codes and ordinances. In the absence of local codes, installation must conform with either the National Fuel Gas Code, ANSI

Z223.1/NFPA54, Natural Gas and Propane Installation Code, CSA B149.1, Propane Storage And Handling Code, B149.2, or the Standard for Recreational Vehicles, ANSI A119.2/NFPA 1192 and CSA Z240 RV Series Recreational Vehicle Code as applicable.

IMPORTANT: Grill must be connected to a regulated gas supply. Refer to the model/serial rating plate for information on the type of gas that can be used. If this information does not agree with the type of gas available, check with your local gas supplier.

Gas Conversion:

No attempt shall be made to convert the grill from the gas specified on the model/serial rating plate for use with a different gas type without consulting the serving gas supplier. The conversion kit supplied with grill must be used. See "Gas Conversions" section for instructions.

Gas Pressure Regulator

The gas pressure regulator supplied with this grill must be used. The inlet (supply) pressure to the regulator should be as follows for proper operation:

LP Gas:

Operating pressure: 11" (27.9 cm) WCP

Inlet (supply) pressure: 11" to 14" (27.9 cm to 35.5 cm) WCP

Natural Gas:

Operating pressure: 4" (10.2 cm) WCP

Inlet (supply) pressure: 7" to 14" (17.8 cm to 35.5 cm) WCP maximum.

Contact local gas supplier if you are not sure about the inlet (supply) pressure.

Burner Requirements for High Altitude

Input ratings shown on the model/serial rating plate are for elevations up to 2,000 ft (609.6 m).

For elevations above 2,000 ft (609.6 m), ratings are reduced at a rate of 4% for each 1,000 ft (304.8 m) above sea level. Orifice conversion is required. See “Assistance” section to order.

Gas Supply Line Pressure Testing

Testing above 1/2 psi (3.5 kPa) or 14" (35.5 cm) WCP (gauge):

The grill and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures greater than 1/2 psi (3.5 kPa).

Testing below 1/2 psi (3.5 kPa) or 14" (35.5 cm) WCP (gauge) or lower:

The grill must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).

Gas Connection Requirements

20 Ib LP Gas Fuel Tank

This grill is equipped for use with a 20 lb LP gas fuel tank (fuel tank not supplied). A gas pressure regulator/hose assembly is supplied.

Any brand of 20 lb LP gas fuel tank is acceptable for use with the grill, provided that it is compatible with the grill's retention means (tank tray included).

It is also design-certified by CSA International for local LP gas supply or for Natural gas with appropriate conversion.

A. Gas pressure regulator/hose assembly

The 20 lb LP gas fuel tank must be mounted and secured.

Door style Tank Tray

1. Open cabinet doors.

2. Slide the tank tray locking bracket counterclockwise 90° and pull out the tray.

A. Tank tray locking bracket

1. Place the 20 lb LP gas fuel tank bottom collar into the mounting hole in the tank tray.

2. Tighten the locking screw against the bottom collar of the Natural Gas Conversion 20 lb LP gas fuel tank to secure.

A. Locking screw

B. Mounting hole

C. Bottom collar

1. Slide the drawer with the 20 lb LP gas fuel tank back into the cabinet. Turn the tank tray locking bracket clockwise 90° to tighten.

A. Tank tray locking bracket

Natural Gas Conversion

The qualified Natural gas technician shall provide the Natural gas supply to the selected grill location in accordance with the National Fuel Gas Code ANSI Z223.1/NFPA 54 - latest edition, and local codes. For conversion to Natural gas, the Natural Gas Conversion Kit supplied with the grill (on some models) or the Natural Gas Conversion Kit Part Number 710-0003 must be used. See "Assistance" section for information on ordering.

IMPORTANT: The gas installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54 - latest edition.

Follow instructions for converting to Natural gas in the "Gas Conversions" section of this manual or the instructions supplied with Natural Gas Conversion Kit Part Number 710-0003.

The gas supply line shall be equipped with an approved shutoff valve. This valve should be located in the same area as the grill and should be in a location that allows ease of opening and closing. Do not block access to the shutoff valve. The valve is for turning on or shutting off gas to the grill.

A. Gas supply line

B. Shutoff valve "open" position

C. To grill

PACKAGE CONTENTS LIST

A. Firebox assembly—1pc		B. Left side shelf—1pc
		C. Side shelf control panel—1pc
D. Control knob—1pc	E. Warming rack—1pc	F. Cooking grid with hole—3pcs
G. Battery—1pc	H. Flame Tamer—5pcs	I. Sear burner cooking grid --1pc
J. Side burner cooking grid --1pc	K. Main burner grease tray- 1pc	L. Sear burner grease tray- 1pc
M. Side burner bowlassembly—1pc

Replacement Parts

Part List

Part Number	Part (description)	Warranty Coverage	Quantity	Part Number	Part description)	Warranty Coverage	Quantity
1 Main lid	3 1 30 Main burner igniter wire	C 1 1
2 Sear burner main lid	3 1 31 Main burner igniter wire	D 1 1
3 Temperature gauge	case 1 1
4 Temperature gauge	1 2 33 Lamp 1 2
5 Main lid	screw A 1 2 34 Main lid bracket	seat, left 3 2
6 Main lid	screw B 1 1 35 Main lid bracket	seat, right 3 2
7 Main lid	handle seat, left 1 2 36 Main burner bowl assembly					Non-replaceable	1
8 Main lid	handle seat, right 1 2 37	Sear burner bowl assembly				Non-replaceable	1
9	Main lid handle tube	1	1	38	Sear burner grease tray	3	1
10	Sear main lid handle tube	1 1 39			Main burner grease tray	3	1
11	Rear baffle	1	1	40	Front baffle	1	1
12	Rear burner heat shield	3 1 41			Side burner orifice brass connector	1	1
13	Rear burner	1	1	42	Side burner flex gas line A	1	1
14	Rear burner ignition wire	1 1 43 Side manifold			1 1
15	Rear burner orifice with brass elbow	1	1	44	LP regulator	1	1
16	Rear burner flex gas line	1	1	45	Side Burner flex gas line B	1	1
17	Rotisserie burner igniter bracket	3 2 46 Sear burner gas valve			1 1
18	Side shelf, left	3	1	47	Rear burner gas valve	1	1
19	Side shelf front panel, left	3	1	48	Igniter junction wire	1	1
20	Warming rack	3	1	49	Main gas valve	1	5
21	Cooking grid with hole	3	3	50	Main manifold	1	1
22	Searing main burner cooking grid	3 1 51 Main control panel			3 1
23	Flame tamer	3	5	52	Bezel	1	6
24	Sear burner	1	1	53	Knob	1	7
25	Main burner	10	5	54	Light switch	1	1
26	Burner pin assembly	1	5	55	Rear burner knob	1	1
27	Sear burner ignition wire	1	1	56	Rear burner bezel	1	1
28	Main burner igniter wire A	1	2	57	Logo	1	1
29	Main burner igniter wire B	1	1	58	Side burner gas valve	1	1
59	Spit fork 1 2 94				Door hinge	1	4
60	Spit rod 1 1 95 Door hinge support bracket 1 1
61	Rotisserie motor 1 1 96 Side panel, right 1 1
62	Rotisserie motor bracket 3 1 97 Door 3 1
63 Shaft Collar 1 1 98 Door Handle 1 3
64	Side burner lid hinge rod 1 2 99 Gas tank tray slide bracket, right 1 1
65	Side burner lid	3	1	100	Gas tank tray slide	1	2
66	Side burner lid hinge rod pin	1	2	101	Tank bolt	1	1
67	Side burner bowl assembly	3	1	102	Gas tank tray	1	1
68	Side burner	1	1	103	Gas tank tray block piece	1	1
69	Side burner ignition wire	1	1	104	Gas tank tray slide bracket, left	1	1
70	Side burner cooking grid	3	1	105	Drawer slide	1	2
71	Side burner front panel	3	1	106	Small door	3	1
72	Lamp cord	1	1	107	Drawer	3	1
73 Heat shield, right 1 1 108					Swivel caster with brake	1	1
74 Igniter wire cover A 1 1 109					Swivel caster	1	1
75	Rear panel	1	1	110	Bottom panel	1	1
76	Rubber grommet	1 2 111			Caster	1	2
77	Power cord buckle	1 1 112			Manual
78	Igniter wire cover B	1 1 113			NG conversion Kit	NG conversion kit sold separately as a set
79	Transformer	1	1	113a	NG regulator assembly for NG unit	1
80	Electronic igniter modular	1 1 113b			NG Gas Hose with Quick Connector assembly for NG unit	1
81	Clapboard B	1 1 113c			6mm Nut Driver	1
82	Heat shield, left	1 1 113d			Hex Wrench	1
83	Door hinge support bracket strengthen piece	1 2 113e			6mm Wrench	1
84	Firebox support piece A	3 1 113g			Truss Head Screw	2
85 Drawer support piece 1 1 113f					Flat Washer	2
86	Small door support piece	1	1	114	NG orifice pack	1
87 Side panel, left 1 1				114a	Side burner NG orifice (1.7mm)	1
88	Cart frame	1	1	114b	Rear burner NG orifice (1.84mm)	1
89	Clapboard A	1	1	114c	Sear burner NG orifice (1.98mm)	1
90	Door magnet	1	2		Preassembly hardware pack	1
91 Cart frame, middle 3 1				118	Firebox connecting bracket 1
92	Lighting rod cover	1	1
93 Lighting Rod 1 1

INSTALLATION INSTRUCTIONS

Freestanding Outdoor Grill Installation

WARNING

Excessive Weight Hazard

Use two or more people to move and install grill.

Failure to do so can result in back or other injury.

Unpack Grill

1. Remove all packaging materials and remove grill from the shipping base.
2. Move grill close to desired outdoor location.
3. Open the grill hood.

Remove Packaging Material Inside the Grill

1. Use a utility knife to cut straps and packing tape to open box from top and remove the boxes.
2. Remove the warming shelf and grill grates from inside the grill and remove the package inside the firebox.
3. Remove foam block and wrap from inside the grill.

1. Remove the cooking grids with hole.
2. Remove warming rack on brackets as shown.

Attach side burner assembly

1. Unpack the side burner assembly.
2. Loosen and remove 3 screws on left side burner.

1. Loosen but do not remove the 2 screws on the side panel (A), remove the screw on the main control panel (B).

1. Align slots on the side shelf with the loosened screws. Hook the side burner onto the two loosened screws and let the shelf slide down so the screws are in the narrow neck of the slots.

IMPORTANT: This step is meant to help with the installation, but do not depend solely on the two screws to hold the weight of the side shelf.

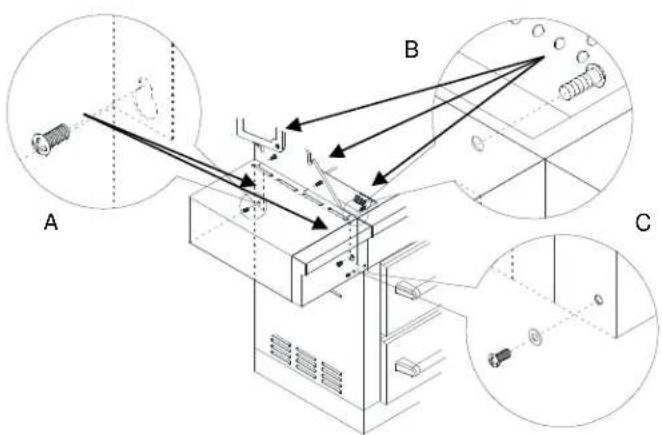

1. Attach the top of the side burner shelf to the grill firebox by inserting three screws into the side burner shelf from inside the grill firebox and tighten. See (A) below.

2. Attach the bottom of the side burner shelf to the side panel of the grill by tightening the two screws inserted in the keyhole slots in Step 3. See (B) below.

3. Attach the right side burner shelf to the control panel by inserting the screw which was removed from step 3 and tighten, see (C) below.

1. Attach side burner orifice brass connector to side burner tube with preassembled brass screw then tighten by wrench.

A. Side burner orifice brass connector
B. Side burner tube

1. Connect side burner igniter wire to underside of side burner.

A. Side burner igniter wire from grill
B. Side burner ignition pin

1. Insert the valve stem into the knob and push knob into place.

A. Control knob

Attach Left Side Shelf

1. Unpack side shelf, left and side shelf front panel, left. Attach side shelf front panel, left with the preassembled screws to the side shelf, left using the pre-drilled holes, and tighten.

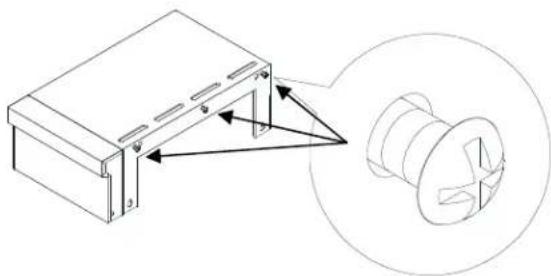

1. 1. Loosen but do not remove the 3 screws on the side shelf, left.

1. 1. Loosen but do not remove the 2 screws on the side panel, left (A). Remove the screw on main control panel (B).

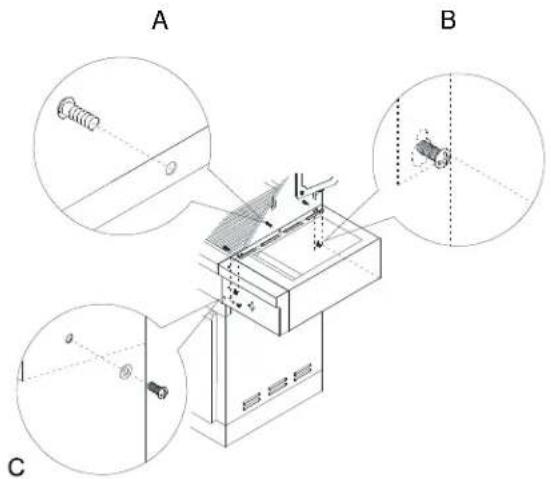

1. Align the bottom keyhole slots on the side shelf, left with the loosened screws. Hook the side shelf, left onto the two loosened screws and let the shelf slide down so the screws are in the narrow neck of the slots. Tighten these two screws, see below (A)

2. Attach 3 screws from firebox inside to side shelf, and tighten, see below (B).

3. Attach the side shelf, left to the main control panel by inserting the screw which was removed from Step 2 and tighten, see (C) below.

IMPORTANT: This step is meant to help with the installation, but do not depend solely on the two screws to hold the weight of the side shelf.

Spare Parts Assembly

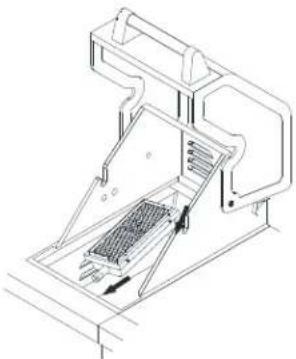

1. Unpack the main burner grease tray and searing burner grease tray, 5 flame tamers, 3 cooking grids, warming rack, and sear burner cooking grid.

1. Put the flame tamers on the indentations in firebox.

1. Then put on the cooking grids, and warming rack.

Cover your grill

Once your grill has cooled down, cover the grill between uses. See below picture.

Igniter Battery Assembly

1. Unscrew igniter button cap counterclockwise to remove.
2. Place the battery in, negative end first, and screw the igniter button cap clockwise.

A. "AA" sized battery
B. Igniter cap

Make Gas Connection

NOTE: If grill is to be converted to Natural gas, follow instructions in the "Gas Conversions" section.

20 lb LP Gas Fuel Tank

WARNING

Explosion Hazard

Securely tighten all gas connections.

If connected to LP, have a qualified person make sure gas pressure does not exceed 14" (36 cm) water column.

Examples of a qualified person include:

licensed heating personnel, authorized gas company personnel, and authorized service personnel.

Failure to do so can result in death, explosion, or fire.

LP Gas:

IMPORTANT: A 20 lb LP gas fuel tank must be purchased separately.

IMPORTANT: The gas pressure regulator/hose assembly supplied with the grill must be used. Replacement gas pressure regulator/hose assembly specific to your model is available from your outdoor grill dealer.

Door Style Tank Tray

1. Open cabinet doors.

2. Slide the tank tray locking bracket counterclockwise 90° and pull out the tray.

A. Tank tray locking bracket

1. Place the 20 lb LP gas fuel tank bottom collar into the mounting hole in the tank tray.

2. Tighten the locking screw against the bottom collar of the 20 lb LP gas fuel tank to secure.

A. Locking screw
B. Mounting hole
C. Bottom collar

To Connect the 20 lb LP Gas Fuel Tank:

1. Check that the 20 lb LP gas fuel tank is in the "Off" position. If not, turn the valve clockwise until it stops.
2. Check that the 20 lb LP gas fuel tank valve has the proper type-1 external male thread connections per ANSI Z21.81.
3. Check that the burner control knobs are in the "Off" position.
4. Remove any debris and inspect the valve connections, port, and gas pressure regulator/hose assembly for damage.

NOTE: Always keep the LP cylinder at 90° (upright) orientation to provide vapor withdrawal.

1. Using your hand, turn the gas pressure regulator/hose assembly clockwise to connect to the 20 lb LP gas fuel tank as shown.

Hand tighten only. Use of a wrench could damage the quick coupling nut.

A. Gas pressure regulator/hose assembly
B. 20 lb LP gas fuel tank

Make sure that the cylinder valve connection device properly mates with the connection device attached to the inlet of the pressure regulator.

1. Open the tank valve fully by turning the valve counterclockwise. Wait a few minutes for gas to move through the gas line.
2. Before lighting the grill, test all connections by brushing on an approved noncorrosive leak-detection solution. Bubbles will show a leak.
3. If a leak is found, turn the tank valve off and do not use the grill. Contact a qualified gas technician to make repairs.
4. Go to "Check and Adjust the Burners" section.

To Disconnect the 20 lb LP Gas Fuel Tank:

1. Check that the burner control knobs are in the "Off" position and the grill is cool.
2. Check that the 20 lb LP gas fuel tank is in the "Off" position. If not, turn the valve clockwise until it stops.
3. Using your hand, turn the gas pressure regulator/hose assembly counterclockwise to disconnect to the 20 lb LP gas fuel tank as shown.

Hand loosen only. Use of a wrench could damage the quick coupling nut.

A. Gas pressure regulator/hose assembly
B. 20 lb LP gas fuel tank

1. Place dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of dust cap on the valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result in leakage of propane.

GAS CONVERSION

Tools and Parts for Gas Conversion

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools needed

■ Phillip screwdriver
■ Pipe Wrench
■ Adjustable wrench
■ 6 mm socket and
wrench or 6 mm nut driver

■Thin flat-blade screwdriver
■ Pliers
■ Pipe thread sealant certified for LP gas

Parts supplied

■ Natural gas orifices

Parts needed

■ Natural gas conversion kit Part Number 710-0003. See "Assistance" section to order. The conversion kit includes:
■ Natural gas regulator 4" W.C. (marked "Natural Gas Regulator")

■ 10 ft (3.0 m) Natural gas hose with quick connector

■ 5.9" (150 mm) Natural gas regulator hose

■ 6 mm nut driver

■ 6 mm wrench

■ Hex key

IMPORTANT: Gas conversions must be done by a qualified installer. Before proceeding with conversion, shut off the gas supply to the appliance.

Conversion from LP Gas to Natural Gas

Installation of the regulator

1. Turn off the main gas supply valve.
2. Disconnect 20 lb LP gas fuel tank (if present).
3. Turn off all burner control valves.
4. Remove the 20 lb LP gas fuel tank (if present) from the grill cart.

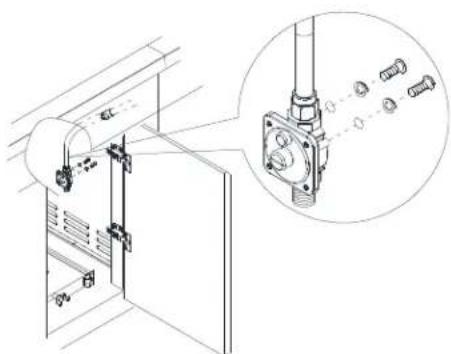

5. Use an adjustable wrench to remove the LP regulator from the manifold.

1. Use an adjustable wrench to install the Natural gas regulator hose to the manifold and secure. Attach the Natural gas regulator to the side panel inside the grill cart with the two screws that are pre-assembled on the regulator.

Make Gas Connection

1. A combination of pipe fittings must be used to connect the grill to the existing gas line.

2. The 10 ft (3.0 m) PVC flexible gas supply hose design certified by CSA must be used.

3. Pipe-joint compounds suitable for use with Natural gas must be used. Do not use Teflon®+ tape.

4. There must be a certified manual shut-off valve in the gas supply line near the grill for easy access.

5. Connect the brass connector on one end of the 10 ft (3.0 m) PVC flexible gas supply hose to the Natural gas pressure regulator.

6. Connect the quick connector on the other end of the 10 ft (3.0 m) PVC flexible gas supply hose to the rigid Natural gas supply pipe.

A. Manifold
B. Right side panel
C.10 ft. (3.0 m) PVC gas hose
D. Natural gas pressure regulator/hose assembly

† ®Teflon is a registered trademark of E.I. Du Pont De Nemours and Company.

Change Grill Main Burner Valve Orifices

1. Remove the grates and flame tamers.
2. Remove 1 screw and cotter clip that hold the burner in place. Set the screw and clip aside. Remove the burner from the grill by lifting the burner out.

1. Use a 6 mm socket and wrench or 6 mm nut driver to remove the brass orifice from the end of each main gas valve. The NG orifice is located behind the LP orifice, so no additional orifice needs to be installed.

IMPORTANT: Check that the orifice is properly installed inside of the burner opening.

1. Reinsert the burner and reattach using the screw and cotter clip previously removed.
2. Position the igniter so that it is 1/8th" (6.0 mm) away from each burner.
3. Repeat this process for each main burner.

Change the Sear Burner Orifice

1. Remove the 2 screws securing the igniter and remove the igniter from the side burner.

1. Remove the searing side burner screws. Set the screws and cover aside.

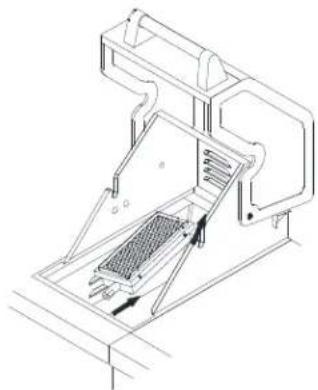

1. Lift the searing side burner out of the grill.
2. Use 6 mm socket wrench or 6 mm nut driver to remove the orifice. Replace with the Natural gas orifice.

1. Re-Insert the searing main burner and lock all removed screws.

Change Grill Rotisserie Burner Orifices

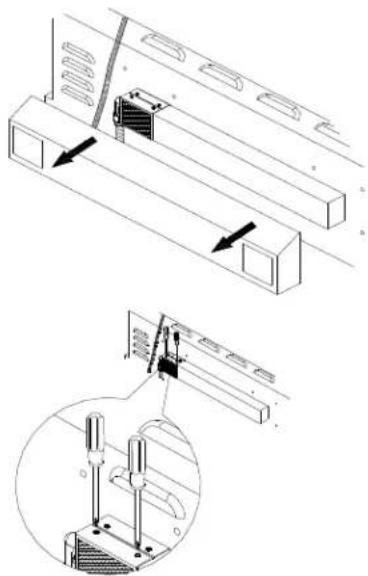

1. Using a Phillips screwdriver, unscrew the 2 screws and remove the rotisserie burner heat shield.

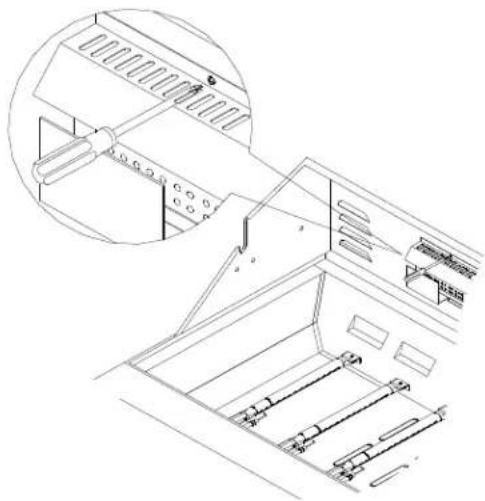

1. Using a Phillips screwdriver, remove the 4 screws at the back of grill from inside the grill (2 screws on each side of the rotisserie burner).

1. Remove the access cover at the back of the grill hood by removing the 4 screws (2 screws on each side of the rotisserie burner).

1. Use 24 mm wrench to remove the orifice nut.

1. Take out the orifice support, and then use a 6 mm socket and wrench or 6 mm nut driver to remove the LP orifice at the end of the supply pipe. Replace with Natural gas orifice.

1. Re-Attach the rear baffle and lock all removed screws.

Change the Side burner Orifices

1. Use a wrench to remove the side burner orifice brass connector with flex line end to side burner tube.

A. Side burner flex end

1. Use 6 mm socket wrench or 6 mm nut driver to remove the orifice. Replace with the Natural gas orifice.

A. Orifice

IMPORTANT:

Check that the orifice is properly installed inside of the valve.

1. Reinstall side burner, tighten the side burner orifice brass connector and side burner tube by using a wrench.

2. Open the manual shutoff valve in the gas supply. Then valve is open when the handle is parallel to the gas pipe.

A. Closed valve B. Open valve

1. Test all connections using an approved noncorrosive leak-detection solution. Bubbles will show a leak. Correct any leak found

Record Conversion

1. The appliance nameplate is located inside the grill cabinet on the left-hand cabinet side. With a permanent marker, check the box next to "Natural gas" and mark through "LP-Propane."

2. In the last page of the Use and Care Guide, write; "Converted to Natural Gas." Also record the conversion date and the technician/company that performed the conversion.

Note: Place LP gas parts in plastic parts bag for future use and keep with pack containing literature.

Adjust High Flame Setting Screw

When converting from LP to Natural gas, you will need to adjust the high flame setting screw for ideal burner flame height.

1. Remove each control knob for the main burners and side burner

1. Use a small precision flat-blade screwdriver to turn the high flame set screw counter-clockwise, approximately 90 degrees.

1. Check that burner operates at the new high flame setting. It may be necessary to adjust the screw setting slightly more to get the ideal burner flame height.

Check and Adjust the Burners

The burners are tested and factory-set for most efficient operation. However, variations in gas supply and other conditions may make minor adjustments to air shutter or low flame setting necessary. It is recommended that a qualified person make burner adjustments.

Checking and adjusting the grill burner flames requires removing the grates and flame tamers.

Burner Flame Characteristics

The flames of the grill burners and side burners (on some models) should be blue and stable with no excessive noise or lifting (LP gas flames will have a slightly yellow tip). A yellow flame indicates not enough air. If flame is noisy or lifts away from the burner, there is too much air. Some yellow tips on flames when the burner is set to HIGH setting are acceptable as long as no carbon or soot deposits appear. The flames should be approximately 1" (2.5 cm) high.

Check that burners are not blocked by dirt, debris, insect nests, etc., and clean as necessary. If they are clean, adjust air shutters as needed.

IMPORTANT: Before adjusting air shutters, let the burners cool down completely.

To Adjust:

1. Light grill using information in the "Outdoor Grill Use" section.
2. Observe flame to determine which burners need adjustment and how the flame is acting.
3. Turn off the valve and wait until grill and burners have cooled completely.
4. Remove grill grates and flame tamers.
5. Remove the 1 screw and cotter pin that hold the burner in place. Remove gas burner from the grill.

A. Screw
B. Cotter Clip

1. If flame is yellow (not enough air), turn air shutter adjustment screw counterclockwise. If flame is noisy or lifts away from burner (too much air), turn air shutter adjustment screw clockwise.

A. Air shutter adjustment screw

Adjustment should be made clockwise or counter clockwise from 1/8" (3.2 mm) to 1/4" (6.4 mm).

1. Replace gas burner, sear plates and grates.
2. Light grill using information in the "Outdoor Grill Use" section. See "Burner Flame Characteristics

Low Flame Adjustment

If flame goes out on the "LOW" setting, the low flame setting must be adjusted.

1. Turn off the valve, and wait until the grill and burners have cooled down.
2. Remove grill grates and flame tamers.
3. Light grill using information in the "Outdoor Grill Use" section.
4. Turn burner to its lowest setting.
5. Remove each control knob for the main burners and side burner by loosening the setscrew with the hex key.
6. Hold valve stem with pliers and insert a small flat-blade screwdriver into the shaft.
7. Watch the flame and slowly turn the screwdriver counterclockwise.
8. Adjust flame to minimum stable flame.

A. Valve stem
B. Small flat-blade screwdriver
C. Pliers

1. Replace the control knob and turn off the burner.
2. Repeat steps 3 through 9 for each burner if needed.
3. Replace the flame tamers and grates after the burners have cooled.

OUTDOOR GRILL USE

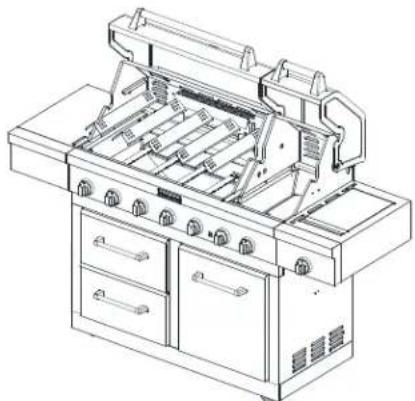

This manual covers several different models. The grill you have purchased may have some or all of the features listed. The locations and appearances of the features shown here may not match those of your model.

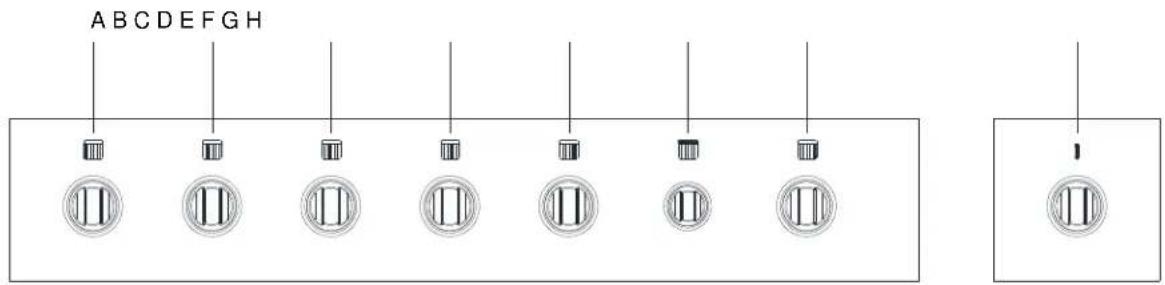

Control Panel

A. Main burner control knob
D. Main burner control knob
G. Searing burner control knob

B. Main burner control knob
E. Main burner control knob
H. Side burner control knob

C. Main burner control knob
F. Rear burner control knob

Using Your Outdoor Grill

⚠ WARNING

Explosion Hazard

Do not store fuel tank in a garage or indoors.

Do not store grill with fuel tank in a garage or indoors.

Failure to follow these instructions can result in death, explosion, or fire.

WARNING

Fire Hazard

Do not use grill near combustible materials.

Do not store combustible materials near grill.

Doing so can result in death or fire.

WARNING

Food Poisoning Hazard

Do not let food sit for more than one hour before or after cooking.

Doing so can result in food poisoning or sickness.

Inspect the LP Gas Fuel Tank Supply Hose

Inspect the gas pressure regulator/hose assembly before each use.

1. Open the cabinet door.
2. Inspect the gas pressure regulator/hose assembly for cuts, abrasions, or excessive wear.
3. If necessary, replace the gas pressure regulator/hose assembly before using the grill.
   Contact the dealer and use only replacement hoses specified for use with the grill.

A. Gas pressure regulator/Hose assembly

Prepare the Grill for Lighting

1. Open the hood completely. Do not light burners with the hood closed.
2. Make sure control knobs are turned to OFF. The main burner grease tray must be in place.

Turn the Gas Supply On

1. For using a 20 lb LP gas fuel tank: Slowly open the tank valve.

NOTE: If flow limiting device activates, your grill may not light. If your grill does light, the flames will be low and will not heat properly. Turn tank valve and all control knobs off and wait 30 seconds. After shutting off the tank, very slowly open tank valve and wait 5 seconds before lighting.

1. For outdoor grills using gas supply source other than a 20 lb LP gas fuel tank:

Open the manual shutoff valve in the gas supply line. The valve is open when the handle is parallel to the gas pipe.

A. Closed valve

B. Open valve

Lighting the Grill

1. Open the hood completely. Do not light burners with the hood closed.
2. Do not lean over the grill.
3. Select the burner you want to light. Push in and turn the grill burner control knob to IGNITE/HIGH or IGNIE/ON, while continuing to hold it in.

1. You will hear the "snapping" sound of the spark. When burner is lit, release the knob. Turn knob to desired setting.
2. Repeat for each of the other burners as needed.

IMPORTANT: If burner does not light immediately, turn the burner knob to OFF and wait 5 minutes before relighting.

Manually Lighting the Grill

1. Open the hood completely. Do not light burners with hood closed.
2. Do not lean over the grill.
3. Remove the manual lighting extension (see following illustration) and attach a match to the split ring.

1. Strike the match to light it.
2. Guide the lit match between the grill grate.

1. Push in and turn the burner knob to IGNITE/HIGH or IGNITE/ON for the burner closest to the lit match. The burner will light immediately. When burner is lit, turn knob to desired setting.

1. Repeat steps 2 trough 6 for each main burner.
2. Remove match and replace manual lighting extension inside the cabinet door.

IMPORTANT:

If burner does not light immediately, turn the burner knob to OFF and wait 5 minutes before relighting. If any burners do not light after attempting to light them manually, contact the Customer Service Center. See the "Assistance or Service" section.

Hood Lights

The grill must be plugged in for the hood lights to work. See "Plug in Grill" in the "Freestanding Outdoor Grill Installation" section.

To Use:

Press the LIGHTS button on the control panel to turn the hood lights on and off.

Using Your Infrared Sear Burner

Infrared grilling produces intense heat which quickly sears the meat. Searing locks in flavor and juices while allowing the outer surface to absorb smoke and food aroma that is produced as grease and drippings are vaporized by the burner. The result is a crisp, flavorful outside with a tender, juicy inside.

■ Preheat the infrared sear burner for 5 minutes.
■ Ensure that meats are fully thawed and that all excess fat is trimmed away prior to grilling.
■Leave the burner set to On when placing food on the grill to sear.
■ Use the sear burner to sear meat 1 to 2 minutes on each side, then move the meat to the main grill cooking surface to finish grilling to the desired doneness.

IMPORTANT: It is recommended that the sear side burner lid be raised when the burner is in use to eliminate the possibility of increased lid and handle temperatures.

Lighting the Infrared Sear Burner

1. Remove the infrared sear burner cover. Do not light burners with the cover on.
2. Do not lean over the grill. Make sure control knobs are turned to OFF. The sear burner grease tray must be in place.
3. Push in and turn the control knob to IGNITE/ON and hold in. You will hear the "snapping" sound of the spark. When burner is lit, release the knob. Turn knob to desired setting.

IMPORTANT: If burner does not light immediately, turn the burner knob to OFF and wait 5 minutes before relighting.

Manually Lighting the Infrared Sear Burner

1. Open the infrared sear burner cover. Do not light burners with the cover on.
2. Do not lean over the grill.
3. Remove the manual lighting extension (see following illustration) and attach a match to the split ring.

1. Strike the match to light it.
2. Hold the lit match close to the infrared sear burner.

1. Push in and turn the burner knob to IGNITE/ON for the burner closest to the lit match. The burner will light immediately.

When burner is lit, turn knob to desired setting.

1. Repeat steps 3 through 6 for each burner.
2. Remove match and replace manual lighting extension on the right side panel.

IMPORTANT:

If burner does not light immediately, turn the burner knob to OFF and wait 5 minutes before relighting.

If any burners do not light after attempting to light them manually, contact the Customer Service Center. See the “Assistance” section.

Using Your Rotisserie Burner

To avoid damage to the warming rack, remove from grill when using the rotisserie burner. Do not use the main burners when the rotisserie burner is in use.

Lighting the Rotisserie Burner

1. Open the hood completely. Do not light burners with the hood closed.
2. Do not lean over the grill.
3. Push in and turn the control knob to IGNITE/ON. You will hear the "snapping" sound of the spark.

1. 1. When the rotisserie burner lights, continue to hold the knob in for another 10 seconds, then release the knob and burner will stay lit. You will hear the "snapping" sound of the spark until the knob is released.

IMPORTANT: If the rotisserie burner does not light immediately, turn the burner knob to OFF and wait 5 minutes before relighting.

Manually Lighting Rotisserie Burner

1. Open the hood completely. Do not light burners with the hood closed.
2. Do not lean over the grill.

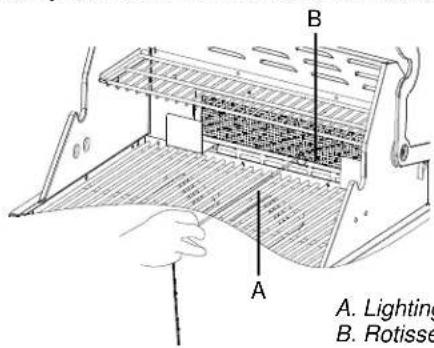

3. Remove the manual lighting extension (see the following illustration) and attach a match to the split ring.

1. Strike the match to light it.

2. Gently hold the lit match close to the rotisserie burner.

1. Push in and turn the control knob to IGNITE/ON. Hold this knob in for 10 seconds after the burner is lit. You will hear the "snapping" sound of the spark until after the knob is released.

IMPORTANT: If the rotisserie burner does not light immediately, turn the rotisserie burner control knob to OFF and wait 5 minutes before relighting.

1. Remove the match and replace the manual lighting extension inside the cabinet door.

Rotisserie Cooking Tips

WARNING

Food Poisoning Hazard

Do not let food sit for more than one hour before or after cooking.

Doing so can result in food poisoning or sickness.

Rotisserie cooking rotates food in front of the rotisserie burner, creating an intense heat for searing the outside and sealing in natural juices.

The rotisserie burner reaches cooking temperatures in about 1 minute. It is not necessary to preheat when using the rotisserie.

■ Select tender meat and poultry.
- Allow at least 1" (2.5 cm) space between rotisserie burner and the food.
■ To make cleanup easier, place a pan under the food to catch drippings.
■ Add barbecue sauce or glaze only during the last 10 minutes of cooking to keep sauce from burning.

ROTISSERIE CHART

Use a portable meat thermometer to check internal doneness of the food. Turn off rotisserie burner when meat thermometer reads 5° F/3° C lower than desired internal temperature. Continue rotating, hood closed, for 10 minutes before carving.

Food Weight Internal			Approximate Grilling Time (min/b)
			Doneness or Temperature
Beef
Roasts 4-6 lbs Medium-rare 15-20Rib Eye (1.5-2.2 kg) (145°F/63°CSirloin Tip Medium 20-25Rib, boneless (160°F/71°C)
Poultry
Chicken	3-6 lbs Breast (1.1-2.2 kg)	25-30(170°F/77°C)Thigh (180°F/82°C)	25-30
Turkey, whole	7-10 lbs (2.6-3.7 kg)	Breast (170°F/77°C)Thigh (180°F/82°C)	11-20
Lamb
Boneless leg	4-7 lbs Medium (1.5-2.6 kg)	20-25(160°F/71°C)
Pork
Loin roast,boneless	4-6 lbs Medium (1.5-2.2 kg)	20-23(160°F/71°C)

Using Your Side Burner

Lighting the Side Burner

1. Open the side burner cover. Do not light burners with the cover on.
2. Do not lean over the grill.
3. Push in and turn the grill control knob to IGNITE/HIGH, while continuing to hold it in.

IMPORTANT: If burner does not light immediately, turn the burner knob to OFF and wait 5 minutes before relighting.

Manually Lighting The Side Burner

1. Open the hood completely. Do not light burners with the hood closed.
2. Do not lean over the grill.
3. Remove the manual lighting extension (see the following illustration) and attach a match to the split ring.

1. Strike the match to light it.
2. Hold the lit match close to the side burner.

1. Push in and turn the control knob to IGNITE/HIGH. For the burner closest to the lit match. The burner will light immediately. When burner is lit. turn knob to desired setting.

1. Repeat steps 3 through 6 for each burner.
2. Remove the match and replace the manual lighting extension on the right side panel.

IMPORTANT:

If burner does not light immediately, turn the burner knob to OFF and wait 5 minutes before relighting. If any burners do not light after attempting to light them manually, contact the Customer Service Center. See the "Assistance" section.

TIPS FOR OUTDOOR GRILLING

WARNING

Food Poisoning Hazard

Do not let food sit for more than one hour before or after cooking.

Doing so can result in food poisoning or sickness.

Before Grilling

■ Thaw food items before grilling.
■ Preheat grill on high (use all grill burners) 10 minutes. The hood must be closed during preheating. Preheating provides the high heat needed to brown and seal the juices.
■ Shorten the preheat time when grilling high-fat cuts of meat or poultry, such as chicken thighs. This will help reduce flare-ups.
Lightly oil the grill grates or the food when cooking low-fat cuts of meat, fish or poultry, such as lean hamburger patties, shrimp or skinless chicken breasts.
■ Using too much oil can cause gray ash to deposit on food.
- Trim excess fat from meats prior to cooking to reduce flare-ups.
■ Make vertical cuts at 2" (5 cm) intervals around the fat edge of meat to avoid curling.
■ Add seasoning or salt only after the cooking is finished.

During Grilling

■ Turn foods only once. Juices are lost when meat is turned several times.
■ Turn meat just when juices begin to appear on the surface.
- Avoid puncturing or cutting the meats to test doneness. This allows juices to escape.
It may be necessary to lower the heat setting for foods that cook a long time or are marinated or basted in a sugary sauce.
If using a high flame, add barbecue sauce only during the last 10 minutes of cooking to avoid burning the sauce.
The degree of doneness is influenced by the type of meat, cut of meat (size, shape and thickness), heat setting selected, and length of time on the grill.
■ Cooking time will be longer with an open grill cover.

Cooking Methods

Direct Heat

Cooking by direct heat means the food is placed on grill grates directly above lighted burners. Hood position can be up or down. If hood is in the up position, total cooking times may be longer. Direct heat sears the food. Searing is a process that seals natural juices in food by cooking with intense heat for a short period of time. While juices stay inside, the outside is browned with a flavorful grilled coating.

Indirect Heat

For best results, do not select the indirect heat cooking method when it is windy.

Cooking by indirect heat means the food is placed on the grill grate above an unheated burner, allowing heat from lighted burner(s) on either side to cook the food.

If possible, turn on 2 burners. Cook with the hood down. This will shorten the cooking time.

Grilling Chart

■ Knobs have High, Medium and Low settings for flame adjustment.
■ Heat settings indicated are approximate.
■ Grilling times are affected by weather conditions.

■ When 2 temperatures are listed, for example: Medium to Medium-Low, start with the first and adjust based on cooking progress.

■ Cooking times may vary from chart times depending on the type of fuel, Natural or LP gas.

FOOD COOKING METHOD/ BURNER SETTING		INTERNAL TEMP. TIME (total minutes)	SPECIAL INSTRUCTIONS
Beef
Hamburgers 1⁄2" (1.3 cm) to 3⁄4" (1.9 cm) thick	DIRECT Medium	Medium (160° F/71°C)	10-15 Grill, turning once.
Roasts Rib Eye, Sirloin	INDIRECT Medium/OFF/Medium	Med-Rare (145°F/63°C) to Medium (160°F/71°C)	32-40 per lb (12-15 per kg) Tent with foil first 45-60 minute; of cooking time.
Steaks, 1" (2.5 cm) Porterhouse, Rib, T-bane, Top Loin, Sirloin	DIRECT Medium	Med-Rare (145°F/63°C) to Medium (160°F/71°C)	11-16 Rotate steaks Vi turn to create criss-cross grill marks.
Steaks, 11⁄2" (3.8 cm) Porterhouse, Rib, T-bane, Top Loin, Sirloin	DIRECT Medium	Med-Rare (145°F/63°C) to Medium (160°F/71°C)	18-25
Top Round or Shoulder/ Chuck (London Broil) 11⁄2" (3.8 cm) thick	DIRECT Medium	Med-Rare (145°F/63°C) to Medium (160°F/71°C)	22-29
Flank, 1⁄2" (1.3 cm) thick DIRECT Medium		Med-Rare(145°F/63°C)	11-29
Pork
Chops, 1" (2.5 cm) 11⁄2" (3.8 cm) thick	DIRECT Medium to Med-Low	Medium (160°F/71°C)	12-22 30-40
Ribs 21⁄2-4 lbs (0.9-1.5 kg)	INDIRECT Med/OFF/Med	Medium (160°F/71°C)	40-60 Grill, turning occasionally. During last few minutes brush with barbecue sauce if desired When done, wrap in foil.
Roast, boneless tenderloin, 1lb (0.37 kg)	DIRECT Medium	Medium (160°F/71°C)	18-22 Turn during cooking to brown on all sides.
Ham halt, 8-10 lbs (3-3.7 kg)	INDIRECT Med/OFF/Med	Reheat (140°F/60°C)	2-21⁄2 hours Wrap entire ham in foil and put on grill without pan or drip pan
Ham steak precooked, 1⁄2" (1.3 cm) thick	DIRECT Preheat Medium Grill Medium	Reheat (145°F/63°C)	7-10
Hot Dogs	DIRECT Medium	Reheat (145°F/63°C)	5-10 Slit skin if desired.
Chicken
Breast, boneless DIRECT Medium		170°F/77°C	15-22 For even cooking, pound breast to 3⁄4" (2.0 cm) thick. Start bone side down.
Pieces, 2-3 lbs (0.75-1.1 kg)	DIRECT Med-Low to Medium	Breast 170°F/77°C Thigh 180°F/82°C
Lamb
Chops and Steaks, Loin, Rib, DIRECT Medium Sirloin, 1" (2.5 cm) thick 11⁄2" (3.8 cm) thick DIRECT Medium		Med-rare (145°F/63°C) to Medium (160°F/71°C) Med-rare (145°F/63°C) to Medium (160°F/71°C)	10-20 16-20

FOOD COOKING METHOD/

INTERNAL TEMP. TIME (total minutes) SPECIAL INSTRUCTIONS

BURNER SETTING

Fish and Seafood

Fillets, Steaks, Chunks Halibut, DIRECT Medium 4-6 per 1/2 " (1.3 cm)

Salmon, Swordfish, 8 oz (0.25 kg)

Whole, Catfish, Rainbow Trout, DIRECT High 5-7 per side

8-11 oz (0.25-0.34 kg)

Shellfish, Scallops, Shrimp DIRECT Medium 4-8

Turkey

Whole breast (bone-in) INDIRECT	HI/OFF/HI	170° F/77° C
Half breast (bone-in) INDIRECT	Medium/OFF/Medium	170° F/77° C
Whole, 7-12 lbs (2.6-4.5 kg)	INDIRECT HI/OFF/HI	Breast 170° F/77° C Thigh 180° F/82° C

Fresh Vegetables

Corn on the cob	DIRECT Medium
Eggplant	DIRECT Medium

Onion, 1/2 (1.3 cm) thick DIRECT Medium

Potatoes, Sweet, whole DIRECT Medium

Baking, whole DIRECT High

Peppers, Roasted DIRECT High

Squash, Summer, Zucchini DIRECT Medium

Garlic Roasted DIRECT Medium

thickness of fish

Grill, turning once. Brush grill with oil to keep fish from sticking. Remove when inside is opaque and flaky with skin easily removed.

14-18 Tent with foil until last 30 minutes of cooking time.

25-30 Start skin side down.

11-16 Less than 11 lbs.

20-25 Soak in cold water 20 minutes. Do not husk. Shake off excess water.

7-10 Wash and cut into 1/2 (1.3 cm) slices or lengthwise. Brush with olive oil.

8-20 Grill, turning once. Brush with olive ail. Put a skewer through several slices to hold together.

40-70 Individually wrap in heavy-duty foil. Grill, rotating occasionally. 45-90

15-22 Wash and place on grill whole. Char skin all around. Cool in a paper bag or plastic wrap to loosen blackened skin. Peel and remove seeds.

7-10 Wash and cut into 1/2 (1.3 cm) slices or lengthwise. Brush with olive oil.

20-25 Cut off top, drizzle with olive oil and wrap in double layer of foil

OUTDOOR GRILL CARE

Replacing the igniter Battery

If igniters stop sparking, the battery should be replaced. 1. Unscrew igniter button cap counterclockwise to remove.

A. "AA" size battery
B. Igniter cap

1. Remove battery from the battery compartment.
2. Replace with a new alkaline "AA" size battery. Install battery with negative end in first.
3. Screw igniter button cap clockwise into place.
4. Screw igniter cap clockwise into place.
5. If necessary, repeat steps 1-5 for the other battery.

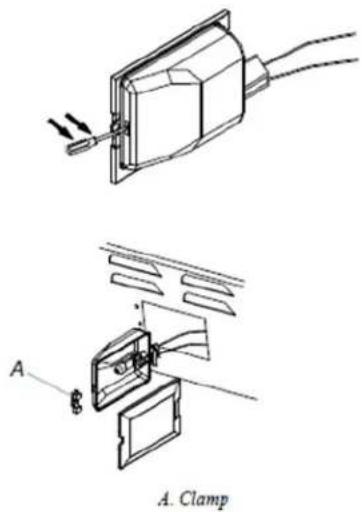

Changing the Grill Light Bulb

1. Unplug grill or disconnect power.
2. Make sure the light power switch on the control panel is in the OFF position.

3. Remove the screw securing the light assembly to the grill hood and pull out the light with glass light cover.

4. To remove glass light cover, remove screw and gently pry downward with a small flat-blade screwdriver at the left edge of the cover near the screw and pull away from the retainer. Pull out the clamp from the end of the light assembly.

1. Use a flat-blade screwdriver to remove the screw locking the bulb in place.

A. Screw B. Light assembly

OUTDOOR GRILL CARE

1. Remove bulb from socket.
2. Replace bulb with a new 12-volt, 10-watt maximum, halogen bulb, using a tissue or wearing cotton gloves to handle the bulb. To avoid damaging the bulb, do not touch the bulb with bare fingers.

A. Bulb

1. Tighten the two screws to lock the bulb into place.
2. Replace glass light cover onto light assembly. Secure light assembly into the grill hood with two screws removed in Step 3.
3. Plug in grill or reconnect power.

General Cleaning

IMPORTANT: Before cleaning, make sure all controls are off and the grill is cool. Always follow label instructions on cleaning products.

For routine cleaning, wash with soap and water using a soft cloth or sponge. Rinse with clean water and dry at once with a soft, lint-free cloth to avoid spots and streaks.

Do not use steel wool to clean the grill, as it will scratch the surface.

To avoid weather damage to finish, use grill cover.

STAINLESS STEEL

IMPORTANT: To avoid damage to stainless steel surfaces, do not use soap-filled scouring pads, abrasive cleaners, cooktop polishing creme, steel wool, gritty wash cloths or paper towels. Cleaner should not contain chlorine. Damage may occur. Food spills should be cleaned as soon as entire grill is cool. Spills may cause permanent discoloration.

Cleaning Method:

■ Rub in direction of grain to avoid scratching or damaging the surface.
■ Stainless steel cleaner.
■ Liquid detergent or all-purpose cleaner.
■ Rinse with clean water and dr with soft, lint-free cloth.
■ Vinegar to remove hard water spots.
■ Glass cleaner to remove fingerprints.

GRILL GRATES

IMPORTANT: To avoid damage to grill grates, do not use a steel or fiber scraper. Immediately after you are finished cooking, loosen food soil with a brass bristle brush. Turn all burners to HIGH for 10-15 minutes with the hood closed to burn off food soil. Turn off all burners, raise the hood and let grates cools. Use the brass bristle brush to remove ash from the grill grates.

When completely cool, grill racks can be removed for thorough cleaning. Clean them with a mild detergent and warm water. For baked-on soil, prepare a solution of 1 cup (250mL) ammonia to 1 gal. (3.75 L) water. Soak grates for 20 minutes, then rinse with water and dry completely.

WARMING SHELF

Cleaning Method:

■ Liquid detergent or an all-purpose cleaner.
■ Rinse with clean water and dry with soft, lint-free cloth.
■ For tough spots or baked-on grease, use a commercial heavy duty degreaser designed for stainless steel.

IMPORTANT: Make sure gas supply is off and all control knobs are in the OFF position.

EXERIOR

The quality of this material resists most stains and pitting, providing that the surface is kept clean, polished and covered.

■ Apply stainless steel polish to all non-cooking areas before first use. Reapply after each cleaning to avoid permanent damage to surface.
■ Cleaning should always be followed by rinsing with clean warm water.
■ Wipe the surface completely dry with a soft cloth.
■ For tough spots or baked-on grease, use a commercial heavy duty degreaser designed for stainless steel.

INTERIOR

Discoloration of stainless steel on these parts is to be expected, due to intense heat from the burners. Always rub in the direction of the grain. Cleaning should always be followed by rinsing with clean, warm water.

Cleaning Method:

■ Liquid detergent or all-purpose cleaner.
■ Rinse with clean water and dry completely with a soft, lint-free cloth.
■ A heavy-duty scrub sponge can be used with mild cleaning products.
■ For small, difficult-to-clean areas, use a commercial heavy duty degreaser designed for stainless steel.

BURNERS

Cleaning Method: Cleaning Method:

■ Clean the exterior of the burner with a wire brush.
■ Clear any clogged burner ports with a straightened paper clip.
■ Do not use a toothpick as it may break off and clog the port.
■ Check and clean burner/venturi tubes.

A. Cotter pin

■Use a flashlight to inspect into the burner through the burner inlet to ensure there is no blockage. If any obstruction is seen, use a metal coat hanger that has been straightened to clear them.
■After inspecting the inside of the burner for blockage, reassemble burner by sliding the middle tube of the gas burner over the gas orifice.

A. Burner/orifice connection

■Reattach gas burner using screw.

ROTISSERIE BURNERS

■ Light the rotisserie burner. See the "Using Your Rotisserie Burner" section.
■ Close the grill hood.
■ Leave the burner on high for approximately 30 minutes.
■ Turn knob to OFF and let cool completely.
■ Brush off ash particles from the rotisserie burner.

IMPORTANT: The main burner grease tray should only be removed when grill is completely cool.

The full-width grease tray collects grease and food particles that fall through the grill. Clean often to avoid grease buildup.

Cleaning Method:

■ Remove grease tray and set on a flat surface.
■ Wipe excess grease with paper towels.
■ Mild detergent and warm water. Rinse and dry thoroughly.
■ Replace grease tray.

KNOBS AND FLANGE AREA AROUND KNOBS

IMPORTANT: To avoid damage to knobs or flange area around knobs, do not use steel wool, abrasive cleaners, or oven cleaner. Do not soak knobs.

Cleaning Method:

■ Mild detergent, a soft cloth and warm water.
■ Rinse and dry.

CONTROL PANEL GRAPHICS

IMPORTANT: To avoid damage to control panel graphics, do not use steel wool, abrasive cleaners or oven cleaner. Do not spray cleaner directly onto panel.

Cleaning Method:

■Clean around the burner labels gently; scrubbing may remove printing.
■Mild detergent, soft cloth and warm water.
■Rinse and dry.

TROUBLE SHOOTING

Grill will not light

- Is the 20 lb LP gas fuel tank valve turned off?

Turn the 20 lb LP gas fuel tank on.

- Is the grill properly connected to the gas supply?

Contact a trained repair specialist or see Installation Instructions.

- Is there gas in the 20 lb LP gas fuel tank?

Check the gas level.

- Is the igniter working?

Check that the igniter battery is properly installed or check to see if the battery needs to be replaced. See the “Replacing the Igniter Battery” section.

Check to see if the grill will match-light. See "Manually Lighting the Main Grill" in the "Outdoor Grill Use" section.

Check for loose wire connections to the igniter or electrodes.

Check to see if debris is blocking the electrodes.

If a spark occurs anywhere but the igniter tip, replace the igniter.

Burner flame will not stay lit

- Is the gas supply fully turned on?

Check that the 20 lb LP gas fuel tank valve is fully open.

- Is the gas supply in the 20 lb LP fuel gas tank low?

Check the gas level.

- Is the burner properly installed and in good condition?

Check that the burner is installed properly. Check for defects in the burner.

Flame is noisy, low or erratic

- Is the gas supply fully turned on?

Check that the 20 lb LP gas fuel tank valve is fully open.

- Is the gas supply in the 20 lb LP fuel gas tank low?

Check the gas level.

■Does only one burner appear low?

Check and clean the burner ports if clogged or dirty. See "General Cleaning" section.

- Is the gas supply hose bent or kinked?

Straighten the gas supply hose.

- Is the flame noisy or lifting away from the burner?

Burner may be getting too much air. Check the air shutter adjustment, see "Check and Adjust Burners" section.

- Is the burner flame mostly yellow or orange?

Grill may be in an area that is too windy, or not receiving enough air. Check the burner air inlets for obstructions.

Check the air shutter adjustment, see "Check and Adjust Burners" section.

Excessive flare-ups

- Is there excessive fat in the food being grilled?

Keep flame on low or turn one burner off.

Keep the hood up when grilling to avoid excessive flare-ups.

Move food to the warming rack until flames subside.

To avoid damage to the grill, do not spray water on gas flames.

Low heat

LP Gas:

For outdoor grills using a 20lb LP gas fuel tank, slowly open the tank valve.

NOTE: If flow limiting device activates, your grill may not light. If your grill does light, the flames will be low and will not heat properly.

1. Turn tank valve and all control knobs off and wait 30 seconds.

2. After shutting off the tank, very slowly open the tank valve and wait 5 seconds before lighting.

3. Light the burners one at a time. See "Lighting the Main Grill" section.

Natural Gas:

Gas pressure is affected by size and length of the gas line from the house to the grill. Contact a qualified gas technician to provide the Natural gas supply to the selected grill location in accordance with the National Fuel Gas Code ANSI Z223.1/

NFPA54 - latest edition and local codes.

ASSISTANCE

Before calling for assistance, please check "Troubleshooting." If you still need help, follow the instructions below.

When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request.

If you need replacement parts

If you have questions or need to order replacement parts, contact Customer Service Center at 1-877-373-2301.

Please direct all correspondence to:

Nexgrill Industries, Inc.

5270 Edison Avenue, Chino, CA 91710

Please include a daytime phone number in your correspondence.

Accessories

Natural Gas Conversion Kit

Order Part Number 710-0003

LIMITED WARRANTY (Model # 720/730-0826)

Nexgrill warrants to the original consumer-purchaser only that this product (Model# 720/730-0826) shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase. The manufacturer reserves the right to require photographic evidence of damage, or that defective parts be returned, postage and or freight pre-paid by the consumer, for review and examination.

Stainless steel tube burner: 10 year LIMITED warranty against perforation, Other burners (sear)—1 year

Grids, grates & electronic ignition: 3 year LIMITED warranty,

* Does not cover dropping, chipping, scratching or surface damage

Stainless steel parts: 3 year LIMITED warranty against perforation

* Does not cover cosmetic issue like surface corrosion, scratched and rust

All other parts: 1 year LIMITED warranty

* Does not cover chipping, scratching, cracking surface corrosion, scratches or rust

Upon consumer supplying proof of purchase as provided herein, Manufacturer will repair or replace the parts which are proven defective during the applicable warranty period. Parts required to complete such repair or replacement shall be free of charge to you except for shipping costs, as long as the purchaser is within the warranty period from the original date of purchase. The original consumer-purchaser will be responsible for all shipping charges of parts replaced under the terms of this limited warranty. This limited warranty is applicable in the United States only, is only available to the original owner of the product and is not transferable. Manufacturer requires reasonable proof of your date of purchase. Therefore, you should retain your sales receipt and/or invoice. If the unit was received as a gift, please ask the gift-giver to send in the receipt on your behalf, to the below address. Defective or missing parts subject to this limited warranty will not be replaced without registration or proof of purchase. This limited warranty applies to the functionality of the product ONLY and does not cover cosmetic issues such as scratches, dents, corrosions or discoloring by heat, abrasive and chemical cleaners or any tools used in the assembly or installation of the appliance, surface rust, or the discoloration of stainless steel surfaces. Surface rust, corrosion, or powder paint chipping on metal parts that does not affect the structural integrity of the product is not considered a defect in workmanship or material and is not covered by this warranty. This limited warranty will not reimburse you for the cost of any inconvenience, food, personal injury or property damage. If an original replacement part is not available, a comparable replacement part will be sent. You will be responsible for all shipping charges of parts replaced under the terms of this limited warranty.

ITEMS MANUFACTURER WILL NOT PAY FOR:

■Service calls to your home.

■Repairs when your product is used for other than normal, single-family household or residential use.

■Damage resulting from accident, alteration, misuse, lack of maintenance/cleaning, abuse, fire, flood, acts of God, improper installation, and installation not in accordance with electrical or plumbing codes or use of products not approved by the manufacturer.

■Any food loss due to product failures.

■Replacement parts or repair labor costs for units operated outside the United States or Canada.

■Pickup and delivery of your product.

■Postage fees or photo processing fees for photos sent in as documentation.

■Repairs to parts or systems resulting from unauthorized modifications made to the product.

■The removal and/or reinstallation of your product.

■Shipping cost, standard or expedited, for warranty/non warranty and replacement parts. DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

Repair or replacement of defective parts is your exclusive remedy under the terms of this limited warranty. Manufacturer will not be responsible for any consequential or incidental damages arising from the breach of either this limited warranty or any applicable implied warranty, or for failure or damage resulting from acts of God, improper care and maintenance, grease fire, accident, alteration, replacement of parts by anyone other than Manufacturer, misuse, transportation, commercial use, abuse, hostile environments (inclement weather, acts of nature, animal tampering), improper installation or installation not in accordance with local codes or printed manufacturer instructions.

THIS LIMITED WARRANTY IS THE SOLE EXPRESS WARRANTY GIVEN BY THE MANUFACTURER. NO PRODUCT PERFORMANCE SPECIFICATION OR DESCRIPTION WHEREVER APPEARING IS WARRANTED BY MANUFACTURER EXCEPT TO THE EXTENT SET FORTH IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTY PROTECTION ARISING UNDER THE LAWS OF ANY STATE, INCLUDING IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE, IS HEREBY LIMITED IN DURATION TO THE DURATION OF THIS LIMITED WARRANTY.

Neither dealers nor the retail establishment selling this product has any authority to make any additional warranties or to promise remedies in addition to or inconsistent with those stated above. Manufacturer's maximum liability, in any event, shall not exceed the documented purchase price of the product paid by the original consumer. This warranty only applies to units purchased from an authorized retailer and or re-seller. NOTE: Some states do not allow an exclusion or limitation of incidental or consequential damages, so some of the above limitations or exclusions may not apply to you; this limited warranty gives you specific legal rights as set for herein. You may also have other rights which vary from state to state.

If you wish to obtain performance of any obligation under this limited warranty, you should write to:

Nexgrill Customer Relations

5270 Edison Avenue

Chino, CA 91710

All consumer returns, parts orders, general questions, and troubleshooting

assistance can be acquired by calling 1-877-373-2301.
