Product Type	LED Monitor
Screen Size	27 inches (68.6 cm)
Resolution	1920 x 1080 (Full HD)
Panel Type	IPS
Refresh Rate	60 Hz
Response Time	5 ms (GtG)
Brightness	250 cd/m²
Contrast Ratio	1000:1 (static)
Viewing Angles	178° / 178° (horizontal/vertical)
Input Ports	1 x VGA, 1 x HDMI 1.4
VESA Mount	100 x 100 mm
Power Consumption	Typical 25 W, Standby < 0.5 W
Weight (with stand)	4.5 kg (9.9 lbs)
Dimensions (WxHxD with stand)	613 x 453 x 180 mm
Energy Class	E (EU 2019/2013)
Included Accessories	HDMI cable, VGA cable, power adapter, stand
Special Features	Flicker-free technology, Low Blue Light mode
Cleaning Instructions	Use a soft, dry cloth. Do not use liquid cleaners.
Safety	Do not open the monitor. Disconnect from power before cleaning.
Spare Parts Availability	Contact AOC support or authorized service centers.

Frequently Asked Questions - I2721VH AOC

How do I adjust the monitor settings (brightness, contrast, etc.)?

Press the menu button on the monitor to access the On-Screen Display (OSD). Use the arrow keys to navigate and adjust Brightness, Contrast, and other settings. Press the menu button again to exit.

How can I connect the monitor to my laptop?

Use an HDMI or VGA cable (depending on your laptop's ports) to connect the monitor. If your laptop only has USB-C, you may need an adapter to HDMI or VGA.

What is the maximum resolution supported?

The monitor supports up to 1920 x 1080 at 60 Hz. Ensure your graphics card is set to this resolution for optimal performance.

Can I mount the monitor on a wall?

Yes, the monitor is VESA compatible with 100 x 100 mm mounting hole pattern. Use a VESA-compliant mount and follow the instructions.

How do I clean the screen safely?

Turn off the monitor and unplug it. Gently wipe the screen with a soft, dry microfiber cloth. Do not use any liquid cleaners or abrasive materials.

What should I do if the monitor shows no signal?

Check that the cable is securely connected to both the monitor and the computer. Ensure the correct input source is selected (press the Input button on the monitor). Also verify the computer is turned on and outputting video.

Is the monitor flicker-free?

Yes, the AOC I2721VH features Flicker-Free technology, which reduces eye strain during prolonged use.

How do I enable Low Blue Light mode?

Access the OSD menu, navigate to the Color or Game Setting section, and enable Low Blue Light mode. This reduces blue light emission for more comfortable viewing.

What is the power consumption of this monitor?

Typical power consumption is 25 W. In standby mode, it consumes less than 0.5 W. Use the power button to turn off when not in use to save energy.

Where can I find the user manual or drivers?

You can download the user manual and drivers from the AOC support website (support.aoc.com). Enter the model number I2721VH to find the relevant documents.

USER MANUAL I2721VH AOC

LCD Monitor User Manual

I2421VWH / I2721VH

(LED Backlight)

Modern black monitor with a circular base and 'ROC' logo, placed on a wooden surface (no text or symbols visible)

Safety 4

National Conventions....4

Power 5

Installation....6

Cleaning....7

Other 8

Setup 9

Contents in Box 9

Setup Stand & Base....10

Adjusting Viewing Angle....11

Connecting the Monitor....12

Wall Mounting 13

Adjusting....14

Setting Optimal Resolution 14

Windows Vista 14

Windows XP 16

Windows ME/2000....17

Windows 8....18

Hotkeys....20

OSD Setting....22

Luminance....23

Image Setup 25

Color Setup....27

Picture Boost 29

OSD Setup 31

Extra....33

Exit....35

LED Indicator 36

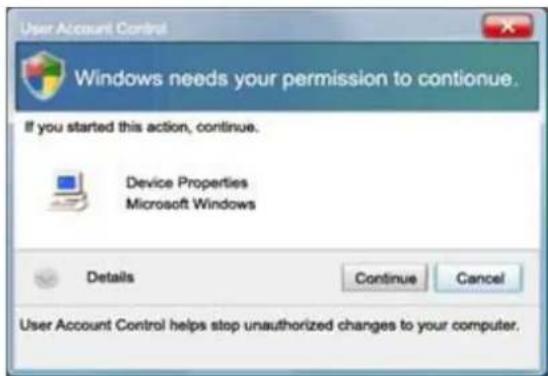

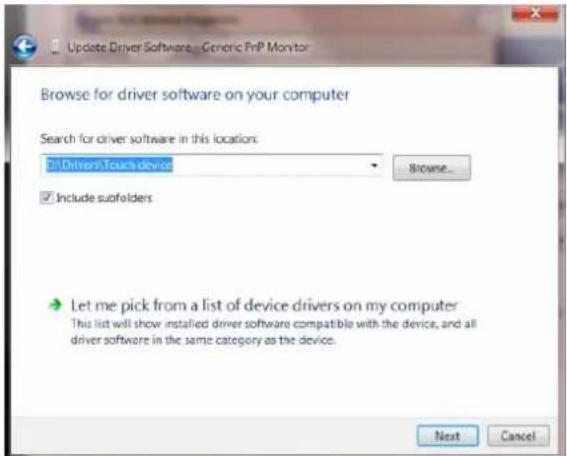

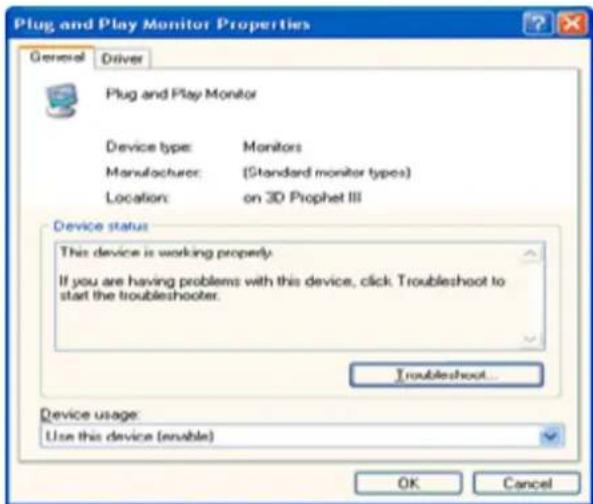

Driver 37

Monitor Driver 37

Windows 8....37

Windows 7....41

Windows Vista 45

Windows XP 47

Windows 2000....50

Windows ME....50

i-Menu....51

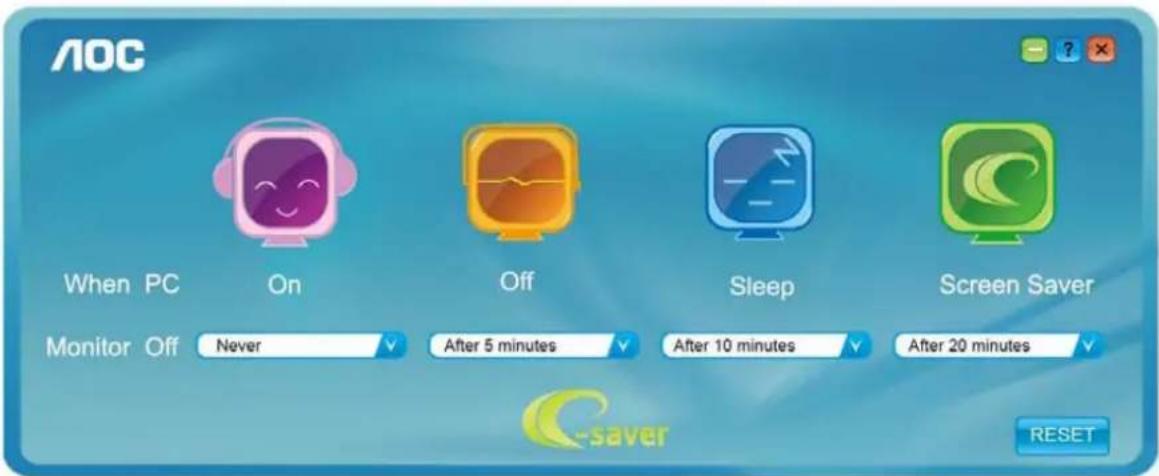

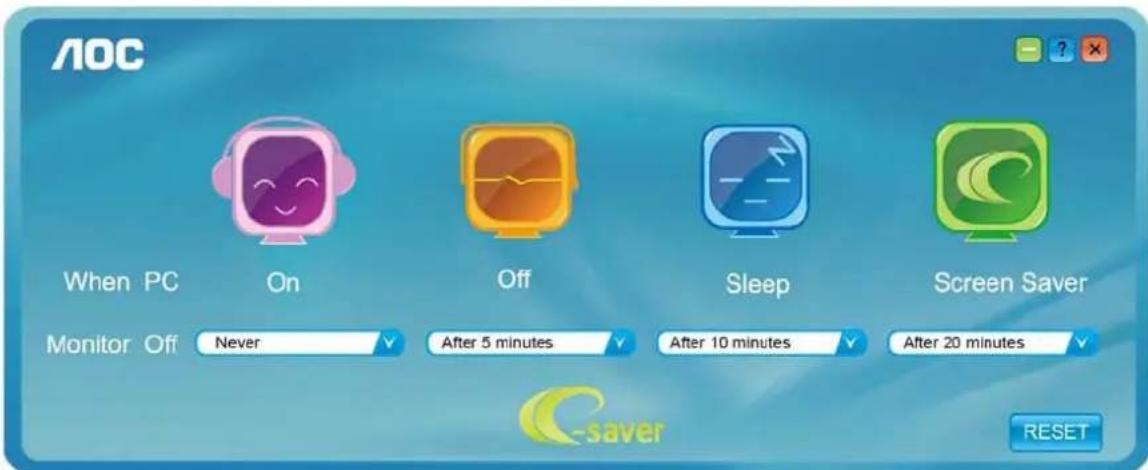

e-Saver 52

Screen+ 53

Troubleshoot....54

Specification....55

General Specification(23.6") 55

General Specification(27") 56

Preset Display Modes....57

Pin Assignments ....58

Plug and Play....60

Regulation....61

FCC Notice 61

WEEE Declaration 62

WEEE Declaration for India....62

EPA Energy Star 63

Service....64

Warranty Statement for Europe....64

Warranty Statement for Middle East and Africa (MEA) 66

AOC PIXEL POLICY....68

ISO 9241-307 CLASS 1....68

Warranty Statement for North & South America (excluding Brazil) 69

EASE PROGRAME 71

Safety

National Conventions

The following subsections describe notational conventions used in this document.

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows:

NOTE: A NOTE indicates important information that helps you make better use of your computer system.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific presentation of the warning is mandated by regulatory authority.

Power

The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.
The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.
⚠️ Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the monitor from damage due to power surges.
Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100 - 240V \~, Min. 5A
The wall socket shall be installed near the equipment and shall be easily accessible.
For use only with the attached power adapter (Output 12Vdc).

Factory:

1) Shenzhen MassPower Electronic Limited Model : WHF-1200300T3
2) Shenzhen Honor Electronic Co., Ltd Model : ADS-45NP-12-1 12036G

Installation

Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. Follow the manufacturer's instructions when installing the product and use mounting accessories recommended by the manufacturer. A product and cart combination should be moved with care.
Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or electric shock. Never spill liquids on the monitor.
Do not place the front of the product on the floor.
If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.
Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence overheating may cause a fire or damage to the monitor.

See below the recommended ventilation areas around the monitor when the monitor is installed on the wall or on the stand:

Installed on the wall

Installed with stand

Cleaning

Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet.

When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface.

Please disconnect the power cord before cleaning the product.

Simple line drawing of a computer monitor with a cable and a switch, no text or symbols present

Illustration of a hand interacting with a computer monitor displaying a curved line graph (no text or symbols)

Other

If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center.
Make sure that the ventilating openings are not blocked by a table or curtain.
Do not engage the LCD monitor in severe vibration or high impact conditions during operation.
Do not knock or drop the monitor during operation or transportation.
For display with glossy bezel the user should consider the placement of the display as the bezel may cause disturbing reflections from surrounding light and bright surfaces.

Setup

Contents in Box

Front view of a black CRT monitor with a white cable, showing blank screen and stand (no text or symbols visible)

Monitor

CD Manual

Power Cable

Adapter

Base

Analog Cable

DVI Cable

HDMI Cable

* Not all signal cables (Analog, DVI, and HDMI cables) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation.

Setup Stand & Base

Please setup or remove the base following the steps as below.

Setup:

Remove:

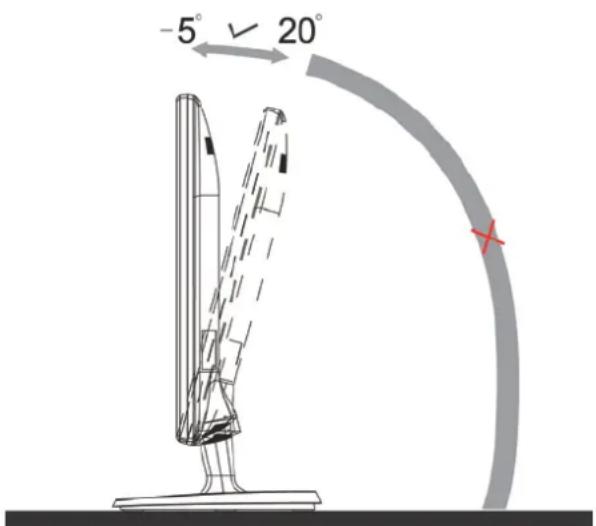

Adjusting Viewing Angle

For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference.

Hold the stand so you will not topple the monitor when you change the monitor's angle.

You are able to adjust the monitor's angle from -5^irc to 20^irc .

NOTE: Do not adjust the viewing angle over 20 degrees in order to avoid damage.

NOTE:

Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.

Do not put your hand close to the gap between the monitor and the base to avoid the injury when adjusting the viewing angle.

Connecting the Monitor

Cable Connections In Back of Monitor and Computer:

1. Power
2. DVI
3. Analog (D-Sub 15-Pin VGA cable)
4. HDMI
5. Earphone

To protect equipment, always turn off the PC and LCD monitor before connecting.

1 Connect the power cable to the DC port on the back of the monitor.
2 Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer's D-Sub port.
3 Optional –(Requires a video card with DVI port) - Connect one end of the DVI cable to the back of the monitor and connect the other end to the computer's DVI port.
4 Optional –(Requires a video card with HDMI port) - Connect one end of the HDMI cable to the back of the monitor and connect the other end to the computer's HDMI port.
5 Turn on your monitor and computer.

If your monitor displays an image, installation is complete. If it does not display an image, please refer Troubleshooting.

Wall Mounting

Preparing to Install An Optional Wall Mounting Arm.

This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this procedure. Follow these steps:

1 Remove the base.
2 Follow the manufacturer's instructions to assemble the wall mounting arm.
3 Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the back of the monitor.
4 Insert the 4 screws into the holes and tighten.
5 Reconnect the cables. Refer to the user's manual that came with the optional wall mounting arm for instructions on attaching it to the wall.

Noted : VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC.

Adjusting

Setting Optimal Resolution

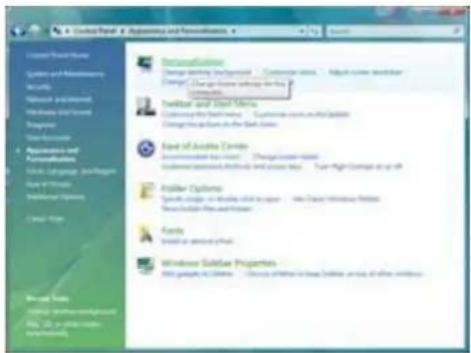

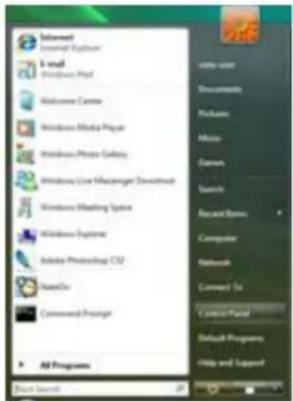

Windows Vista

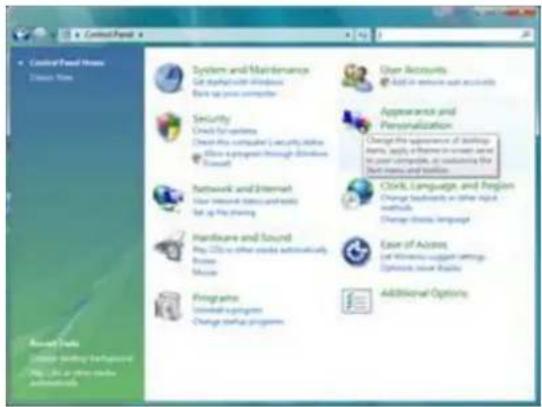

For Windows Vista:

1 Click START.

2 Click CONTROL PANEL.

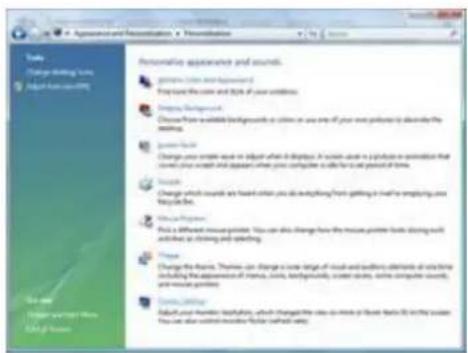

3 Click Appearance and Personalization.

4 Click Personalization

5 Click Display Settings.

6 Set the resolution SLIDE-BAR to Optimal preset resolution

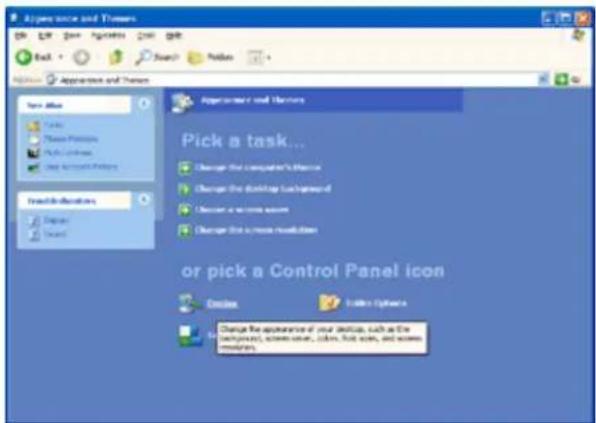

Windows XP

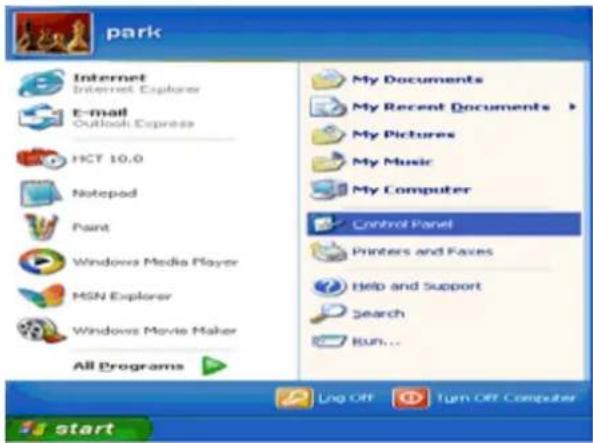

For Windows XP:

1 Click START.

2 Click SETTINGS.

3 Click CONTROL PANEL.

4 Click Appearance and Themes.

5 Double click DISPLAY.

6 Click SETTINGS.

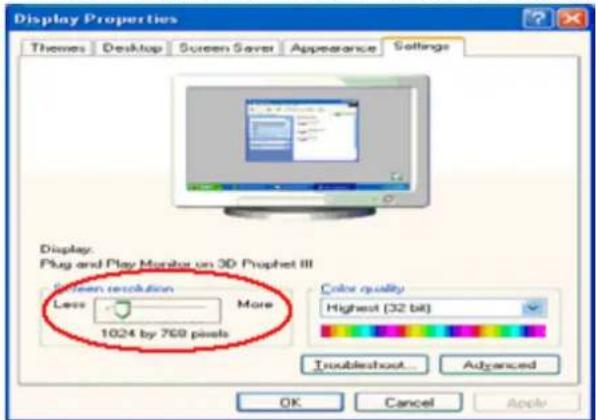

7 Set the resolution SLIDE-BAR to Optimal preset resolution

Windows ME/2000

For Windows ME/2000:

1 Click START.
2 Click SETTINGS.
3 Click CONTROL PANEL.
4 Double click DISPLAY.
5 Click SETTINGS.

6 Set the resolution SLIDE-BAR to Optimal preset resolution

Windows 8

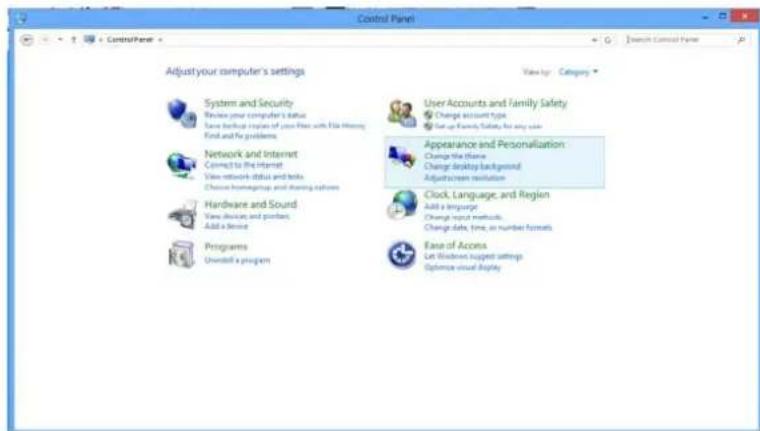

For Windows 8:

1. Right click and click All apps at the bottom-right of the screen.

1. Set the "View by" to "Category".

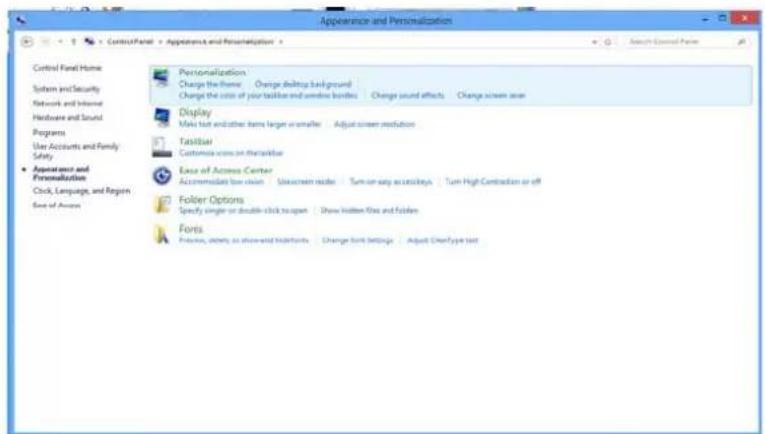

2. Click Appearance and Personalization.

4. Click DISPLAY.

5. Set the resolution SLIDE-BAR to Optimal preset resolution.

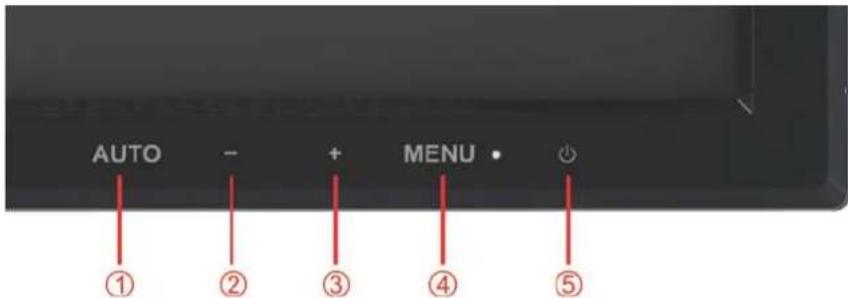

Hotkeys

1 Source/Auto/Exit

2 Clear vision / -

3 4:3 or wide/ Volume / +

4 Menu/Enter

5 Power

Power

Press the Power button to turn on/off the monitor.

Menu/Enter

Press to display the OSD or confirm the selection.

4:3 or wide image ratio / +

When there is no OSD, press hotkey continuously to change 4:3 or wide image ratio. (If the product screen size is 4:3 or input signal resolution is wide format, the hot key is disable to adjust.). (VGA/DVI)

Volume / +

When there is no OSD, press Volume adjust volume. (HDMI)

Source /Auto / Exit

When the OSD is closed, press Auto/Source/Exit button continuously about 2 second to do auto configure (only for the models with dual or more inputs). When the OSD is closed, press Auto/Source/Exit button will be Source hot key function (Only for the models with dual or more inputs).

Clear Vision

1. When there is no OSD, Press the “-” button to activate Clear Vision.
2. Use the “-” or “+” buttons to select between weak, medium, strong, or off settings. Default setting is always “off”.

1. Press and hold “-” button for 5 seconds to activate the Clear Vision Demo, and a message of “Clear Vision Demo: on” will be displayed on the screen for a duration of 5 seconds. Press Menu or Exit button, the message will disappear. Press and hold “-” button for 5 seconds again, Clear Vision Demo will be off.

Clear Vision function provides the best image viewing experience by converting low resolution and blurry images into clear and vivid images.

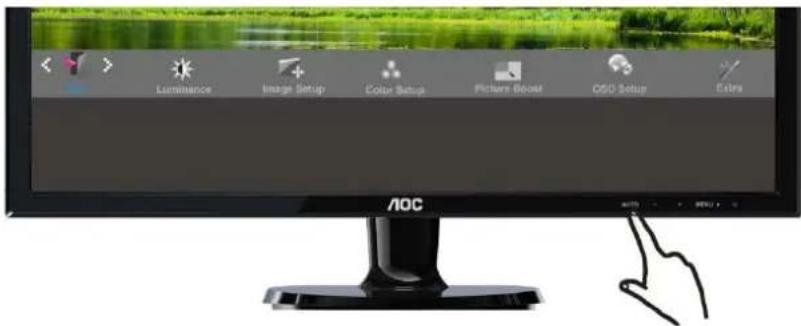

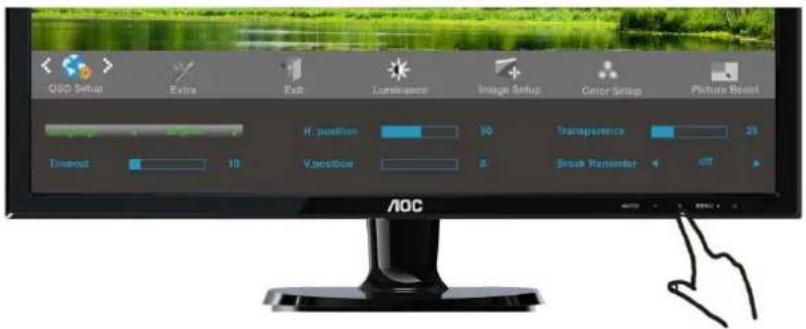

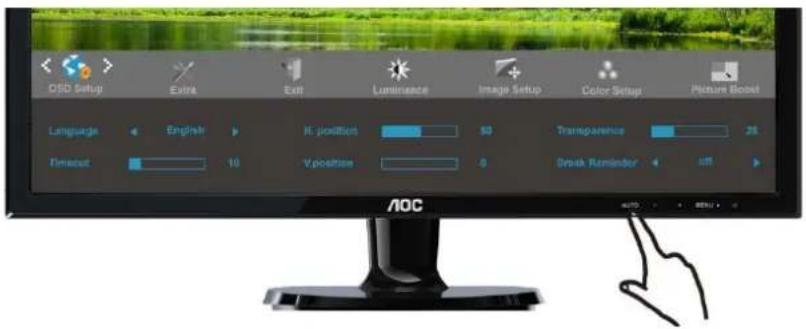

OSD Setting

Basic and simple instruction on the control keys.

1) Press the MENU button to activate the OSD window.
2) Press - or + to navigate through the functions. Once the desired function is highlighted, press the MENU button to activate it . press - or + to navigate through the sub-menu functions. Once the desired function is highlighted, press MENU button to activate it.
3) Press - or + to change the settings of the selected function. Press AUTO to exit. If you want to adjust any other function, repeat steps 2-3.
4) OSD Lock Function: To lock the OSD, press and hold the MENU button while the monitor is off and then press ⏻ button to turn the monitor on. To un-lock the OSD - press and hold the MENU button while the monitor is off and then press ⏻ button to turn the monitor on.
1) If the product has only one signal input, the item of "Input Select" is disable to adjust.
2) If the product screen size is 4:3 or input signal resolution is wide format, the item of "Image Ratio" is disable to adjust.
3) One of Clear vision, DCR, Color Boost, and Picture Boost functions is activated; the other three functions are turned off accordingly.

Notes:

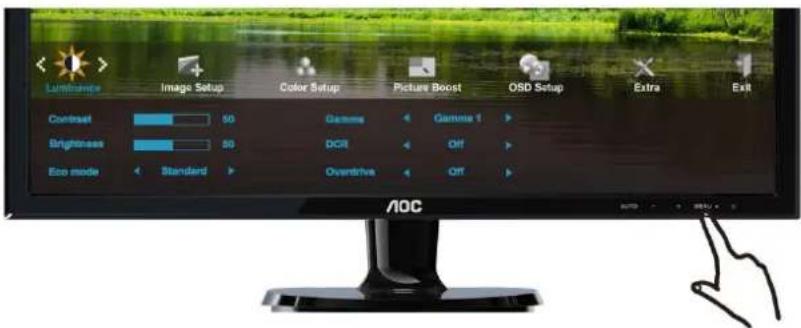

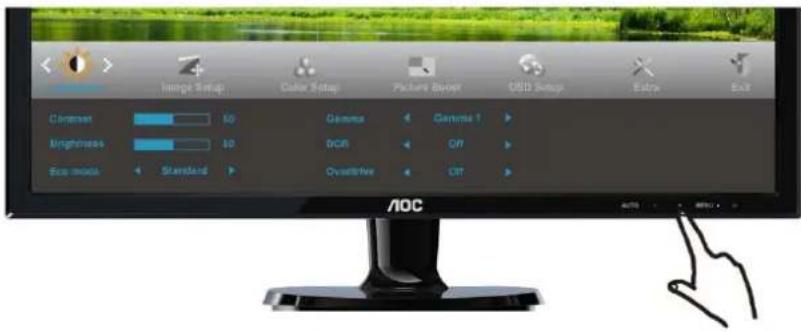

Luminance

1. Press MENU to display menu.

1. Press - or + to select (Luminance), and press MENU to enter.

1. Press - or + to select submenu, and press MENU to enter.

1. Press - or + to adjust.

1. Press AUTO to exit .

	Brightness	0-100	Backlight Adjustment
	Contrast	0-100	Contrast from Digital-register.
	Eco mode	Standard	Standard Mode
		Text Text Mode
		Internet	Internet Mode
		Game Game Mode
		Movie Movie Mode
		Sports Sports Mode
	Gamma	Gamma1 Adjust to Gamma1
		Gamma2 Adjust to Gamma 2
		Gamma3 Adjust to Gamma 3
	DCR	Off	Disable dynamic contrast ratio
		On	Enable dynamic contrast ratio
	Overdrive	Weak	Adjust the response time
		Medium
		Strong
		Off

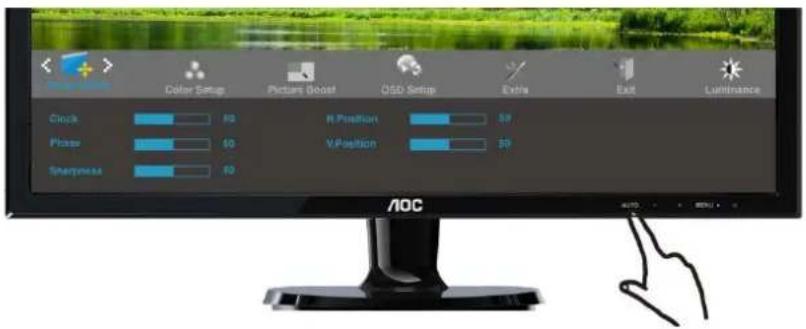

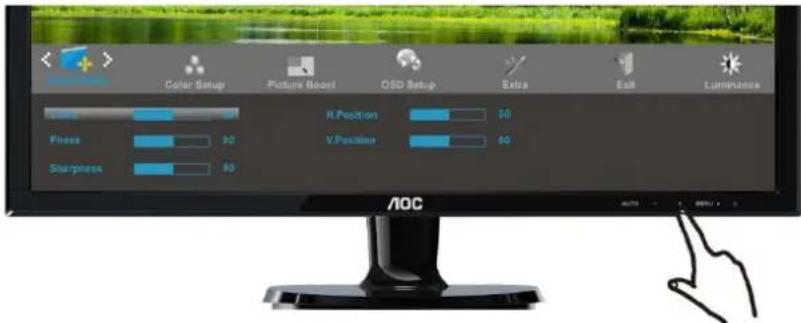

Image Setup

1. Press MENU to display menu.

1. Press - or + to select (Image Setup), and press MENU to enter.

1. Press - or + to select submenu, and press MENU to enter.

1. Press - or + to adjust.

1. Press AUTO to exit .

	Clock	0-100	Adjust picture Clock to reduce Vertical-Line noise.
	Phase	0-100	Adjust Picture Phase to reduce Horizontal-Line noise
	Sharpness	0-100	Adjust picture sharpness
	H.Position	0-100	Adjust the horizontal position of the picture.
	V.Position	0-100	Adjust the vertical position of the picture.

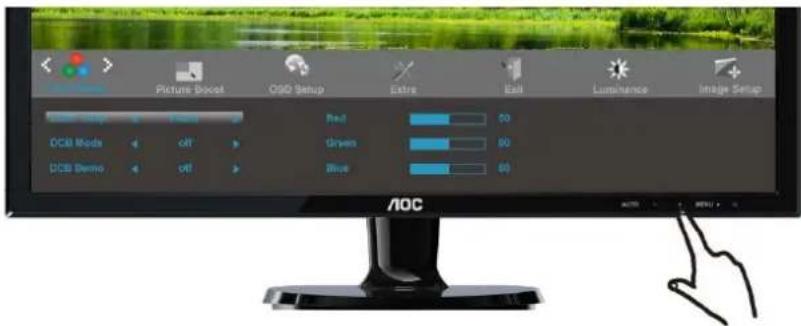

Color Setup

1. Press MENU to display menu.

1. Press - or + to select (Color Setup), and press MENU to enter.

1. Press - or + to select submenu, and press MENU to enter.

1. Press - or + to adjust.

1. Press AUTO to exit .

	Color Temp.	Warm		Recall Warm Color Temperature from EEPROM.
		Normal		Recall Normal Color Temperature from EEPROM.
		Cool		Recall Cool Color Temperature from EEPROM.
		sRGB		Recall SRGB Color Temperature from EEPROM.
		User	Red	Red Gain from Digital-register
			Green	Green Gain Digital-register.
			Blue	Blue Gain from Digital-register
	DCB Mode	Full Enhance	on or off	Disable or Enable Full Enhance Mode
		Nature Skin	on or off	Disable or Enable Nature Skin Mode
		Green Field	on or off	Disable or Enable Green Field Mode
		Sky-blue	on or off	Disable or Enable Sky-blue Mode
		AutoDetect	on or off	Disable or Enable AutoDetect Mode
	DCB Demo		On or off	Disable or Enable Demo

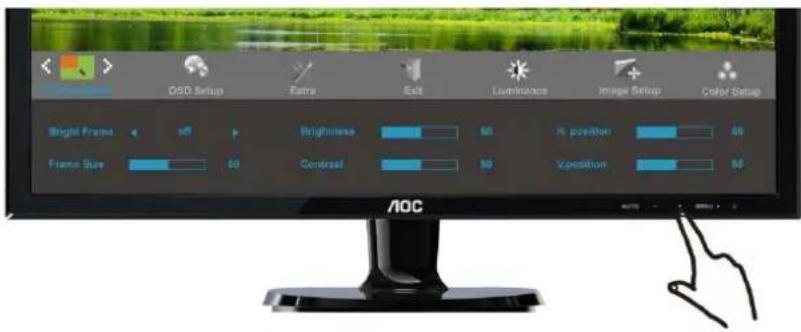

Picture Boost

1. Press MENU to display menu.

1. Press - or + to select (Picture Boost), and press MENU to enter.

1. Press - or + to select submenu, and press MENU to enter.

1. Press - or + to adjust.

1. Press AUTO to exit .

	Frame Size	14-100	Adjust Frame Size
	Brightness	0-100	Adjust Frame Brightness
	Contrast	0-100	Adjust Frame Contrast
	H. position	0-100	Adjust Frame horizontal Position
	V.position	0-100	Adjust Frame vertical Position
	Bright Frame	on or off	Disable or Enable Bright Frame

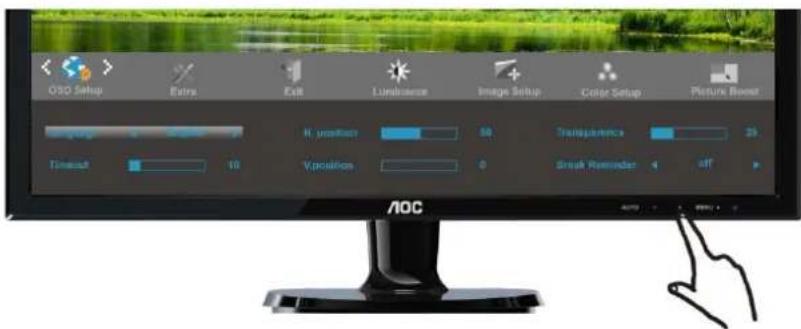

OSD Setup

1. Press MENU to display menu.

1. Press - or + to select (OSD Setup), and press MENU to enter.

1. Press - or + to select submenu, and press MENU to enter.

1. Press - or + to adjust.

1. Press AUTO to exit .

	H.Position	0-100	Adjust the horizontal position of OSD
	V.Position	0-100	Adjust the vertical position of OSD
	Timeout	5-120	Adjust the OSD Timeout
	Transparence	0-100	Adjust the transparence of OSD
	Language		Select the OSD language
	Break Reminder	on or off	Break reminder if the user continuously work for more than 1hrs

Extra

1. Press MENU to display menu.

1. Press - or + to select (Extra), and press MENU to enter.

1. Press - or + to select submenu, and press MENU to enter.

1. Press - or + to adjust.

1. Press AUTO to exit .

	Input Select	Auto / D-SUB / DVI / HDMI Select Input Signal Source
	Auto Config	yes or no	Auto adjust the picture to default
	Off timer	0-24hrs	Select DC off time
	Image Ratio	wide or 4:3	Select wide or 4:3 format for display
	DDC-CI	yes or no	Turn ON/OFF DDC-CI Support
	Reset	Yes or no	Reset the menu to default
	Information		Show the information of the main image and sub-image source

Exit

1. Press MENU to display menu.

1. Press - or + to select (Exit), and press MENU to enter.

1. Press AUTO to exit .

Exit Exit the main OSD

LED Indicator

Status LED Color
Full Power Mode Green
Active-off Mode	Orange

Driver

Monitor Driver

Windows 8

1. Start Windows® 8
2. Right click and click All apps at the bottom-right of the screen.

1. Click on the "Control panel" icon
2. Set the "View by" to "Large icons" or "Small icons".

5. Click on the "Display" icon.

6. Click on the "Change display settings" button.

7. Click the "Advanced Settings" button.

1. Click the "Monitor" tab and then click the "Properties" button.

1. Click the "Driver" tab.

1. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on "Update Driver..." and then click the "Browse my computer for driver software" button.

1. Select "Let me pick from a list of device drivers on my computer".

1. Click the "Have Disk" button. Click on the "Browse" button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).

1. Select the "xxx.inf" file and click the "Open" button. Click the "OK" button.
2. Select your monitor model and click the "Next" button. The files will be copied from the CD to your hard disk drive.
3. Close all open windows and remove the CD.
4. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color Matching Profiles.

Windows 7

1.Start Windows® 7

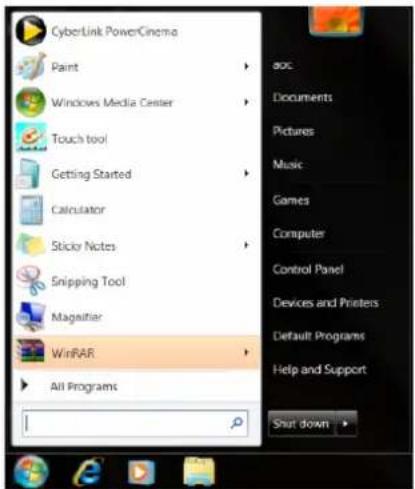

1. Click on the 'Start' button and then click on 'Control Panel'.

1. Click on the 'Display' icon.

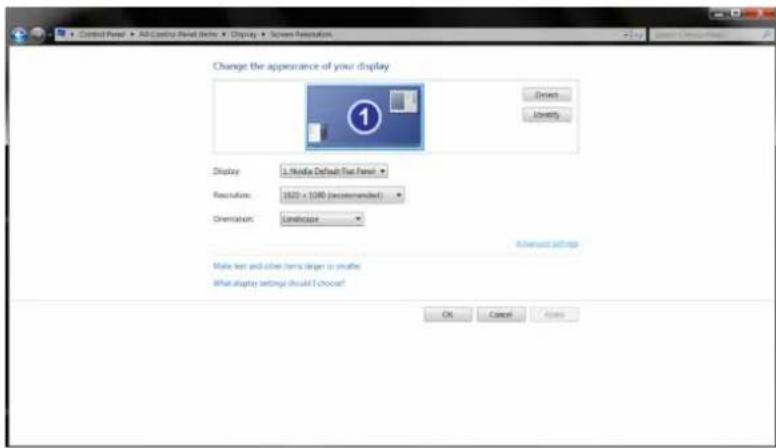

4. Ckick on the "Change display settings" button.

5. Click the "Advanced Settings" button.

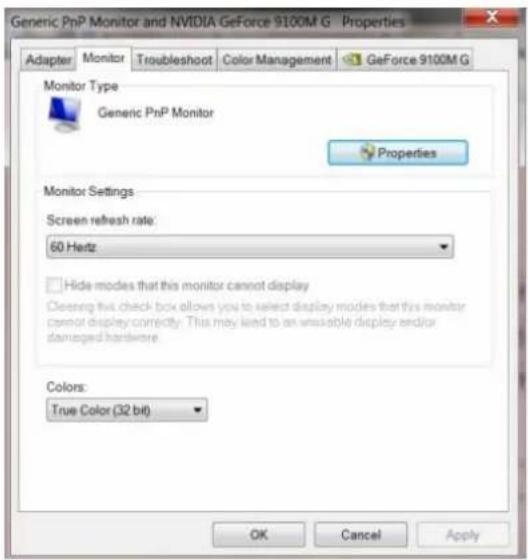

6. Click the "Monitor" tab and then click the "Properties" button.

7. Click the "Driver" tab.

1. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on "Update Driver... "and then click the "Browse my computer for driver software" button.

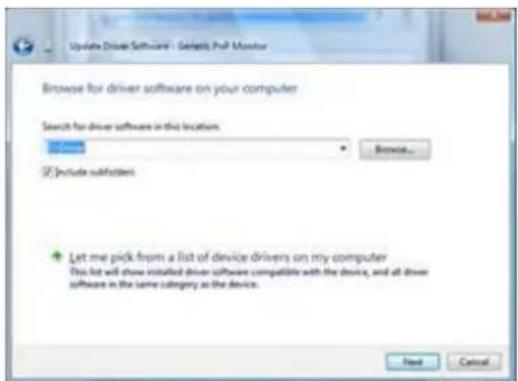

1. Select "Let me pick from a list of device drivers on my computer".

1. Click the "Have Disk" button. Click on the "Browse" button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).

1. Select the "xxx.inf" file and click the "Open" button. Click the "OK" button.
2. Select your monitor model and click the "Next" button. The files will be copied from the CD to your hard disk drive.
3. Close all open windows and remove the CD.
4. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color Matching Profiles.

Windows Vista

1. Click "Start" and "Control Panel". Then, double-click on "Appearance and Personalization".

1. Click "Personalization" and then "Display Settings".

1. Click "Advanced Settings...".

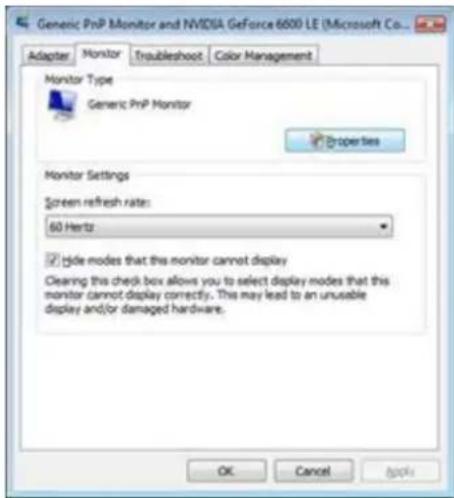

1. Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is.

If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue".

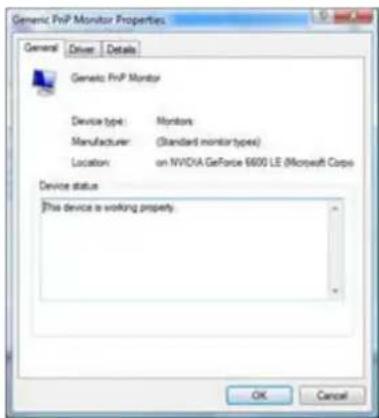

1. Click "Update Driver..." in the "Driver" tab.

1. Check the "Browse my computer for driver software" checkbox and click "Let me pick from a list of device drivers on my computer".

1. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F:\Driver (CD-ROM Drive).
2. Select your monitor model and click on the 'Next' button.
3. Click "Close" → "Close" → "OK" → "OK" on the following screens displayed in sequence.

Windows XP

1. Start Windows® XP
2. Click on the 'Start' button and then click on 'Control Panel'.

1. Select and click on the category 'Appearance and Themes'

1. Click on the 'Display' Item.

1. Select the 'Settings' tab then click on the 'Advanced' button.

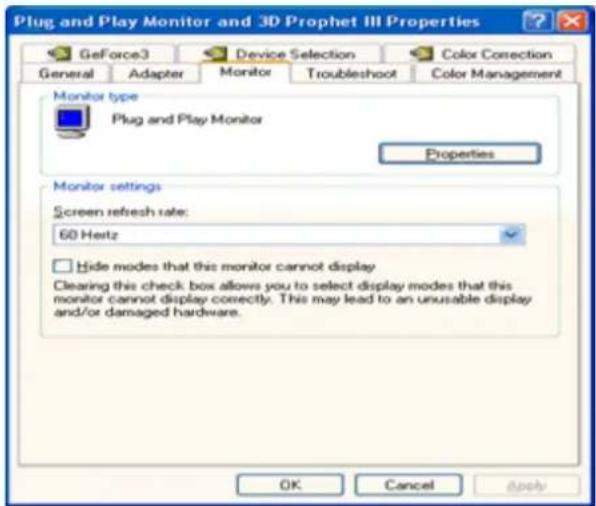

1. Select 'Monitor' tab

2. If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.

3. If the 'Properties' button is active, click on 'Properties' button.

Please follow the steps below.

1. Click on the 'Driver' tab and then click on 'Update Driver...' button.

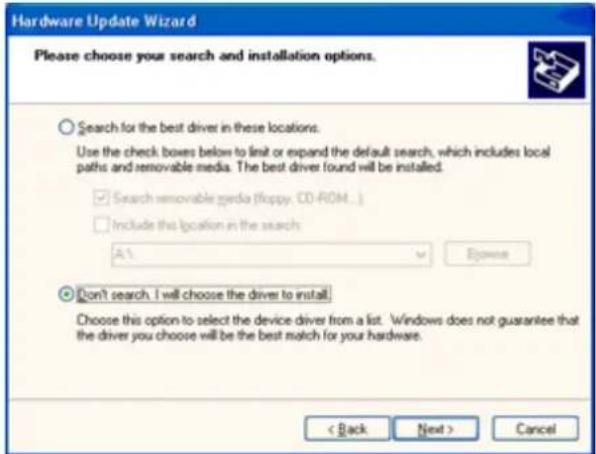

1. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button.

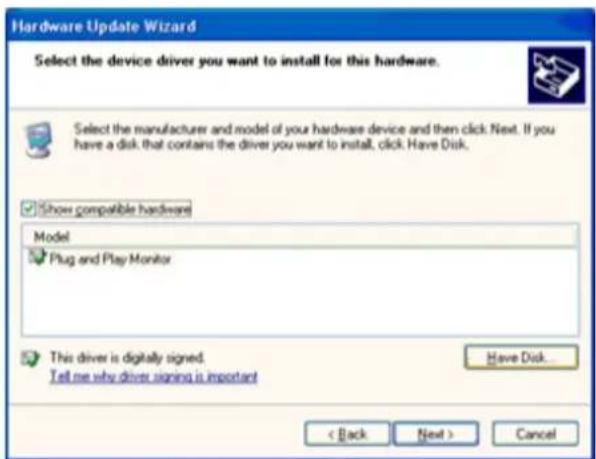

1. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button.

1. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F: (CD-ROM Drive).

1. Click on the 'Open' button, then click the 'OK' button.

2. Select your monitor model and click on the 'Next' button.

3. If you can see the 'has not passed Windows® Logo testing to verify its compatibility with Windows® XP' message, please click on the 'Continue Anyway' button.

4. Click on the 'Finish' button then the 'Close' button.
5. Click on the 'OK' button and then the 'OK' button again to close the Display Properties dialog box.

Windows 2000

1. Start Windows® 2000
2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
3. Double click on the 'Display' Icon.
4. Select the 'Settings' tab then click on 'Advanced...'.
5. Select 'Monitor'
6. If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.
7. If the 'Properties' button is active. Click on 'Properties' button. Please follow the steps given below.
8. Click on 'Driver' and then click on 'Update Driver...' then click on the 'Next' button.
9. Select 'Display a list of the known drivers for this device so that I can choose a specific driver', then click on 'Next' and then click on 'Have disk...'.
10. Click on the 'Browse...' button then select the appropriate drive F: (CD-ROM Drive).
11. Click on the 'Open' button, then click on the 'OK' button.
12. Select your monitor model and click on the 'Next' button.
13. Click on the 'Finish' button then the 'Close' button.
    If you can see the 'Digital Signature Not Found' window, click on the 'Yes' button.

Windows ME

1. Start Windows® Me
2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'.
3. Double click on the 'Display' Icon.
4. Select the 'Settings' tab then click on 'Advanced...'.
5. Select the 'Monitor' button, then click on 'Change...' button.
6. Select 'Specify the location of the driver(Advanced)' and click on the 'Next' button.
7. Select 'Display a list of all the drivers in a specific location, so you can choose the driver you want', then click on 'Next' and then click on 'Have Disk...'.
8. Click on the 'Browse...' button, select the appropriate drive F: (CD-ROM Drive) then click on the 'OK' button.
9. Click on the 'OK' button, select your monitor model and click on the 'Next' button.
10. Click on 'Finish' button then the 'Close' button.

i-Menu

Welcome to "i-Menu" software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide.

e-Saver

Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below).

Please click on "driver/e-Saver/setup.exe" to start installing the e-Saver software, follow the install wizard to complete software installation.

Under each of the four PC status, you may choose from the pull-down menu the desired time (in minutes) for your monitor to automatically shutdown. The example above illustrated:

1) The monitor will never shutdown when the PC is powered on.
2) The monitor will automatically shutdown 5 minutes after the PC is powered off.
3) The monitor will automatically shutdown 10 minutes after the PC is in sleep/stand-by mode.
4) The monitor will automatically shutdown 20 minutes after the screen saver appears.

You can click "RESET" to set the e-Saver to its default settings like below.

Screen+

Welcome to "Screen+" software by AOC, Screen+ software is a desktop screen splitting tool, it splits the desktop into different panes, each pane displays a different window. You only need to drag the window to a corresponding pane, when you want to access it. It supports multiple monitor display to make your task easier. Please follow the installation software to install it.

Troubleshoot

Problem & Question	Possible Solutions
Power LED Is Not ON	Make sure the power button is ON and the Power Cord is properly connected to a grounded power outlet and to the monitor.
No images on the screen	• Is the power cord connected properly?Check the power cord connection and power supply.• Is the cable connected correctly?(Connected using the D-sub cable)Check the DB-15 cable connection.(Connected using the DVI cable)Check the DVI cable connection.* DVI input is not available on every model.(Connected using the HDMI cable)Check the HDMI cable connection.* HDMI input is not available on every model.• If the power is on, reboot the computer to see the initial screen (the login screen), which can be seen.If the initial screen (the login screen) appears, boot the computer in the applicable mode (the safe mode for Windows ME/XP/2000) and then change the frequency of the video card.(Refer to the Setting the Optimal Resolution)If the initial screen (the login screen) does not appear, contact the Service Center or your dealer.• Can you see "Input Not Supported" on the screen?You can see this message when the signal from the video card exceeds the maximum resolution and frequency that the monitor can handle properly.Adjust the maximum resolution and frequency that the monitor can handle properly.• Make sure the AOC Monitor Drivers are installed.
Picture Is Fuzzy & Has Ghosting Shadowing Problem	Adjust the Contrast and Brightness Controls.Press to auto adjust.Make sure you are not using an extension cable or switch box. We recommend plugging the monitor directly to the video card output connector on the back .
Picture Bounces, Flickers Or Wave Pattern Appears In The Picture	Move electrical devices that may cause electrical interference as far away from the monitor as possible.Use the maximum refresh rate your monitor is capable of at the resolution your are using.
Monitor Is Stuck In Active Off-Mode"	The Computer Power Switch should be in the ON position.The Computer Video Card should be snugly fitted in its slot.Make sure the monitor's video cable is properly connected to the computer.Inspect the monitor's video cable and make sure no pin is bent.Make sure your computer is operational by hitting the CAPS LOCK key on the keyboard while observing the CAPS LOCK LED. The LED should either turn ON or OFF after hitting the CAPS LOCK key.
Missing one of the primary colors (RED, GREEN, or BLUE)	Inspect the monitor's video cable and make sure that no pin is damaged.Make sure the monitor's video cable is properly connected to the computer.
Screen image is not centered or sized properly	Adjust H-Position and V-Position or press hot-key (AUTO).
Picture has color defects (white does not look white)	Adjust RGB color or select desired color temperature.
Horizontal or vertical disturbances on the screen	Use Windows 95/98/2000/ME/XP shut-down mode Adjust CLOCK and FOCUS.Press to auto-adjust.

Specification

General Specification(23.6")

Panel	Model name I2421VWH
	Driving system TFT Color LCD
	Viewable Image Size	59.8 cm diagonal
	Pixel pitch	0.2715 mm(H) x 0.2715 mm(V)
	Video	R, G, B Analog Interface, DVI & HDMI Digital Interface
	Separate Sync. H/V TTL
	Display Color 16.7M Colors
	Pixel clock 148.5 MHz
Resolution	Horizontal scan range	30 kHz - 83 kHz
	Horizontal scan Size(Maximum)	521.28 mm
	Vertical scan range	50 Hz - 76 Hz
	Vertical scan Size(Maximum)	293.22 mm
	Optimal preset resolution	1920 x 1080 (60 Hz)
	Plug & Play	VESA DDC2B/CI
	Input Connector	D-Sub 15pin, DVI 24pin, HDMI 19pin
	Input Video Signal	Analog: 0.7Vp-p(standard), 75 OHM, Positive, DVI-D & HDMI Digital Interface (TMDS)
	Power Source	12Vdc, 3.0A
	Power Consumption	Active 25 W (typical)
		Standby < 0.5 W
	Off timer	0~24 hrs
Physical Characteristics	Connector Type	15-pin D-Sub, 24-pin DVI-D, 19-pin HDMI
	Signal Cable Type	Detachable
	Dimensions & Weight	Height (with base)	399.6mm
		Width	561.3 mm
		Depth	199.3 mm
		Weight (monitor only)	3.7 kg
Environmental	Temperature	Operating	0°C to 40°C
		Non-Operating	-25°C to 55°C
	Humidity	Operating	10% to 85% (non-condensing)
		Non-Operating	5% to 93% (non-condensing)
	Altitude	Operating	0~5000m (0~16404 ft)
		Non-Operating	0~12192m (0~40000 ft)

General Specification(27")

Panel	Model name I2721VH
	Driving system	TFT Color LCD
	Viewable Image Size	68.6 cm diagonal
	Pixel pitch	0.3114 mm(H) x 0.3114 mm(V)
	Video	R, G, B Analog Interface, DVI & HDMI Digital Interface
	Separate Sync. H/V TTL
	Display Color 16.7M Colors
	Pixel clock 148.5 MHz
Resolution	Horizontal scan range	30 kHz - 83 kHz
	Horizontal scan Size(Maximum)	597.888 mm
	Vertical scan range	50 Hz - 76 Hz
	Vertical scan Size(Maximum)	336.312 mm
	Optimal preset resolution	1920 x 1080 (60 Hz)
	Plug & Play	VESA DDC2B/CI
	Input Connector	D-Sub 15pin, DVI 24pin, HDMI 19pin
	Input Video Signal	Analog: 0.7Vp-p(standard), 75 OHM, Positive, DVI-D & HDMI Digital Interface (TMDS)
	Power Source	12Vdc, 3.0A
	Power Consumption	Active 38 W (typical)
		Standby < 0.5 W
	Off timer	0~24 hrs
Physical Characteristics	Connector Type	15-pin D-Sub, 24-pin DVI-D, 19-pin HDMI
	Signal Cable Type	Detachable
	Dimensions & Weight	Height (with base)	447.8 mm
		Width	643.3 mm
		Depth	239.4 mm
		Weight (monitor only)	4.7 kg
Environmental	Temperature	Operating	0°C to 40°C
		Non-Operating	-25°C to 55°C
	Humidity	Operating	10% to 85% (non-condensing)
		Non-Operating	5% to 93% (non-condensing)
	Altitude	Operating	0~5000m (0~16404 ft)
		Non-Operating	0~12192m (0~40000 ft)

Preset Display Modes

STANDARD RESOLUTION		HORIZONTAL FREQUENCY(kHZ)	VERTICAL FREQUENCY(Hz)
VGA	640×480@60Hz	31.469	59.940
	640×480@72Hz	37.861	72.809
	640×480@75Hz	37.500	75.000
SVGA	800×600@56Hz	35.156	56.250
	800×600@60Hz	37.879	60.317
	800×600@72Hz	48.077	72.188
	800×600@75Hz	46.875	75.000
XGA	1024×768@60Hz	48.363	60.004
	1024×768@70Hz	56.476	70.069
	1024×768@75Hz	60.023	75.029
***	1080×720@60Hz	45.000	60.000
SXGA	1280×1024@60Hz	63.981	60.020
	1280×1024@75Hz	79.976	75.025
WXGA	1360×768@60Hz	47.712	60.015
	1360×768@60Hz	48.000	60.000
	1360×768@60Hz	47.712	59.790
WXGA+	1440×900@60Hz	55.935	59.876
	1440×900@60Hz	55.469	59.901
WSXGA	1600×900@60Hz	60.000	60.000
WSXGA+	1680×1050@60Hz	65.290	59.950
	1680×1050@60Hz 64.674 59.883
FHD	1920×1080@60Hz	67.500	60.000
***	1280×960@60Hz	60.000	60.000
IBM-MODE
DOS	720×400@70Hz	31.469	70.087
MAC MODE
VGA	640×480@67Hz	35.000	66.667
SVGA	832×624@75Hz	49.725	74.551
XGA	1024×768@75Hz	60.241	74.927

HDMI timing

FORMAT	RESOLUTION	VERTICAL FREQUENCY
480p	640x480	60Hz
480p	720x480	60Hz
576p	720x576	50Hz
720p	1280x720	50Hz,60Hz
1080i	1920x1080	50Hz,60Hz
1080p	1920x1080	50Hz,60Hz

Pin Assignments

15-Pin Color Display Signal Cable

Pin NO.	Signal Name
1 Video-Red
2	Video-Green
3	Video-Blue
4 N.C.
5	Detect Cable
6 GND-R
7	GND-G
8	GND-B
9 +5V
10	Ground
11 N.C.
12	DDC-Serial data
13	H-sync
14 V-sync
15	DDC-Serial clock

Plug & Play DDC2B Feature

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.

The DDC2B is a bi-directional data channel based on the I2C protocol. The host can request EDID information over the DDC2B channel.

Regulation

FCC Notice

FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS)

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

NOTICE :

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference. It is the responsibility of the user to correct such interference.

WEEE Declaration

Disposal of Waste Equipment by Users in Private Household in the European Union.

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

WEEE Declaration for India

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste equipment for recycling in India please visit the below web link.

www.aocindia.com/ewaste.php.

EPA Energy Star

ENERGY STAR® is a U.S. registered mark. As an ENERGY STAR® Partner, AOC International (Europe) BV and Envision Peripherals, Inc. have determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

Service

Warranty Statement for Europe

LIMITED THREE-YEAR WARRANTY\*

For AOC LCD Monitors sold within Europe, AOC International (Europe) B.V. warrants this product to be free from defects in material and workmanship for a period of Three (3) years after the original date of consumer purchase. During this period, AOC International (Europe) B.V. will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. In the absent of the proof of purchase, the warranty will start 3 months after the date of manufacturing indicated on the product.

If the product appears to be defective, please contact your local dealer or refer to the service and support section on www.aoc-europe.com for the warranty instructions in your country. The freight cost for the warranty is pre-paid by AOC for the delivery and return. Please ensure you provide a dated proof of purchase along with the product and deliver to the AOC Certified or Authorized Service Center under the following condition:

• Make sure the LCD Monitor is packed in a proper carton box (AOC prefers the original carton box to protects your monitor well enough during transport).
  • Put the RMA number on the address label
  • Put the RMA number on the shipping carton

AOC International (Europe) B.V. will pay the return shipping charges within one of the countries specified within this warranty statement. AOC International (Europe) B.V. is not responsible for any costs associated with the transportation of product across international borders. This includes the international border within the European Union. If the LCD Monitor is not available for collection when the currier attends, you will be charged a collection fee.

* This limited warranty does not cover any losses or damages that occur as a result of:

• Damages during transport due to improper packaging
- Improper installation or maintenance other then in accordance with AOC's user manual
- Misuse
- Neglect
• Any cause other than ordinary commercial or industrial application
• Adjustment by non-authorized source
- Repair, modification, or installation of options or parts by anyone other than an AOC Certified or Authorized ServiceCenter
- Improper environments like humidity, water damage and dusts
• Damaged by violence, earthquake and terrorist attacks
- Excessive or inadequate heating or air conditioning or electrical powers failures, surges, or other irregularities

This limited warranty does not cover any of the product firmware or hardware that you or any third party have modified or altered; you bear the sole responsibility and liability for any such modifications or alteration.

All AOC LCD Monitors are produced according to the ISO 9241-307 Class 1 pixel policy standards.

If your warranty has expired, you still have access to all available service options, but you will be responsible for the cost of service, including parts, labor, shipping (if any) and applicable taxes. AOC Certified or Authorized Service Center will provide you with an estimate of service costs before receiving your authorization to perform service.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO A PERIOD OF THREE (3) YEARS FOR PARTS AND LABOR FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD. AOC INTERNATIONAL (EUROPE) B.V. OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCULSIVELY AS STATED HERE. AOC INTERNATIONAL (EUROPE) B.V. LIABILITY, WHETHER BASED ON CONTRACT, TORT, WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL AOC INTERNATIONAL (EUROPE) B.V. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT, OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS, WHICH MAY VARY FROM COUNTRY TO COUNTRY. THIS LIMITED WARRANTY IS ONLY VALID FOR PRODUCTS PURCHASED IN THE MEMBER COUNTRIES OF THE EUROPEAN UNION.

Information in this document is subject to change without notice. For more information, please visit: http://www.aoc-europe.com

Warranty Statement for Middle East and Africa (MEA)

And

The Commonwealth of Independent States (CIS)

LIMITED ONE to THREE YEARS WARRANTY\*

For AOC LCD Monitors sold within the Middle East and Africa (MEA) and the Commonwealth of Independent States (CIS), AOC International (Europe) B.V. warrants this product to be free from defects in material and workmanship for a period of One (1) to Three (3) years from the manufacture date depending on sale country. During this period, AOC International (Europe) B.V. offers a Carry-In (return to Service Center) Warranty Support at an AOC's Authorized Service Center or Dealer and at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. As a Standard Policy, the warranty will be calculated from the manufacture date identified from the product ID serial number, but the total warranty will be Fifteen (15) months to Thirty Nine (39) months from MFD (manufacture date) depending on sale country. Warranty will be considered for exceptional cases that are out of warranty as per the product ID serial number and for such exceptional cases; Original Invoice/Proof Of Purchase Receipt is mandatory.

If the product appears to be defective, please contact your AOC authorized dealer or refer to the service and support section on AOC's website for the warranty instructions in your country:

• Egypt: http://aocmonitorap.com/egypt_eng
  • CIS Central Asia: http://aocmonitorap.com/ciscentral
  • Middle East: http://aocmonitorap.com/middleeast
• South Africa: http://aocmonitorap.com/southafrica
  • Saudi Arabia: http://aocmonitorap.com/saudiarabia

Please ensure you provide a dated proof of purchase along with the product and deliver to the AOC Authorized Service Center or Dealer under the following condition:

• Make sure the LCD Monitor is packed in a proper carton box (AOC prefers the original carton box to protects your monitor well enough during transport).
  • Put the RMA number on the address label
• Put the RMA number on the shipping carton

* This limited warranty does not cover any losses or damages that occur as a result of:

• Damages during transport due to improper packaging
- Improper installation or maintenanceother then in accordance with AOC's user manual
- Misuse
- Neglect
• Any cause other than ordinary commercial or industrial application

• Adjustment by non-authorized source
- Repair, modification, or installation of options or parts by anyone other than an AOC Certified or Authorized Service Center
- Improper environments like humidity, water damage and dusts
• Damaged by violence, earthquakes and terrorist attacks
- Excessive or inadequate heating or air conditioning or electrical powers failures, surges, or other irregularities

This limited warranty does not cover any of the product firmware or hardware that you or any third party have modified or altered; you bear the sole responsibility and liability for any such modifications or alteration.

All AOC LCD Monitors are produced according to the ISO 9241-307 Class 1 pixel policy standards.

If your warranty has expired, you still have access to all available service options, but you will be responsible for the cost of service, including parts, labor, shipping (if any) and applicable taxes. AOC Certified, Authorized Service Centeror dealer will provide you with an estimate of service costs before receiving your authorization to perform service.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO A PERIOD OF ONE (1) to THREE (3) YEARS FOR PARTS AND LABOR FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD. AOC INTERNATIONAL (EUROPE) B.V. OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCULSIVELY AS STATED HERE. AOC INTERNATIONAL (EUROPE) B.V. LIABILITY, WHETHER BASED ON CONTRACT, TORT, WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL AOC INTERNATIONAL (EUROPE) B.V. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT, OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS, WHICH MAY VARY FROM COUNTRY TO COUNTRY. THIS LIMITED WARRANTY IS ONLY VALID FOR PRODUCTS PURCHASED IN THE MEMBER COUNTRIES OF THE EUROPEAN UNION.

Information in this document is subject to change without notice. For more information, please visit:http://www.aocmonitorap.com

AOC International (Europe) B.V.

Prins Bernhardplein 200 / 6 ^th floor, Amsterdam, The Netherlands

Tel: [phone] · Fax: [phone]

AOC PIXEL POLICY

ISO 9241-307 CLASS 1

July 25 ^th , 2013

AOC strives to deliver the highest quality products. We use some of the industry's most advanced manufacturing processes and practice stringent quality control. However, pixel or sub pixel defects on the TFT monitor panels used in flat panel monitors are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but AOC guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This Pixel Policy explains the different types of pixel defects and defines acceptable defect levels for each type. In order to qualify for repair or replacement under warranty, the number of pixel defects on a TFT monitor panel must exceed these acceptable levels.

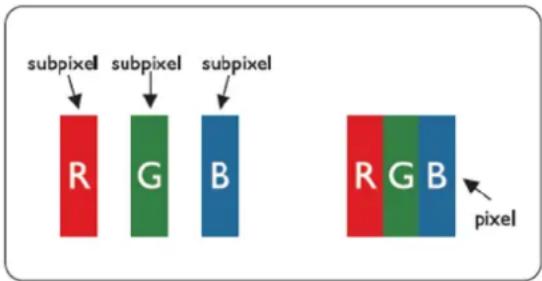

Pixels and Sub Pixel Definition

A pixel, or picture element, is composed of three sub pixels in the primary colors of red, green and blue. When all sub pixels of pixel are lit, the three colored sub pixel together appear as a single white pixel. When all are dark, the three colored sub pixels together appear as a single black pixel.

Types of Pixel Defects

● Bright Dot Defects: the monitor displays a dark pattern, sub pixels or pixels are always lit or "on"
- Black Dot Defects: the monitor displays a light pattern, sub pixels or pixels are always dark or "off".

ISO 9241-307Pixel Defect Class	Defect Type 1Bright Pixel	Defect Type 2Black Pixel	Defect Type 3Bright Sub pixel	Defect Type 4Black Sub pixel
Classe 1 1 1			2+11+30+5

AOC International (Europe) B.V.

Warranty Statement for North & South America (excluding Brazil)

WARRANTY STATEMENT

for AOC Color Monitors

Including those Sold within North America as Specified

Envision Peripherals, Inc. warrants this product to be free from defects in material and workmanship for a period of three (3) years for parts & labor and one (1) year for CRT Tube or LCD Panel after the original date of consumer purchase. During this period, EPI (EPI is the abbreviation of Envision Peripherals, Inc.) will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. The parts or product that are replaced become the property of EPI.

In the USA to obtain service under this limited warranty, call EPI for the name of the Authorized Service Center closest to your area. Deliver the product freight pre-paid, along with the dated proof of purchase, to the EPI Authorized Service Center. If you cannot deliver the product in person:

• Pack it in its original shipping container (or equivalent)
• Put the RMA number on the address label
• Put the RMA number on the shipping carton
  • Insure it (or assume the risk of loss/damage during shipment)
  • Pay all shipping charges

EPI is not responsible for damage to inbound product that was not properly packaged.

EPI will pay the return shipment charges within one of the countries specified within this warranty statement. EPI is not responsible for any costs associated with the transportation of product across international borders. This includes the international borders of the countries within this warranty statements.

In the United States and Canada contact your Dealer or EPI Customer Service, RMA Department at the toll free number [phone]. Or you can request an RMA Number online at www.aoc.com/na-warranty.

* This limited warranty does not cover any losses or damages that occur as a result of:

• Shipping or improper installation or maintenance
• Misuse
• Neglect
  • Any cause other than ordinary commercial or industrial application
  • Adjustment by non-authorized source
• Improper environment

• Repair, modification, or installation of options or parts by anyone other than an EPI Authorized Service Center

• Excessive or inadequate heating or air conditioning or electrical power failures, surges, or other irregularities

This three-year limited warranty does not cover any of the product's firmware or hardware that you or any third party have modified or altered; you bear the sole responsibility and liability for any such modification or alteration.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO A PERIOD OF THREE (3) YEARS FOR PARTS AND LABOR AND ONE (1) YEAR FOR CRT TUBE OR LCD PANEL FROM THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS PERIOD. IN THE UNITED STATES OF AMERICA, SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

EPI OBLIGATIONS AND YOUR REMEDIES HEREUNDER ARE SOLELY AND EXCLUSIVELY AS STATED HERE. EPI' LIABILITY, WHETHER BASED ON CONTRACT, TORT. WARRANTY, STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL ENVISION PERIPHERALS, INC. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. IN THE UNITED STATES OF AMERICA, SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.

In the United States of America, this limited warranty is only valid for Products purchased in the Continental United States, Alaska, and Hawaii.

Outside the United States of America, this limited warranty is only valid for Products purchased in Canada.

Information in this document is subject to change without notice.

For more details, please visit:

USA: http://us.aoc.com/support/warranty

ARGENTINA: http://ar.aoc.com/support/warranty

BOLIVIA: http://bo.aoc.com/support/warranty

CHILE: http://cl.aoc.com/support/warranty

COLOMBIA: http://co.aoc.com/warranty

COSTA RICA: http://cr.aoc.com/support/warranty

DOMINICAN REPUBLIC: http://do.aoc.com/support/warranty

ECUADOR: http://ec.aoc.com/support/warranty

EL SALVADOR: http://sv.aoc.com/support/warranty

GUATEMALA: http://gt.aoc.com/support/warranty

HONDURAS: http://hn.aoc.com/support/warranty

NICARAGUA: http://ni.aoc.com/support/warranty

PANAMA: http://pa.aoc.com/support/warranty

PARAGUAY: http://py.aoc.com/support/warranty

PERU: http://pe.aoc.com/support/warranty

URUGUAY: http://pe.aoc.com/warranty

VENEZUELA: http://ve.aoc.com/support/warranty

IF COUNTRY NOT LISTED: http://latin.aoc.com/warranty

EASE PROGRAME

Only for AOC branded monitors sold within the continental United States.

All AOC branded monitors are now covered by the EASE Program. If your monitor malfunctions at any time during the first three months, AOC will provide a replacement monitor within 72 hours after you are approved for our program. If your monitor qualifies for the EASE program, AOC will pay for freight both ways.

Step 1: Phone our TECH Department at 888.662.9888

Step 2: Fill out and return EASE registration forms by mail or fax.

Step 3: We will issue a Return Authorization Number upon verification into the program.

Step 4: A monitor will be advance shipped to your location.

Step 5: We will issue a UPS Call Tag to pick up the defective unit.

Step 6: Please review the following chart to see your EASE program qualifications.

WARRANTY PERIOD	COVERAGE AT NO CHARGE	CUSTOMER CHARGES
Within the first three months of purchase: Covered by EASE	- New AOC monitor- Call tag dispatched and return freight charges via UPS	- None*
Between 4 months – 1 Year	- All Parts & Labor Including CRT Tube & LCD Panel	- UPS Return Freight to AOC
Between 1 Year - 3 Years: Covered by standard limited warranty	- Parts & Labor (excluding CRT Tube & LCD Panel)	- UPS Return Freight to AOC

*AOC will need to obtain a credit card number if you would like to get a new AOC monitor advanced shipped to your location, prior to the defective unit arriving at AOC's service center. If you do not wish to supply a credit card, AOC will only ship the new monitor, once the defective unit arrives at the AOC service center.

EYES VALUE

www.aocmonitor.com
