Product Type	Vented Tumble Dryer
Brand	Orima
Model	ORC 80 B
Capacity	8 kg
Dimensions (Width x Depth x Height)	60 x 54 x 85 cm
Weight	35 kg
Power Supply	230 V / 50 Hz
Power Consumption	2500 W
Energy Efficiency Class	B
Drying Programs	Cotton, Synthetics, Delicates, Time Dry, Iron Dry, Cupboard Dry
Number of Programs	6
Control Type	Analog Dial + Buttons
Display	LED Indicator Lights
Drum Material	Stainless Steel
Door Type	Front Load, Reversible
Lint Filter	Yes, Mesh Filter (clean after every cycle)
Safety Features	Child Lock, Overheat Protection, Drum Light
Installation Type	Free Standing
Venting	External Venting Required
Noise Level	65 dB
Manufacturer Warranty	2 Years

Frequently Asked Questions - ORC 80 B Orima

How do I clean the lint filter on the Orima ORC 80 B?

Open the door and pull out the lint filter located in the door recess. Remove lint by hand or with a soft brush. Rinse under running water if necessary, then dry thoroughly before reinserting. Clean after every cycle.

What is the maximum load capacity of the ORC 80 B?

The maximum dry load capacity is 8 kg. Do not overload to ensure efficient drying.

Can I install the dryer in a small bathroom?

Yes, but ensure adequate ventilation. The dryer requires a vent hose to the outside (vented model). Keep clearances of at least 5 cm on sides and rear for airflow.

How do I set the drying time manually?

Turn the program dial to the 'Time Dry' position, then use the timer knob (if available) to select desired duration (e.g., 60 minutes). Press start.

What should I do if the dryer stops during a cycle?

Check for power interruption, full lint filter, or blocked vent. If the overheat protection triggered, let the dryer cool for 10 minutes and restart. If problem persists, contact service.

How often should I clean the condenser?

The ORC 80 B is a vented dryer, not a condenser model. Only clean the lint filter after each use. Periodically check the vent hose for blockages.

Is the door reversible?

Yes, the door can be reversed to open from the left or right. Refer to the manual for step-by-step instructions; it requires a screwdriver.

What does the 'Iron Dry' program do?

The 'Iron Dry' program dries clothes to a damp level suitable for ironing. It cycles with lower heat and shorter duration to prevent overdrying.

How do I activate the child lock?

Press and hold the 'Child Lock' button (if available) for 3 seconds until the indicator lights up. Repeat to disable.

Where can I find spare parts for the Orima ORC 80 B?

Contact Orima customer service or authorized dealers. Common parts like lint filter, door hinge, and heating element are available online. Use the model number ORC 80 B when ordering.

USER MANUAL ORC 80 B Orima

MANUAL DE INSTRUÇÕES INSTRUCTION MANUAL

Máquina de Secar Roupa Tumble Dryer

Front view of a white washing machine with control panel and ventilation grilles (no visible text or symbols)

ORC 80 B

Three identical diagrams showing a circular object placed on a surface, with no text or symbols present.

Nivelar a máquina

Technical diagram of a mechanical or electrical component with internal layout and close-up detail (no text or symbols)

Line drawing of a kitchen sink with faucet and showerhead (no text or symbols)

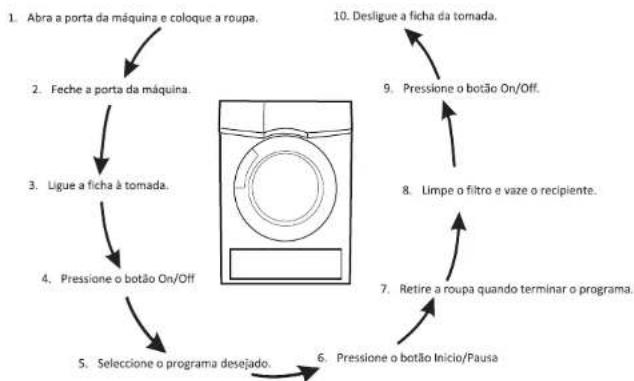

Inicio rápido

    subgraph Display
        J["Discharge from Start to End"]
        K["Anti-Crease"]
        L["Cycle"]
    end

    subgraph Response
        M["Delay: 0.00 ms"]
        N["Time: 0.00 ms"]
        O["Stableness: Low, Moderate, Heavy"]
        P["Anti-Crease: High, Moderate, Heavy"]
        Q["Cycle: Different Over cycles can be selected, recording in the user's week to make the times have more effective dying back."]
    end

    J --> R["Delay: 0.00 ms"]
    K --> S["Time: 0.00 ms"]
    L --> T["Stableness: Low, Moderate, Heavy"]
    M --> U["Anti-Crease: High, Moderate, Heavy"]
    N --> V["Cycle: Different Over cycles can be selected, recording in the user's week to make the times have more effective dying back."]
    O --> W["On/Off"]
    P --> X["On/Off"]
    Q --> Y["On/Off"]

Filtro

Safety information....1
Installation....5
Part description....6
Attention and advice....8
Description of controls....9
Operation instruction.... 10
Programme table....11
Specialty drying function....12
Cleaning and routine maintenance.... 14
Alarm function.... 15
Precautions....16
Technical specifications & ......Product fich€7

Dry care symbols

Please pay attention to use the drying machine if the materials of your clothes can not be dried by it or contain the symbols as follows:

Dry	Normal	Not tumble dry normal	Do not dry
Line dry / hang to dry	Drip dry	Dry flat	In the shade
Dry clean Do not dry clean	dry clean	Dry clean normal cycle with any solvent	Dry clean normal cycle petroleum solvent only

Safety notes

⚠️ To prevent any damages to your and others' life or property, you have to follow the safety notes.

1. This product belongs to Category I electrical appliances, and only for drying textiles which have been washed with water in the household. Please pay attention to the safety of power use during the operation!
2. The power source with reliable earthing must be used. Its earth wire must be buried under the ground and shall not be connected with the public utilities such as city water pipe or gas pipe etc. The earth wire and null wire shall be distinguished and shall not be connected together.
3. The power wire shall be met national standard and must be able to withstand the current above 16A. To ensure your and your family's safety, please make improvement immediately if any power use at your home does not comply with the above-mentioned requirements.
4. The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
5. The lint trap has to be cleaned frequently, if applicable.
6. Lint must not to be allowed to accumulate around the tumble dryer.

7. Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliance burning other fuels, including open fires.

8. Do not dry unwashed items in the tumble dryer.

9. Items that have been soiled with substance such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with a extra amount of detergent before being dried in the tumble dryer.

10. Items such as foam rubber (latex form), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

11. Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

12. The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature the ensures that the items will not be damaged.

13. WARNING: never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

14. The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliance burning gas or other fuels.

15. The appliance must not be install behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer. In such a way that a full opening of the tumble dryer door is restricted.

16. Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.

17. If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products be placed in a tumble dryer they should first be washed in hot water with extra detergent-this will reduce, but not eliminate, the hazard.

18. The appliance should not be overturned during normal use or maintenance.

19. Remove all objects from pockets such as lighters and matches.
20. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
21. For appliances with ventilation openings in the base, that a carpet must not obstruct the openings.
22. If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
23. This appliance is for indoor use only.
24. The openings must not be obstructed by a carpet.
25. Children of less than 3 years should be kept away unless continuously supervised.

Correct Disposal of this product:

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Electric shock hazard

1. If the power cable is damaged, it must be replaced by the manufacturer, its service agents or similarly qualified persons in order to avoid a hazard.
2. Do not draw the power cable forcefully to pull out the mains plug.
3. Please do not plug/draw the mains plug with wet hands.
4. Do not damage the power cord and the power plug.
5. To prevent any accidental electric shock, please make sure the mains plug of the dryer is earthed well.

Injury danger

1. Please do not disassemble and install the dryer under no instruction or supervision.
2. Please do not stack this dryer on washing machine without stacking kits.
3. Please do not lean on the opened door of the dryer.
4. Please do not put any pyrotoxin on the dryer, such as the candle, electric cooker.
5. Children should be supervised to ensure that they do not play with the appliance.
6. The tumble dryer is not to be used if industrial chemicals have been used for cleaning and lint must not to be allowed to accumulate around the tumble dryer.

Damage danger

1. Please do not dry over the regulated capacity.
2. Please do not operate the dryer without the lint filter and air condenser.
3. Please do not dry the clothes before being spun.
4. Please do not expose the dryer directly under the sun, and indoor use only.
5. Please do not install the dryer in the humid and drenching environment.
6. Please do not keep any object in the pockets of your laundry before drying process.
7. At the cleaning and maintenance, please do remember to pull out the power plug and do not directly wash the dryer with water.

Explosion danger

Please do not dry the clothes with some flammable substances such as the coal oil, alcohol or there will be the explosion.

Notes on disposal

When you want to dump the dryer because it is not operable or not worth of repairing, please pull out the mains plug and cut the power cable. All the material used for this machine is environmental-friendly and recyclable. Please help the disposal of the material via environmental-friendly means.

Guidelines

Move cautiously. Do not grasp any salient parts of machine. The machine door can not be used as the handle for delivery.

Installation Position

1. Please install the dryer on solid and flat ground.
2. Please do not place the dryer on the slope, soft carpet or wooden floor.
3. Please do not install the dryer outdoors, to prevent the dryer from being frozen to damage of machine parts.

Simple line drawing of a magnifying glass over a textured surface (no text or symbols)

Simple line drawing of a washing machine with no text or symbols

Simple line drawing of a washing machine with a circular head and cross mark, resting on a surface (no text or symbols)

Level Adjusting

If the floor is obviously uneven, it needs to be adjusted. It vibrates the machine, causing machine to move from its position.

Using hands to adjust the height of four machine legs to adjust the levelness of this dryer.

Power Supply Connection

1. Make sure that the voltage of the power supply is the same as the electric of the dryer.specification
2. Please replace it by the professional if the power supply wire is damaged, and the power wire from the manufacturer or the customer service center can be only used.
3. Please do not connect it with the power connection board, the universal plug or socket.
   4.Please do not connect the power supply with wet hands.
   5.Please do not pull out the plug by pulling the power wire with force

Part Description

Accessories

The following parts are optional for specific models.

If your dryer has following parts, please the install following the instruction below.

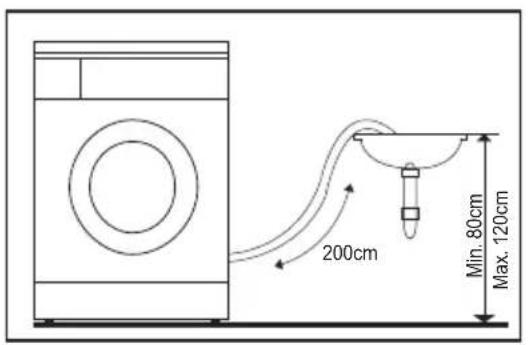

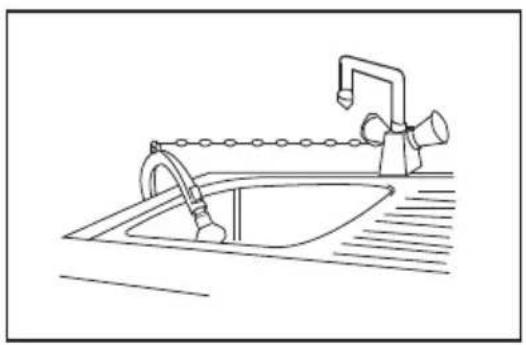

Condensing drain hose(optional) Hose holder(optional)

Technical line drawing of a mechanical device interior with internal components and an inset view showing internal assembly (no text or symbols)

Line drawing of a kitchen sink with faucet and bucket (no text or symbols)

Quick start

Attention

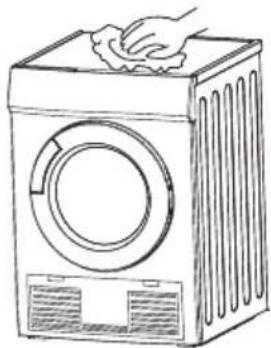

Before the first cycle, the dust and grease may remain in this dryer during the transportation, to avoid contaminating your clothes, period of manufacture and please follow these steps:

a) Put some clean rags into the drum.

b) Plug the power.

c) Press "On/Off" button, select the "Quick" programme, and press "Start/Pause" button.

d) After finishing this programme, please follow the “cleaning and routine maintenance” to clean the lint filter and air condenser.

Advice

1. Before drying, thoroughly spin the laundry in washing machine. High spin speed can reduce the drying time and save energy consumption.

2. For uniform drying result, sort the laundry according to fabric type and drying programme.

3. Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc.

4. Do not over dry the clothes, because over dried clothes can easily get creases or shrinkage.

5. Do not dry the articles containing rubber or similar elastic materials such as bicycle covers and feather products.raincoats,

6. The door can be opened only after the programme of the drying machine is Do not open the door before the programme finished to avoid the complex human skin from being scalded by hot steam or over heated drying machine.

7. Clean the lint filter and empty container after each use to avoid extension of drying time and energy use.

8. Do not dry these clothes after dry-clean process.

9. The weight references as follows:

	Blended Coats (about 800g)		Jackets (about 800g in cotton)		Jeans Trousers (about 800g)		Towel Quilts (about 900g in cotton)
	Single Sheets (about 600g in cotton)		Work Clothes (upper and lower) (about 1120g in cotton)		Pajamas (about 200g)		Shirts (about 300g in cotton)
	Undershirts (about 180g in cotton)		Underpants (about 70g in cotton)		Socks (about 30g in blended material)

    subgraph Control Settings
        B --> AQ["Rate: 8:88"]
        D --> AR["Rate: 8:88"]
        F --> AS["Rate: 8:88"]
        H --> AT["Rate: 8:88"]
        J --> AU["Rate: 8:88"]
        K --> AV["Rate: 8:88"]
        L --> AW["Rate: 8:88"]
        M --> AX["Rate: 8:88"]
        N --> AY["Rate: 8:88"]
        O --> AZ["Rate: 8:88"]
        P --> BA["Rate: 8:88"]
        Q --> BB["Rate: 8:88"]
        R --> BC["Rate: 8:88"]
        S --> BD["Rate: 8:88"]
        U --> BE["Rate: 8:88"]
        W --> BF["Rate: 8:88"]
        X --> BG["Rate: 8:88"]
        Y --> BH["Rate: 8:88"]
        Z --> BI["Rate: 8:88"]
        AA --> BJ["Rate: 8:88"]
        AB --> BK["Rate: 8:88"]
        AC --> BL["Rate: 8:88"]
        AD --> BM["Rate: 8:88"]
        AE --> BN["Rate: 8:88"]
        AF --> BO["Rate: 8:88"]
        AH --> BP["Rate: 8:88"]
        AI --> BQ["Rate: 8:88"]
        AJ --> BR["Rate: 8:88"]
        AK --> BS["Rate: 8:88"]
        AL --> BT["Rate: 8:88"]
        AM --> BU["Rate: 8:88"]
        AN --> BV["Rate: 8:88"]
        AO --> BW["Rate: 8:88"]
        BX --> BY["Rate: 8:88"]
        BY --> BZ["Rate: 8:88"]
        CA --> CB["Rate: 8:88"]
        CB --> CC["Rate: 8:88"]
        DC --> DD["Rate: 8:88"]
        DE --> DF["Rate: 8:88"]
        EF --> DG["Rate: 8:88"]
        DH --> DI["Rate: 8:88"]
        DJ --> DJ["Rate: 8:88"]
        DK --> DJA["Rate: 8:88"]
        DL --> DLB["Rate: 8:88"]
        DV --> DVB["Rate: 8:88"]
        DW --> DWB["Rate: 8:88"]
        DX --> DXB["Rate: 8:88"]
        DB --> DBA["Rate: 8:88"]
        DBD --> DBD
        DBE --> DBE
        DBF --> DBF
        DBG --> DBG
        DBH --> DBH
        DBI --> DBI
        DBJ --> DBJ
        DBK --> DBK
        DBL --> DBL
        DBM --> DBM
        DBN --> DBN
        DBO --> DBO
        DBP --> DBP
        DBQ --> DBQ
        DBR --> DBR
        DBS --> DBS
        DBT --> DBT
        DBU --> DBU
        DBV --> DBV
        DBW --> DBW
        DBX --> DBX
        DBY --> DBY
        DBZ --> DBZ
    end

Programme selector

1. Press the 【On/Off】button.
2. Rotate the programme knob to select the desired programme.
3. Select the Delay , Anti-Crease or Gentle functions for additional option. 【 】 【 】 【
4. Press the Start/Pause key. 【】

The Drying procedure stops

The buzzer will prompt from the dryer when finishing the cycle.

Press the [ On/Off ] button to turn down the power , and pull out the power cable.

Consumption values

Specifications are approximate values determined under normal conditions.

Fluctuations up to 10% are possible.

Programme	Weight (kg)	Residual humidity (approx.)	Energy consumption (kWh)
Cotton (standard)	8.0	50%	4.00
		60%	4.49
		70%	5.12
Cotton (iron)		50%	3.14
		60%	3.87
		70%	4.47
Synthetics	3.5	40%	1.20
		50%	1.60

Note:

Some jeans and large towels are difficult to dry, due to its material features, if you find them are still wet, please use 【WARM】programmme to dry them again.

Programme

Weight(max)

T-Shirt

Shirts

Trousers

Skirts/dresses

Sportswear

Work clothes

Anorak

Towelling bathrobe

Underwear

Socks

Bed linen

Table linen

Terry towels

Tea towels/hand towels

Cotton

For cottons and coloureds made of cotton or linen.

Light

8.0kg

●

●

●

●

●

●

●

●

Standard

●

●

●

●

●

Iron

●

●

●

●

●

Extra

●

●

●

●

●

Synthetics

For non-iron washing made of synthetic and blended fabrics,cotton.

Light

3.5kg

●

●

●

●

●

●

Standard

●

●

Extra

●

●

●

Delicate

3.0kg

For machine-washable woollen textiles.Textiles are fluffer,but not dried.Remove and hang up textiles when the programme ends.

Warm/Cool(20min/30min)

3.0kg

For timer programme, delicate textiles made of acrylic fibres or small items.Using 【Time】 function to adjust【Wram】time.

Quick

3.0kg

For washing which is to be dried quickly, e.g. made of acrylic fibres or for individual small items. Also for subsequent drying.

Refresh

1.0kg

For refreshing or gertly cleaning textiles with commercially available dry cleaning products.

Specialty drying function

1. Instruction of the moisture sensor

This function can automatically sense the moisture of clothes, and will adjust the time of drying procedure according to how much clothes automatically you put into the dryer.

This function will automatically activate during the drying procedure except the "Cool" "Refresh" and programme. "Warm"

2. Additional time adjusting function

This function can set the time of drying procedure by your self; the time can be adjusted from 20 to 60 minutes by press "Time" button. This function special designed for clothes, for example, one facecloth or two pairs of socks.

to control drying process, but only for "Warm" It's like using timer programme.

3. Instruction to the delay drying procedure

This function is used to delay clothes drying within 24 hours. You can press this key continuously; it can be selected within 1-24 hours. The delay time means drying procedure will start in x:xx hours.

When the delay procedure starts, the display will only show the delay start time and light DELAY icon.

Steps in details

(1). Load your laundry and make sure the machine door is closed.
(2).Press the 【On/Off】button,then to turn the programme selector knob and select a desired programme.
(3). You can select the 【Anti-Crease】 or 【Gentle】 functions according to your need.
(4). To press the 【Delay】 key.
(5). Continue to press the 【Delay】 to select the delay time.
(6). After the 【Start/Pause】key is pushed, the Dryer is at the run condition. The drying procedure will be automatically performed when the delay time is over.
(7). If you push the 【Start/Pause】 button again, the delay function will be paused.
(8). If you want to cancel the "Delay" function, please press the 【On/Off】 button.

4. Instruction of the child safety feature

(1). This machine incorporates a special child safety lock, which can prevent children from carelessly pressing keys or making the faulty operation.
(2). When the dryer is at the operation state, press the【Anti-Crease】and【Gentle】buttons at the same time for over 3 seconds to start child lock function. When child lock function is set, the display will light "Child Lock" icon

and no key can effect to the dryer.

Under the start state of the child lock button, the 【】 and Anti-Crease

【】buttons shall be pressed at the same time for over 3 seconds to Gentle release the child lock function.

5. Instruction of the Anti-Crease function【】

When the anti-crease function is selected, the LED of anti-crease shall illuminate, and the drum will intermittent rotate during the drying programme, in order to give more care to ensure the can not get crease. sensitive textiles

6. Instruction of the Gentle function【】

When the Gentle function is selected, the LED of Gentle shall illuminate, and the programme will give less heat to protect sensitive textiles from high temperature which may harm to these textiles, such as acetate, elastane and etc.

7. Instruction of the drum light

For your convenience, this function can help you to see clearly when you open the machine door.

8. Instruction of the Auto Anti-crease function

To avoid the clothes creasing after the programme finished, the dryer will automatically intermittent rotate about 2 hours.

Clean the lint filter

Leave the dryer to cool down.

1.Open the machine door.
2. Take out the lint filter, pull upward to take it out.
3. Clean the lint filter; wipe off the scrap threads accumulated on the lint filter.
4. Reinstall the lint filter.

NOTE!

Line drawing of a washing machine with a hand cleaning the top panel (no text or symbols)

1. The lint filter accumulated on the filter will block the air circulation, which will cause the extension of drying time and energy use; therefore, the scrap thread filter shall be cleaned after each use.
   2.Do disconnect the power cord before cleaning!
   3.Do not operate the dryer without the lint filter!
2. Clean the lint filter after each use to prevent lint accumulation inside the dryer.

Wash air condenser

-Leave the dryer to cool down.
-Residual water may escape, place an absorbent cloth under the maintenance flap.

1. Unlock the maintenance flap.
2. Completely open maintenance flap.
3. Screw both locking levers toward as each other.
4. Pool out the air condenser.
5. Clean the air condenser completely, drain thoroughly.
6. Clean the seals.
7. Re-insert the air condenser, handle at the button!
8. Unscrew both locking levers.
9. Cloth the maintenance flap until it locks into position. Please clean the air condenser if frequently used. Do not damage the air condenser!

1. Clean with warm water only; do not use hard/sharp-edged objects! Do not operate the dryer without the air condenser!

2. During drying, water may collect between the window and the seal, but this does not affect the function of your dryer!

Technical line drawing of a mechanical component with internal cavities and a handle (no text or symbols)

Diagram of a computer monitor with ventilation slots and airflow arrows (no text or symbols)

Diagram of a device with a fan and plug, showing airflow direction (no text or symbols)

Technical line drawing of a mechanical component with internal cavities (no text or symbols)

Alarm function

Alarm Problem	Alarm Reason Buzzer Alarm Release
“”Is flashing	Water tank full or pump error		Check the water tank and pump.
“”Is flashing	Air flow block		Check the filter and the air folw
“”E30	Heater problem	The Error Code is flashing on X:XX at Flash Rate 1. Meanwhile the beep is sounded every 15 minutes.	Check the heater and the thermostat
“”E32	Humidity sensor error		Check the Humidity sensor and PCB
“”E33	Temprature sensor error		Check the front temprature sensor
“”E34			Check the rear temprature sensor
“”E60	Motor error		Check the motor and the PCB

Precautions

! Repairs may be carried out by customer service of authorised technicians only!

Before you call customer service, please check whether you can correct the fault yourself.

A technician will charge you for advice, even during the warranty period.

Problem	Solution
●Display does not come on	●The mains plug is inserted.●Check the programme selected.●Check fuse in the house.
●“”Is flashing	●Empty condensation container.●If failure, check hose for condensation outlet.
●“”Is flashing	●Clean air cooler.●Clear lint filter.
●Dryer does not start	●Check the start settered●Check the the door has closed.●Check the programme has set.
●Water is running out	●Align dryer horizontally.●Clear air condenser and door seals.
●Door is open by itself	●Press door until it “clicks”into position.●Check the clothes is over load .
●Humidity in the room is increase significantly	●Ventilate room adequately.●Clean the cool grille.●Ensure that the air condenser has been inserted.
●Degree of dryness was not reached or drying time too long	●Clean lint filter and wash condenser.●Empty container.●Check water outlet. Dryer installation too restricted.●Clean the moisture sensors.●Use next higher drying programme or using●Timer programme.

If you cannot correct a fault yourself or if a repair is required:

1. Press the 【On/Off】button.
2. Pull out the mains plug and call the service.

Specification

Power supply voltage	220-240V~
Rated input Power	2700W
Rated Frenquency	50Hz
Overall Size	595×615×845(mm)
Rated Drying Capacity	8.0kg (Dry Clothes)
Net Weight	43kg

Product fiche

Brand: ORIMA

Model: ORC 80 B

Rated capacity: 8kg

Dryer Type: Condenser

Energy efficiency class: B

Energy consumption 561.0kWh per year, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.

Automatic or non-automatic: Automatic

EU Ecolabel: N/A

Energy consumption of the standard cotton programme at full load: 4.74 kWh

Energy consumption of the standard cotton programme and partial load: 2.50 kWh

Power consumption of the off-mode (Po): 0.28 W

Power consumption of the left-on mode (PI): 1.72 W

Duration of the left-on mode: 10 min

The 'standard cotton programme' used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet cotton laundry and that it is the most efficient programme in terms of energy consumption for cotton.

Weighted programme time of the standard cotton programme at full and partial load: 123 min

Programme time of the standard cotton programme at full load: 160 min

Programme time of the standard cotton programme at partial load: 95 min

Condensation efficiency class B on a scale from G (least efficient) to A (most efficient).

Average condensation efficiency of the standard cotton programme at full load: 81.2%

Average condensation efficiency of the standard cotton programme at partial load: 83.6%

Weighted condensation efficiency for the standard cotton programme at full and partial load: 82.6%

Sound power level for the standard cotton programme at full load: 69dB
