| Product Type | Portable Bluetooth Speaker |
| Brand | Trust |
| Model | Dixxo Orb 22014 |
| Connectivity | Bluetooth 5.0 |
| Bluetooth Range | 10 meters |
| Audio Input | 3.5mm AUX |
| Speaker Type | Full-range mono |
| Output Power | 5W RMS |
| Frequency Response | 80Hz – 20kHz |
| Power Source | Built-in rechargeable battery |
| Battery Type | Lithium-ion, 1200mAh |
| Battery Life | Up to 8 hours |
| Charging Time | Approx. 3 hours |
| Charging Port | Micro USB |
| Dimensions (Diameter x Height) | 10.5 x 9.0 cm |
| Weight | 380 g |
| Color | Black with orange accents |
| Controls | Power, Volume +/- , Play/Pause, Bluetooth |
| Microphone | Built-in for hands-free calls |
| Water Resistance | IPX5 (splash proof) |
| Maintenance | Clean with a soft, dry cloth |
| Spare Parts | Not available separately |
| Warranty | 2 years |
| Package Contents | Speaker, Micro USB cable, Aux cable, Manual |
Frequently Asked Questions - Dixxo Orb 22014 TRUST

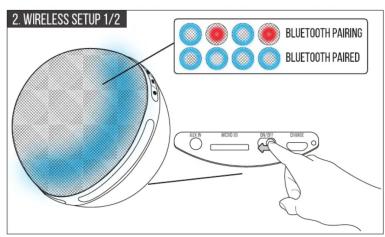

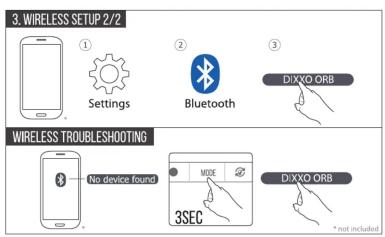

How do I pair the Trust Dixxo Orb 22014 with my phone?
Turn on the speaker and enable Bluetooth on your phone. Search for devices and select 'Dixxo Orb 22014'. If prompted, enter PIN 0000. The LED will flash blue when connected.
How long does the battery last on a full charge?
The built-in 1200mAh lithium battery provides up to 8 hours of playback at moderate volume. Actual battery life may vary with usage.

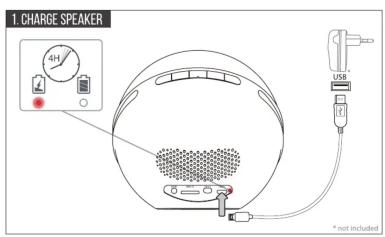

Can I use the speaker while it is charging?
Yes, you can play music while charging. However, charging time may be longer if the speaker is in use.
Is the speaker waterproof?
The speaker has an IPX5 rating, meaning it is resistant to splashes and light rain. Do not submerge in water.
How do I reset the speaker?
Press and hold the Power and Volume + buttons simultaneously for about 3 seconds until the LED flashes red. This clears the pairing list.
What is the Bluetooth range?
The Bluetooth range is up to 10 meters (33 feet) in open space. Walls and obstacles may reduce the range.
Can I connect two speakers together?
No, this model does not support multi-speaker pairing. It works as a single mono speaker.
What cables are included in the box?
The package includes a Micro USB charging cable and a 3.5mm AUX cable for wired connection.
How should I clean the speaker?
Use a soft, dry cloth to wipe the surface. Avoid using liquids or abrasive cleaners to prevent damage.
Does the speaker have a microphone for calls?
Yes, the built-in microphone allows you to answer hands-free calls. Press the Play/Pause button to answer or end a call.
