Product Type	Television
Brand	GPX
Model	TE1582B
Display Type	LED LCD
Screen Size	15.6 inches
Resolution	1366 x 768 (HD)
Aspect Ratio	16:9
Input Voltage	AC 100-240V, 50/60Hz
Power Consumption	≤30W
Weight	2.5 kg
Dimensions (W x H x D)	380 x 260 x 80 mm
Remote Control	Included
Connectivity	HDMI, USB, VGA, AV input
Audio	Built-in speakers, 3.5mm headphone jack
Tuner	ATSC / DVB-T
Features	Digital tuner, sleep timer, parental control
Cleaning	Use a soft dry cloth; do not use liquid cleaners
Safety	Do not expose to rain or moisture; avoid extreme temperatures
Spare Parts	Contact GPX customer service

Frequently Asked Questions - TE1582B GPX

How do I connect my TV to an antenna?

Connect the antenna cable to the RF input on the back of the TV. Then, go to the menu and select Channel Scan to find available channels.

How do I connect external devices like a DVD player or game console?

Use an HDMI cable for best quality. Plug one end into the device and the other into an HDMI port on the TV. Select the corresponding HDMI input using the Source button on the remote.

How do I use the remote control?

Insert two AAA batteries into the remote. Point it at the TV's sensor and press the Power button to turn on. Use the Volume and Channel buttons to adjust settings.

How do I adjust the picture settings?

Press the Menu button on the remote, navigate to Picture or Display Settings. You can adjust Brightness, Contrast, Color, and Sharpness to your preference.

How do I set the sleep timer?

Press the Menu button, go to Timer or Sleep settings. Choose a duration (e.g., 30, 60, 90 minutes). The TV will automatically turn off after the selected time.

How do I perform a channel scan?

Go to the menu, select Channel or Setup, then choose Auto Scan or Channel Search. The TV will scan for available digital channels. This may take a few minutes.

How do I clean the TV screen?

Turn off the TV and unplug it. Use a soft, dry microfiber cloth to gently wipe the screen in circular motions. Do not use any liquids, sprays, or abrasive cleaners.

What should I do if the TV won't turn on?

First, check that the power cord is securely connected to both the TV and a working outlet. Try pressing the Power button on the TV itself. If still no response, unplug for 1 minute and try again.

Where can I find the user manual?

The user manual is available for free download at notice-facile.com in PDF format. You can also request a translated version by selecting your language and providing your email.

How do I mount the TV on a wall?

This TV supports VESA mount (likely 75x75mm or 100x100mm). Use a compatible wall mount kit and follow the instructions. Ensure the wall can support the weight (at least 4 times the TV's weight).

USER MANUAL TE1582B GPX

Warnings and Precautions

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

CAUTION: Use of any controls or adjustments or performance of procedures other than those herein specified may result in hazardous radiation exposure.

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

WARNING: Do not place this unit directly onto furniture surfaces with any type of soft, porous, or sensitive finish. As with any rubber compound made with oils, the feet could cause marks or staining where the feet reside. We recommend using a protective barrier such as a cloth or a piece of glass between the unit and the surface to reduce the risk of damage and/or staining.

WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

WARNING: The battery, batteries, and battery pack shall not be exposed to excessive heat such as sunshine, fire, or the like.

WARNING: Shock hazard - Do Not Open.

AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

Mains Plug or Direct plug-in adapter is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the Mains Plug or Direct plug-in adapter should be disconnected from the mains socket outlet completely.

Do not mix old and new batteries.

Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Important Safety Instructions

1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.

12.

Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.
2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Special note: When placing your unit on a lacquered or natural finish, protect your furniture with a cloth or other protective material.

FCC Warnings

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Additional Warnings

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.

Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering and disassembly are prohibited.

TE1582B

Includes

• Remote control: requires 2 AAA batteries (included)
- Removable stand
• AC/DC power adapter

Setup

Power Remote

AC power: built-in AC power cable Requires 2 AAA batteries (included)

Line drawing of a computer monitor with an outlet cable, showing internal components and no text or symbols

Table of Contents

Warnings and Precautions 2

Important Safety Instructions....3

TE1582B 4

Features

Setup....4

Power

Attaching the Stand

Remote

Includes

Table of Contents....5

Introduction 6

Setup....8

Connecting a TV Antenna

Connecting a Set-Top box

Connecting Basic Cable

Favorites and Clock....9

Adding Favorites

Viewing Favorites

Setting the Clock

Channels 10

Auto Scanning for Channels

Parental Controls....11

Parental Controls (V-Chip)

Connecting Other Devices 12

Connecting a Set-Top Box or Gaming Device

Connecting a DVD Player or VCR

Connecting Other Devices 13

Connecting a Computer

Using the Optical Audio Out

USB....14

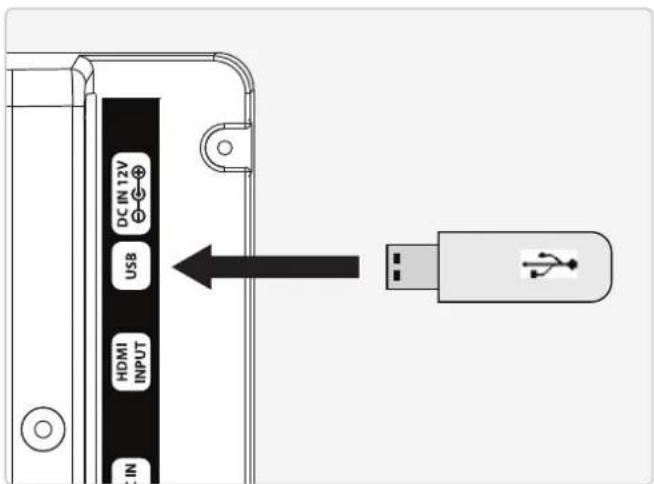

Connecting a USB Thumb Drive

Using a USB Thumb Drive

Mounting to a Wall 15

Important Notes

Company Information 16

International Support

Contact Information

Warranty

Green Initiative

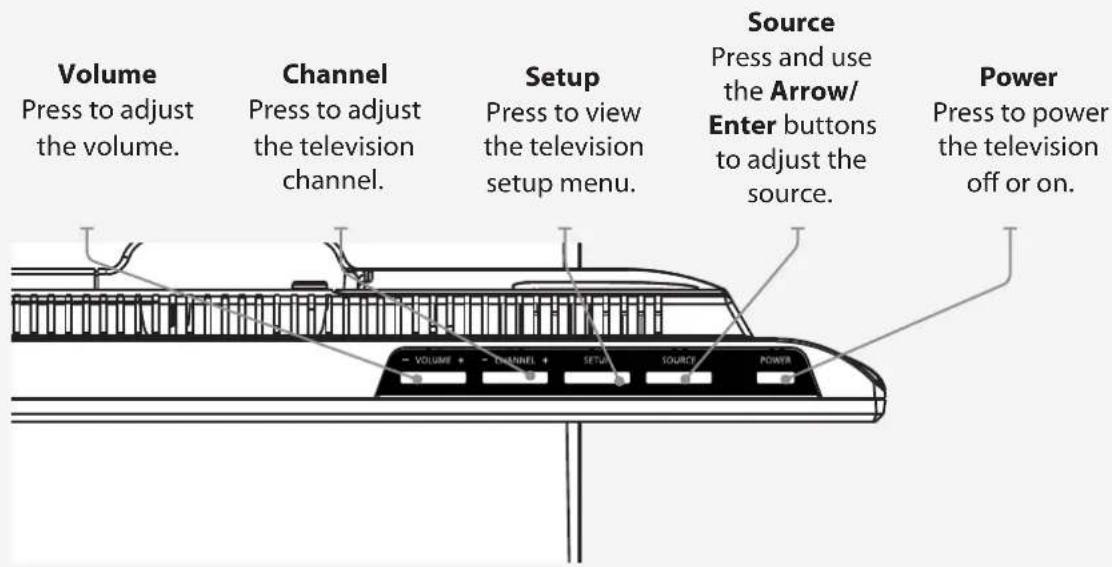

Introduction

Power Press to power the television off or on.

Number Keypad

Source

Press and use the Arrow/Enter buttons to adjust the source.

Arrows/Enter

Press to make selections in the on screen or disc menus.

Display

Press to view the on-screen display.

Volume ±

Press to adjust the volume.

Freeze

Press to freeze or unfreeze the current frame in TV mode.

Aspect

Press to adjust the aspect ratio between ZOOM, WIDE, CINEMA, and NORMAL.

Sleep

Press repeatedly to set the sleep timer. After the set time has expired the television will automatically power off.

Audio/CC

Press to adjust the current audio settings. Press to turn closed captioning off or on.

Stop

Press to stop a disc during play.

Skip

Press to skip between chapters or tracks on a loaded disc.

Mute

Press to mute the volume.


Press to adjust the picture between STANDARD, SOFT, USER, and DYNAMIC. The user mode can be customized by accessing Picture Settings in the menu.

Prev

In TV mode, press to switch to the previous channel.

Setup

Press to view the television setup menu.

Sound

Press to adjust the sound between STANDARD, MUSIC, USER, MOVIE, and SPORTS. The user mode can be customized by accessing Sound Settings in the menu.

Exit

Press to exit the current on-screen menu.

Channel ±

Press to adjust the television channel.

Guide

In TV mode, press to view the on-screen television guide.

Auto

In PC mode, press to fine tune the screen position automatically.

Slow

Press to slow down the current track.

Favorites

In TV mode, press to view your favorites list.

Play/Pause

Press to play or pause a loaded disc.

Fast Fwd

Press to search through an individual chapter or track.

Setup

Connecting a TV Antenna

Requires a TV antenna (not included).

1. Connect a VHF, UHF, or HDTV antenna to the RF Input on the television.
2. Press the Source button to switch to TV mode.
3. Press the Setup button to access the setup menu.
4. Press the Arrow (◀ ▶) buttons to highlight the CHANNEL icon. Press the Enter button.
5. Press the Arrow (▲▼) buttons to highlight Air/Cable. Press the Arrow (◀▶) buttons to select AIR.
6. Press the Arrow (▲▼) buttons to highlight AUTO SCAN. Press the Enter button to begin scanning for available channels.

Connecting Basic Cable

Requires a cable connection.

1. Connect a cable to the RF Input on the television.
2. Press the Source button to switch to TV mode.
3. Press the Setup button to access the setup menu.
4. Press the Arrow (◀ ▶) buttons to highlight the CHANNEL icon. Press the Enter button.
5. Press the Arrow (▲▼) buttons to highlight Air/Cable. Press the Arrow (◀▶) buttons to select CABLE.
6. Press the Arrow (▲▼) buttons to highlight Auto Scan. Press the Enter button to begin scanning for available channels.

Connecting a Set-Top box

Requires a Set-Top Box (not included).

If your Set-Top Box has an HDMI Output:

- Connect the HDMI output on the Set-Top Box to the HDMI Input on the television using an HDMI cable (not included).

If your Set-Top Box has a Composite Video Output:

- Connect the video output on the Set-Top Box to the Composite Video Input on the television using an A/V RCA cable (not included). Connect the audio output on the Set-Top Box to the RCA Audio Input on the television.

If your Set-Top Box has a Component Video Output:

- Connect the component video output on the Set-Top Box to the Component Video Input on the television using a component RCA cable (not included). Connect the audio output on the Set-Top Box to the RCA Audio Input on the television.

After connecting your Set-Top Box:

- Press the Source button to switch to AV, Component (YPrBr) or HDMI to match the connection used.

Channels

Auto Scanning for Channels

The Auto Channel Scan must be run before any channels can be viewed on the television.

1. Press the Source button to switch to TV mode.
2. Press the Setup button to access the setup menu.
3. Press the Arrow (◀ ▶) buttons to highlight the CHANNEL icon. Press the Enter button.
4. Press the Arrow (▲▼) buttons to highlight Air/Cable. Press the Arrow (◀▶) buttons to select AIR.
5. Press the Arrow (▲▼) buttons to highlight Auto Scan. Press the Enter button to begin scanning for available channels.

Note: Initial channel scanning process may take up to 15 min.

Favorites and Clock

Adding Favorites

1. Press the Source button to switch to TV mode.
2. Press the Setup button to access the setup menu.
3. Press the Arrow (◀ ▶) buttons to highlight the CHANNEL icon. Press the Enter button.
4. Press the Arrow (▲▼) buttons to highlight the Favorites icon. Press the Enter button.
5. Use the Arrow (▼▲) buttons to select the desired channels and then press the Enter button.

Viewing Favorites

1. Press the Source button to switch to TV mode.
2. Press the Favorites button to view a list of your saved favorites.

Setting the Clock

1. Press the Setup button to access the setup menu.
2. Press the Arrow (◀ ▶) buttons to highlight the TIME icon. Press the Enter button.
3. Press the Arrow (▲▼) buttons to highlight TIME ZONE. Press the Arrow (◀▶) buttons to select your current time zone.
4. Press the Arrow(▼▲) buttons to highlight AUTO CLOCK. Press the Arrow(◄►) buttons to turn auto clock off and on.

When the correct time zone is set, auto clock will automatically set your clock and date for you.

1. To set the time and date manually, turn auto clock off, highlight CLOCK, and use the Arrow and Enter buttons to manually set the time and date.

TV Menu and Parental Controls

Parental Controls (V-Chip)

1. Press the Source button to switch to TV mode.
2. Press the Setup button.

3. Press the Arrow (◀ ▶) buttons, highlight LOCK, and press the Enter button.

4. The default passcode for the parental lock is: 0 0 0 0

5. Enter the passcode to access the LOCK preferences.

6. From this menu, you can lock specific ratings from the United States rating system or the Canadian rating system by accessing the V-CHIP settings. You can also lock the buttons on the television or lock specific sources from access.

Connecting Other Devices

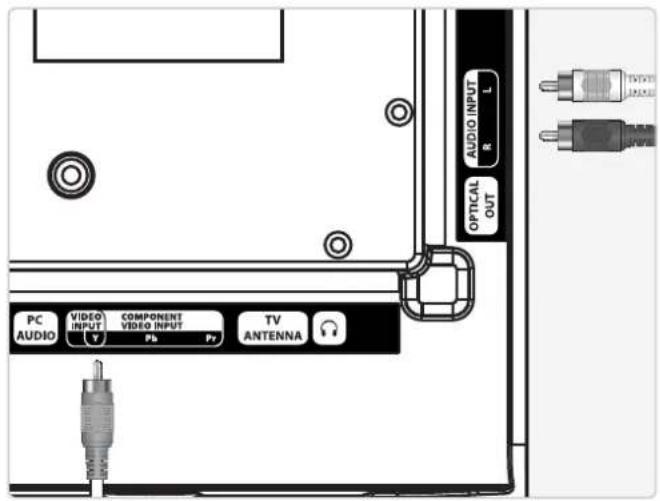

Connecting a Set-Top Box or Gaming Device

You will need: a set-top box, composite and RCA stereo cables or an HDMI cable (not included).

1. Connect the device's audio and video outputs to the corresponding audio and video inputs on the television.
2. Power the television on and press the Source button to switch to the connected input AV, Component (YPrBr) or HDMI.

Connecting a DVD Player or VCR

You will need: a DVD player or VCR, composite and RCA stereo cables or an HDMI cable (not included).

1. Connect the DVD player or VCR's audio and video outputs to the corresponding audio and video inputs on the television.
2. Power the television on and press the Source button to switch to the connected inputAV, Component (YPrBr) or HDMI.

Connecting Other Devices

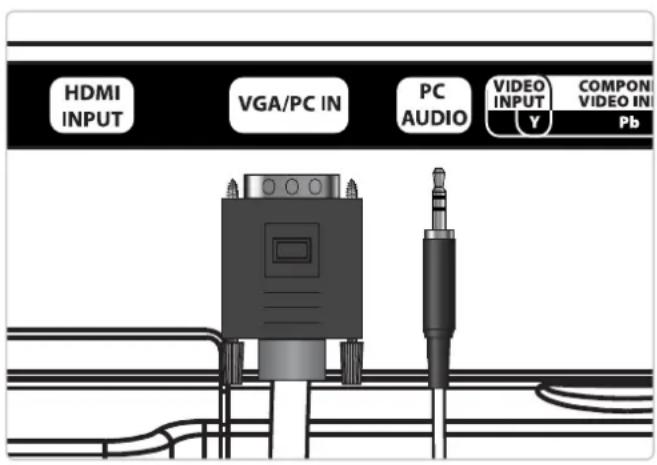

Connecting a Computer

You will need: a PC with a VGA output, and a VGA cable (not included).

1. Connect the computer's VGA output to the VGA/PC Input on the television.
2. Power the television on and press the Source button to switch to the PC Mode.
3. Audio from the connected PC can be input to the television through the TV's PC Audio Input by using a 3.5mm audio cable (not included).

Using the Optical Audio Out

You will need: a (home theater) with an Optical Audio Input and a Digital Optical Audio Cable (not included).

1. Connect the Digital Optical Audio Cable to the (home theater system) and the television.
2. Adjust the settings on your (home theater) to play audio from the connected Optical Audio Input.

Please note: home theater systems may label the Optical Audio Input source differently, such as "PCM", or "Digital Audio Input". Please consult your home theater system's user manual in order to select the correct input source.

1. Audio from the television will now be played through the connected (home theater system).

USB

Connecting a USB Thumb Drive

1. Load a USB thumb drive into the USB Port as shown in the image to the right.

Using a USB Thumb Drive

1. Follow the instructions for Connecting a USB thumb drive.
2. Press the Source button to switch to Media mode.
3. Use the Arrow and Enter buttons to select and play content from the connected USB thumb drive.

Mounting to a Wall

Important Notes

We recommend having this television professionally mounted.

Company Information

International Support

To download this User's Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at:

www.gpx.com

For Warranty Information and the most up-to-date version of this User's Guide, go to:

www.gpx.com

Green Initiative

Environmental Commitment to 'Protect for Today and Sustain for Tomorrow'

On a continual basis DPI, Inc. is making efforts to sustain the environment and improve the recyclability of its products and packaging.

Focusing on “protecting for today and sustaining for tomorrow” DPI, Inc. has committed to reducing packaging size, increasing the usage of recyclable plastics, and ensuring that packaging and manuals are made with up to 85% recycled material. In addition to material consideration, DPI, Inc. has also focused on the finer details that positively impact the environment such as employing the usage of soy-based inks.

DPI, Inc. also ensures that the factories that produce the company's wide variety of consumer electronics adhere to environmentally friendly air and water restrictions. This is yet another example that every step of the way DPI, Inc. is making efforts to lessen any impact on the environment.

In 2011 DPI, Inc. also began conversations with Energy Star in order to ensure that the consumer electronics being produced meet high standards of energy efficiency. The ultimate goal is keeping energy costs for consumers low while providing quality, feature-rich products.
