SLED3200 - Television SANSUI - Free user manual and instructions
Find the device manual for free SLED3200 SANSUI in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | LED Television |
| Model | SLED3200 |
| Screen Size | 32 inches (81 cm) |
| Resolution | 1366 x 768 (HD Ready) |
| Dimensions (with stand) | 730 x 475 x 180 mm |
| Dimensions (without stand) | 730 x 430 x 80 mm |
| Weight (with stand) | 4.5 kg |
| Power Consumption | 50 W (typical) |
| Power Supply | AC 100-240V, 50/60Hz |
| Connectivity | 2 x HDMI, 1 x USB, 1 x VGA, 1 x Composite, 1 x Coaxial, 1 x Headphone |
| Tuner | ATSC / NTSC (depending on region) |
| Audio | 2 x 8W speakers, Dolby Audio |
| Wall Mount | VESA 200 x 200 mm |
| Remote Control | Included (batteries not included) |
| Stand | Included, detachable |
| Cleaning | Use a soft, dry cloth. Avoid harsh chemicals. |
| Safety | Do not expose to moisture or heat sources. Keep ventilation slots clear. |
| Spare Parts Availability | Remote control, stand, screws available through authorized service centers. |
| Repairability | Refer to user manual for basic troubleshooting. For internal repairs, contact qualified service. |
Frequently Asked Questions - SLED3200 SANSUI
How do I connect a gaming console to the TV?
Use an HDMI cable to connect the console to one of the HDMI ports on the TV. Then select the corresponding HDMI input using the Source button on the remote.
What should I do if there is no picture but sound is working?
Check the input source and ensure it matches the connected device. If using an external device, try a different HDMI port or cable. Also, check if the TV's backlight is functioning by shining a flashlight on the screen.
How can I reset the TV to factory settings?
Go to Menu > Settings > System > Reset. Enter the default password (usually 0000) and confirm. This will erase all custom settings.
Why is the remote control not working?
First, check the batteries and replace if needed. Ensure there are no obstructions between the remote and the TV. Try pairing the remote again by holding the OK and Menu buttons simultaneously for 5 seconds.

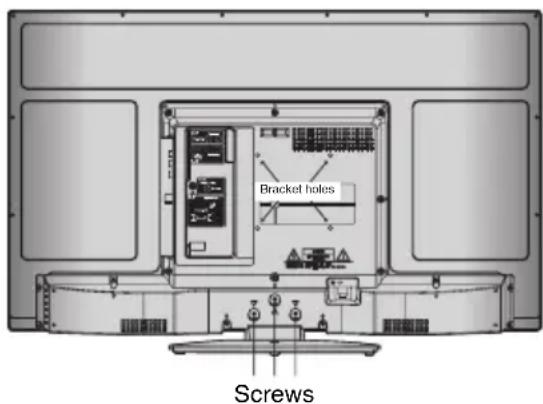

Can I wall-mount this TV?

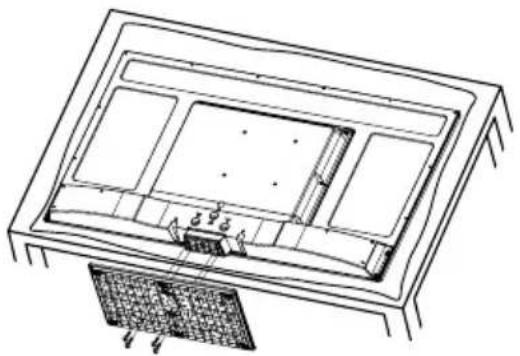

Yes, the TV supports VESA 200x200 mm wall mounts. Use appropriate screws and ensure the wall can support the weight. Remove the stand before mounting.
What is the screen resolution?
The screen resolution is 1366 x 768 pixels, which is HD Ready. It supports 720p content and upscales 1080p.
How do I clean the screen safely?
Turn off the TV and let it cool. Use a soft, dry microfiber cloth to gently wipe the screen. Do not spray liquids directly on the screen; apply to the cloth if needed.
Is there a USB port for media playback?
Yes, the TV has a USB port that supports playback of photos, music, and video files. Insert a USB drive and select USB from the source menu.

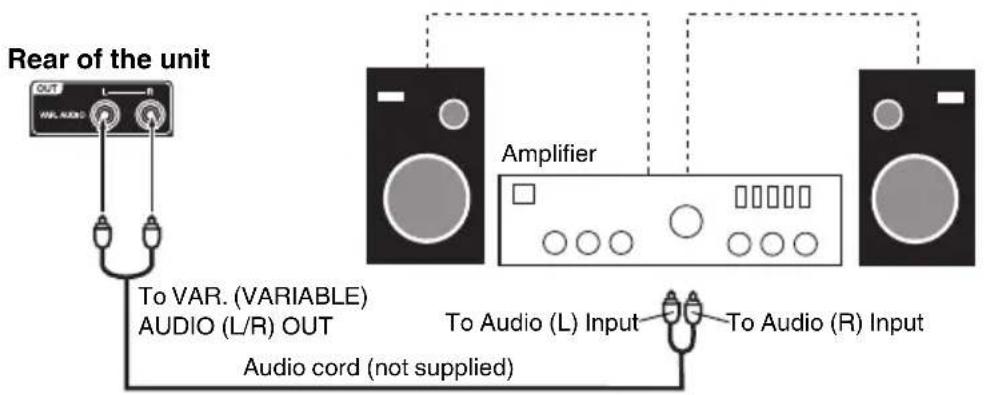

How can I improve audio quality?
You can connect an external sound system via the headphone jack or digital audio output (if available). Adjust the sound settings in the menu for bass and treble.
What should I do if the TV turns off by itself?
Check if the sleep timer is enabled. Also, ensure the TV is not overheating and has proper ventilation. If the issue persists, try a factory reset or contact support.
User questions about SLED3200 SANSUI
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Television in PDF format for free! Find your manual SLED3200 - SANSUI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SLED3200 by SANSUI.
