EM-X670 - Microwave SANYO - Free user manual and instructions

Product Type	Microwave Oven
Brand	Sanyo
Model	EM-X670
Capacity	25 L
Power Output	900 W
Power Consumption	1400 W
Voltage	230 V / 50 Hz
Dimensions (W x D x H)	513 x 420 x 310 mm
Weight	14.5 kg
Control Type	Digital touchpad
Display	LED
Timer	Up to 99 minutes 99 seconds
Defrost Function	Auto weight defrost
Auto Cook Programs	8 preset menus
Turntable	Yes, 315 mm glass tray
Child Lock	Yes
Cleaning	Wipe interior with damp cloth; avoid abrasives
Safety Certification	CE, RoHS
Spare Parts	Available via Sanyo service centers
Repairability	Professional service recommended

Frequently Asked Questions - EM-X670 SANYO

How do I set the clock on my Sanyo EM-X670 microwave?

Press the Clock button, then use the number keypad to enter the time. Press Clock again to confirm.

Can I use metal containers in the microwave?

No, metal containers can cause sparks and damage the microwave. Use microwave-safe glass, ceramic, or plastic containers.

How do I clean the microwave interior?

Wipe the interior with a damp cloth and mild detergent. Avoid harsh chemicals or abrasive pads. For stubborn stains, heat a bowl of water with lemon slices for 2 minutes then wipe.

What does the 'Auto Defrost' function do?

The auto defrost function automatically sets the time and power level based on the weight of the food. Enter the weight and it will calculate the defrosting time.

Why is my microwave not heating?

Check if the door is fully closed. Ensure the power cord is plugged in and the circuit breaker is on. If still not heating, the magnetron may be faulty; contact a service center.

How do I activate the child lock?

Press and hold the Stop button for 3 seconds until a lock icon appears on the display. Repeat to unlock.

What is the maximum cooking time?

The maximum cooking time is 99 minutes and 99 seconds. Use the timer function to set your desired time.

Can I use the microwave without the turntable?

No, the turntable ensures even cooking. Operating without it may result in uneven heating and potential damage.

How do I change the power level?

After setting the cooking time, press the Power Level button repeatedly to cycle through levels (e.g., 10% to 100%). Choose the desired level.

Where can I find the user manual for the EM-X670?

You can download the PDF manual from notice-facile.com or Sanyo's official website.

USER MANUAL EM-X670 SANYO

■ Specifications .... inside cover
■ PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY .. inside cover
■ Important Safety Instructions .... 1

Setting Up & Getting to Know Your Oven

■ Earthing Instructions 2
■ Installation 2
■ Names of Oven Parts and Accessories ..... 3
■ Utensils 4
■ Control Panel and Features 5

Operating Instructions

■ Setting Clock 6
■ Child Lock-Out 6
■ More/Less Time Adjustment 6
■ Direct Access Cooking/Heating 7
■ Menu Match.... 9
■ Optional Settings.... 9
■ Kitchen Timer 10
■ Quick Reheating 10
■ Automatic Defrost by Weight..... 12
■ Time Cooking 14
■ Multistage Cooking.... 15

Care of Your Microwave Oven

■ Questions and Answers .... 15
■ Cleaning 16

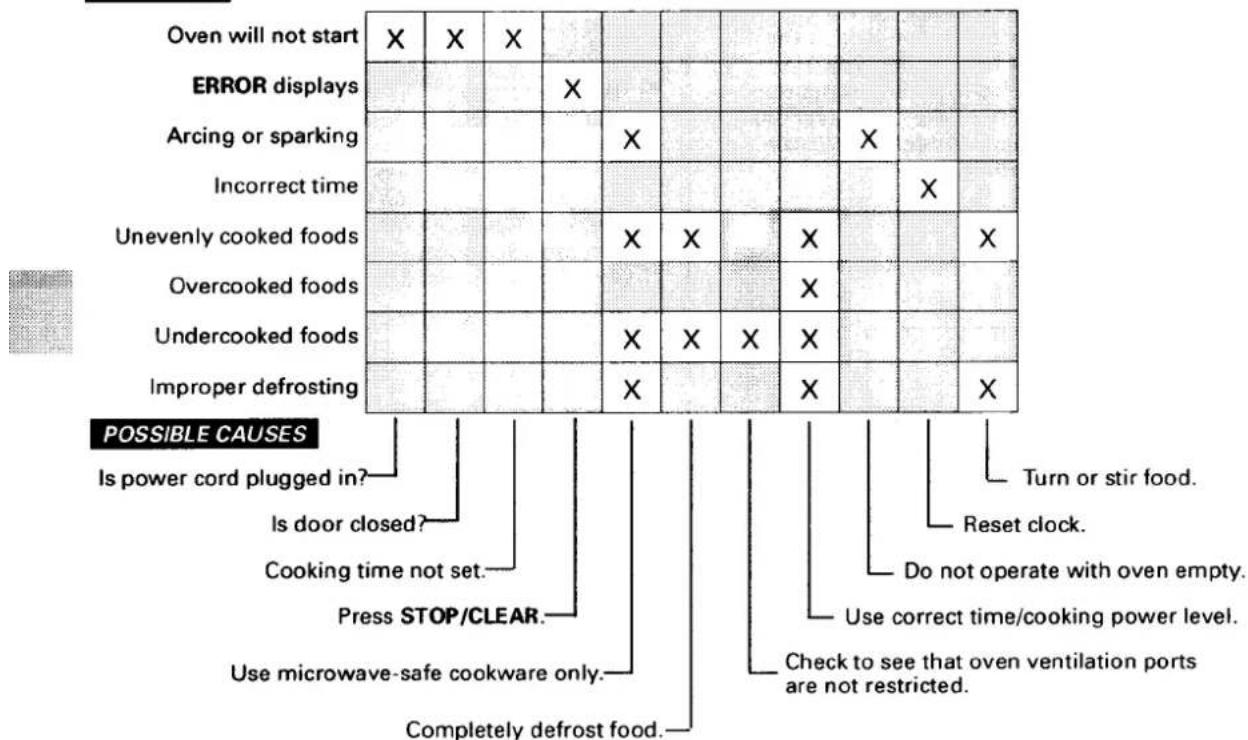

■ Before Calling for Service 16

Quick Reference.... back cover

Read these instructions

carefully before using these ovens.

If you follow the instructions,

your microwave oven will

provide you with many years

of good service.

SAVE THESE INSTRUCTIONS

SPECIFICATIONS

Model	EM-X470	EM-X670
Power Consumption	1500W	1500W
Maximum Output	1000W*	1000W*
Oven Capacity	28.0 L	37.0 L
Turntable Diameter	275 mm	320 mm
Dimensions (w x h x d)	525 mm x 289 mm x 425 mm	550 mm x 317 mm x 457 mm
Weight (Approx.)	17.0 kg	18.5 kg

*According to IEC-705 test procedures.
Specifications subject to change without notice.

PROPER AND SAFE USE OF YOUR OVEN

• The oven must be level.
- The turntable and turntable roller rest must be in the oven during cooking.
- Place the cookware gently on the turntable and handle it carefully to avoid possible breakage.
- The oven has several built-in safety switches to ensure that the power remains off when the door is open. Do not tamper with these switches.
- Do not operate the microwave oven empty.
- Do not overcook food. A small quantity of food with low moisture content or high fat or sugar content can burn.
- Do not cook bacon directly on the turntable. Excessive local heating of the turntable may cause it to break.
- When heating food in plastic or paper containers, check the oven frequently due to the possibility of cause fires in the oven.
- Do not place liquids or other foods with sealed containers in the microwave oven, it may explode.

• Avoid heating baby bottles or baby food jars. Transfer the food into a suitable container for the microwave oven. The food temperature should be tested before giving it to the baby.
• Do not heat narrow-necked containers, such as syrup bottles.
• Do not attempt to deep-fry in your microwave oven as the temperature of oil cannot be controlled.
• Do not heat cans. Transfer the contents into a microwave-safe dish before heating.
• Do not use this microwave oven for commercial purposes. This microwave oven is made for household use only.

NOTE

- It is quite normal for steam to be emitted around the door, for misting to occur on the door, or even for water droplets to appear below the door during the cooking cycle. This is merely condensation from the heat of the food.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Never interfere or tamper with safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on door sealing surfaces. Wipe the door sealing area frequently with a mild detergent, rinse and wipe dry. Never use abrasive powders or pads.
(c) When open, the door must not be subjected to strain; for example, a child hanging on the opened door or any load on it could cause the oven to fall forward, and the weight could also damage the door.
(d) Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the:
(1) DOOR (bent)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACES

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

WARNING -

To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using.
2. As with most cooking appliances, close supervision is necessary to reduce the risk of a fire in the oven cavity.

If a fire should start or smoke is observed:

• Keep the oven door closed
  • Turn the oven off, and
• Disconnect the power cord or shut off power at the fuse or circuit breaker panel.

Keep in mind the following rules at all times:

a. Do not overcook food. Overcooked food can cause fires in the oven. Carefully attend to the oven's activities, especially if paper, plastic, or other combustibles are inside.
b. Do not store combustible items such as bread, cookies, paper products, etc. inside the oven. They may catch fire if turned on accidentally.
c. Do not use wire twist-ties in the oven. Be sure to inspect purchased items for wire twist-ties and remove before placing food in the oven.
3. Some products such as eggs in the shell, water with oil or fat, sealed containers and closed glass jars may explode and therefore should not be heated in this oven.

1. Use this oven only for its intended uses as described in the manual. It is not designed for industrial or laboratory use. Never use corrosive chemicals or vapors in this oven.
2. As with any appliance, children should use the oven only under adult supervision.
3. Do not store or use this appliance outdoors.
4. Keep the oven away from heat and water sources. Exposure to heat and water can lower efficiency and lead to malfunctioning.
5. When heating water or other liquids, use a wide necked container to allow air bubbles to escape freely. Using narrow-necked containers may cause the liquid to boil over. This may happen even after the cooking has stopped.
6. It is important to keep the door and the oven interior clean. (See "Cleaning" instructions on page 16.)
7. To prevent delayed eruptive boiling of hot liquids and beverages or scalding, stir liquid before placing the container in the oven and again halfway through cooking time. Let stand in the oven for a short time and stir again before removing the container.

WARNING

(a) Do not adjust or repair microwave oven yourself. Do not operate the oven if it is damaged, until it has been repaired by a service engineer trained by the manufacturer.
(b) It is dangerous for anyone other than a properly qualified engineer trained by the manufacturer to carry out adjustments or repairs.
(c) If the power cord is damaged, it must be replaced by a special prepared cord available from the Manufacturer or its Service Agent.
(d) On no account remove or interfere with any parts or screws. THIS COULD PROVE VERY DANGEROUS.
(e) Before use, the user should check that utensils are suitable for use in microwave ovens.

SAVE THESE INSTRUCTIONS

EARTHING INSTRUCTIONS

This appliance must be earthed. If there is an electrical short circuit, earthing reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord that has a earthing wire with a earthing plug. The plug must be plugged into an outlet that is properly installed and earthed.

The electrical power cord must be kept dry and must not be pinched or crushed in any way.

WARNING - Improper use of the earthing plug can result in electric shock.

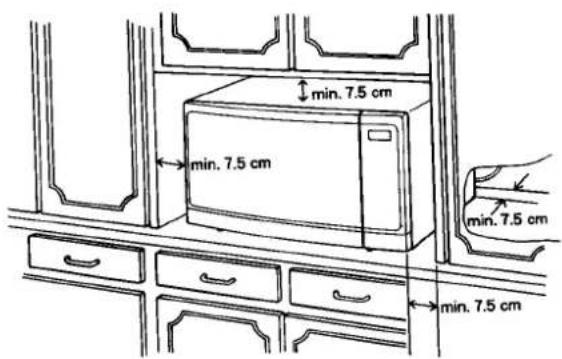

INSTALLATION

Remove all packing material and accessories. Examine the oven for any damage such as dents or a broken door. Do not install if oven is damaged.

1. Select a level surface that provides enough open space (see illustration at right) for the inlet and/or outlet vents.
2. Leave a minimum clearance of 7.5 cm above the oven.
3. Do not remove the legs from the bottom of the oven.
4. Blocking the inlet and/or outlet openings can damage the oven.
5. Do not install oven over a range, cooktop or other heat-producing appliance.
6. Place the oven as far away from radios and T.V.'s as possible.
7. When the cabinet is covered with a protective film, remove the film to fully show the intended colour and finish.
8. Plug your oven into a standard household outlet.

When installing in a "Built-in" situation, you must allow a minimum of 7.5 cm on each side and the top and at the back of the microwave oven for ventilation. Failing to do so might cause damage to the microwave oven.

A minimum clearance of 7.5 cm is required between the oven and any adjacent walls including the back wall.

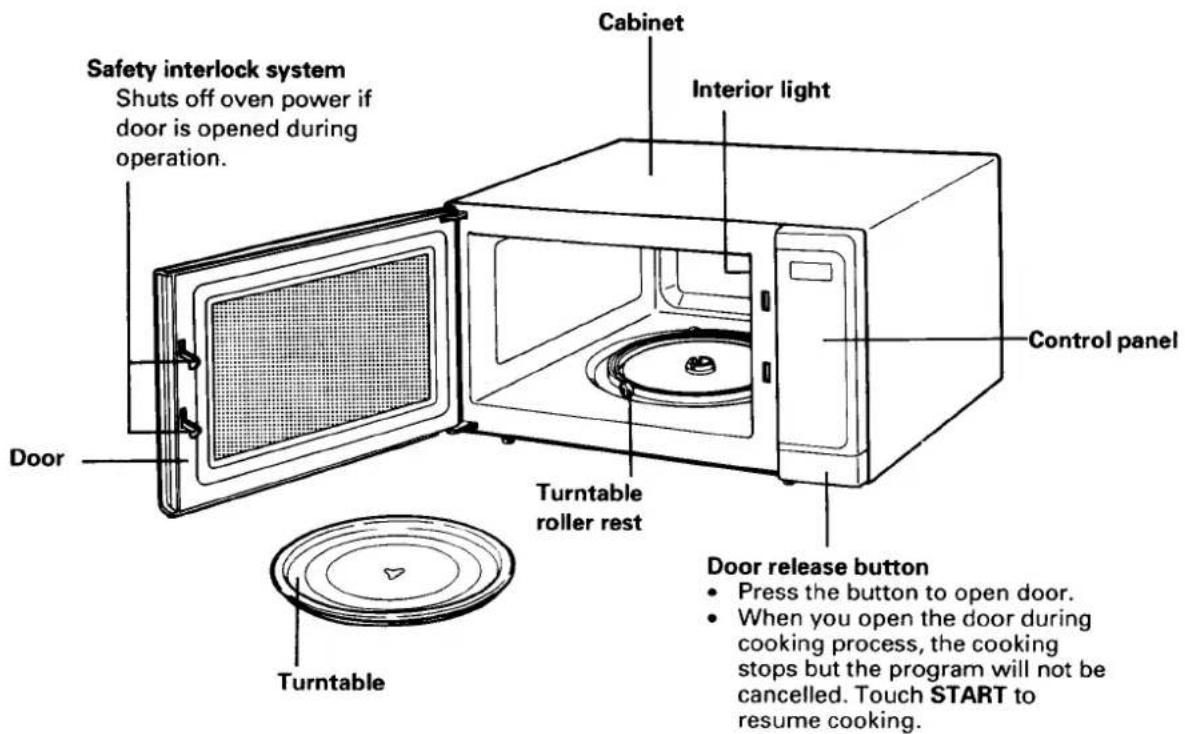

NAMES OF OVEN PARTS AND ACCESSORIES

Remove the oven and all materials from the carton.

Your oven comes with the following accessories:

Turntable 1

Turntable roller rest 1

Instruction Manual 1

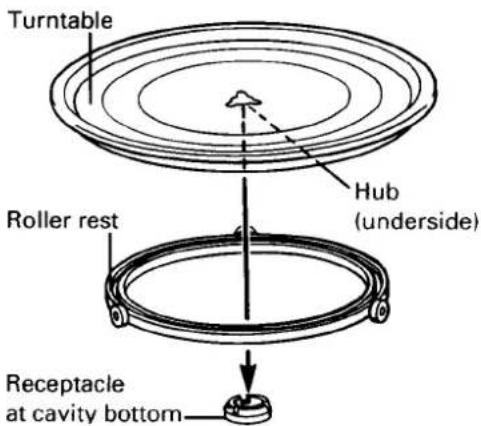

TURNTABLE INSTALLATION

1. Place the roller rest on the cavity bottom.

2. Place the turntable on top of the roller rest as shown in the diagram. Make sure the turntable hub is securely locked in the receptacle. Never place the turntable upside down. The turntable rotation should never be restricted.

3. Both turntable and roller rest must always be used during cooking.

4. All food and containers of food are always placed on this turntable for cooking.
5. This turntable returns to its original starting position when cooking is finished. The light and fan will remain on but microwave power is turned off.
6. This turntable rotates clockwise or counterclockwise; this is normal.

UTENSILS

MATERIALS YOU CAN USE IN MICROWAVE OVEN

Utensils	Use	Remarks
Aluminium foil	Shielding	Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 2.5 cm away from oven walls. Do not cover food completely with aluminium foil.
Browning dish	Searing meats	Follow manufacturer's instructions. The bottom of browning dish must be at least 5 mm above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Reheating and short-term cooking	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Warming	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Cooking	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Cooking	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Short-term warming and cooking	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Reheating and short-term cooking	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Cooking	Use as a cover to prevent spattering or a wrap for steaming.
Plastic	Reheating and short-term cooking	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe." Some plastic containers soften as the food inside gets hot.
Plastic wrap	Cooking	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Cooking	Microwave-safe only (meat and candy thermometers).
Wax paper	Cooking	Use as a cover to prevent spattering and to retain moisture.

MATERIALS TO BE AVOIDED IN MICROWAVE OVEN

Utensils	Remarks
Aluminium tray	Aluminium tray may cause arcing. Transfer the food into a microwave-safe dish before cooking.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	They may cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam cups	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

UTENSIL TEST:

Fill a microwave-safe container with 1 cup of cold water (250 mL) and place it in the oven along with the utensil in question. Cook on P-100 (maximum power) for 1 minute. Carefully feel the utensil. If the empty utensil is warm, it should not be used for microwave cooking. Do not exceed 1 minute testing time. This test cannot be used for plastic containers.

CAUTION:

Make sure that closed containers are opened and plastic pouches pierced before cooking. Tightly-closed utensils could explode.

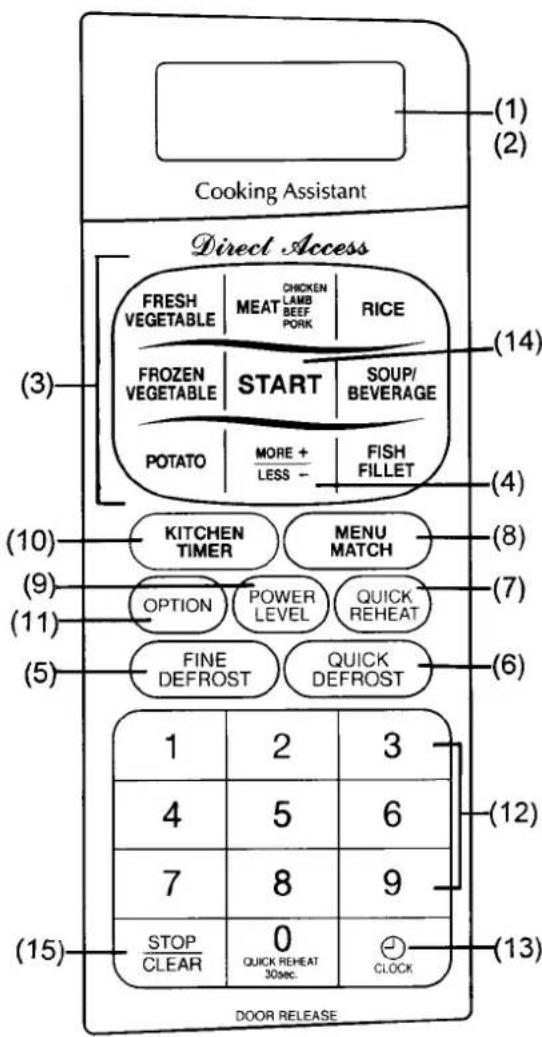

(1) Display Window

Counts down cooking time in seconds. Shows clock time when oven is not in use. Word Prompt display scrolls to guide you in setting clock and programming cooking courses.

(2) Indicators (Appear in the display window)

1/2/3: Cooking stage indicators

DEF : Cooking mode indicators

START : Flashes to prompt you to press START LOCK : Indicates the child-lock feature is set. (page 6)

(3) DIRECT ACCESS menu keypads (pages 7 - 8)

These Direct Access keys provide fast and accurate, yet easy-to-use microwave cooking/heating for a variety of popular foods.

(4) MORE/LESS: Adds or reduces cooking time for Direct Access menu cooking. (page 6)

AUTO menu keypads

Two Ways to Defrost: (page 12)

(5) FINE DEFROST: For more thorough defrosting.

(6) QUICK DEFROST: For a faster or more prompt defrost.

(7) QUICK REHEAT (page 10)

(8) MENU MATCH (page 9)

Other keypads

(9) POWER LEVEL (page 14)

(10) KITCHEN TIMER (page 10)

(11) OPTION (page 9)

Provides four options. (Word Prompt on/off, Clock on/off, Beep on/off, Display Language selection)

(12) NUMBER

(13) CLOCK (page 6)

(14) START

(15) STOP/CLEAR

Clears all previous setting if pressed before cooking starts. During cooking: press once to stop oven; twice to stop and clear all entries.

Beep Sound

A beep sounds when a keypad on the control panel is pressed to confirm your key entry. If desired, you can turn off beep sound. Refer to page 9.

SETTING CLOCK

When your oven is plugged in for the first time or when power resumes after a power interruption, the Word Prompt display will guide you in setting the clock.

Example: To set 3:15 :

1.

Press

2.

Press number keypads 3, 1 and 5 to enter time of day.

3.

Press

The clock starts counting.

Remember:

• If the clock (or display) shows any abnormality, unplug the oven from the AC outlet. Plug it in again and then reset the clock.
  • This is 12-hour clock.
• You can use the oven without setting clock.

CHILD LOCK-OUT

The oven has safety feature which prevents use by children. When this feature is set, the oven can not be programmed to cook.

To set child lock-out:

1.

Press START for 4 seconds. The indicator LOCK will appear in the display. The clock time will reappear.

To cancel child lock-out:

1.

Press START for 4 seconds. The indicator LOCK will disappear from the display and the clock time will reappear.

Remember:

- If any key is pressed except STOP/CLEAR or START, the letter ERROR will appear in the display for 2 seconds.

MORE/LESS TIME ADJUSTMENT

This feature allows for fine adjustments in cooking/heating by either increasing or decreasing the time.

This feature may be used with any key included in the Direct Access menu key.

1. Press the desired Direct Access key.
2. If you want to change the cooking/heating time: Press MORE/LESS once to increase the time. Press MORE/LESS twice to decrease the time.
3. Press START.

DIRECT ACCESS COOKING/HEATING

The seven Direct Access keypads allow for quick and easy cooking/heating of selected categories of food. Depending on the number of servings or the weight of the item, the microwave automatically determines the required time and power level. Follow the chart at the right, and press the appropriate keypad 1 to 4 times. The number of serving or type of meat will appear in the display, and will continue to scroll across the display to guide your next step.

Pause Reminder for Meat menu The oven stops about halfway through the cooking process to allow for checking, turning or rearranging the food. The oven stops at the pause. If you do not open the door at the pause, the oven restarts after 5 minutes and commences the second cooking period.

Press menu keypad	once	twice	3 times	4 times
FRESH VEGETABLE	1 serving	2 servings	3 servings	-
FROZEN VEGETABLE	1 serving	2 servings	3 servings	-
POTATO	1 serving	2 servings	3 servings	-
RICE	1 serving	2 servings	3 servings	-
SOUP/BEVERAGE	1 serving	2 servings	3 servings	-
FISH FILLET	1 serving	2 servings	3 servings	-
MEAT	Chicken	Lamb	Beef	Pork

Example:

To cook 2 baked potato:

1.

POTATO

Press POTATO twice.

2.

MORE + LESS -

If desired, press MORE/LESS once or twice to adjust cooking time. (see page 6)

3.

START

Press START.

Cooking starts. The time counts down in the display.

Example:

To cook 1.2 kg of Lamb:

1.

MEAT

Press MEAT twice to select Lamb. The meat prompts will scroll across the display.

2.

1)

2

Enter the food weight by pressing 1 and then 2.

3.

MORE + LESS -

If desired, press MORE/LESS once or twice to adjust cooking time. (see page 6)

4.

START

Press START. Cooking starts.

5.

The oven stops automatically at pause Separate, rearrange or turn food over.

6.

START

Press START to resume cooking.

Remember:

• This meat menu is an accurate cooking method for meat from 0.5 kg up to 2.5 kg.
• The oven automatically selects 1 kg, if the weight is not entered

DIRECT ACCESS COOKING/HEATING (CONT.)

Cooking Tips:

FRESH VEGETABLE:

- Weight shown is for washed, prepared vegetables.

FROZEN VEGETABLE:

- Follow package directions for venting package, adding water, piercing pouch, replacing foil, covering with plastic wrap, etc. For larger portions, stir during cooking.

POTATO:

- Arrange in a circular pattern with heavier ends pointing toward the outer edge of the dish. Rotate and turn over during cooking.

SOUP/BEVERAGE:

- Soups or beverages must be at room or refrigerator temperature for reheating.

FISH FILLET:

- Fish should be completely thawed before cooking. Arrange fillet in a single layer in dish. MEAT:

- Doneness varies with meat of different shape and weight.

- Meat should be completely thawed before cooking.

- Place meat on a microwave-safe roasting rack in a dish.

- All meat may be seasoned as desired before cooking.

- Use wax paper or plastic wrap to stop splattering.

- Aluminium foil can be used to cover thin parts of meat or chicken wings and legs to prevent overcooking. Foil should be applied at pause.

- While chicken or meat is standing, cover with foil to keep in the heat.

Item	Amount	Directions
Fresh Vegetable	1 serving (150 g)2 servings (300 g)3 servings (450 g)	Place in a suitable sized microwave-safe dish.Add 1 tbsp. water per serving. Cover. Let stand 2 - 3 minutes.
Frozen Vegetable	1 serving (150 g)2 servings (300 g)3 servings (450 g)	Place in a suitable sized microwave-safe dish.Cover. Stir during cooking. Let stand 2 - 3 minutes.
Potato	1 potato (170 g)2 potatoes (340 g)3 potatoes (510 g)	Wash and scrub well. Pierce with fork. Place on paper towel.Turn over during cooking. Let stand 3 - 5 minutes.Do not place in centre of turntable.
Rice (long grain)	1 serving (125 mL)2 servings (250 mL)3 servings (375 mL)	Cook with water and salt in a deep dish. Use appropriate size casserole.Cover. Stir and let stand for 5 minutes.Cooking Guide - Rice (Long grain)
		Serving	Rice	Water	Salt	Container
		1	12 cup(125 mL)	1 cup(250 mL)	14 tsp.	112 litre
		2	1 cup(250 mL)	134 cups(425 mL)	12 tsp.	2 litre
		3	112 cups(375 mL)	212 cups(625 mL)	34 tsp.	3 litre
Soup/Beverage	1 serving (230mL)2 servings (460 mL)3 servings (690 mL)	Coffee/Tea/Hot chocolate: No cover. Stir after reheating.Soup: Cover. Stir after reheating.
Fish Fillet	1 serving (170 g)2 servings (340 g)3 servings (510 g)	Fish fillet/ Fish steaks: Use microwave-safe shallow dish or pie plate.Cover lightly with plastic wrap.
Meat	0.5 kg - 2.5 kg(weight enter)	Chicken, whole: Remove the giblets, rinse in cold water and pat dry. Tie legs together with string. Place breast side down on a roasting rack. Turn over at pause. Let stand 10 - 20 minutes.Chicken, pieces: Arrange pieces skin side down. Turn and rearrange at pause. Let stand 5 - 10 minutes.
		Lamb, Beef, Pork:Tie meat with string. Place meat fat side down on a roasting rack.Turn over at pause. Let stand 10 - 20 minutes.

MENU MATCH

MENU MATCH allows you to prepare packaged foods perfectly with no guess work.

Follow the chart at the right, and simply press the MENU MATCH key for a number of times to enter the manufacturer's recommended power setting and the cook/defrost time. Then, press START. The oven will automatically adjust the time/power level to compensate for the high wattage of this microwave oven.

• For a range of time (such as 5 - 7 minutes), use 6 minutes.
• If the instructions do not specify a power level, use HIGH.
• Closely watch the cooking/defrosting progress when preparing an item for the first time.
• When MED-HIGH power is called for, use MEDIUM level and add a little time to the suggested cooking time on the package.
• Two stages of food preparation can be programmed at one time. Repeat steps 1 - 2, and then press START.

Required Power Level	Press MENU MATCH
HIGH	once
MEDIUM	twice
LOW	3 times
800W	4 times
700W	5 times
600W	6 times

Example:

To cook a frozen entrée that requires 3-minute cooking on 700W power.

1.

Press MENU MATCH five times.

2.

Enter 3 minutes by pressing 3 0 0.

3.

Press START.

ADJUST appears briefly, and a beep sounds. The cook time display changes to the actual time adjusted by the oven, and counts down as cooking progresses.

OPTIONAL SETTINGS

The OPTION key allows you to customize your new oven with a variety of helpful features. These feature include:

• turning the word prompt display on/off
• turning the clock display on/off
• turning the beep sound on/off
- selecting the Language type you wish to display in the word prompt.

Press the OPTION key until the desired feature appears. Following the word display instructions, then press 1, 2 or 3 to customize your oven. The oven is initially set with word prompt display in English, clock display and beep sound on

Customized features	Press OPTION
WORD PROMPT (1-On/2-Off)	once
CLOCK (1-On/2-Off)	twice
BEEP (1-On/2-Off)	3 times
DISPLAY LANGUAGE(1-English, 2-Spanish, 3-French)	4 times

Example:

To select English, Spanish or French Word Prompt display:

1.

Press OPTION four times.

Three selections will scroll across the display.

Choose from the following:

1-ENGLISH, 2-ESPANOL,

3-FRANCAIS

KITCHEN TIMER

This key allows for simple timing of everyday activities.

Microwave cooking/defrosting can be done while the kitchen timer is in use. When a microwave oven function is in progress, the display shows time countdown of the microwave function, and a flashing K appears in the display.

To see the time left on the kitchen timer, press KITCHEN TIMER. The display switches to the remaining time of the kitchen timer for 5 seconds, and a steady letter K appears in the display.

Press STOP/CLEAR to clear or change kitchen timer setting while the display is in the kitchen timer mode.

Example:

To set timer for 3 minutes:

1.

KITCHEN TIMER

Press KITCHEN TIMER.

2.

Press 3, 0 and 0 to set 3 minutes.

3.

START

Press START.

The time counts down in the display, and beep sounds for 7 seconds when time has run out.

Remember:

• STEP 1: Press KITCHEN TIMER and then you have 10 seconds to enter the time.
• STEP 2: After entering your time, the Kitchen Timer automatically starts within 5 seconds.
• If the oven stops while the Kitchen Timer is being set, the numbers will disappear. Start over.
• If the oven and Kitchen Timer stop at the same time, only the oven beeps.
  • To stop the Kitchen Timer beeping, press KITCHEN TIMER
  • If the oven stops first, the Kitchen Timer continues to run.

QUICK REHEATING

This simplified control lets you set and start microwave cooking for one of 10 predetermined periods of time by just pressing 2 keypads. The power level is always set to P-100 (maximum power) for Quick-On cooking.

• Press the QUICK REHEAT keypad and then the 0 key to cook for 30 seconds.
• Press the QUICK REHEAT keypad and any other number key (1 - 9) to select a cooking time in minute. (To cook for 9 minutes, for example, press the 9 key.)

Example:

To set Quick Reheating for 2 minutes:

1.

QUICK REHEAT

Press QUICK REHEAT.

2.

2

Press 2. The oven begins cooking and display shows time counting down.

Remember:

- You may open the door to stop cooking before the selected time is over. To start again, close the door and press START.

QUICK REHEATING (CONT.)

REHEATING Item	Amount	Time	Special Notes
Beverage
Water-based	1 cup (250 mL)	1 - 2 min.	Heat uncovered.
	2 cups (500 mL)	2 - 4 min.	Stir after heating.
Milk-based	1 cup (250 mL)	1 - 2 min.
	2 cups (500 mL)	2 - 4 min.
Soups
Broth-based	300 mL can	2 - 3 min.	Use microwave-safe casserole. Cover.
Cream-based	300 mL can	3 - 4 min.	Stir after heating.
Cooked pizza
25 cm pizza cut into 8 portions	2 wedges	12 - 1 min.	Place on paper towels or paper plate or leave in uncovered cardboard box.
	4 wedges	1 - 2 min.	Arrange points toward centre.
	whole	2 - 3 min.
Meat
Sliced thin	85 -140 g	12 - 1 min.	Heat on microwave-safe plate, covered with wax paper or plastic wrap.
Sliced thick, 2.5 cm	85 -140 g	1 - 2 min.
Chili, stews	2 cups (500 g)	3 - 4 min.	Place in microwave-safe dish. Cover. Stir halfway through cooking time.
Hamburgers, meat loaf slices, sausage patties	1 serving	12 - 1 min.	Place on microwave-safe plate. Cover with paper towel. Turn over once.
	2 servings	1 - 2 min.
	4 servings	2 - 3 min.
Poultry Chicken pieces	1	1 min.	Heat on microwave-safe plate. Cover with wax paper or plastic wrap.
	2	1 - 2 min.	If fried, cover with paper towel.
	4	2 - 3 min.
	6	3 - 5 min.
Chicken, turkey, sliced	85 -140 g	1 - 2 min.	Heat on microwave-safe plate. Cover with wax paper or plastic wrap.
Seafood
Prawns, crab, or scallops in sauce, frozen	185 g	3 - 5 min.	Slit pouch and place on microwave-safe plate. Flex pouch to mix halfway through cooking time.
Seafood or fish casserole, frozen	450 g	4 - 6 min.	Remove from package to a microwave-safe casserole. Cover. Stir once during cooking.
Cooked rice, pasta	1 cup (250 mL)	1 - 2 min.	Heat in microwave-safe casserole, covered with plastic wrap.
	2 cups (500 mL)	2 - 3 min.
Vegetable, frozen in pouch	280 - 340 g	3 - 5 min.	Slit pouch. Place on microwave-safe plate. Flex pouch to mix halfway through cooking time.
Canned vegetable	230 g	1 - 2 min.	Use microwave-safe casserole, covered. Stir once.
	425 g	2 - 3 min.
	500 g	2 - 4 min.
COOKING Item	Amount	Time	Special Notes
Mashed potatoes, instant	4 servings	3 - 5 min.	Follow package directions. Reduce liquid by 1 tbsp (15 mL).
Pudding and pie filling mix	90 g	4 - 6 min.	Follow package directions. Stir once.
Porridge (Rolled oats)	14 cup (50 mL)	1 - 2 min.	Add 34 cup (175 mL) of water. Cook uncovered. Stir once. Let stand 1 minute.
	12 cup (125 mL)	3 - 4 min.	Add 112 cup (375 mL) of water. Cook uncovered. Stir once. Let stand 1 minute.
Wheat-bran cereal	14 cup (50 mL)	1 - 2 min.	Add 34 cup (175 mL) of water. Cook uncovered. Stir once. Let stand 1 minute.
	12 cup (125 mL)	3 - 4 min.	Add 112 , cup (375 mL) of water. Cook uncovered. Stir once. Let stand 1 minute.

AUTOMATIC DEFROST BY WEIGHT

The Auto Defrost by Weight feature allows precise, even defrosting of frozen foods — automatically. Two defrost options are available on this oven.

QUICK DEFROST is used as a fast or more prompt defrost. When using QUICK DEFROST, the frozen food will be defrosted about 50-60%.

FINE DEFROST will require more time, and the frozen food will be more thoroughly defrosted. The same types of foods may be defrosted using either defrost key. Press either QUICK DEFROST key or FINE DEFROST key. Then enter the weight of the frozen food, using the number keypad. Weight may be entered up to 2.9 kg. The program will select 1 kg if a weight is not entered.

Pause Reminder

For the best results, microwave defrosting requires rearranging the food about halfway through the process. A pause reminder mechanism is built into this feature to alert you with five beeps to open the door and check, separate or turn the food. The PAUSE prompt scrolls in the display.

If you do not open the door at the pause reminder, the oven continues to complete the defrosting.

For manual defrosting using Time Cooking, see page 14.

Example: To thoroughly defrost 1.2 kg of chicken pieces:

1.

FINE DEFROST

Press FINE DEFROST.

2.

Enter the weight by touching 1 and then 2.

3.

Press START. The oven starts and the defrost time counts down in the display.

1. When the five-beep Pause Reminder sounds, open the door to separate, rearrange or turn food over. Close door.

5.

Press START to resume defrosting.

Remember:

• To enter a weight of less than 1 kg, always press 0 first. For example, to enter 0.2 kg, press 0 and then 2.
- Only one digit can be entered after a decimal point. If in doubt, convert to the lower number.

CONVERSION TABLE
lbs - oz	grams	kg	lbs - oz	grams	kg
4 oz	100	0.1	3 lb-9 oz	1600	1.6
7 oz	200	0.2	3 lb-12 oz	1700	1.7
10 oz	300	0.3	4 lb	1800	1.8
14 oz	400	0.4	4 lb-3 oz	1900	1.9
1 lb-2 oz	500	0.5	4 lb-7 oz	2000	2.0
1 lb-5 oz	600	0.6	4 lb-10 oz	2100	2.1
1 lb-9 oz	700	0.7	4 lb-14 oz	2200	2.2
1 lb-12 oz	800	0.8	5 lb-1 oz	2300	2.3
2 lb	900	0.9	5 lb-5 oz	2400	2.4
2 lb-4 oz	1000	1.0	5 lb-8 oz	2500	2.5
2 lb-7 oz	1100	1.1	5 lb-12 oz	2600	2.6
2 lb-11 oz	1200	1.2	5 lb-15 oz	2700	2.7
2 lb-14 oz	1300	1.3	6 lb-3 oz	2800	2.8
3 lb-2 oz	1400	1.4	6 lb-6 oz	2900	2.9
3 lb-5 oz	1500	1.5

AUTOMATIC DEFROST CHART

• The FINE DEFROST menu includes standing time.
  • Large roasts should be still icy in centre. Allow to stand.
• Fish and seafood should also be slightly icy. Allow to stand.
• Food can be defrosted in a styrofoam package.
• Some types of food will need to be rearranged at the Pause.

• Check the food during defrosting.

• Remove frozen food from its original paper or plastic wrap. When it is difficult to remove the wrap, defrost the food in the wrap until the Pause. At the Pause, remove the wrap.

• Place foods in a flat microwave-safe baking dish or roasting rack to catch drippings.
• Food should still be somewhat icy in the centre when removed from the oven.

Item	Special Notes
Beef
Ground beef	Turn over and remove defrosted portion at pause.
Liver	Drain liquid as it defrosts. Separate pieces.
Roasts	Turn over at pause. Cover ends with foil.
Sirloin steak	Turn over at pause.
Rib or T-bone	Turn over at pause.
Flank steak	Turn over at pause.
Stewing meat	Break apart at pause.
Pork
Bacon	Defrost in original wrapper. Turn over at pause. Centre should be slightly icy.
Chops	Separate and turn over at pause.
Ribs	Turn over at pause.
Roasts	Turn over at pause. Cover ends with foil.
Lamb
Chops	Separate and turn over at pause.
Ribs	Turn over at pause.
Roasts	Turn over at pause. Cover ends with foil.
Poultry
Chicken, whole, up to 1.4 kg	Check for and remove any metal clamps or wires before defrosting. Turn over at pause. Cover ends with foil. Rinse under cold water.
Pieces	Separate and turn over at pause.
Cornish hens	Check for and remove any metal clamps or wires before defrosting. Turn over at pause. Rinse under cold water.
Fish and Seafood
Crabmeat, prawns	Break apart at pause.
Fish fillets	Turn over and rearrange at pause. Rinse under cold water to separate.
Fish whole, steaks	Turn over at pause. Cover head and tail with foil.
Scallops	Break apart at pause. Remove defrosted scallops.

TIME COOKING

This basic microwave cooking method allows you to cook food for a desired time at different power levels. Cooking time can be set up to 99 minutes 99 seconds.

Microwave power can be selected from 11 different levels as shown below:

Power level

P-100 - 100% (maximum power)
P-90-90%
P-80-80%
P-70-70%
P-60-60%
P-50-50%
P-40-40%
P-30-30%
P-20-20%
P-10-10%
P-0 - 0%

Foods with high moisture content should be cooked on maximum power, as this is the fastest cooking method and best maintains the natural flavour and texture of the foods.

Simply press the POWER LEVEL key repeatedly until the desired power level number appears in the display.

To check the power level during cooking, press POWER LEVEL. The power level appears in the display window.

Manual Defrosting (without using Auto Defrost feature) Use power level P-30. To speed up the defrosting of dense foods over 1 lb (500 g), you may start on P-100 for 2 minutes, then reduce to the level P-30.

To Delay When Cooking Starts To delay when cooking starts, use power level P-0 for the first stage of multistage cooking. To enter power level P-0, press POWER LEVEL keypad until P-0 appears in the display. Then enter the amount of time you wish to delay the cooking. You can delay when cooking starts for up to 99 minutes and 99 seconds.

Power level	Press keypad
P-100 (100%)	once
P-90 (90%)	twice
P-80 (80%)	3 times
P-70 (70%)	4 times
P-60 (60%)	5 times
P-50 (50%)	6 times
P-40 (40%)	7 times
P-30 (30%)	8 times
P-20 (20%)	9 times
P-10 (10%)	10 times
P-0 (0%)	11 times

Example: To cook at power level P-80 (80%) for 40 seconds:

1.

Enter 40 seconds by pressing 4 and then 0.

2.

Press POWER LEVEL key until P-80 appears in the display.

3.

Press START.

POWER LEVEL SETTING GUIDE

Power Level	Cooking Examples
P-10	Softening cream cheese and butter. Keeping casseroles and main dishes warm.
P-20	Softening chocolate and clarifying butter. Heating breads, rolls, pancakes, tacos, tortillas and French toast. Taking the chill out of fruit. Heating small amounts of food.
P-30	Completing the cooking cycle of casseroles, stews and sauces. Manual defrosting. Thawing meat, poultry and seafood.
P-40	Cooking less tender cuts of meat in liquid or slow-cooking dishes. Completing the cooking cycle of less tender roasts.
P-50	Cooking stews and soups after bringing to a boil. Cooking custards and pasta. Cooking rump roast, ham, veal and lamb.
P-60	Cooking scrambled eggs. Baking cakes.
P-70	Cooking cheese dishes.
P-80	Reheating precooked or prepared food quickly. Cooking fish.
P-90	Cooking onions, celery and green peppers quickly. Reheating rice and pasta.
P-100	Cooking poultry, vegetables and most casseroles. Preheating a browning dish. Boiling water.

MULTISTAGE COOKING

• You can program up to 3 stages of cooking in sequence.
  To program 2-stage or 3-stage cooking, repeat the Time Cooking steps 1 to 2 on the previous page and press START.
• Using the Auto Defrost by Weight feature for the first stage, you can defrost first and program up to 3 stages of cooking.
• When one stage of programmed cooking is completed, the next stage will begin automatically.

QUESTIONS AND ANSWERS

OPERATION

Q. What is wrong when the oven light will not glow?

A. There may be several reasons why the oven light will not glow.

• The light bulb has burned out.

• START has not been touched.

Q. Why is steam coming out of the air exhaust vent?

A. Steam is normally produced during cooking. The microwave oven has been made to vent this steam.

Q. Can the microwave oven be damaged if it operates empty?

A. Yes. Never operate while empty or without the turntable positioned correctly on the roller rest.

Q. When the oven is plugged into a wall outlet for the first time, it might not work properly. What is wrong?

A. When the oven is plugged in for the first time or when power resumes after a power interruption, the microcomputer used in the oven control may temporarily become scrambled and fail to function as programmed. Unplug the oven from the wall outlet and then plug it back in. The microcomputer will then reset for proper functioning.

Q. Why do I see light reflection around the outer case?

A. This light is from the oven light located outside the oven cavity.

Q. Why is there noise coming from the turntable when the oven is turned on?

A. This noise occurs when the turntable roller rest and cavity bottom are dirty. Frequent cleaning of these parts should eliminate or reduce the noise.

Q. Instructions for aluminium foil use are confusing. When should I use foil?

A. It should be used to shield portions of food from becoming overcooked or overdefrosted. Use small flat pieces of foil for shielding. (Refer to page 4).

FOODS

Q. What is wrong when baked foods have a hard, dry, brown spot?

A. This is caused by overcooking. Shorten cooking or reheating time.

Q. Why do eggs sometimes pop?

A. The egg yolk may pop because of steam build-up inside the membrane. To prevent this, simply pierce the membrane with a toothpick before cooking it. CAUTION: Never microwave eggs in the shell since they may explode.

Q. Why are scrambled eggs sometimes a little dry after cooking?

A. Eggs dry out if they are overcooked. You may need to vary the cooking time for one of these reasons:

• Eggs vary in size.
• Eggs are at room temperature one time and at refrigerator temperature another time.
• The shapes of utensils vary, which makes it necessary to vary cooking time.
• Eggs continue cooking during standing time.

Q. What is wrong when three potatoes bake thoroughly and the fourth one is still not cooked?

A. The fourth potato may be slightly heavier than the others and should be cooked 30 to 60 seconds longer. Remember to allow 2.5 cm around each potato when baking. For more even cooking, place potatoes in a circle.

Q. Why do baked apples sometimes burst during cooking?

A. As in regular cooking methods, steam is formed in the interior of the apple, causing it to swell and expands during the cooking process.

Q. How are boil-overs avoided?

A. Use a larger utensil than usual for cooking. If you open the oven door or touch STOP/CLEAR. the food will stop boiling

Q. Why does the dish become hot when I microwave food in it?

A. As the food becomes hot it will conduct the heat into the dish. Use oven mitts to remove food after cooking.

CLEANING

Wipe the oven inside and outside with a soft cloth and a mild detergent solution. Then rinse and wipe dry. This should be done on a weekly basis - more often if needed. Never use cleaning powders or rough pads. Excessive oil splatters on the inside top will be difficult to remove if left for many days. Wipe spatters with a wet paper towel, especially after cooking chicken or bacon.

REMOVABLE PARTS

The following parts may be removed as described. They should be washed in warm (not hot) water with a mild detergent and a soft cloth. Once they are clean, rinse them well and dry with a soft cloth. Never use cleaning powders, steel wool or rough pads.

• The turntable may be removed at the sink. Be careful not to chip or scratch the edges as this may cause the turntable to break during use.
• The turntable roller rest should be cleaned regularly.

SPECIAL CARE

For best performance and safety, the inner door panel and the oven front frame should be free of food or grease buildup. Wipe them often with a mild detergent. Then rinse and wipe dry. Never use cleaning powders or rough pads.

After cleaning the control panel, touch

STOP/CLEAR to clear any entries that might have been entered accidentally while cleaning the panel.

BEFORE CALLING FOR SERVICE

You can often correct operating problems yourself. If your microwave oven fails to work properly, locate the operating problem in the chart below and try the solutions marked for each problem.

If the microwave oven still does not work properly, contact the nearest authorized service centre.

PROBLEMS

QUICK REFERENCE

OPTIONAL SETTINGS

1. Press OPTION until the desired feature appears.
   once Word Prompt on/off
   twice Clock on/off
   3 times Beep on/off
   4 times Language select
2. Follow the word display instructions, then press number to customize your oven.

MENU MATCH

1. Press MENU MATCH 1 - 6 times until the power level shown on the food package appears:
   HIGH
   MEDIUM
   LOW
   800 W
   700 W
   600 W

2. Press numbers to enter the required cook time shown on the package.

3. Press START.

DIRECT ACCESS COOKING

1. Press FRESH VEGETABLE, FROZEN VEGETABLE, POTATO, RICE, SOUP/BEVERAGE, FISH FILLET or MEAT

1 - 3 or 4 times to select number of serving or type of meat.

1. Press MORE/LESS once or twice to adjust cooking time, if desired.

Press once for a longer cooking time.

Press twice for a shorter cooking time.

1. Press START.

Note: Pause for meat menu The oven stops about halfway through the cooking process to allow for checking, turning or rearranging the food. At pause, rearrange food.

QUICK REHEATING

1. Press QUICK REHEAT.
2. Press a number (1-9) for cooking time.
   Press 0 to cook 30 seconds.
   Press 1 to cook 1 minute.
   Press 2 to cook 2 minutes.
   Press 9 to cook 9 minutes.

NOTE: Quick Reheating uses P-100 power only.

AUTOMATIC DEFROST

1. Press either FINE DEFROST or QUICK DEFROST.
2. Enter the weight of food in kg.
3. Press START.
4. At Pause, rearrange food.
5. Press START to restart.

NOTE: If you do not open the door at the Pause, the oven continues to complete the defrosting.

TIME COOKING

1. Press numbers for cooking time (in minutes and seconds).
2. Press POWER LEVEL until desired power level (P-100 to P-0) appears in the display.
3. Press START.

CLOCK

1. Press ⏻ .
2. Press numbers to set time.
3. Press ⏻ .

KITCHEN TIMER

1. Press KITCHEN TIMER.
2. Press numbers for desired time.
3. Press START.

For your protection in the event of theft or loss of this product, please fill in the information below :

Serial No.

(Located on the front of the oven)

Model No.

(Located on the front of the oven)

Date of Purchase

Purchased Price

Where Purchased

SANYO Electric Co., Ltd.

2/98 Printed in Singapore

Code No. 432-6-414S-47200
