Product Type	Countertop Microwave Oven
Brand	Sanyo
Model	EM-X680
Capacity	20 liters
Power Output	800 watts
Power Supply	230 V ~ 50 Hz, 1200 W
Dimensions (W x D x H)	45.5 x 28.5 x 26.5 cm
Weight	10.5 kg
Control Type	Digital with LED display
Cooking Modes	Microwave, Auto Defrost, Auto Cook, Quick Start
Timer	Up to 95 minutes
Turntable	Glass turntable, diameter 25.5 cm
Interior Light	Yes
Child Lock	Yes
Door Safety Interlocks	Yes, 3-position door interlock
Cleaning	Wipe interior with damp cloth; do not use abrasive cleaners
Spare Parts	Available from authorized Sanyo service centers
Repairability	Professional repair recommended; refer to manual for service
Manual Pages	24
Warranty	12 months (typical)

Frequently Asked Questions - EM-X680 SANYO

How do I set the cooking time on the Sanyo EM-X680?

Press the Time Cook button, then use the number pads to enter the desired time (up to 95 minutes). Press Start to begin.

What is the maximum power level?

The maximum microwave power output is 800 watts. You can adjust power levels from 1 to 10 using the Power Level button.

How do I use the defrost function?

Press Defrost, select the weight of the food using number pads, and press Start. The microwave will automatically set time and power for defrosting.

Can I use metal containers in the microwave?

No, do not use metal containers or aluminum foil unless specifically allowed by the manual. Use microwave-safe glass, ceramic, or plastic containers.

How do I clean the interior?

Unplug the microwave and wipe the interior with a soft damp cloth. For stubborn residues, use a mild detergent. Do not use abrasive sponges or chemicals.

What does the child lock do and how to set it?

The Child Lock prevents accidental operation. To set, press and hold the Stop/Clear button for 3 seconds until a beep sounds. Repeat to unlock.

Why does the microwave make a humming noise?

A low humming sound is normal as the magnetron operates. If the sound is loud or unusual, stop use and contact service.

How do I replace the turntable glass plate?

If the glass plate is broken, order a replacement from Sanyo. To remove, lift the plate straight up. Place the new plate onto the turntable hub.

Can I cook popcorn in this microwave?

Yes, use the Popcorn button if available, or set high power for 2-4 minutes. Follow package instructions and never leave unattended.

What should I do if the display shows an error?

If 'E-' codes appear, refer to the manual's troubleshooting section. Common issues are door not closed properly or power supply problems. Unplug and replug after a minute.

USER MANUAL EM-X680 SANYO

Setting up & Getting to Know Your Oven

■ Earthing Instructions 2
■ Installation 2
■ Names of Oven Parts and Accessories ..... 3
■ Control Panel and Features 4
■ Setting Clock 5
■ Child Lock-Out 5
■ Utensils 6

Operating Instructions

■ Beverage Reheating 7
■ Automatic Defrost by Weight 8
■ Automatic Sensor Cooking 9
■ Time Cooking 11
■ Minute Timer.... 12
■ Multistage Cooking 12

Care of Your Microwave Oven

■ Questions and Answers 13
■ Cleaning 14

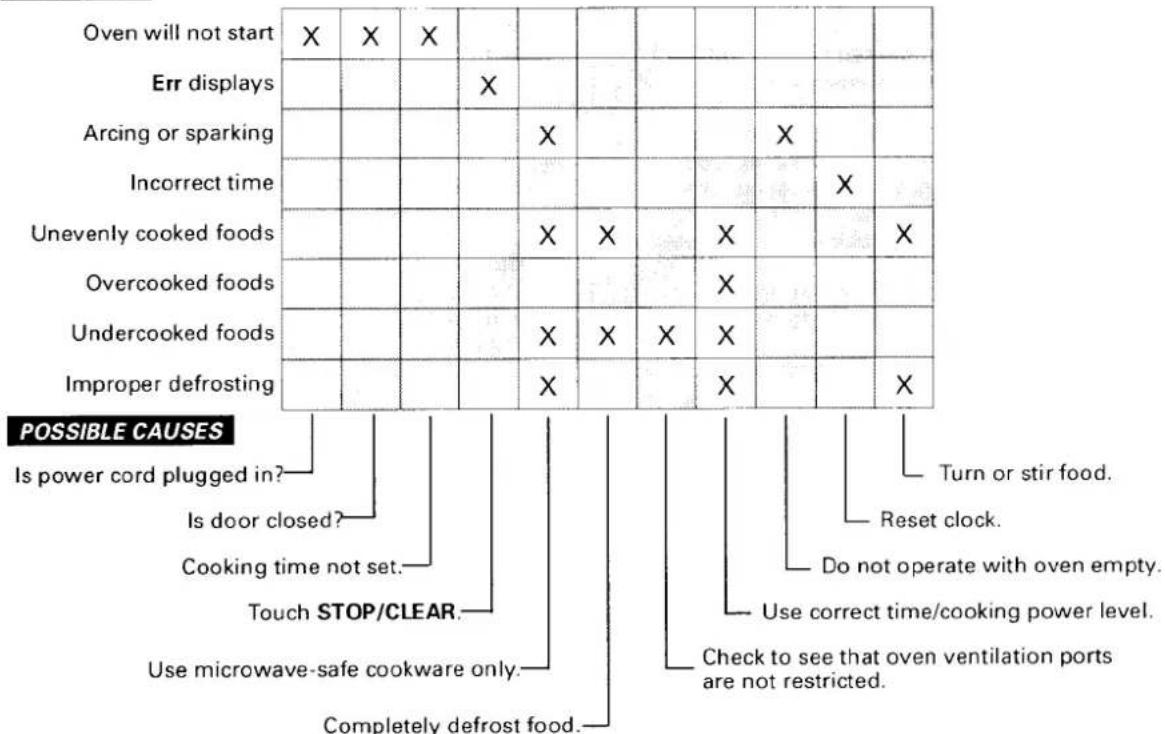

■ Before Calling for Service 14

Cooking Guide

■ Auto Sensor Reheating 15
■ Auto Sensor Cooking 16
■ Sensor Cooking Recipes 18

Chart

■ Automatic Defrost Chart 21

Quick Reference..... back cover

Read these instructions carefully before use. If you follow the instructions, your microwave oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS

SPECIFICATIONS

Model	EM-X680
Power Consumption	1370W
Maximum Output	900W*
Oven Capacity	35 L
Turntable Diameter	360 mm
Dimensions (w x h x d)	550 mm x 311 mm x 451 mm
Weight (Approx.)	21 kg

*According to IEC-705 test procedures.
Specifications subject to change without notice.

PROPER AND SAFE USE OF YOUR OVEN

• The oven must be level.
- The turntable and turntable roller rest must be in the oven during cooking.
- Place the cookware gently on the turntable and handle it carefully to avoid possible breakage.
- The oven has several built-in safety switches to ensure that the power remains off when the door is open. Do not tamper with these switches.
- Do not operate the microwave oven empty.
- Do not overcook food. A small quantity of food with low moisture content or high fat or sugar content can burn.
- Do not cook bacon directly on the turntable. Excessive local heating of the turntable may cause it to break.

• Avoid heating baby bottles or baby food jars. Transfer the food into a suitable container for the microwave oven. The food temperature should be tested before giving it to the baby.
• Do not heat narrow-necked containers, such as syrup bottles.
• Do not attempt to deep-fry in your microwave oven as the temperature of oil cannot be controlled.
• Do not heat cans. Transfer the contents into a microwave-safe dish before heating.
• Do not use this microwave oven for commercial purposes. This microwave oven is made for household use only.

NOTE

- It is quite normal for steam to be emitted around the door, for misting to occur on the door, or even for water droplets to appear below the door during the cooking cycle. This is merely condensation from the heat of the food.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Never interfere or tamper with safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on door sealing surfaces. Wipe the door sealing area frequently with a mild detergent, rinse and wipe dry. Never use abrasive powders or pads.
(c) When open, the door must not be subjected to strain; for example, a child hanging on the opened door or any load on it could cause the oven to fall forward, and the weight could also damage the door.
(d) Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the:
(1) DOOR (bent)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACES

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

WARNING

To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using.

1. As with most cooking appliances, close supervision is necessary to reduce the risk of a fire in the oven cavity.

If a fire should start:

• Keep the oven door closed
  • Turn the oven off, and
• Disconnect the power cord or shut off power at the fuse or circuit breaker panel.

Keep in mind the following rules at all times:

a. Do not overcook food. Overcooked food can cause fires in the oven. Carefully attend to the oven's activities, especially if paper, plastic, or other combustibles are inside.
b. Do not store combustible items such as bread, cookies, paper products, etc. inside the oven. They may catch fire if turned on accidentally.
c. Do not use wire twist-ties in the oven. Be sure to inspect purchased items for wire twist-ties and remove before placing food in the oven.

1. Some products such as eggs in the shell, water with oil or fat, sealed containers and closed glass jars may explode and therefore should not be heated in this oven.
2. Use this oven only for its intended uses as described in the manual. It is not designed for industrial or laboratory use. Never use corrosive chemicals or vapors in this oven.
3. As with any appliance, children should use the oven only under adult supervision.
4. Do not store or use this appliance outdoors.
5. Keep the oven away from heat and water sources. Exposure to heat and water can lower efficiency and lead to malfunctioning.
6. When heating water or other liquids, use a wide necked container to allow air bubbles to escape freely. Using narrow-necked containers may cause the liquid to boil over. This may happen even after the cooking has stopped.
7. It is important to keep the door and the oven interior clean. (See "Cleaning" instructions on page 14.)

WARNING

(a) Do not adjust or repair microwave oven yourself. Do not operate the oven if it is damaged, until it has been repaired by a service engineer trained by the manufacturer.
(b) It is dangerous for anyone other than a properly qualified engineer trained by the manufacturer to carry out adjustments or repairs.
(c) If the power supply cord is damaged, it must be replaced by the manufacturer, as a specially prepared cord is required.
(d) On no account remove or interfere with any parts or screws. THIS COULD PROVE VERY DANGEROUS.

SAVE THESE INSTRUCTIONS

EARTHING INSTRUCTIONS

This appliance must be earthed. If there is an electrical short circuit, earthing reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord that has a earthing wire with a earthing plug. The plug must be plugged into an outlet that is properly installed and earthed.

The electrical power cord must be kept dry and must not be pinched or crushed in any way.

WARNING - Improper use of the earthing plug can result in electric shock.

INSTALLATION

Remove all packing material and accessories. Examine the oven for any damage such as dents or a broken door. Do not install if oven is damaged.

1. Select a level surface that provides enough open space (see illustration at right) for the inlet and/or outlet vents.
2. Leave a minimum clearance of 7.5 cm above the oven.
3. Do not remove the legs from the bottom of the oven.
4. Blocking the inlet and/or outlet openings can damage the oven.
5. Do not install oven over a range, cooktop or other heat-producing appliance.
6. Place the oven as far away from radios and T.V.'s as possible.
7. When the cabinet is covered with a protective film, remove the film to fully show the intended colour and finish.
8. Plug your oven into a standard household outlet. Be sure that your microwave oven is the only appliance on the circuit.

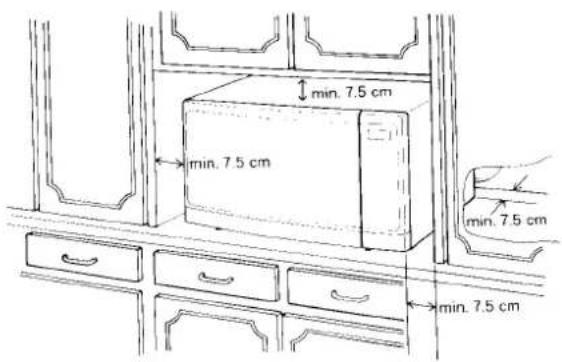

When installing in a "Built-in" situation, you must allow a minimum of 7.5 cm on each side and the top and at the back of the microwave oven for ventilation. Failing to do so might cause damage to the microwave oven.

A minimum clearance of 7.5 cm is required between the oven and any adjacent walls including the back wall.

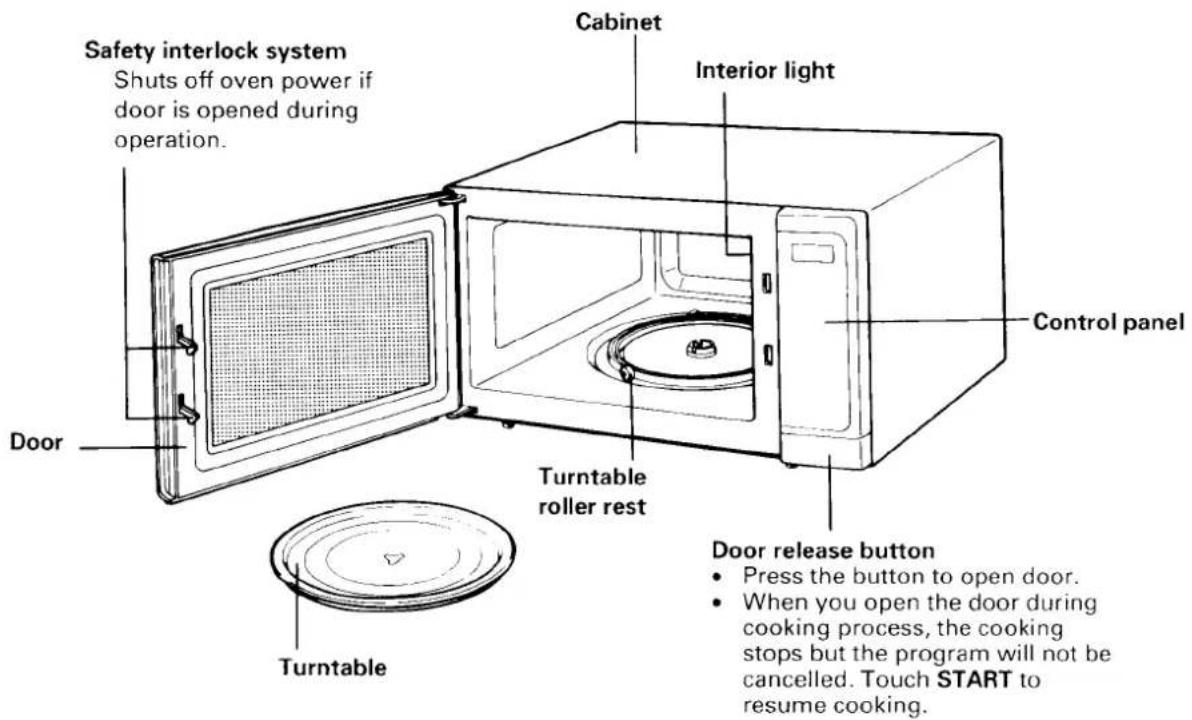

NAMES OF OVEN PARTS AND ACCESSORIES

Remove the oven and all materials from the carton.

Your oven comes with the following accessories:

Turntable 1

Turntable roller rest 1

Instruction Manual 1

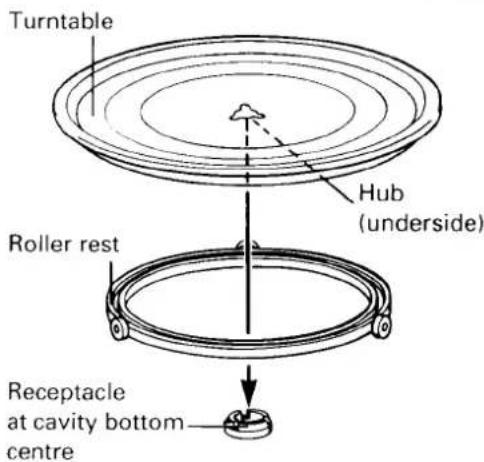

TURNTABLE INSTALLATION

1. Place the roller rest on the cavity bottom.

2. Place the turntable on top of the roller rest as shown in the diagram. Make sure the turntable hub is securely locked in the receptacle. Never place the turntable upside down. The turntable rotation should never be restricted.

- Both turntable and roller rest must always be used during cooking.

- All food and containers of food are always placed on this turntable for cooking.

- This turntable returns to its original starting position when cooking is finished. The light and fan will remain on but microwave power is turned off.

- This turntable rotates clockwise or counterclockwise; this is normal.

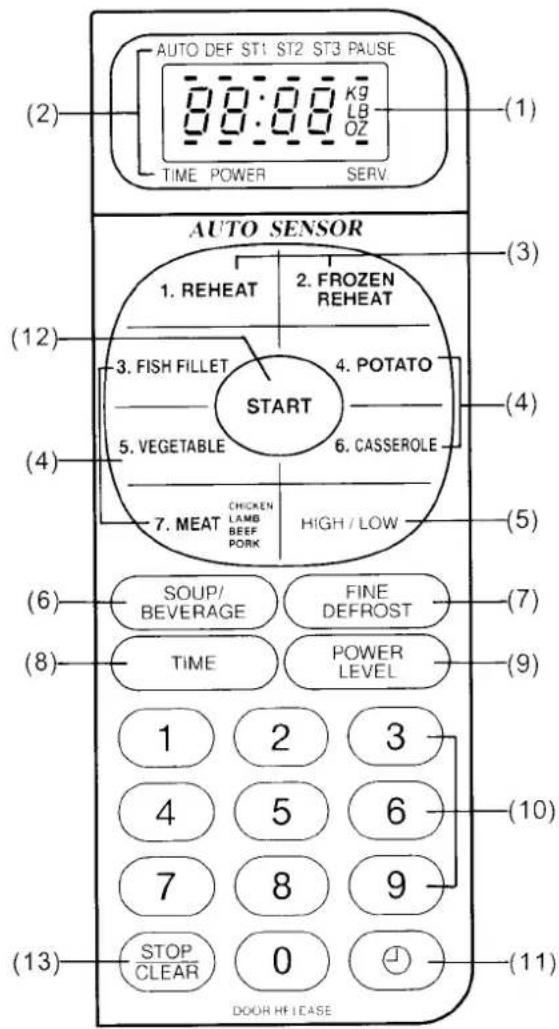

CONTROL PANEL AND FEATURES

AUTO SENSOR Direct Access Keypads

Designed for easy-to-use operation, the Auto Sensor keypad group provides 2 Sensor

Reheating courses and 5 Sensor Cooking

courses. The oven determines all settings by measuring the steam generated from the food in the oven -- no need for you to enter time, power level or food weight.

AUTO Menu Keypads

The SOUP/BEVERAGE keypad is programmed to prepare 1 to 3 cups of beverages with simple direct access operation.

Use the FINE DEFROST keypad for Automatic Defrost by Weight feature.

(1) Display Window

Counts down cooking time in seconds. Shows clock time when oven is not in use.

(2) Indicators

ST1/ ST2/ ST3 : Cooking stage indicators AUTO/ DEF/ PAUSE : Cooking mode indicators

TIME/ POWER/ SERV./ Kg/ g :

A flashing indicator prompts you to enter desired cooking time, power setting, food weight or number of servings.

AUTO SENSOR keypads

(pages 9 - 10 and 15 - 20)

(3) Sensor Reheating keypads

1. REHEAT

2. FROZEN REHEAT

(4) Sensor Cooking keypads

1. FISH FILLET

2. POTATO

3. VEGETABLE

4. CASSEROLE

5. MEAT (page 10)

(5) HIGH/LOW keypad (page 9)

AUTO menu keypads

(6) SOUP/BEVERAGE (page 7)

(7) FINE DEFROST (page 8)

Other keypads

(8) TIME (page 11)

(9) POWER LEVEL (page 11)

(10) NUMBER

(11) CLOCK (page 5)

(12) START

(13) STOP/CLEAR

Clears all previous setting if pressed before cooking starts. During cooking: touch once to stop oven; twice to stop and clear all entries.

Beep Sound

A beep tone sounds when a keypad on the control panel is touched to indicate a setting has been entered.

SETTING CLOCK

When your oven is plugged in for the first time or when power resumes after a power interruption, the numbers in the display reset to 0:00. Set the clock.

Example:

To set 3:15 :

1.

Touch

2.

Touch number keypads 3, 1 and 5.

3.

Touch

The clock starts counting.

Remember:

- If the clock (or display) shows any abnormality, unplug the oven from the AC outlet. Plug it in again and then reset the clock.

CHILD LOCK-OUT

Your oven has a safety feature which prevents children from accidentally turning it on. Even if the oven is accidentally programmed to cook, no cooking takes place when this feature is set.

To set :

1. Touch ⏻ .
2. Touch 9 four times.
3. Touch START.

Indicator L lights and clock display reappears.

To cancel :

1. Touch ⏻ .
2. Touch 7 four times.
3. Touch START.

Indicator L disappears and clock display reappears.

MATERIALS YOU CAN USE IN MICROWAVE OVEN

Utensils	Use	Remarks
Aluminium foil	Shielding	Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 2.5 cm away from oven walls.
Browning dish	Searing meats	Follow manufacturer's instructions. The bottom of browning dish must be at least 5 mm above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Reheating and short-term cooking	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Warming	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Cooking	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Cooking	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Short-term warming and cooking	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Reheating and short-term cooking	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Cooking	Use as a cover to prevent spattering or a wrap for steaming.
Plastic	Reheating and short-term cooking	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe." Some plastic containers soften as the food inside gets hot.
Plastic wrap	Cooking	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Cooking	Microwave-safe only (meat and candy thermometers).
Wax paper	Cooking	Use as a cover to prevent spattering and to retain moisture.

MATERIALS TO BE AVOIDED IN MICROWAVE OVEN

Utensils	Remarks
Aluminium tray	Aluminium tray may cause arcing. Transfer the food into a microwave-safe dish before cooking.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	They may cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam cups	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

UTENSIL TEST:

Fill a microwave-safe container with 1 cup of cold water (250 mL) and place it in the oven along with the utensil in question. Cook on HI power for 1 minute. Carefully feel the utensil. If the empty utensil is warm, it should not be used for microwave cooking. Do not exceed 1 minute testing time. This test cannot be used for plastic containers.

CAUTION:

Make sure that closed containers are opened and plastic pouches pierced before cooking. Tightly-closed utensils could explode.

BEVERAGE REHEATING

SOUP/BEVERAGE keypad allows you to reheat one to three servings of beverages or soup automatically. (Foods must be room or refrigeration temperature.)

Simply touch the appropriate keypads, once for each cup and then touch START.

Food Reheating Tips:

• Follow the directions included in the chart.
  • Stir the contents after reheating.

Example:

To reheat 2 servings of soup:

1.

twice

Touch SOUP/BEVERAGE twice*.

2.

Touch START.
Reheating starts. The time counts down in the display.
* Enter the number of servings by touching a SOUP/BEVERAGE keypad 1 to 3 times until the correct serving number appears in the display.

SOUP/BEVERAGE — coffee/tea, soup, hot chocolate
Cover soup. No cover for coffee/tea and hot chocolate. Stir after reheating.

1 touch	1 serving	230 mL
2 touches	2 servings	460 mL
3 touches	3 servings	690 mL

NOTE: Use microwave-safe cup only.

AUTOMATIC DEFROST BY WEIGHT

The Auto Defrost by Weight feature allows precise, even defrosting of frozen foods — automatically. Just touch the FINE DEFROST key, then enter the frozen food's weight using the number keys (weight up to 2.9 kg). The menu selects 1 kg if a weight is not entered.

Pause Reminder

For the best results, microwave defrosting requires rearranging the food about halfway through the process. A pause reminder mechanism is built into this feature to alert you with five beeps to open the door and check, separate or turn the food. The PAUSE indicator also flashes for five seconds. If you do not open the door at the pause reminder, the oven continues to complete the defrosting.

Auto Defrosting chart appears on page 21.

For manual defrosting using Time Cooking, see page 11.

Defrosting Tips:

• Check the food during defrosting.
• Remove frozen food from its original paper or plastic wrap. When it is difficult to remove the wrap, defrost the food in the wrap until Pause appears. At the pause, remove the wrap.
• Place foods in a flat microwave-safe baking dish or roasting rack to catch drippings.
• Food should still be somewhat icy in the centre when removed from the oven.
  • The Auto Defrost menu includes standing time.
• Food can be defrosted in a styrofoam package.

Example: To defrost 1.2 kg of chicken pieces:

1.

Touch FINE DEFROST.

2.

Enter the weight by touching 1 and then 2.

3.

Touch START. The oven starts and the defrost time counts down in the display.

4.

When the five-beep Pause Reminder sounds, open the door to separate, rearrange or turn food over.

5.

Touch START to resume defrosting.

Remember:

• The oven automatically selects 1 kg if the weight is not entered.
- Only one digit can be entered after a decimal point. If in doubt, convert to the lower number.

CONVERSION TABLE
lbs - oz	grams	kg	lbs - oz	grams	kg
4 oz	100	0.1	3 lb-9 oz	1600	1.6
7 oz	200	0.2	3 lb-12 oz	1700	1.7
10 oz	300	0.3	4 lb	1800	1.8
14 oz	400	0.4	4 lb-3 oz	1900	1.9
1 lb-2 oz	500	0.5	4 lb-7 oz	2000	2.0
1 lb-5 oz	600	0.6	4 lb-10 oz	2100	2.1
1 lb-9 oz	700	0.7	4 lb-14 oz	2200	2.2
1 lb-12 oz	800	0.8	5 lb-1 oz	2300	2.3
2 lb	900	0.9	5 lb-5 oz	2400	2.4
2 lb-4 oz	1000	1.0	5 lb-8 oz	2500	2.5
2 lb-7 oz	1100	1.1	5 lb-12 oz	2600	2.6
2 lb-11 oz	1200	1.2	5 lb-15 oz	2700	2.7
2 lb-14 oz	1300	1.3	6 lb-3 oz	2800	2.8
3 lb-2 oz	1400	1.4	6 lb-6 oz	2900	2.9
3 lb-5 oz	1500	1.5

AUTOMATIC SENSOR COOKING

Automatic Sensor cooking/reheating allows direct access operation for a variety of foods. Two reheating courses and five cooking courses are provided.

At the beginning of a cooking period, the sensor measures the steam generated from the food in the oven to determine the correct cooking time and power level.

See pages 15 - 20 for more information on Sensor Cooking and sample recipes.

Cooking Tips:

• Cover food with plastic wrap, wax paper or well-fit casserole lid. Loose-fitting covers may cause the oven to miscalculate cooking time. (Never use tightly sealed plastic containers.)
• Small quantities of foods (less than 115 g) should not be cooked using Auto Sensor. Cook using Time cooking.
• The room temperature should be below 35°C.
• Keep the inside of oven, the turntable and the outside of cooking containers dry. Wipe off all spillovers. Excessive humidity in the oven may result in an incorrect cooking time.
• Do not open the oven door while the display still shows the selected course number at the beginning of cooking. During this period, the oven sensor measures the amount of steam in the oven to determine the cooking time, which appears in the display when the process has completed.

Example:

To reheat 1 serving of beef stew:

1.

1. REHEAT

Touch REHEAT.

Enter the desired course by touching an Auto Sensor menu keypad. Course number appears in the display.

2.

HIGH/LOW

Touch HIGH/LOW once or twice to adjust doneness, if desired.

Touch once for longer cooking time. Indicator H appears.

Touch twice for shorter cooking time. Indicator L appears.

The oven automatically sets to medium doneness if no selection is made.

3.

START

Touch START.

After sensor measures steam, cooking time appears in the display window.

AUTO SENSOR Cooking/Reheating courses

Auto Sensor Reheating	1. REHEAT (to reheat non-frozen foods)
	2. FROZEN REHEAT (to defrost/reheat frozen foods)
Auto Sensor Cooking	3. FISH FILLET
	4. POTATO
	5. VEGETABLE
	6. CASSEROLE
	7. MEAT (to cook Chicken, Lamb, Beef, Pork)*

* MEAT keypad allows you to cook Chicken, Lamb, Beef, Pork. See next page for details.

HIGH/LOW Doneness key:

Proper food doneness varies with each individual. After a few Auto Sensor Cooking trials, you will learn which setting produces the best results for you.

Remember:

If an error message (E1 or E2) flashes:

• If the door is opened before time countdown appears in the display, E1 will flash. Press STOP/CLEAR twice and restart using Time Cooking. (Partially-cooked foods are no longer suitable for Auto Sensor Cooking.)
• E2 will flash if the oven has not been plugged into a power supply for more than five minutes when you start a sensor cooking. Press STOP/CLEAR twice and wait for 5 minutes to restart from step 1.

AUTOMATIC SENSOR COOKING (CONT.)

Automatic Sensor Cooking, MEAT keypad allows you to cook various kind of meat such as Chicken, Lamb, Beef, Pork. Touch MEAT 1 - 4 times to select desired course.

Pause

This feature has a built-in pause mechanism to allow for checking, turning and rearranging the food. The oven stops at halfway through cooking time (about 12 of the total cooking time). If you do not open the door at the pause, the oven restarts after 5 minutes and commences the second cooking period.

Example: To cook Lamb:

1.

Touch MEAT twice.

Course number appears in the display.

1 touch	CHICKEN
2 touches	LAMB
3 touches	BEEF
4 touches	PORK

2.

HIGH/LOW

Touch HIGH/LOW once or twice to adjust doneness, if desired.

Touch once for longer cooking time. Indicator H appears.

Touch twice for shorter cooking time. Indicator L appears.

The oven automatically sets to medium doneness if no selection is made.

3.

START

Touch START.

After sensor measures steam, cooking time appears in the display window.

1. The oven stops automatically at pause. Separate, rearrange or turn food over.

AUTO

PA US

5.

START

Touch START.

TIME COOKING

This basic microwave cooking method allows you to cook food for a desired time. In addition to the HI (maximum) power level, you can select different microwave power from 9 levels, 1 (10% of total power) to 9 (90% power) for the foods that require slower cooking. The oven also provides power level 0 (no power) so that the clock can be utilized as a minute timer. See page 12 for details.

Foods with high moisture content should be cooked on maximum power, as this is the fastest cooking method and best maintains the natural flavour and texture of the foods.

To check the power level during cooking, touch POWER LEVEL. The power level appears in the display window.

Manual Defrosting

For manual defrosting (without using Auto Defrost features), use power level 3. To speed up the defrosting of dense foods over 450 g, you may start on HI for 2 minutes, then reduce to the level 3.

Example: To cook at power level 8 for 40 seconds:

1.

Touch TIME.

2.

Enter 40 seconds by touching 4 and then 0.

3.

Touch POWER LEVEL.

4.

Touch 8 to select power level 8. The display shows 8.

5.

Touch START.

Remember:

• Cooking time can be set up to 99 minutes 99 seconds.
- When you cook on HI power, skip steps 3 and 4.

MULTIPOWER SETTING GUIDE

Power Level	Cooking Examples
1	Softening cream cheese and butter. Keeping casseroles and main dishes warm.
2	Softening chocolate and clarifying butter. Heating breads, rolls, pancakes, tacos, tortillas and French toast. Taking the chill out of fruit. Heating small amounts of food.
3	Completing the cooking cycle of casseroles, stews and sauces. Manual defrosting. Thawing meat, poultry and seafood.
4	Cooking less tender cuts of meat in liquid or slow-cooking dishes. Completing the cooking cycle of less tender roasts.
5	Cooking stews and soups after bringing to a boil. Cooking custards and pasta. Cooking rump roast, ham, veal and lamb.
6	Cooking scrambled eggs. Baking cakes.
7	Cooking cheese dishes.
8	Reheating precooked or prepared food quickly. Cooking fish.
9	Cooking onions, celery and green peppers quickly. Reheating rice and pasta.
HI	Cooking poultry, vegetables and most casseroles. Preheating a browning dish. Boiling water.

MINUTE TIMER

You can use the timer function of your oven for purposes other than cooking.

Example: To set 3 minutes for a telephone call:

1.

Touch TIME.

2.

Touch 3, 0 and 0.

3.

Touch POWER LEVEL.

4.

Touch 0 (power level 0).

5.

Touch START.

MULTISTAGE COOKING

• You can program up to 3 stages of cooking in sequence. To program 2-stage or 3-stage cooking, repeat the Time Cooking steps 1 to 4 on the previous page and touch START.
• Using the Minute Timer feature for the first stage, you can delay cooking start time by up to 99 minutes and 99 seconds.
• Using the Auto Defrost by Weight feature for the first stage, you can defrost first and can program up to 3 stages of cooking.
• When one stage of programmed cooking is completed, the next stage will begin automatically.

QUESTIONS AND ANSWERS

OPERATION

Q. What is wrong when the oven light will not glow?

A. There may be several reasons why the oven light does not glow.

• The light bulb has burned out.

• START has not been touched.

Q. Why is steam coming out of the air exhaust vent?

A. Steam is normally produced during cooking. The microwave oven has been made to vent this steam.

Q. Can the microwave oven be damaged if it operates empty?

A. Yes. Never operate while empty or without the turntable positioned correctly on the roller rest.

Q. Why is there noise coming from the turntable when the oven is turned on?

A. This noise occurs when the turntable roller rest and cavity bottom are dirty. Frequent cleaning of these parts should eliminate or reduce the noise.

Q. Instructions for aluminium foil use are confusing. When should I use foil?

A. It should be used to shield portions of food from becoming overcooked or overdefrosted. Use small flat pieces of foil for shielding.

SENSOR

Q. Why couldn't I get good results even though I cooked food using Auto Sensor Cooking?

A. There are several possible reasons. Perhaps:

- The food was not covered properly. (See pages 15 - 17 for instructions on how to prepare food).

- The STOP/CLEAR button was pressed, or the door was opened, while the sensor was programming the right cooking time and power level.

- The oven had not been plugged into a power supply for at least 5 minutes before you started cooking.

- You may need to use the HIGH/LOW keypad to adjust the cooking level to your taste. If you do not select a preferred level of doneness, the oven automatically cooks to medium doneness.

- The food being cooked was not suitable for Auto Sensor Cooking. Some foods will not fall into one of the Auto Sensor categories, and should be cooked using Time Cooking.

- There may have been too much, or not enough food to ensure proper results from Auto Sensor Cooking. When cooking more than 900 g or less than 115 g of food, you should use Time Cooking.

FOODS

Q. What is wrong when baked foods have a hard, dry, brown spot?

A. This is caused by overcooking. Shorten cooking or reheating time.

Q. Why do eggs sometimes pop?

A. The egg yolk may pop because of steam build-up inside the membrane. To prevent this, simply pierce the membrane with a toothpick before cooking it.

CAUTION: Never microwave eggs in the shell since they may explode.

Q. Why are scrambled eggs sometimes a little dry after cooking?

A. Eggs dry out if they are overcooked. You may need to vary the cooking time for one of these reasons:

- Eggs vary in size.

- Eggs are at room temperature one time and at refrigerator temperature another time.

- The shapes of utensils vary, which makes it necessary to vary cooking time.

- Eggs continue cooking during standing time.

Q. What is wrong when three potatoes bake thoroughly and the fourth one is still not cooked?

A. The fourth potato may be slightly heavier than the others and should be cooked 30 to 60 seconds longer. Remember to allow 2.5 cm around each potato when baking. For more even cooking, place potatoes in a circle.

Q. Why do baked apples sometimes burst during cooking?

A. As in regular cooking methods, steam is formed in the interior of the apple, causing it to swell and expand during the cooking process.

Q. How are boil-overs avoided?

A. Use a larger utensil than usual for cooking. If you open the oven door or touch STOP/CLEAR, the food will stop boiling.

Q. Why does the dish become hot when I microwave food in it?

A. As the food becomes hot it will conduct the heat into the dish. Use oven mitts to remove food after cooking.

CLEANING

Wipe the oven inside and outside with a soft cloth and a mild detergent solution. Then rinse and wipe dry. This should be done on a weekly basis — more often if needed. Never use cleaning powders or rough pads. Excessive oil splatters on the inside top will be difficult to remove if left for many days. Wipe spatters with a wet paper towel, especially after cooking chicken or bacon.

REMOVABLE PARTS

The following parts may be removed as described. They should be washed in warm (not hot) water with a mild detergent and a soft cloth. Once they are clean, rinse them well and dry with a soft cloth. Never use cleaning powders, steel wool or rough pads.

• The turntable may be cleaned at the sink. Be careful not to chip or scratch the edges as this may cause the turntable to break during use.
• The turntable roller rest should be cleaned regularly.

SPECIAL CARE

For best performance and safety, the inner door panel and the oven front frame should be free of food or grease buildup. Wipe them often with a mild detergent. Then rinse and wipe dry. Never use cleaning powders or rough pads.

After cleaning the control panel, touch

STOP/CLEAR to clear any entries that might have been entered accidentally while cleaning the panel.

BEFORE CALLING FOR SERVICE

You can often correct operating problems yourself. If your microwave oven fails to work properly, locate the operating problem in the chart below and try the solutions marked for each problem.

If the microwave oven still does not work properly, contact the nearest authorized service centre.

PROBLEMS

AUTO SENSOR REHEATING

1. REHEAT

Use to reheat cooked food of room or refrigerated temperature: canned entrees, pizza, fried chicken, etc.

2. FROZEN REHEAT

Use to defrost and heat precooked frozen food: meat loaf, frozen entree and casserole.

For best reheating results :

• Auto Sensor Reheat is best used for 1 - 2 servings.
• Always cover foods loosely but completely with wax paper, plastic wrap or casserole lid. (Do not use any snap closing lids.)
- Do not use Auto Sensor reheat for less than 115 g or more than 560 g of food. Use Time cooking.
- Very dense foods, such as refrigerated or frozen lasagna should be allowed to stand covered after reheating.
- Do not use REHEAT/FROZEN REHEAT keypads to heat uncooked food. All foods must be precooked and can be at room, refrigerated or frozen temperature.
- The following types of foods are not recommended: Boil-in-the-bag entrees or vegetables, raw or uncooked food, frozen cheesecake, dried foods, bread or pastry, beverages.

REHEAT/FROZEN REHEAT GUIDE

Food	Amount	Special Notes
CasseroleEntree	115 g - 560 g	Cover with plastic wrap or casserole lid. Stir after reheating.Unstirrable foods (ex. lasagna) should be allowed to stand covered after reheating.
Plate of food	115 g - 560 g	Arrange less dense foods in centre of plate.Cover with plastic wrap or wax paper.Allow to stand covered.
Fried chicken	2 - 4 pieces	Cover with wax paper.
Pizza	2 - 4 slices	No cover. Place on paper towel or paper plate.

Note: Do not reheat in foil containers.

AUTO SENSOR COOKING

3. FISH FILLET

Suitable for fresh or defrosted fish fillets and fish steaks.

(170 g - 900 g)

For best results:

• Fish should be completely thawed before cooking.
• Arrange in a single layer in dish.
  • Cover dish with plastic wrap.

4. POTATO

Suitable for all types of fresh whole, quartered or sliced potatoes: white baking potatoes, sweet potatoes or red boiling potatoes. (170 g - 1.4 kg)

For best results:

• When cooking quartered or sliced potatoes, use LOW doneness setting.
• Allow 5 - 10 minutes standing time.
• The best container for quartered or sliced potatoes is a 12 to 112 litre microwave-safe casserole.
• Turn over after cooking time appears in the display window.

5. VEGETABLE

Suitable for a wide variety of fresh or frozen vegetables and vegetable combinations. (115 g - 900 g)

For best results:

• The best container for cooking vegetables is a 12 to 2 litre microwave-safe casserole.
• When cooking frozen vegetables, use LOW doneness setting.

SENSOR COOKING GUIDE

Food	Amount	Water	Preparation
Fish
Fish fillets, 1.25 cm thick	170 g - 900 g	-	Arrange in a single layer in dish.Seasoned as desired. Cover.
Fish steaks, 2.5 cm thick	170 g - 900 g	-	Turn or rearrange fish after cooking time appears in the display window.
Potato			Wash, scrub and pierce several places with fork. Place on paper towel. Arrange potatoes in circle avoiding centre of the turntable. When cooking a potato, place it away from the turntable centre.
White potatoes, Sweet potatoes, Whole: 170 - 230 g each.	1 - 6	none
Quartered or sliced:	225 g - 450 g	14 cup(50 mL)	Peel and quarter or slice. Add water.Cover with plastic wrap or casserole lid.
Red potato, boiling New potatoes,small	225 g - 450 g	14 cup(50 mL)	Wash and/or peel. Pierce with fork. Add water.Cover with plastic wrap or casserole lid.
Vegetables			Wash. Prepare and cut into slices or cube.Add water.Cover with plastic wrap or casserole lid.Stir large quantities of vegetables after cooking time appears in the display window.Let stand 3 - 5 minutes.
Artichokes, Beans, Broccoli, Brussels sprouts, Cabbage, Carrots, Corn, Cauliflower, Eggplant, Mushrooms, Onion, Okra, Pea, Spinach, Squash, Zucchini, or mixture of these.	115 g - 900 g	1 - 4 tbsp(15 - 60 mL)

AUTO SENSOR COOKING (CONT.)

6. CASSEROLE

Suitable to cook one-container dishes such as full bodied meat, vegetable and liquid combinations.

For best results:

• Stir foods once after cooking time appears in the display window. Press START after closing the door.
• A standing time is automatically included at the end of cooking time.

7. MEAT

CHICKEN

LAMB

BEEF POAK

Suitable for fresh or defrosted chicken, lamb, beef, pork. (450 g - 2.3 kg)

For best results:

• Doneness varies with meat of different shape and weight.
• Meat should be completely thawed before cooking.
• Place meat on a microwave-safe roasting rack set in a dish.
• All meat may be seasoned as desired before cooking.
• Aluminium foil can be used to cover thin parts of meat or chicken wings and legs to prevent overcooking. Foil should be applied after cooking time appears in the display window.
• While chicken or meat is standing, cover with foil to keep in the heat.

SENSOR COOKING GUIDE

Food	Preparation
MeatChicken, Whole:	Remove the giblets, rinse in cold water and pat dry. Tie legs together with string.Place breast side down on a roasting rack set in a dish. Cover with plastic wrap completely. Turn over at pause.Let stand 10 - 20 minutes.
Pieces:	Arrange pieces skin side down. Cover with plastic wrap completely.Turn and rearrange at pause.Let stand 5 - 10 minutes. Use LOW doneness setting for best results.
LambBeefPork	Tie meat with string.Place meat fat side down on a roasting rack set in a dish.Cover with plastic wrap completely.Turn over at pause.Let stand 10 - 20 minutes.

Note: Use heat resistant microwave-safe wrap only.

SENSOR COOKING RECIPES

FISH FILLET RECIPES

Fish Fillets with Mushrooms	Cooking Time : About 13 - 17 minutes
450 g fish fillets2 tablespoons (30 mL) butter or margarine2 tablespoons (30 mL) dry white wine 12 teaspoon (2 mL) lemon juice 12 cup (115 g) sliced fresh mushrooms2 green onions, finely chopped1 tomato, peeled and diced 12 teaspoon (2 mL) salt6 servings	Arrange fish fillets so that thick portions are toward the outer edges of 20 cm microwave-safe baking dish. Dot with butter.Combine wine and lemon juice, and pour over fish. Sprinkle with mushrooms, green onions, and tomato.Cover with plastic wrap.Place in oven. Cook on FISH FILLET.Remove from oven and let stand covered, 2 minutes.

VEGETABLE RECIPES

Carrot and Basil Bake	Cooking Time : About 7 - 10 minutes
450 g carrots, peeled and shredded1 small onion, minced2 tablespoons (30 mL) butter or margarine2 tablespoons (30 mL) water1 teaspoon (5 mL) parsley flakes 12 teaspoon (2 mL) basil 12 teaspoon (2 mL) salt	Combine all ingredients in 2 litre microwave-safe casserole.Cover with casserole lid.Cook on VEGETABLE.Stir once after cooking time appears in the display window.Let stand 3 minutes before serving.
6 servings

Asparagus with Mustard Sauce	Cooking Time : About 6 - 9 minutes
450 g asparagus, cleaned and cut into pieces 14 cup (50 mL) water 13 cup (75 mL) mayonnaise1 tablespoon (15 mL), minced fresh parsley1 teaspoon (5 mL) prepared dijon-style mustard 12 teaspoon (2 mL) onion saltWhite pepper to taste6 servings	Combine asparagus and water in 112 litre microwave-safe casserole.Cover with casserole lid. Place in oven.Cook on VEGETABLE.Drain. Set aside.Combine remaining ingredients in small bowl.Pour over asparagus and toss lightly to coat asparagus.Cook on HI, 1 to 112 minutes or until heated through.

Creamy Cabbage	Cooking Time : About 10 - 14 minutes
450 g cabbage, shredded 14 cup (50 mL) water1 package (85 g) cream cheese,cut into cubes2 tablespoons (30 mL) milk 12 teaspoon (2 mL) celery seed 12 teaspoon (2 mL) saltDash pepperChopped parsley	Place cabbage and water in 2 litremicrowave-safe casserole.Cover with casserole lid. Place in oven.Cook on VEGETABLE.Add remaining ingredients except parsley. Stir.Cover. Cook on HI, 4 to 5 minutes.Let stand 2 minutes.Stir and sprinkle with parsley before serving.

5 - 6 servings

SENSOR COOKING RECIPES (CONT.)

CASSEROLE RECIPES

Ham and Potato Scallop	Cooking Time : About 25 - 35 minutes
1 cup (250 mL) white sauce,seasoned as desired3 medium potatoes, peeled andthinly sliced (about 450 g)140 g diced cooked ham1 teaspoon (5 mL) instant minced onion 14 cup (30 g) shredded cheddar cheese4 servings	Place potatoes in 112 litre microwave-safecasserole.Add ham and onion.Pour white sauce over ham and potatoesmixture, stir to combine.Cover with casserole lid. Place in oven.Cook onCASSEROLE.Stir once after cooking time appears in thedisplay window.After cooking, sprinkle with cheese. Cover andlet stand 10 minutes or until cheese is melted.
Hearty Beef Vegetables Stew	Cooking Time : About 70 - 80 minutes
214 cups (550 mL) water2 beef bouillon cubes450 g round steak,cut into 1.25 cm cubes3 tablespoons (45 mL) cornstarch2 large potatoes, peeled and cubed 34 cup (175 mL) thinly sliced carrots 12 cup (125 mL) thinly sliced celery1 medium onion, diced 12 teaspoon (2 mL) salt 14 teaspoon (1 mL) freshly ground pepper 14 teaspoon (1 mL) thyme1 bay leaf, crushed4 - 6 servings	Place all ingredients in 3 litre microwave-safecasserole, and stir. Cover with casserole lid.Cook onCASSEROLE.Stir once after cooking time appears in thedisplay window.
Ratatouille	Cooking Time : About 55 - 65 minutes
1 eggplant (450 g), chopped1 medium onion, chopped2 cloves garlic, minced2 tablespoons (30 mL) olive oil4 medium tomatoes, chopped 112 cups (375 mL) sliced zucchini1 green pepper, cut into strips1 tablespoon (15 mL) lemon juice1 teaspoon (5 mL) basilthyme to tastefreshly ground pepper to taste 14 cup (50 mL) minced fresh parsley2 tablespoons (30 mL) grated parmesancheese6 servings	Combine eggplant, onion, garlic and oil in3 litre microwave-safe casserole. Cover withcasserole lid and cook on HI, 4 to 5 minutes.Add remaining ingredients except parsley andcheese. Blend well. Cover.Cook onCASSEROLE.Stir once after cooking time appears in thedisplay window.After cooking, stir in parsley and sprinkle withcheese.

SENSOR COOKING RECIPES (CONT.)

CASSEROLE RECIPES

Casserole Italiano	Cooking Time : About 35 - 45 minutes
225 g lean ground beef 34 cup (175 mL) spaghetti sauce 12 can (115 g) tomato sauce 34 cup (175 mL) water 12 can (230 g) green beans, drained3 cups (115 g) uncooked medium-width egg noodles1 tablespoon (15 mL) onion flakes1 clove garlic, minced1 tablespoon (15 mL) sugar1 teaspoon (5 mL) Italian herb seasoning 14 teaspoon (1 mL) salt pepper to taste1 cup (115 g) shredded mozzarella cheese6 - 8 servings	Crumble beef into 2 litre microwave-safe casserole. Place in oven.Cook on HI, 3 to 4 minutes.Stir to break up beef. Drain.Add remaining ingredients except cheese to beef. Blend well.Cover with casserole lid. Place in oven.Cook on CASSEROLE.Stir once after cooking time appears in the display window.After cooking, sprinkle with cheese.Stir and let stand before serving.
Bacon Vegetable Soup	Cooking Time : About 70 - 80 minutes
200 g slices bacon, diced1 medium tomato, peeled and chopped1 carrot, sliced1 stalk celery, sliced1 medium red potato, cubed1 small zucchini, sliced1 medium onion, chopped2 bay leaves1 teaspoon basil1 teaspoon Italian herb seasoning, season as desired3 cups (750 mL) beef broth4 - 6 servings	Combine all ingredients in 3 litre microwave-safe casserole.Cover with Casserole lid.Cook on CASSEROLE.Stir once after cooking time appears in the display window.
Onion-Beef Soup	Cooking Time : About 55 - 65 minutes
3 medium onions, thinly sliced 14 cup (50 mL) butter or margarine4 cups (1000 mL) beef broth 14 cup (50 mL) white wine1 teaspoon (5 mL) worcestershire sauce1 teaspoon (5 mL) salt1 teaspoon (5 mL) soy sauce 12 teaspoon (2 mL) paprikaGrated Parmesan cheese6 servings	Combine onions and butter in 3 litre microwave-safe casserole.Cover with casserole lid.Cook on HI, 4 to 6 minutes.Add remaining ingredients, except cheese.Blend well. Cover.Cook on CASSEROLE.Stir once after cooking time appears in the display window.Serve in bowls with cheese sprinkled on top.

AUTOMATIC DEFROST CHART

• Set Auto Defrost by Weight according to instructions on page 8.
• Remove food from wrapper and place in a microwave-safe dish or place on a microwave-safe roasting rack.

• Cover thin parts with aluminium foil.

• Large roasts should be still icy in centre. Allow to stand.
• Fish and seafood should also be slightly icy.
• Food can be defrosted in a styrofoam package.
• Some types of food will need to be rearranged at the Pause.

Item	Special Notes
Beef
Ground beef	Turn over and remove defrosted portion at pause.
Liver	Drain liquid as it defrosts. Separate pieces.
Roasts	Turn over at pause. Cover ends with foil.
Sirloin steak	Turn over at pause.
Rib or T-bone	Turn over at pause.
Flank steak	Turn over at pause.
Stewing meat	Break apart at pause.
Pork
Bacon	Defrost in original wrapper. Turn over at pause. Centre should be slightly icy.
Chops	Separate and turn over at pause.
Ribs	Turn over at pause.
Roasts	Turn over at pause. Cover ends with foil.
Lamb
Chops	Separate and turn over at pause.
Ribs	Turn over at pause.
Roasts	Turn over at pause. Cover ends with foil.
Poultry
Chicken, whole, up to 1.4 kg	Check for and remove any metal clamps or wires before defrosting. Turn over at pause. Cover ends with foil. Rinse under cold water.
Pieces	Separate and turn over at pause.
Cornish hens	Check for and remove any metal clamps or wires before defrosting. Turn over at pause. Rinse under cold water.
Fish and Seafood
Crabmeat, prawns	Break apart at pause.
Fish fillets	Turn over and rearrange at pause. Rinse under cold water to separate.
Fish whole, steaks	Turn over at pause. Cover head and tail with foil.
Scallops	Break apart at pause. Remove defrosted scallops.

QUICK REFERENCE

AUTOMATIC SENSOR

1. Touch

REHEAT,

FROZEN REHEAT,

FISH FILLET,

POTATO,

VEGETABLE or

CASSEROLE

1. Touch HIGH/LOW once or twice to adjust doneness, if desired.
2. Touch START.

MEAT

1. Touch MEAT 1 - 4 times to select desired course.

1 touch CHICKEN
2 touches LAMB
3 touches BEEF
4 touches PORK

1. Touch HIGH/LOW once or twice to adjust doneness, if desired.
2. Touch START.
3. At pause, rearrange food.
4. Touch START to restart.

HIGH/LOW

1. Set the desired sensor course.
2. Touch HIGH/LOW once or twice to adjust doneness, if desired.

1 touch longer cooking time
2 touches shorter cooking time

NOTE: The oven automatically sets to medium doneness if no selection is made.

(See manual for details.)

TIME COOKING

1. Touch TIME.
2. Touch numbers for cooking time (in minutes and seconds).
3. Touch POWER LEVEL.
4. Touch a number (1 - 9) for power level.
5. Touch START.

NOTE: To set HI POWER cooking, skip steps 3 and 4.

AUTOMATIC DEFROST

1. Touch FINE DEFROST.
2. Enter the weight of food in kg.
3. Touch START.
4. At pause reminder,
   rearrange food.
5. Touch START to restart.

NOTE: If you do not open the door at the pause reminder, the oven continues to complete the defrosting.

BEVERAGE REHEATING

1. Touch SOUP/BEVERAGE
   1 - 3 times until desired serving number appears.
2. Touch START.

For your protection in the event of theft or loss of this product, please fill in the information below :

Model No.

(Located on the front of unit)

Serial No.

(Located on the front of unit)

Date of Purchase

Purchased Price

Where Purchased

MINUTE TIMER

1. Touch TIME.
2. Touch numbers for time.
3. Touch POWER LEVEL.
4. Touch 0 (power level 0).
5. Touch START.

CLOCK

1. Touch ⏻.
2. Touch numbers to set time.
3. Touch ⏻ .

12/96 Printed in Singapore

Code No. 432-6-414S-25200
