Product Type	LA/PCM Sound Module
Sound Synthesis	LA Synthesis (Linear Arithmetic)
Maximum Polyphony	32 voices
Sound Engine	PCM samples + LA synthesis
MIDI Channels	16 (Omni on/off, Poly/Mono modes)
MIDI Implementation	System Exclusive, Control Change, Program Change, Pitch Bend, Aftertouch
Assign Mode	Poly 1, Poly 2, Poly 3, Poly 4
Output Level	0–100 (adjustable)
Reverb Effect	On/Off with adjustable level
Part Structure	6 independent parts (Part 1–6) with individual volume, reverb switch
Rhythm Setup	Per key (24–108) with assignable sounds
Keyboard Range	0–127 notes

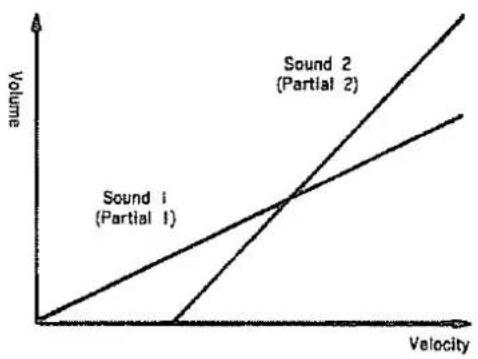

Velocity Sensitivity	Yes (Note On velocity 1–127)
Pitch Bend Range	0–24 semitones
Master Volume	LA Master Volume + PCM Master Volume
Panel Volume Control	Yes (affects overall output)
Outputs	L (Left) and H (Right) outputs
Power Supply	AC adapter (assumed standard, specific voltage not listed)
Dimensions (approx.)	Standard 19-inch rack mount (1U height assumed)
Weight (approx.)	2.5 kg (typical for rack module)
Maintenance	Keep dry, avoid dust, clean with soft cloth
Safety	Do not open, use only supplied power adapter

Frequently Asked Questions - CM-64 ROLAND

What is the maximum polyphony of the Roland CM-64?

The Roland CM-64 features 32 voice polyphony using LA synthesis and PCM samples.

How do I change the assign mode on the CM-64?

You can change the assign mode via MIDI System Exclusive messages. The parameter Assign Mode (address 00 05) supports values 0–3 corresponding to Poly 1, Poly 2, Poly 3, and Poly 4.

Can I use the CM-64 as a general MIDI sound module?

Yes, the CM-64 responds to MIDI notes, program changes, control changes, and pitch bend. However, it does not implement General MIDI standard; it uses its own sound map.

How many parts can I layer on the CM-64?

The CM-64 supports up to 6 independent parts (Part 1–6), each with its own volume, reverb switch, and sound assignment.

What types of reverb does the CM-64 have?

It includes a reverb effect that can be switched on/off per part, with adjustable reverb level via MIDI or front panel (if available).

How do I reset the CM-64 to factory defaults?

Perform a System Exclusive Reset by sending the appropriate SysEx command (address 7F xx xx) or by power cycling while holding specific buttons (detailed in the manual).

What is the difference between Poly 1 and Poly 4 assign modes?

Poly 1 groups all notes on one channel, Poly 2 splits into two groups, Poly 3 into three, and Poly 4 into four independent zones.

Can I use the CM-64 with a computer?

Yes, via a MIDI interface. The CM-64 communicates using standard MIDI DIN connectors (IN/OUT).

What is the pitch bend range of the CM-64?

The pitch bend range is adjustable from 0 to 24 semitones (2 octaves) via MIDI parameter Bender Range.

How do I set the output level for each part?

Use Part Volume controlled via MIDI Control Change (e.g., CC 7) or System Exclusive parameter OUTPUT LEVEL (address 00 08) for global output.

USER MANUAL CM-64 ROLAND

FOH: System Exclusive

F7H: EOX (Einde van de Exclusive-boodschappen)

De CM-64 blijft in Mode 3 (Omni off, Poly)

OMNI ON

Status Tweede Derde

BnH 7DH 0OH

n= MIDI-kanaal OH-FH(1-16)

De CM-64 blijft in Mode 3 (Omni off, Poly)

MONO

Status Tweede Derde

BnH 7EH mmH

mm= MONO-kanaal-bereik negeren

n= MIDI-kanaal OH-FH(1-16)

De CM-64 blijft in Mode 3 (Omni off, Poly)

POLY

Status Tweede Derde

BnH 7FH OOH

n= MIDI-kanaal OH - FH (1 - 16)

De CM-64 blijft in Mode 3 (Omni off, Poly)

Exclusive-boodschappen

Status

FOH: System Exclusive

Offset address :		Description
00 00	0xxx xxxx	dummy (Ignored if received)
00 01	0xxx xxxx	dummy (Ignored if received)
00 02	0xxx xxxx	dummy (Ignored if received)
00 03	0aaa aaa	FAKE TUNE 0 - 100(-50 - +50)
00 04	0xxx xxxx	dummy (Ignored if received)
00 05	0000 00aa	ASSIGN MODE 0 - 3(POLY 1, POLY 2,POLY 3, POLY 4)
00 06	0xxx xxxx	dummy (Ignored if received)
00 07	0xxx xxxx	dummy (Ignored if received)
00 08	0aaa aaa	OUTPUT LEVEL 0 - 100
00 09	0xxx xxxx	dummy (Ignored if received)
:	:	:
00 0F	0xxx xxxx	dummy (Ignored if received)
Total size		00 00 10

Offset address	Description
00 00 00	Rhythm Setup (for Key= 24)	*5-3-1
00 00 04	Rhythm Setup (for Key= 25)
00 00 08	Rhythm Setup (for Key= 26)
00 00 0C	Rhythm Setup (for Key= 27)
00 00 10	Rhythm Setup (for Key= 28)
:	:
:	:
:	:
00 02 4C	Rhythm Setup (for Key= 107)
00 02 50	Rhythm Setup (for Key= 108)

* 5-4 Patch-geheugen

Offsetaddress	Description
00 90	0000 00aa	TIMORE GROUP	0 - 3(u, b, l r)
00 01	00aa 0aaa	TIMORE NUMBER	0 - 63
00 02	00aa 00aa	KEY SHIFT	0 - 48(-24 - -24)
00 03	00aa 0aaa	FIAE TUSE	0 - 100(-50 - -50)
00 04	000a 0aaa	BENDER RANGE	0 - 24
00 05	0000 00aa	ASSIGS MODE	0 - 3(POLY 1. POLY 2,POLY 3. POLY 4)
00 06	0000 000a	REVERB SWITCH	0 - 1(OFF- 0x)
00 07	0xx xxx	dummy
Total size		00 00 08

FO 41 10 16 12 10 00 04 08 0A 00 00 00 00 00 00 08 52 F7

Controller	setting
Modulation Depth	MIN	( 0 )
Expression	MAX	( 127 )
Hold 1	OFF	( 0 )
Pitch Bender Change	CENTER

Address	Block	Sub Block	Reference
50 00 00
	Patch Temp.	Part 1	6-1
		Part 2
		Part 5
		Part 6
51 00 00
	Patch Memory	1 = 1	6-2
		= 2
		=127
		=128
52 00 00
	System Area		6-3
7F xx xx
	All Parameters		6-4
	Reset

Mode 1: OMNI ON, POLY

Mode 2: OMNI ON, MONO

○ : JA

Mode 3: OMNI OFF, POLY

Mode 4: OMNI OFF, MONO

× : NEE

CM-64 LA/PCM-KLANKMODULE (PCM -KLANKGEDEELTE)

DATUM: 18 APRIL 1989

Versie 1.00

MIDI-IMPLEMENTATIE-OVERZICHT

Funktle ***		Uitgezonden	Herkend	Opmerkingen
BASIS-KANAAL	VoorgeprogrammeerdGewijzigd	××	11 - 16×
MODE	VoorgeprogrammeerdBoodschappenGewijzigd	××* * * * * * * * * *	3××
NOTE-NUMMER	True Voice	×* * * * * * * * * *	0 - 127* 1
VELOCITY	Note OnNote Off	××	○ v = 1 - 127×
AFTERTOUCH	toetsenMIDI-kanalen	××	××
PITCH-BENDER		×	○
CONTROLCHANGE	12 - 5678, 9101112 - 636465 - 99100, 101102 - 120121	××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××	○×* 2○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
PROGRAMCHANGE	True #	×* * * * * * * * *	○ 0 - 1270 - 127
SYSTEM EXCLUSIVE		○	○
SYSTEMCOMMON	Song PosSong SelTune	×××	×××
SYSTEMREAL TIME	MIDI-klokCommando's	××	×××
AUX-BOODSCHAP-PEN	Local ON/OFFAll Notes OffActive SenseReset	××××	×○ (123 - 127)○×
OPMERKINGEN: * 2 RPN= REGISTERED PARAMETER NUMMERRPN # 0: Pitch Bend-gevoeligheidDe waarde van de parameter wordt bepaald door de binnenkomende data.

Mode 1: OMNI ON, POLY

Mode 3: OMNI OFF, POLY

Mode 2: OMNI ON, MONO

Mode 4: OMNI OFF, MONO

O:JA

× : NEE

SPECIFIKATIES

CM-64 LA/PCM Klankmodule

Klankmodule

LA-Synthese (maximum aantal stemmen: 32)
