USER MANUAL CR 4209 CAMRY

Black model of a modern kitchen mixer with a digital control panel (no visible text or symbols on the device body)

CR 4209

(GB) user manual

(F) mode d'emploi

1 A B C D E F G H

Three technical line drawings of a mechanical device or component, labeled I, J, and K (no text or symbols on the diagrams themselves)

2

Line drawing of a kitchen mixer with a dial indicator (no text or symbols)

Line drawing of a mechanical device with an arrow indicating rotation or movement (no text or symbols)

B

Line drawing of a kitchen mixer with a cup and directional arrow (no text or symbols)

D

Line drawing of a kitchen mixer with a side panel and handle (no text or symbols)

E

Line drawing of a kitchen mixer with rotating fan and control knob (no text or symbols)

F

Line drawing of a kitchen mixer with fan and control panel (no text or symbols)

ENGLISH

SAFETY CONDITIONS. IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The warranty conditions are different, if the device is used for commercial purpose.

1. Before using the product please read carefully and always comply with the following instructions. The manufacturer is not responsible for any damages due to any misuse.

2. The product is only to be used indoors. Do not use the product for any purpose that is not compatible with its application.

3. The appliacable voltage is 230V, \~50Hz. For safety reasons it is not appropriate to connect multiple devices to one power outlet.

4. Please be cautious when using around children. Do not let the children to play with the product. Do not let children or people who do not know the device to use it without supervision.

5. WARNING: This device may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities, or persons without experience or knowledge of the device, only under the supervision of a person responsible for their safety, or if they were instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device.

Cleaning and maintenance of the device should not be carried out by children, unless they are over 8 years of age and these activities are carried out under supervision.

1. After you are finished using the product always remember to gently remove the plug from the power outlet holding the outlet with your hand. Never pull the power cable!!!

2. Never leave the product connected to the power source without supervision. Even when use is interrupted for a short time, turn it off from the network, unplug the power.

3. Never put the power cable, the plug or the whole device into the water. Never expose the product to the atmospheric conditions such as direct sun light or rain, etc.. Never use the product in humid conditions.

4. Periodically check the power cable condition. If the power cable is damaged the product should be turned to a professional service location to be replaced in order to avoid hazardous situations.

5. Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product yourself because it can lead to electric shock. Always turn the damaged device to a professional service location in order to repair it. All the repairs can be done only by authorized service professionals. The repair that was done incorrectly can cause hazardous situations for the user.

6. Never put the product on or close to the hot or warm surfaces or the kitchen appliances like the electric oven or gas burner.

7. Never use the product close to combustibles.

8. Do not let cord hang over edge of counter.

9. Do not immerse the motor unit in water.

10. Change the accessories only when the device is off.

11. Use only the original accessories supplied with the robot kit.

12. Never use the device with hot foods (e.g., hot oil or fat).

13. Do not touch the device with wet hands.

14. Do not operate continuously for longer than 10 minutes.

15. The device is equipped with a safety lock and will not operate if the bowl (1.C) is not positioned correctly.

16. Operate the device only when the lid is on.
17. Avoid contact with the detachable parts of the device when they are moving. This may cause injury.
18. Do not insert other accessories when the robot is operating. This may damage the device and cause injury.
19. Never turn the bowl (1.C) when the device is operating.
20. Wait until all detachable parts stop moving before removing the bowl from the base.
21. Use only the original accessories and spare parts.
22. Prior to first use, thoroughly wash all parts of the device that come in contact with food.

DESCRIPTION OF THE DEVICE (Fig. 1):

1.A Lid 1.B Mixing whisk bracket 1.C Bowl 1.D Robot base
1.E Robot arm 1.F Lock to raise and lower the arm 1.G Switch and speed control

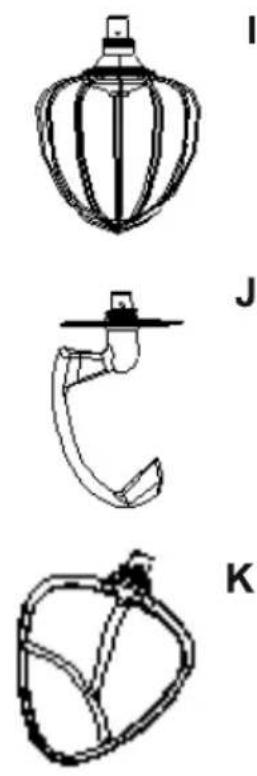

1.I Beating whisk 1.J Dough paddle 1.K Mixing whisk

USING THE ROBOT

1. Raise the arm (1.E) by pressing the lock (Fig. 2.A).
2. Place the bowl (1.C) on the base in the space provided.
3. Turn it in the direction that is indicated by the arrow on the base until the bowl locks (Fig. 2.C).
4. Mount the selected mixing whisk by inserting its tip in the bracket (Fig. 1.D). Push and turn to the left until it locks.
5. Now fill the bowl (1.C) with ingredients (no more than 2 kg).
6. Lower the arm by turning the lock (1.F) and press it to lock the bowl (Fig. 2.E).
7. Insert the plug into the outlet.
8. Turn the ON-switch (1.G) to start the robot and set the correct speed or select TURBO - P mode.
9. When finished working, set the ON-switch to 0. Now raise the robot arm (1.E), remove the bowl (1.C) from the base and remove the mixing whisk from its bracket.

CLEANING AND MAINTENANCE

1. After use, disconnect the robot from the power source and allow to cool.
2. Wipe the robot base with a damp cloth; do not immerse the robot in water.
3. Wash the detachable parts that come in contact with food (mixing whisks, bowl) under running water. Do not put the mixing whisks in dishwasher.
4. To wash the lid (1.A), take it off by turning it to the left.

TECHNICAL DATA

Voltage: 230 V \~ 50 Hz

Maximum power: 1000 W

weight: 6.5 kg

Device is made in class I of insulation and has to be connected only to power outlet with ground circuit. Device is compliant with EU directives:

- Low voltage directive (LVD)

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazarsous components, which may effect the environment. Do not dispose this appliance in the common waste bin.
