AW541190 - Range hood GAGGENAU - Free user manual and instructions
Find the device manual for free AW541190 GAGGENAU in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Range Hood |
| Brand | Gaggenau |
| Model | AW541190 |
| Installation Type | Wall-mounted |
| Width | 90 cm |
| Depth | 50 cm |
| Height (min-max) | 60 - 110 cm |
| Weight | 25 kg |
| Power Supply | 220-240 V, 50/60 Hz |
| Total Connected Load | 300 W |
| Motor Power | 250 W |
| Number of Motors | 1 |
| Maximum Airflow | 750 m³/h |
| Noise Level (max speed) | 65 dB(A) |
| Energy Efficiency Class | A+ |
| Lighting | 2 x 3 W LED |
| Control Type | Touch control |
| Number of Speeds | 4 + intensive |
| Grease Filter Type | Stainless steel, washable |
| Odor Filter (for recirculation) | Active carbon filter (optional) |
| Ducting Diameter | 150 mm |
| Remote Control | Included |
| Automatic Shut-off | Yes |
| Clean Air Recirculation | Possible with optional filter |
Frequently Asked Questions - AW541190 GAGGENAU
What are the dimensions of the Gaggenau AW541190 range hood?
The hood measures 90 cm in width, 50 cm in depth, and has an adjustable height range of 60 to 110 cm.
How do I clean the grease filters?
The stainless steel grease filters are dishwasher safe. Remove them and wash in the dishwasher or by hand with mild detergent.
Can the AW541190 be used in recirculation mode?
Yes, with an optional active carbon filter. The hood can be set to recirculation mode if ducting is not possible.
What type of lighting does the hood have?
It features two 3 W LED lights, providing bright and energy-efficient illumination for cooking.
Is a remote control included?
Yes, a remote control is included for convenient operation from a distance.
What is the noise level at maximum speed?
The maximum noise level is 65 dB(A), which is typical for a high-performance range hood.
How do I replace the charcoal filter for recirculation?
The charcoal filter should be replaced every 6-12 months. Access it by removing the grease filters and sliding out the old charcoal filter.
What is the power supply requirement?
The hood requires a 220-240 V power supply at 50/60 Hz. The total connected load is 300 W.
Does the hood have an automatic shut-off feature?
Yes, it includes an automatic shut-off timer that can be set for added convenience and safety.
What is the warranty period for the Gaggenau AW541190?
Gaggenau typically offers a 2-year warranty for parts and labor. Register your product for full details.
User questions about AW541190 GAGGENAU
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Range hood in PDF format for free! Find your manual AW541190 - GAGGENAU and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AW541190 by GAGGENAU.
USER MANUAL AW541190 GAGGENAU
AW 540
AW 541
AW 542
AW 543
Voorwoord
0 1 2 1 2 3 2 3 Int 3 Int Afb. 5 of of ofAfzuiging


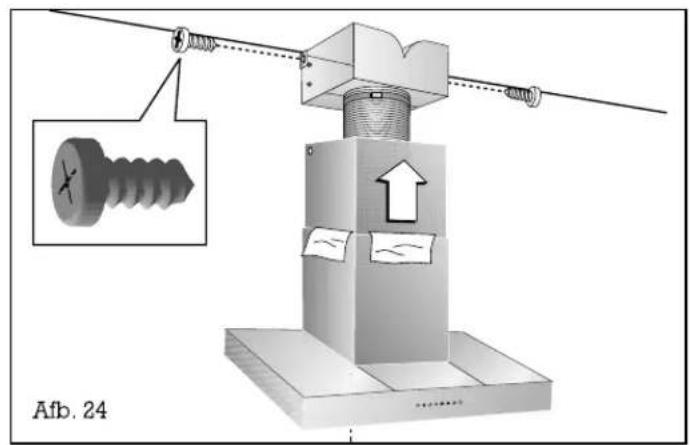

Technical diagram showing mechanical assembly with screws and a magnified inset of a hexagonal bolt (no text or symbols)natural_image
Technical diagram of a mechanical assembly with a cylindrical component and a base platform, no visible text or symbols
