PMT402 - Car kit CALIBER - Free user manual and instructions

Product Type	Car Multimedia Receiver
Brand	Caliber
Model	PMT402
Dimensions (W x H x D)	Approx. 180 x 50 x 100 mm
Weight	Approx. 0.6 kg
Power Supply	12V DC (car battery)
Display	1.44-inch TFT color display
Audio Formats Supported	MP3, WMA, WAV
Radio Bands	FM, AM
Bluetooth	Yes, for hands-free calling and music streaming
USB Port	Front USB for media playback and charging
Auxiliary Input	3.5 mm front AUX input
MicroSD Card Slot	Yes, up to 32 GB
Remote Control	Included
Steering Wheel Control	Compatible (requires adapter)
Output Power	4 x 45W max
Equalizer	Preset EQ modes (Rock, Pop, Classic, Flat)
Maintenance	Clean with a soft, dry cloth. Avoid solvents.
Safety	Disconnect battery before installation. Use proper fuse.
Spare Parts	Contact dealer or Caliber support for replacement parts.
Warranty	1 year (check local regulations)

Frequently Asked Questions - PMT402 CALIBER

How do I install the Caliber PMT402 in my car?

Disconnect the car battery negative terminal. Remove the existing radio, connect the wiring harness (ISO connectors), and slide the unit into the dashboard. Secure with screws. Reconnect battery and test.

Does the PMT402 support Bluetooth?

Yes, it supports Bluetooth for hands-free calling and audio streaming. Pair your phone by selecting the device named 'CALIBER PMT402' in your phone's Bluetooth settings.

Can I use a USB stick with music?

Yes, insert a USB stick with MP3/WMA/WAV files into the front USB port. The radio will automatically detect and play the files.

How do I reset the radio?

Use a thin object (like a paperclip) to press the reset button located on the front panel. This restores factory settings.

What is the maximum capacity for the microSD card?

The microSD card slot supports cards up to 32 GB formatted in FAT32.

How do I pair my phone via Bluetooth?

Press the MODE button until BT appears. Enable Bluetooth on your phone and search for devices. Select 'CALIBER PMT402' and confirm pairing. Enter PIN 0000 if prompted.

Can I control the radio from my steering wheel?

Yes, if your vehicle supports steering wheel controls, you need an adapter (not included). Connect the adapter to the radio's steering wheel control input.

The radio turns off when the car is off?

Yes, the unit is powered by the car's ignition. Turn the ignition key to ACC or ON to power the radio.

How do I adjust the equalizer?

Press the EQ button repeatedly to cycle through presets: Flat, Rock, Pop, and Classic. You can also manually adjust bass and treble in the audio menu.

What should I do if the radio displays 'NO SIGNAL'?

Check that the antenna is properly connected. If you are in a weak signal area, try switching to a stronger FM station.

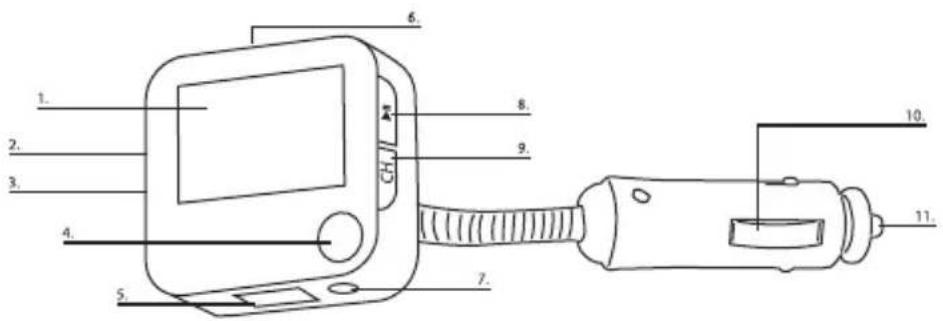

USER MANUAL PMT402 CALIBER

PMT402

1. LED display / Afficheur LED / LED display
2. Next track / morceau suivant / volgende track
3. Previous track / morceau précédent / vorige track
4. Funtion button / Funtion bouton / Functie-toets
5. USB port / Connecteur USB / USB poort
6. SD-card slot / Support de carte SD / SD-kaartlezer
7. AUX-in 3,5mm stereo jack / AUX-in 3,5 mm jack stéréo / AUX-in 3,5 mm stereo jack
8. Play - Pause / Lecture-Pause / Afspelen - pauzeren
9. Change channel / Changement de canal / Wijzigen frequentie
10. Negative pole / Pole Négatif / Negatieve pool
11. Positive pole / Pole Positif / Positieve pool

CE 1177 Ⓞ

Caliber hereby declares that the item PMT 402 complies with the essential requirements and criteria of directive 1995/5/CE and answers to the following norms: EN 301489-1&9, EN 301357-1&2

This declaration of conformity is suitable to the European standard EN 45014 << General criteria for suppliers declaration of conformity
