Product Type	LED Television
Model	55UT3E242S-T
Brand	Finlux
Screen Size	55 inches (139.7 cm)
Resolution	3840 x 2160 (4K UHD)
Display Technology	LED
Refresh Rate	60 Hz
Dimensions (with stand)	123.5 x 77.8 x 25.8 cm
Weight (with stand)	16.5 kg
VESA Mount	400 x 200 mm
Power Consumption (typical)	100 W
Standby Power Consumption	< 0.5 W
Energy Efficiency Class	A+
Operating System	Smart TV (proprietary)
Connectivity	3x HDMI, 2x USB, 1x Ethernet, Wi-Fi, Bluetooth
Audio Output	2 x 8 W speakers
Remote Control	Included (with batteries)
Cleaning Instructions	Use a soft dry cloth; avoid liquid cleaners
Safety Features	Ventilation holes, anti-tip strap included
Spare Parts Availability	Remote, stand, power cord available from support
Repairability Index	Not specified by manufacturer
Warranty	2 years

Frequently Asked Questions - 55UT3E242S-T Finlux

How do I connect my TV to Wi-Fi?

Go to Settings > Network > Wireless, select your Wi-Fi network and enter the password.

Can I mount the 55UT3E242S-T on a wall?

Yes, it supports VESA 400x200 mm wall mounts. Use a compatible bracket and follow the instructions.

How do I perform a factory reset?

Go to Settings > System > Reset and confirm. This erases all personal data.

What should I do if the TV won't turn on?

Check the power cord connection, ensure the outlet works, and try pressing the power button on the TV itself. If still off, unplug for 30 seconds and try again.

How do I update the TV software?

Go to Settings > System > Software Update and select Online Update. Ensure Wi-Fi is connected.

Why is there no sound from my TV?

Check if the volume is muted or low, verify that external speakers are properly connected, and go to Settings > Audio to adjust output.

Can I connect Bluetooth headphones?

Yes, go to Settings > Bluetooth, enable pairing, and select your headphones from the list.

How do I clean the TV screen?

Use a soft, lint-free cloth slightly dampened with water. Gently wipe the screen. Do not spray liquid directly on the TV.

What is the maximum USB drive size supported?

The TV supports USB drives up to 1 TB formatted in FAT32 or NTFS.

How do I replace the remote control batteries?

Slide open the battery compartment cover on the back, insert two AAA batteries with correct polarity, and close the cover.

USER MANUAL 55UT3E242S-T Finlux

Black-and-white photo of a man and woman relaxing on a sofa in an office setting, with no visible text or symbols.

Owner's manual

www.finlux.co.uk

Contents

Safety Information 2

Getting Started....3

Notifications & Features & Accessories......3

Specification....5

Remote Control 6

Connections....7

First Time Installation - USB Connections......8

TV Menu Features and Functions....11

General TV Operation 14

Using the 3D Mode....14

Connectivity Functions 17

Wireless Display 19

Using DLNA Network Service....19

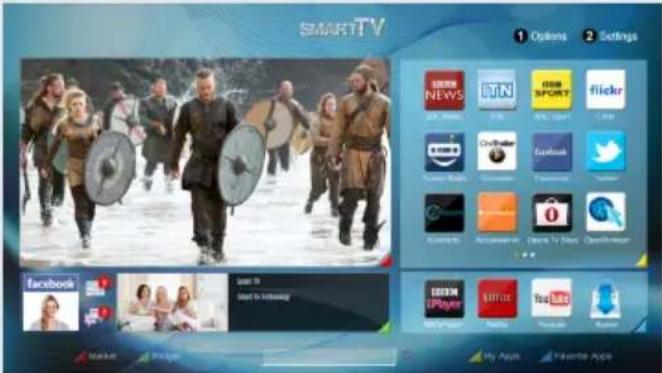

Internet Portal 20

iPlayer Application....21

Internet Browser 22

Software Upgrade.... 23

Troubleshooting & Tips....23

Nero MediaHome Installation 24

PC Input Typical Display Modes 25

AV and HDMI Signal Compatibility....25

Supported File Formats for USB Mode 26

Supported DVI Resolutions 27

Important Instructions....28

CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Don't operate your TV in extreme ambient conditions as this may cause damage to your TV.

If there is lightning or storms, or if the TV is not going to be used for a while (e.g. if going away on holiday), disconnect the TV set from the mains. The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Note : Follow the on screen instructions for operating the related features.

IMPORTANT - Please read these instructions fully before installing or operating

WARNING: Never let people (including children) with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge use electrical devices unsupervised.

• For ventilation purposes, leave a free space of at least 10 cm all around the set.
• Do not block ventilation holes.
• Do not place the TV on sloping or unstable surfaces, the TV may tip over.
• Use this device in moderate climates.
• The power cord plug should be easily accessible. Do not place the TV, furniture, etc. on the power cord. A damaged power cord/plug can cause fire or give you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced, this should only be done by qualified personnel.
• Do not use this TV in a humid or damp place. Do not expose the TV to liquids. If any liquid falls into the cabinet unplug the TV and have it checked by qualified personnel before operating it any further.

• Do not expose the TV to direct sunlight or other heat sources.

• The TV should not be placed near to open flames or sources of intense heat such as an electric heater.

• Excessive sound pressure from earphones and headphones can cause hearing loss.
• Ensure that no open flame sources, such as lit candles, are placed on top of the TV.
• To prevent injury, this TV must be securely attached to the wall in accordance with the installation instructions (if the option is available).
• Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product. Take care not to scratch the screen with fingernails or other hard objects.
• Before cleaning, unplug the TV from the wall socket. Only use a soft, dry cloth while cleaning.

Warning	Serious injury or death risk
Risk of electric shock	Dangerous voltage risk
Caution	Injury or property damage risk
Important	Operating the system correctly
Notice	Additional notes marked

Getting Started

Notifications & Features & Accessories

Environmental Information

This television is designed to consume less energy to help save the environment. To reduce energy consumption, you should take the following steps: You can use the Power Save Mode setting, located in the Picture menu. If you set the Power Save Mode as Eco, the TV will switch to energy-saving mode and the luminance level of TV set will be decreased to the optimum level. Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode.

If Picture Off is selected, "Screen will be off in 15 seconds." message will be displayed. Select PROCEED and press OK to continue. The screen will be off immediately.

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

Standby Notifications

If the TV does not receive any input signal (e.g. from an aerial or HDMI source) for 5 minutes, it will go into standby. When you next switch-on, the following message will be displayed: "TV switched to stand-by mode automatically because there was no signal for a long time." Press OK to continue.

The Auto TV OFF option(in Settings>Other Settings menu) is set to Off by default. If this setting is changed and the TV has been left on and not been operated during the set time, it will switch into standby mode after the set time has expired. When you next switch-on, the following message will be displayed. "TV switched to stand-by mode automatically because no operation was made for a long time." Press OK to continue.

Features

• TV supports Ultra HD (Ultra High Definition - also known as 4K) which provides resolution of 3840 x 2160 (4K:2K). It equals 4 times the resolution of Full HD TV by doubling the pixel count of the Full HD TV both horizontally and vertically. Ultra HD resolutions are supported from HDMI inputs of the TV.
  • Supports the viewing of 3D content from devices such as a High Definition Satellite Receiver or Blu-ray Player via HDMI
• Remote controlled colour TV.
  • Fully integrated digital TV(DVB-T2)
• HDMI inputs are for connecting a device that has a HDMI socket.

• USB input.

• Programme recording.

• Programme timeshifting.
• OSD menu system.
• Scart socket for external devices (such as DVD Players, PVR, video games, etc.)
• Stereo sound system.
• Teletext.
  • Headphone connection.
  • Automatic programming system.
• Manual tuning.
  • Automatic power down after up to six hours.
• Sleep timer.
• Child lock.
  • Automatic sound mute when no transmission.
• NTSC playback.
  • AVL (Automatic Volume Limiting).
• PLL (Frequency Search).
• PC input.
• Plug&Play for Windows 98, ME, 2000, XP, Vista, Windows 7, 8 and 10
  • Game Mode (Optional).

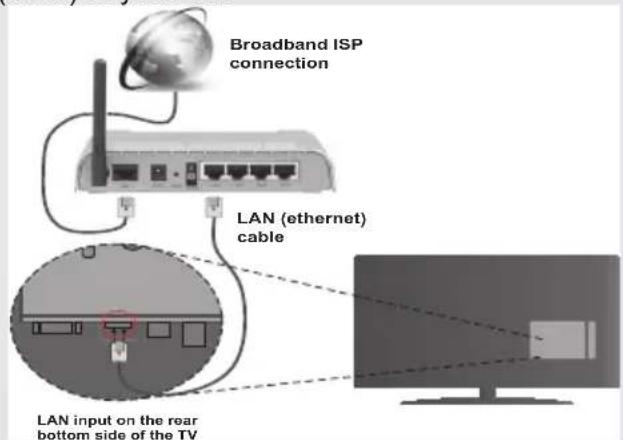

• Ethernet (LAN) for Internet connectivity and service
  • 802.11n built in WIFI Support.
  • DLNA
• Bluetooth support
• 50Hz frequency scan.

Accessories Included

Remote Control

Batteries: 2 x AAA

Instruction Book

Quick Start Guide

Side AV Connection Cable

Mini scart adapter cable

3D Glasses X 8

TV Control Buttons & Operation

1. Standby On/Off button
2. TV/AV button
3. Programme Up/Down buttons
4. Volume Up/Down buttons

Operation with the Buttons on the TV

Press button to decrease volume or

+ button to increase volume. Press P/

CH + button to select the next programme

or P/CH - button to select the previous programme.

Press the - ▲ or ▲+ button at the same

time to view main menu. In the Main menu select sub-menu using TV/AV button and set the sub-menu using -or buttons. To see what

options are available via the menu, refer to the menu system section of this manual. Press the TV/AV button in the control panel on the TV to switch between AV modes.

Note: Function indications of the buttons will be displayed on the screen when pressed.

Inserting the Batteries into the Remote

Lift the cover on the back of the remote upward gently. Install two AAA batteries. Make sure to match the + and - ends of the batteries in the battery compartment (observe the correct polarity) Replace the cover.

Close-up of a cylindrical battery with two white circular indicators and a transparent glass cover, no visible text or symbols.

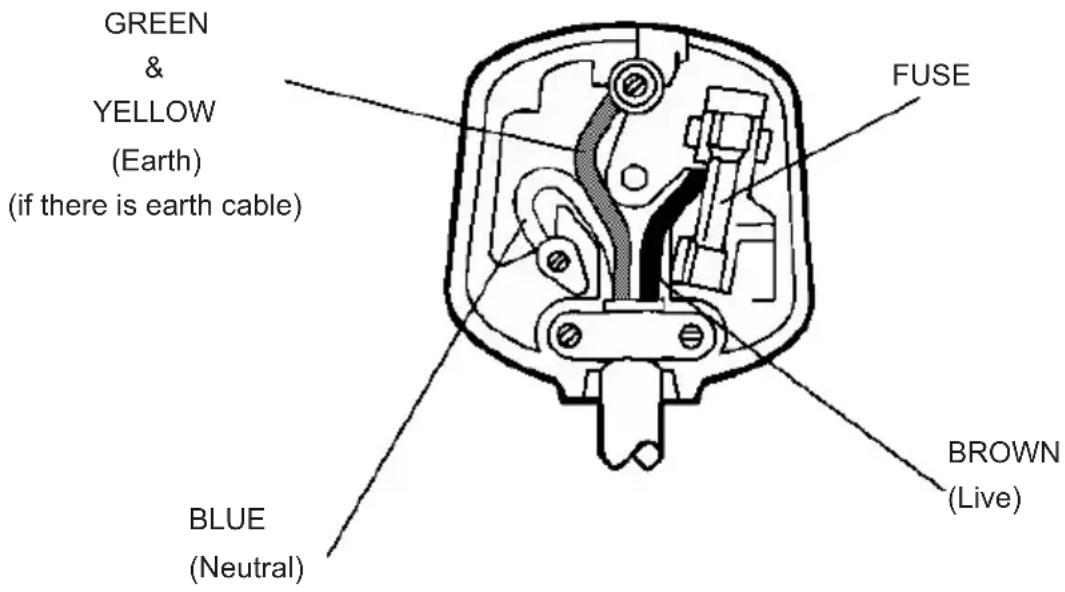

Connect Power

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

Antenna Connection

Connect the aerial TV plug to AERIAL INPUT (ANT-TV) socket located on the rear bottom side of the TV.

Rear bottom side of the TV:

Notification

Manufactured under license from Dolby Laboratories.

TRADEMARK ACKNOWLEDGMENT

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

DOLBY.

DIGITAL PLUS

"HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC."

HIGH-DEFINITION MULTIMEDIA INTERFACE

“DLNA®, the DLNA Logo and DLNA CERTIFIED® are trademarks, service marks, or certification marks of the Digital Living Network Alliance.”

dlna

CERTIFIED

"YouTube and the YouTube logo are trademarks of Google Inc."

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Products

Battery

Specification

TV Broadcasting PAL B/G D/K K
Receiving Channels	VHF (BAND I/III) - UHF (BAND U) - HYPERBAND
Number of Preset Channels	1000
Channel Indicator On Screen Display
RF Aerial Input 75 Ohm (unbalanced)
Operating Voltage 220-240V AC, 50Hz.
Audio Output Power (WRMS.) (10% THD)	2x10W
Power Consumption 140 W
TV Dimensions DxLxH (with foot)	220 x 1125 x 718
TV Dimensions DxLxH (without foot)	35/65 x 1125 x 650
Display 55"
Display Resolution 3840 x 2160
Operation temperature and operation humidity:	0°C up to 40°C, 85% humidity max
Vesa	M6 400 x 400

Digital Teletext

Press TXT (☐) button to view digital teletext information. Operate it with the coloured buttons, cursor buttons and the OK button. The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on the digital teletext screen. When the TXT (☐) button is pressed again, the TV returns to television broadcast.

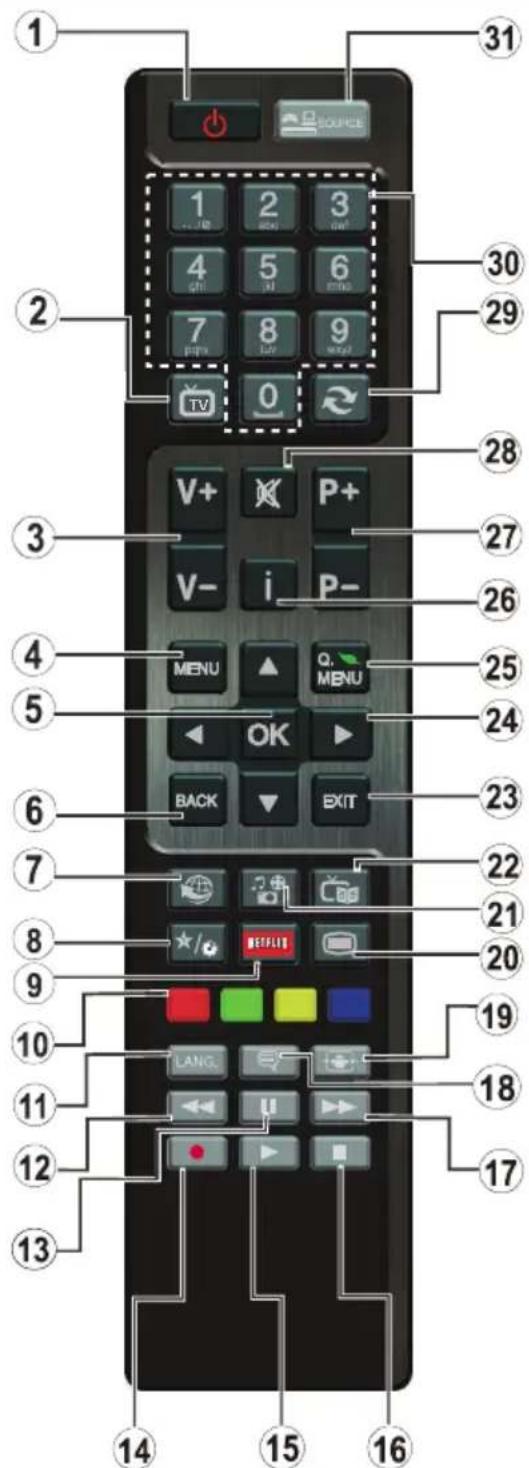

Remote Control

NOTE: The Remote Control range is approximately 7m

/23ft.

(\*) MY BUTTON:

This button may have a default function depending on the model. However you can set a special function to this button by pressing on it for five seconds when on a desired source, channel or link. A confirmation message will be displayed on the screen. Now the MY BUTTON is associated with the selected function. Note that if you perform First Time Installation, MY BUTTON will return to its default function.

1. Standby: Switches On / Off the TV
2. TV: Displays channel list / Switches among broadcast types / Switches to TV Source
3. Volume +/-
4. Menu: Displays TV menu
5. OK: Confirms user selections, holds the page (in TXT mode), views channel list (DTV mode)
6. Back/Back: Returns to previous screen, opens index page (in TXT mode)
7. Internet: Opens the portal page, where you can reach many web based applications
8. My button (*)
9. Netflix: Launches the Netflix application.
10. Coloured Buttons: Follow the on-screen instructions for coloured button functions
11. Language: Switches between sound modes (analogue TV), displays and changes audio/subtitle language (digital TV, where available)
12. Rapid reverse: Moves frames backwards in media such as movies
13. Pause: Pauses the media being played/ Timeshift recording
14. Programme recording
15. Play: Starts to play selected media
16. Stop: Stops the media being played
17. Rapid advance: Moves frames forward in media such as movies
18. Subtitles: Turns subtitles on and off (where available)
19. Screen: Changes the aspect ratio of the screen
20. Text: Displays teletext (where available), press again to superimpose the teletext over a normal broadcast picture (mix)
21. Media browser: Opens the media browsing screen
22. EPG (Electronic programme guide): Displays the electronic programme guide
23. Exit: Closes and exits from displayed menus or returns to previous screen
24. Navigation buttons: Helps navigate menus, content etc. and displays the subpages in TXT mode when pressed Right or Left
25. Quick Menu: Displays a list of menus for quick access
26. Info: Displays information about on-screen content, shows hidden information (reveal - in TXT mode)
27. Programme +/-
28. Mute: Completely turns off the volume of the TV
29. Swap: Quickly cycles between previous and current channels or sources
30. Numeric buttons: Switches the channel, enters a number or a letter in the text box on the screen.
31. Source: Shows all available broadcast and content sources

Getting Started

Connections

Connector Type Cables Device
	Mini Scart Connection (rear bottom)	Mini Scart adapter cable (supplied)
	VGA Connection (back)
	PC/YPbPr Audio Connection (back)	YPbPr or PC Connection Cable (not supplied) (Back)
	HDMI Connection (rear bottom & side)
	S/PDIF (Optical Out) (rear bottom)	[WW5]
	Side AV (Audio/Video) Connection (side)	Side AV Cable (supplied)
	Headphone Connection (side)
	YPbPr Connection (back)	YPbPr Connection (Cable not supplied)
	USB Connection (side)
	CI Connection (side)
	Subwoofer Connection (back)

(*) For external subwoofer connection

NOTE: When connecting a device via the YPbPr or Side AV input, you must use a connection cables to enable connection. See the illustrations above. | To enable PC audio, you will need to use the SIDE AV CONNECTION cable's WHITE & RED inputs. | If an external device is connected via the SCART socket, the TV will automatically switch to AV mode. | When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket. | When using the wall mounting kit (optional), we recommend that you plug all your cables into the back of the TV before mounting on the wall. | Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings. | Each USB input of your TV supports devices up to 500mA. Connecting devices that have current value above 500mA may damage your TV.

HDMI 1 ARC (Audio Return Channel)

Getting Started

First Time Installation - USB Connections

Switching On/Off TV

Connect the power cord to the 220-240V AC, 50 Hz.

To Switch the TV On

Press the "button, P+ / P- or a numeric button on the remote control.

To Switch the TV Off

Press the “button on the remote control or press the “” push button on the TV. The TV will now switch to standby mode.

To power down the TV completely, unplug the power cord from the mains socket.

Note: When the TV is switched to standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

First Time Installation

Plug aerial cable into the ANT socket on your TV.

When turned on for the first time, the language selection screen is displayed. Select the desired language and press OK.

The First Time Installation (FTI) screen will be displayed next. Set your preferences using the navigation buttons and when finished, press OK to continue.

You can activate Store mode option to be available in "Other settings" menu and your TV's settings will be optimized for best display quality. A confirmation screen will be displayed. Select YES to proceed.

If Home Mode is selected, Store mode will not be available after the First Time Installation. Press OK button to continue.

NOTE: You can press MENU button to cancel.

After all the available stations are stored, the Channel List will be displayed on the screen. If you like how the channels are sorted according to the LCN (*), please select "Yes" and then press OK.

Press MENU button to quit channel list and watch TV. (*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel sequence (if available).

Media Playback via USB Input

You can connect a 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives or USB memory stick to your TV by using the USB inputs of the TV.

IMPORTANT! Back up your files before making any connections to the TV. The Manufacturer will not be responsible for any file damage or data loss. Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting but recording will not be available with NTFS formatted disks.

While formatting a USB hard disk that has 1TB (Tera Byte) or more file capacity, you can experience problems with the formatting process.

Quickly plugging and unplugging USB devices, is a very hazardous operation. This may cause physical damage to the USB port and the USB device itself. Do not pull out the USB module while playing a file.

You can use USB hubs with your TV's USB inputs. External power supplied USB hubs are recommended in such a case.

It is recommended to use the TV's USB input(s) directly, if you are going to connect a USB hard disk.

Recording a Programme

IMPORTANT: When using a new USB hard disk drive, it is recommended that you first format the disk using your TV's "Format Disk" option.

Note: To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.

To use the recording function, you need to connect a USB disk or an external hard disk drive to the TV and the connected USB disk should have at least 1 GB capacity and should have 2.0 speed compatibility. If the connected USB device does not support 2.0 speed, an error message will be displayed.

Note: Recorded programmes are saved into the connected USB disk. If desired, you can store/copy recordings onto a computer; however, these files will not be available to be played on a computer. You can play the recordings only via your TV.

Note: Lip Sync delay may occur during the timeshifting. Radio record is supported. The TV can record programmes up to ten hours.

Recorded programmes are split into 4GB partitions. If the writing speed of the connected USB disk is not sufficient, the recording may fail and the timeshifting feature may not be available.

It is recommended to use USB hard disk drive the recording HD programmes.

Do not plug out the USB/HDD during a recording. This may harm the connected USB/HDD.

Multipartition support is available. A maximum of two different partitions are supported. The first partition of the USB disk is used for PVR ready features. It also must be formatted as the primary partition to be used for the PVR ready features.

Some stream packets may not be recorded because of signal problems, so sometimes the video may freeze during playback.

Record, Play, Pause, Display (for PlayListDialog) keys can not be used when teletext is ON. If a recording starts from the timer when teletext is ON, teletext is automatically turned off. Also teletext usage is disabled when there is an ongoing recording or playback.

Timeshift Recording

Press (PAUSE) button while watching a broadcast to activate timeshifting mode. In timeshifting mode, the programme is paused and simultaneously recorded to the connected USB disk. Press (PLAY) button again to resume the paused programme from where you stopped. Press the STOP button to stop timeshift recording and return to the live broadcast.

Note: Timeshift cannot be used while in radio mode.

Note: You cannot use the timeshift fast reverse feature before advancing the playback with the fast forward option.

Instant Recording

Press (RECORD) button to start recording an event instantly while watching a programme. You can press (RECORD) button on the remote control again to record the next event on the EPG. In this case, an OSD will be displayed, indicating the programmed events for recording. Press (STOP) button to cancel instant recording.

Note: You can not switch broadcasts or view the Media Browser during the recording mode. While recording a programme or during the timeshifting, a warning message appears on the screen if your USB device speed is not sufficient.

Watching Recorded Programmes

Select the Recordings Library from the Media Browser menu. Select a recorded item from the list (if previously recorded). Press the OK button to view the Play Options. Select an option then press OK button.

Note: Viewing main menu and menu items will not be available during the playback.

Press the STOP button to stop a playback and return to the Recordings Library.

Slow Forward

If you press the (PAUSE) button while watching recorded programmes, the slow forward feature will be available. You can use the ▶ button to slow forward. Pressing the ▶ button consecutively will change slow forwarding speed.

Recording Configuration

Select the Recording Configuration item in the System>Settings menu to configure the recording settings.

Format Disk: You can use the Format Disk feature for formatting the connected USB disk. Your pin is required to use the Format Disk feature.

Note: Default PIN can be set to 0000 or 1234. If you have defined the PIN (is requested depending on the country selection) during the First Time Installation or changed the default PIN later from the Set PIN option under the Parental Settings menu, use the PIN that you have defined.

IMPORTANT: Formatting your USB drive will erase ALL the data on it and it's file system will be converted to FAT32. In most cases operation errors will be fixed after a format but you will lose ALL your data.

If "USB disk writing speed too slow to record" message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.

Media Browser Menu

You can play photo, music, and movie files stored on a USB disk by connecting it to your TV. Connect a USB disk to one of the USB inputs located on the side of the TV. Pressing the MENU button while in the Media Browser mode will access the Picture, Sound and Settings menu options. Pressing the MENU button again will exit from this screen. You can set your Media Browser preferences by using the Settings Menu.

Loop/Shuffle Mode Operation
Start playback with ▶ and activate	TV plays next file and loop the list.
Start playback with OK and activate	The same file will be played in a loop (repeat).
Start playback with OK and activate	The file will be played in a shuffle.

Quick Menu

The Quick Settings menu allows you to access some options quickly. This menu includes Power Save Mode, 3D Mode, Virtual 3D, Picture Mode, Favourites, Sleep Timer, FollowMe TV, FollowMe TV to DMR, CEC RC Passthrough options. Press Q.MENU button on the remote control to view the quick menu. See the following chapters for details of the listed features.

FollowMe TV (Optional)

With your mobile device you can stream the current broadcast from your smart TV using the FollowMe TV feature. Install the appropriate Smart Center application to your mobile device. Start the application. For further information on using this feature refer to the instructions of the application you use.

Note: This application is not compatible with all mobile devices.

FollowMe TV to DMR (Optional)

This feature allows video streaming from your TV to mobile devices using proper applications (e.g. UPnP - Universal Plug and Play - applications like BubbleUPnP) or to another TV. Activate FollowMe TV to DMR from the System>Settings>More menu and timeshifting starts. Start the application on your device and select your TV. To stream to another TV press the Red button on the remote after starting a timeshift recording by pressing the Pause button on the remote. Device selection menu will be displayed. Choose the receiver TV and press OK

Note: FollowMeTV and FollowMe TV to DMR features require a connected USB storage device with FAT32 format and enough space in it. Media Renderer option in the More menu should be set as Enabled. HD channels are not supported and both of the devices must be connected to the same network.

E-Manual (Optional)

You can find instructions for your TV's features in the E-Manual.

To use E-Manual, press to the Info button while main menu is displayed on the screen.

By using the navigation buttons select a desired category. Every category includes a different topics. Select a topic and press OK to read instructions.

To close the E-Manual screen press the Exit button.

Note: The contents of the E-Manual may vary according to model.

CEC and CEC RC Passthrough

This function allows to control the CEC-enabled devices, that are connected through HDMI ports by using the remote control of the TV.

The CEC option in the System>Settings>More menu should be set as Enabled at first. Press the Source button and select the HDMI input of the connected CEC device from the Source List menu. When new CEC source device is connected, it will be listed in source menu with its own name instead of the connected HDMI ports name(such as DVD Player, Recorder 1 etc.).

The TV remote is automatically able to perform the main functions after the connected HDMI source has been selected.

To terminate this operation and control the TV via the remote again, press and hold the "0-Zero" button on the remote control for 3 seconds. Or press Quick Menu button on the remote, highlight the CEC RC Passthrough and set as Off by pressing Left or Right button. This feature can also be enabled or disabled under the System>Settings>More menu.

The TV supports also ARC(Audio Return Channel) feature. This feature is an audio link meant to replace other cables between the TV and the audio system (A/V receiver or speaker system).

When ARC is active, TV does not mute its other audio outputs automatically. So you need to decrease TV volume to zero manually, if you want to hear audio from connected audio device only (same as other optical or co-axial digital audio outputs). If you want to change connected device's volume level, you should select that device from the source list. In that case volume control keys are directed to connected audio device.

System Audio Control

Allows an Audio Amplifier/Receiver to be used with the TV. The volume can be controlled using the remote control of the TV. To activate this feature set the Speakers option in the System>Settings>More menu as Amplifier. The TV speakers will be muted and the sound of the watched source will be provided from the connected sound system.

Note: The audio device should support System Audio Control feature and CEC option should be set as Enabled.

TV Menu Features and Functions

System - Picture Menu Contents
3D Settings Press	to view 3D settings.
Mode	You can change the picture mode to suit your preference or requirements. The Picture mode can be set to one of these options: Cinema, Game, Sports, Dynamic and Natural.
Contrast Sets the	lightness and darkness values of the screen.
Brightness Sets the brightness value for the screen.
Sharpness Sets the sharpness value for the objects displayed on the screen.
Colour Sets the colour value, adjusting the colors.
Power Save Mode	To set the Power Save Mode as Eco, Picture Off and Disabled.(When the Mode is Dynamic, Power Save mode is automatically set as disabled.)
Backlight (Optional)	This setting controls the backlight level. The backlight function will be inactive if the Power Save Mode is set to Eco. The backlight cannot be activated in VGA, Media Browser mode or while the picture mode is set to Game.
Noise Reduction	If the broadcast signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise.
Advanced Settings
Dyanmic Contrast	You can change the Dynamic Contrast ratio to desired value.
Colour Temp Sets the desired colour tone.
Picture Zoom	Sets the desired picture size from picture zoom menu.Note: Auto option is only available in Scart mode with SCART PIN8 high voltage/low voltage switching.
Film Mode	Films are recorded at a different number of frames per second to normal television programmes.Turn this feature on when you are watching films to see the fast motion scenes clearly.
Skin Tone Skin tone can be changed between -5 and 5.
Colour Shift Adjust the desired colour tone.
RGB Gain You can configure the colour temperature values using the RGB Gain feature.
HDMI True Black	While watching from a HDMI source, this feature will be visible in the Picture Settings menu.You can use this feature to enhance blackness in the picture.
Reset Resets the picture settings to factory default settings.(Except Game Mode)
Autoposition (in PC mode)	Automatically optimizes the display. Press OK to optimize.
H Position (in PC mode)	This item shifts the image horizontally to the right hand side or left hand side of the screen.
V Position (in PC mode)	This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock (in PC mode)	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase (in PC mode)	Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or picture on the screen. In such a case you can use this item to get a clear picture by trial and error met
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.
System - Sound Menu Contents
Volume Adjusts the volume level.
Equalizer	Selects the equalizer mode. Custom settings can be made only when in user mode.
Balance This setting is used for emphasizing left or right speaker balance.
Headphone Sets headphone volume.
Sound Mode You can select a sound mode (if the selected channel supports).
Audio Link	Press OK to open the Audio Link menu screen. Using this screen you can discover and connect the sound devices to your TV wirelessly via Bluetooth.
AVL (Automatic Volume Limiting)	This function sets the sound to obtain fixed output level between programmes.
Headphone/Lineout	When you connect an external amplifier to your TV using the headphone jack, you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone.
Surround Sound (optional)	Surround sound mode can be changed as On or Off.
Bass Gain Controls the bass gain level. Use Left or Right button to set.
Digital Out Sets digital out audio type.
System - Settings Menu Contents
Conditional Access Controls conditional access modules when available.
Language	Configures language settings (may change depending on the country selected) Preferred and current settings will be available. Current settings can be changed only if the broadcaster supports.
Parental	Enter correct password to change parental settings. You can easily adjust menu lock, maturity lock(depending on the country selected) and child lock in this menu. You can also set a new pin number.
Timers	Sets sleep timer to turn off the TV after a certain time. Sets timers for selected programmes (USB Record).
Recording Configuration	Displays the recording configuration menu (Usb connection required).
Date/Time Sets date and time.
Sources Enables or disables selected source options.
Network Settings	Displays network settings.
More...: Displays other setting options of the TV set
Menu Timeout	Changes timeout duration for menu screens.
Scan Encrypted Channels	When this setting is on, the search process will locate the encrypted channels as well.
Blue Background	Activates or deactivates the blue background system when the signal is weak or absent.
Software Upgrade	To ensure that your TV always has the most up to date firmware.
Application Version	Displays application version.
Hard of Hearing	Enables any special feature sent from the broadcaster.
Audio Description	Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. You can use this feature, only if the broadcaster supports that additional narration track.Note: Audio description sound feature cannot be available in recording or time shifting mode.
Auto TV Off	You can set the timeout value of the auto off feature. When the timeout value is reached and the TV has not been operated for a selected time, the TV will go into standby mode.
Standby Search (Optional)	If the Standby Search is set to On, when the TV is in standby mode, available broadcasts will be searched. If the TV locates any new or missing broadcasts, a menu screen will be displayed, asking you whether or not to execute these changes. The Channel list will be updated and changed after this process.
Store Mode	If you are displaying the TV in a store, you can activate this mode. Whilst Store Mode is enabled, some items in the TV menu may not be available.
DLNA Renderer	DLNA renderer feature allows you to share files stored on your smartphone or tablet pc. If you have a DLNA compatible smartphone or tablet pc and the appropriate software is installed, you can share/play photos on your TV. See instructions of your sharing software for more information. DLNA renderer mode will not be available with internet portal feature.
Power Up Mode This setting configures the power up mode preference.
Virtual Remote (optional)	Enable or disable the virtual remote feature.
CEC	With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature.
Netflix	You can view your ESN(*) number and deactivate Netflix. (*) ESN number is an unique ID number for Netflix, created especially to identify your TV.
Installation Menu Contents
Smart Remote	Press OK to open the Smart Remote menu screen. Using this screen you can discover and connect the remote controller devices to your TV wirelessly via Bluetooth.
Automatic Channel Scan (Retune) (If available)	Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB stations. Digital Cable: Searches and stores cable DVB stations. Analogue: Searches and stores analogue stations. Digital Aerial & Analogue: Searches and stores aerial DVB and analogue stations. Digital Cable & Analogue: Searches and stores cable DVB and analogue stations.
Manual Channel Scan This feature can be used for direct broadcast entry.
Network Channel Scan Searches for the linked channels in the broadcast system.
Analogue Fine Tune	You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored.
First Time Installation	Deletes all stored channels and settings, resets TV to factory settings.
Clear Service List	(*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland. Use this setting to clear channels stored.

General TV Operation

Using the Channel List

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or active stations to be listed by using the Channel List options.

Configuring Parental Settings

To prohibit viewing of certain programmes, channels and menus can be locked by using the parental control system.

To display parental lock menu options, the PIN number should be entered. The factory default PIN number is 0000. After coding the correct PIN number, parental settings menu will be displayed.

Menu Lock: Menu lock setting enables or disables the menu access.

Maturity Lock: When set, this option gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.

Child Lock: When Child Lock is set, the TV can only be controlled by the remote control. In this case the control panel buttons will not work.

Set PIN: Defines a new PIN number.

Note: If the Country option is set to France, you can use 4725 as the default code.

Electronic Programme Guide (EPG)

Some, but not all channels send information about the current and next programmes. Press the EPG

button to view the EPG menu.

Up/Down/Left/Right: Navigate EPG.

OK: Displays programme options.

INFO: Displays, in detailed, information on the programme selected.

GREEN: Switches to List Schedule EPG.

YELLOW: Switches to Timeline Schedule EPG.

BLUE: Displays filtering options.

(RECORD): The TV will start to record the selected programme. You can press again to stop the recording.

IMPORTANT: Connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.

Note: Switching to a different broadcast or source is not available during a recording.

Programme Options

In EPG menu, press the OK button to enter the Event Options menu.

Select Channel

In EPG menu, using this option, you can switch to the selected channel.

Record / Delete Record Timer

After you have selected a programme in the EPG menu, press the OK button. Select the Record option and press the OK button. After this operation, a recording will be scheduled for the selected programme.

To cancel an already set recording, highlight that programme and press the OK button and select the option Delete Rec. Timer. The recording will be cancelled.

Set Timer / Delete Timer

After you have selected a programme in the EPG menu, press the OK button. Select the Set Timer on Event option and press the OK button. You can set a timer for future programmes. To cancel an already set timer, highlight that programme and press the OK button. Then select "Delete Timer" option. The timer will be cancelled.

Note: It is not possible to record two channels at the same time.

Using the 3D Mode

Precautions

For your safety ; Read these safety precautions carefully before using the 3D function.

• You may experience discomfort, headaches or dizziness while watching 3D images. If you experience such symptoms, you should remove 3D glasses and stop watching 3D mode.
• Do not watch in 3D mode for long periods of time. Allow yourself occasional rests. During viewing, if you experience any discomforts such as eye-strain, headache or nausea; take off the 3D glasses and stop watching in 3D mode. Consult a doctor if the discomforts persist.
• It is recommended that an adult should check on children, including teenagers because they may be more sensitive to the effects of watching 3D. If they experience similar discomforts mentioned above, have them stop watching in 3D immediately.
• Do not use the 3D Glasses as sunglasses or general eyeglasses.
• Do not move around while watching in 3D and wearing the glasses as your vision is modified and you may run into objects which may result in injuries.
• Use only the supplied 3D glasses.
• If you experience screen flickering when watching 3D images in poor light conditions, you should turn the lamp off or dim the light.
• While wearing headphones do not adjust the volume to excessive levels as this may result in temporary or permanent hearing loss.

CAUTION - 3D Images

• Read these safety instructions carefully to prevent damage.and ensure your personal safety.
• Consult an optometrist if you experience any difficulties while watching in 3D with your 3D glasses.
• You may experience headaches or fatigue when viewing 3D images with your 3D glasses for too long.
• If you experience headaches, fatigue, or dizziness, stop watching immediately.

The following people should not use the 3D Mode:

• Pregnant women, seniors, people with heart conditions, as well as people who can get easily nauseous
• When watching in 3D be aware of your surroundings. Do not watch in an environment with breakable objects nearby.
• Use 3D Glasses for watching 3D video only. Do not use them as sunglasses or reading glasses.
• Do not apply spray cleaners directly onto the surface of the 3D Glasses. This may result in discoloration and cracks and may cause the screen display to peel off.
• Make sure the cleaning cloth is soft and does not contain any foreign material or dust. Using a dirty cloth will damage your 3D glasses.
• Do not drop or bend the 3D glasses.
• If the receiving range is out of the specified range, the screen may not be viewable as 3D video.

Health Warning! - 3D Images

• When watching 3D images, you should leave a distance of at least twice the screen width between you and the screen, and you should keep the screen at eye level.
• Do not watch 3D images too closely or for long periods of time. This may cause drowsiness, fatigue and / or eye damage. If you experience these problems stop watching in 3D immediately. Pregnant women, seniors, people with heart problems or people who experience frequent drowsiness should refrain from watching 3D. Some content in 3D may cause the viewer to perform sudden reflex movements such as ducking or dodging; therefore it is important to not place any fragile objects near the television. Please prevent children under the age of 5 from watching 3D. It may affect their vision development.

Photosensitive Seizure Warning

- If you or a member of your family has a history of epilepsy or seizure, please consult with your doctor before watching 3D TV. It is possible that some viewers may experience a seizure or epilepsy when exposed to certain conditions, including flashing lights or images in TV or video games.

- Sometimes certain symptoms can occur in unspecified conditions even if you do not have any previous history. In such a case, if you experience any of the following symptoms, immediately stop watching the 3D TV and consult a doctor: altered vision, visual or facial instability, such as eye or muscle twitching, dizziness or light-headedness, visual transition or unconscious action, convulsion, loss of conscience, confusion or disorientation, loss of directional sense, cramps, or nausea.

- When watching 3D TV, monitor your children, including teenagers because they may be more sensitive to the effects of watching 3D such as these symptoms.

- You can reduce the risk of photosensitization seizure by taking the following actions:

- While watching the 3D TV, do take frequent breaks. If you have vision that is different in each eye, you should watch the TV after taking vision correction measures.

- Do not watch the TV too closely and try always keep the television at eye level. Do not watch the 3D TV when you are tired or sick. Avoid watching the 3D TV for a long period of time.

- Do not use the 3D glasses for other purposes.

- Some viewers may feel disoriented after watching 3D. Therefore, after you watch 3D, take a moment to regain awareness of your surrounding before moving.

- You must look straight ahead and the TV must be at eye level while wearing the 3D glasses. The picture may not be visible or may look dark if you do not stay within the viewing angle.

Operating the 3D Mode

• The 3D picture may not be visible or become distorted when watching under intense light conditions.
• You can enjoy viewing 3D images on your TV by wearing the supplied 3D Glasses. Note that this TV's 3D feature works only with its specific 3D glasses.
• Connect a 3D compatible player via a HDMI cable and play the 3D content. Refer to the players manual for settings.
• Press the "SOURCE - SOURCE" button and select the connected input.
• You should select suitable 3D Mode before viewing.
  • To view 3D contents or programmes in 3D mode you must wear the supplied 3D Glasses.

3D Mode

Press the MENU button and select the Picture icon using the “<” or “>” buttons and press OK. Use “^” or “^” to select 3D settings and press OK to view.

• 3D feature enables you to view 3D content using the supplied 3D glasses.
• To enable and customize 3D mode on the TV perform the following:
• Press MENU button on the remote control and select Picture by using “<” or “>” button. Press OK button to view Picture Settings. Select 3D Settings option by using “>” or “” button and press OK.

3D Settings

Mode

You can customize the 3D mode settings to provide the best viewing experience.

Select one of these modes to experience 3D image viewing:

Auto: Automatically switches to 3D mode if 3D information is detected from a digital broadcast or a HDMI source.

Side by Side: Displays 3D content which is originally in a form of side by side.

Top bottom: Displays 3D content which is originally in a form of top and bottom.

Off: 3D function mode is turned off.

2D Only

If content is 3D but you want to watch it in 2D, you can switch to 2D only mode. There are 2 options (LEFT and RIGHT) to select which side of the content you want to watch in 2D.

Virtual 3D

Conversion from 2D to 3D. You can adjust the field of depth to various settings or turn it off.

Left/Right Swap

You can use this setting to shift the phase of the 3D left/right broadcast.

3D Depth Sense (optional)

This setting enables the control of 3D depth.

3D Viewing Information

Refer to the size / distance guidelines below to experience 3D in the best possible way.

Viewing Distance

Size (inch)	50 55 55 UHD 65 84
Viewing distance (m)	1,80 3,25 4,5 2,40 3,00

Horizontal Viewing Angle

Vertical Viewing Angle

It is strongly recommended that the TV is placed at a height as same as the eye level of the viewer. In case that is not possible, tilt the TV accordingly in its stand or wall mount.

3D Viewing Information - continued

	HDMI MBV	MBP
1080p@24 FP	Supported Not Supported Not Supported
720p@50 FP	Supported Not Supported Not Supported
720p@60 FP	Supported Not Supported Not Supported
1080p FC	SBS, TB SBS, TB SBS, TB
720p FC	SBS, TB SBS, TB SBS, TB
1080i FC	SBS SBS SBS
OTHER	Not Supported	Not Supported (*)

	DTV ATV OTHER
1080p@24 FP	Not Supported	Not Supported	Not Supported
720p@50 FP	Not Supported	Not Supported	Not Supported
720p@60 FP	Not Supported	Not Supported	Not Supported
1080p FC	SBS, TB Not	Supported SBS, TB
720p FC	SBS, TB Not	Supported SBS, TB
1080i FC	SBS Not	Supported SBS
OTHER	(*)	Not Supported	Not Supported

Please note that if you apply 720p FC TB input; the picture will be scaled smaller than the original size in the middle of the screen.

SBS: Side By Side

TB: Top Bottom

MBP: Media Browser Picture

MBV: Media Browser Video

FC: Frame Compatible

FP: Frame Pack

in MBP: Supported only when, the image's height is multiples of 2 and the image's width is multiples of 16 and if the image width is equal to the panel width or wider.

in DTV: Supported only when, the image's height is between 1700 and 1900 and the image's width is equal to 1280 or 720.

(*): Not supported if the image provides 1080i resolution.

Connectivity Functions

Wired Connectivity

To Connect to a Wired Network

• You must have a modem/router connected to an active broadband connection.
• Connect your PC to your modem/router. This can be a wired or wireless connection.
• Connect your TV to your modem/router via an ethernet cable. There is a LAN port at the rear (back) of your TV.

• You will need to set up DLNA network to access and play shared files, you must select the Media Browser. Press the Menu button and select Media Browser. Press OK to continue. Select the desired file type and press OK. You must always use the Media Browser screen to access and play shared network files.
• PC/HDD/Media Player or any other devices that are DLNA 1.5 compatible should be used with a wired connection for higher playback quality.

Configuring Wired Device Settings

Network Type

The Network type can be selected as Wired or Wireless, in accordance with the active connection to the TV set. Select this as "Wired" if you are connecting via an ethernet.

Configuration Status

This section displays the status of the connection.

IP Address

If an active connection is available, the IP address will be displayed on this section. If you want to configure an IP address preferences, press the GREEN button and switch to the advanced mode.

Configuring Wired Network Settings in Advanced Mode

After pressing the GREEN button, the "Advanced mode" will be available. While in Advanced Mode, press the RED button to edit settings. When finished, press OK to save, Press RETURN/BACK to cancel.

Wireless Connectivity

To Connect to a Wireless Network

• You must have a modem/router connected to an active broadband connection.
• To configure your wireless settings please refer to the Network settings section in this manual.

- A Wireless-N router (IEEE 802.11a/b/g/n) with simultaneous 2.4 and 5 GHz bands is designed to increase bandwidth. These are optimized for smoother and faster HD video streaming, file transfers and wireless gaming.

- Use a LAN connection for quicker file sharing between other devices like computers.

- The frequency and channel differ depending on the area

- The transmission speed differs depending on the distance and number of obstructions between the transmission products, the configuration of these products, the radio wave conditions, the line traffic and the products that you use. The transmission may also be cut off or may get disconnected depending on the radio wave conditions, DECT phones or any other WiFi 11b appliances. The standard values of the transmission speed are the theoretical maximum values for the wireless standards. They are not the actual speeds of data transmission.

- The location where the transmission is most effective differs depending on the usage environment.

- The Wireless LAN adaptor supports 802.11 a,b,g & n type modems. It is highly recommended that you should use the IEEE 802.11n communication protocol in order to avoid any possible problems while watching videos.

- You must change your modem's SSID when there are any other modems around with the same SSID. You can encounter connection problems otherwise. Use a wired connection if you experience problems with a wireless connection.

- Configuring Wireless Device Settings

To enable Wi-Fi features, open the Network Settings menu and select Network Type as Wireless Device to start connection process.

Press the YELLOW button to scan the wireless networks. A list of available networks will be displayed. Please select your desired network from the list.

Note: If the modem supports N mode, you should set N mode settings.

If the selected network is protected with a password, please enter the correct key by using the virtual keyboard. You can use this keyboard via the navigation buttons and the OK button on the remote control.

Wait until the IP address is shown on the screen.

This means that the connection is now established. To disconnect from a wireless network highlight “Network Type” and press OK.

You can navigate between menu tabs by pressing left/right buttons. The help bar on the bottom of the dialog shows features that you may use. Press the BLUE button to check your internet connection speed. Press the GREEN button to switch to advanced mode and then press the OK button to edit settings.

You can check the signal strength by using the network settings menu for the wireless device mode.

Other Information

Configuration Status: Displays Wi-Fi status as connected or not connected.

IP Address: Displays the current IP address.

Network Name: Connected networks' name will be displayed.

Delete Saved Wi-Fi Profiles

Saved profiles will be deleted if you press the RED button while the wireless device selection OSD is on the screen.

Connecting to your mobile device via WiFi

• If your mobile device has WiFi feature, you can connect it to your TV via a router, in order to access the content in your device. For this, your mobile device must have an appropriate sharing software.
• Connect to your router following the steps stated above in the "Wireless Connectivity" section.
• Afterwards, engage your mobile device with the router and then activate the sharing software on your mobile device. Then, select files that you want to share with your TV.
• If the connection is established correctly, you will be able to access the shared files from your mobile device via the Media Browser of your TV.
• Enter the Media Browser menu and the playback device selection OSD will be displayed. Select your mobile device and press the OK button to continue.
• If available, you can download a virtual remote controller application from the server of your mobile device application provider.

Note: This feature may not be supported on all mobile devices.

Wireless Display

Wireless Display is a standard for streaming video and sound content by Wi-Fi Alliance. This feature provides the ability to use your TV as wireless display device.

Using with mobile devices

There are different standards which enable sharing of screens including graphical, video and audio content between your mobile device and TV.

Then press the Source button on the remote and switch to Wireless Display source.

A screen appears stating that the TV is ready for connection.

Open the sharing application on your mobile device.

These applications are named differently for each brand, please refer to the instruction manual of your mobile device for detailed information.

Scan for devices. After you select your TV and connect, the screen of your device will be displayed on your TV.

Note: This feature can be used only if the mobile device supports this feature. Scanning and connecting processes differ according to the programme you use. Android based mobile devices should have the software version V4.2 and above.

Bluetooth Connectivity

Your TV supports Bluetooth technology. Pairing is required before using the Bluetooth devices with the TV set. You should do the followings to pair your device with the TV:

*Set the device to pairing mode

*Start device discovery on the TV

Note: Refer to the user manual of the Bluetooth device to learn how to set the device to pairing mode. You can connect audio devices or remote controllers via Bluetooth to your TV. For audio devices you should use the Audio Link option in the System>Sound menu, for remote controllers the Smart Remote option in the System>Settings>More menu. Select the menu option and press the OK button to operate the related menu. Using this menu you can discover and connect the devices that use Bluetooth wireless technology and start to use them. Follow the on-screen instructions. Start the device discovery. A list of available bluetooth devices will be displayed. Select the device you want to connect from the list and press the OK button to connect. If "Device connected" message is displayed, the connection is successfully established. If the connection fails try it again.

Connectivity Troubleshooting

Wireless Network Not Available

• Ensure that any firewalls of your network allow the TV wireless connection.
• Try searching for wireless networks again, using the Network Settings menu screen.

If the wireless network does not function properly, try using the wired network in your home. Refer to the Wired Connection section for more information on the process.

If the TV does not function using the wired connection, check the modem (router). If the router does not have a problem, check the internet connection of your modem.

Connection is Slow

See the instruction book of your wireless modem to get information on the internal service area, connection speed, signal quality and other settings. You need to have a high speed connection for your modem.

Distruption during playback or slow reactions

You could try the following.

Keep at least three meters distance from microwave ovens, mobile telephones, bluetooth devices or any other Wi-Fi compatible devices. Try changing the active channel on the WLAN router.

Using DLNA Network Service

DLNA (Digital Living Network Alliance) is a standard that eases the viewing process of digital electronics and makes them more convenient to use on a home network. For further information, visit www.dlna.org.

The DLNA standard allows you to view and play photos, music and videos stored in the DLNA media server connected to your home network.

1. Media Home Installation

The DLNA function cannot be used if the server program is not installed onto your PC. Please prepare your PC with the provided Media Home programme. For more information about the installation, please refer to the Windows Media Server.

2. Connect to a Wired or Wireless Network

See the chapter Network Settings for detailed configuration information.

3. Play Shared Files via Media Browser

Select Media Browser by using the Left or Right buttons from the main menu and press OK. The Media browser will then be displayed.

DLNA

DLNA support is only available in the Media Browser folder mode. To enable folder mode, go to the Settings tab in the main media browser screen and press OK. In the settings options, highlight View Style and change to Folder using the Left or Right buttons. Select the desired media type and press OK.

If sharing configurations are set properly, an OSD message will be displayed after selecting the desired media type. Select OK to display the selected network or USB memory content. If you want to refresh the device list, press the GREEN button. You can press MENU to exit.

If available networks are found, they will be listed on this screen. Select media server or network that you want to connect to using the “√” or “^buttons and press OK.

If you select the media type as Video and choose a device from the selection menu, a new menu screen will appear on the screen.

Select Videos from this screen to list all the available video files from the selected network.

To play other media types from this screen, you must go back to main Media Browser screen and select the media type as desired and then perform the network selection again. Refer to the Media Browser USB Playback section for further information on file playback.

Subtitle files do not work if you watch videos from your network through DLNA.

You can connect only one television with DLNA to the same network. If a problem occurs with the DLNA network, please switch your television off at the wall socket and back on again. Trick mode and jump are not supported with the DLNA function.

Note: There may be some PC's which may not be able to utilize the DLNA function due to administrator and security settings (such as business PC's).

For best home network streaming with this TV, the supplied Nero software should be installed.

Internet Portal

Ensure the TV is connected to a Wired/Wireless Internet connection. After the connection is established, you can select or view portal options.

Note: A Broadband internet connection is required for high quality viewing. Ensure that the internet connection is made properly. You must set the Country and Language data correctly in the First Time Installation for the proper operation of the internet portal.

Press “💡” button on your remote control and the portal application options will be displayed in a manner similar to the template below.

Note on PIP Window

If you switch to portal mode while watching TV channels, current programme will be displayed on the PIP window. You can change channels using P+/P- buttons.

Current HDMI content will be displayed on the PIP window, if you switch to portal mode while watching HDMI source.

Use the “◀” or “▶,” “▼” or “ ” to navigate between the items on Portal screen. Press the OK button to confirm your selection. Press the BACK button to go to the previous screen.

Press the EXIT button to quit the Internet portal mode.

Note: Possible application dependent problems may be caused by the content service provider.

iPlayer Application

You can access BBC iPlayer using your TV. To do this, an active internet connection is required. (See connecting to a Wired/Wireless Network section to connect your TV to internet). After the connection is established, you can select BBC iPlayer among the portal options. (See Internet Portal)

Press the OK button on your remote control to start the BBC iPlayer application.

Note: Broadband internet connection (minumum 2mbps) is required for high quality viewing.

Playing a Programme via iPlayer

Select a programme and press OK button. The programme playback will begin.

You can press the PAUSE button to pause playback. Press the PLAY button to resume the playback.

Use the STOP button to stop the playback.

Press the EXIT button to exit iPlayer. Press the RETURN button for going back to the previous screen.

Note: "Episode is unavailable." message may be displayed on the screen if a problem occurs during the playback.

Searching a Programme

Highlight the Search tab using the navigation buttons and press the OK button. Use the virtual keyboard to type the letters. Select letters and press the OK button. When finished, highlight Search option and press the OK button.

Internet Browser

To use the internet browser, please select the internet browser logo from the portal section.

• To navigate the web browser, use the arrow buttons on the remote control. Press OK to continue.
• After First time installation, predefined web sites and logos will be displayed on the browser's access page (see image above). To add a desired web page to the quick access page, whilst on the website you wish to add, select the "Add" menu and select "Quick Access" button.
• If you want to add bookmarks, select this item while the desired web page is on the screen.

- You can navigate the web browser in three ways. First, enter any URL in the address bar.

- You can search keywords by clicking the search button in the address dialog box or another way to navigate to pages is by clicking on links on web

pages and these will take you to the appropriate pages.

• When you scroll the pointer down to the middle of the screen, the remote control's shortcuts will be shown.
• Use the zoom shortcut buttons or the zoom menu to zoom in or zoom out.
• You can clear cookies or clear all browser data from the settings menu.
• Your TV is compatible with USB mice. Plug your mouse or wireless mouse adaptor to the USB input of your TV.
  • To view your browsing history, click the history button. You can also clear your browsing history from here.

• The browser does not support multiple tabs.
• Some internet pages include flash content. These are not supported by the browser.
• Your TV does not support any download processes from the web browser.

Software Upgrade

Your TV is capable of finding and updating automatically via the Aerial/Cable signal or over the Internet.

Software upgrade search via user interface

Simply navigate on your main menu. Choose Settings and select Other Settings menu. In Other Settings menu navigate on to the Software for Upgrade item and press OK button to check for a new software upgrade.

Note : Internet connection is needed. If an internet connection is not available, try to upgrade via broadcast. If a new upgrade is found, it starts to download the upgrade. Press OK to continue with the reboot operation.

3 AM search and upgrade mode

While the TV is connected to an aerial signal. Automatic scanning in the Upgrade Options menu is enabled, the TV wakes up at 03:00 and searches broadcast channels for new software upgrades. If new software is found and downloaded successfully, the next time the TV powers up, it will have the new software version.

Note: If the TV fails to come on after the upgrade unplug the TV for 2 minutes and plug in again.

Troubleshooting & Tips

Tv will not turn on

Make sure the power cord is plugged in securely to wall outlet. The batteries in the remote control may be exhausted. Press the Power button on the TV.

Poor picture

• Have you selected the correct TV system?
- Low signal level can cause picture distortion. Please check antenna access.
- Check if you have entered the correct channel frequency if you have done manual tuning.
- The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.

No picture

• No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.
  • Is the antenna connected properly?
  • Is the antenna cable damaged?
• Are suitable plugs used to connect the antenna?
• If you are in doubt, consult your dealer.

No sound

• Has the TV been set to mute? To cancel mute, press the "X" button, or increase the volume level.
• Are Headphones plugged into the TV.
• Sound is coming from only one speaker. Is the balance set to one extreme? See Sound Menu section.

Remote control does not operate

- The batteries may be exhausted. Replace the batteries with fresh ones.

Input sources can not be selected

- If you cannot select an input source, it is possible that input has been disabled. Select Settings, Sources to enable source which may have been disabled.

Recording unavailable

To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. If you cannot record, try switching off the TV and then re-inserting the USB device.

USB is too slow

If a "USB is too slow" message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.

Nero MediaHome Installation

To install Nero MediaHome, please proceed as follows:

Note: To use DLNA function, this software should be installed to your PC.

1. Enter the link below completely in the adress-bar of your web browser.
   http://www.nero.com/mediahome-tv

2. Click the Download button on the opening page. The installation file will be downloaded onto your PC.

3. After the download is completed, double click on the installation file to start the installation. The installation wizard will guide you through the installation process.

4. The prerequisites screen will be displayed first. The installation wizard checks the availability of required third-party software on your PC. If applications are missing they are listed and must be installed before continuing installation.

5. Click the Install button. The integrated serial will be displayed. Please do not change the displayed serial.

6. Click the Next button. The License Conditions (EULA) screen will be displayed. Please read the license agreement carefully and select the appropriate check box if you agree to the terms of the agreement. Installation is not possible without this agreement.

7. Click the Next button. On the next screen you can set your installation preferences.

8. Click the Install button. The installation begins and finishes automatically. A progress bar will indicate the state of the installation process.

9. Click the Finish button. The installation is completed. You will be directed to the web site of the nero software.

10. A shortcut is now placed on your desktop.

You have successfully installed Nero MediaHome on your PC.

Run Nero MediaHome by double clicking on the shortcut icon.

PC Input Typical Display Modes

The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions. Your TV supports up to 1920x1200.

Index	Resolution	Frequency
1	640x400	70Hz
2	640x350	85Hz
3	640x400	85Hz
4	640x480	60Hz
5	640x480	66Hz
6	640x480	72Hz
7	640x480	75Hz
8	640x480	85Hz
9	800x600	56Hz
10	800x600	60Hz
11	800x600	70Hz
12	800x600	72Hz
13	800x600	75Hz
14	800x600	85Hz
15	832x624	75Hz
16	1024x768	60Hz
17	1024x768	66Hz
18	1024x768	70Hz
19	1024x768	72Hz
20	1024x768	75Hz
21	1024x768	85Hz
22	1152x864	60Hz
23	1152x864	70Hz
24	1152x864	75Hz
25	1152x864	85Hz
26	1152x870	75Hz
27	1280x768	60Hz
28	1360x768	60Hz
29	1280x768	75Hz
30	1280x768	85Hz
31	1280x960	60Hz
32	1280x960	75Hz
33	1280x960	85Hz
34	1280x1024	60Hz
35	1280x1024	75Hz
36	1280x1024	85Hz
37	1400x1050	60Hz
38	1400x1050	75Hz
39	1400x1050	85Hz
40	1440x900	60Hz
41	1440x900	75Hz
42	1600x1200	60Hz
43	1680x1050	60Hz
44	1920x1080	60Hz
45	1920x1200	60Hz

AV and HDMI Signal Compatibility

Source Supported Signals Available
	PAL O
EXT(SCART1)	NTSC 60 O
	RGB 50/60 O
	SECAM O
	PAL 50/60 O
Side AV	NTSC 60 O
	SECAM
	480I, 480P 60Hz O
	576I, 576P 50Hz O
YPbPr	720P 50Hz,60Hz O
	1080I 50Hz,60Hz O
	480I 60Hz O
	480P	60Hz O
HDMI 1HDMI 2HDMI 3HDMI 4	576I, 576P 50Hz O
	720P 50Hz,60Hz O
	1080I 50Hz,60Hz O
	1080P	24Hz,25Hz30Hz,50Hz,60Hz	O

(X: Not Available, O: Available)

In some cases a signal on the LCD TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

Supported File Formats for USB Mode

Media Extension Format Notes
Video	.mpg,mpeg	Mpeg1-2 1080P@30fps - 50Mbit/sec
	.ts, .trp,tp, .m2ts	MPEG2 , H.264,VC1, AVS, MVC	H.264:1080Px2@25fps, 1080P@50fps MVC:1080P@ 24fps Other: 1080P@30fps - 50Mbit/sec
	.vob MPEG2	1080P@30fps 50Mbit/sec
	.mkv MPEG	1-2-4,H.264	H.264:1080Px2@25fps, 1080P@ 50fps, 1080P@30fps - 50Mbit/sec
	.mp4 MPEG	4, XviD,H.264	H.264:1080Px2@25fps, 1080P@ 50fps, 1080P@30fps - 50Mbit/sec
	.avi MPEG2	4, Xvid,H.264	H.264:1080Px2@25fps, 1080P@ 50fps, 1080P@30fps - 50Mbit/sec
	.fla, .flv H.26	4, SorensonH.263	H.264:1080Px2@25fps, 1080P@50fps, 1080P@30fps - 40Mbit/sec
	.3gp MPEG	4, H.264 1920x	080@30P 20Mbit/sec
	.asf, .wmv	VC1	1080P@30fps - 50Mbit/sec
Audio	3 MPEG1/2 L	layer1/2/3 (MP3)	Layer1: 32Kbps ~ 448Kbps (Bit rate) / 16KHz ~ 48KHz (Sampling rate)Layer2: 8Kbps ~ 384Kbps (Bit rate) / 16KHz ~ 48KHz (Sampling rate)Layer3: 8Kbps ~ 320Kbps (Bit rate) / 16KHz ~ 48KHz (Sampling rate)
	.wav	LPCM
	.WMA/ASF	WMA, WMA Pro	WMA: 128bps ~ 320Kbps (Bit rate) / 8KHz ~ 48Khz (Sampling rate)WMA Pro: < 768kbps (Bit rate) / ~ 96KHz (Sampling rate)
	.m4a/.aac	AAC, HEAAC Free	Format (Bit rate) / 8KHz ~ 48KHz (Sampling rate)
	.pcm	PCM	8Kbps ~ 320Kbps (Bit rate) / 16KHz ~ 48KHz (Sampling rate)
	(worksonly with videofiles)	AC3	32Kbps ~ 640Kbps (Bit rate) / 32KHz, 44.1KHz, 48KHz (Sampling rate)
		EAC3	32Kbps ~ 6 Mbps (Bit rate) / 32KHz, 44.1KHz, 48KHz (Sampling rate)
		LPCM	64Kbps ~ 1.5Mbps (Bit rate) / 8KHz ~ 48Khz (Sampling rate)
		IMA-ADPCM/MS-ADPCM	384Kbps (Bit rate) / 8KHz ~ 48Khz (Sampling rate)
		G711 A/mu-law	64~128Kbps (Bit rate) / 8KHz (Sampling rate)
Picture	.jpeg	Baseline	Resolution(WxH): 15360x8640, 4147200 bytes
		Progressive Resolution(WxH): 1024x768, 6291456 bytes
	.png	non-interlace	Resolution(WxH): 9600x6400, 3840000 bytes
		interlace	Resolution(WxH): 1200x800, 3840000 bytes
	.bmp		Resolution(WxH): 9600x6400, 3840000 bytes
Subtitle	.sub -	Sub1,	Sub2, Sub3
	.srt	-

Ultra HD JPEG files are supported with some limitations listed below;
*The resolution of the file should be exactly 3840x2160.
*On-screen menus are not available while an Ultra HD picture is being displayed.
*Picture effects such as zoom, rotate etc. are not available.
*Sharpness is disabled.
*Slide show is not available.
*Setting Ultra HD pictures as boot logo is not available, if this feature is supported by your TV.

Supported DVI Resolutions

When connecting devices to your TV's connectors by using DVI converter cables(not supplied), you can refer to the following resolution information.

	24Hz 25Hz 30Hz 56Hz 60Hz 66Hz 70Hz 72Hz 75Hz
640x400							☑
640x480					☑ ☑	☑ ☑
800x600				☑ ☑	☑ ☑	☑
832x624									☑
1024x768					☑ ☑	☑ ☑	☑
1152x864					☑ ☑	☑
1152x870									☑
1280x768					☑				☑
1360x768					☑
1280x960					☑				☑
1280x1024					☑				☑
1400x1050					☑				☑
1440x900					☑				☑
1600x1200					☑
1680x1050					☑
1920x1080					☑
1920x1200					☑
3840x2160	☑ ☑	☑

Important Instructions

For your own safety read the following instructions carefully before attempting to connect this unit to the mains supply.

The wires in the mains lead are coloured in accordance with the following code :

IMPORTANT

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured green and yellow must be connected to the terminal which is marked with the letter E, or by the earth symbol, or coloured green or green and yellow.

The wire which is coloured blue or black must be connected to the terminal which is marked with the letter N or coloured Black.

The wire which is coloured brown or red must be connected to the terminal which is marked with the letter L or coloured Red.

For continued protection against risk of fire, replace only with same type and rating of fuse (ASTA approved 5A 250VAC fuse).

CAUTION

TO PREVENT ELECTRIC SHOCK DISCONNECT FROM THE MAINS BEFORE REMOVING COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

SAFETY PRECAUTION

THIS EQUIPMENT MUST BE DISCONNECTED FROM THE MAINS WHEN NOT IN USE. DO NOT ALLOW THIS UNIT TO BE EXPOSED TO RAIN OR MOISTURE.

Product Fiche
Commercial Brand:FINLUX
Product No. 10094625
Model No. 55UT3E242S-T
Energy efficiency class A
Visible screen size (diagonal,approx.) (inch/cm)	55 inches 140 cm
On mode average power consumption (Watt)	112
Annual energy consumption (*) (kWh/annum)	163
Standby power consumption (Watt)	0,5
Off mode power consumption (Watt)	N/A
Display resolution (px) 3840x2150
