PHILIPS FB671 - Loudspeaker

FB671 - Loudspeaker PHILIPS - Free user manual and instructions

Find the device manual for free FB671 PHILIPS in PDF.

📄 9 pages English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
Notice PHILIPS FB671 - page 1
1 / 9
Pick your language and provide your email: we'll send you a specifically translated version.
Brand Philips
Model FB671
Product Type Floor-standing loudspeaker
Power Handling (Continuous) 70 W
Power Handling (Peak) 120 W (max. 10 minutes)
Impedance 6 Ohm
Sensitivity 87.5 dB / 1W / 1m
Frequency Response 46 - 20,000 Hz
Crossover Frequencies 1,500 Hz and 5,000 Hz
Cabinet Material 14 mm H2
Baffle Material 25 mm MDF
Internal Volume 23.6 litres
External Volume 35.7 litres
Weight 9.2 kg
Dimensions (W x H x D) 260 x 600 x 230 mm
Woofer / Midrange Driver 15 cm soft coated
Tweeter 18 mm Polygrid-dome
Bass Woofer 15 cm soft coated
Recommended Use Home audio stereo system
Maintenance Clean with a soft dry cloth. Avoid moisture.
Safety Warning Place on a stable, flat surface. Do not expose to water or extreme temperatures.

Frequently Asked Questions - FB671 PHILIPS

What is the power handling capacity of the Philips FB671?
The Philips FB671 has a continuous power handling of 70 W and a peak power handling of 120 W (for a maximum of 10 minutes).
What are the dimensions of the FB671?
The dimensions are 260 x 600 x 230 mm (width x height x depth).
What type of drivers does the FB671 have?
It features a 15 cm soft coated woofer/midrange, an 18 mm Polygrid-dome tweeter, and a 15 cm soft coated bass woofer.
What is the impedance of the FB671?
The impedance is 6 Ohm.
How should I clean the FB671 speaker?
Use a soft dry cloth to clean the cabinet. Avoid moisture and harsh chemicals.
What is the frequency response of the FB671?
The frequency response is 46 - 20,000 Hz.
Is the Philips FB671 a passive or active speaker?
The FB671 is a passive speaker, meaning it requires an external amplifier to operate.
What is the weight of the FB671?
The speaker weighs 9.2 kg.
Can I use the FB671 with any amplifier?
You should use an amplifier that supports 6 Ohm impedance and has a power output within the range of 70-120 W (continuous to peak) for optimal performance.
Where can I download the user manual for the FB671?
You can download the user manual for free from notice-facile.com in PDF format.

User questions about FB671 PHILIPS

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Loudspeaker in PDF format for free! Find your manual FB671 - PHILIPS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FB671 by PHILIPS.

USER MANUAL FB671 PHILIPS

natural_image Black-and-white photo of a Philips radio receiver with visible lens and control panel (no text or symbols on the device itself)

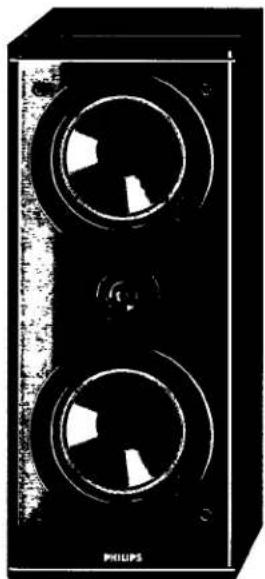

PHILIPS FB671 - 1

natural_image Black-and-white photo of a Philips audio amplifier with two circular dials and a central speaker (no visible text or symbols)

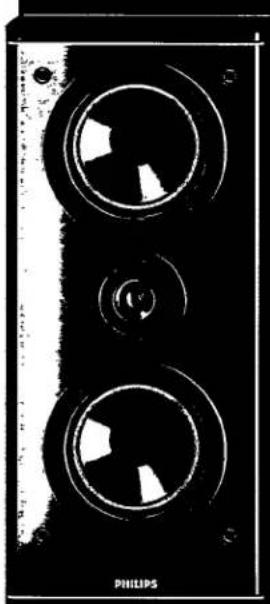

PHILIPS FB671 - 2

natural_image Black-and-white photo of a three-tiered electronic device with circular components and a central hub, labeled 'PHILIPS' at bottom (no other text or symbols)

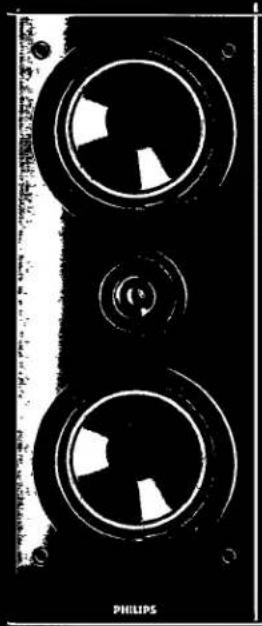

PHILIPS FB671 - 3

natural_image Black-and-white photo of three circular electronic components with white cutouts, arranged vertically (no text or symbols visible)

PHILIPS FB671 - 4

GB English ...... page 4 Technical specifications......page 11

natural_image Simple line drawing of a mechanical component with two cylindrical parts and a curved base, no text or symbols present.

De versterker/receiver

natural_image Illustration of a person sitting on a bench with two falling objects below (no text or symbols)

Power handling capacity - continuous....50 Watt
Power handling capacity - peak (max. 10 minutes)....80 Watt
Impedance: 6 Ohm
Sensitivity: 87 dB / 1 Watt / 1 Metre
Frequency response: 46-20,000 Hz
Crossover frequency: 5,000 Hz
Material cabinet: 14 mm H2
Material baffle:....25 mm MDF
Volume internal/external: 13,3/21,5 litre
Weight: 6,2 kg
Dimensions (W x H x D): 260 x 415 x 200 mm
Loudspeakers:....18 cm soft coated woofer
18 mm Polygrid-dome

FB 671

Power handling capacity - continuous....70 Watt
Power handling capacity - peak (max. 10 minutes)....120 Watt
Impedance: 6 Ohm
Sensitivity: 87,5 dB / 1 Watt / 1 Metre
Frequency response: 46-20,000 Hz
Crossover frequencies: 1,500 / 5,000 Hz
Material cabinet: 14 mm H2
Material baffle: 25 mm MDF
Volume internal/external: 23,6/35,7 litre
Weight: 9,2 kg
Dimensions (W x H x D): 260 x 600 x 230 mm
Loudspeakers: 15 cm soft coated woofer/midrange
18 mm Polygrid-dome tweeter
15 cm soft coated woofer

FB 691

Power handling capacity - continuous....90 Watt
Power handling capacity - peak (max. 10 minutes)....150 Watt
Impedance: 6 Ohm
Sensitivity: 88 dB / 1 Watt / 1 Metre
Frequency response: 38-20,000 Hz
Crossover frequencies:....1,500 / 4,500 Hz
Material cabinet: 14 mm H2
Material baffle:....25 mm MDF
Volume internal/external: 33,6/46,1 litre
Weight: 11,3 kg
Dimensions (W x H x D): 285 x 650 x 250 mm
Loudspeakers: 18 cm soft coated woofer/midrange
25 mm Polygrid-dome tweeter
18 cm soft coated woofer

FB 696

Power handling capacity - continuous....120 Watt
Power handling capacity - peak (max. 10 minutes)....180 Watt
Impedance: 6 Ohm
Sensitivity: 90 dB / 1 Watt / 1 Metre
Frequency response: 37-20,000 Hz
Crossover frequencies: 1,500 / 4,000 Hz
Material cabinet: 14 mm H2
Material baffle:....25 mm MDF
Volume internal/external: 52,9/68,4 litre
Weight: 14 kg
Dimensions (W x H x D): 285 x 730 x 330 mm
Loudspeakers: 20 cm soft coated woofer/midrange
25 mm Polygrid-dome tweeter
20 cm soft coated woofer
