Product Type	Audio/Video Converter
Model	DS-40310
Brand	Digitus
Dimensions (approx.)	7.5 x 4.5 x 1.8 cm
Weight (approx.)	45 g
Power Supply	USB powered (5V DC)
Input Connector	HDMI (female)
Output Connector	VGA (female) + 3.5mm audio jack
Maximum Resolution	1920x1080p at 60Hz
Supported Audio	Stereo analog audio via 3.5mm jack
Cable Length (included)	Not included, requires separate cables
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 60°C
Humidity	10% to 85% RH non-condensing
Housing Material	ABS plastic
LED Indicator	Power LED (blue)
Plug and Play	Yes, no driver installation required
Compatible with	HDMI source devices (PC, laptop, console) and VGA monitors/projectors
Maintenance	Clean with a dry soft cloth; avoid liquids
Safety Precautions	Do not expose to moisture; disconnect when not in use
Spare Parts Availability	Not available separately; replace unit if defective
Warranty	2 years limited warranty

Frequently Asked Questions - DS-40310 Digitus

How do I connect the DS-40310 converter?

Connect the HDMI source to the converter's HDMI input via an HDMI cable, then connect the converter's VGA output to your monitor or projector using a VGA cable. For audio, use a 3.5mm audio cable from the converter to your speaker or display.

Does the converter require external power?

Yes, the converter is powered via the USB port on the converter itself. Use the included USB cable or any standard USB power source (5V, 500mA).

What resolutions are supported?

The converter supports resolutions up to 1920x1080p at 60Hz. Lower resolutions are also supported.

Why is there no picture on my VGA display?

Check that the HDMI source is powered and outputting a signal. Ensure all cables are firmly connected. Verify that the VGA display is set to the correct input. Also confirm that the USB power is plugged in.

Can I use this converter with a Mac or Linux computer?

Yes, the converter is plug and play and works with any operating system that supports HDMI output, including Windows, macOS, and Linux.

Does the converter support audio?

Yes, it supports stereo analog audio via the 3.5mm audio jack output. You need to connect a separate 3.5mm audio cable from the converter to your speakers or display.

What is the maximum cable length I can use?

For HDMI input, up to 15 meters (50 feet) is recommended. For VGA output, up to 15 meters for resolutions up to 1080p.

Is the converter compatible with gaming consoles?

Yes, it works with HDMI-equipped consoles like PlayStation, Xbox, and Nintendo Switch. However, some consoles may have HDCP issues; ensure HDCP is disabled in console settings if needed.

How do I clean the converter?

Use a soft, dry cloth to wipe the exterior. Avoid using liquids or abrasive cleaners. Do not insert objects into the connectors.

What should I do if the device gets hot?

The converter may become warm during normal operation. Ensure it is placed in a well-ventilated area. If it becomes excessively hot, disconnect it and allow it to cool before further use.

USER MANUAL DS-40310 Digitus

HDMI INTO VGA/Audio MULTIMEDIA CONVERTER

USER MANUAL

(DS-40310)

Table of Contents

1.0 Introduction....2
2.0 Specifications....2
3.0 Package Contents....3
4.0 Panel Descriptions....3
5.0 Connection and Operation ....4

HDMI into VGA +R/L Audio Multimedia Converter

Dear customer

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

1.0 INTRODUCTION

This kind of HDMI into VGA+R/L Audio Converter converts digital HDMI signal into analog VGA video and R/L audio signal. It allows users to enjoy their high definition image and sound when watching movies or playing games on the traditional VGA monitors or projectors.

It offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

1.1 FEATURES

This HDMI converter has many features that enable it to perform in a superior manner. Among those features you will find:

• Easy to Use: Install in seconds, no need of setting.
• Conversion: It could convert complete HDMI into VGA video and R/L audio output.
  ● Supports HDCP 1.2
  ● Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth for HDMI Input.
  ● Supports Analogue Video output up to UXGA and 1080p with 10-bit DAC

2.0 SPECIFICATIONS

Signal Inputs/Output
Input Video Signal 0.5-1.0 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Input connection HDMI A female(19pin)
Output connection VGA, R/L
HDMI video input format 480i/576i/480p/576p/720p/1080i/1080p
VGA video output format 480i/576i/480p/576p/720p/1080i/1080p
Audio output format 2 channel LPCM
Operating Frequency
Vertical Frequency Range 50/60Hz
Input Video Amplifier Bandwidth	1.65Gpbs/165MHz
Mechanical
Size(W-H-D) 88mmW x 25.5mmH x 68mmD
Weight(Net)	0.68kgs
Warranty
Limited Warranty 2 Year Parts and Labor
Environmental
Operating Temperature 0° to +70°C
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature	-10° to +80°C
Storage Humidity 5% to 95 % RH (no condensation)
Power Requirement
External Power Supply 5V DC@2A
Power consumption (Max) 5W
Regulatory Approvals
Converter Unit FCC,CE,
Power Supply CE,FCC
Accessories Adapter
AC Power Adapter US standard, UK standard and so on
User Manual English Version

Note: Specifications are subject to change without notice.

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

• Main unit.
• 5V DC Power Supply
• User's Manual

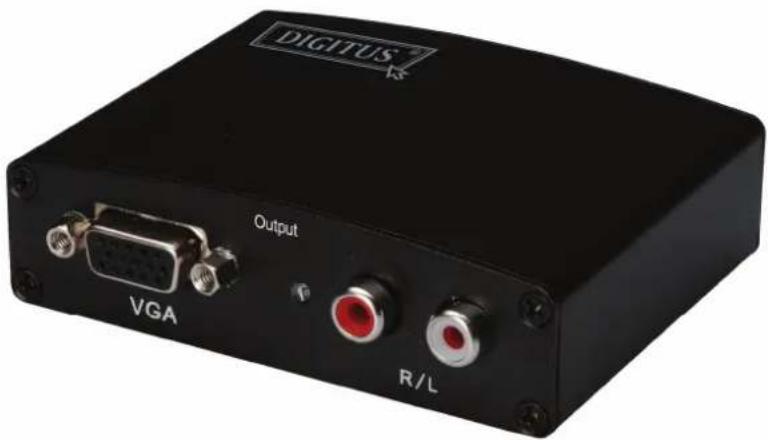

4.0 PANEL DESCRIPTIONS

Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.

Back Panel:

Upper Panel:

Front Panel:

5.0 CONNECTION AND OPERATION

Before installation, please make sure all devices you wish to connect have been turned off.

1) Connect the HDMI input from source device to this Converter. (Input cables are optional)
3) Connect the VGA and R/L audio output of this product to the display device.
4) Insert the DC side of 5v power supply into this product and then connect the AC side of the power supply into the wall outlet.
5) Power on all connected devices, choose the input of the display device to its VGA channel.
6) The image does not need to be adjusted. This Converter will position it automatically.

Note: HDMI into VGA conversion may existing the following compatibility problems

1. If the VGA port of Display doesn't support Refresh Rate at 50HZ, the connected Display will have no image when the HDMI Source setting at 50 Hz.
2. If the VGA port of Display doesn't support resolution at 720p, 1080i and 1080p, the connected Display will have no image when the HDMI Source setting at 720p, 1080i and 1080p.
3. If the connected VGA Display doesn't support interlaced resolution, it will have no image when the HDMI Source setting at 1080i, 480i or 567i.

Our converter fully supports the above formats. These common problems are mainly coursed by Displays not supporting these formats.

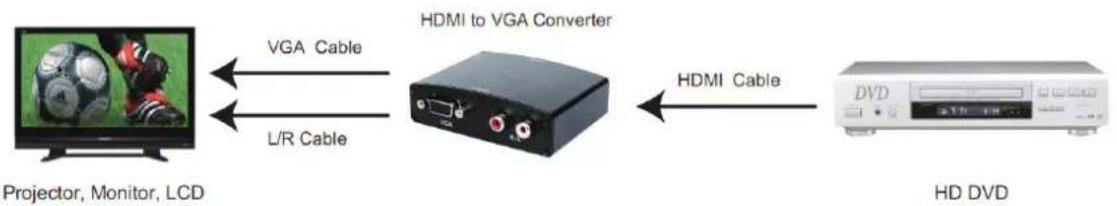

5.1 CONNECTION DIAGRAM
