Product Type	Car Subwoofer
Brand	MTX Audio
Model	3512-04
Size	12 inches
Impedance	4 ohms
Power Handling (RMS)	300 Watts
Power Handling (Peak)	600 Watts
Sensitivity	85 dB (1W/1m)
Frequency Response	20 Hz - 200 Hz
Mounting Depth	5.5 inches (140 mm)
Mounting Hole Diameter	11.1 inches (282 mm)
Overall Diameter	12.5 inches (318 mm)
Weight	12.7 lbs (5.8 kg)
Cone Material	Polypropylene with mica
Surround Material	Rubber
Voice Coil	2-inch dual layer
Magnet Type	Ferrite
Recommended Enclosure	Sealed or ported (0.75-1.5 cu ft)
Warranty	1 year limited

Frequently Asked Questions - 3512-04 MTX Audio

What is the impedance of the MTX Audio 3512-04 subwoofer?

The MTX Audio 3512-04 has an impedance of 4 ohms, making it suitable for most car audio amplifiers.

What is the power handling of this subwoofer?

It handles 300 watts RMS and 600 watts peak power. Ensure your amplifier matches these ratings for optimal performance.

What enclosure size is recommended for the 3512-04?

A sealed enclosure of 0.75-1.0 cubic feet or a ported enclosure of 1.25-1.5 cubic feet is recommended. Tuning frequency for ported: 35 Hz.

What is the mounting depth of this subwoofer?

The mounting depth is 5.5 inches (140 mm). Ensure your enclosure has enough depth to accommodate it.

How do I break in the MTX Audio 3512-04 subwoofer?

Play it at low to moderate volume for 10-20 hours with a variety of music. Avoid excessive excursion during break-in.

Can I use this subwoofer in a ported enclosure?

Yes, it works well in both sealed and ported enclosures. For ported, use a 1.25-1.5 cu ft box tuned to 35 Hz.

What type of amplifier should I use with the 3512-04?

Use a monoblock amplifier rated for 300-600 watts RMS at 4 ohms. Ensure the amp has a subsonic filter.

How do I wire the 3512-04 for maximum power?

Connect the positive and negative terminals to the amplifier's corresponding outputs. For multiple subs, wire in parallel to achieve lower impedance if the amp supports it.

What is the sensitivity of this subwoofer?

The sensitivity is 85 dB (1W/1m). This indicates it requires moderate power to produce sound.

Does the MTX Audio 3512-04 come with a warranty?

Yes, it includes a 1-year limited warranty against defects in materials and workmanship.

USER MANUAL 3512-04 MTX Audio

MTX® AUDIO

Parameters

Los parámetros, Paramètres, Parameter

Fs: 31.4 Hz

Qms: 3.173

Cms: 0.157 mm/N

Mms: 163.35 g

Rms: 10.151 kg/s

Vas: 2.58 ft ^3 (73.1 liters)

Xmax: 0.32 in (8.128 mm)

D: 10.64 in (270.256 mm)

Sd: 88.908 in² (573.6 cm²)

Vd: 28.53 in³ (0.467 liters)

Qes: 0.893

Re: 3.5 Ω

Bl: 11.27 Tm

Prms: 250 Watts

Qts: 0.697

n0: 0.243%

SPLo: 86.06 dB

SPL 2.83V/1m: 89.7 dB

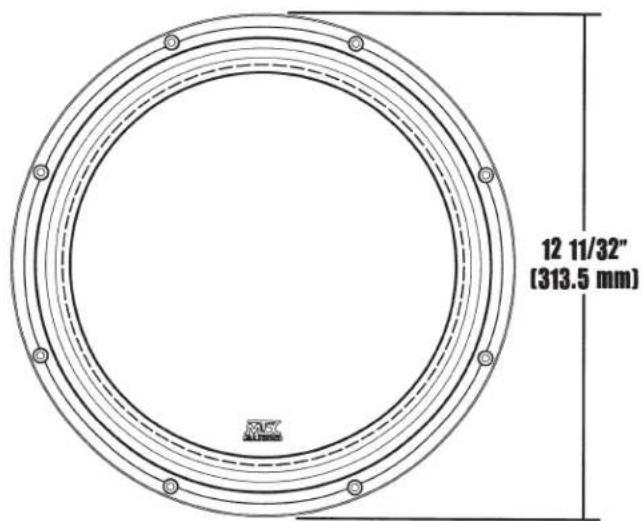

12 11/32" (313.5 mm) AEX

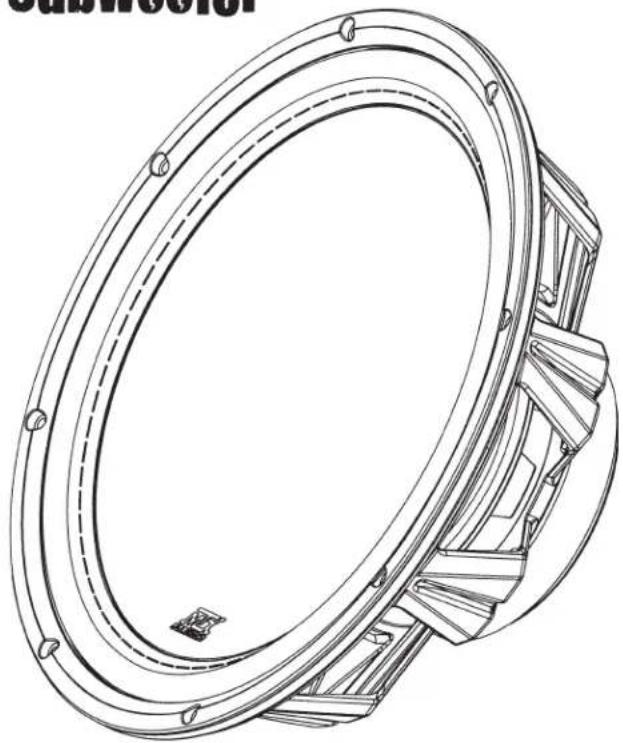

3512-04 500W Peak Power Subwoofer

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

Specifications

Las especificaciones. Specifications. Spezifikationen

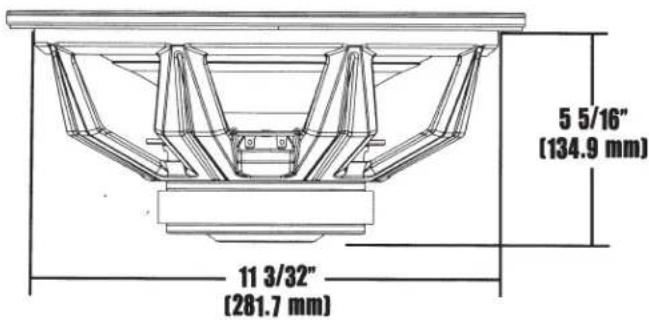

5 5/16" (134.9 mm) 11 3/32" (281.7 mm)

Recommended Power Rating of 125 - 250 Watts RMS

La Potencia nominal recomendada, Le Pouvoir recommandé Evaluant, Empfohlene Kraft Einzuschätze

3512-04 Recommended Enclosures

For the best possible sound quality where space is a premium, MTX recommends using a sealed enclosure. For excellent sound quality with increased output compared to sealed enclosures (3dB or more), MTX recommends using a vented enclosure. All recommended enclosures have been designed and thoroughly tested by MTX.

For additional enclosure designs check the MTX website, the barcode will take you to the box design page.

QR code image containing encoded data, no visible human-readable text

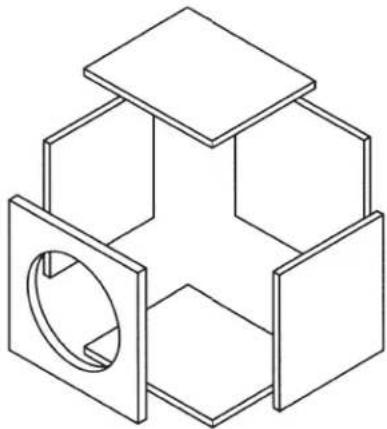

Sealed Enclosure

11" (279.4 mm) 15 1/2" (393.7 mm) 11 1/8" (262.5 mm) 15 1/2" (393.7 mm)

Isometric line drawing of a 3D geometric structure with hexagonal panels and a central circular cutout (no text or symbols)

Net Internal Volume: 1.00 ft³

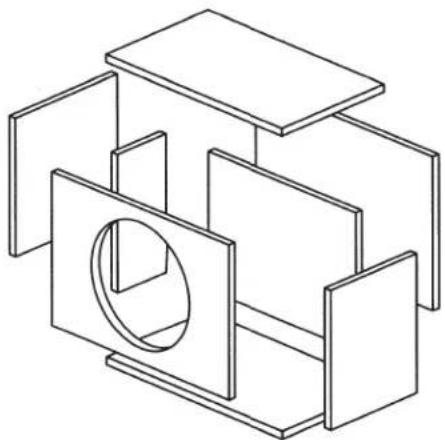

Vented Enclosure

Descargar Cerce, CI ture donnere vont. Vented Einschließlich

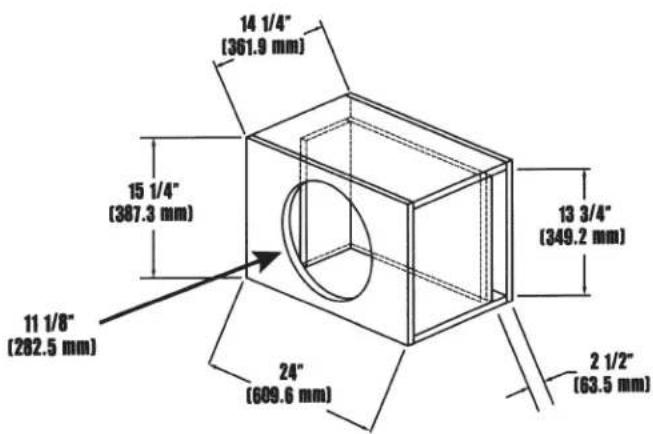

14 1/4" (361.9 mm) 15 1/4" (387.3 mm) 13 3/4" (349.2 mm) 11 1/8" (262.5 mm) 24" (609.6 mm) 2 1/2" (63.5 mm)

Isometric line drawing of a modular device with multiple panels and a central circular cutout (no text or symbols)

Net Internal Volume: 2.32 ft ^3

MTX AUDIO MTX.COM 3512-04 3512-04 SINGLE VOICE COIL SUBWOOFER 7 15442 35270 8 3512 500W Subwoofer Peak Power

3512

500W Peak Power

Subwoofer

SPECIFICATIONS

Diameter: 12" (30.5cm)

Mounting Depth 5-5/16" (13.5cm)

RMS Power: 250W

Peak Power: 500W

SPL 1W/1m: (3512-02) 86.2dB

SPL 1W/1m:(3512-04)86dB

SPL 2.83V/1m.(3512-02)92.6dB

SPL 2.83V/1m: (3512-04) 89.7dB

Impedance:(3512-02)20

Impedance:3512-04)4D

Frequency Response: (3512-02) 26Hz - 130Hz

Frequency Response:(3512-04)28Hz-130Hz

Cutout Diameter 11-1/8" (28.25cm)

Overall Diameter: 12-11/32" (31.3cm)

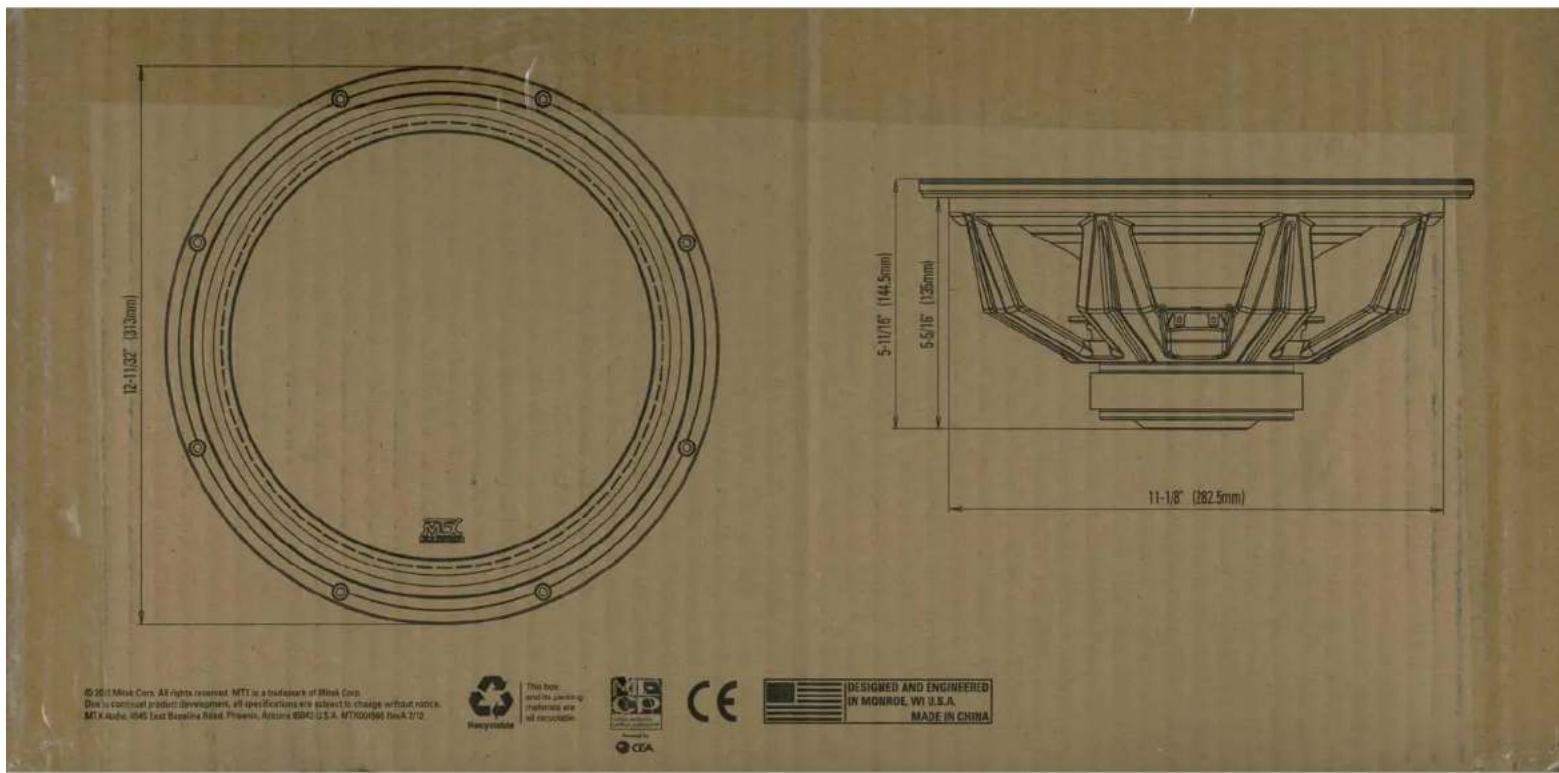

ESPECIFICACIONES

Diámetro: 30,5cm (12")

Profuncidad: 13,5cm (5-5/16")

Potencia RMS:250W

Potencia Peak:500W

Sensibilidad 1W/1m:(3512-02)86,2dB

Sensibilidad 1W/1m:(3512-04)86dB

Sensibilidad 2,63V/1m: (3512-02) 92,6dB

Sensibilidad 2,83V/1m:(3512-04)89.7dB

Impedancia:(3512-02)20

Impedancia: (3512-04) 40

This box contains a highly sophisticated, performance machine.

The enclosed subwoofer is designed to produce extreme bass and high SPL levels that will bring your music to life.

This device should only be used by someone that is looking to take their in-car listening experience to a level others have only dreamed about.

If you are one of these people, congratulations! Use caution when listening to and sharing your system, prolonged exposure to a high performance stereo system may cause jealousy and stereo envy among your friends.

You have been warned.

Now install it, get in, and turn it up.

MTX Audio - Feel the Thunder
