Product Type	Print Server
Model	PM1115UA
Brand	StarTech.com
Dimensions (W x D x H)	4.7 x 2.4 x 1.1 in (120 x 60 x 28 mm)
Weight	0.22 lb (100 g)
Power Supply	5V DC, 1A via included AC adapter
Network Interface	1 x RJ-45 10/100 Ethernet
Printer Interface	1 x USB 2.0 Type B
Supported Protocols	TCP/IP, IPX/SPX, NetBEUI, AppleTalk
Supported Operating Systems	Windows 98/ME/2000/XP/Vista/7, Mac OS 9/X, Linux
Number of Printers Supported	1
LED Indicators	Power, Link/Activity, Status
Reset Button	Yes, for factory defaults
Mounting	Desktop or wall-mountable via included bracket
Operating Temperature	32°F to 104°F (0°C to 40°C)
Certifications	CE, FCC, RoHS
Package Contents	Print server, power adapter, Ethernet cable, setup guide, mounting kit
Maintenance & Cleaning	Wipe with a dry, soft cloth. Do not use liquid cleaners.
Safety Instructions	Use only the supplied power adapter. Avoid exposure to moisture and extreme temperatures.

Frequently Asked Questions - PM1115UA StarTech.com

How do I set up the PM1115UA print server?

Connect the print server to your router via Ethernet and to your printer via USB. Then, install the included software or use the web interface to configure the IP address and add the printer to your computer.

Does the PM1115UA support wireless printing?

No, the PM1115UA is a wired print server. It requires a wired Ethernet connection to your network.

Which printers are compatible with the PM1115UA?

The PM1115UA supports most USB printers that are PostScript or PCL compatible. Check the printer's manual for USB connectivity.

Can I use the PM1115UA with a parallel printer?

No, the PM1115UA only has a USB Type B port. For parallel printers, consider StarTech.com's PM1115U or a USB-to-parallel adapter.

What operating systems are supported?

It supports Windows (98/ME/2000/XP/Vista/7), Mac OS 9/X, and Linux. Drivers may be required for some systems.

How do I reset the PM1115UA to factory defaults?

Press and hold the reset button on the device for about 5 seconds until the LED blinks. Release the button; the device will restart with default settings.

Does the PM1115UA support IPv6?

The PM1115UA primarily supports IPv4. IPv6 is not officially listed in its specifications.

Can I print from a smartphone or tablet?

The PM1115UA does not natively support mobile printing protocols like AirPrint. However, you can use third-party apps or share the printer from a computer.

What should I do if the print server is not detected?

Check all cable connections, ensure the Ethernet LED is lit, and try assigning a static IP address via the software utility. Also, verify that your computer's firewall is not blocking the device.

Is there a web interface for management?

Yes, you can access the web interface by entering the print server's IP address in a browser. The default username and password are often 'admin'/'admin' or blank.

USER MANUAL PM1115UA StarTech.com

Wireless-N 150Mbps USB 2.0 AirPrint™ Server

PM1115UA

Black StarTech.com wireless router with antenna and power/USB ports (no visible text beyond branding)

*actual product may vary from photos

For the most up-to-date information, please visit: www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by StarTech.com could void the user's authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

IC Radiation Exposure Statement:

This equipment complies with IC RSS-102 radiation exposure limit set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Table of Contents

Introduction......1

Packaging Contents .... 1

System Requirements....1

Installation 1

Hardware Installation .... 1

Software Installation....1

Operation 6

Printing Using AirPrint™ 6

Adding a Printer....6

Technical Support 9

Warranty Information......9

Introduction

Packaging Contents

• 1 x Wireless-N USB 2.0 AirPrint™ Server
• 1 x Universal Power Adapter (NA/UK/EU)
- 1 x Driver CD
• 1 x Instruction Manual

System Requirements

- Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64), Windows Server® 2012, 2008 R2, 2003(32/64), Mac OS® 10.8 and up (Tested up to 10.9)

Installation

Hardware Installation

1. Power off the printer that will be used with the print server and leave the print server power adapter disconnected.
2. Connect your printer to the USB port on the print server.
3. Power on your printer so it is ready for use.
4. Connect the Power Adapter to the print server - the Power LED will light up. When the LAN indicator lights up, the print server is correctly connected to the network.

Software Installation

To configure the print server to be used from a PC or Mac, you will first need to install the included software, outlined in the steps below.

Windows

1. Connect a Cat 5 (or better) Ethernet cable to the LAN port on the print server, then to your router / network.
   Note: Initial configuration must be done from a wired connection. Once the device has been connected to an existing access point and set with proper IP settings for your wireless network, the LAN cable can be disconnected.
2. From your computer that is connected to the same router/network, insert the included CD into your CD/DVD drive.

3. Browse to the "Windows" folder and run the Setup.exe application.

4. Follow the on-screen instructions to complete the installation.

5. Start the USB Device Server Control Center to search for available print servers on the network.

6. Select your print server from the list and click Configure Server.

1. Login with your username / password (Default: admin / admin).

2. Configure your desired IP address (Static / DHCP), user account name / password and security settings.

Note: To prevent unauthorized access / changes to the print server, it is recommended to change the default username / password for logging into the device, and to enable encryption on the wireless connection.

1. If you want to connect the print server to the network wirelessly, click the Connect to Another AP button to view a list of available networks and choose the access point you would like the server to connect to.

Wireless

Encryption: Disable

Apply Changes

1. Once the wireless connection has been established, the LAN cable can be disconnected from the print server.

Mac OS

1. Connect a Cat 5 (or better) Ethernet cable to the LAN port on the print server, then to your router / network.

Note: Initial configuration must be done from a wired connection. Once the device has been connected to an existing access point and set with proper IP settings for your wireless network, the LAN cable can be disconnected.

1. From your computer that is connected to the same router/network, insert the provided CD into your DVD/CD-ROM drive.

2. Browse to your DVD/CD-ROM drive, then to the "Mac OS" folder on the disc.

3. Mount the StarTech.com USB Device Server Control Center Installer.dmg file, and then run the StarTech.com USB Device Server Control Center Installer.pkg application to start the install.

4. Follow the on-screen instructions to complete the installation.

5. Start the USB Device Server Control Center to search for available print servers on the network.

6. Select your print server from the list and click the Home button to configure the server.

1. Login with your username / password (Default: admin / admin).

2. Configure your desired IP address (Static / DHCP), user account name / password and security settings.

Note: To prevent unauthorized access / changes to the print server, it is recommended to change the default username / password for logging into the device, and to enable encryption on the wireless connection.

1. If you want to connect the print server to the network wirelessly, click the Connect to Another AP button to view a list of available networks and choose the access point you would like the server to connect to.

1. Once the wireless connection has been established, the LAN cable can be disconnected from the print server.

Operation

Printing Using AirPrint™

AirPrint is an Apple technology that lets you print wirelessly from your iOS device, without the need to download or install drivers.

Supported devices:

• iPad (all models)
• iPhone (3GS or later)

• iPod touch (3rd generation or later)

• Ensure that your iOS device is connected to the same wireless access point that the print server is using.

• Tap the or icons, which are at the bottom of your screen.
• Tap the printer icon ( ).
• Choose your printer, the number of copies you want, and then tap Print.

Note: If you are printing for the first time, ensure that you are within range of your printer. All AirPrint-enabled printers within range will be displayed.

Adding a Printer

Windows

1. Start the USB Device Server Control Center software and allow it to find the print server on your LAN / Wireless connection.

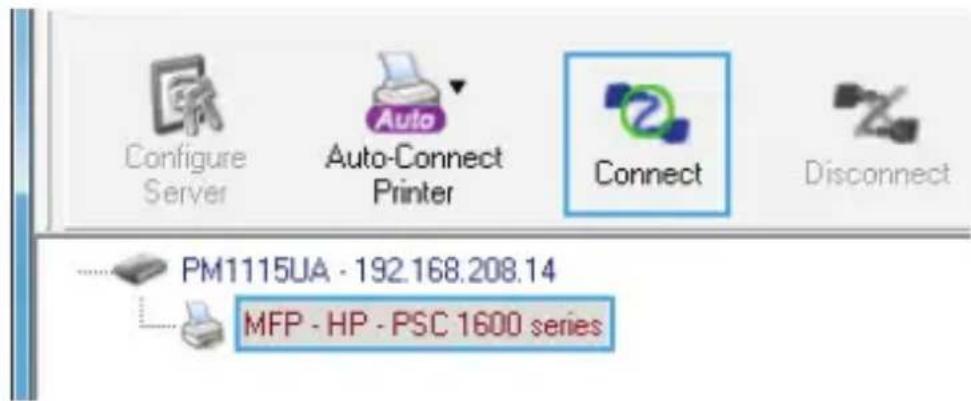

2. Select the printer that you would like to connect and click the Connect button to automatically map the network printer. If this is the first time you're connecting the printer, Windows may take a moment to install the printer and detect / prompt for drivers.

Note: Only one PC at a time can Connect the printer using this method

1. Once you are done using the printer, click the Disconnect button.

Auto-Connecting the Printer

The print server also supports an Auto-Connect function so that you don't have to connect / disconnect manually, after the driver for the printer has been installed (i.e. after the first manual connect operation or physical connection to the computer).

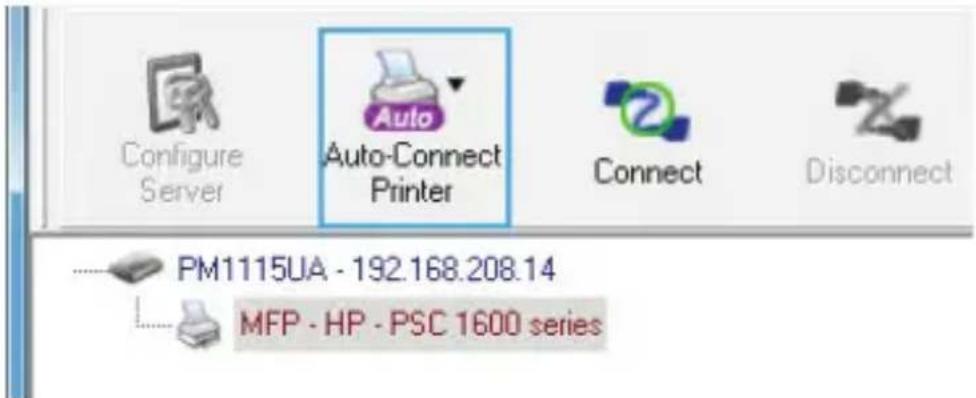

1. In the USB Device Server Control Center Software, click Auto-Connect Printer, then Set Auto-Connect Printer.

1. In the window that opens, select your printer and click Apply.
2. When you send a print job, the software will automatically connect the printer and send the print job to it, as long as the control center software is running.

Mac OS

1. Start the USB Device Server Control Center software and allow it to find the print server on your LAN / Wireless connection.

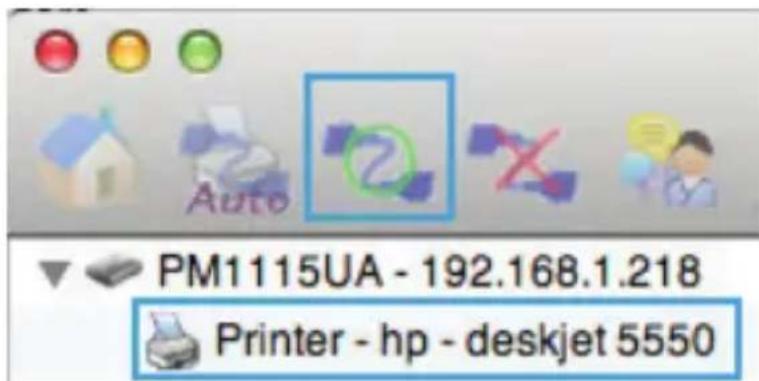

2. Select the printer that you would like to connect and click the Connect button to automatically map the network printer. If this is the first time you're connecting the printer, Mac OS may take a moment to install the printer and detect / prompt for drivers Note: Only one PC at a time can Connect the printer using this method
3. Once you are done using the printer, click the Disconnect button.

Auto-Connecting the Printer

The print server also supports an Auto-Connect function so that you don't have to connect / disconnect manually, after the driver for the printer has been installed (i.e. after the first manual connect operation or physical connection to the computer).

1. In the USB Device Server Control Center Software, click the Auto-Connect button.

1. In the window that opens, select your printer and click Apply.

2. When you send a print job, the software will automatically connect the printer and send the print job to it, as long as the control center software is running.

For complete operating instructions, please visit www.startech.com/PM1115UA

Technical Support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
