Product Type	Electric Pressure Cooker
Model	HD2103
Brand	Philips
Series	Daily Collection
Capacity	5.0 L
Power Consumption	500 W
Power Supply	220-240 V, 50-60 Hz
Pressure Range	Up to 70 kPa
Temperature Range	Keep Warm: 60-70°C; Cooking: up to 115°C
Timer Range	Up to 30 minutes (pressure keeping time)
Functions	Pressure cooking, keep warm, automatic pressure regulation
Control Type	Mechanical switch with On/Off and heating indicators
Safety Features	Floating valve, anti-block cap, pressure regulator valve, locking pin, safety release
Inner Pot Material	Non-stick coated aluminum
Accessories Included	Measuring cup, rice paddle, sealing rings (spare)
Cleaning and Maintenance	Removable inner pot, easy-clean exterior; wash accessories in warm soapy water
Dimensions	Approx. 30 x 30 x 30 cm
Weight	Approx. 4.5 kg
Warranty	2 years (subject to terms)
Repairability	Serviceable by authorized Philips centers; spare parts available
Certifications	CE, RoHS

Frequently Asked Questions - Daily Collection HD2103 PHILIPS

How do I lock the lid properly?

Place the lid on the cooker and turn it anticlockwise until you hear a click sound. Ensure the locking pin is engaged.

What does the floating valve do?

The floating valve rises when pressure builds up inside the cooker, indicating that the cooker is pressurized. It drops when pressure is released.

How do I clean the pressure regulator valve?

Do not disassemble the valve. Clean the exterior with a damp cloth. For the anti-block cap, remove and rinse under water.

What is the recommended pressure keeping time for rice?

Rice typically requires 10-18 minutes of pressure keeping time. Refer to the manual for specific types.

Why does steam escape from the lid?

Ensure the sealing ring is properly placed and clean. Also check that the lid is locked correctly and the pressure regulator is set to 'Seal'.

How do I release pressure after cooking?

Turn the pressure control valve to the 'Vent' position for quick release. For natural release, let the cooker cool down until the floating valve drops.

Can I cook frozen food in the pressure cooker?

Yes, but increase the cooking time by about 50%. Ensure there is enough liquid to generate steam.

What should I do if the cooker does not heat?

Check the power cord connection and ensure the On/Off switch is pressed. The heating indicator should light up. If not, contact Philips service.

How do I replace the sealing ring?

Remove the old ring from the lid. Clean the groove and fit the new ring firmly. Ensure it sits evenly to prevent leaks.

Is the inner pot dishwasher safe?

The inner pot is not dishwasher safe. Wash it with warm soapy water and a soft sponge to preserve the non-stick coating.

USER MANUAL Daily Collection HD2103 PHILIPS

All rights reserved.

A

English

1 Your electric pressure cooker

Congratulations on your purchase, and welcome to

Philips!

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

2 What's in the box

Electric pressure cooker main unit

Rice spoon Soup ladle

Measuring cup User manual Safety leaflet Warranty card

Safety leaflet warranty card Dower cord

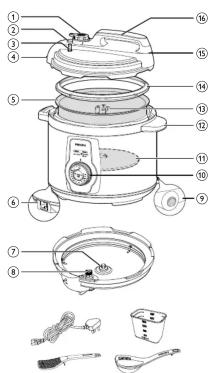

Overview

1	Pressure regulator valve	18	Control knob
2	Floating valve	11	Heating element
3	Floater	16	Side handle
4	Locking pin	13	Water level indications
5	Inner pot	14	Sealing ring
6	Power socket	15	Top lid
7	Safety valve	16	Lid handle
8	Anti-block cap	17	Heating indicator
9	On/Off switch	18	Keep Pressure/Keep Warm indicator

3 Before first use

1 Remove all packaging materials from the appliance.

2 Take out all the accessories from the inner pot.

3 Clean the parts of the electric pressure cooker

thoroughly before using it for the first time (see Chapter "Cleaning")

Note

• Make sure all parts are completely dry before you

start using the electric pressure cooker

4 Using the electric pressure

cooker

Before using the electric pressure cooker to cook food, you need to follow below preparations:
1 Hold the lid handle and turn it clockwise until the top lid cannot move any more, then lift up the top lid.
2 Take out the inner pot from the electric pressure cooker
and put the pre-washed food in the inner pot.
3 Put the inner pot back into the electric pressure cooker.
4. I have the top lid onto the electric pressure cooler and turn it anti-clockwise. You will hear a "click" sound when the top lid is properly locked.
5. Turn the pressure control valve to the sealed position

(Seal).

What's in the box

Apa di dalam kotak

:

Хайрцагт юу байна вэ

Trong hộp có gì

包装盒内物品

To disassemble the

ඉංාජි: ප්‍රීජු

• Make sure the sealing ring is properly assembled

around the inside of the top lid.

• Make sure the pressure regulator valve and floating valve are clean and not blocked.

• Make sure the outside of the inner pot is dry and

clean, and that there is no foreign residu heating element or the magnetic switch.

• Make sure the inner pot is in proper contact with the

heating element.

Cooking food

Note

- Do not fill the inner pot with less than 1/3 or more

than 2/3 full of food and liquid.

For food that expands during cooking, do not hit the inner pot with more than 1/2 full of food and liquid.

• For rice cooking, follow the water level indications

on the inside of the inner pot. You can adjust the

watch level for different types of ice and your own preference. Do not exceed the quantities indicated

on the inside of the inner pot.

• Make sure the floater falls down before cooking.

1 Follow the preparation steps in "Using the electric

pressure cooker".

2 Put the plug in the power socket.

1. Turn the Gr/Gr switch to the 1-position to switch on the appliance

→ The heating indicator (Heating) lights up

→ The electric pressure cooker starts heating and

7.11

1. Turn the control knob clockwise to choose the pressure keeping time

5 When the electric pressure cooker reaches the working

pressure, the heating indicator (Heating) turns off and

the keep pressure indicator (Keep Pressure) lights up. The electric pressure cooker enters pressure keeping

mode.

6 When the pressure keeping time has elapsed, the

electric pressure cooker automatically switches to keep warm mode.

7 Turn the pressure regulator valve to the vent position

( Vent ).

→ The electric pressure cooker starts releasing pressure.

→ The router sufficiently

8 Hold the top lid handle and turn the lid clockwise until it

cannot move any more, then lift it up

Note

• When cooking soup or viscous liquid, do not release
  pressure by turning the pressure regulator valve to the steam vent position, otherwise liquid might
  spurt from the pressure control valve. Wait until the
  pressure is naturally released dropped to open the top lid.
• Once the pressure cooker is on, turn the control knob
  and set the pressure keeping time. This is to avoid the
  pressure cooker to automatically switch to keep warm mode after heating.
  • The pressure keeping timer will start counting when
  the working pressure is reached.
  • After the cooking is finished and the pressure is selected, applying the electric pressure applies to turn
  released, dipping the electric pressure cooker to turn off the keep warm function or when not in use.

Tip

Choose the desired pressure keeping time according.

to the time indications on the control panel. You can

also adjust the pressure keeping time for different types of food and your preference.

Recommended pressure keeping time

Cooking function	Recommended pressure keeping time (minute)
Fish ( Fish )	6-12
River-food ( River-food )	6-12
Sea-food ( Sea-food )	6-12
Chicken ( Chicken )	6-12
Duck ( Duck )	6-12
Meat ( Meat )	12-18
Chop ( Chop )	12-18
Rice ( Rice )	12-18
Congee ( Congee )	18-24
Soup ( Soup )	18-24
Beef ( Beef )	18-24
Mutton ( Mutton )	18-24
Tenderloin ( Tenderloin )	24-30
Tendon ( Tendon )	24-30
Beans ( Beans )	24-30

Using the electric pressure
cooker
Menggunakan penanak
1. _0 = _0
2018.6.7X
Magnetization protocol
tekanan elektrik
Merry
Tekanan elektrik

Assembling and disassembling the

pressure regulator valve

Caution

Do not disassemble the pressure regulator valve
during cooking. Always unplug the electric pressure
cooker and wait until the pressure has been released sufficiently.
Do not disassemble the pressure regulator valve
during cooking. Always unplug the electric pressure
cooker and wait until the pressure has been released sufficiently.

To disassemble the pressure regulator:
Turn the lower screw counterclockwise until it becomes loans.
Pull it up and take out the pressure regulator
To assemble the pressure regulator:
Assemble the lower screw back to the regulator.
Make sure the regulator points at the sealed position / and put it back to the steam valve.
Turn the screw clockwise until it is fastened.
Turn the lower screw counterclockwise until it becomes loans.
Pull it up and take out the pressure regulator
To assemble the pressure regulator:
Assemble the lower screw back to the regulator.
Make sure the regulator points at the sealed position / and put it back to the steam valve.
Turn the screw clockwise until it is fastened.

5 Specifications

Model Number	HD2103
Rated power input	900W
Rated capacity	5.0L
Warm keeping temperature	60-80°C
Pressure keeping time	0-30 minutes

Note

-

• Always unplug the appliance if not used for a longer period.

1. 2017年

6 Cleaning and Maintenance

Note

• Linplug the electric pressure cooker before starting
to clean it.
- Wait until the electric pressure cooker has cooled down sufficiently before cleaning it.
• [log] the electrical pressuring cost per report stating
to clean it.
- Wait until the electric pressure cooker has cooled down sufficiently before cleaning it.

• You can adjust the pressure keeping time for different types of food and your own preference.
  • You can adjust the pressure keeping time for differen
  types of food and your own preference.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Assembling and disassembling the

pressure regulator valve

Caution

somewhere:

To disassemble the pressure regulator:

5 Specifications

Model Number	HD2103
Rated power input	900W
Rated capacity	5.0L
Warm keeping temperature	60-80°C
Pressure keeping time	0-30 minutes

Note

-

1. 2017年

6 Cleaning and Maintenance

Note

,

Interior

Inside of the outer lid and the main body:
- Wipe with wrung out and damp cloth. - Make sure to remove all the food resid
Hand sure to remove air and ice, because it is the electric pressure cooker.
Heating element:
- Wipe with wrung out and damp cloth.
or toothpic

• Soak in warm water and clean with sponge

Exterior

Surface of the outer lid and outside of the main body:
- Wipe with a cloth damped with soap water. - Only use soft and dry cloth to wine the con
• Make sure to remove all the food residues around the
pressure regulator valve and floating valve.
Pressure control valve and floating valve:
- Disassemble the pressure control valve, soak it in warm water, and clean with sponge.
- Remove food residues in the pressure control valve an
floating valve with toothpicks.

Accessories

Rice spoon, soup ladle, and inner pot:

- Soak in hot water and clean with sponge.

7 Recycling

Do not throw away the product with the normal household

waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to

preserve the environment.

Follow your country's rules for the separate collection of

prevent negative consequences for the environment and

human health.

8 Guarantee and service

If you need service or information, or if you have a

problem, visit the Philips website at www.philips.com or contact the Philips Customer Care Center in your country.

You can find its phone number in the worldwide guarantee

leallet. If there is no Customer Care Center in your country, go to your local Philips dealer.

9 Troubleshooting

If your electric pressure cooker does not function properly

or if the cooking quality is insufficient, consult the table below. If you are unable to solve the problem, contact a

below: If you are unable to solve the problem, contact a Philips service center or the Consumer Care Center in your

country.

Problem Solution

The sealing ring is not well

| above difficulties

| assembled. Make sure the sealing ring is well assembled around the

I have difficulties closing the top

inside of the top lid.

lid.	The floater blocks the locking pin.

Push down the loater so that it do not block the locking pin.

	Not under the ceiling pin
Line up difficulties

have difficultiesopening the

The stars has not dropped,

top lid after the reverse in

the floater has not dropped. I don't the floater down.

the pressure is released.

Make sure that there is no fore

residue on the heating element

Time to switch the electric pressure

the outside of the inner pot be switching the electric pressure

The food is not cooked

on.

The heating element is damaged, Tel

the inner pot is deformed. Talk cooker to your Philips dealer of

service center authorized by P

The sealing ring is not well assembled. Male runs the one

ring is well assembled around

inside of the top lid.

There is food residue in the se

Ring. Make sure the sealing ring clean.

All of steam leaks from under the The top lid is not properly clos

lid.	Make sure the top lid is proper

The pressure level inside of the

The pressure level index of the appliance is abnormal, in this e

the safety valve will be releasi

Steam: Take the appliance to y Philips dealer or a service cent

authorized by Philips.

Tip

Congo Latin America Egypt

நீடேயின்

ඉනාවිය්‍යේ ගාර්‍යේ

ඉනාජිය

தவ்பியலைக்

101

:###

1	###	18	###
2	###	15	###
3	###	16	###
4	###	13	###
5	###	14	###
6	###	15	###
7	###	16	###
8	###	17	###
9	###	18	###

1 ankedged by a person who has been ordered to be the

2

The image contains no legible text or symbols. It is a graphical icon depicting a stylized symbol resembling a document or a logo, with no readable text or mathematical content to process. Therefore, no OCR output can be generated.

- 300000000000000000000000000000000000000000000000000000

7 800000000000000000000000000000000000000000000000000000000000000000000000000000000000 (Vent)

Figures of the following table:

• 80000000000000000000000000000000000000

• Dim his doesn't have to find him?

D^k U = 6^5 + 1 + 1 = 7

1. Lio, 2c, chia, duéi, tǎo, lai, van, dǒu, chieb

2. Dàm bǎo yàn děu chèi bù děu vì trú děng kín ( ） dǐt ná

trà lai van bai

The Ground Truth image displays a single, solid horizontal line, which is a stylistic or background element (like a rule line on paper). According to Rule 2, such lines must be ignored by the OCR result. The OCR content provided is "", which consists of no characters. Since the OCR output correctly ignores the stylistic line, it complies with Rule 2. Therefore, the OCR result is consistent with the Ground Truth.
