Product Type	Infrared Thermometer (Environmental Thermometer)
Model	PMIR15
Brand	Pyle
Intended Use	Contact-free temperature measuring on objects or surfaces. Not for medical purposes.
Measuring Range	-50°C to +280°C
Display Resolution	0.1°C
Degree of Emission	0.10 to 1.00, digitally adjustable
Distance to Spot Ratio (D:S)	6:1
Laser Class	Class 2, <1mW, red
Display	3.5-digit LCD
Dimensions (LxWxH)	94 mm x 51 mm x 25 mm
Weight	Approx. 76 g
Power Supply	3 V DC (2x AAA micro-batteries)
Automatic Switch-Off	Approx. 12 seconds
Alarm Range	-35°C to +228°C
Working Temperature Range	0°C to 50°C
Relative Humidity	<80% (non-condensing)
Functions	MAX/MIN display, temperature unit (°C/°F), emission adjustment, permanent measuring mode, alarm settings
Safety Precautions	Do not look into laser; keep away from children; avoid reflective surfaces; do not use for medical diagnostics
Maintenance	Clean IR sensor with soft brush and vacuum; wipe housing with clean cloth; do not use abrasive chemicals
Disposal	Dispose of device and batteries separately according to local regulations

Frequently Asked Questions - PMIR15 Pyle

How do I measure temperature with the PMIR15?

Point the IR sensor at the object and press the MEAS button. The temperature is displayed while the button is held. The last measured value remains on the LCD.

How do I activate the laser for aiming?

Turn on the thermometer by pressing MEAS, then briefly press the LASER button. A laser icon appears on the display. The laser turns on automatically during measurement. Press LASER again to deactivate.

What does the emission degree setting do?

The emission degree (ε) adjusts for different surface materials. Most materials have an emission near 0.95. Shiny metals have lower values; you can attach matte tape to improve accuracy. Adjust ε from 0.10 to 1.00 in the menu.

How do I change the batteries?

Open the battery compartment on the back by sliding the cover in the direction of the arrow. Insert two AAA micro-batteries with correct polarity as shown inside. Replace both batteries at once. Dispose of old batteries properly.

What is the measurement accuracy of the PMIR15?

The manual does not specify a numerical accuracy. For general use, expect typical IR thermometer accuracy within ±1.5°C to ±2°C, but it should not be used for very precise measurements like boiling points.

How do I set a high temperature alarm?

Enter setup mode by pressing SET. Navigate using SET to cycle through options. Use LASER to change values. Set HI to the desired alarm level, then turn alarm ON to enable the warning sound when exceeded.

Can I measure through glass or transparent surfaces?

No, the IR thermometer measures the surface temperature of the glass itself, not the object behind it. Remove any glass or transparent barriers for accurate readings.

How do I clean the thermometer?

Periodically clean the IR sensor with a clean, soft brush and a vacuum cleaner. The outer housing can be wiped with a clean cloth. Do not use abrasive or chemical cleaners.

What safety precautions should I follow?

Do not look into the laser beam or point it at people or animals. Avoid aiming at reflective surfaces. Keep the device and batteries away from children. Do not open the device except for battery replacement.

How should I dispose of the device and batteries?

Dispose of old electronic devices at community collection points according to local regulations. Batteries must not be thrown in household waste; return them to collection points or stores that sell batteries.

USER MANUAL PMIR15 Pyle

Infrared Theorem 10.

PMIR15

pyleaudio.com

Intended Use

e

Theproductisbattery-operatedandservesforcontact-freetemperaturemeasuringonobjectorsurfaces. Alaserpoint servesasaimingdevice. Thedegreeofemissioncanbemodifiedformeasuringdifferentsurfaces.

Diagnostic application formed medical purposes is not admissible. Donot use any others or source of energy.

Please also heed the additional safety instructions since each chapter of these instructions.

Anyuseotherthanthatdescribedaboveisnotpermitted.Inaddition,thisinvolvesotherrisks,suchase.g.eyeinjuries.

SafetyInstitutions and Hazard Wannings

d

An excellent situation with a triariable kind of matters important to the transaction product, which is also incurring.

structions.

Please need the operating instructions through cost, partially before pricing and device to get operation. Equation.

They contain important information for content operation. r eration.

The warranty will be tendered without for damage caused due to non-exceptional otherwise operating instructions. We shall not believe for any consequences of damage. mage.

erating th

Weshallnotacceptliabilityfordamagetopropertyorpersonalinjurycausedbyimproperhandlingornon-compliancewiththesafetyinstructions. Thewarrantywillapseinthesecases.

- Forsafetyandlicensingreasons(CE),unauthorizedconversionand/ormodificationofthedeviceisnotpermitted.

- Duetotheprinciple-relatedinaccuracyofIRtemperaturemeasuring, thedisplayedandthe,,actual"temperaturemaydiffer slightly. Therefore, thisproductmaynotbeusedforveryexacttemperaturemeasuring(e.g.boilingormeltingpoints, chemicalreactions,etc.).

Donotexposethedevicetohightemperatures, strongvibrationsorahighlevelofhumidity.

- Neverlookintothelaserbeamandneverpointitatpersonsoranimals.Laserradiationmayleadtoeyeorskininjuries.

- Donotpointthelaserbeamonmirrorsorotherreflectingareas. The uncontrolledly deflected beam could hit person or animals.

- Keepthedeviceandthebatteriesoutofthereachofchildren. Theyarenotatoy.

- Thisproductisequippedwithaclass2laseraccordingtoEN60825-1.Apartfromabatterychange,thedevicemaynotbeopened.Settingormaintenancetasksmustonlybeexecutedbyatrained

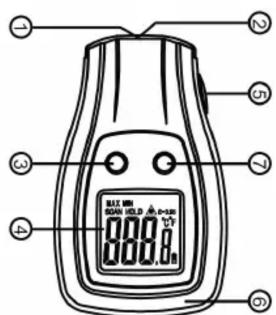

Description off Individual Variables

f

1 Outputopeningforthelaserbeam

2IR-Temperaturesensor

3,,SET“b

4LCdisplay(LCD=liquidcrystaldisplay)

5„MEAS“buttonformeasuring

6 HandStrap

7„LASER/UP-DOWN“buttonforchangingthe

sehingling/repacingthebatterles tteries

_Keepbatteriesoutofthereachofchildren.

e

Donotleavethebatterieslyingaroundintheopen;thereistheriskofthembeingswallowedbychildren

ordomesticanimals.Ifswallowed,consultadoctorimmediately.

Makesurethatthepolarityiscorrectwheninsertingthebatteries.

Removethebatterieswhenthedeviceisnotbeingusedforlongperiodsoftime.

Leakingordamagedbatteriescanleadtocausticburningoftheskin. Therefore, usesuitableprotective gloves.

Batteriesmustnotbeshort-circuitedorthrownintofire.Thereisariskofexplosion!

Nevertakethebatteries/apart!

Alwaysexchangethecompletesetofbatteries;donotmixfullbatterieswithempty/half-emptybatteries.Neverusebatteries and accumulatorstogether.

• OpenthebatterycompartmentonthebackoftheIRthermometerbyslidingitinthedirectionofthearrow.
• Inserttwomicro-batteries(AAA)inthebatterycompartmentobservingthecorrectpolarity.Youwillfindthecorresponding illustrationinthebatterycompartment.
• Closethebatterycompartmentinreverseorder.
• If the battery icon appears on the display, exchange the batteries immediately to prevent false measuring results.

Initialopepretation

Operating principle

IRthermometersmeasurethesurfacetemperaturesofobjects. The device's sensormeasures the emitted, reflected and penetrated

heatradiationoftheobjectandconvertsthisinformationintoatemperaturevalue.

Measuring temperature

DirecttheopeningoftheIRsensorontotheobjectorsurfacetobemeasuredandpress„MEAS“(5).

Aslongasthebuttoniskeptdepressed, the temperature is measured and displayed (thedisplayshows „SCAN“). The last measured value is displayed on the LC display (thedisplay shows „HOLD“).

TheIRthermometershutsoffautomaticallyafterapprox.12seconds.Makesurethatthesurfacetobemeasuredislarger thanthemeasuringspot.Theratioofthedistancetospotratio(D/S)is6:1withthisIRthermometer.Thismeans,thatwitha measuringdistanceof60cm,themeasuringspothasadiameterofapprox.10cm.

Forexactmeasuring, themeasuringobjectshouldbeatleasttwiceaslargeasthemeasuringspot(holdtheIRthermometer closertothemeasuringobject,ifapplicable).

ThetemperaturedisplayedbytheIRthermometeristheaveragetemperatureofthismeasuringspot!

Activating the bacter

he

Aswitchablelaserenablestheeasierpositioningofthemeasuringspot.Makesurethatthe laserpointisapprox.16mm away

fromthecenterofthemeasuringspot(seesketch).

TurntheIRthermometeron(button,,MEAS“)andbrieflypressthebutton,,LASER“(6).Asmalllasericonappearsonthe display

(trianglewithasunicon).Nowthelaserisactivatedautomaticallyduringmeasuring.Toturnthelaseroff,pressthebutton „LASER“(6)againandthelasericononthedisplaydisappearsagain.

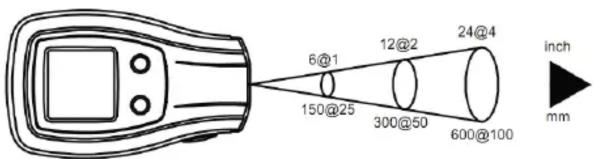

Distance(D) to Spot Size(S)

D:S=6:1

Setting the measuring instructions

TheIRthermometerHT-280Hcanperformdifferentmeasuringfunctions.

Toaccesssetupmode, pressthebutton,, SET "whenthethermometeristurnedon(button „MEAS“).

The,,SET"buttontakesyoutothenextrespectivemenupointandthebutton,,LASER"changes theparameters. Theactivefunctionisdisplayedonthedisplay.

Menu sequence:

MAX/MIN: Displayoftheminimumormaximumvalue.(MAX/MIN/Off=noicon). Switching the temperature unit from Celsius (°C) to Fahrenheit (°F) and vice-versa.

Increasing the degree of emission, E“(max.1.00)

Decreasingthedegreeofemission,,E“(min.0.10)

Settingforpermanentmeasuring(lockicon).

OFF=Measuringonlytakesplacewhenthemeasuringbuttonisdepressed

ON=Permanentmeasuringisactivated, the device does not switch after 12s. Todeactivate thismode, pressthebutton „Laser“. Thecastleigooesoff.

Raisingthealarmlevel

Loweringthealarmlevel

Activating the temperature alarm.

OFF

ON=Themeasuringdeviceemitsawarningsoundwhenexceedingthepreviouslysetalarm level.

ips Tips and inflation

•The emission degree described the energy emission characteristics of a material. The higher this value is, themore radiation

amaterialmayemit(thermalradiation).Manymaterialshaveavaluethatisclosetothepresetvalue,0.95"oftheIR thermometer.

Metallicshinysurfaceshavealesserdegreeofemissionthan matteblacksurfaces.

Therefore, the degree of emission must be preset accordingly.

Inthiscase, attaching an adhesivestrip (or lacquer with matte black paint, if possible), helpstobeabletomeasure with the common emission degree of 0.95.

- Measuringthroughaglasspaneisnotpossible,instead,thetemperatureoftheglasspaneisdisplayed.

Maintenance and Clearing

nd

Periodically check the technical safety of the device.

Itcanbeassumedthatrisk-freeoperationisnolongerpossibleif:

•thereisvisibledamagetotheapplianceor

• the device has been stored under unfavourable conditions for longer period of time

PeriodicallycleanthesurfaceoftheIRSensorwithaclean,softbrushandavacuumcleaner. Theoutsideoftheappliance shouldbecleanedwithacleandryclothorbrushonly.Donotuseabrasiveorchemicalcleaningagentswhichcoulddamage thehousingorimpairoperation.

Nevertrytoopenthehousing, apart from the battery compartment.

Disposal off spend/Accommodation/Bstudies

The end user is legally obliged (Ge(Gemaralbattaglylave) to return all used batteries. Dis Dis is sal in House and Nublesis is prohibited.

Batteriesandaccumulatorscontaininghazardoussubstancesaremarkedwiththeshownsymbolsindicatingthat

theymustnotbedisposedofinthehouseholdwaste.Theheavymetalsconcernedare:Cd Cd

=cadmium,Hgg=mercury,PlPb=lead.Youcanreturnflatbatteries/rechargeablebatteriesfreeofchargetothecollection pointsinyourcommunity,ourbranchesoranywhereelsewherebatteriesorrechargeablebatteriesaresold.

Youwillthuscarryoutyourlegalobligationsandcontributetotheprotectionofourenvironment.

Disposal

Oldelectronicdevicesarevaluablematerials.Whenthedevicehasbecomeunusable,disposeofitinaccordancewiththe currentstatutoryregulationsatyourcommunalcollectionpoints.Disposingofflatbatteries/accumulatorsinthehousehold wasteisprohibited!

Technical Data ata

Operatingvoltage....:3VDC(2xmicro-batteriesAAA)

Automaticswitch-off.....:approximately12seconds

Laser.....:<1mW,red

display....:3.5-digit,LCD

Weight.....:approx.76g

Dimensions(LxWxH).....:94mmx51mmx25mm

Measuring data ata

Measuringrange....:-50°Cto+280°C

Displayresolution....:0.1°C

Measuring accuracy(at 18^ C to 28^ C)....+

Degreeofemission....:0.10to1.00,digitallyadjustable

Ratiodistance/spot....:6:1

Alarmrange: -35°C to +228°C

Ambient conditions onditions

Workingtemperaturerange.....:0°Cto50°C

Relativeairhumidity:....<80%(non-condensing)
