PL90HRTN - Car kit Pyle - Free user manual and instructions

Product Type	Universal Headrest with Pre-installed Monitor
Screen Size	9 inches TFT LCD
Resolution	1024 x 600 pixels
Aspect Ratio	16:9
Color System	PAL / NTSC
Contrast Ratio	300:1
Brightness	350 cd/m²
Power Supply	DC 12V (switched positive)
Operating Temperature	-20°C to 50°C
Storage Temperature	-10°C to 70°C
Humidity	< 90% RH
Pole Adjustment Range	12.5 cm to 20 cm (center to center)
Available Colors	Black, Gray, Tan
Input Ports	1x Wired AV input, 1x Faceplate AV mini-jack
IR Transmitter	Dual channel (A: 2.3/2.8 MHz; B: 3.2/3.8 MHz)
Remote Control	Included with replaceable battery
Installation	Replaces existing headrest; adjustable posts
Safety Features	Fuse protection for reverse polarity; do not disassemble; moisture and shock protection
Included Accessories	1x Monitor, 1x Remote, 2x Adapter Tubes, 1x AV Input Cable, 1x Power Wire, 1x Manual
Care Instructions	Avoid pressing screen; keep away from moisture; professional service recommended

Frequently Asked Questions - PL90HRTN Pyle

How do I install the headrest monitor?

Remove the existing headrest. Adjust the posts of the new headrest by moving them together or apart to fit your seat holes. Insert the cable in the proper hole, then insert the posts into the seat holes and carefully work the headrest into position. Run the cable down the seat to the video source (e.g., DVD player). Connect red wire to switched 12V (ACC) and black wire to chassis ground. Connect the video input to the source.

How do I replace the remote control battery?

Locate the small button on the edge of the remote's battery drawer. Press and hold that button and slide the drawer out. Insert a new battery (type: common watch battery, typically CR2025 or similar) with the correct polarity, then push the drawer back fully into the remote.

Why is there no picture or sound?

Check that the power wires are properly connected and the fuse is not blown. Verify that the video input cables are securely connected and the video source (e.g., DVD player) is turned on and functioning. Adjust contrast and brightness settings if picture appears but is very dim.

Can I use the monitor without the car ignition on?

To avoid draining the battery, connect the red wire to a switched 12V source (ACC) so that the monitor turns off when the ignition is off. Wiring directly to battery (constant power) may cause battery drain when the engine is not running.

What color options are available?

The headrest monitor is available in Black, Gray, and Tan to match different vehicle interiors.

Is the monitor compatible with both PAL and NTSC video systems?

Yes, the monitor supports both PAL and NTSC color systems, making it compatible with most video sources worldwide.

What is the pole adjustment range?

The mounting poles can be adjusted from 12.5 cm to 20 cm apart (center to center) to fit various seat hole spacings. Use the included adapter tubes if the holes are too large.

Can I connect an external device like a game console?

Yes, the monitor has a wired AV input and a faceplate AV mini-jack input. Connect your game console or other video source using the appropriate AV cable.

How do I clean the monitor screen?

Use a soft, dry cloth to gently wipe the screen. Avoid pressing hard or using abrasive cleaners. Keep the unit away from moisture and do not spray liquids directly onto the screen.

What should I do if the monitor stops working?

First, check all power and video connections. Ensure the fuse in the power wire is intact. If the problem persists, contact Pyle customer support or a professional installer. Do not attempt to disassemble the unit as it contains high voltage components.

USER MANUAL PL90HRTN Pyle

Black-and-white photo of a PHEI remote control panel with a car on a road, shown from front and back (no visible text or symbols on the device screen)

Adjustable Headrest w/Built-in 9" TFT-LCD Monitor with IR Transmitter

HTTP://WWW.PYLEAUDIO.COM

Warning

▶ Read this manual before using this product.

This product is composed of precision components and should not be dissembled Service must be performed by a factory authorized technician.

▶ Protect the product from moisture and shock.

Attentions:

1. When connect the electric power wires, you should make clear about the positive and negative electrode (the red one is positive and the black is negative). If you wrongly connected the fuse in the filter box will be broken protectively. Please replace the fuse in same parameter.
2. Because the LCD screen is the main component It should be paid attention to be damp-proof.
3. The device must be installed firmly to prevent falling of device that will possibly cause injury and device-broken.
4. The connecting-point of direct current (12V) should connect on the Main line of storage battery as possible as it can, for keeping this device in normal operation and be away from the large voltage drop influence.
5. There is high voltage cluster in this machine, if you are the professional person, should never to take part the machine if malfunction and contact the dealer in time.

UNIVERSAL HEADREST WITH PRE-INSTALLED MONITOR OWNER'S MANUAL

Congratulations on your purchase of this headrest monitor system. The product is designed and built to deliver excellent video quality and long lasting high performance. For best results please consult a professional mobile electronics installer for application advice or troubleshooting. Please read these instructions thoroughly before installation.

Installation Instructions

1. Remove the existing headrest from the seat.

2. Adjust the posts of the new headrest to fit the holes in the seat where the headrest will be installed. The post can be moved together or apart: grasp one post in each hand, move the posts in opposing directions (like they were walking) while pushing them toward each other or away from each other.

3. Insert the cable in the proper hole. Insert the posts into the holes in the seat and carefully work the headrest into position. Make sure the cable is not pinched.

4. Run the cable down the seat and out to the location of the video source unit (such as a DVD player).

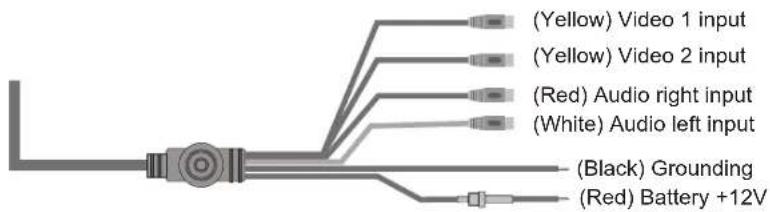

5. Connect the wires as indicated:

a. Red: Connect to a switched (+) 12 volt source (ACC). Use a lead that has (+) 12V when the ignition is on or in the ACC position so the monitors turn off when the key is in the off position. Wiring the monitors "hot" could cause your battery to run down when the engine is not running.

b. Black: Connect to a good chassis ground.

c. Reversing the polarity of the red and black leads will damage the monitor.

d. Connect the video input connector to the video output from the source unit (i.e.DVD player).

e. Test the system.

Install the Pillow

How to use the adapter tubes

Simple line drawing of two cylindrical objects with flanges, no text or symbols present

Since the spacing of the mounting holes can vary on different vehicles we supply two adapter tubes (12mm diameter). Use these tubes when the headrest mounting holes in your seat are too large for the posts of the headrest monitor.

Monitor Controls and Features

The monitor is designed to operate in ambient temperature from -20^ to +50^ . Do not bump or press on the screen as this may damage the unit, keep the unit away from moisture. Where are the specifications?

The specifications of this product are subject to our modification without notice.

1. V2 in(Alternate video input)
2. Roomoff

3. Activation of menu indicator

4. IR remote window

5. Negative adjustment
6. Positive adjustment

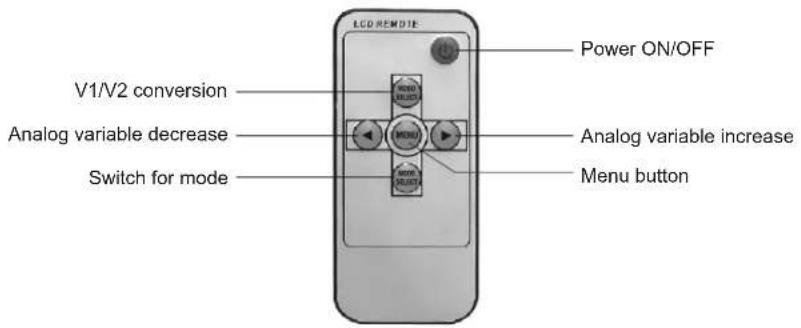

Remote Control

Changing the battery in the remote control

The remote battery is held in a small "drawer" on one edge of the remote. To open this drawer, press and hold the small button on the edge of this drawer (as shown below) and slide the drawer out.

Insert a new battery and push the drawer back fully into the remote.

Installation Diagram

Specification

• Available in BLACK, GRAY, TAN
• Adjustable mounting poles to fit any seat
• Poles adjustable from 12.5cm to 20cm
• 9" wide (16:9) TFT LCD monitor
• High resolution: 1024xRGBx600
• 1 set wired AV input
• Faceplate AV mini-jack input
• Color system: PAL/NTSC
• Contrast ratio: 300:1
• Brightness rating: 350 cd/m2
• Built in dual channel IR transmitter
  Channel A: 2.3Mhz (left), 2.8Mhz (right)
  Channel B: 3.2Mhz (left), 3.8Mhz (right)
• Operating Temperature: -20°C to 50°C
• Storage temperature: -10°C to 70°C
• Environmental humidity: <90%
• Power supply: DC 12V

Troubleshooting

If you experience operation or performance problems with this product, compare your installation with the electrical wiring diagram on the previous page. If problems persist, read the following troubleshooting tips which may help eliminate the problems.

SYMPTOM

No picture or sound.

No picture.

CAUSE

Power cord is not properly connected.

Video input cables not properly connected.

Video input source is not operating properly.

Video signal not present.

Contrast and/or brightness is set improperly.

REMEDY

Check that power connections are properly made and all fuses are in functioning condition.

Check all cables.

Replace or repair video source (DVD player, video game, etc.)

Check all cables. If necessary, repair or replace video source.

Adjust contrast and brightness levels to see if picture appears.

Accessories

9" TFT LCD Pillow Monitor 1

Wireless Remote Control 1

Assembling Stick 2

AV Input Line 1

Power Wire 1

User's Manual 1
