HD2070 - Milk frother PHILIPS - Free user manual and instructions

Product Type	Electric Milk Frother
Brand	Philips
Model	HD2070
Dimensions (H x W x D)	20.5 x 12.5 x 12.5 cm
Weight	0.65 kg
Power	350 W
Capacity	200 ml (max)
Voltage	220-240 V, 50-60 Hz
Materials	Stainless steel heating element, plastic body
Functions	Frothing cold milk, heating and frothing milk
Heating Method	Integrated heating plate
Frothing Mechanism	Whisk with motor
Control	Single button for on/off
Indicators	Power on LED, ready indicator
Cleaning	Non-stick interior, wipe clean with damp cloth; do not immerse
Safety Features	Auto shut-off, overheat protection
Cable Length	0.8 m
Warranty	2 years
Included Accessories	Instruction manual

Frequently Asked Questions - HD2070 PHILIPS

Can I use any type of milk with the HD2070?

Yes, the Philips HD2070 works with cow's milk, soy milk, almond milk, and other dairy or plant-based alternatives. For best frothing results, use cold milk with high protein content.

How do I clean the milk frother?

After use, unplug and let it cool. Wipe the interior with a damp cloth. Do not immerse in water. The whisk can be rinsed under running water if needed. Regular cleaning prevents milk residue buildup.

Can I heat milk without frothing?

No, the HD2070 is designed for both heating and frothing simultaneously. For plain heating, consider other models. The device automatically froths while heating.

What is the maximum capacity?

The maximum capacity is 200 ml. Do not exceed this level to avoid spillage during operation.

Does it have an auto shut-off feature?

Yes, the frother automatically shuts off when the cycle is complete or if it overheats, ensuring safety and preventing damage.

Can I use the frother to make hot chocolate?

Yes, you can heat and froth chocolate milk. Ensure the liquid is not too thick. The device works well with premade chocolate milk or hot chocolate mix.

Is the whisk removable?

Yes, the whisk attachment is removable for easy cleaning. Refer to the manual for proper removal and attachment instructions.

What does the indicator light mean?

When plugged in, a red light indicates the device is on. Once the cycle is complete, the light turns off, signaling that the milk is ready. Some models may have a blue light during operation.

Can I froth cold milk?

Yes, the HD2070 can froth cold milk. Simply use the cold setting if available. Otherwise, select the frothing function without heating. The whisk creates cold foam for iced drinks.

How long does a cycle take?

A typical frothing and heating cycle takes about 1-2 minutes. Cold frothing may take slightly less time. The device stops automatically when done.

USER MANUAL HD2070 PHILIPS

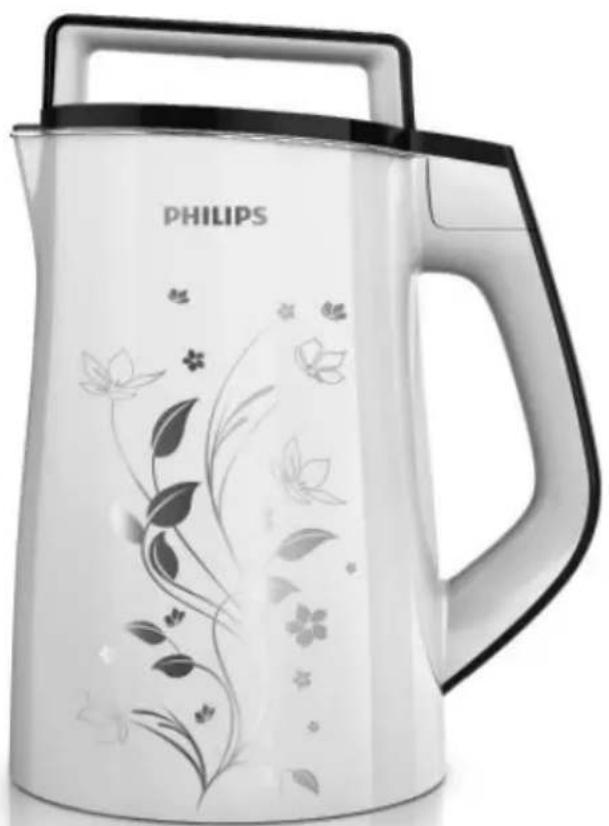

White Philips water heater with floral pattern design (no text or symbols visible)

White Philips water heater with floral decoration and black handle (no text or symbols on body)

User manual

Contents

1 Important 4
Electromagnetic Fields (EMF) 6
Conformity with national standards 6

2 Introduction 7

3 What's in the box 7

4 Overview 8

5 Cleaning before first use 9

6 Use the appliance 9

Make soymilk 9

Make fi ve-grain soymilk 11

Make rice paste 12

Make juice 14

Make vegetable puree 15

Make corn juice (HD2075 only) 17

Keep warm 18

7 Cleaning 19

Easy clean 19

8 Product information 20

9 Recycling 21

10 Guarantee and service 21

11 Troubleshooting 22

12 Recipes 25

Soymilk 25

Five grain soymilk 25

Rice paste 28

Juice 30

Vegetable puree 30

Corn juice 30

1 Important

Read this user manual carefully before you use the appliance, and save the user manual for future reference.

Before processing:

• Before you insert the plug into the power outlet, make sure that the appliance is assembled correctly.
  • Make sure that your hands are dry before you insert the plug into the power outlet.
• Before you connect the appliance to the power, make sure that the voltage indicated on the bottom of the appliance corresponds to the local power voltage.
• This appliance can only be used with an earthed plug. Make sure that the plug is firmly inserted into the power outlet.
• Never connect this appliance to a timer switch, to avoid a hazardous situation.
• Make sure that you clean the appliance before use (see the “Cleaning before first use” section on Page 9).

• Do not use this appliance to heat up other liquid foods.

• Never use the appliance for dry heating.

• Never add contents (including water) above 上水位 (the maximum level indication) or below 下水位 (the minimum level indication).
• If the power cord, the plug, or other parts are damaged, do not use the appliance.
• If the power cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons to avoid a hazard.
• Do not replace parts of the appliance yourself.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.
• For their safety, do not allow children to play with the appliance.
  • Make sure that the water you add into the soymilk maker is no hotter than 70^ C.
• This appliance is intended for household use only.

During processing:

• Do not use this appliance on an unstable or uneven surface.
• Keep the appliance and its power cord out of the reach of children.
• Never let the appliance run unattended.
• Do not touch the steam or the metal parts of the appliance, to avoid burns or scalding.
• Do not disconnect the power cord or remove the head unit before processing is complete.
• If you have to stop processing, disconnect the power cord before you perform other operations.
• If there is a power outage during processing and this lasts up to three minutes, do not immediately restart the soymilk maker. Empty the contents in the soymilk maker, and then put in new contents before restarting. Otherwise, the contents will stick to the chamber or overflow, or the appliance will set off a long alarm.

After processing:

• Disconnect the power before you continue other operations.
• Disconnect the power and remove the power cord before cleaning or disassembling this appliance.
  • To prevent steam scalding, keep a certain distance from the soymilk maker before you lift the head unit.
  • Install, remove, and clean the perforated flow cup with care. The blade on the head unit is sharp. Be careful not to cut yourself or others.
  • To prevent a short circuit or an electric shock,

- do not use water to rinse the outside of the chamber unit or head unit (including the head unit handle, control panel, upper plug, upper plug connector, and the power cord connector); and keep them away from drip or splash,

• do not place the head unit in water, and

• do not place the base of the soymilk maker in water.

- Use a microwave to heat up cold soymilk. Do not use this appliance to heat it, as the contents will stick to the inner side of the chamber.

• Store the power cord in a cool and dry place.
  • To prevent an electric shock, use the power cord to connect other appliances.
• Food coloring can discolor components. This is normal and has no impact on use.

Electromagnetic Fields (EMF

This Philips soymilk maker complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

Conformity with national standards

• GB4706. 1-2005, “Safety of household and similar electrical appliances”, Part 1 General requirements
• GB4706. 19-2008, “Safety of household and similar electrical appliances”, Particular requirements for appliances for heating liquids
• GB4706. 30-2008, “Safety of household and similar electrical appliances”, Particular requirements for kitchen machines

2 Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

- Philips soymilk maker HD2070 can be used to make beverages and food such as soymilk, fi ve-grain soymilk, rice paste, juice, and puree. It comes with keep warm and easy clean functions and an anti-overfl ow and anti-splash protective device. It is fully automated, easy to use, healthy, attractive, and durable .

- Philips soymilk maker HD2075 can be used to make beverages and food such as soymilk, fi ve-grain soymilk, rice paste, juice, puree, and corn juice. It comes with keep warm and easy clean functions and an anti-overfl ow and anti-splash protective device. It is fully automated, easy to use, healthy, attractive, and durable.

3 What's in the

Line drawing of a mechanical component with a handle and mounting bracket (no text or symbols)

Head unit

Chamber unit

Perforated flow cup

Power cord

Measuring cup

Filter

Soymilk cup

Cleaning pad

User manual

Warranty card

Tip

- Do not change the fi Iter direction. The convex fi Iter is a special design from Philips, which makes fi Itering much more efficient.

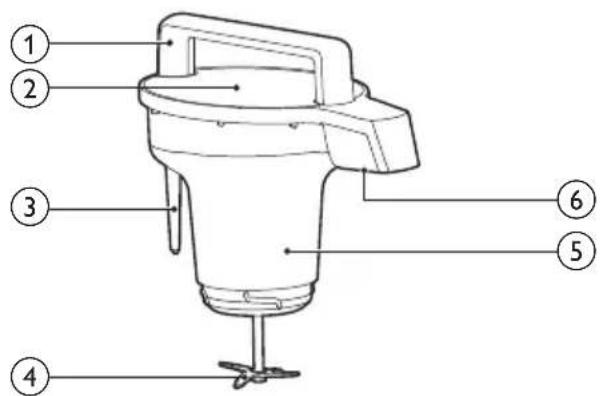

4 Overview ① Handle of the head unit

② Control panel

• Function buttons:

选择 (Select)

开始 (Start)

易清洗 (Easy clean)

- Indicators:

干/湿豆豆浆 (Soymilk)

五谷豆浆 (Five-grain soymilk)

营养米糊 (Rice paste)

果蔬冷饮 (Juice)

蔬菜浓汤 (Puree)

玉米汁 (Corn juice - only for HD2075)

工作中 (Working)

保温 (Keep warm)

易清洗 (Easy clean)

Labeled diagram of a mechanical device with numbered parts for identification

Simple line drawing of a beaker with bubbles and an arrow pointing to it, labeled with number 7 (no text or symbols on the object itself)

⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰

③ Overflow sensor
• Monitor soymilk and prevent overflowing
④ Blade
⑤ Lower part of the head unit
⑥ Upper plug
⑦ Perforated flow cup

- Increase the flow rate and make soymilk well balanced

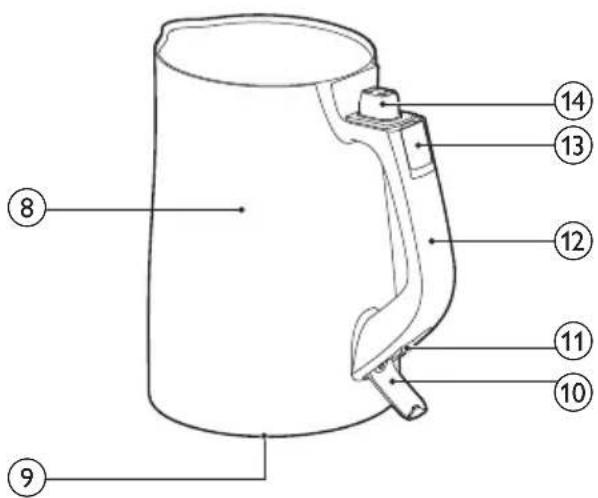

⑧ Chamber unit
⑨ Base
⑩ Protective cover of the power cord connector
⑪ Power cord connector
⑫ Chamber handle
⑬ Waterproof cover

- Prevent drip or splash

⑭ Upper plug connector

5 Cleaning before 6 Use the first use appliance

Method 1:

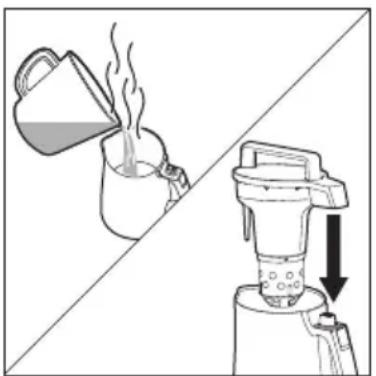

1 Pour boiling water into the chamber, put the head unit into the chamber, and soak for 10 minutes.

Illustration of a coffee maker being heated by a cup, with a side-view diagram showing the process (no text or symbols)

2 Clean the appliance (see the "Cleaning" section on Page 19).

Method 2:

1 Make soymilk following the instructions in the “Make soymilk” section.
2 After soymilk is made, pour it away and then clean the appliance (see the "Cleaning" section on Page 19).

Warning

- If you wish to cancel a function once it is selected, do not lift the head unit to prevent the facial scald. You can unplug the power cord, re-plug it, and then select another function.

Make soymilk

• Measure ingredients as instructed. You can adjust the quantity a bit as per your personal taste.
- For 2-4 people.

Note

- Make sure that the perforated flow cup is installed correctly before use.

1 Take a cup of dry soybeans with the supplied measuring cup and wash them clean.

- To increase the life of the blade, soak the soybeans (8-9 hours in fall and spring, 6-7 hours in summer, and 9-10 hours in winter) and wash them clean before processing.

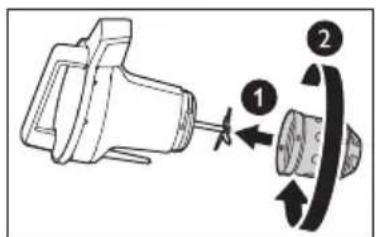

2 Install the perforated flow cup and rotate it to the correct position, as shown in the illustration.

→Make sure that it cannot be pulled off.

Diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or force

3 Put the soybeans evenly at the bottom of the chamber to prevent them from touching the perforated flow cup.

4 Pour water into the chamber. Make sure that the water level is between 上水位 (the maximum level indication) and 下水位 (the minimum level indication).

上水位 下水位

5 Put the head unit into the chamber. Make sure that the upper plug is correctly inserted into the connector.

Line drawing of a mechanical device with a downward arrow indicating a component (no text or symbols)

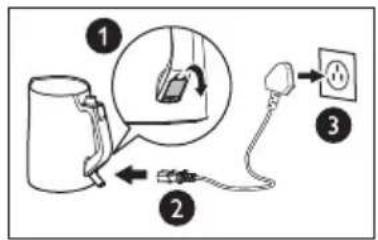

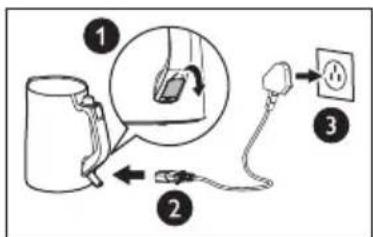

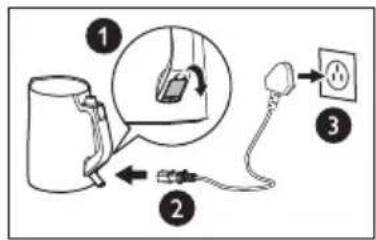

6 Open the protective cover, insert the power cord, and connect the power.

Diagram showing a device connected to an electrical outlet with labeled parts and a magnified inset showing internal components.

→ The indicators flash in a circle, indicating that the power is connected.

7 Press 选择 (Select) to select 干/湿豆豆浆 (Soymilk).

→The 干/湿豆豆浆 (Soymilk) indicator lights up.

8 Press 启动 (Start).

→The 工作中 (Working) indicator fl ashes and 1 beep occurs, indicating that processing starts. After about 24 minutes, 6 beeps occur and the 保温 (Keep warm) indicator lights up, indicating that soymilk is ready. If no other operations are performed, the appliance starts the keep warm function. The keep warm function lasts for 1 hour, and then automatically stops (see the "Keep warm" section on Page 18).

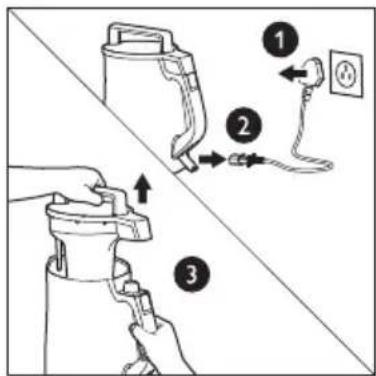

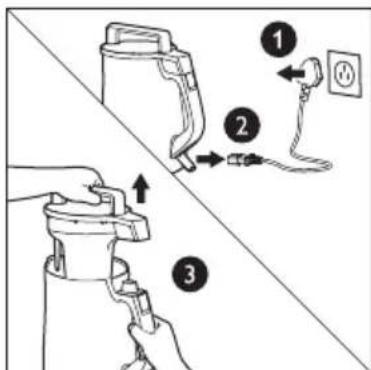

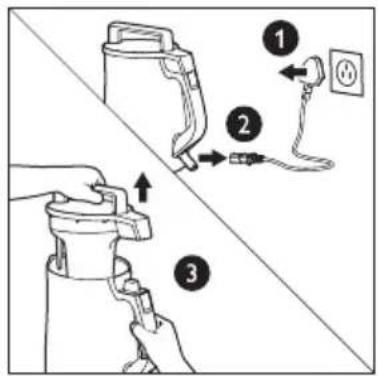

9 After processing, disconnect the power. Hold the handle of the chamber tightly with one hand and lift the head unit with the other hand.

Diagram illustrating three steps of a hand holding an electrical plug, with numbered instructions and electrical outlet symbols.

10 Filtrate soymilk with the filter, and it is ready to serve. You can add some sugar before serving.

- Soymilk can also be served without being fi trated.

Make fi ve-grain soymilk

• Measure ingredients as instructed. You can adjust the quantity a bit as per your personal taste.
• Example recipe: rice and soy bean milk, for 2-4 people.

Note

• Make sure that the perforated flow cup is installed correctly before use.

1 Take 30 g of soybeans (around 1/2 cup) and 50 g of rice (around 1/2 cup) with the supplied measuring cup and wash them clean.

• To increase the life of the blade, soak the soybeans (8-9 hours in fall and spring, 6-7 hours in summer, and 9-10 hours in

winter) and wash them clean before processing.

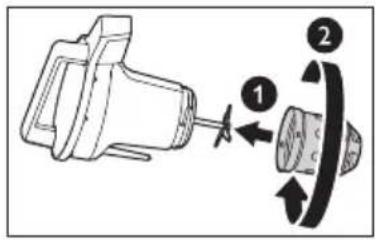

2 Install the perforated flow cup and rotate it to the correct position, as shown in the illustration.

→Make sure that it cannot be pulled off.

Technical diagram showing a mechanical assembly with labeled parts 1 and 2, likely illustrating a turning or disassembly process.

3 Put rice and the soybeans evenly at the bottom of the chamber to prevent them from touching the perforated flow cup.

4 Pour water into the chamber. Make sure that the water level is between 上水位 (the maximum level indication) and 下水位 (the minimum level indication).

• To shorten the processing time, you can add warm water no hotter than 70^ C.

上水位 下水位

5 Put the head unit into the chamber. Make sure that the upper plug is correctly inserted into the connector.

Line drawing of a mechanical device with a downward arrow indicating a component (no text or symbols)

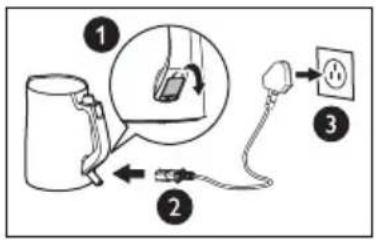

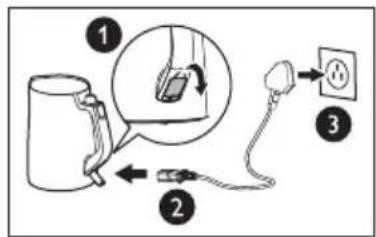

6 Open the protective cover, insert the power cord, and connect the power.

Diagram illustrating a medical or electrical procedure with labeled components: cup, plug, socket, and power outlet.

→ The indicators flash in a circle, indicating that the power is connected.

7 Press 选择 (Select) to select 五谷豆浆 (Five-grain soymilk).

→ The 五谷豆浆 (Five-grain soymilk) indicator lights up.

8 Press 启动 (Start).

→ The 工作中 (Working) indicator fl ashes and 1 beep occurs, indicating that processing starts. After about 25 minutes, 6 beeps occur and the 保温 (Keep warm) indicator lights up, indicating that soymilk is ready. If no other operations are performed, the appliance starts the keep warm function. The keep warm function lasts for 1 hour, and then automatically stops (see the “Keep warm” section on Page 18).

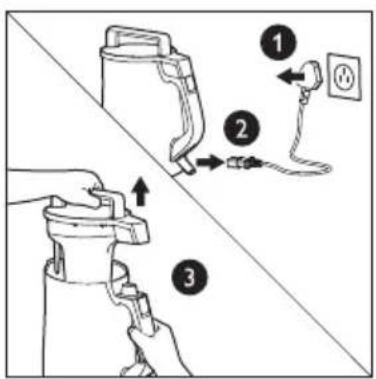

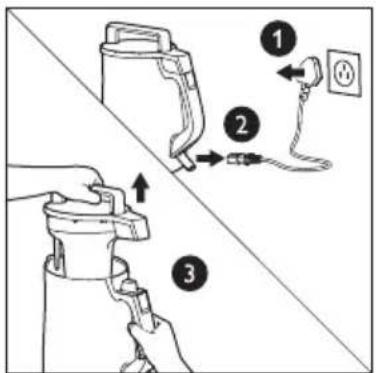

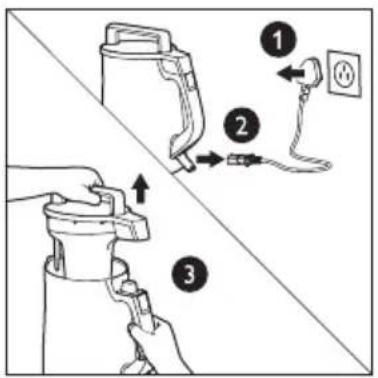

9 After processing, disconnect the power. Hold the handle of the chamber tightly with one hand and lift the head unit with the other hand.

Diagram illustrating three steps of a hairdryer tool: adding a cable, connecting to a power outlet, and adjusting the base.

10 Pour five-grain soymilk into the soymilk cup, and it is ready to serve. You can also add some sugar before serving.

Make rice paste

• Measure ingredients as instructed. You can adjust the quantity a bit as per your personal taste.
• Example recipe: lily bulb and Job's-tears rice paste, for 2-4 people.

Note

• Make sure that the perforated flow cup is installed correctly before use.

1 Take 35 g of Job's-tears and 35 g of rice (around 2/5 cup each) with the supplied measuring cup, take 20 g of fresh lily bulbs (around 7-8 pieces), and wash them clean.

2 Install the perforated flow cup and rotate it to the correct position, as shown in the illustration.

→Make sure that it cannot be pulled off.

Diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or force

3 Put the lily bulbs, Job's-tears, and rice evenly at the bottom of the chamber to prevent them from touching the perforated flow cup.

4 Pour water into the chamber. Make sure that the water level is between 上水位 (the maximum level indication) and 下水位 (the minimum level indication).

• To shorten the processing time, you can add warm water no hotter than 70^ C.

上水位 下水位

5 Put the head unit into the chamber. Make sure that the upper plug is correctly inserted into the connector.

Technical line drawing of a mechanical component with a downward arrow indicating a force or movement (no text or symbols present)

6 Open the protective cover, insert the power cord, and connect the power.

Diagram showing electrical connections with labeled components: plug, socket, and power outlet

→ The indicators flash in a circle, indicating that the power is connected.

7 Press 选择 (Select) to select 营养米糊 (Rice paste).

→ The 营养米糊 (Rice paste) indicator lights up.

8 Press 启动 (Start).

→The 工作中 (Working) indicator fl ashes and 1 beep occurs, indicating that processing starts. After about 25 minutes, 6 beeps occur and the 保温 (Keep warm) indicator lights up, indicating that soymilk is ready. If no other operations are performed, the appliance starts the keep warm function. The keep warm function lasts for 1 hour, and then automatically stops (see the “Keep warm” section on Page 18).

9 After processing, disconnect the power. Hold the handle of the chamber tightly with one hand and lift the head unit with the other hand.

Diagram showing three steps of a power plug installation: first, second, and third, with labeled components and directional arrows.

10 Pour rice paste into the soymilk cup, and it is ready to serve. You can add some sugar before serving.

Make juice

• Measure ingredients as instructed. You can adjust the quantity a bit as per your personal taste.
• Example recipe: banana juice, for 2-4 people.

Note

• Make sure that the perforated flow cup is installed correctly before use.

1 Cut 3 bananas (about 400 g) into 1.3-mm cubes.
2 Install the perforated flow cup and rotate it to the correct position, as shown in the illustration.

→Make sure that it cannot be pulled off.

Diagram showing mechanical assembly with labeled parts 1 and 2, likely illustrating a turning or disassembly process.

3 Put the banana cubes evenly at the bottom of the chamber to prevent them from touching the perforated flow cup.

4 Pour 200 ml of milk and some water into the chamber. Make sure that the water level is between 上水位 (the maximum level indication) and 下水位 (the minimum level indication).

上水位 下水位

5 Put the head unit into the chamber. Make sure that the upper plug is correctly inserted into the connector.

Line drawing of a mechanical component with a downward arrow indicating a force or movement (no text or symbols present)

6 Open the protective cover, insert the power cord, and connect the power.

Diagram illustrating a medical procedure with labeled steps: first, second, and third, showing a device connected to an electrical outlet.

→ The indicators flash in a circle, indicating that the power is connected.

7 Press 选择 (Select) to select 果蔬冷饮 (Juice).

→ The 果蔬冷饮 (Juice) indicator lights up.

8 Press 启动 (Start).

→The 工作中 (Working) indicator fl ashes and 1 beep occurs, indicating that processing starts. After about 4 minutes, 6 beeps occur, indicating that juice is ready.

9 After processing, disconnect the power. Hold the handle of the chamber tightly with one hand and lift the head unit with the other hand.

Diagram showing three steps of an electrical plug installation: first with a cable, second with a plug, and third with a plug.

10 Pour banana juice into the soymilk cup, and it is ready to serve. You can add some sugar before serving.

Tip

• After banana juice is ready, serve at once to avoid oxidization. • If you want to make juice multiple times, wait about 10 minutes until the appliance cools down before the next use. This makes the appliance more durable.

Make vegetable puree

• Measure ingredients as instructed. You can adjust the quantity a bit as per your personal taste.
• Example recipe: tremella, lotus seed, and mung bean soup, for 2-4 people.

Note

• Make sure that the perforated flow cup is installed correctly before use.

1 Take a cup of dry lotus seeds with the supplied measuring cup, take one piece of tremella, wash them clean and soak. Cut the soaked tremella into pieces the size of soaked soybeans.
2 Install the perforated flow cup and rotate it to the correct position, as shown in the illustration.

→Make sure that it cannot be pulled off.

Diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or force

3 Take 1/2 cup of mung beans with the supplied measuring cup and wash them clean. Put the cleaned ingredients evenly at the bottom of the chamber to prevent them from touching the perforated flow cup.

4 Pour water into the chamber. Make sure that the water level is between 上水位 (the maximum level indication) and 下水位 (the minimum level indication).

• To shorten the processing time, add warm water no hotter than 70^ C.

上水位 下水位

5 Put the head unit into the chamber. Make sure that the upper plug is correctly inserted into the connector.

Line drawing of a mechanical device with a handle and arrow indicating direction (no text or symbols)

6 Open the protective cover, insert the power cord, and connect the power.

Diagram showing a device connected to an electrical outlet, with labeled parts and a magnified inset showing the device's internal connection.

→ The indicators flash in a circle, indicating that the power is connected.

7 Press 选择 (Select) to select 蔬菜浓汤 (Puree).

→ The 蔬菜浓汤 (Puree) indicator lights up.

8 Press the 启动 (Start) button.

→The 工作中 (Working) indicator fl ashes and 1 beep occurs, indicating that processing starts. After about 25 minutes, 6 beeps occur and the 保温 (Keep warm) indicator lights up, indicating that vegetable puree is ready. If no other operations are performed, the appliance starts the keep warm function. The keep warm function lasts for 1 hour, and then automatically stops (see the “Keep warm” section on Page 18).

9 After processing, disconnect the power. Hold the handle of the chamber tightly with one hand and lift the head unit with the other hand.

Diagram illustrating three steps of a power plug installation: first, second, and third, with numbered instructions.

10 Pour puree into the soymilk cup, and it is ready to serve. You can add some sugar before serving.

Make corn juice (HD2075 only)

• Measure ingredients as instructed. You can adjust the quantity a bit as per your personal taste.
- For 2-4 people.

Note

• Make sure that the perforated flow cup is installed correctly before use.

1 Take 300-350 g of fresh corns (around 5-6 cups) with the supplied measuring cup and wash them clean.
2 Install the perforated flow cup and rotate it to the correct position, as shown in the illustration.

→Make sure that it cannot be pulled off.

Diagram showing a mechanical assembly with labeled parts 1 and 2, indicating directional movement or motion.

3 Put the fresh corns evenly at the bottom of the chamber to prevent them from touching the perforated flow cup.

4 Pour water into the chamber. Make sure that the water level is between 上水位 (the maximum level indication) and 下水位 (the minimum level indication).

• To shorten the processing time, add warm water no hotter than 70^ C.

上水位 下水位

5 Put the head unit into the chamber. Make sure that the upper plug is correctly inserted into the connector.

Technical line drawing of a mechanical component with a downward arrow indicating a force or connection (no text or symbols present)

6 Open the protective cover, insert the power cord, and connect the power.

Diagram illustrating a safety or electrical connection setup with labeled components and a magnified inset showing a device's rotation.

→ The indicators flash in a circle, indicating that the power is connected.

7 Press 选择 (Select) to select 玉米汁 (Corn juice).

→ The 玉米汁 (Corn juice) indicator lights up.

8 Press 启动 (Start).

→The 工作中 (Working) indicator fl ashes and 1 beep occurs, indicating that processing starts. After about 25 minutes, 6 beeps occur and the 保温 (Keep warm) indicator lights up, indicating that corn juice is ready. If no other operations are performed, the appliance starts the keep warm function. The keep warm function lasts for 1 hour, and then automatically stops (see the “Keep warm” section on Page 18).

9 After processing, disconnect the power. Hold the handle of the chamber tightly with one hand and lift the head unit with the other hand.

Diagram showing three steps of a plug or socket installation: first, second, and third, with numbered instructions and electrical connections.

10 Pour corn juice into the soymilk cup, and it is ready to serve. You can also add some sugar before serving.

Keep warm

After soymilk, rice paste, puree, or corn juice is made, 6 beeps occur and the 保温 (Keep warm) indicator lights up. If no other operations are performed, the appliance starts the keep warm function. The keep warm function lasts for 1 hour, and then automatically stops.

Tip

- If you lift the head unit as soon as processing is complete, the appliance does not start the keep warm function.

• The appliance does not start the keep warm function at the completion of juice making.

7 Cleaning

Note

• Disconnect the power and remove the power cord before cleaning or disassembling this appliance.
• Do not put the head unit in water.
  • To prevent scalding, do not touch the head unit, perforated flow cup, or the inner side of the chamber before they cool down.

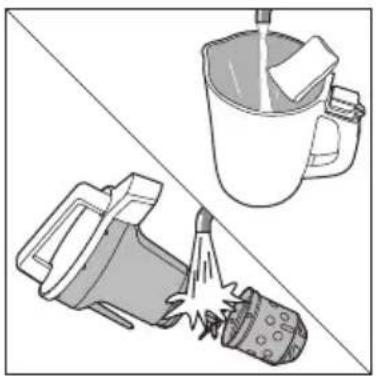

1 After disconnecting the power, lift the head unit, rinse the lower part of the head unit, overflow sensor, blade, perforated flow cup, and inner side of the chamber.

Illustration of a cleaning or dust removal process: a bucket pouring liquid into a container, and a tool emitting vapor (no text or symbols)

2 After the head unit cools down, remove the perforated flow cup. Rotate the perforated flow cup and remove it, as shown in the illustration. Take care of the sharp blade.

Diagram showing mechanical assembly with numbered components and directional arrows indicating motion or force

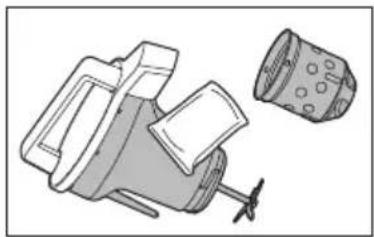

3 Use a cleaning pad to remove the residue from the lower part of the head unit, overflow sensor, and the blade.

Illustration of a mechanical device with a cylindrical component and a fan-like structure (no text or symbols)

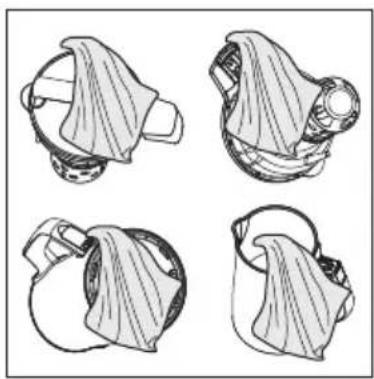

4 Use a dry cloth to clean the head unit handle, control panel, upper plug, upper plug connector, base, and power cord connector.

Four technical line drawings of a mechanical component or device, showing different angles and surfaces (no text or symbols)

5 The outside of the chamber can be cleaned with a damp cloth.

Easy clean

• After processing is complete, if you cannot promptly clean the residue on the appliance, the residue will dry up and stick on the appliance, diffi cult to remove. As this happens, you can use the easy clean function to heat and soak the inner side of the chamber and clean the appliance easier.

• To prevent the residue from smelling, clean the appliance within 10 hours after use.

1 Make sure that the perforated flow cup is correctly installed before use.
2 Pour water into the chamber. Make sure that the water level is between 上水位 (the maximum level indication) and 下水位 (the minimum level indication).
3 Put the head unit into the chamber. Make sure that the upper plug is correctly inserted into the connector.
4 Open the protective cover, insert the power cord, and connect the power.
→ The indicators flash in a circle, indicating that the power is connected.
5 Press 易清洗 (Easy clean).
→ The 易清洗 (Easy clean) indicator lights up and 1 beep occurs, indicating that the easy clean function starts. After about 8 minutes, 6 beeps occur and the 工作中 (Working) indicator lights up, indicating that the eay clean function is complete.
6 Clean the appliance as instructed in the "Cleaning" section.

8 Product information

Note

- Product information is subject to change without prior notice.

• Rated voltage: 220 V-
  • Rated frequency: 50 Hz
• Motor power: 180 W
  • Heating power: 900 W
• Dimensions (L × W × H)
• Soymilk maker:
• 1 × 176. 2 × 310. 3 mm
  • Packaging: 230 × 230 × 345 mm

- Weight

• Net weight: 2.64 kg
• Gross weight: 3.26 kg

• Capacity: 1000-1300 ml (for 2-4 people)

9 Recycling

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an offi cial collection point for recycling. By doing this, you help to preserve the environment.

10 Guarantee and service

If you have a problem, need service or need information, see www.philips.com/support or contact the Philips Consumer Care Centre in your country. The phone number is 4008 800 008.

11 Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, contact the Philips Consumer Care Centre in your country.

Problem Possible cause Solution
The indicators do not light up.	The upper plug is not plugged correctly.	Make sure that the head unit is put into the chamber correctly.
	Too much ingredient is added.	Put proper quantity of ingredient evenly at the bottom of the chamber as instructed.
	There is water in the head unit or the indicators are broken.	Contact the Philips Consumer Care Centre.
The indicators light up but the appliance does not work.	You do not press 启动 (Start).	Press 启动 (Start).
	The power is disconnected during processing.	Follow the instructions in this user manual.
	The appliance is broken. Contact the Philips Consumer Care Centre.
Processing will not stop.	The appliance is broken. Contact the Philips Consumer Care Centre.
The buttons do not work.	The appliance is broken. Contact the Philips Consumer Care Centre.
The beans or rice is not ground well.	The voltage is too low. Use a household power regulator.
	Too many beans are added. Put proper quantity of ingredient as instructed in the "Use the appliance" section.
	Insufficient water is added.	Make sure that the water level is between 上水位 (the maximum level indication) and 下水位 (the minimum level indication).
	The machine is broken.	Contact the Philips Consumer Care Centre.
Problem Possible cause	Solution
Overfl ow. A wrong function was selected. Select a correct function.
The water level is above 上水位 (the maximum level indication) or below 下水位 (the minimum level indication).		Make sure that the water level is between 上水位 (the maximum level indication) and 下水位 (the minimum level indication).
The appliance is broken. Contact the Philips Consumer Care Centre.
The time taken to process soymilk is longer than instructed, but other functions work well.
Food is burnt. A wrong function is selected. Select a correct function.
Problem Possible cause Solution
The beeps occur before soymilk is ready.	Too much ingredient is added.	Make sure that the water level is between 上水位 (the maximum level indication) and 下水位 (the minimum level indication).
	The appliance is broken. Contact the Philips Consumer Care Centre.
	The sea level of your region is too high.	This appliance can only be used in regions no more than 1000 m above mean sea level.
The appliance begins stirring once you press any button.	The appliance is broken. Contact the Philips Consumer Care Centre.

12 Recipes

For more recipes, you can visit Philips MyKitchen website www.philips.com/kitchen.

Soymilk

Tip

- For details on cooking, see the "Make Soymilk" section.

Soymilk

- Ingredients:

• 75 g of dry soybeans (a full cup)

- Benefits:

- Soybean: Nourishing. Good for digestion. Helpful to reduce phlegm and control blood pressure.

Black soyean milk

- Ingredients:

• 85 g black soybeans (a full cup)

- Benefits:

- Black soybean: Good for the kidneys, lungs, and hair. Known for their detoxing properties.

Red bean milk

- Ingredients:

- 90 g red beans (a full cup)

- Benefits:

- Red bean: Diuretic. Good for blood, body fruid, digestion, and skin. Helpful to reduce swelling in the intestines.

Mung bean milk

- Ingredients:

• 90 g of mung beans (a full cup)

- Benefits:

- Mung bean: Diuretic. Good for eyes. Helpful to control blood pressure and prevent oedema.

Five grain soymilk

Tip

- For details on cooking, see the "Make fi ve-grain soymilk" section.

Classic fi ve-grain soymilk

- Ingredients:

• 15 g of soybeans (around 1/5 cup)
• 20 g of rice (around 1/5 cup)
• 20 g of millet (around 1/5 cup)
• 15 g of oats (around 1/5 cup)
- 10 g of wheat

- Cooking: Wash the ingredients and soak for 6 hours. For details, see the "Make fi ve-grain soymilk" section.

- Benefits:

• Millet: Rich in female hormones. Good for skin and longevity.
• Oat: Helpful to reduce cholesterol and control blood sugar.

Black rice and soybean milk

- Ingredients:

• 50 g of black rice (around 1/2 cup)
  • 30 g of soybeans (around 1/2 cup)
• some black sesame seeds
• some sugar

- Cooking: Wash the black rice and soybeans and soak for 6 hours. For details, see the “Make fi ve-grain soymilk” section.

- Benefits:

• Black rice: Good for the blood and complexion.
• Soybean: Good for digestion. Helpful to reduce phlegm and control blood pressure.

Red bean and millet milk

- Ingredients:

• 50 g of red beans (around 1/2 cup)
  • 35 g of millet (around 2/5 cup)
• some sugar

- Cooking: Wash the red beans and millet and soak for 6 hours. For details, see the “Make fi ve-grain soymilk” section.

- Benefits:

• Red bean: Good for blood, body fruid, digestion, and complexion.
• Millet: Rich in female hormones. Good for the skin and longevity.

Rice and soybean milk

- Ingredients:

• 30 g of soybeans (around 1/2 cup)
- 50 g of rice (around 1/2 cup)
- some sugar

- Cooking: Wash the red beans and millet and soak for 6 hours. For details, see the “Make five-grain soymilk” section.

- Benefits:

• Rice: Good for the spleen, stomach, and lungs.
• Soybean: Good for digestion. Helpful to reduce phlegm and control blood pressure.

Pumpkin soybean milk

- Ingredients:

• 35 g of soybeans (around 1/2 cup)
• 35 g of pumpkin (around 1/2 cup)

- Cooking: Wash the soybeans and soak for 6 hours. Remove the pumpkin skin and cut the pumpkin into 1.3-mm cubes. For details, see the “Make fi ve-grain soymilk” section.

- Benefits:

• Soybean: Good for digestion. Helpful to reduce phlegm and control blood pressure.
• Pumpkin: Detox. Helpful to control sugar levels and quench thirst.

Sweet potato and soybean milk

- Ingredients:

• 40 g of sweet potato (around 1/2 cup)
  • 35 g of soybeans (around 1/2 cup)

- Cooking: Wash the soybeans and soak for 6 hours. Remove the sweet potato skin and cut the sweet potato into 1.3-mm cubes. For details, see the “Make fi ve-grain soymilk” section.

- Benefits:

• Soybean: Good for digestion. Helpful to reduce phlegm and control blood pressure.
• Sweet potato: Rich in nutrients. Helpful to increase appetite and strengthen the kidneys.

Foxnut and walnut paste

- Ingredients:

• 50 g of foxnut (around 1/2 cup)
• flesh of 10-15 walnuts
  • 5-10 Chinese dates (with stones removed)
• some sugar

- Cooking: Wash the Chinese dates and foxnuts and soak for 6 hours. Chop Chinese dates and walnut fl esh into small pieces. For details, see the “Make fi ve-grain soymilk” section.

- Benefits:

• Foxnut: Good for the kidneys. Helpful to relieve the nerves.
• Walnut flesh: Good for the kidneys, brain, lungs, and other respiratory organics.
• Chinese date: Good for the spleen, stomach, and respiratory organics. Helpful to enrich blood.

Black rice, soybean, and walnut milk

- Ingredients:

• 60 g of black rice (around 2/3 cup)
  • 30 g of soybeans (around 1/2 cup)
• flesh of 5 walnuts
• some sugar

• Cooking: Wash black rice and the soybeans and soak for 6 hours. Chop

walnut flesh into small pieces. For details, see the “Make fi ve-grain soymilk” section.

- Benefits:

• Black rice: Good for blood circulation and complexion.
• soybean: Good for digestion. Helpful to reduce phlegm and control blood pressure.
• Walnut flesh: Good for the kidneys, brain, lungs, and other respiratory organics.

Mung bean and Job's-tears paste

- Ingredients:

• 35 g of Job's-tears (around 2/5 cup)
• 35 g of mung beans (around 2/5 cup)
• 20 g of rice (around (1/5 cup)
• 10 g of oats (around 1/5 cup)
- some sugar

- Cooking: Wash and the ingredients and soak the Job's-tears, mung beans, and rice for 6 hours. For details, see the “Make fi ve-grain soymilk” section.

- Benefits:

• Mung bean: Diuretic. Good for eyes. Helpful to control blood pressure and prevent oedema.
• Job's-tear: Helpful to reduce vascular disease, reduce cholesterol, and improve complexion.

Walnut and cashew paste

- Ingredients:

• 35 g of rice (around 2/5 cup)
• 35 g of millet (around 2/5 cup)
- flesh of 5 cashews

• flesh of 5 walnuts
• 5-10 Chinese dates (with stones removed)
• 5-10 longans (with stones removed)
• some sugar

- Cooking: Wash rice and millet and soak for 6 hours. Chop walnut flesh, Chinese dates, and longans into small pieces. For details, see the Make fi ve-grain soymilk" section.

- Benefits

• Walnut flesh: Good for the kidneys, brain, lungs, and other respiratory organics.
  • Cashew: Good for the blood, brain, kidney, and spleen.
• Chinese date: Good for the spleen, stomach, and respiratory organics. Helpful to enrich blood.
• Longan: Good for the blood, heart, brain, and spleen.

Rice paste

Tip

- For details on cooking, see the “Make rice paste” section.

Complete nutritious rice paste

- Ingredients:

• 35 g of rice (around 1/2 cup)
• 15 g of millet (around 1/5 cup)
• 10 g of black sesame seeds
• 10 peanuts (with shells removed)
- flesh of 5 walnuts

• 5 Chinese dates (with stones removed)

- Cooking: Wash rice and millet and soak for 6 hours. Chop walnut flesh into small pieces. For details, see the "Make rice paste" section.

- Benefits

• Millet: Rich in female hormones. Good for the skin and longevity.
• Black sesame seed: Good for the kidneys, liver, lungs, and blood.
• Peanut: Good for the spleen and stomach.
• Walnut flesh: Good for the kidneys, brain, lungs, and other respiratory organics.
• Chinese date: Good for the spleen, stomach, and respiratory organics. Helpful to enrich blood.

Job's-tears and lily rice paste

- Ingredients:

• 35 g of Job's-tears (around 2/5 cup)
• 35 g of rice (around 2/5 cup)
- 20 g of fresh lily bulbs
- some sugar

- Cooking: Wash the Job's-tears and rice and soak for 6 hours. Wash and chop fresh lily bulbs into small pieces. For details, see the “Make rice paste” section.

- Benefits:

• Job's-tear: Helpful to make the skin beautiful and fair.
• Lily bulb: Helpful to make the skin beautiful and fair.

Yam and Chinese date rice paste

- Ingredients:

• 50 g of rice (around 1/2 cup)
• 30 g of yam
  • 5-10 Chinese dates (with stones removed)
• some crystal sugar

- Cooking: Wash the Chinese dates and rice and soak for 6 hours. Remove the skin of the yam and cut the yam into 1.3-cm cubes. For details, see the “Make rice paste” section.

- Benefits:

• Yam: Good for the spleen and stomach. Helpful to end diarrhea.
• Chinese date: Good for the spleen, stomach, respiratory system, and blood.

Lotus seed and peanut rice paste

- Ingredients:

• 60 g of rice (around 2/3 cup)
  • 20 peanuts (with shell removed)
• 10 g of lotus seeds
• some crystal sugar

- Cooking: Wash rice and the lotus seeds and soak for 6 hours. For details, see the “Make rice paste” section.

- Benefits:

• Lotus seed: Good for the heart and spleen. Helpful to end diarrhea and to calm down.
• Peanut: Good for the spleen, stomach, kidneys, and blood circulation. Helpful to regulate breathing.

Sweet potato and pumpkin rice paste

- Ingredients:

• 30 g of sweet potato (around 1/2 cup)
• 20 g of pumpkin (around 1/3 cup)
• 35 g of rice (around 1/3 cup)
• 35 g of millet (around 1/3 cup)

- Cooking: Wash millet and rice and soak for 6 hours. Remove the skin of sweet potato and pumpkin and cut them into 1.3-cm cubes. For details, see the “Make rice paste” section.

- Benefits:

• Sweet potato: Rich in nutrients. Helpful to increase positive energy, improve appetite, and strengthen the kidneys.
• Pumpkin: Helpful to increase positive energy, relieve pain, decrease toxicity, control sugar levels, and quench thirst.
• Millet: Rich in female hormones. Good for skin and longevity.

Almond rice paste

- Ingredients:

• 50 g of rice (around 1/2 cup)
• 40 g of almonds
• some crystal sugar

- Cooking: Wash rice and soak for 6 hours. For details, see the “Make rice paste” section.

- Benefits:

- Almond: Good for skin and complexion. Helpful to eliminate blemishes, freckles, and dark spots.

Juice

Tip

- For details on cooking, see the “Make juice” section.

Banana milkshake

- Ingredients:

• 400 g of banana
• 300 ml of milk

- Cooking: Remove the skin of the bananas and cut them into 1.3-cm cubes. For details, see the “Make juice” section.

Cucumber juice

- Ingredients:

• One cucumber (around 200 g)

- Cooking: Cut the cucumber into 1.3-cm cubes. For details, see the "Make juice" section.

Vegetable puree

Tip

- For details on cooking, see the “Make puree” section.

Tremella, lotus seed, and Chinese date puree

- Ingredients:

- Two pieces of tremella (around 10 g)

• 35 g of lotus seeds (around 1/2 cup)
• 30 g of Chinese dates (around 1/2 cup)

- Cooking: Wash tremella and soak for about 6 hours. Cut tremellas and Chinese dates into small pieces. For details, see the “Make vegetable puree” section.

- Benefits:

• Tremella: Good for the lungs, kidneys, and heart. Helpful to soothe a cough.
• Lotus seed: Good for the heart and spleen. Helpful to end diarrhea and to calm down.
• Chinese date: Good for the spleen, stomach, respiratory system, and blood. Helpful to increase energy.

Corn juice

- Ingredients:

• 300-350 g of fresh corns (around 5-6 cups)

- Cooking: Cut the cucumber into 1.3-cm cubes. For details, see the "Make juice" section.

- Benefits:

- Corn: Good for lungs, digestion, and longevity. Helpful to regulate the appetite and to calm down.

PHILIPS
