| Product Type | Network Adapter / IP Paging Adapter |
| Model | VIP-812 |
| Brand | Valcom |
| Dimensions (H x W x D) | 1.2 x 4.5 x 3.5 inches |
| Weight | 0.5 lbs (227 g) |
| Power Supply | Power over Ethernet (PoE) IEEE 802.3af |
| Audio Input | Balanced line-level audio input (3.5 mm) |
| Audio Output | 2.5 W RMS speaker output (8 Ω) |
| Network Interface | 10/100 Mbps Ethernet RJ-45 |
| Protocol Support | SIP (RFC 3261), HTTP, DHCP, DNS |
| Mounting | Wall-mountable with included bracket |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Humidity | 10% to 90% non-condensing |
| LED Indicators | Power, Link, Activity |
| Primary Function | IP paging, background music, emergency announcements |
| Maintenance & Cleaning | Wipe with a soft, dry cloth; do not use liquids or aerosols |
| Safety Certifications | UL 60950-1, FCC Part 15 |
| Spare Parts & Repairability | No user-serviceable parts; contact Valcom support for repairs |
| Package Contents | VIP-812 unit, mounting bracket, screws, quick start guide |
Frequently Asked Questions - VIP-812 Valcom
What is the Valcom VIP-812?
The Valcom VIP-812 is a network adapter designed for IP paging and audio distribution systems. It allows you to receive SIP-based page announcements and play background music over a standard Ethernet connection.
How is the VIP-812 powered?
The device is powered via Power over Ethernet (PoE) using an IEEE 802.3af compliant switch or injector. No separate power adapter is needed.
What are the audio output capabilities?
The VIP-812 provides a built-in 2.5 W RMS amplifier for an 8-ohm speaker. It can also output line-level audio via a 3.5mm jack for external amplification.
Can it be used for emergency announcements?
Yes, when configured with a SIP server or paging system, the VIP-812 supports emergency paging with high priority over other audio sources.
What network protocols does it support?
It supports SIP (RFC 3261), HTTP, DHCP, DNS, and TCP/IP for integration with VoIP PBX systems and network management.
How do I mount the VIP-812?

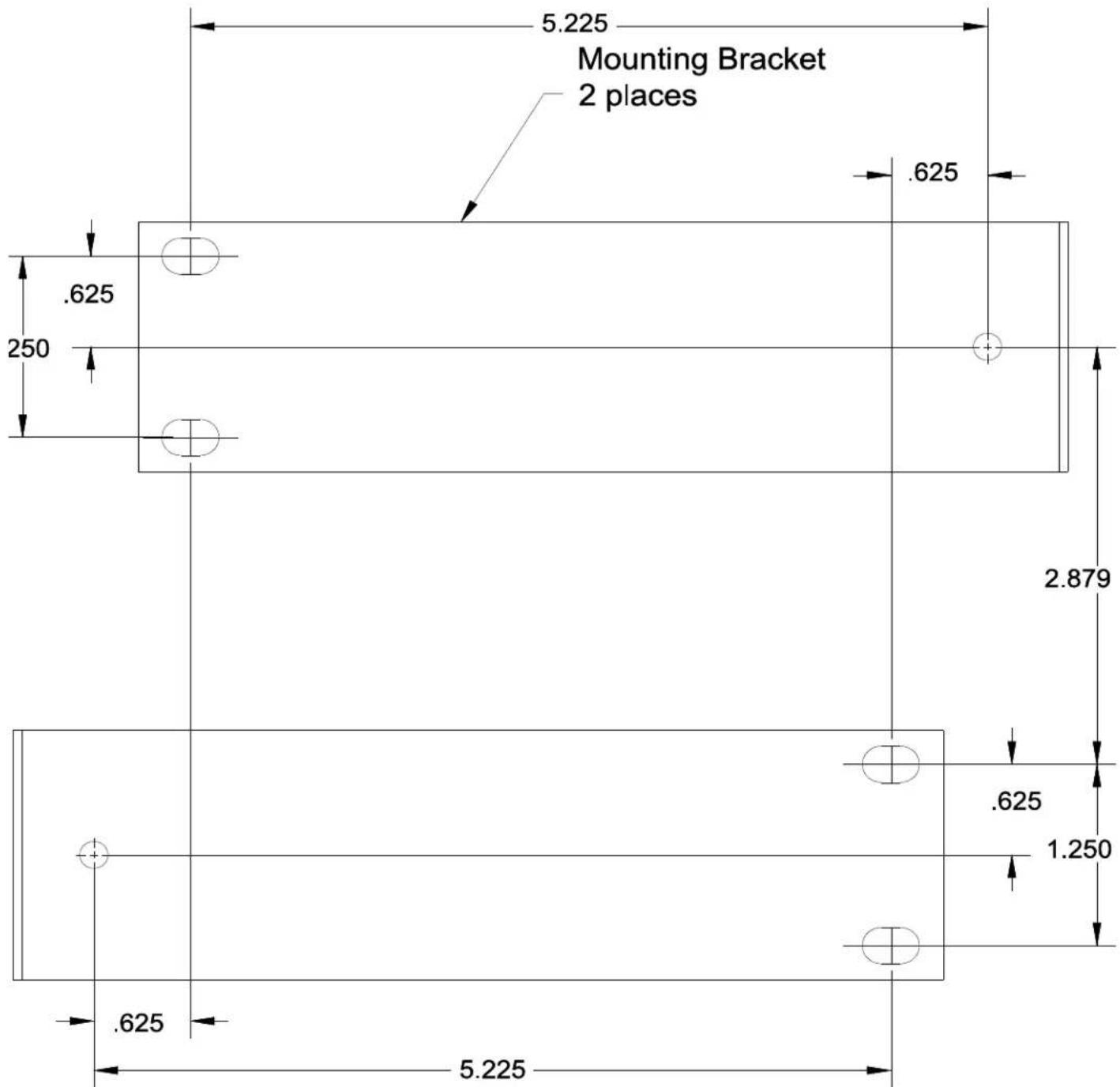

The unit can be mounted on a wall using the included bracket. Attach the bracket with screws (not provided), then slide the VIP-812 onto it until it clicks.
Is the VIP-812 compatible with any SIP-based system?
It is designed to work with any SIP-compatible PBX or paging server, such as Asterisk, 3CX, or BroadSoft. Check Valcom's compatibility list for specific models.
How do I reset the device to factory defaults?
Press and hold the reset button located on the side for 10 seconds using a paperclip. The LEDs will flash to indicate a successful reset.
What is the warranty period?
Valcom provides a limited lifetime warranty for the VIP-812. Contact Valcom customer support for details and return authorization.
Can I use the VIP-812 in outdoor environments?
No, the VIP-812 is intended for indoor use only. It is not weatherproof; exposure to moisture or extreme temperatures may damage the unit.
