USER MANUAL KI305SS KELVINATOR

Kelvinator®

SINGLE DOOR FREEZER

MODEL: KI305UF/KI305UFS

PNC No. 928462113/ 928462114

INSTRUCTION MANUAL

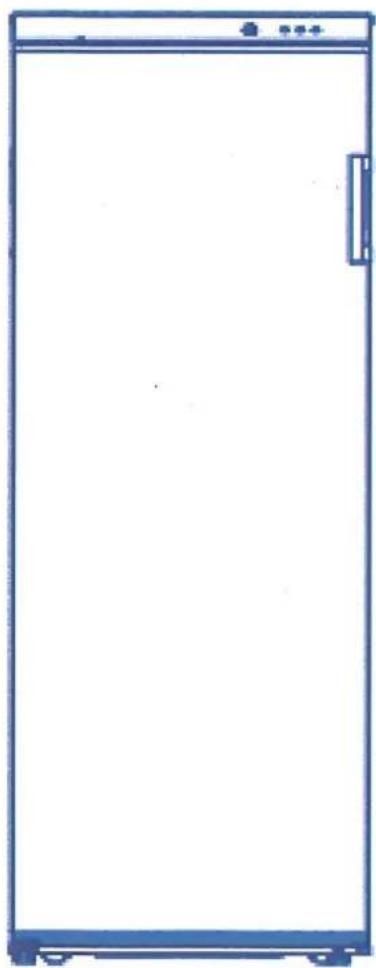

Front view of a simple blue refrigerator with lid and front panel (no text or symbols)

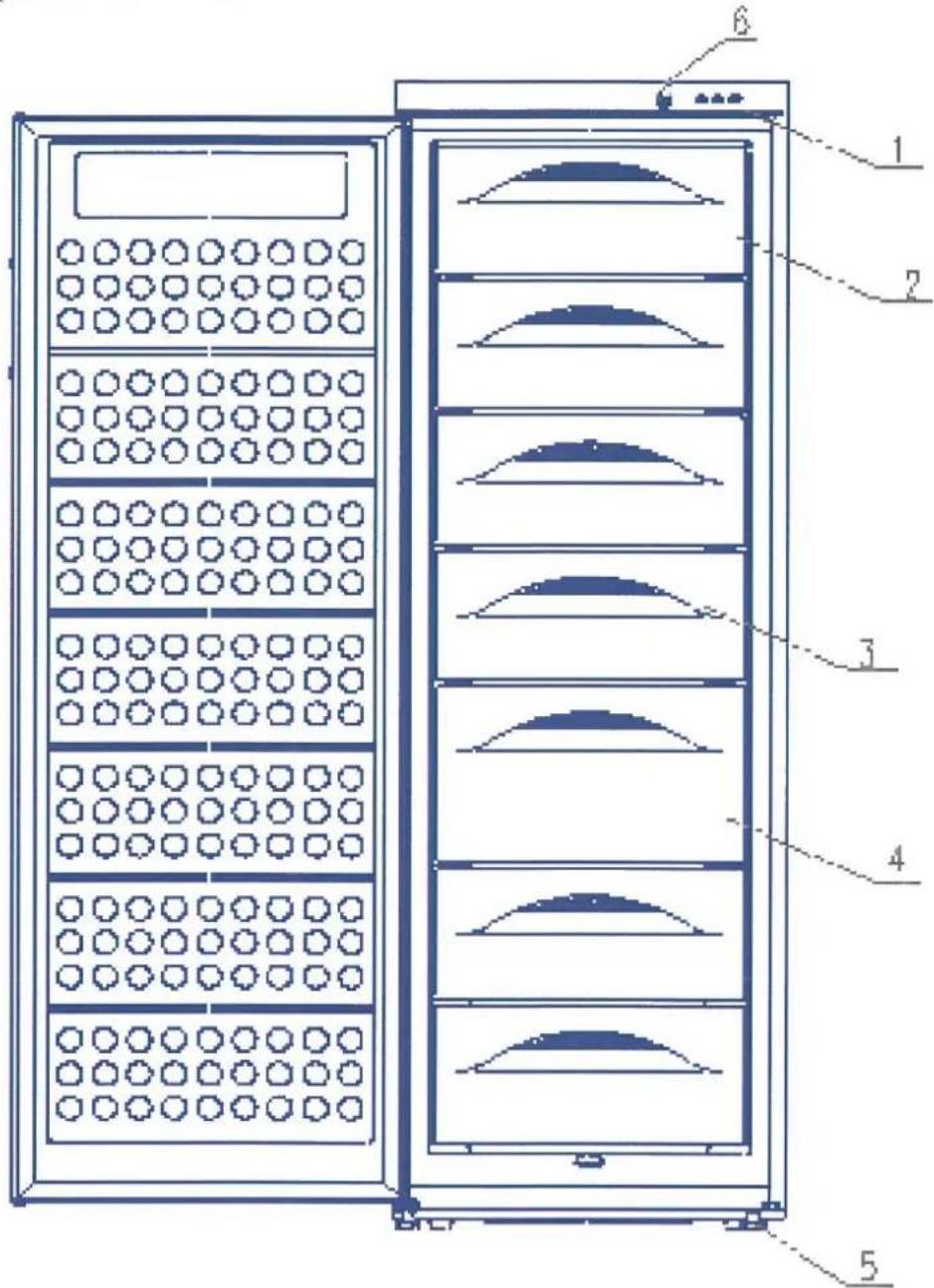

General Description of Freezer

Technical diagram of a multi-tiered storage or drying unit with labeled components and internal compartments

1. Upper Cover
   3.Middle drawer

2. Adjustable Feet

3. Freezer Flap

4. Big drawer
5. Thermostat Device

1 2 0 3 5 4

Storage of Food

1. How to Use the Freezer

*Put fresh and clean food such like fish, meat into freezer to frozen store, therefore the taste and nutrient of food are preserved.

*Wrap food to be frozen in ALUMINIUM FOIL or place it in AIRTIGHT boxes.

*Do not allow already frozen food into direct contact with food to be frozen.

*If you buy deep frozen food in the shops, bring it home and place it in freezer as quickly as possible so that the time during which it kept in the air temperature is as SHORT AS POSSIBLE.

*Never place vegetables and fruits into freezer compartment in order to prevent them from being frostbitten.

2. Fast Freezing

*Our freezers have a function of fast freezing. Compared with common freezing, fast freezing can pass the zone in the fastest speed where the biggest ice crystals are formed. Fast freezing enables the smallest ice crystals to form in the inside of food. Due to not penetrating the cell membranes of the food, cytoplasm will not flow out while frost is being removed, thus the taste and the nutrient of food are preserved.

*The fresh fish and meat to be stored for a long period of time should be fast frozen for this purpose.

*When fast freezing, please set the temperature control selector to the mark "5", after fast freezing, set it to another position.

Transportation and Handing

When transporting, hold the base and lift the freezer carefully with the tilted angle less than 45 degrees. Never hold the door handle as support. Never place it upside down horizontal wise.

Installation

1. Install the freezer at a place with a flat, firm ground, in order to prevent vibration and noise.
2. Choose a well-ventilated place. A space of no less than 10cm must be left around the freezer.
3. Choose a location where there is no heat source. Keep the freezer away from direct sunlight and oven etc.
4. Choose a dry and well-ventilated place where there is no corrosive air.

Testing

1. Clean the parts of the freezer with lukewarm water containing a little neutral detergent and with clear water, and wipe them dry.

Notes: Electric parts of the freezer can only be wiped by dry cloth.

1. Turn the thermostat knob to the "3" position, turn on electricity. The compressor will begin to work.

2. Open the door 30 minutes later, if the temperature in the freezer decreased, it shows that the freezer system works well. When the freezer operates for a period of time, the temperature controller will automatically set the temperature within limits it opens.

Temperature Control

1. The temperature in the refrigerator compartment and freezer compartment is controlled by the temperature controller installed on the side wall of the refrigerator compartment.
2. Turn the thermostat knob to right or left, you can regulate the temperature inside the refrigerator.
3. The marks on the knob are the temperature grades, not the exact number of the degrees of temperature."0" shows a forced STOP and "5" shows the lowest temperature. Turn the knob from "1" position to "5" position, the temperature decreases continuously. You may set the temperature control selector to any position according to what you need
4. Please set the selector to "3" position in normal use.

building in, clear of obstruction.

*Warning - Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

*Warning - Do not damage the refrigerant circuit.

*Warning - Do not use electrical appliances inside the food storage of the appliance unless they are of the type recommended by the manufacturer.

*If the appliance can not be used any more, please release the refrigerant before abandoning at a place exposed to the air and away from tinderbox.

General Instructions for Care and Maintenance

The freezer should be cleaned every other month, before cleaning; the electric plug must be removed from the power supply.

Wipe the inside and outside of the freezer with a wet soft cloth.

If it's too dirty, clean with a soft cloth soaked with neutral detergent and clean water, remove the moisture with dry cloth.

If you are going away on holiday or for any other reason, wish to leave the freezer idle for any period of time, proceed as follows:

*Disconnect the freezer from the electric power supply by removing the plug from the wall socket.

*Remove all food.

*Clean and dry the inside as instructed in the direction given above for cleaning.

*Leave the doors open to prevent any unpleasant smells from building up while the freezer is not used.

Cleaning:

*When cleaning the freezer the electric plug must be removed from the power supply.

*Use water and a non-abrasive detergent.

*Clean with a soft cloth soaked in this solution and remove moisture with a dry cloth.

Working Defects and Failures

Symptom:

Appliance not working at all.

Cause:

The power supply plug is not inserted in the wall socket or the plug and the outlet is loose.

Defrosting

1. When the freezer has been working for a period of time, the surface of the evaporator and the drawer will be covered with a layer of white frost. It may raise the electricity consumption and lessen the effect of refrigeration. Then you should defrost at once.
2. When defrosting, cut off the power, open the door and move frozen foods to a shady and cooling place, defrost with a plastic scraper, or let the temperature rise naturally till frost melts. Then wipe away remaining ice and water, and switch on electricity again.

Notes: Never use sharp metal tools or it will damage the freezer.

Notes:

*The appliance should be so positioned that the plug is easily accessible.
*If the supply cord is damaged, the manufacturer or its service agent or a similarly qualified person must replace it in order to avoid a hazard.
*The appliance should not be used in open air and should not be exposed to rain.
*Do not store chemicals like, methanol, gasoline etc., which is easy to evaporate burn or explode.
*Do not place something too heavy on the top of freezer and do not pour water on it.
*Do connect your freezer to an independent electrical socket and use a safe ground wire. The voltage should be limited within the ranges from 187V to 242V, or the main motor will be damaged.

*Turn on electricity only 5 minutes later after electricity goes off. Otherwise, the compressor may be damaged.

*In order to save electricity consumption, keep air circulation during operation and the package base should be taken away.

*Sure to keep electrical wire away from compressor and condenser, or its insulation function will be spoiled by high temperature.

*To save the energy, you should reduce the frequency and duration of the opening of the door.

*When the frost in freezer is removed, or where there is no electricity or when freezer ceases to be used, it should be cleaned in time in order to prevent it from smelling. Too much frost may affect refrigeration.

*Do not touch the food in the freezer box or container (especially metal container) with wet hands or you will get frostbite.

*Do not use the prolonged power cord.
*If your freezer is with lock, to avoid children shut into the freezer, do not leave the key near the freezer or other place easy to be touched by children.
*Warning-Keep ventilation openings in the appliance enclosure or in the structure for

Due to some anomaly in the household electric supply circuit, no power is reaching the freezer supply socket. Plugging in a light or any other electric appliance into the suspect socket can check this.

The voltage is too low.

Symptom:

Noisy running.

Cause:

The appliance has not been properly leveled.

The freezer is in contact with the wall.

The accessories in the freezer are placed in the wrong position.

If your freezer shows other symptoms from those described above, or if you have check all items listed as the causes and the symptom still exist, then call the service department.

The Following are not Breakdowns

1. Refrigerant running in pipes gives forth a gentle sound of water running in pipes.
2. During humid seasons, the outer surface of freezer may be covered with moisture which should be simply wiped away.
3. The compressor may be heated to the extent that scalding your hand in summer during freezer operation.
4. Doorframe heat means the anti-dew tube is working during refrigerator operation.

Diagram of Circuit Principles

Due to product's changing and improving, the exact product for the consumer may not correspond with some details in the instruction. Please accept our apology for no information in advance.
