Product Type	FM Transmitter / Car Audio Interface
Brand	Scosche
Model	FMTD1
Category	Hi-Fi System
Dimensions	4.5 x 2.5 x 1.2 inches (114 x 64 x 30 mm)
Weight	2.5 oz (71 g)
Power Source	12V DC cigarette lighter adapter
Frequency Range	88.1 – 107.9 MHz
Audio Input	3.5 mm auxiliary input
Functions	FM transmission, audio streaming, hands-free calling
Key Features	Clear FM signal, easy tuning, built-in microphone
Compatibility	Smartphones, MP3 players, tablets
Maintenance	Wipe with dry cloth; avoid liquids
Safety	Do not expose to moisture; unplug when not in use
Spare Parts / Reparability	Not user-serviceable; contact support for issues
Warranty	1 year limited warranty

Frequently Asked Questions - FMTD1 Scosche

How do I set up the Scosche FMTD1?

Plug the device into your car's 12V cigarette lighter. Connect your audio source via the 3.5mm aux cable. Tune your car radio to an unused FM frequency, then adjust the FMTD1 to the same frequency using the tuning button.

What devices are compatible with the FMTD1?

The FMTD1 works with any device that has a 3.5mm headphone jack, such as smartphones, MP3 players, and tablets.

Why is there static or interference?

Try changing the FM frequency to a station with no broadcast in your area. Also, ensure the aux cable is fully plugged in and the device is not near other electronics.

Can I use it with a USB-C or Lightning device?

Yes, if you have a compatible 3.5mm adapter for your device. The FMTD1 uses standard analog audio input.

Does it support hands-free calling?

Yes, the FMTD1 has a built-in microphone for hands-free calls. When a call comes in, audio will transmit through your car speakers.

How do I find the best FM frequency?

Scan your car radio for a station with silence or static. Choose that frequency on both the radio and the FMTD1.

Does it charge my phone?

No, the FMTD1 is a transmitter only and does not provide charging capabilities.

What is the transmission range?

The range is typically up to 10–30 feet, but it is designed for use inside the vehicle.

How do I clean the device?

Use a soft, dry cloth to wipe the exterior. Do not use liquids or abrasive cleaners.

The device is not powering on. What should I do?

Check that the cigarette lighter socket is working and that the plug is fully inserted. If it still doesn't work, try another vehicle or contact Scosche support.

USER MANUAL FMTD1 Scosche

TRANSMISOR DIGITAL DE FM CON PUERTO CARGADOR USB

FMTD1/FMTD1R

.ЭНДЗОДС

SCOSCHE®

FMTD1/FMTD1R

DIGITAL FM TRANSMITTER WITH USB CHARGE PORT

INTRODUCTION

Congratulations on purchasing the Scosche FMTD1 Digital FM Transmitter. This product is designed to give you the latest technology in transmitting sound through an FM Frequency. This system also allows you to integrate any style of MP3 player via a 3.5mm input. Conveniently there is also a USB charging port for most USB charging cables.

PARTS LIST

(1) Digital FM Transmitter (1) 3.5mm to 3.5mm Audio Cable

If you have any further questions, call our toll free technical help line at: ©2007 SCOSCHE INDUSTRIES, INC.

1-800-621-3695x3

SI 9/07 300FMTD1/FMTD1R

OVERVIEW

FIGURE 2

FIGURE 3

SPECIFICATIONS:
Input: 12v DC Power
USB Output: 5v DC Power (500ma max)
NOTE: To avoid danger of electrical
shock, fire, or personal injury, DO NOT
OPEN CASE!

1. Plug the FMTD1 into the cigarette lighter or 12v DC power socket in your dash. The frequency display helps you indicate that the FMTD1 has power.

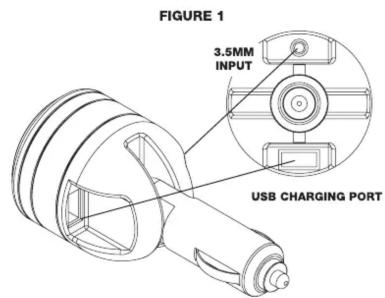

2. For iPod®/iPhone™/MP3 players, use the 3.5mm to 3.5mm audio cable. Insert the 3.5mm cable into the headphone jack of the iPod/iPhone/MP3 player then plug the other end of the cable to the 3.5mm input on the FMTD1 (located on the rear side of the FMTD1). See Figure 1 for reference.

TUNING THE FMDT1

1. With the FMTD1 connected and all cable connections made, select a FM frequency range by pressing the (+) or (-) buttons on the FMTD1, until your desired frequency is selected (see Figures 2 & 4). The frequencies are displayed on the LCD screen. Hint: Scan your FM radio for the frequency that comes through the LEAST as far as signal goes, this may maximize the sound quality of the MP3 on your radio.
2. Tune the radio to the corresponding station selected on the FMTD1 unit.
3. Power up and play your iPod/iPhone/MP3 player. You should hear sound from the iPod/iPhone/MP3 player through your stereo speakers. Adjust the volume on your portable player to about 3/4 of the maximum volume, and then adjust the volume output through the stereo. For future reference, set the selected radio station to a FM radio preset button. If there is excess/unwanted static/noise, then select a different frequency on the FMTD1 and change the radio to the new selected frequency.

FIGURE 4

CHARGING OTHER PRODUCTS VIA THE USB PORT

1. Plug in the USB cable supplied with your iPod/iPhone/MP3 player or other device, cell phone, etc. into the back side of the FMTD1 (for other products, please reference your owner's manual for USB specifications).
2. Plug in the other side of the cable into your portable device.

TROUBLESHOOTING
PROBLEM	SOLUTION
The transmitter does not turn on.	Try checking the cigarette lighter fuse and/or make sure the FMTD1 is inserted properly into the socket.
There is no sound from the iPod through the radio.	Make sure the 3.5mm audio cable is properly connected. Also make sure the volume on the portable unit is turned up 3/4 of the maximum volume.Make sure the radio corresponds to the frequency that you have chosen on the transmitter.

FCC AUTHORIZATION

This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: 1) This device may not cause interference, and 2) this device must accept any interference that may be received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. Such modification could void the user's authority to operate the equipment.

FCC ID: IKQFMTD1

LIMITED WARRANTY

Scosche Industries Inc. warrants this product to be free from defects in material and workmanship for a period of 90 days from purchase. This Scosche product is sold with the understanding that the purchaser has independently determined the suitability of this product. This warranty is offered to the original purchaser of the product only. This warranty does not cover the product if physically damaged, subject to negligence or misuse, abuse, alteration, accident, or an act of GOD. This warranty does not apply to product which has water or physically damaged by accident or which has been misused, disassembled or altered.

The original dated sales slip or proof of purchase will establish warranty eligibility. If the product should prove defective within the warranty period, return the product with proof of purchase to Scosche Industries Inc. Scosche, at its option, will replace or repair the product free of charge and return the product postage paid.

In no event shall Socsche Industries, Inc. be responsible for claims beyond the replacement value of the defective product, or in any way be liable or responsible for consequential or incidental damages. No empress warranties and no implied warranties, whether for fitness or any particular use or otherwise, except as set forth above (which is made expressly in lieu of all other warranties) shall apply to products sold by Socsche. Socsche Industries cannot be held responsible for discrepancies/inconsistencies that may occur due to automotive manufacturing changes or option.

iPod® & iPhone™ are trademarks of Apple Inc., registered in the US and other countries.
