Product Type	2-Way Bookshelf Speaker
Model	GTV-CR-2SP
Brand	Gefen
Dimensions (H x W x D)	256 x 145 x 184 mm (10 x 5.7 x 7.2 in)
Weight (per speaker)	6.4 lbs (2.9 kg)
Impedance	4 Ohms
Power Handling (RMS)	50 W
Sensitivity	85 dB (2.83V @ 1m)
Frequency Response (-3dB)	75 Hz - 18 kHz
Frequency Response (-10dB)	60 Hz - 20 kHz
Maximum SPL (Average/Peak)	99 dB / 105 dB
Long Term Power	30 W
Low Frequency Driver	1 x 100 mm (4 in) with 25 mm voice coil, ferrite motor, paper cone, NBR rubber surround
High Frequency Driver	1 x 25 mm (1 in) silk dome with neodymium motor
Enclosure Type	2-Way Reflex (ported)
Enclosure Material	Medium Density Fibreboard (MDF)
Finish	Matte
Connections	5-way binding posts (accepts bare wire, spade lug, pin, banana, dual banana)
Mounting	Wall mountable (bracket compatible with GTV-MB-CRSP)
Recommended Crossover (with subwoofer)	80 Hz
Warranty	2 years from date of shipment
Included Accessories	Pair of CR-2SP speakers, user manual

Frequently Asked Questions - GTV-CR-2SP Gefen

What is the maximum power handling of the Gefen GTV-CR-2SP speaker?

The speaker is rated for a maximum power handling of 50 Watts RMS.

Can I mount the GTV-CR-2SP on a wall?

Yes, the speaker is designed to be wall mounted. Gefen recommends using the GTV-MB-CRSP mounting bracket. Ensure any bracket can support at least 6.4 lbs (2.9 kg).

What type of speaker wire connections are supported?

The binding posts accept bare wire, spade lugs, pin connectors, banana plugs, and dual banana plugs.

What is the impedance of the GTV-CR-2SP?

The nominal impedance is 4 Ohms.

How should I set the crossover if using a subwoofer?

Set the amplifier/receiver to 'small' speaker setting and use a crossover frequency of 80 Hz.

What are the dimensions of the speaker?

Each speaker measures 256 x 145 x 184 mm (10 x 5.7 x 7.2 inches).

What is the frequency response of the GTV-CR-2SP?

The frequency response is 75 Hz - 18 kHz at -3dB, and 60 Hz - 20 kHz at -10dB.

How do I clean the speaker grille?

Gently vacuum the removable grille using a soft brush attachment. Avoid using water or cleaning solvents.

Does the warranty cover shipping costs outside the US?

No, customers outside the US are responsible for shipping charges to and from Gefen for warranty service.

What is the recommended amplifier power for these speakers?

Use an amplifier that delivers up to 50 Watts RMS per channel at 4 Ohms to avoid damage.

USER MANUAL GTV-CR-2SP Gefen

Modern living room interior with large windows overlooking mountains, a flat-screen TV, and a sofa (no visible text or symbols)

Gefen tv

Gefen TV CR Speaker

GTV-CR-2SP - GTV-CR-3SP - GTV-CR-5SP

User Manual

Technical Support:

Telephone	(818)	772-9100
	(800)	545-6900
Fax	(818)	772-9120

Technical Support Hours:

8:00 AM to 5:00 PM PST Monday thru Friday.

Write To:

Gefen Inc.

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefentv.com

[e-mail]

Notice

Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice.

Gefen TV CR Speaker is a trademark of Gefen Inc.

1 Introduction
2 Operation Notes
3 Features
4 Panel Layout
5 Panel Descriptions
7 Specifications
8 Warranty

6 Connecting And Operating The Gefen TV CR Speaker

Congratulations on your purchase of the Gefen TV CR Speaker. Your complete satisfaction is very important to us.

Gefen TV

Gefen TV is a unique product line catering to the growing needs for innovative home theater solutions. We specialize in total integration for your home theater, while also focusing on going above and beyond customer expectations to ensure you get the most from your hardware. We invite you to explore our distinct product line and hope you find your solutions. Don't see what you are looking for here? Please call us so we can better assist you with your particular needs.

The Gefen TV CR Speaker

The Gefen TV CR speaker system consists of exquisitely designed and tuned speakers which perfectly compliment the small confines of a bedroom or conference room. The CR speakers have been designed for high-quality audio fi delity rather than booming bass and high volume output. These wall-mountable speakers feature a handsome exterior construction and will fit stylishly in a variety of decors.

The Gefen CR speakers are perfectly suited to work with any audio amplifier, especially the Gefen TV Audio Processor, for which they were designed.

How It Works

Simply connect the Gefen CR speakers to your amplifier. The CR speakers are equipped with 5-way binding posts having connectors as follows: bare wire, spade lug connectors, pin connectors, and two types of banana plugs (single and dual).

Once all of your AV system connections are established, set the amplifier's volume to a low level, turn on all connected AV equipment, and then increase speaker output volume to a comfortable level.

READ THESE NOTES BEFORE INSTALLING OR OPERATING THE GEFEN TV CR SPEAKER

• Gefen TV CR Speaker are rated for a maximum power handling of 50 Watts RMS.
• The Gefen TV CR Speaker was designed to be placed within 8 inches of a wall. For this reason the Gefen TV CR Speaker comes ready to be wall mounted.
• Gefen TV recommends the GTV-MB-CRSP for use with these speaker as a mounting bracket.
• The Gefen TV CR Speaker weighs approximately 6.4 pounds and appropriate caution should be taken when mounting and using a wall mounting bracket.
• For additional bass response the Gefen TV CR Speakers should be paired with a subwoofer. In this scenario, the speaker setting in the amplifier/receiver should be set to small. The recommended crossover should also be set to 80Hz.

Features

• Carefully designed and tuned speakers
• Incredibly pristine sound from a compact design
• Designed to fill small rooms with high-quality sound
  • Speaker baffle naturally tilts upward on flat surfaces

Package Includes

GTV-CR-2SP

(1) CR-2SP Set of 2 Speakers
(1) User's Manual

GTV-CR-3SP

(1) CR-3SP Set of 3 Speakers

(1) User's Manual

GTV-CR-5SP

(1) CR-5SP Set of 5 Speakers

(1) User's Manual

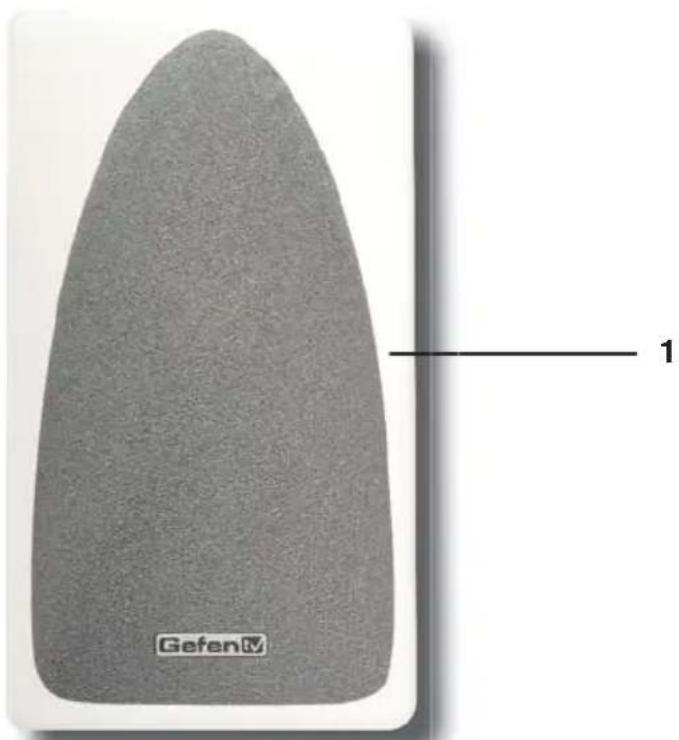

Front View

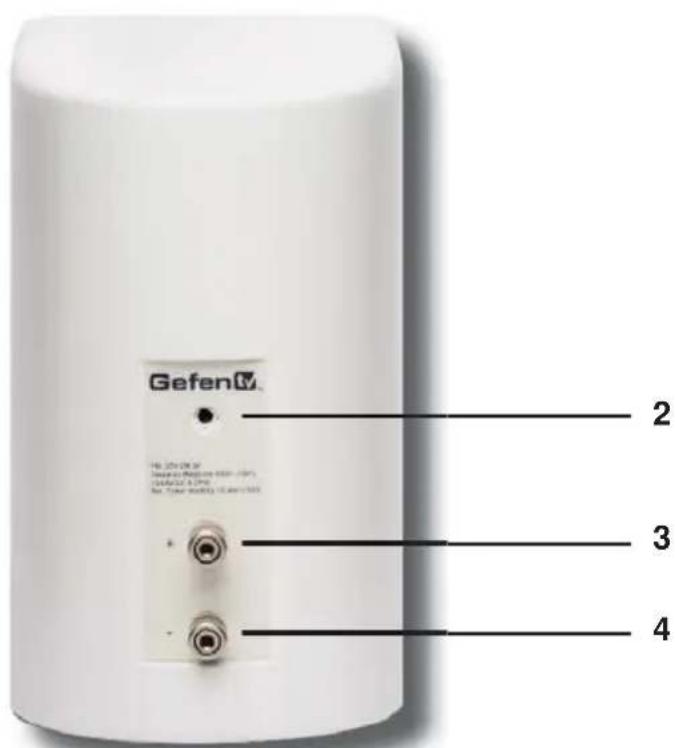

Back View

1 Gefen TV CR Speaker Grille

This removable grille will protect the speaker divers from getting damaged and will provide a stylish look to your speaker.

2 Speaker Mounting Bracket

This bracket was designed to work with the GTV-MB-CRSP speaker bracket. Additional aftermarket brackets can be used. Please ensure that the minimum weight capacity of any aftermarket speaker bracket exceeds 6.4 lbs.

3 Positive Speaker Terminal

This terminal is a 5-way binding post that will accept multiple connection types. For a complete listing of these types, please see page 6. This terminal should be connected to the positive terminal on an amplifier.

4 Negative Speaker Terminal

This terminal is a 5-way binding post that will accept multiple connection types. For a complete listing of these types, please see page 6. This terminal should be connected to the negative terminal on an amplifier.

How to Connect the Gefen TV CR Speaker

1. Connection options for the Gefen TV CR Speaker:

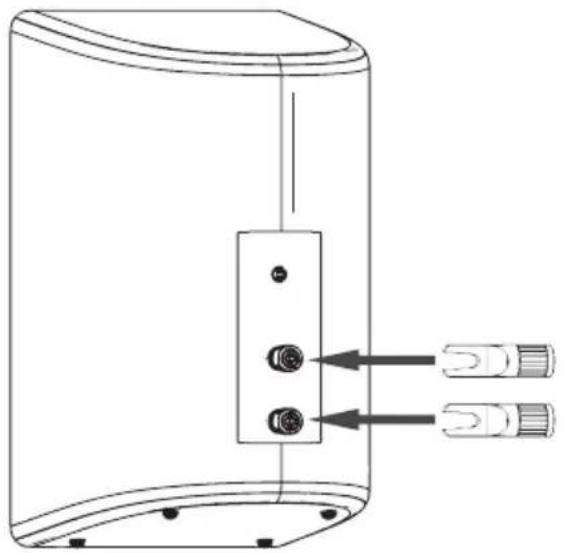

Spade Lug

Diagram of a device panel with two connectors and three attached sensors, no text or symbols present

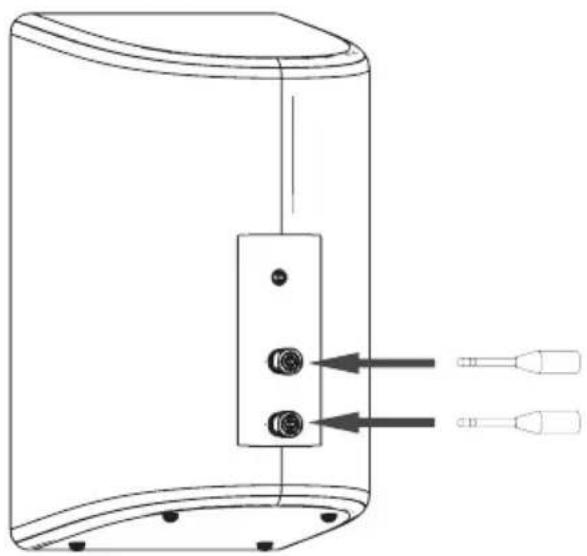

Pin

Technical line drawing of a device rear panel with two connectors and three labeled sensors (no text or symbols)

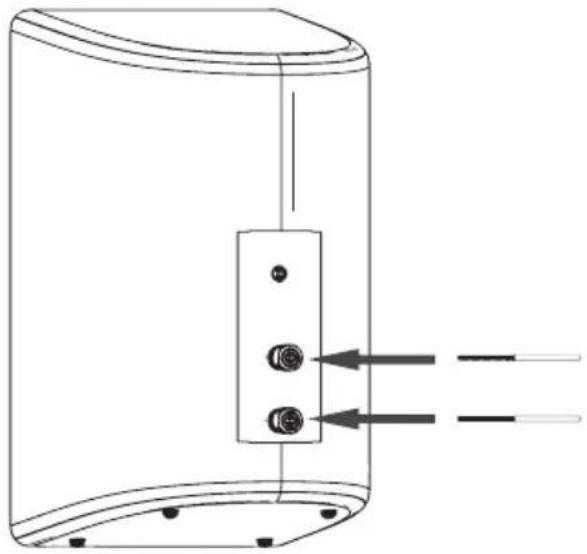

Bare Wire

Technical line drawing of a device panel with two connectors and three wires (no text or symbols)

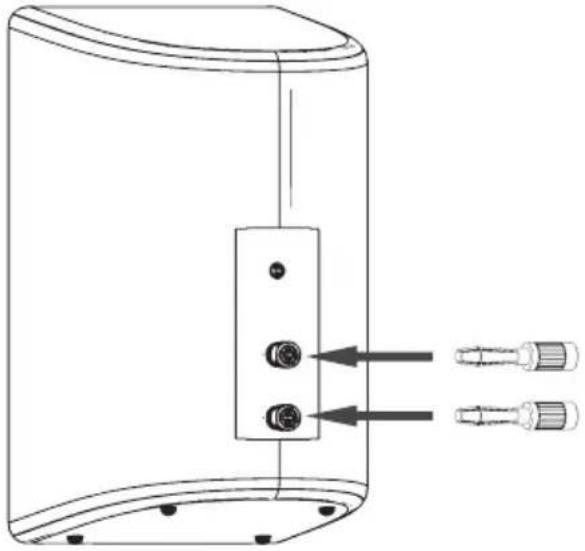

Banana Plug

Technical line drawing of a device with two connectors and three screwdrivers (no text or symbols)

NOTE: These are 5-Way binding posts. In addition to the connectors above, this speaker will also accept Dual Banana Plug connectors.

To connect all types of connectors-except for the Banana Plug connectors-unscrew the binding post in a counter-clockwise motion. Insert the speaker wire/connector into the post and re-tighten the binding post. These connector only need to have good contact and should only be hand tightened.

Banana Plug connectors can simply be inserted into the opening on the end of each binding post.

System:

Low Frequency Driver Low Frequency Driver 1 x 100mm

with 25mm voice coil & Ferrite motor & Cone Pulp paper coating black & Surround NBR rubber

High Frequency Driver 1 x 25mm with Neodymium motor &

Silk dome

Frequency Response (-3dB) 75Hz -- 18kHz

Frequency Response (-10dB) 60Hz - 20kHz

System Sensitivity (2.83V@1m) 85dB

Nominal Impedance 4 Ohms

Maximum Output SPL

Average 99dB

Peak 105dB

Long term power (W) 30W

Weight (lbs / kg) 6.4lbs / 2.9kg

Enclosure:

Enclosure Type 2-Way Ref1 ex

Enclosure Material Medium Density Fibreboard

Finish Matte

Dimensions (H x W x D):

mm 256 x 145 x 184

Inches 10 x 5.7 x 7.2

Gefen warrants the equipment it manufactures to be free from defects in material and workmanship.

If equipment fails because of such defects and Gefen is notified within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications. Equipment that fails under conditions other than those covered will be repaired at the current price of parts and labor in effect at the time of repair. Such repairs are warranted for ninety (90) days from the day of reshipment to the Buyer.

This warranty is in lieu of all other warranties expressed or implied, including without limitation, any implied warranty or merchantability or fitness for any particular purpose, all of which are expressly disclaimed.

1. Proof of sale may be required in order to claim warranty.
2. Customers outside the US are responsible for shipping charges to and from Gefen.
3. Copper cables are limited to a 30 day warranty and cables must be in their original condition.

The information in this manual has been carefully checked and is believed to be accurate. However, Gefen assumes no responsibility for any inaccuracies that may be contained in this manual. In no event will Gefen be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. The technical information contained herein regarding the features and specifications is subject to change without notice.

For the latest warranty coverage information, please visit Gefen's Warranty web page at http://www.gefen.com/kvm/aboutus/warranty.jsp
