Product Type	Graphics Card
Brand	CLUB3D
Model	AMD HD7750 Eyefinity 4 Low Profile
GPU Chipset	AMD Radeon HD 7750 (Cape Verde Pro)
Process Technology	28 nm
GPU Clock Speed	800 MHz
Stream Processors	512
Memory Size	2048 MB GDDR5
Memory Interface	128-bit
Memory Clock Speed	1125 MHz
Bus Interface	PCI Express 3.0
Supported APIs	DirectX 11.1, OpenCL 1.2, OpenGL 4.2
Operating Systems Supported	Windows 8, 7, Vista, XP (x86/x64)
Maximum Power Consumption	< 61 W
Idle Power Consumption	16 W (3 W in ZCP mode)
Recommended Power Supply	600 W
Dimensions (L x W x H)	168 x 64 x 16 mm
Weight	158 g
Cooling Solution	1-slot active fan
Connectivity	4 x mini-DisplayPort (Eyefinity)
Included Accessories	Low profile bracket, driver CD, quick install guide
Maintenance	Clean with compressed air; avoid static discharge.
Safety	Install in a grounded case; ensure adequate airflow.
Spare Parts / Repairability	No user-serviceable parts; contact CLUB3D support for repairs.

Frequently Asked Questions - AMD HD7750 Eyefinity 4 Low Profile CLUB3D

How do I install the CLUB3D AMD HD7750 Eyefinity 4 Low Profile card?

Power off and unplug your PC. Insert the card into an available PCI Express x16 slot. Secure with screws. Connect any necessary power cables (none required for this model). Install the latest drivers from AMD's website or the included CD.

What power supply is recommended for this graphics card?

CLUB3D recommends a 600W power supply, such as the Club 3D Switching Power Supply 600 Watt (CSP-S600). The card draws less than 61W under load.

Can I use multiple monitors with this card?

Yes, the Eyefinity 4 edition supports up to four monitors via its four mini-DisplayPort outputs. You may need active adapters for non-DisplayPort monitors.

Does this card require additional power connectors?

No, the AMD HD7750 Eyefinity 4 Low Profile does not require any supplementary power connectors; it draws power entirely from the PCI Express slot.

What is the low profile bracket for?

The included low profile bracket allows the card to fit into slim or small form factor cases. Replace the standard bracket with the low profile one before installation.

Is this card compatible with Windows 10?

The official specifications list Windows 8, 7, Vista, and XP. However, AMD provides drivers that may support Windows 10 for this GPU. Check AMD's website for the latest drivers.

How can I clean the graphics card?

Use compressed air to blow dust off the fan and heatsink. Do not use liquids. Ensure the card is dry before reinstalling. Handle with care to avoid static damage.

What should I do if the card overheats?

Ensure proper case airflow and that the fan is spinning. Clean any dust buildup. If temperatures remain high, consider adjusting fan curves in software or improving case ventilation.

Does this card support overclocking?

Yes, you can overclock using utilities like AMD Overdrive or MSI Afterburner. Note that overclocking increases power consumption and heat, and may void warranty.

Where can I find the latest drivers?

Visit AMD's official website and use their driver auto-detect tool, or search for 'Radeon HD 7750 drivers'. The included CD also contains drivers but they may be outdated.

USER MANUAL AMD HD7750 Eyefinity 4 Low Profile CLUB3D

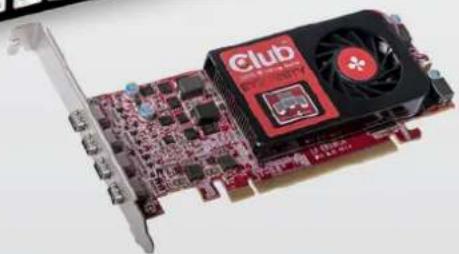

Radeon HD 7750 Low Profile - Eyefinity 4

Product Information

Compliant

Product Name

Radeon HD 7750

Low Profile - Eyefinity 4

Product Series

Radeon HD 7000

GPU Chipset

Cape Verde Pro

Itemcode

CGAX-7758LM4

EAN code

8717249400158

SPECIFICATIONS INFORMATION

GPU
Technology	28nm
Speed	800 MHz
Stream
Processors	512
Memory
Size	2048MB
Type	128 BIT
Interface	GDDR5
Speed	1125 MHz
Support	DX11.1/OpenCL 1.2/OpenGL 4.2
Bus Interface	PCI Express 3.0
Operating Systems	Windows 8, 7, Vista, XP (x86/x64)

Date 15 July 2013

Cooling	1 slot Active
Power
Consumption Maximum load	< 61W
Consumption Idle	16W, 3W in ZCP
Recommended Power Supply	Club 3D Switching Power Supply 600 Watt (CSP-S600)
Supplementary Power	None required
Product
Size	168 x 64 x 16 mm
Weight	158 grams
Retail Box	225 x 139 x 75 mm

CONNECTIVITY

INCLUDED IN THE PACKAGE

Radeon HD 7750

Low Profile - Eyefinity 4

graphic card

Low Profile Kit

Driver & E-Manual

CD

Quick Install Guide
