Product Type	Video Projector
Display Technology	DLP
Resolution	1920 x 1080 (Full HD)
Brightness	3500 ANSI Lumens
Contrast Ratio	20,000:1
Lamp Life	Up to 5000 hours (Normal Mode)
Projection Size	28 - 300 inches
Throw Ratio	1.48 - 1.79:1
Inputs	HDMI x 2, VGA x 2, Composite Video, S-Video, Audio
Outputs	VGA, Audio, RS-232, USB (service)
Power Consumption	240W (Normal Mode), <0.5W (Standby)
Dimensions (W x D x H)	315 x 224 x 102 mm
Weight	2.9 kg
Fan Noise	29 dB (Eco Mode)
Keystone Correction	±40° Vertical
Zoom	1.2x Optical Zoom
Lamp Type	240W P-VIP
Speakers	2W Mono
Power Supply	AC 100-240V, 50-60Hz
Operating Temperature	5°C - 35°C

Frequently Asked Questions - TW536 OPTOMA

How do I connect my laptop to the Optoma TW536 projector?

Use an HDMI cable from your laptop's HDMI output to one of the projector's HDMI inputs. Alternatively, if your laptop has VGA output, connect via a VGA cable to the projector's VGA input. Ensure the projector is on and select the corresponding input source using the Source button.

What is the recommended cleaning method for the projector lens?

Turn off the projector and unplug it. Use a soft, dry microfiber cloth to gently wipe the lens in a circular motion. Avoid using liquids or abrasive cleaners. For stubborn smudges, slightly dampen the cloth with lens cleaning solution.

How often should I replace the lamp?

The lamp life is up to 5000 hours in normal mode. Replace the lamp when the projector indicates it's time or if the image becomes dim. Use a genuine Optoma replacement lamp to maintain performance.

Can I project onto a white wall instead of a screen?

Yes, a white, flat, and non-textured wall can work. However, for best image quality, use a projection screen designed for high contrast and brightness.

What should I do if the projector overheats?

Ensure the ventilation vents are not blocked and the fan is working. Clean the air filter regularly. If overheating persists, reduce ambient temperature or contact support.

How do I adjust the keystone correction?

Press the Keystone button on the remote or projector. Use the arrow keys to adjust the vertical keystone up to ±40 degrees. For best image quality, position the projector perpendicular to the screen.

Can I use a wireless HDMI adapter with this projector?

Yes, you can connect a wireless HDMI transmitter to one of the HDMI ports and a receiver to your source device. The projector will display the signal wirelessly.

What is the throw distance for a 100-inch screen?

With a throw ratio of 1.48 - 1.79:1, for a 100-inch diagonal screen, the projector should be placed approximately 3.3 to 3.9 meters from the screen.

Does the projector support 3D content?

The Optoma TW536 supports 3D via HDMI with compatible 3D content and DLP-Link glasses. Activate 3D mode in the menu settings.

How do I clean the air filter?

Turn off the projector and unplug it. Locate the air filter on the side, remove the cover, and wash the filter with mild soap and water. Let it dry completely before reinserting. Replace the filter if damaged.

USER MANUAL TW536 OPTOMA

Table of Contents ....1

Usage Notice 2

Safety Information 2

Precautions....3

Eye Safety Warnings 5

Product Features 5

Introduction......6

Package Overview....6

Product Overview 7

Main Unit....7

Control Panel 8

Input / Output Connections 9

Remote Control 10

Installation 11

Connecting the Projector 11

Connect to Computer/Notebook 11

Connect to Video Sources 12

Powering the projector On/Off 13

Powering On the Projector 13

Powering Off the projector 14

Warning Indicator 14

Adjusting the Projected Image....15

Adjusting the Projector's Height 15

Adjusting the Projector's Zoom / Focus 16

Adjusting Projected Image Size 16

User Controls 17

Control Panel & Remote Control 17

Control Panel 17

Remote Control 18

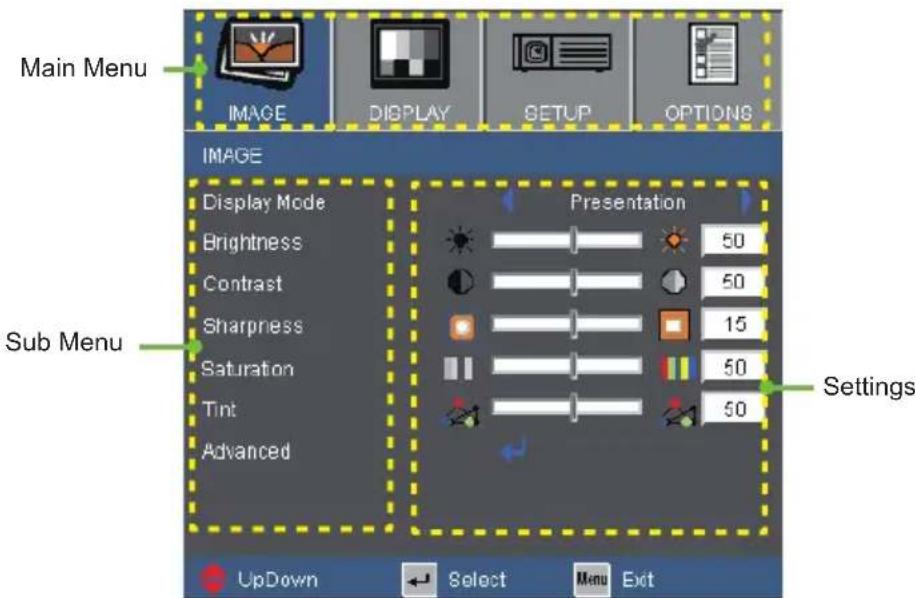

On-screen Display Menus 20

How to operate 20

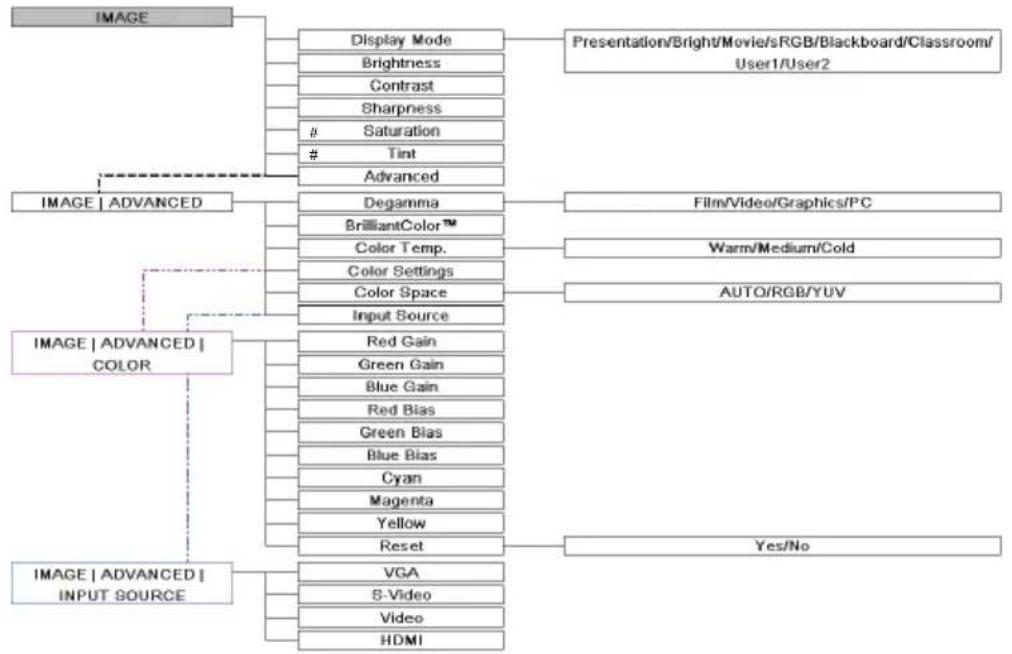

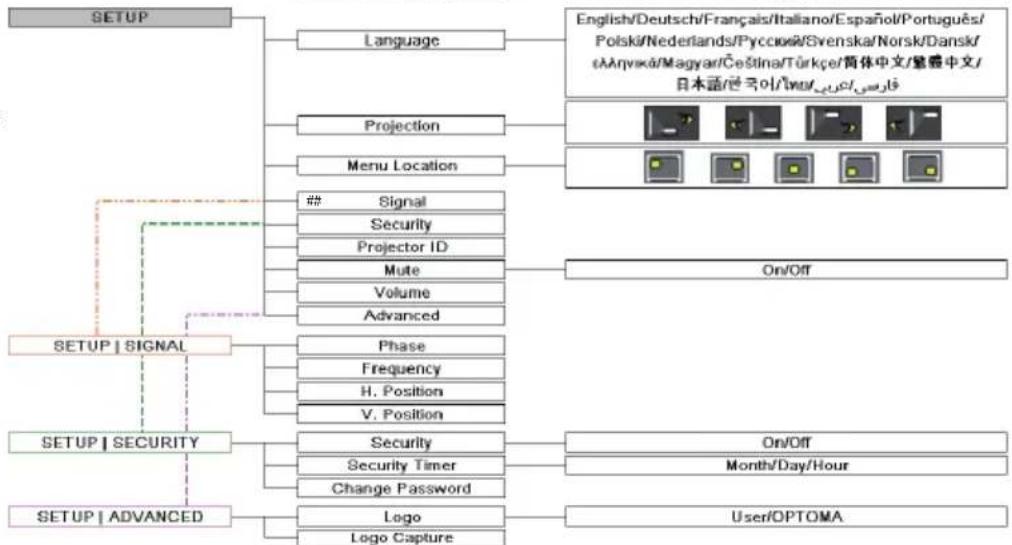

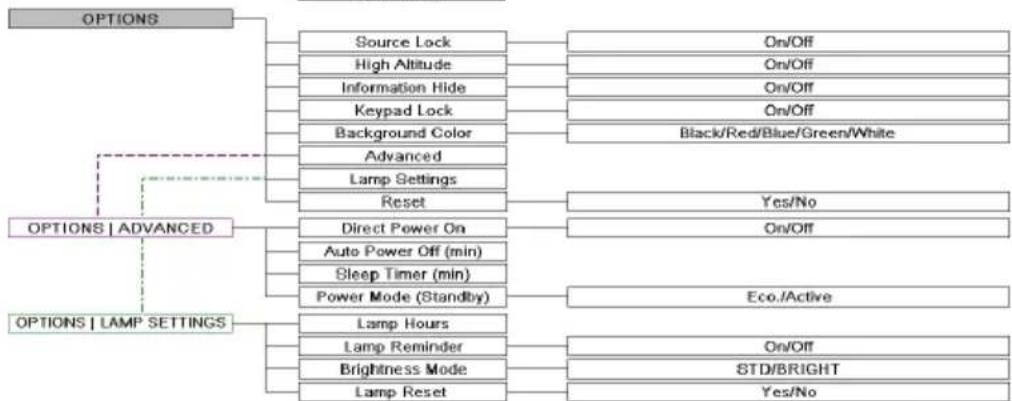

Menu Tree....21

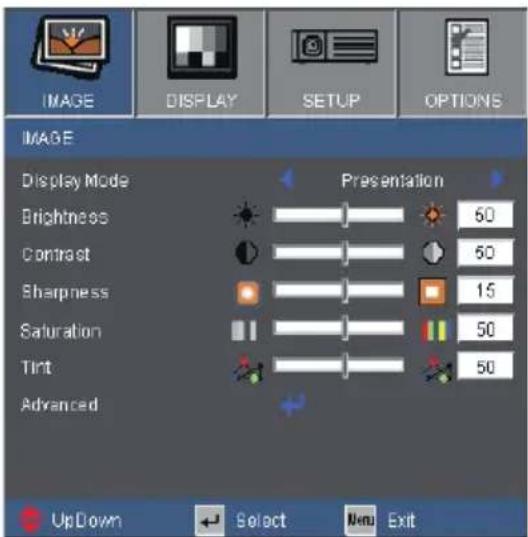

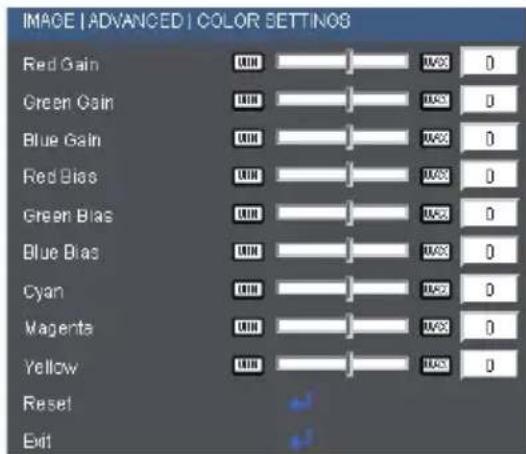

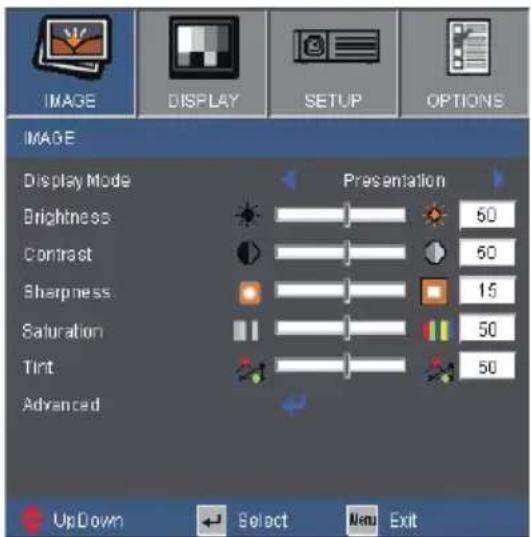

Image 22

Display 26

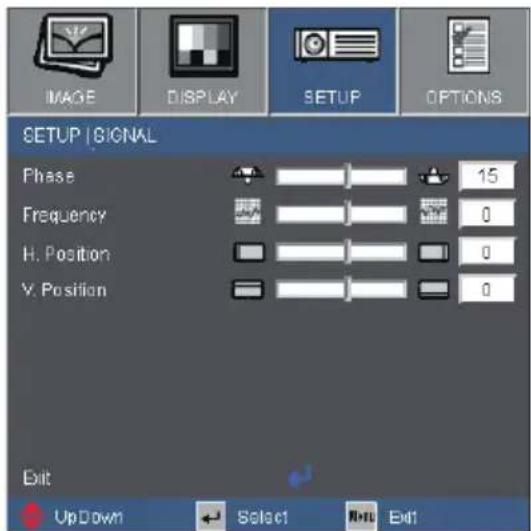

Setup....29

Options....36

Appendices....39

Troubleshooting 39

Image Problems 39

Other Problems 42

Projector Status Indication 42

Remote Control Problems 43

Replacing the Lamp....44

Compatibility Modes 46

RS232 Commands 48

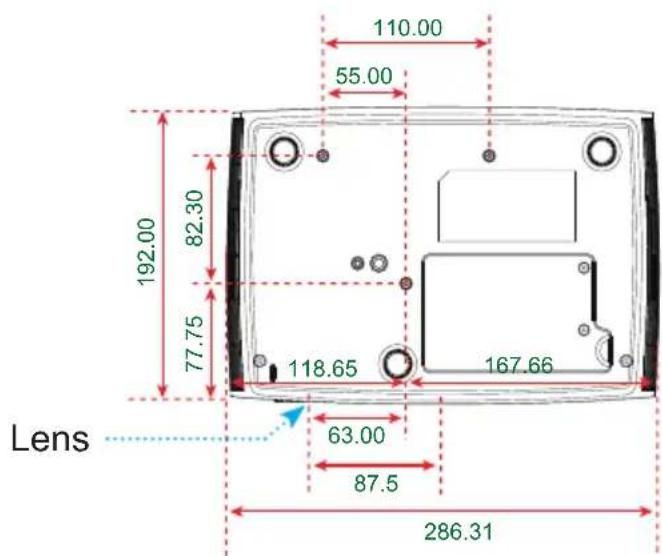

Ceiling Mount Installation 51

Optoma Global Offices 52

Regulation & Safety notices ....54

Safety Information

	The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
	The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

Class B emissions limits

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Important Safety Instruction

1. Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from over heating, it is recommended to install the projector in a location that does not block ventilation. As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in an enclosure such as a book case or a cabinet that restricts air flow.
2. Do not use the projector near water or moisture. To reduce the risk of fire and/or electric shock, do not expose the projector to rain or moisture.
3. Do not install near heat sources such as radiators, heaters, stoves or any other apparatus such as amplifiers that emits heat.
4. Clean only with dry cloth.
5. Only use attachments/accessories specified by the manufacturer.
6. Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be (but not limited to):

Unit has been dropped.
☐ Power supply cord or plug has been damaged.
☐ Liquid has been spilled on to the projector.
☐ Projector has been exposed to rain or moisture.
Something has fallen in the projector or something is loose inside.

Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair.

1. Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in fire or electric shock.
2. See projector enclosure for safety related markings.
3. The unit should only be repaired by appropriate service personnel.

Precautions

Please follow all warnings, precautions and maintenance as recommended in this user's guide.

Warning- Do not look into the projector's lens when the lamp is on. The bright light may hurt your eyes.
Warning- To reduce the risk of fire or electric shock, do not expose this projector to rain or moisture.
Warning- Please do not open or disassemble the projector as this may cause electric shock.

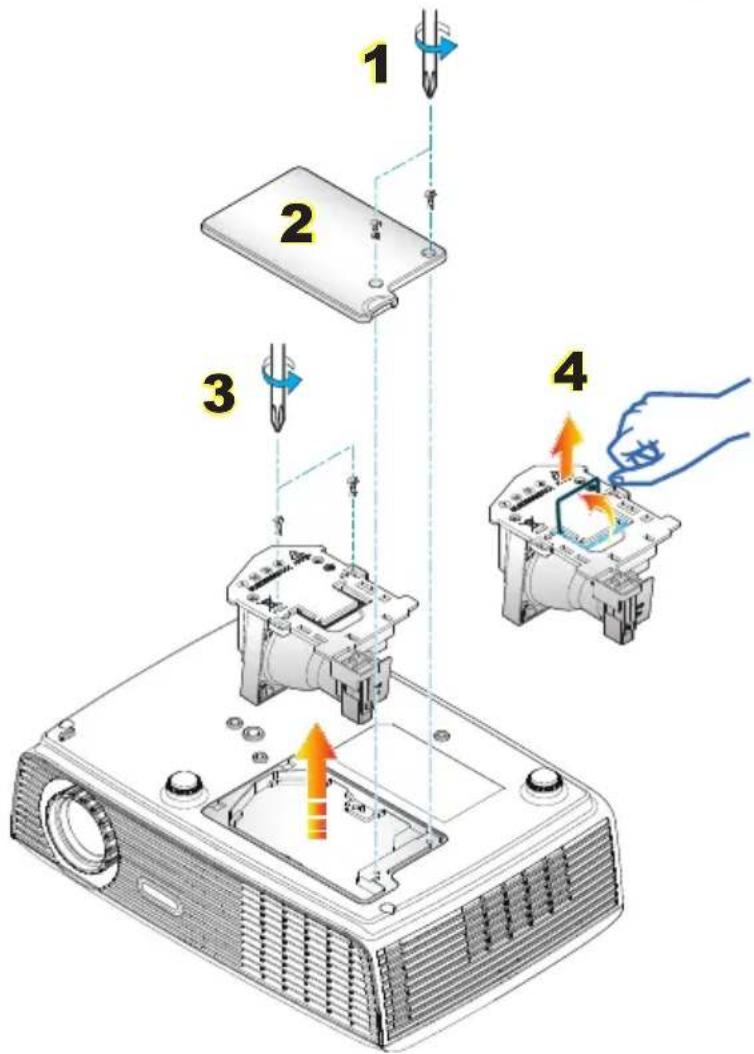

Warning- When replacing the lamp, please allow the unit to cool down. Follow instructions as described on pages 44-45.
Warning- This projector will detect the life of the lamp itself. Please be sure to change the lamp when it shows warning messages.

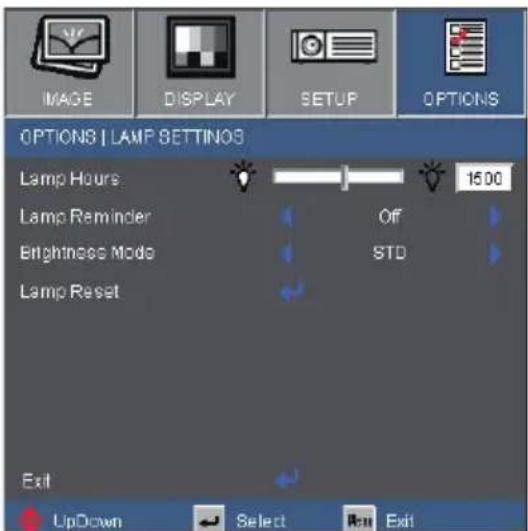

Warning- Reset the "Lamp Reset" function from the on-screen display "Options|Lamp Settings" menu after replacing the lamp module (refer to page 38).
Warning- When switching the projector off, please ensure the cooling cycle has been completed before disconnecting power. Allow 90 seconds for the projector to cool down.
Warning- Do not use lens cap when projector is in operation.
Warning- When the lamp is approaching the end of its lifetime, the message “Lamp Warning: Lamp life exceeded.” will show on the screen. Please contact your local reseller or service center to change the lamp as soon as possible.

When the lamp reaches the end of its life, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under “Replacing the Lamp” section on pages 44-45.

Usage Notice

Do:

Turn off and unplug the power plug from the AC outlet before cleaning the product.
Use a soft dry cloth with mild detergent to clean the display housing.
- Disconnect the power plug from AC outlet if the product is not being used for a long period of time.

Do not:

Block the slots and openings on the unit provided for ventilation.

Use abrasive cleaners, waxes or solvents to clean the unit.

Use under the following conditions:

- In extremely hot, cold or humid environments.

▶ Ensure that the ambient room temperature is within 5 - 35°C.
▶ Relative Humidity is 5 - 35°C, 80% (Max.), non-condensing.

• In areas susceptible to excessive dust and dirt.
• Near any appliance generating a strong magnetic field.
• In direct sunlight.

Eye Safety Warnings

Symbolic illustration of a computer monitor with a red X mark and eye inside, enclosed in an oval (no text or symbols)

Avoid staring/facing directly into the projector beam at all times. Keep your back to the beam as much as possible.
When projector is used in a classroom, adequately supervise students when they are asked to point out something on the screen.
In order to minimize the lamp power, use room blinds to reduce ambient light levels.

Product Features

WXGA (1280 x 800) Native resolution
One built-in speaker with 2 watt amplifier
HDTV compatible (720P, 1080i/p)
VGA monitor Loop Through
BrilliantColor ^TM Technology
Security Bar and Kensington Lock
RS232 control
Rapid shutdown
- “3D Ready” – support for 120Hz

Package Overview

Unpack and inspect the box contents to ensure all parts listed below are in the box. If something is missing, please contact your nearest customer service center.

Illustration of a projector with a small circular component (no text or symbols visible)

Projector with lens cap

Line drawing of a coiled cable with two connectors (no text or symbols)

Power Cord 1.8m

Pure electrical circuit lines without any symbols

VGA Cable 1.8m

IR Remote Control

2 × AAA Batteries

Carrying case (Option)

Due to different applications in each country, some regions may have different accessories.

Documentation :

User's Manual
Warranty Card
Quick Start Card
WEEE Card (for EMEA only)

Product Overview

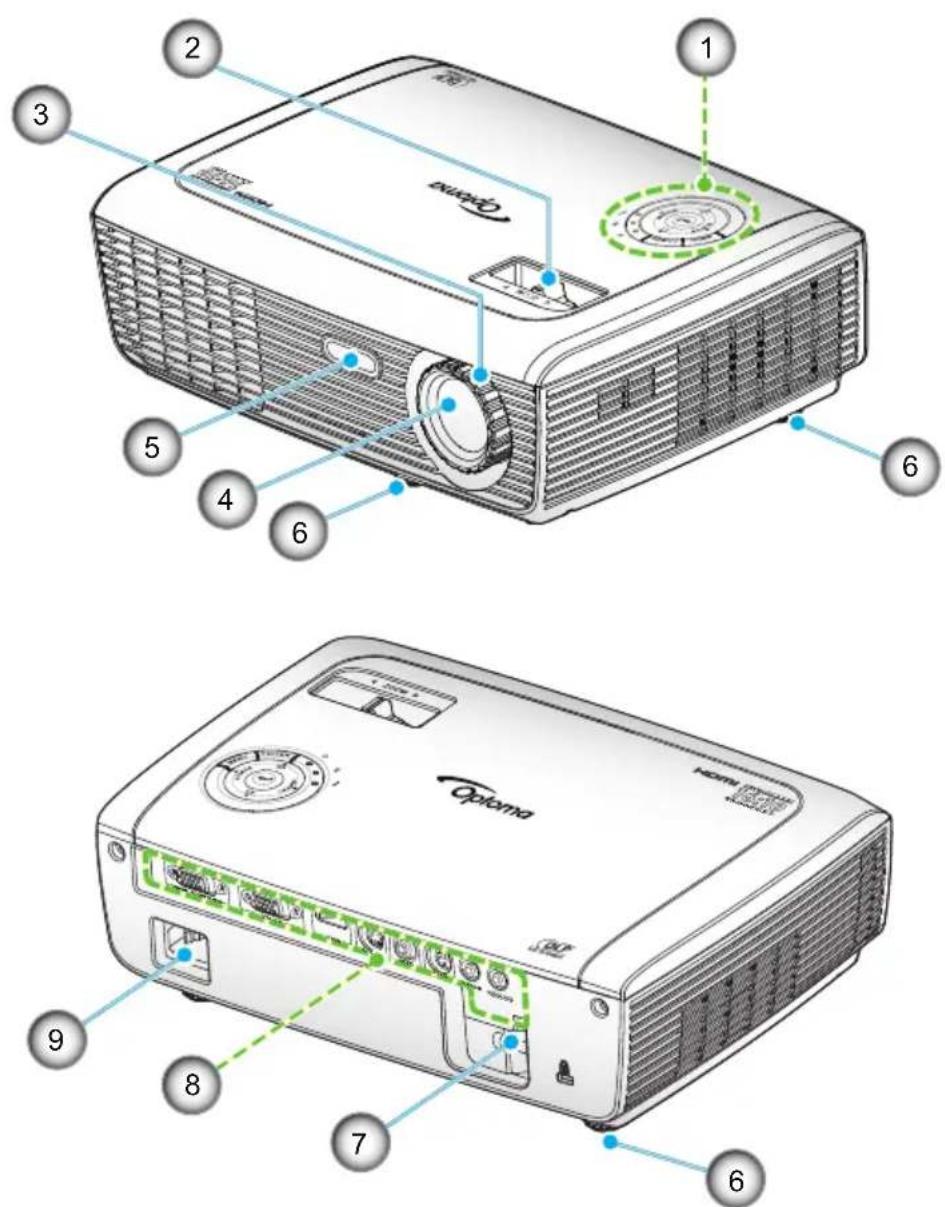

Main Unit

1. Control Panel
2. Zoom Ring
3. Focus Ring
4. Zoom Lens

5. IR Receiver

6. Tilt-Adjustment Feet

7. Security Bar
8. Input / Output Connections
9. Power Socket

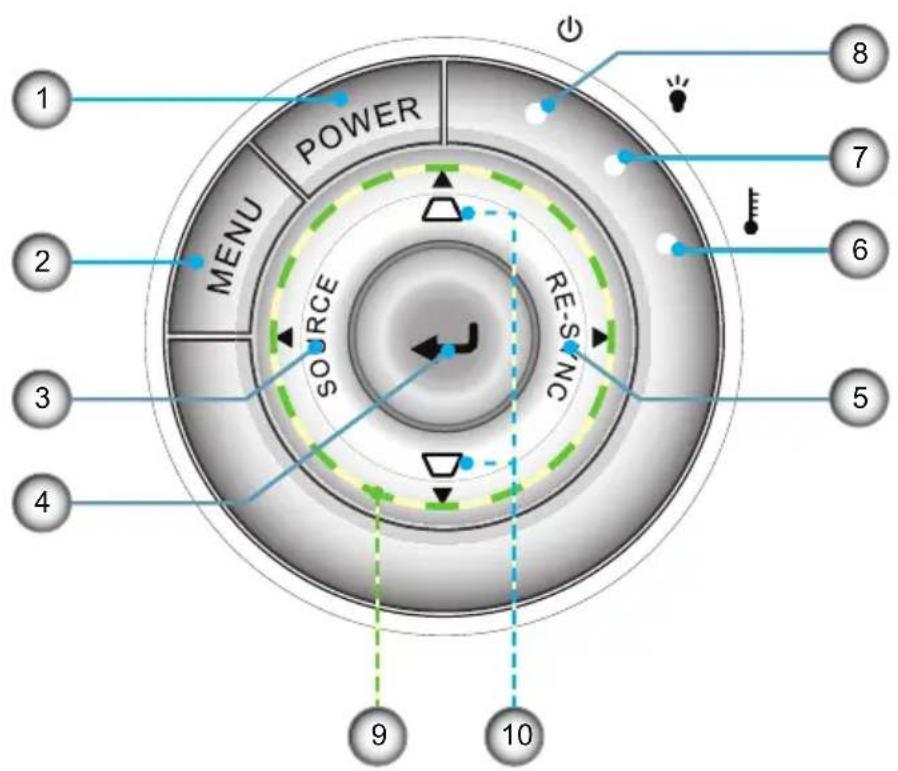

Control Panel

1. Power/Standby
2. Menu
3. Source
4. Enter
5. Re-Sync
6. Temp LED
7. Lamp Fail LED
8. Power LED
9. Four Directional Select Keys
10. Keystone Correction

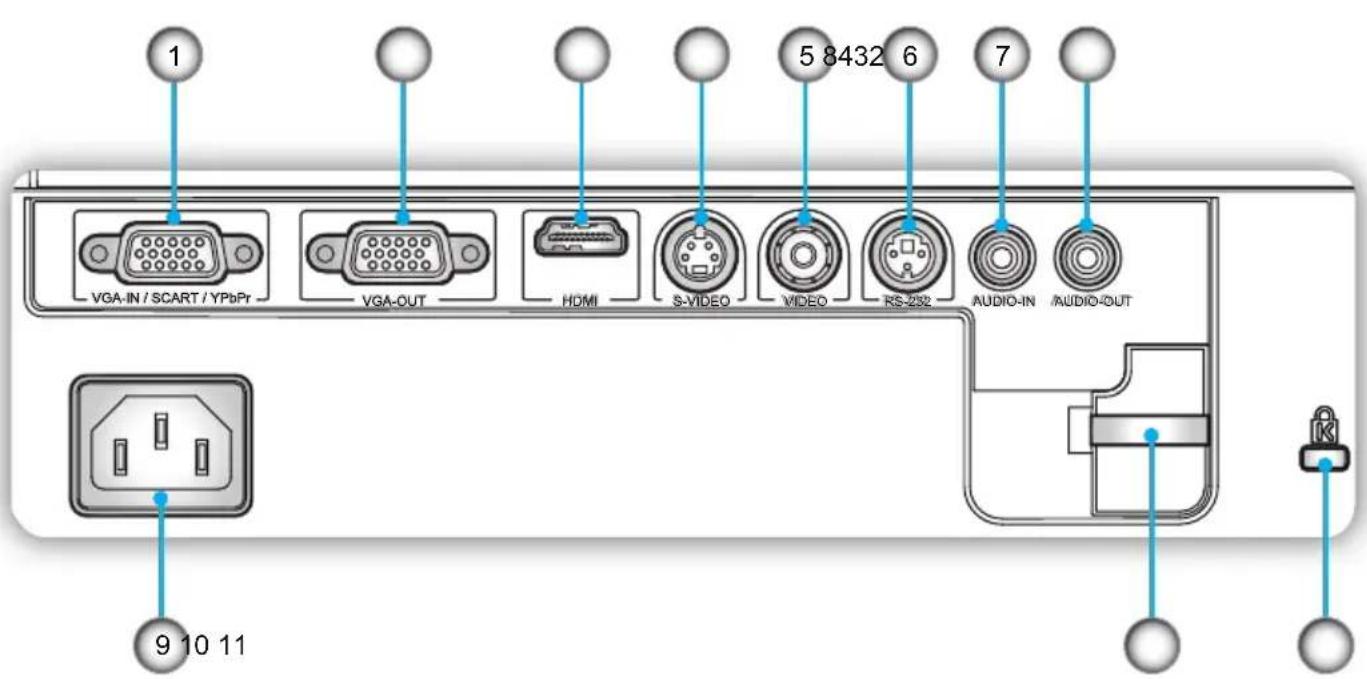

Input / Output Connections

1. VGA-In/SCART/YPbPr Connector (PC Analog Signal/Component Video Input/HDTV/SCART/YPbPr)
2. VGA-Out Connector (Monitor Loop-through Output)
3. HDMI Connector
4. S-Video Input Connector
5. Composite Video Input Connector

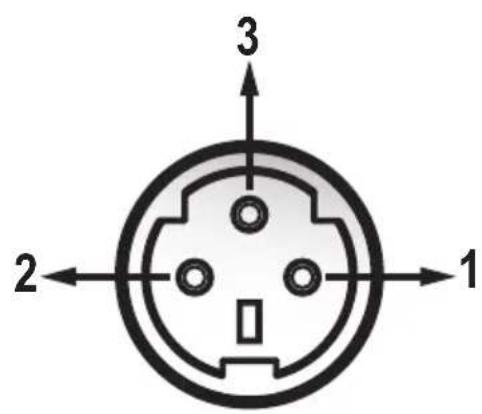

6. RS-232 Connector (3-pin)
7. Audio Input Connector (3.5mm Mini Jack)
8. Audio Output Connector (3.5mm Mini Jack)
9. Power Socket
10. Security Bar
11. Kensington™ Lock Port

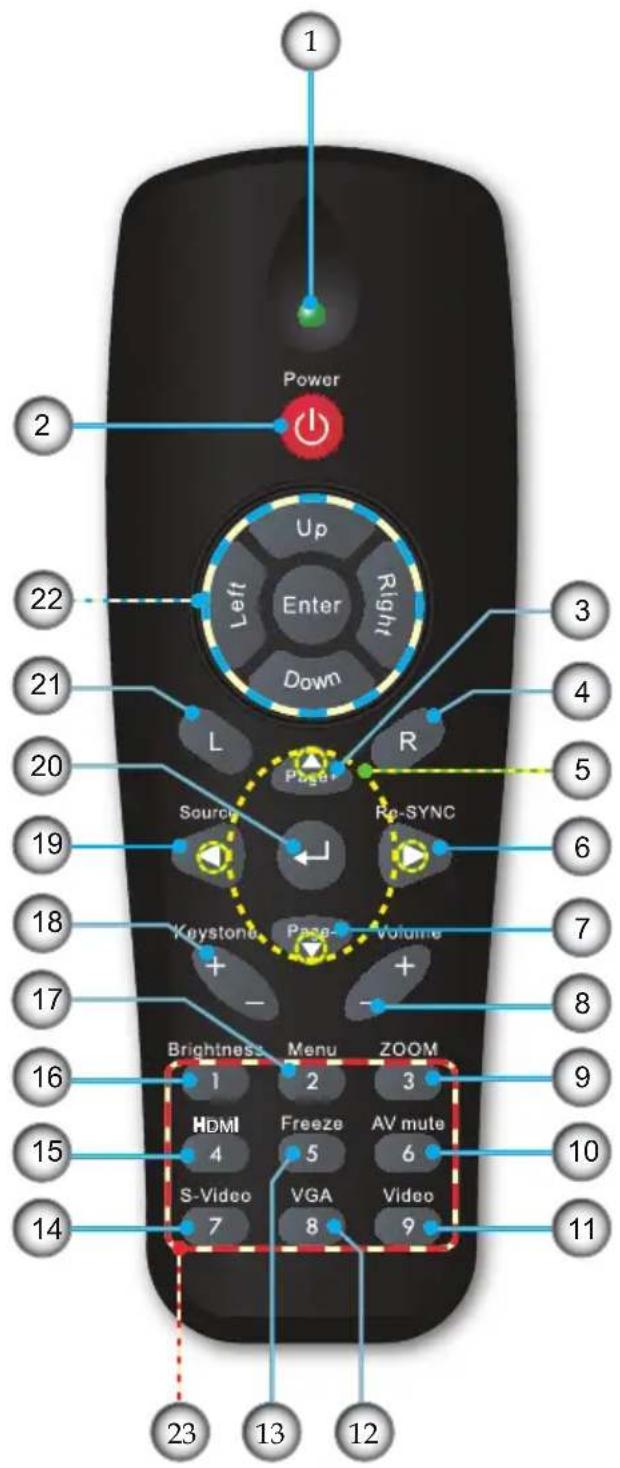

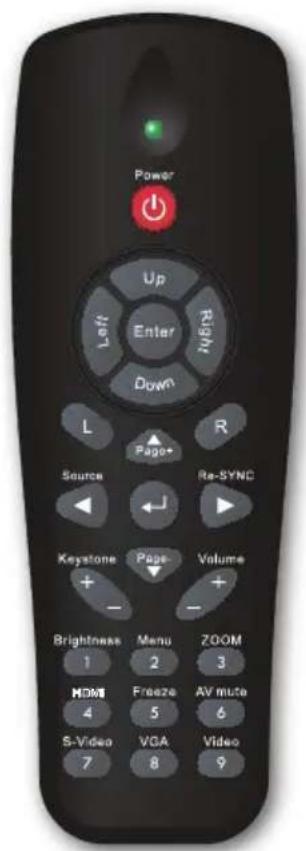

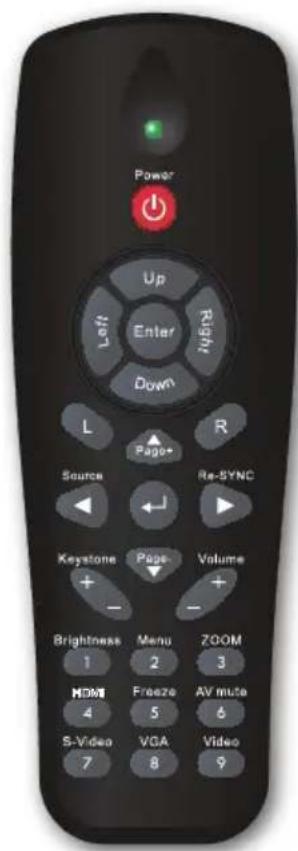

Remote Control

1. LED Indicator
2. Power On/Off
3. No function on this model
4. No function on this model
5. Four Directional Select Keys
6. Re-Sync
7. No Function on this model
8. Volume +/-
9. Zoom
10. AV mute
11. Video
12. VGA
13. Freeze
14. S-Video
15. HDMI
16. Brightness
17. Menu
18. Keystone +/-
19. Source
20. Enter
21. No Function on this model
22. No Function on this model

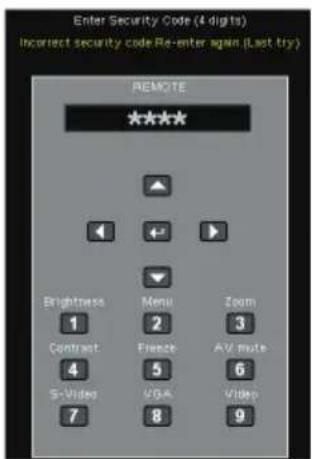

23. Numbered keypad (for password input)

Connecting the Projector

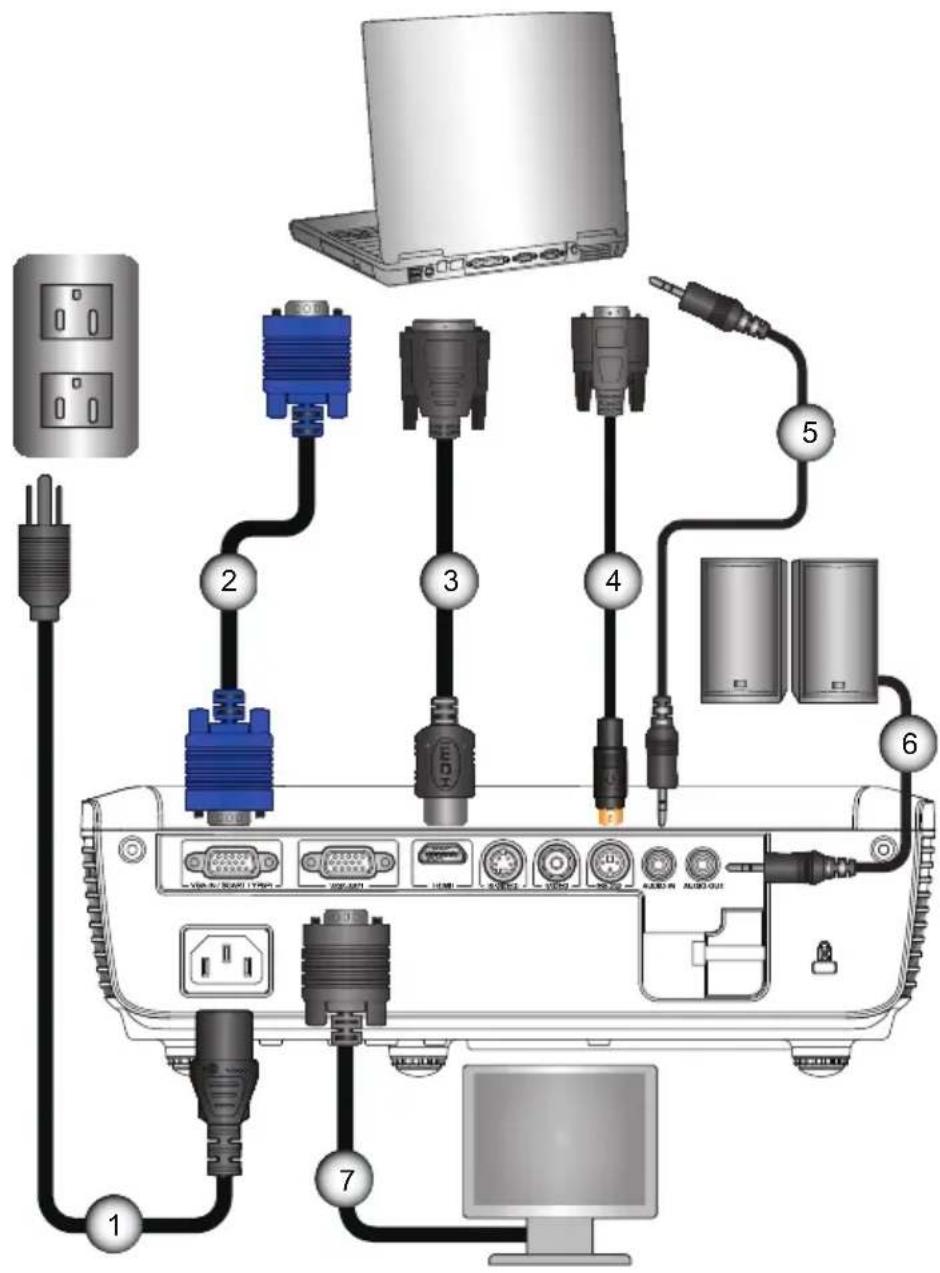

Connect to Computer/Notebook

Due to the difference in applications for each country, some regions may have different accessories.
(*) Optional accessory

1....Power Cord
2....VGA Cable
3. DVI/HDMI Cable
4....*RS232 Cable
5....*Audio Input Cable
6....*Audio Output Cable
7....*VGA Output Cable

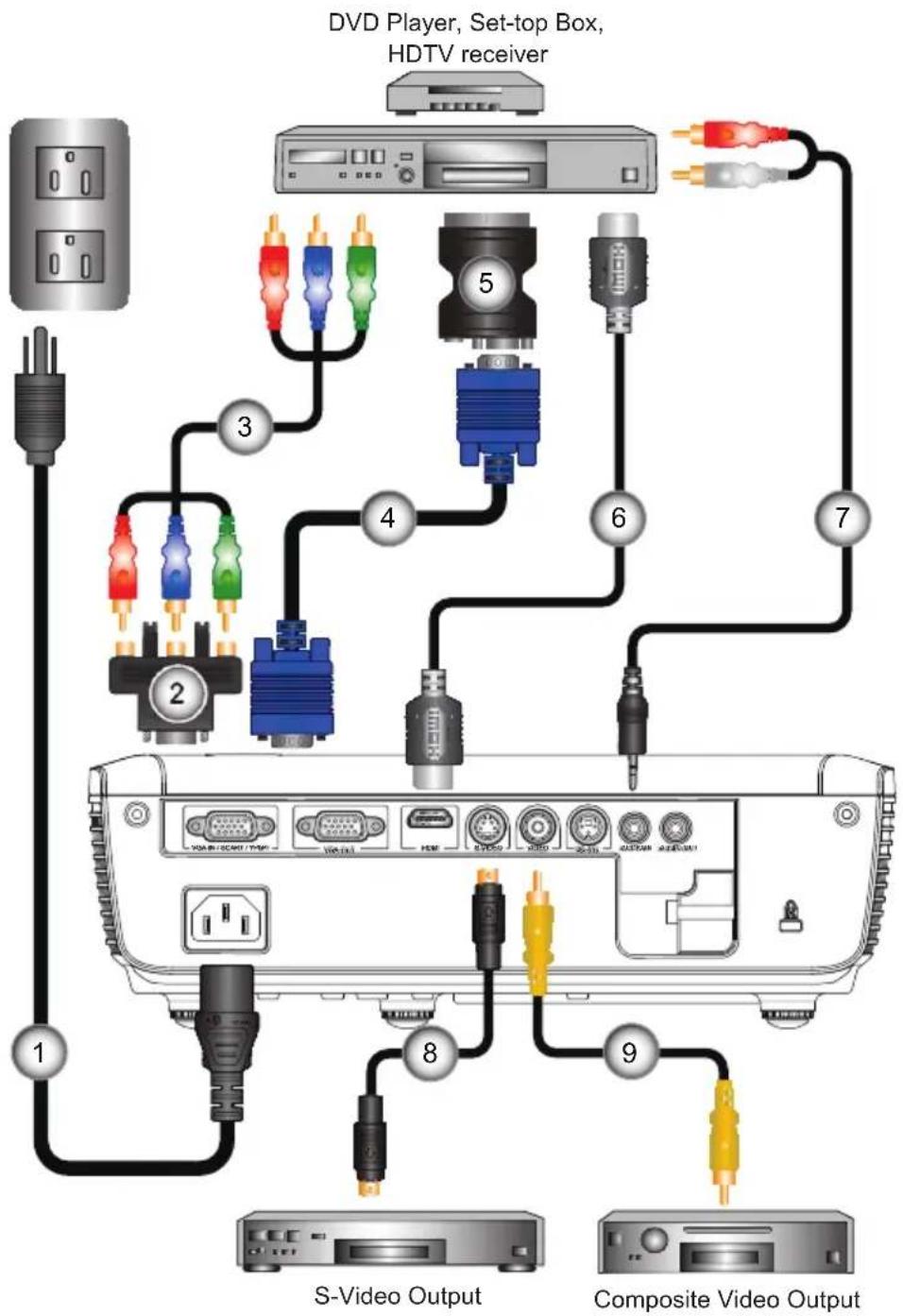

Connect to Video Sources

Due to the difference in applications for each country, some regions may have different accessories.

(*) Optional accessory

1....Power Cord
2....*15-Pin to 3 RCA Component/HDTV Adaptor
3....*3 RCA Component Cable
4.....VGA Cable
5. *SCART/VGA Adaptor
6....*HDMI Cable
7....*Audio Cable Jack/RCA
8....*S-Video Cable
9....*Composite Video Cable

Powering the projector On/Off

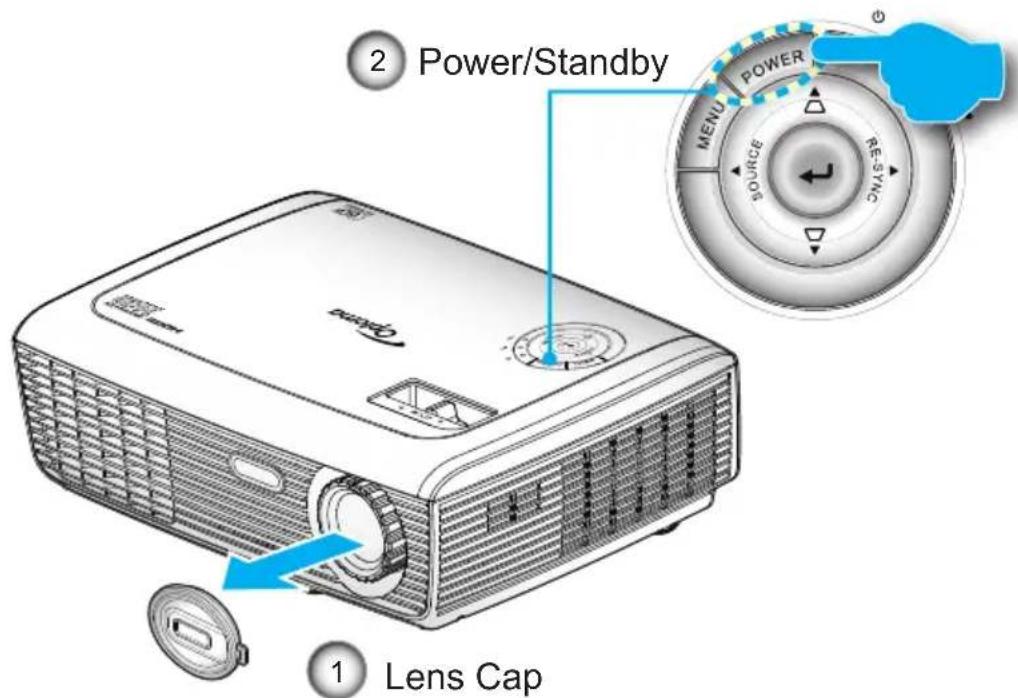

Powering On the Projector

1. Remove the lens cap. ①
2. Securely connect the power cord and signal cable. When connected, the Power LED will turn red.
3. Turn on the lamp by pressing "POWER" button either on the top of the projector or on the remote. The Power LED will now turn Green. ②

The startup screen will display in approximately 10 seconds. The first time you use the projector, you can select your preferred language after the startup screen displays.

1. Turn on and connect the source that you want to display on the screen (computer, notebook, video player, etc). The projector will detect the source automatically. If not, push menu button and go to "OPTIONS".

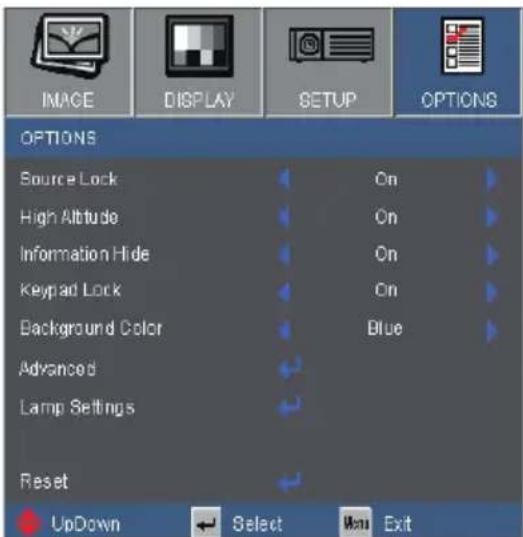

Make sure that the "Source Lock" has been set to "Off".

If you connect multiple sources at the same time, press the "SOURCE" button on the control panel or direct source keys on the remote control to switch between inputs.

Turn on the projector first and then select the signal sources.

Powering Off the Projector

1. Press the "POWER" button to turn off the projector lamp. The following message will be displayed on the screen.

Press the "POWER" button again to confirm, otherwise the message will disappear after 15 seconds.

When you press the “POWER” button a second time, the system will show the countdown timer on the screen.

1. The cooling fans continue to operate for about 10 seconds for cooling cycle. When the Power LED turns Red, the projector has entered standby mode.
   If you wish to turn the projector back on, you must wait until the projector has completed the cooling cycle and has entered standby mode. Once in standby mode, simply press “POWER” button to restart the projector.
2. Disconnect the power cord from the electrical outlet and the projector.
3. Do not turn on the projector immediately following a power off procedure.

Contact the nearest service center if the projector displays these symptoms. See pages 52-53 for more information.

Warning Indicator

When the “LAMP” indicator lights red (“POWER” indicator flashes red), the projector will automatically shut down. Please call your nearest service center for assistance.

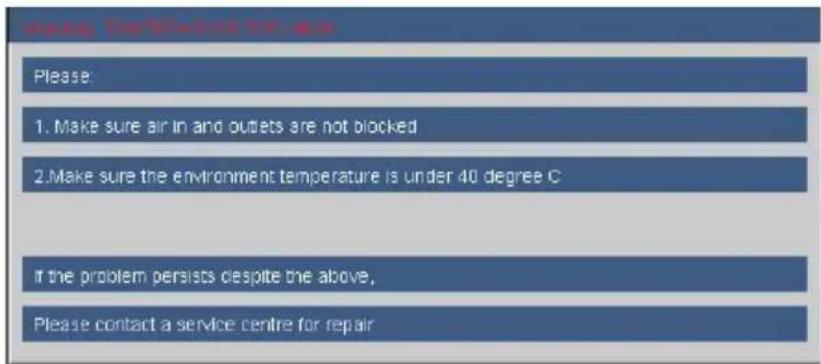

When the “TEMP” indicator lights red (“POWER” indicator flashes red), it indicates the projector has overheated. The projector will shut down automatically.

Under normal conditions, the projector can be switched on again after it has cooled down.

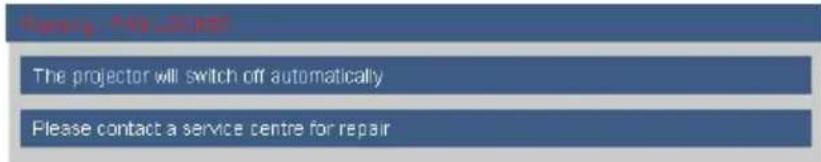

When the “TEMP” indicator flashes red (“POWER” indicator flashes red), it indicates the fan has failed.

Adjusting the Projected Image

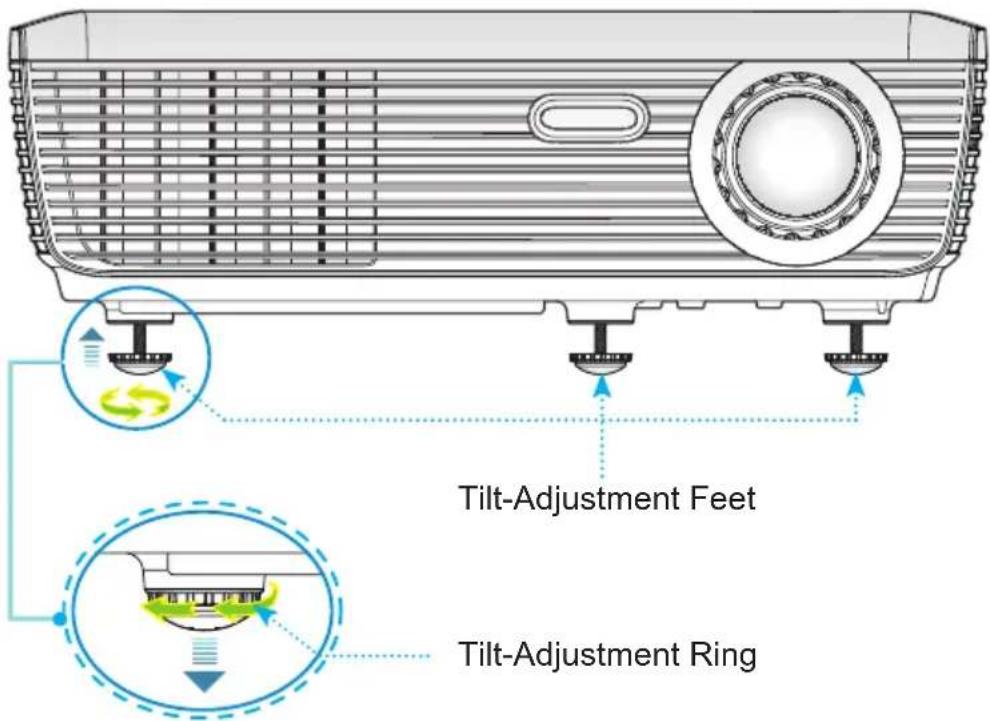

Adjusting the Projector's Height

The projector is equipped with elevator feet for adjusting the image height.

1. Locate the adjustable foot you wish to modify on the underside of the projector.

2. Rotate the adjustable ring counter clockwise to raise the projector or clockwise to lower it. Repeat with the remaining feet as needed.

Installation

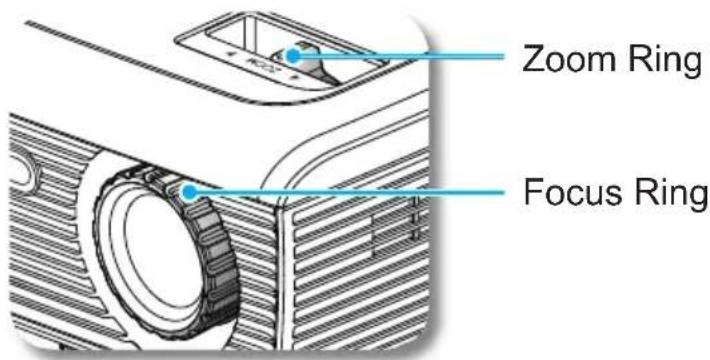

Adjusting the Projector's Zoom / Focus

You may turn the zoom ring to zoom in or out. To focus the image, rotate the focus ring until the image is clear. The projector will focus at distances from 3.9 to 39.4 feet (1.2 to 12.0 meters).

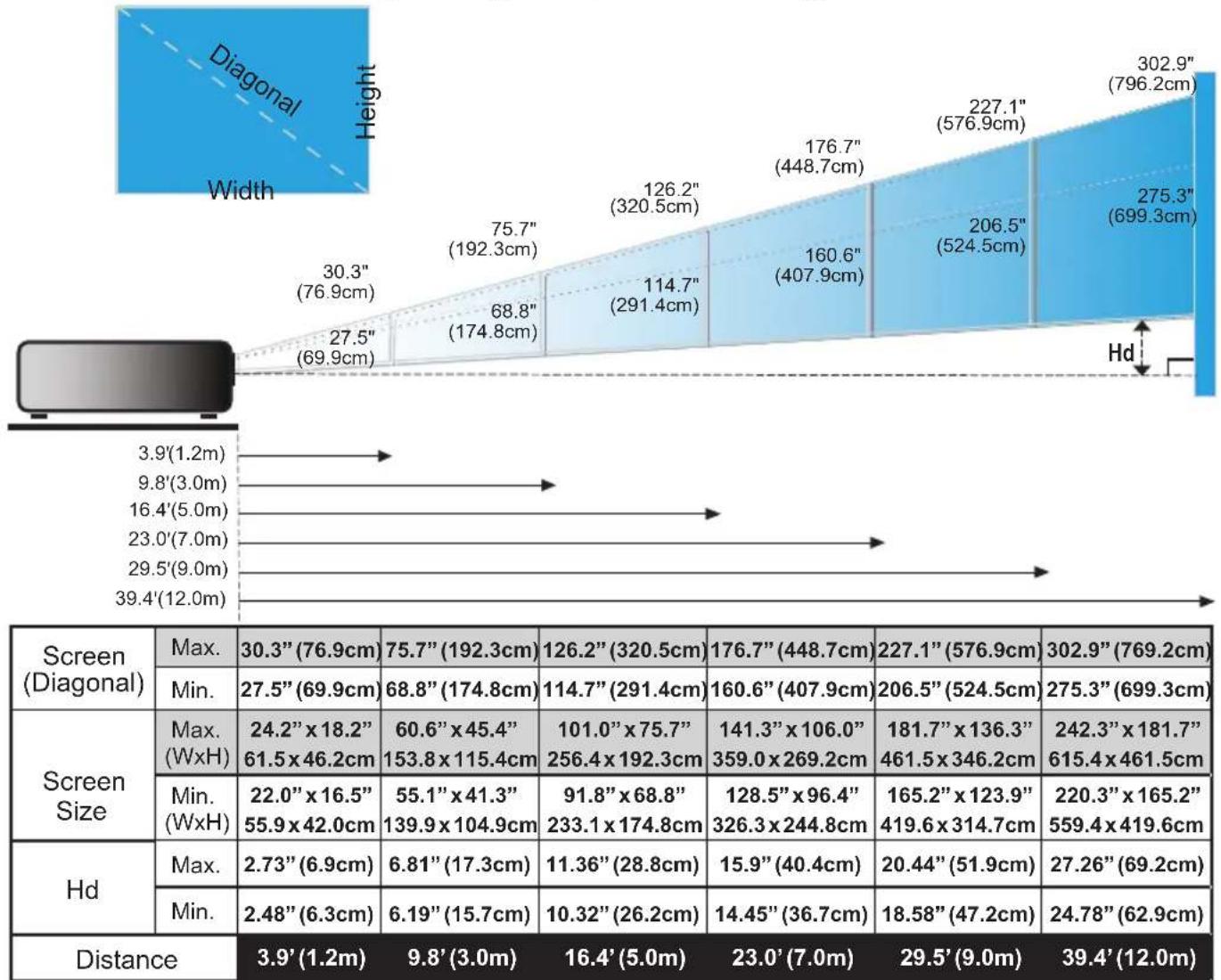

Adjusting Projection Image Size

This graph is for user's reference only.

Control Panel & Remote Control

There are two ways for you to control the functions: Control Panel and Remote Control.

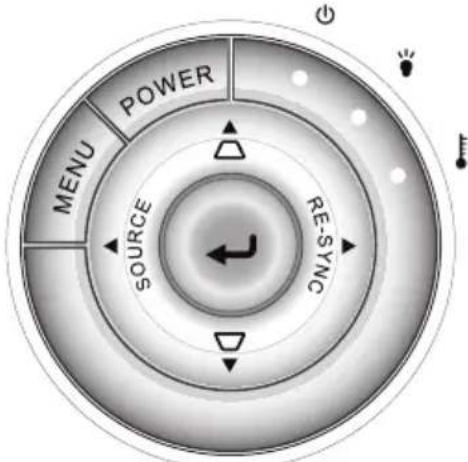

Control Panel

Using the Control Panel
POWER	Refer to the “Power On/Off the Projector” section on pages 13-14.
MENU	Press “MENU” to launch the on-screen display (OSD) menu. To exit OSD, Press “MENU” again.
	Confir rm your item selection.
RE-SYNC	Automatically synchronize the projector to the input source.
SOURCE	Press “SOURCE” to select an input signal.
Four Directional Select Keys	Use ▲ ▼ to select items or make adjustments to your selection.
Keystone	Use □ to adjust image distortion caused by tilting the projector. (±40 degrees)
	Lamp LED Indicates the projector’s lamp status.
	Temp LED Indicates the projector’s temperature status.
	Power LED Indicates the projector’s status.

Remote Control

Using the Remote Control
Power	Refer to the “Power On/Off the Projector” section on pages 13-14.
←	Confir rm your item selection.
Source	Press “SOURCE” to select an input signal.
Re-SYNC	Automatically synchronizes the projector to the input source.
Four Directional Select Keys	Use ▲▼to select items or make adjustments to your selection.
Keystone +/-	Adjust image distortion caused by tilting the projector.
Volume +/-	Adjust to increase / decrease the volume.
Brightness	Adjust the brightness of the image.
Menu	Press “Menu” to launch the on-screen display (OSD) menu. To exit OSD, press “Menu” again.
ZOOM	Zoom in on an image.Press◀buttons to alter zoom.

Remote Control

Using the Remote Control
HDMI	Press “HDMI” to choose HDMI source.
Freeze	Press “Freeze” to pause the screen image. Press this button again to unlock.
AV mute	Momentarily turns off/on the audio and video.
S-Video Press “S-Video” to choose S-Video source.
VGA	Press “VGA” to choose VGA sources.
Video	Press “Video” to choose Composite video source.

On-screen Display Menus

The Projector has multilingual On-screen Display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source.

How to operate

1. To open the OSD menu, press "MENU" on the Remote Control or Projector Keypad.

2 When OSD is displayed, use ◀▶ keys to select any item in the main menu. While making a selection on a particular page, press ▼ or "Enter" key to enter sub menu.

1. Use ▲▼ keys to select the desired item and adjust the settings by ◀▶ key.

2. Select the next item to be adjusted in the sub menu and adjust as described above.

3. Press "Enter" to confirm, and the screen will return to the main menu.

4. To exit, press "MENU" again. The OSD menu will close and the projector will automatically save the new settings.

Menu Tree

(#) "Saturation" and "Tint" are only supported in Video mode.
(##) "Signal" is only supported in Analog VGA (RGB) signal.
(*) "3D" is supported at 1280x720 resolution maximum.
(**) "3D Sync. Invert" is only available when 3D is enabled.


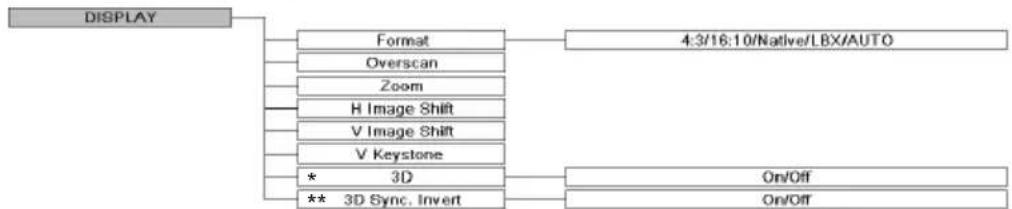

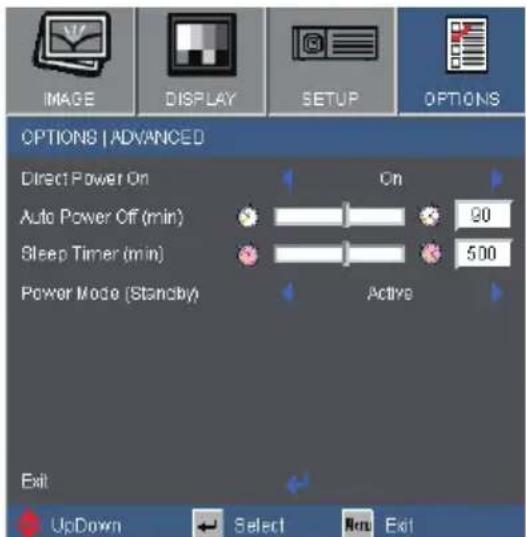

    H --> R["Direct Power On"]
    H --> S["Auto Power Off (min)"]
    H --> T["Sleep Timer (min)"]
    H --> U["Power Mode (Standby)"]
    U --> V["Eco./Active"]
    K --> W["Lamp Hours"]
    K --> X["Lamp Reminder"]
    K --> Y["Brightness Mode"]
    K --> Z["Lamp Reset"]
    V --> AA["On/Off"]
    V --> AB["STD/BRIGHT"]
    V --> AC["Yes/No"]


Display Mode

There are many factory presets optimized for various types of images.

Presentation: Good color and brightness from PC input.
Bright: Maximum brightness from PC input.
▶ Movie: For home theater.
sRGB: Standardised accurate color.
Blackboard: This mode should be selected to achieve optimum color settings when projecting onto a blackboard (green).
Classroom: This mode is recommended for projecting in a classroom.
User1: User's settings.
User2: The initial default settings of this mode is from Movie mode. Any further adjustments by the user in User2 will be saved in this mode for future use.

Brightness

Adjust the brightness of the image.

Press the ◀o darken image.
Press the ▶ to lighten the image.


Contrast

The contrast controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.

Press the ◀ to decrease the contrast.

Press the ▶ to increase the contrast.

Sharpness

Adjust the sharpness of the image.

Press the ◀ to decrease the sharpness.

Press the ▶ to increase the sharpness.

Saturation

Adjust a video image from black and white to fully saturated color.

Press the ◀ to decrease the amount of saturation in the image.

Press the ▶ to increase the amount of saturation in the image.

Tint

Adjust the color balance of red and green.

Press the ◀ to increase the amount of green in the image.

Press the ▶ to increase the amount of red in the image.

“Saturation” and “Tint” functions are only supported under Video mode.

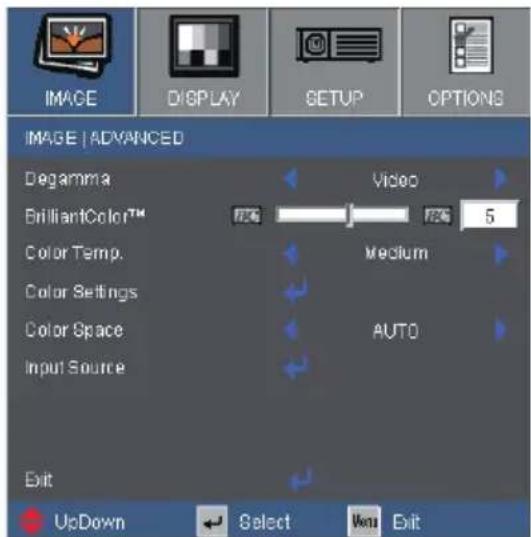

IMAGE | Advanced

Degamma

This allows you to choose a degamma table that has been fine-tuned to bring out the best image quality for the input.

▶ Film: for home theater.
▶ Video: for video or TV source.
▶ Graphics: for image source.
PC: for PC or computer source.

BrilliantColor™

This adjustable item utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing true, more vibrant colors in picture. The range is from "0" to "10". If you prefer a stronger enhanced image, adjust toward the maximum setting. For a smoother, more natural image, adjust toward the minimum setting.

Color Temp

If set to cold temperature, the image looks more blue. (cold image) If set to warm temperature, the image looks more red. (warm image)

Color Space

Select an appropriate color matrix type from AUTO, RGB or YUV.

Advanced | Color Settings

Color

Use these settings for advanced adjustment of the individual Red, Green, Blue, Cyan, Magenta and Yellow Colors.

Reset

Choose "Yes" to return the factory default settings for color adjustments.

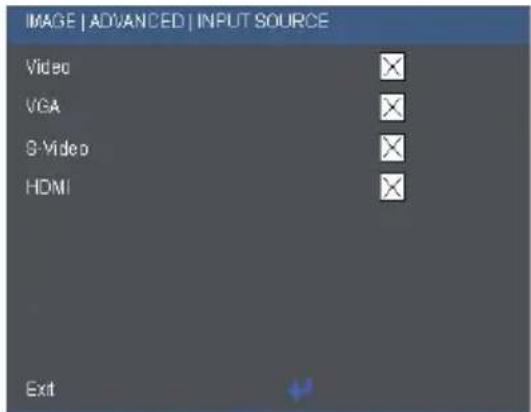

Advanced | Input Source

Input Source

Use this option to enable / disable input sources. Press to enter the sub menu and select which sources you require. Press "Enter" to finalize the selection. The projector will not search for inputs that are not selected.

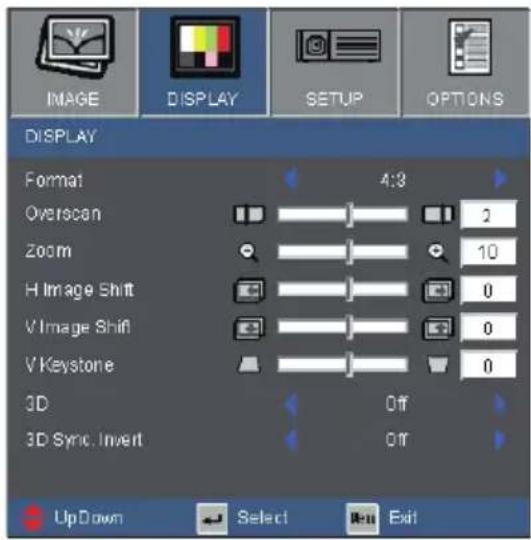

DISPLAY

Format

Use this function to choose your desired aspect ratio.

4:3: This format is for 4×3 input sources.
16:10: This format is for 16×10 input sources, like HDTV and DVD enhanced for Wide screen TV.
LBX: This format is for non-16x9, letterbox source and for users who use external 16x9 lens to display 2.35:1 aspect ratio using full resolution.
Native: This format displays the original image without any scaling.
▶ AUTO: Automatically selects the appropriate display format.

Aspect ratio (source detected)	Resize image
4:3 1066 x 8	00 center
16:9 1280 x	720 center
15:9 1280 x	768 center
16:10 1280 x	800 center

Input Signal

4:3 format

Display area

Picture area

Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)

or

16:10 format

Display on Screen

Simple geometric diagram with a circle centered on a divided rectangle, no text or symbols present.

Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)

Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)

DISPLAY

Overscan

Overscan function removes the noise in a video image. Overscan the image to remove video encoding noise on the edge of video source.

Zoom

Press the ◀ to reduce the size of an image.
Press the ▶ to magnify an image on the projection screen.

H Image Shift

Shift the projected image position horizontally.

V Image Shift

Shift the projected image position vertically.

V Keystone

Press the ◀ or ▶ to adjust image distortion vertically and makes a rectangular image.

3D

Choose the "On" to turn this item on first if for 3D images.

3D Sync. Invert

When you discover the inversion of the image depth, enable this function to correct the problem.

"3D" is supported at 1280x720 resolution maximum.
"3D Sync. Invert" is only available when 3D is enabled.

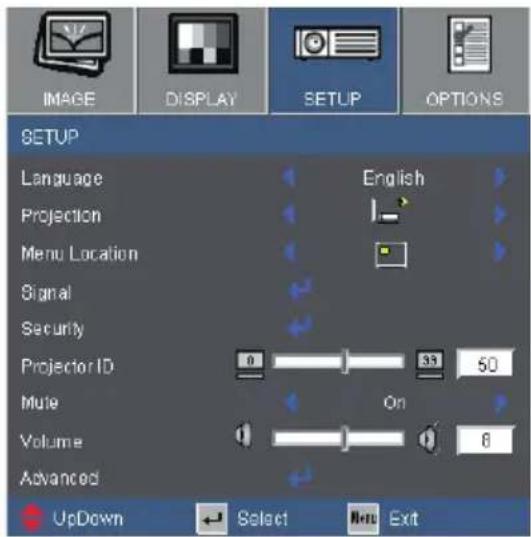

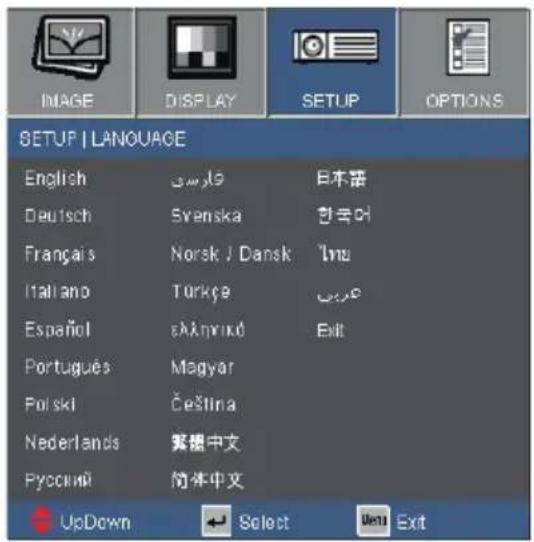

SETUP | Language

Language

Choose the multilingual OSD menu. Press ◀ or ▶ to the sub menu and then use the ▶ or ▶ key to select your preferred language. Press "Enter" to fi nalize the selection.

SETUP

Rear-Desktop and Rear-Ceiling are to be used with a translucent screen.

Projection

Front-Desktop

This is the default selection. The image is projected straight on the screen.

Rear-Desktop

When selected, the image will appear reversed.

Front-Ceiling

When selected, the image will turn upside down.

Rear-Ceiling

When selected, the image will appear reversed in upside down position.

SETUP

Menu Location

Choose the menu location on the display screen.

Projector ID

ID definition can be set up by menu (range 0\~99), and allow user control an individual projector by RS232. Refer to page 48 for the complete list of RS232 commands.

Mute

Choose the "On" to turn mute on.
Choose the "Off" to turn mute off.

Volume

Press the ◀ to decrease the volume.
Press the ▶ to increase the volume.

SETUP | Signal

“Signal” is only supported in Analog VGA (RGB) signal.

Phase

Synchronize the signal timing of the display with the graphic card. If the image appears to be unstable or flickers, use this function to correct it.

Frequency

Change the display data frequency to match the frequency of your computer's graphic card. Use this function only if the image appears to fl icker vertically.

H. Position

Press the ◀o move the image left.
▶ Press the ▶ to move the image right.

V. Position

Press the ◀ to move the image down.
▶ Press the ▶ to move the image up.

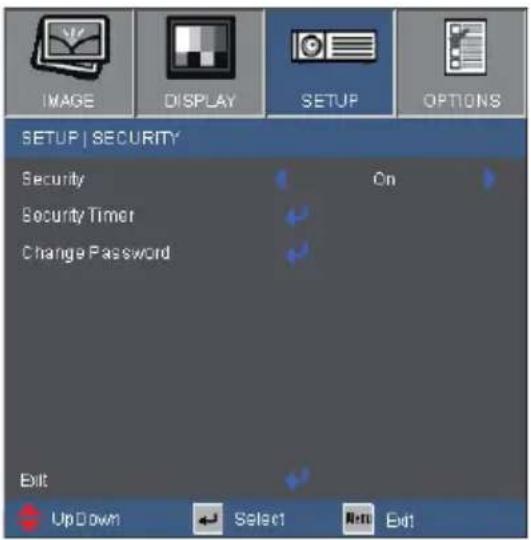

SETUP | Security

Security

On: Choose "On" to use security verification when the turning on the projector.
Off: Choose "Off" to be able to switch on the projector without password verification.

Security Timer

Use this function to set the how long (Month/Day/Hour) the projector can be used. Once this time has elapsed you will be requested to enter your password again.

SETUP | Security

Password default value is "1234" (first time).

Change Password

First time:

1. Press "←" to set the password.
2. The password has to be 4 digits.
3. Use number button on the remote to enter your new password and then press “←” key to confirm your password.

Change Password:

1. Press "←" to input old password.
2. Use number button to enter current password and then press "←" to confirm.
3. Enter new password (4 digits in length) using the number buttons on the remote, then press “←” to confirm.
4. Enter new password again and press "←" to confirm.

If you have forgotten your password, please contact your local office for support.

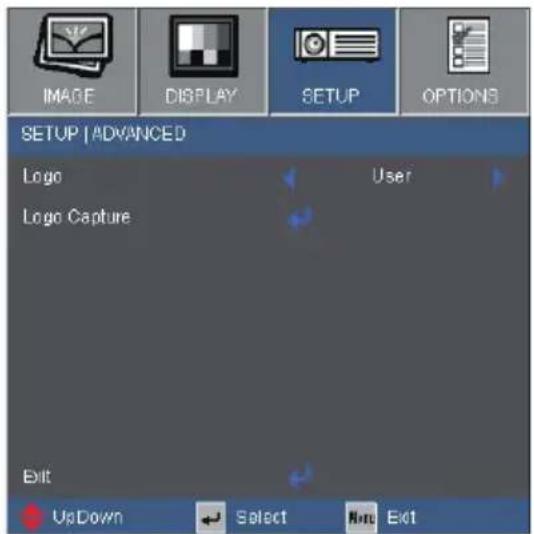

SETUP | Advanced

Logo

Use this function to set the desired startup screen. If changes are made they will take effect the next time the projector is powered on.

Optoma: The default startup screen.
User: Use stored picture from "Logo Capture" function.

Logo Capture

Press “←” to capture an image of the picture currently displayed on screen.

OPTIONS

Source Lock

On: The projector will search specified connection port.
▶ Off: The projector will search for other signals if the current input signal is lost.

High Altitude

When "On" is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.

Information Hide

On: Choose "On" to hide the "searching" message.
Off: Choose "Off" to show the "searching" message.

To turn off the keypad lock, press and hold "Enter" key on top of the projector for 5 seconds.

Keypad Lock

When the keypad lock function is "On", the control panel will be locked however, the projector can be operated by the remote control. By selecting "Off", you will be able to reuse the control panel.

Background Color

Use this feature to display a "Black", "Red", "Blue", "Green" or "White", screen when no signal is available.

Reset

Choose "Yes" to return the display parameters on all menus to the factory default settings.

OPTIONS | Advanced

Direct Power On

Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied, without pressing the “Power” key on the projector control panel or “Power” key on the remote control.

Auto Power Off (min)

Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

Sleep Timer (min)

Sets the countdown timer interval. The countdown timer will start, with or without a signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

Eco (<1W) mode will disable the VGA-out function when the projector is in standby.

Power Mode (Standby)

Eco.: Choose Eco. Mode to save power dissipation (<1W) when the projector is in standby.
Active: Choose "Active" to return to normal standby mode and the VGA out port will be enabled.

OPTIONS | Lamp Settings

Lamp Hours

Display the projection time.

Lamp Reminder

Choose this function to show or hide the "change lamp" warning message.

The message will appear 30 hours before suggested replacement of lamp.

Brightness Mode

▶ STD: Choose "STD" to dim the projector lamp which will lower power consumption and extend the lamp life by up to 130%.
BRIGHT: Choose "BRIGHT" to increase the brightness.

Lamp Reset

Reset the lamp hour counter after replacing the lamp.

Troubleshooting

If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center.

Image Problems

No image appears on-screen

▶ Ensure all the cables and power connections are correctly and securely connected as described in the “Installation” section.
▶ Ensure all the pins of connectors are not bent or broken.
Check if the projection lamp has been securely installed. Please refer to the "Replacing the lamp" section.
Make sure you have removed the lens cap and the projector is switched on.
▶ Ensure that the “AV mute” feature is not turned on.

? Partial, scrolling or incorrectly displayed image

Press "RE-SYNC" on the remote.

▶ If you are using a PC:

For Windows 95, 98, 2000, XP:

1. Open the "My Computer" icon, the "Control Panel" folder, and then double click on the "Display" icon.
2. Select the "Settings" tab.
3. Verify that your display resolution setting is lower than or equal to UXGA (1600 × 1200).
4. Click on the "Advanced Properties" button.

If the projector is still not projecting the whole image, you will also need to change the monitor display you are using. Refer to the following steps.

1. Verify the resolution setting is lower than or equal to UXGA (1600 × 1200).

2. Select the "Change" button under the "Monitor" tab.

Appendices

1. Click on "Show all devices". Next, select "Standard monitor types" under the SP box; choose the resolution mode you need under the "Models" box.
2. Verify that the resolution setting of the monitor display is lower than or equal to UXGA (1600 × 1200).

If you are using a Notebook:

1. First, follow the steps above to adjust resolution of the computer.
2. Press the appropriate keys listed below for your notebook manufacturer to send signal out from notebook to projector. Example: [Fn]+[F4]

Acer [Fn]+[F5] IBM/Lenovo [Fn]+[F7] Asus [Fn]+[F8] HP/Compaq [Fn]+[F4] Dell [Fn]+[F8] NEC [Fn]+[F3] Gateway [Fn]+[F4] Toshiba [Fn]+[F5]

Mac Apple:

System Preference Display Arrangement Mirror display

If you experience difficulty changing resolutions or your monitor freezes, restart all equipment including the projector.

The screen of the Notebook or PowerBook computer is not displaying your presentation

If you are using a Notebook PC

Some Notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated. Refer to your computer's manual for detailed information.

? Image is unstable or flickering

Use "Phase" to correct it. See page 32 for more information.
Change the monitor color setting on your computer.

? Image has vertical flickering bar

Use "Frequency" to make an adjustment. See page 32 for more information.
▶ Check and reconfigure the display mode of your graphic card to make it compatible with the projector.

? Image is out of focus

▶ Make sure the lens cap is removed.
Adjust the Focus Ring on the projector lens.
Make sure the projection screen is between the required distance 3.9 to 39.4 feet (1.2 to 12.0 meters) from the projector. See page 16.

The image is stretched when displaying 16:9 DVD title

When you play anamorphic DVD or 16:9 DVD, the projector will show the best image in 16:9 format on projector side.
If you play 4:3 format DVD titles, please change the format to 4:3 in the projector OSD.
If the image is still stretched, you will also need to adjust the aspect ratio by referring to the following:
Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player.

? Image is too small or too large

Adjust the Zoom Ring on the top of the projector.
Move the projector closer to or further from the screen.
Press "MENU" button on the remote control or projector panel, go to "Display → Format" and try the different settings.

? Image has slanted sides

If possible, reposition the projector so that it is horizontally centered on the screen and below the bottom of the screen.
Press "Keystone +/-" button on the remote control or press "☐" on the projector panel, until the sides are vertical.

Use of Keystone is not recommended.

7 Image is reversed

Select "SETUP → Projection" from the OSD and adjust the projection direction.

Other Problems

The projector stops responding to all controls

If possible, turn off the projector, then unplug the power cord and wait at least 60 seconds before reconnecting power.
▶ Check that "Keypad Lock" is not activated by trying to control the projector with the remote control.

Lamp burns out or makes a popping sound

When the lamp reaches its end of life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in the “Replacing the Lamp” section on pages 44-45.

Projector Status Indication

? LED lighting message

Message	Power LED Temp-LED Lamp-LED
	(Green/Red) (Red) (Red)
Standby State (Input power cord)	Red	○	○
Power on (Warming)	Flashing Green	○	○
Lamp lighting Green		○	○
Power off (Cooling)	Flashing Green	○	○
Error (Over Temp.)	Flashing Red		○
Error (Fan fail)	Flashing Red	Flashing	○
Error (Lamp fail)	Flashing Red	○

Steady light

No light ○

? On Screen Messages

▶ Temperature warning:

Fan failed:

Lamp warning:

▶ Out of display range:

Remote Control Problems

If the remote control does not work

▶ Check the operating angle of the remote control is within ±15^ both horizontally and vertically of one of the IR receivers on the projector.
Make sure there are not any obstructions between the remote control and the projector. Move to within 7 m ( ±0^ ) of the projector.
Make sure the batteries are inserted correctly.
Replace batteries if they are exhausted.

Replacing the lamp

The projector automatically detects the lamp life. When the lamp life is nearing the end of use, you will receive a warning message.

Lamp Warning

Lamp life exceeded

When you see this message, please contact your local reseller or service center to change the lamp as soon as possible. Make sure the projector has been cooled down for at least 30 minutes before changing the lamp.

CAUTION!

HIGH TEMPERATURE COOL FOR 30 MINUTES.
HIGH PRESSURE LAMP MAY EXPLODE IF IMPROPERLY HANDED.
REFER TO LAMP REPLACEMENT INSTRUCTIONS.DISCONNECT POWER BEFORE CHANGING LAMP.

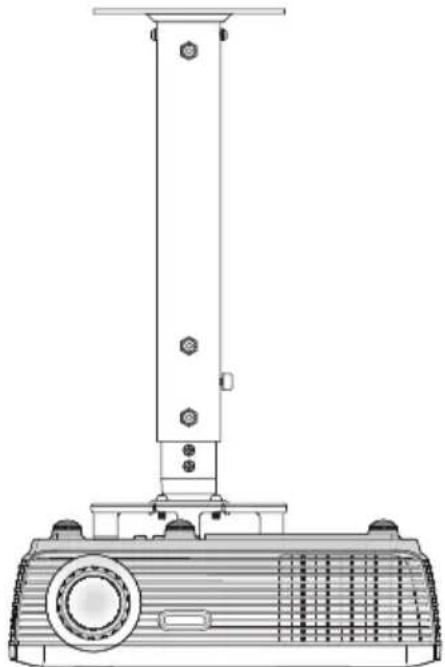

Warning: If ceiling mounted, please use caution when opening the lamp access panel. It is recommended to wear safety glasses if changing the bulb when ceiling mounted. "Caution must be used to prevent any loose parts from falling out of projector."

Warning: Lamp compartment may be hot! Allow it to cool down before changing the lamp!

Warning: To reduce the risk of personal injury, do not drop the lamp module or touch the lamp bulb. The bulb may shatter and cause injury if it is dropped.

The screws on the lamp cover and the lamp cannot be removed.
The projector cannot be turned on if the lamp cover has not been placed back on the projector.
Do not touch the glass area of the lamp. Hand oil can cause the lamp to shatter. Use a dry cloth to clean the lamp module if it was accidentally touched.

Lamp Replacement Procedure:

1. Switch off the power to the projector by pressing the "POWER" button.
2. Allow the projector to cool down for at least 30 minutes.
3. Disconnect the power cord.
4. Unscrew the two screws on the cover. 1
5. Lift up and remove the cover. 2
6. Unscrew the two screws on the lamp module. 3
7. Lift up the lamp handle and remove the lamp module slowly and carefully. 4
   To replace the lamp module, reverse the previous steps.
8. Turn on the projector and use "Lamp Reset" after the lamp module is replaced.

Lamp Reset: (i) Press "MENU" → (ii) Select "OPTIONS" → (iii) Select "Lamp Settings" → (iv) Select "Lamp Reset" → (v) Select "Yes".

Compatibility Modes

Computer Compatibility

Mode Resolution V-Sync (Hz) H-Sync (KHz)
VGA 640 ×	350 70 31.50
VGA 640 ×	350	85 37.90
VGA 640 ×	400 85 37.90
VGA 640 ×	480 60 31.50
VGA 640 ×	480 72 37.90
VGA 640 ×	480 75 37.50
VGA 640 ×	480 85 43.30
VGA 720 ×	400 70 31.50
VGA 720 ×	400 85 37.90
SVGA 800 ×	600 56 35.20
SVGA 800 ×	600 60 37.90
SVGA 800 ×	600 72 48.10
SVGA 800 ×	600 75 46.90
SVGA 800 ×	600 85 53.70
XGA 1024 ×	768 60 48.40
XGA 1024 ×	768 70 56.50
XGA 1024 ×	768 75 60.00
XGA 1024 ×	768 85 68.70
WXGA 1280 ×	768 60 47.40
WXGA 1280 ×	768 75 60.30
WXGA 1280 ×	720 60 45.00
WXGA 1280 ×	800 60 49.70
SXGA 1152 ×	864 60 53.50
SXGA 1152 ×	864 70 63.80
SXGA 1152 ×	864 75 67.50
SXGA 1152 ×	864 85 77.10
SXGA 1280 ×	1024 60 63.98
SXGA 1280 ×	1024 75 79.98
SXGA 1280 ×	1024 85 91.10
SXGA 1280 ×	960 60 60.00
SXGA+	1400 × 1050 60	63.98
UXGA 1600 ×	1200 60 75.00

For widescreen resolution (WXGA), the compatibility support is dependent on Notebook/PC models.

Computer Compatibility

Mode Resolution V-Sync (Hz) H-Sync (KHz)
MAC LC 13" 640 × 480 66.66 34.98
MAC II 13" 640 × 480 66.68 35.00
MAC 16" 832 × 624 74.55 49.73
MAC 19" 1024 × 768 75 60.24
MAC	1152 × 870	75.06 68.68
MAC G4	640 × 480	60 31.35
i MAC DV	1024 × 768 75	60.00
i MAC DV	1152 × 870 75	68.49
i MAC DV	1280 × 960 75	75.00

Video Compatibility

NTSC M (3.58MHz), 4.43 MHz, 480i/p @60Hz

PAL B, D, G, H, I, M, N, 576i/p @50Hz

SECAM B, D, G, K, K1, L

SDTV/HDTV 480i/p, 576i/p, 720p@50Hz/60Hz, 1080i/p@50Hz/60Hz

RS232 Commands

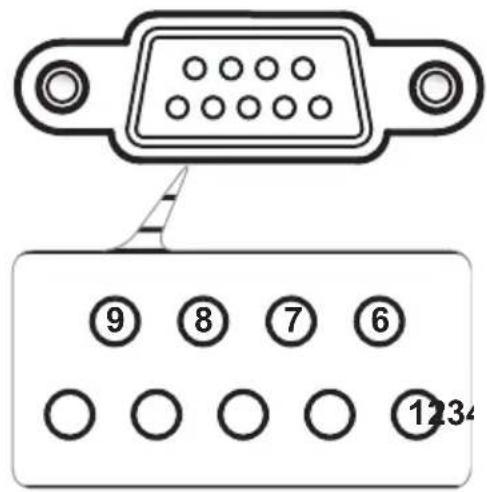

RS232 Pin Assignments

Pin no. Name	I/O (From Projector Side)
1 TXD OUT
2 RXD IN
3 GND GND

Pin no. Spec.

1 N/A

2 RXD

3 TXD

4 N/A

5 GND

6 N/A

7 N/A

8 N/A

9 N/A

RS232 Protocol Function List

RS232 Commands

Baud Rate : 9600

Data Bits: 8

Parity: None

Stop Bits: 1

Flow Control: None

UART16550 FIFO: Disable

Projector Return (Pass): P

Projector Return (Fail): F

XX=00-99, projector's ID,

XX=00 is for all projectors

1. There is a after all ASCII commands.

2. 0D is the HEX code for in ASCII code.

SEND to projector

232 ASCII Code HEX Code Function Description
~XX00 1	7E 30 30 30 30 20 31 0D Power ON
~XX00 0	7E 30 30 30 30 20 30 0D Power OFF (0/2 for backward compatible)
~XX00 1	~nnnn 7E 30 30 30 30 20 31 20 a 0D Power ON with Password ~nnnn = ~0000 (a=7E 30 30 30 30) - ~9999(a=7E 39 39 39 39)
~XX01 1	7E 30 30 30 31 20 31 0D Resync
~XX02 1	7E 30 30 30 32 20 31 0D AV Mute On
~XX02 0	7E 30 30 30 32 20 30 0D Off (0/2 for backward compatible)
~XX03 1	7E 30 30 30 33 20 31 0D Mute On
~XX03 0	7E 30 30 30 33 20 30 0D Off (0/2 for backward compatible)
~XX04 1	7E 30 30 30 34 20 31 0D Freeze
~XX04 0	7E 30 30 30 34 20 30 0D Unfreeze (0/2 for backward compatible)
~XX05 1	7E 30 30 30 35 20 31 0D Zoom Plus
~XX06 1	7E 30 30 30 36 20 31 0D Zoom Minus
~XX07 1	7E 30 30 30 37 20 31 0D Up (Pan under zoom)
~XX08 1	7E 30 30 30 38 20 31 0D Down (Pan under zoom)
~XX09 1	7E 30 30 30 39 20 31 0D Left (Pan under zoom)
~XX10 1	7E 30 30 31 30 20 31 0D Right (Pan under zoom)
~XX12 1	7E 30 30 31 32 20 31 0D HDMI
~XX12 5	7E 30 30 31 32 20 35 0D VGA I
~XX12 7	7E 30 30 31 32 20 37 0D VGA I SCART
~XX12 8	7E 30 30 31 32 20 38 0D VGA I Component
~XX12 9	7E 30 30 31 32 20 39 0D S-Video
~XX12 10	7E 30 30 31 32 20 31 30 0D Video
~XX20 1	7E 30 30 32 30 20 31 0D Display Modc Presentation
~XX20 2	7E 30 30 32 30 20 32 0D Bright
~XX20 3	7E 30 30 32 30 20 33 0D Movie
~XX20 4	7E 30 30 32 30 20 34 0D sRGB
~XX20 5	7E 30 30 32 30 20 35 0D Uscr1
~XX20 6	7E 30 30 32 30 20 36 0D Uscr2
~XX20 7	7E 30 30 32 30 20 37 0D Blackboard
~XX20 8	7E 30 30 32 30 20 38 0D Classroom
~XX21 n	7E 30 30 32 31 20 a 0D Brightness n = 0 (a=30) ~ 100 (a=31 30 30)
~XX22 n	7E 30 30 32 32 20 a 0D Contrast n = 0 (a=30) ~ 100 (a=31 30 30)
~XX23 n	7E 30 30 32 33 20 a 0D Sharpness n = 0 (a=30) ~ 31 (a=33 31)
~XX24 n	7E 30 30 32 34 20 a 0D Color Settings Rcd Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX25 n	7E 30 30 32 35 20 a 0D Green Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX26 n	7E 30 30 32 36 20 a 0D Blue Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX27 n	7E 30 30 32 37 20 a 0D Rcd Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX28 n	7E 30 30 32 38 20 a 0D Green Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX29 n	7E 30 30 32 39 20 a 0D Blue Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX30 n	7E 30 30 33 30 20 a 0D Cyan n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX31 n	7E 30 30 33 31 20 a 0D Yellow n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX32 n	7E 30 30 33 32 20 a 0D Magenta n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX33 1	7E 30 30 33 33 20 31 0D Rsct
~XX35 1	7E 30 30 33 35 20 31 0D Degamma Film
~XX35 2	7E 30 30 33 35 20 32 0D Video
~XX35 3	7E 30 30 33 35 20 33 0D Graphics
~XX35 4	7E 30 30 33 35 20 34 0D PC
~XX34 n	7E 30 30 33 34 20 a 0D BrilliantColor TM n = 0 (a=30) ~ 10 (a=31 30)
~XX36 1	7E 30 30 33 36 20 31 0D Color Temp. Warm
~XX36 2	7E 30 30 33 36 20 32 0D Medium
~XX36 3	7E 30 30 33 36 20 33 0D Auto
~XX37 1	7E 30 30 33 37 20 31 0D Color Space
~XX37 2	7E 30 30 33 37 20 32 0D RGB
~XX37 3	7E 30 30 33 37 20 33 0D YUV
~XX39 5	7E 30 30 33 39 20 35 0D Input Source VGA1
~XX39 9	7E 30 30 33 39 20 39 0D S-Video
~XX39 10	7E 30 30 33 39 20 31 0D Video
~XX39 1	7E 30 30 33 39 20 31 0D HIDMI
~XX60 1	7E 30 30 36 30 20 31 0D Format 4:3
~XX60 3	7E 30 30 36 30 20 33 0D 16:10
~XX60 5	7E 30 30 36 30 20 35 0D LBX
~XX60 6	7E 30 30 36 30 20 36 0D Native
~XX60 7	7E 30 30 36 30 20 37 0D AUTO
~XX61 n	7E 30 30 36 31 20 a 0D Overscan n = 0 (a=30) ~ 3 (a=33)
~XX62 n	7E 30 30 36 32 20 a 0D Zoom n = -5 (a=2D 35) ~ 25 (a=32 35)
~XX63 n	7E 30 30 36 33 20 a 0D II Image Shift n = -50 (a=2D 35 30) ~ +50 (a=35 30)
~XX64 n	7E 30 30 36 34 20 a 0D V Image Shift n = -50 (a=2D 35 30) ~ +50 (a=35 30)
~XX66 n	7E 30 30 36 36 20 a 0D V Keystone n = -40 (a=2D 34 30) ~ 40 (a=34 30)
~XX230 1	7E 30 30 32 33 30 20 31 0D 3D Mode On
~XX230 0	7E 30 30 32 33 30 20 30 0D 3D Mode Off (0/2 for backward compatible)
~XX231 1	7E 30 30 32 33 31 20 31 0D 3D Sync Invert On
~XX231 0	7E 30 30 32 33 31 20 30 0D 3D Sync Invert Off (0/2 for backward compatible)
~XX70 1	7E 30 30 37 30 20 31 0D Language English
~XX70 2	7E 30 30 37 30 20 32 0D German
~XX70 3	7E 30 30 37 30 20 33 0D French
~XX70 4	7E 30 30 37 30 20 34 0D Italian
~XX70 5	7E 30 30 37 30 20 35 0D Spanish
~XX70 6	7E 30 30 37 30 20 36 0D Portuguese
~XX70 7	7E 30 30 37 30 20 37 0D Polish
~XX70 8	7E 30 30 37 30 20 38 0D Dutch
~XX70 9	7E 30 30 37 30 20 39 0D Swedish
~XX70 10	7E 30 30 37 30 20 31 30 0D Norwegian/Danish
~XX70 12	7E 30 30 37 30 20 31 32 0D Greek
~XX70 13	7E 30 30 37 30 20 31 33 0D Traditional Chinese
~XX70 14	7E 30 30 37 30 20 31 34 0D Simplified Chinese
~XX70 15	7E 30 30 37 30 20 31 35 0D Japanese
~XX70 16	7E 30 30 37 30 20 31 36 0D Korean
~XX70 17	7E 30 30 37 30 20 31 37 0D Russian
~XX70 18	7E 30 30 37 30 20 31 38 0D Hungarian
~XX70 19	7E 30 30 37 30 20 31 39 0D Czechoslovak
~XX70 20	7E 30 30 37 30 20 32 30 0D Arabic
~XX70 21	7E 30 30 37 30 20 32 31 0D Thai
~XX70 22	7E 30 30 37 30 20 32 32 0D Turkish
~XX70 23	7E 30 30 37 30 20 32 33 0D Danish
~XX70 24	7E 30 30 37 30 20 32 34 0D Farsi

Appendices

~XX71 1	7E 30 30 37 31 20 31 0D	Projection Front-Desktop
~XX71 2	7E 30 30 37 31 20 32 0D	Rear-Desktop
~XX71 3	7E 30 30 37 31 20 33 0D	Front-Ceiling
~XX71 4	7E 30 30 37 31 20 34 0D	Rear-Ceiling
~XX72 1	7E 30 30 37 32 20 31 0D	Menu Location Top Left
~XX72 2	7E 30 30 37 32 20 32 0D	Top Right
~XX72 3	7E 30 30 37 32 20 33 0D	Centre
~XX72 4	7E 30 30 37 32 20 34 0D	Bottom Left
~XX72 5	7E 30 30 37 32 20 35 0D	Bottom Right
~XX73 n	7E 30 30 37 33 20 a 0D	Signal	Frequency	n = -5 (a=2D 35) ~ 5 (a=35) By signal
~XX74 n	7E 30 30 37 34 20 a 0D	Phase	n = 0 (a=30) ~ 31 (a=33 31) By signal
~XX75 n	7E 30 30 37 35 20 a 0D	H. Position	n = -5 (a=2D 35) ~ 5 (a=35) By timing
~XX76 n	7E 30 30 37 36 20 a 0D		V. Position	n = -5 (a=2D 35) ~ 5 (a=35) By timing
~XX77 n	7E 30 30 37 37 20 aabbcc 0D	Security	Security Timcr	Month/Day/Hour n = mm/dd/hh mm = 00 (aa=30 30) ~ 12 (aa=31 32) dd = 00 (bb=30 30) ~ 30 (bb=33 30) hh = 00 (cc=30 30) ~ 24 (cc=32 34)
~XX78 1	7E 30 30 37 38 20 31 0D	Security	On
~XX78 0	7E 30 30 37 38 20 32 0D			Off (0/2 for backward compatible)
~XX79 n	7E 30 30 37 39 20 a 0D	Projector ID		n = 00 (a=30 30) ~ 99 (a=39 39)
~XX80 1	7E 30 30 38 30 20 31 0D	Mute On
~XX80 0	7E 30 30 38 30 20 30 0D	Off (0/2 for backward compatible)
~XX81 n	7E 30 30 38 31 20 a 0D	Volume		n = 0 (a=30) ~ 10 (a=31 30)
~XX82 1	7E 30 30 38 32 20 31 0D	Logo	Optoma
~XX82 2	7E 30 30 38 32 20 32 0D	User
~XX83 1	7E 30 30 38 33 20 31 0D	Logo Capture
~XX100 1	7E 30 30 31 30 30 20 31 0D	Source Lock	On
~XX100 0	7E 30 30 31 30 30 20 30 0D		Off (0/2 for backward compatible)
~XX101 1	7E 30 30 31 30 31 20 31 0D	High Altitude	On
~XX101 0	7E 30 30 31 30 31 20 30 0D		Off (0/2 for backward compatible)
~XX102 1	7E 30 30 31 30 32 20 31 0D	Information Hide	On
~XX102 0	7E 30 30 31 30 32 20 30 0D		Off (0/2 for backward compatible)
~XX103 1	7E 30 30 31 30 33 20 31 0D	Keypad Lock	On
~XX103 0	7E 30 30 31 30 33 20 30 0D		Off (0/2 for backward compatible)
~XX104 1	7E 30 30 31 30 34 20 31 0D	Background Color	Blue
~XX104 2	7E 30 30 31 30 34 20 32 0D		Black
~XX104 3	7E 30 30 31 30 34 20 33 0D		Red
~XX104 4	7E 30 30 31 30 34 20 34 0D		Green
~XX104 5	7E 30 30 31 30 34 20 35 0D		White
~XX105 1	7E 30 30 31 30 35 20 31 0D	Advanced	Direct Power On	On
~XX105 0	7E 30 30 31 30 35 20 30 0D			Off (0/2 for backward compatible)
~XX106 n	7E 30 30 31 30 36 20 a 0D		Auto Power Off (min)	n = 0 (a 30) ~ 180 (a 31 38 30)
~XX107 n	7E 30 30 31 30 37 20 a 0D		Sleep Timer (min)	n = 0 (a 30) ~ 999 (a 39 39 39)
~XX114 1	7E 30 30 31 31 34 20 31 0D		Power Mode(Standby)	Eco.(< -1W)
~XX114 0	7E 30 30 31 31 34 20 30 0D			Active (0/2 for backward compatible)
~XX109 1	7E 30 30 31 30 39 20 31 0D		Lamp Reminder	On
~XX109 0	7E 30 30 31 30 39 20 30 0D			Off (0/2 for backward compatible)
~XX110 1	7E 30 30 31 31 30 20 31 0D		Brightness Mode	Bright
~XX110 0	7E 30 30 31 31 30 20 30 0D			STD (0/2 for backward compatible)
~XX111 1	7E 30 30 31 31 31 20 31 0D		Lamp Reset	Yes
~XX111 0	7E 30 30 31 31 31 20 30 0D			No (0/2 for backward compatible)
~XX112 1	7E 30 30 31 31 32 20 31 0D	Reset		Yes

\~XX99 1 7E 30 30 39 39 20 31 0D RS232 Alert Reset Reset System Alert

SEND to emulate Remote

~XX140 1	7E 30 30 31 34 30 20 31 0D	Power
~XX140 10	7E 30 30 31 34 30 20 31 30 0D	Up/Page +
~XX140 11	7E 30 30 31 34 30 20 31 31 0D	Left/Source
~XX140 12	7E 30 30 31 34 30 20 31 32 0D	Enter (for projection MENU)
~XX140 13	7E 30 30 31 34 30 20 31 33 0D	Right/Re-SYNC
~XX140 14	7E 30 30 31 34 30 20 31 34 0D	Down/Page -
~XX140 15	7E 30 30 31 34 30 20 31 35 0D	Keystone +
~XX140 16	7E 30 30 31 34 30 20 31 36 0D	Keystone -
~XX140 17	7E 30 30 31 34 30 20 31 37 0D	Volume -
~XX140 18	7E 30 30 31 34 30 20 31 38 0D	Volume +
~XX140 19	7E 30 30 31 34 30 20 31 39 0D	Brightness (1)
~XX140 20	7E 30 30 31 34 30 20 32 30 0D	Menu (2)
~XX140 21	7E 30 30 31 34 30 20 32 31 0D	Zoom (3)
~XX140 22	7E 30 30 31 34 30 20 32 32 0D	HDMI (4)
~XX140 23	7E 30 30 31 34 30 20 32 33 0D	Freeze (5)
~XX140 24	7E 30 30 31 34 30 20 32 34 0D	AV Mute (6)
~XX140 25	7E 30 30 31 34 30 20 32 35 0D	S-Video (7)
~XX140 26	7E 30 30 31 34 30 20 32 36 0D	VGA (8)
~XX140 27	7E 30 30 31 34 30 20 32 37 0D	Video (9)

SEND from projector automatically

232 ASCII Code	HEX Code	Function	Projector Return	Description
when Standby/Warming/Cooling/Out of Range/Lamp fail/Fan Lock/Over Temperature/Lamp Hours Running Out			INFOn	n: 0/1/2/3/4/6/7/8 = Standby/Warming/Cooling/Out of Range/Lamp fail/Fan Lock/Over Temperature/Lamp Hours Running Out

READ from projector

232 ASCII Code	HEX Code	Function	Projector Return	Description
~XX121 1	7E 30 30 31 32 31 20 31 0D	Input Source CommandsNone/11DMI/VGA/S-Video/Video	OKn	n : 0/1/2/3/4
~XX122 1	7E 30 30 31 32 32 20 31 0D	Software Version	OKdddd	dddd: FW version
~XX123 1	7E 30 30 31 32 33 20 31 0D	Display ModeUser2/Blackboard/Classroom	OKn	n : 0/1/2/3/4/5/6/7/8 = None/Presentation/Bright/Movie/sRGB/User1/
~XX124 1	7E 30 30 31 32 34 20 31 0D	Power State	OKn	n : 0/1 = Off/On
~XX125 1	7E 30 30 31 32 35 20 31 0D	Brightness	OKn
~XX126 1	7E 30 30 31 32 36 20 31 0D	Contrast	OKn
~XX127 1	7E 30 30 31 32 37 20 31 0D	Aspect Ratio	OKn	n=0/1/2/3/4/5 for 4:3/16:10/LBX/Native/AUTO
~XX128 1	7E 30 30 31 32 38 20 31 0D	Color Temperature	OKn	n : 0/1/2 = Warm/Medium/Cold
~XX129 1	7E 30 30 31 32 39 20 31 0D	Projection ModeInformationa : 0/1 = Off/Onbbbb: LampHour	OKnOKabbbbccdddde	n : 0/1/2/3 = Front-Desktop/ Rear-Desktop/ Front-Ceiling/ Rear-Ceiling
~XX150 1	7E 30 30 31 35 30 20 31 0D
		dddd: FW versione : Display mode 0/1/2/3/4/5/6/7/8		cc: source 00/01/02/03/04= None/HDMI/VGA/S-Video/Video
				None/Presentation/Bright/Movie/sRGB/User1/User2/
		Blackboard/Classroom
~XX151 1	7E 30 30 31 35 31 20 31 0D	Model name	OKn	n: l=WXGA
~XX108 1	7E 30 30 31 30 38 20 31 0D	Lamp Hours	OKbbbb	bbbb: LampHour
~XX108 2	7E 30 30 31 30 38 20 31 0D	Cumulative Lamp Hours	OKbbbb	bbbb: (5 digits) Total Lamp Hours

Ceiling Mount Installation

1. To prevent damage to your projector, please use the Optoma ceiling mount.
2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications:

Screw type: M3*3
▶ Maximum screw length: 10mm
▶ Minimum screw length: 7.5mm

Please note that damage resulting from incorrect installation will invalidate the warranty.

Warning:

1. If you buy a ceiling mount from another company, please be sure to use the correct screw size. Screw size will vary depending on the thickness of the mounting plate.
2. Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.
3. Avoid installing the projector near a heat source.

Technical line drawing of a projector with a vertical support and base mount (no text or symbols)

Unit: mm

Optoma Global Offices

For service or support please contact your local office.

USA

715 Sycamore Drive Tel : [phone]

Milpitas, CA 95035, USA Fax: [phone]

www.optomausa.com Service : [e-mail]

Canada

5630 Kennedy Road, Mississauga, Tel : [phone]

ON, L4Z 2A9, Canada Fax: [phone]

www.optoma.ca Service : [e-mail]

Europe

42 Caxton Way, The Watford Business Park

Watford, Hertfordshire,

WD18 8QZ, UK Tel : [phone]

www.optoma.eu Fax: [phone]

Service Tel : [phone] Service : [e-mail]

France

Germany Service : [e-mail]

Scandinavia

Grev Wedels Plass 2 Tel : [phone]

3015 Drammen Fax: [phone]

Norway Service : [e-mail]

Latin America

715 Sycamore Drive Tel : [phone]

Milpitas, CA 95035, USA Fax: [phone]

www.optoma.com.br www.optoma.com.mx

Korea

WOOMI TECH.CO.,LTD.

4F, Minu Bldg.33-14, Kangnam-Ku, Tel: +82+2+34430004

seoul,135-815, KOREA Fax: +82+2+34430005

Japan

東京都足立区綾瀬3-25-18

5F., No. 108, Minchiuan Rd. Tel: [phone]

Shindian City, Fax: [phone]

Taipei Taiwan 231, R.O.C. Service : [e-mail]

www.optoma.com.tw asia.optoma.com

Hong Kong

Unit A, 27/F Dragon Centre,

79 Wing Hong Street, Tel : [phone]

Cheung Sha Wan, Fax: [phone]

Kowloon, Hong Kong www.optoma.com.hk

China

5F, No. 1205, Kaixuan Rd., Tel: [phone]

Changning District Fax: [phone]

Shanghai, 200052, China www.optoma.com.cn

Regulation & Safety notices

This appendix lists the general notices of your projector.

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the device and receiver.

- Connect the device into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Declaration of Conformity for EU countries

• EMC Directive 2004/108/EC (including amendments)
- Low Voltage Directive 2006/95/EC
• R & TTE Directive 1999/5/EC (if product has RF function)

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.
