USER MANUAL BGM 15320 DX PR BLOMBERG

Please read these instructions before installation or using your appliance!

Dear Customer,

By purchasing this product you have chosen an appliance of advanced technology and high quality.

The appliance was produced in modern facilities which meet all environmental standards.

The instructions will help you to operate the appliance quickly and safely.

• Upon delivery, please check that the appliance is not damaged. If you note any transport damage, please contact your point of sale immediately and do not connect and operate the appliance!
• Before you connect and start using the appliance, please read this manual and all enclosed documents. Please note in particular the safety instructions.
• Keep all documents so that you can refer to the information again later on. Please keep your receipt for any repairs which may be required under warranty.
• When you pass on the appliance to another person, please provide all documents with it.

Table of Contents

1 General information......4

Overview......4

Technical Data....5

Accessories supplied with the unit......6

Accessories supplied with the unit......6

Injector Table....6

2 Safety Instructions......7

Explanation of safety instructions ..... 7

Basic safety instructions....7

Safety for children 8

Safety when working with gas .....9

Safety when working with electricity.9

Intended use....10

Disposal....10

Packaging material....10

Old equipment....10

Future transportation....10

3 Installation....11

Before installation....11

Installation and connection.... 13

Gas conversion....15

4 Preparation......17

Tips for saving energy 17

Initial operation....17

Setting the time....17

First cleaning of the appliance ..... 18

Initial heating ....18

5 How to use the hob...... 20

General information on cooking......20

How to use hobs....20

6 How to Operate the Oven.... 22

General information on baking, roasting and grilling....22

How to use the electric oven .....22

Operating modes....23

How to operate the oven timer......24

How to use the program lock......26

Cooking times table....27

How to operate the grill .....28

Cooking times table for grilling.....28

How to use the alarm clock .....28

7 Maintenance and Care ...... 30

General information ....30

How to clean the hob....30

Cleaning the control panel....30

Cleaning the oven 30

Removal of oven door....31

Taking off the door inner glass ...... 31

Replacing the oven lamp ....32

8 Troubleshooting 33

1 General information

Overview

1 Burners' plate 6 Front door

2 Control panel 7 Bottom drawer

3 Grill switch 8 Handle

4 Shelf positions 9 Foot

5 Wire shelf 10 Tray

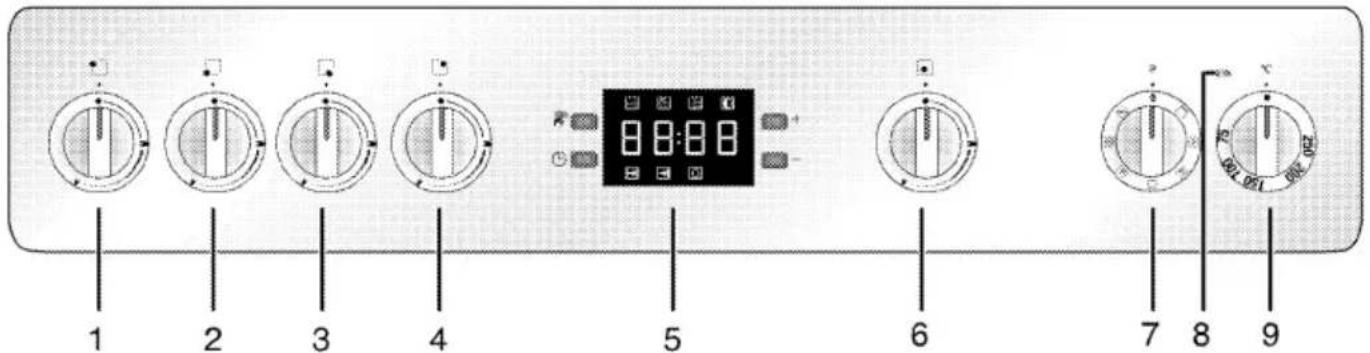

1 Normal burner Rear left 6 Wok burner Middle
2 Normal burner Front left 7 Oven knob
3 Auxiliary burner Front right 8 Thermostat lamp
4 Rapid burner Rear right 9 Thermostat knob
5 Digital timer

Technical Data

Outer dimensions (height/width/depth)	865 mm (min) - 920 mmmax//900 mm/655 mm
Voltage/frequency	230 V ~ 50 Hz
Total electric consumption	2900 W
Fuse protection	min. 16 A
Cable type / cross section	H05VV-FG 3G x 1.5 mm^2
Cable length	max. 2 m
Gas device category	II _2H3B/P
Gas type/pressure	NG G 20/20 mbar
Total gas consumption	11.5kW
Conversion to gas type/pressures- optional	NG G 20/13 mbarG 20/10 mbar - LPG G 30 /28-30 mbar -

Burners
Rear left	Normal burner
Power	2000 W
Front left	Normal burner
Power	2000 W
Front right	Auxiliary burner
Power	1000 W
Rear right	Rapid burner
Power	2900 W
Middle	Wok burner
Power	3600 W

	Multifunction oven
Inside illumination	230 V/15–25 W/E14 SES/T 300 °C
Grill power consumption	2500 W

Accessories supplied with the unit

Important

Accessories supplied can vary depending on the product model. All the accessories described in the user manual may not exist on your product.

Baking tray

Can be used for pastries, frozen foods and big roasts.

3D rendering of a rectangular baking tray with mesh texture (no text or symbols)

Proper positioning of the wire shelf and tray on sliding shelves

It is important to position the grill and/or dripping pan on the wire shelves correctly. Slide the grill or the dripping pan completely between the 2 rails and make sure it is stable before putting a dish on it (Please see the following figure).

Close-up of an oven with metal grating and ventilation slots (no text or symbols visible)

Injector Table

Position hob zone	2000 W Rear left	2000 W Front left	1000 W Front right	2900 W Rear right	3600 W Middle
Gas type / Gas pressure
G 20/10 mbar	125	125	90	155	172
G 20/13 mbar	116	116	84	145	162
G 20/20 mbar	103	103	72	115	147
G 30/28-30 mbar	72	72	50	87	96

Explanation of safety instructions

The following types of safety instructions and information are used in this manual. They can be distinguished by the symbol and the initial signal word.

DANGER

High risk of personal injury.

Non-observance may or will cause serious injuries or death.

CAUTION

Risk of personal injury.

Non-observance may or will cause minor or medium injuries.

NOTICE

Risk of material damage.

Non-observance may or will cause damage on the appliance or other objects.

Important

Tip for the user.

Useful information on how to use the appliance. No injury risk information.

Basic safety instructions

- The manufacturer reserves its right to make changes in the technical specifications in order to improve the appliance quality without any prior notice. Figures included in this manual are for schematic

purpose only and may not match exactly with your appliance. Values stated on the markings of the appliance or in other printed documents supplied with the appliance are obtained under laboratory conditions as per relevant standards. These values may vary according to the usage of the appliance and ambient conditions.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

- An additional protective means to avoid contact with the oven door is available. This part should be fitted when young children are likely to be present.

- Never use when judgement or coordination is impaired by the use of alcohol and/or drugs.

- Do not operate the appliance if it is defective or shows any visible damage.

- Do not carry out any repairs or modifications on the appliance. However, you may remedy some malfunctions; see Troubleshooting, page 32.

• Be careful when using alcoholic drinks in your dishes. Alcohol evaporates in high temperatures and may cause fire since it will catch fire when it gets in contact with hot surfaces.
• Do not heat closed food containers and glass jars. Pressure that may build-up in the jar can cause it to burst.
• Ensure that no flammable materials are adjacent to the appliance as the sides become hot during use.
• Do not leave empty pots or pans on plates that are switched on. They might get damaged.
• Since it may be hot, do not leave plastic or aluminum dishes on the surface of appliance. These kind of dishes should not be used to keep food either.
• Do not place baking trays, dishes or aluminium foil directly onto the bottom of the oven. The heat accumulation might damage the bottom of the oven.

Don't place dishes, pans, trays directly on the oven compartment base.

Keep all ventilation slots clear of obstructions.

• Appliance may be hot when it is in use. Never touch the hot burners, inner sections of the oven, heating elements etc. Keep children away!
• Always use heat-resistant gloves when putting or removing the dishes into/from your oven.
- Don't use the cooker with front door glass removed.

• Rear surface of the oven gets hot when it is in use. Gas / Electric connection should not touch the rear surface, otherwise the mains cable may get damaged. Do not trap the mains cable between the hot oven door and frame. Do not route the mains cable over the hot cooking section. Otherwise, cable insulation may melt and cause fire as a result of short circuit.
• Check all controls on the appliance are switched off after use.

Important

For the warranty to be valid, the appliance must be installed by a qualified person in accordance with current regulations.

Safety for children

• Accessible parts of the appliance will become hot whilst the appliance is in use and until the appliance has cooled, children should be kept away.
• Accessible parts may be hot when the grill is in use. Young children should be kept away.
• Do not store any items above the appliance that children may reach.
• The packaging materials will be dangerous for children. Keep the packaging materials away from children. Please dispose of all parts of the packaging according to environmental standards.
• When the door is open, do not load any heavy object on it and do not allow children to sit on it. It

may overturn or door hinges may get damaged.

Safety when working with gas

• Any works on gas equipment and systems may only be carried out by authorised qualified persons who are Gas Safe registered.
• Prior to the installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible.
• This appliance is not connected to a combustion products evacuation device. It shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation; See Before installation, page 11
• The use of a gas-cooking appliance produces heat and humidity in the space where it is located. You should assure a good ventilation of the kitchen: keep open the natural ventilation exits, or install a mechanic ventilation device (hood).
• Gas appliances and systems must be regularly checked for proper functioning. Please arrange for annual maintenance.
• Clean the gas burners regularly. The flames should be blue and burn evenly.
• Good combustion is required in gas appliances. In case of incomplete combustion, carbon monoxide (CO) might develop.

Carbon monoxide is a colourless, odourless and very toxic gas, which has lethal effect even in very small doses.

- Request information about gas emergency telephone numbers and safety measures in case of gas smell from you local gas provider.

What to do when you smell gas

DANGER

Risk of explosion and poisoning!

Do not use open fire and do not smoke.

Do not operate any electric switches (e.g. light switch or door bell).

Do not use a telephone or mobile phone.

1. Close all valves on gas appliances and gas meter.
2. Open doors and windows.
3. Check all tubes and connections for tightness. If you still smell gas leave the property.
4. Warn the neighbours.
5. Call the fire-brigade. Use a telephone outside the house.
6. Do not re-enter the property until you are told it is safe to do so.

Safety when working with electricity

• Any work on electric equipment and systems may only be carried out by authorized qualified persons.

• Even if the oven is off, the cooling fan continues working for a while after turning off the oven.

• In case of any damage, switch off the appliance and disconnect it from the mains supply by removing the fuse or switching off the circuit breaker.

• Ensure that the fuse rating is correct.

Intended use

The appliance is designed for domestic use only. Commercial use is not admissible.

This appliance should not be used for warming the plates under the grill, hanging towels and dish cloths etc. on the handles, drying and the heating purposes.

The manufacturer shall not be liable for any damage caused by improper use or handling errors.

Disposal

Packaging material

DANGER

Risk of suffocation by the packaging materials!

Keep children away from the packaging materials.

The packaging material and transport locks are made from materials that are not harmful to the environment. Please dispose of all parts of the packaging according to environmental standards. This is beneficial to the environment.

Old equipment

This appliance bears the selective sorting symbol for waste electrical and electronic equipment (WEEE). This

means that this appliance must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities.

Electronic appliances not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.

Future transportation

NOTICE

Do not place other items on the top of the appliance. The appliance must be transported upright.

Store the appliance's original box and transport the appliance in its original carton. Follow the guidance marks that are printed on the carton.

Important

Verify the general appearance of your equipment by identifying possible damage during the transportation.

Secure the caps and pan supports with adhesive tape.

To prevent the wire shelf and tray inside the oven from damaging the oven door, place a strip of cardboard onto the inside of the oven door that lines up with the position of the trays. Tape the oven door to the side walls.

If you do not have the original carton

Pack the appliance in bubble wrap or thick cardboard and tape it securely in order to prevent damage during transportation.

Before installation

Please note the product is packed without the feet fitted, therefore please ensure the feet are fitted as per the instructions; see Installation and connection, page 13 before the appliance is placed in its final position.

To ensure that critical air gaps are maintained under the appliance, we recommend that this appliance is mounted on a solid base and that the feet do not sink into any carpet or soft flooring.

The kitchen floor must be able to carry the weight of the appliance plus the additional weight of cookware and bakeware and food; see Technical Data, page 5.

A safety distance must be left between the appliance and the kitchen walls and furniture. See figure (values in mm).

- It can be used with cabinets on either side but in order to have a minimum distance of 400mm above hotplate level allow a side clearance of 65mm between the appliance and any wall, partition or tall cupboard.

- It can also be used in a free standing position. Allow a minimum distance of 750mm from the hob surface to adjacent surfaces above the hob surface and 600mm to a cabinet above.

- If a appliance hood is to be fitted, refer to the manufacturer's instructions regarding fixing height.

- Movement of your appliance is most easily achieved by lifting the front as indicated in the drawing. Open the oven door sufficiently to allow a comfortable and safe grip on the underside of the oven roof avoid causing any damage to the grill element or any internal parts of the oven. Do not move by pulling on the door handle or knobs. Move the appliance a bit at a time until placed in the position required.

Two figures assembling a large oven with handles (no text or symbols visible)

Line drawing of a person pushing a large box with two diagonal lines intersecting (no text or symbols)

Line drawing of a person pushing a kitchen appliance with crossed lines indicating opposing directions (no text or symbols)

• The appliance corresponds to device class 1, i.e. it may be placed with the rear and one side to kitchen walls, kitchen furniture or equipment of any size. The kitchen furniture or equipment on the other side may only be of the same size or smaller.
• Any kitchen furniture next to the appliance must be heat-resistant (100 °C min.).

Important

The appliance must be secured against overbalancing by using the supplied two safety chains on your oven. Fasten hook (1) to the kitchen wall (5) and connect safety chain (2) to the hook.

1 Hook (is not supplied)
2 Safety chain (supplied and mounted to oven)
3 Rear of cooker
4 Firmly fix chain to cooker rear
5 Kitchen wall

Room ventilation

The air for combustion is taken from the room air and the exhaust gases are emitted directly into the room.

Good room ventilation is essential for safe operation of your appliance. If

there is no window or door available for room ventilation, an extra ventilation must be installed.

Do not install this appliance in a room below ground level unless it is open to ground level on at least one side. Failure to install correctly is dangerous and could result in prosecution.

Room size	Ventilation opening
smaller than 5 m^3	min. 100 cm^2
5 m^3 to 10 m^3	min. 50 cm^2
greater than 10 m^3	not required
In the cellar or basement	min. 65 cm^2

Installation and connection

Important

Do not install the appliance next to refrigerators or freezers. The heat emitted by the appliance will lead to an increased energy consumption of cooling appliances.

• For installation the appliance must be connected in accordance with all local gas and/or electrical regulations.
• Carry the appliance with at least two persons.

NOTICE

Material damage! The door and/or handle must not be used for lifting or moving the appliance.

- The appliance must be placed directly on the floor. It must not be placed onto a base or a pedestal.

Connection to the gas supply

DANGER

Risk of explosion or poisoning by unprofessional installation.

The appliance may be connected to the gas distribution system only by an authorized qualified person who is Gas Safe registered.

DANGER

Risk of explosion!

Before starting any work on the gas installation, please shut off the gas supply.

- "The adjustment conditions for this appliance are stated on the label (or data plate)."

NOTICE

Your appliance is adjusted for Natural gas.

• Your natural gas installation must be adjusted before the appliance is installed.
• If necessary, interchange the sharp hose at the rear of your oven tip with the plug by selecting a suitable place on basis of the location of the natural gas valve.

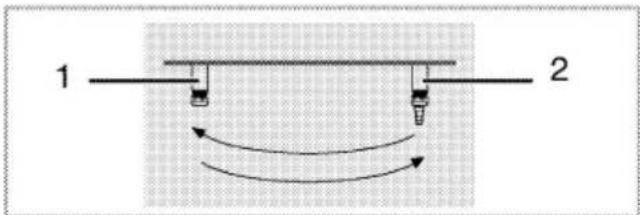

1 Plug

2 Hose nozzle

- There must be a flex pipe at the outlet of the installation for the natural gas connection and the tip

1 Plug 2 Hose nozzle • There must be a flex pipe at the outlet of the installation for the natural gas connection and the tip

of this pipe must be closed with a plug.

• Service Representative will remove the plug during connection and connect your appliance by means of a straight connection device (coupling).
  • Make sure that the natural gas valve is readily accessible.
• If you need to use your appliance later with a different type of gas, you must consult an authorised service centre for the related conversion procedure.

DANGER

Risk of explosion by damage of the safety tube!

The safety tube must not be clamped, bent or trapped or come into contact with hot parts of the appliance.

Connection to the mains supply

Important

This appliance must be earthed!

Our company shall not hold responsible for any damage caused by using the appliance without earthed socket.

DANGER

Risk of electric shock, short circuit or fire by unprofessional installation!

The appliance may be connected to the mains supply only by an authorized qualified person and the appliance is only guaranteed after correct installation.

DANGER

Risk of electric shock, short circuit or fire by damage of the mains lead!

The mains lead must not be clamped, bent or trapped or come into contact with hot parts of the appliance.

If the mains lead is damaged, it must be replaced by a qualified electrician.

The mains supply data must correspond to the data specified on the rating plate of the appliance. The rating plate is either seen when the door or the lower cover is opened or it is located at the rear wall of the appliance depending on the appliance type.

The supply cable of the appliance must correspond to the specifications; see technical data table Technical Data, page 5.

Important

The plug should be easily accessible after installation (but not above the hob).

Plug the mains lead into the socket.

DANGER

Risk of electric shock!

Before starting any work on the electrical installation, please disconnect the appliance from the mains supply.

• Position appliance up to the kitchen wall.

• Securely attach safety chain to the wall behind the cooker.

• To align the appliance with the worktop, adjust the feet turning right or left hand as required.
  • Installation of the oven feet

Four feet are supplied with the appliance.

Each foot should be mounted to the housings placed on all corners of the bottom.

The appliance must be lifted to a sufficient height in order to allow easy fitting of the feet. A minimum of two people is recommended for this operation. If you are resting the product on something please ensure that there is adequate support across all of the base of the appliance.

Place the screwed side of the foot to the housing and screw clockwise direction.

For your safety, adjust the feet so that the cooker is level (use a spirit level to check) There is a risk of burning, pots and pans spilling or falling off and poor cooking performance if the cooker is not level.

Technical diagram of a heat exchanger with labeled parts 1 and 2, showing internal cooling fins and a cylindrical component (no text or symbols beyond labels)

1 Foot
2 Foot housing

Final check

1. Check electrical functions.
2. Turn on gas supply.
3. Check gas installations for secure fitting and tightness.
4. Ignite burners and check appearance of the flame.

Important

The flames should be blue and burn smoothly. If the flames appear yellowish, check secure position of the burner cap or clean the burner. Switch off gas and let burner cool before touching it.

Gas conversion

DANGER

Risk of explosion!

Before starting any work on the gas installation, please shut off the gas supply.

In order to change your appliance's gas type, change all injectors and make flame adjustment for all valves at reduced flow rate position.

Exchange injector for the burners

1. Take off burner cap and burner body.
2. Unscrew injectors.
3. Fit new injectors.
4. Check all connections for secure fitting and tightness.

NOTICE

New injectors have their position marked on their packing or injector table on Injector Table, page 6 can be referred to.

1 Flame failure device (model dependant)
2 Sparking plug
3 Injector
4 Burner

Important

Unless there is an abnormal condition, do not attempt to remove the gas burner taps. You must call an Authorised service agent if it is necessary to change the taps.

Reduced gas flow rate setting for hob taps

1. Ignite the burner that is to be adjusted and turn the knob to the reduced position.

2. Remove the knob from the gas tap.

3. Use an appropriately sized screwdriver to adjust the flow rate adjustment screw.

For LPG (Butane - Propane) turn the screw clockwise.

For the natural gas, you should turn the screw counter-clockwise once.

» The normal length of a straight flame in the reduced position should be 6-7 mm.
4. If the flame is higher than the desired position, turn the screw clockwise. If it is smaller turn anticlockwise.
5. For the last control, bring the burner both to high-flame and reduced positions and check whether the flame is on or off.

Depending on the type of gas tap used in your appliance the adjustment screw position may vary.

NOTICE

If the gas type of the unit is changed, then the rating plate that shows the gas type of the unit must also be changed.

Tips for saving energy

The following tips will help you to use your appliance in an ecological way and to save energy:

• Use dark coloured and enamel coated trays, since the heat transmission will be better.
• While cooking your meals, perform a preheating operation if it is advised in the user manual or cooking instructions.
• During cooking, do not open the oven door frequently.
• Try to cook more than one type of meal within the oven at the same time (You can cook two different meals at the same time by locating cooking bowls on the same shelf). It will be suitable to cook more than one meal after each other. The oven will already be hot.

• Defrost frozen meals before cooking them.

- You can save energy by switching off your oven a few minutes before the end of the cooking time (The oven door should not be opened).

- Use pots/pans with lids for cooking. Without a lid, the energy consumption may be up to four times higher.

- Choose the burner/plate which is suitable to the saucepan base. Always choose the correct size of saucepans for your meals. For larger burners/plates more energy is needed.

Initial operation

Before first usage of your appliance, don't forget to remove the sticker on the digital timer screen.

Setting the time

Important

Before using the oven the clock time must be set. If the clock time is not set, the oven will not work.

NOTICE

While making any adjustment, related symbols on the clock will flash.

After switching on the oven for the first time, adjust the current time with keys 5 and 6.

1 Program knob
2 Cooking time
3 Cooking end time
4 Alarm period
5 Minus key
6 Plus key
7 Screen brightness adjustment

8 Alarm volume
9 Current time
10 Keylock
11 Adjustment key

After setting the time, you can start and end the cooking by selecting the desired position with temperature button and function button.

Important

If the current time is not set, time setting will start increasing/moving up from 12:00. Clock icon '9' will be displayed to indicate that the current time has not been set. This icon will disappear once the time is set.

Important

Current time settings are cancelled in case of power failure and will need to be set again.

Changing the time of the day

In order to change a preset time of the day in your oven;

1. Press key 11 to activate current time icon '9'.
2. Adjust hour of the day using keys 5 and 6.

Changing screen brightness adjustment

1. Press key 11 to activate screen brightness symbol '7' for screen brightness adjustment.
2. Adjust the desired brightness using keys 5 and 6.

» Selected brightness level will be displayed as d-01, d-02 or d-03 on the screen.

First cleaning of the appliance

NOTICE

The surface might get damaged by some detergents or cleaning materials. Do not use aggressive detergents, cleaning powder/cream or any sharp objects.

1. Remove all packaging materials.
2. Wipe the surfaces of the appliance with a damp cloth or sponge and dry with a cloth.

Initial heating

WARNING

Hot surfaces may cause burns!

Do not touch the hot surfaces of the appliance. Use oven gloves. Keep children away from the appliance.

Important

Smell and smoke may emit during first heating. Ensure that the room is well ventilated.

Any production residues or conservation layers must be burnt off before the first use. Heat up the appliance for about 30 minutes and then switch it off.

Electric oven

1. Take all baking trays and racks from the oven.

2. Close oven door.

3. Select top and bottom heat with the function knob.

4. Select the highest temperature with the thermostat knob; see How to use the electric oven, page 22.
5. Heat approximately 30 minutes.
6. Switch off oven; see How to use the electric oven, page 22

Grill oven

1. Take all baking trays and wire shelf from the oven.
2. Close oven door.
3. Select highest power of the grill; see How to operate the grill, page 28.
4. Heat approximately 30 minutes.
5. Switch off grill; see How to operate the grill, page 28

5 How to use the hob

General information on cooking

DANGER

Risk of fire by overheated oil!

When you heat oil, do not leave it unattended.

Never try to extinguish the fire with water! When oil has caught fire, immediately cover the pot or pan with a lid. Switch off the hob if safe to do so and phone the fire service.

• Ensure handles of pans cannot accidentally be caught or knocked and do not get hot by adjacent heating zones. Avoid pans that are unstable and easily tipped. Pans that are too heavy to move easily when filled can also be a hazard. Only use flat bottomed pots or pans.
• Use pans which have sufficient capacity for the amount of food being cooked so they don't boil over and cause unnecessary cleaning.

Do not place lids on the burners.

Always position pans centrally over the burners. When transferring pans from one burner to another always lift the pans do not slide them.

Cooking with gas

- The size of the pan and the size of the gas flame should match each other. Adjust the gas flames so that they do not go beyond the

bottom of the pan always place the pan onto the pan support in a central position.

How to use hobs

1 Normal burner 20–22 cm
2 Normal burner 20–22 cm
3 Auxiliary burner 12–14 cm
4 Rapid burner 20–22 cm
5 Wok burner 22-24 cmis list of advised diameter of pots to be used on related burners.

The large flame symbol corresponds to the highest cooking power, the small flame symbol corresponds to the lowest cooking power. In the off position (top) the gas supply to the burner is turned off.

Ignite the gas burners

The burners are ignited with the hob control knobs.

1. Keep hob control knob pressed.
   » A spark ignites at the plate.
2. Turn anticlockwise to the large flame symbol.
   » The emanating gas is lit.
3. Adjust to the desired cooking power.

Switch off the gas burners

Turn burner control knob to off position (top).

Flame failure device (model dependant)

3D rendering of a circular mechanical component with a central cylindrical feature and a side-mounted base (no text or symbols visible)

In case of any flame failures for any reasons in the top burners, the flame failure device immediately cuts of the gas flow.

1. Flame failure device

• Turn the knob clockwise direction by pressing and wait for its ignition.
• Keep the knob at pressed position for 3-5 seconds after you see the flame around the burner.
• Repeat the sequence of operations if the flame does not continue. After you release the knob, if the ignition does not continue repeat

the same process by keeping the knob pressed for 15 seconds.

DANGER

Risk of deflagration incase of unburned gas!

Do not press the knob for longer than 15 seconds if there was no ignition.

Wait for one minute and then repeat the ignition process.

Wok burner

The wok burner is used for rapid cooking, in particular for cooking of sliced vegetables and meat in a very quick time period.

A wok frying pan is a wide and shallow pan which conducts heat rapidly allowing cooking of vegetables and meat evenly at the same temperature, ensuring that their original nourishment value is maintained.

General information on baking, roasting and grilling

DANGER

Risk of scalding by hot steam!

Take care when opening the oven door as steam may escape.

Tips for baking

• Use non-stick coated appropriate metal plates or aluminum containers or heat-resistant silicone moulds.
  • Make best use of the space on the rack.
• It is recommended to place the baking mould in the middle of the rack.
• Select the correct shelf position before turning the oven or grill on - don't move oven shelves when hot.
• Keep the oven door closed.

Tips for roasting

• Seasoning with lemon juice and black pepper will improve the cooking performance when cooking a whole chicken, turkey or a large piece of meat.
• Meat with bones takes about 15 to 30 minutes longer before it is cooked than a roast of the same size without bones.
• You should calculate about 4 to 5 minutes cooking time per centimeter height of the meat.
• Let meat rest in the oven for about 10 minutes after the cooking time.

The juice is better distributed all over the roast and does not run out when the meat is cut.

- Fish in a fire-resistant dish should be placed on the rack at the medium or lower level.

Tips for grilling

Grilling is ideal for cooking meat, fish and poultry and will achieve a nice brown sur-face without it drying out to much. Flat pieces, meat skewers and sausages are particularly suited for grilling as are vege-tables with a high water content such as tomatoes and onions.

• Distribute the pieces to be grilled on the wire shelf.
• If the grilling is on the wire shelf, locate a dripping pan under it in order to collect the fat.
• Add some water in dripping pan for easy cleaning.

How to use the electric oven

Important

Before using the oven the clock time must be set. If the clock time is not set, the oven will not work.

Select temperature and operating mode

1 Oven knob
2 Thermostat lamp
3 Thermostat knob

The operating modes of the electric oven are selected with the function knob. The temperature is adjusted with the thermostat knob.

All oven functions are turned off by turning the relevant knob to off (upper) position.

1. Set thermostat knob to the desired temperature.
2. Set function knob to the required operating mode.

» The oven heats up to the adjusted temperature and maintains it. During heating, temperature lamp stays on.

Switch off electric oven

Turn function knob and thermostat knob to off position (top).

Cross-sectional diagram of a device casing with internal components and grid pattern (no text or symbols)

Shelf positions

Operating modes

The order of operating modes shown here might deviate from the arrangement on your appliance.

Top and bottom heat

Top and bottom heat are on. The foodstuffs are heated simultaneously from the upper and lower part. Suitable e.g. for cakes, cookies or cakes and casseroles in baking moulds. Cook with one tray only.

Top and bottom heat with convection air

Top and bottom heat plus fan (in the rear wall) are on. The hot air is distributed evenly and quickly all over the oven by the fan. Cook with one tray only.

Top heat and convection air

Top heat plus fan (in the rear wall) are on. Hot air is spread more evenly with the fan compared to only top heat.

Bottom heat and convection air

Bottom heat plus fan (in the rear wall) are on. Hot air is spread more evenly with the fan compared to only bottom heat.

Operating with fan

The oven is not heated. Only oven lamp plus fan (in the rear wall) are on. Frozen granular food is thawed slowly at room temperature and cooked food is cooled down.

Hot air

The heating ring with fan (in the rear wall) is in operation. The hot air is distributed evenly and quickly all over the oven by the fan. In most cases, preheating is not required. Suitable when several levels are used for the preparation of food. Suitable for cooking with multi trays.

Surface grill

The large grill (under the oven roof) is in operation. Suitable for grilling larger quantities.

• Put big or medium-sized portions in correct shelf position under the grill heater for grilling.
• Set the temperature to maximum level.
  • Turn the food after half of the grilling time.

How to operate the oven timer

1 Program knob
2 Cooking time
3 Cooking end time
4 Alarm period
5 Minus key
6 Plus key
7 Screen brightness adjustment
8 Alarm volume
9 Current time
10 Keylock
11 Adjustment key

Important

The maximum time to be set for the end of the cooking process is 23 hours and 59 minutes. In case of power cut, program will be canceled. Reprogram is needed.

NOTICE

While making any adjustment, related symbols on the clock will flash. You must wait for a short time for the settings to take effect.

Important

If semi-automatic or full automatic operation mode is set on the clock, time of the day cannot be adjusted.

NOTICE

Cooking time will be displayed once the cooking starts.

Switch on fully automatic operation

In this operation mode you may adjust how long the oven will automatically operate (cooking time) and the time it will be automatically turned off (end of cooking time).

1. Press 1 key to activate cooking time symbol (2).
2. Adjust the cooking time using 5 and 6 keys.
   » Cooking symbol will be on (will be displayed continuously) after cooking time is set.
3. For the cooking end time, press 1 key to activate cooking end time symbol '3'.
4. Adjust cooking end time using 5 and 6 keys.
   » Once the cooking end time is set, cooking end symbol and cooking symbol will be lit (displayed continuously). The end of cooking time symbol (3) will disappear as soon as the cooking has started.
5. Place your dish in the oven.
6. Select operation mode and temperature.
   » Oven timer automatically calculates the startup time for cooking by using

the end of cooking time you have set and the cooking period. Selected operation mode is activated when the startup time of cooking has come and the oven is heated up to the set temperature. It maintains this temperature until the end of the cooking time.

1. After the cooking process is completed, "End" symbol will be displayed and the alarm signal will sound.
2. Alarm signal will be on for 2 minutes. To stop the alarm signal, just press any key.

Important

If you mute the alarm by pressing any key, the oven will restart operating. If you press any button at the end of the alarm period, the oven will restart operating.

» Alarm will be silenced and current time will be displayed.

1. Do not forget to turn off the oven using temperature knob and function knob.

Switch on semi-automatic operation

In this operation mode, you may adjust the time period during which the oven will operate (cooking time).

1. Press 1 key to activate cooking time symbol '2'.
2. Adjust the cooking time using 5 and 6 keys.
   » Cooking symbol shall be on (will be displayed continuously) after cooking time is set.

3. Place your dish in the oven.

4. Select operation mode and temperature.

» The oven will be heated up to the preset temperature and will maintain this temperature until the end of the cooking time you selected.

1. After the cooking process is completed, "End" symbol will be displayed and the alarm signal will sound.

2. Alarm signal will be on for 2 minutes. To stop the alarm signal, just press any key.

Important

If you mute the alarm by pressing any key, the oven will restart operating. If you press any button at the end of the alarm period, the oven will restart operating.

» Alarm will be silenced and current time will be displayed.

1. Do not forget to turn off the oven using temperature knob and function knob.

How to use the program lock

Activate the program lock

You can prevent using of clock buttons by activating the program feature.

1 Program knob
2 Cooking time
3 Cooking end time
4 Alarm period
5 Minus key
6 Plus key
7 Screen brightness adjustment
8 Alarm volume
9 Current time
10 Keylock
11 Adjustment key

NOTICE

When the keylock function is activated, clock buttons except for "11" key cannot be used.

1. Press '11' key to activate keylock symbol "10".
   » "OFF" will be displayed.
2. Press 6 key to activate the keylock.
   » After the keylock has been adjusted, "ON" will be displayed and the keylock symbol will stay on.

Deactivate the program lock

1. Press '11' key to activate keylock symbol "10".

» "ON" will be displayed.
2. Press '5' key to deactivate the keylock.
» "OFF" will be displayed after the keylock is turned off.

Cooking times table

Important

The values indicated in the table below are data indicative. They may vary according to the type of food as well as your preferences of cooking.

Baking and roasting

Important

Level 1 is the bottom level in the oven.

Food	Cooking level number		Rack position	Temperature (°C)	Cooking time (min.) (approx.)
Cake in tray	One level		2-3	175	25 ... 35
Cake in mould	One level		2-3	180	40 ... 50
Cakes in paper	One level		2-3	175	25 ... 35
	2 levels		1-4	175	30 ... 45
Sponge cake	One level		2-3	200	10 ... 15
	2 levels		1-4	175	20 ... 35
Cookies	One level		2-3	175	25 ... 35
	2 levels		1-4	170 ... 190	30 ... 45
Dough pastry	One level		2-3	200	30 ... 45
Filled savory pastry	One level		2-3	200	30 ... 40
	2 levels		1-4	200	40 ... 50
Leaven	One level		2-3	200	35 ... 50
Lasagna	One level		2-3	200	30 ... 45
Pizza (thick)	One level		2-3	200 ... 220	15 ... 20
Pizza (thin)	One level		2-3	200	10 ... 15
Beefsteak (whole)/ Roast	One level		2-3	25 min. 250 after 180 ... 190	100 ... 120
Lamb haunch (casserole)	One level		2-3	25 min. 250 after 190	70 ... 90
Roast chicken	One level		2-3	15 min. 250 after 180 ... 190	55 ... 65
Turkey (5.5 kg)	One level		1	25 min. 250 after 180 ... 190	150 ... 210
Fish	One level		2-3	200	20 ... 30
While cooking with 2 trays at the same time, place the oven tray at the upper shelf and pastry tray at the lower shelf.

(**) For preheating, set the required temperature, the thermostat lamp will go out when the required temperature is reached.

How to operate the grill

Important

Before using the oven the clock time must be set. If the clock time is not set, the oven will not work.

WARNING

Hot surfaces may cause burns! Close oven door during grilling.

The door has a door switch. As a safety feature, this switch prevents the grill from working when the door is opened.

Switch on grill

1. Set the function knob onto the grill symbol.
2. Set grill temperature.
3. Preheat for approximately 5 minutes, if it is necessary.
   » The thermostat lamp is switched on.

Switch off grill

1. Turn grill control knob to off position (top).

Cooking times table for grilling

Grilling with electric grill

Food	Insertion level	Grilling time (approx.)
Fish	3...4	20...25 min.#
Sliced chicken	3...4	15...20 min.
Lamb chops	3...4	12...15 min.
Roast beef	3...4	15...25 min.#
Veal chops	3...4	15...25 min.#
#depending on thickness

How to use the alarm clock

In addition to using the timer for cooking, it can be also used as a reminder or an alarm clock.

As soon as the defined period of time has expired, the alarm clock will emit a signal. The alarm clock has no influence on the functions of the oven.

1 Program knob
2 Cooking time
3 Cooking end time
4 Alarm period
5 Minus key
6 Plus key
7 Screen brightness adjustment
8 Alarm volume
9 Current time
10 Keylock
11 Adjustment key

Setting the alarm clock

1. Press 1 key to activate alarm time symbol (4).

Important

The maximum alarm time can be 23 hours and 59 minutes.

1. Adjust the alarm time using 5 and 6 keys.

» Alarm symbol will be on (will be displayed continuously) after alarm

time is set, and the alarm time will be displayed.

1. After the alarm time is finished, alarm symbol will start flashing and an alarm signal is heard.

Switching off the alarm

1. To stop the alarm signal, just press any key.

» Alarm will be silenced and current time will be displayed.

In order to cancel set alarm time;

1. To reset the alarm time, press 1 key to activate alarm time symbol (4).

2. Press and hold the key 5 until "0.00" is displayed.

Important

Alarm time will be displayed. If the alarm time and cooking time are set concurrently, shortest time will be displayed.

Changing alarm sound adjustment

1. Press '11' key to activate alarm sound adjustment symbol (8) for alarm volume adjustment.

2. Adjust the desired sound using '5' and '6' keys.

» Selected alarm sound level will be displayed as "b-01", "b-02" or "b-03" on the screen.

General information

DANGER

Risk of electric shock!

Switch off the electricity before cleaning appliance to avoid an electric shock.

DANGER

Hot surfaces may cause burns!

Allow the appliance to cool down before you clean it.

NOTICE

The surface might get damaged by some detergents or cleaning materials.

Do not use aggressive detergents, cleaning powder/cream or any sharp objects.

Clean the appliance thoroughly after each use; in this way it will be possible to remove cooking residues more easily, thus avoiding these from burning the next time the appliance is used.

No special cleaning agents are required for cleaning the appliance. It is recommended to use warm water with washing liquid, a soft cloth or sponge and use a dry cloth for drying.

Do not use any abrasive cleaning materials!

Important

Do not use steam cleaners for cleaning.

How to clean the hob

Gas hobs

1. Remove pan supports and burner caps and clean them.
2. Clean the hob.
3. Refit burner caps and check that they are securely positioned.
4. While placing pan supports, take care that burners centered to pan supports.

Cleaning the control panel

NOTICE

Damage of the control panel! Do not remove the control knobs for control panel cleaning.

Clean control panel and control knobs.

Cleaning the oven

No oven cleaner or any other special cleaning agent is required for cleaning the oven. It is recommended to wipe the oven with a damp cloth while it is still warm.

Clean oven door

Don't use any harsh abrasive cleaners or sharp metal scrapers for cleaning the oven door. They could scratch the surface and destroy the glass.

Removal of oven door

1. Open the front door.
2. Open the clips at the hinge housing on the right and left hand sides of the front door by pressing them down as illustrated in the figure.

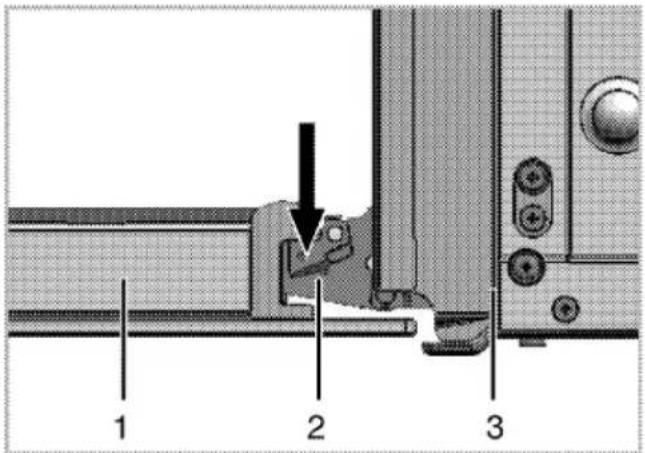

1 Front door

2 Hinge

3 Oven

Technical diagram of a mechanical joint or bracket with a directional arrow indicating rotation (no text or symbols present)

1. Move the front door to half-way.
2. Remove the front door by pulling it upwards to release it from the right and left hinges.

NOTICE

Steps carried out during removing process should be performed in reverse order (steps 4, 3, 2 and 1) to reattach the door. Do not forget to close the clips at the hinge housing when reinstalling the door.

Taking off the door inner glass

The inner glass panel of the oven door can be removed for cleaning.

1. Open oven door.

2. Remove metal part (1) by unscrewing three screws that hold the metal part.

3. Remove plastic holders (3) on left and right hand side by pulling towards yourself.

1 Metal part
2 Inner glass
3 Plastic holder
4 Plastic housing

• Take off the inner glass, by pulling towards yourself until inner glass (2) free of plastic housing (4).
- To reassemble the inner glass; take care, place the glass to plastic housing and ensure that the inner glass is positioned correctly in the plastic housing.

Replacing the oven lamp

DANGER

Hot surfaces may cause burns!

Make sure that the appliance is switched off and cooled down in order to avoid the risk of an electrical shock.

The oven lamp is a special heat-resisting (T 300 °C) electric light bulb; see Technical Data, page 6. Oven lamps can be obtained from a good local electrical store.

NOTICE

Position of lamp might vary from diagram.

1. Switch off the appliance at the mains.
2. Unscrew glass cover by turning anti-clockwise.

Close-up of a hand adjusting a mechanical component with a circular part (no visible text or symbols)

1. Refit the glass cover.

DANGER

Risk of electric shock, short circuit or fire by unprofessional repairs!

Repairs on the appliance must be carried out by an approved service centre.

DANGER

Risk of explosion or poisoning by unprofessional repair.

Repairs on the appliance must be carried out by an approved service centre.

Normal operating conditions

• Smoke and smell may emit for a couple of hours during the first operation.
• It is normal that steam escapes during operation.
• When the metal parts are heated, they may expand and cause noise.

Before you call the service, please check the following points.

Electrical equipment

Malfunction/problem	Possible cause	Advice/remedy
The appliance does not work.	The mains fuse is defective or has tripped.	Check fuses in the fuse box. If necessary, replace or reset them.
	Appliance's plug can not be connected to the grounded socket.	Check the plug connection.
	Timer buttons do not work.	Keylock may be enabled. Please disable it(See; How to use the program lock, page 26).
Oven light does not work	Oven lamp is defective.	Replace oven lamp.
	No current.	Check fuses in the fuse box. If necessary, replace or reset them.
Oven does not heat.	Function knob and/thermostat knob are not set.	Set function knob and thermostat knob.
	If the appliance has a timer, the timer may not be set.	Set the time.
	No power.	Check mains supply and fuse box.
No ignition spark is produced.	No electric supply to the appliance.	Check fuses in the fuse box.
No gas is emitted.	Main gas tap is closed.	Open gas tap.
	Safety tube is bent.	Install safety tube without bends.
Burners do not burn smoothly or not at all.	Burners are dirty.	Clean burner parts.
	Burners are not dry.	Dry burner parts.
	Burner cap is not securely positioned.	Position burner correctly.
	Gas tap is closed.	Open gas tap.
	Gas container is empty (in case of LPG connection).	Replace gas container.

Clock/ timer (If the appliance has a digital timer)

Malfunction/problem	Possible cause	Advice/remedy
Clock display is blinking or clock symbol is on.	Power was interrupted previously.	Set timeThen switch the oven off with function knobs, set the oven function again.

If the problem has not been solved:

1. Separate unit from the mains supply (deactivate or unscrew fuse).

2. Call the after-sales service of your store reseller.

Important

Do not attempt to repair the appliance yourself. There are no customer service items inside the appliance.
