Product Type	5.1-channel integrated home theatre system with 3-D Blu-ray Disc receiver
Dimensions (Receiver)	102 mm x 401 mm x 260 mm (H x W x D)
Weight (Receiver)	6.5 kg
Power Output	65 watts per channel (20 Hz – 20 kHz, @ <0.1% THD, 6 ohms)
Multichannel Power	65 watts per channel (all channels driven, 6 ohms)
Speaker System	HKTS 16WQ: 4 x SAT-TS11 satellites, 1 x CEN-TS11 center, 1 x HKTS 210SUB powered subwoofer
Subwoofer Driver	200 mm (8") cone with 200 W RMS amplifier
HDMI Version	v.1.4a with 3-D support and Audio Return Channel
HDMI Inputs/Output	3 inputs, 1 output
Audio Decoding	Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS, PCM
Disc Playback	BD-Video (3-D), DVD, CD, CD-R/RW, DVD±R/RW, AVCHD
Connectivity	3 HDMI, 3 digital audio (optical/coaxial), 2 analog audio, component video, USB, FM antenna, Ethernet (BD-Live), Bridge IIIP dock connector
Calibration	EzSet/EQ auto calibration for speaker levels and room conditions
Remote Control	Learning remote control with full functionality
Finish	Gloss white
Power Requirement	110 – 240 V AC, 50/60 Hz
Power Consumption	110 W maximum; <1 W standby
FM Tuner Frequency Range	87.5 – 108.0 MHz
USB Playback Formats	Audio: MP3, WMA (DRM-free); Video: DivX (up to HD 1080p); Image: JPEG
Additional Features	Headphone jack, Firmware upgradable, Dot-matrix display, Cover-art display, Playlist function, Screen saver, Subwoofer trigger, Wall-mount hardware included
Satellite Speaker Dimensions	243 mm x 100 mm x 92 mm (each)
Center Speaker Dimensions	102 mm x 241 mm x 92 mm
Subwoofer Dimensions	353 mm x 267 mm x 267 mm (including feet)
Weight (Subwoofer)	9 kg

Frequently Asked Questions - BDS 776W HARMAN KARDON

How do I perform the EzSet/EQ auto calibration?

Connect the supplied microphone to the receiver and place it at the listening position. Then navigate to the Setup Menu and select EzSet/EQ. The system will emit test tones and automatically adjust speaker levels, distances, and equalization for optimal sound.

Can the BDS 776W play 3D Blu-ray discs?

Yes, the BDS 776W is a 3-D Blu-ray Disc receiver and fully supports 3D playback when connected to a compatible 3D TV via HDMI v.1.4a.

Does the system support Bluetooth streaming?

No, the BDS 776W does not have built-in Bluetooth. However, you can connect an iPod/iPhone via the optional Bridge IIIP dock or use a third-party Bluetooth adapter connected to an analog input.

How do I connect an iPod or iPhone?

You need the optional Harman Kardon The Bridge IIIP dock (sold separately). Connect the dock to the dedicated port on the receiver, then place your iPod/iPhone in the dock. The system will control and charge the device.

What type of speaker wire should I use?

The binding posts accept banana plugs or bare wire. For best performance, use 16 to 14 AWG speaker wire. The system includes heavy-duty gold-plated binding posts for secure connections.

Can I listen to music without turning on the TV?

Yes, the receiver has a dot-matrix information display that shows track information and status. You can play audio from USB, FM tuner, or connected devices without the TV.

How do I update the firmware?

Ensure the receiver is connected to your home network via Ethernet. Then go to the Setup Menu and select Firmware Update. The system will check for updates and guide you through the process.

What is the Audio Return Channel (ARC) feature?

ARC allows the TV to send audio back to the receiver through the same HDMI cable that carries video to the TV. This eliminates the need for a separate audio cable from the TV. Your TV must also support ARC.

How do I connect a game console?

Connect your game console to one of the HDMI inputs for best video and audio quality. Alternatively, use the component video input (for 480p/576p) and the corresponding analog audio inputs if HDMI is not available.

Is the subwoofer wireless?

No, the HKTS 210SUB subwoofer is wired. Connect it to the receiver using the included subwoofer cable to the subwoofer output. The subwoofer has a trigger input that automatically turns it on/off with the receiver.

USER MANUAL BDS 776W HARMAN KARDON

5.1-channel integrated home theatre system featuring a 3-D Blu-ray Disc ^TM receiver with Dolby ^® TrueHD, DTS-HD Master Audio ^TM surround-sound decoding and HDMI ^® inputs

Specifications

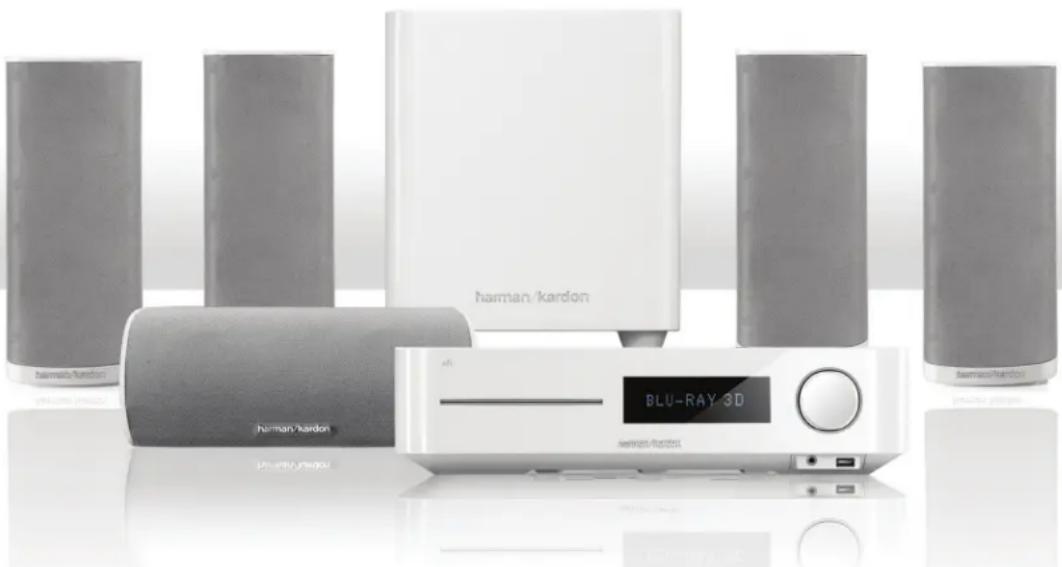

Product display of Harman/kardon audio equipment including a BLU-RAY 3D audio unit and multiple speakers (no visible text or symbols on main components)

BDS 776

Variety is the spice of life. The BDS 776 offers you all the features of the BDS 770 wrapped in a glossy white finish. Enjoy your favourite 3-D films and digital music, thanks to the 3-D Blu-ray Disc™ receiver and a complete 5.1-channel speaker package – all with a cool, clean look befitting a system of such distinction.

■ Highlights

Complete, integrated home theatre audio system

The performance of separate components with the ease of use of a single, integrated system

Compact, stylish design with gloss white finish

Plays 3-D sources

BD-Live ^TM interactivity

Integrated Blu-ray Disc player, DVD/CD player and FM tuner

HDMI® v.1.4a inputs with 3-D support and Deep Colour

HDMI output with Audio Return Channel

Front-panel USB port for audio, video and image playback

Dolby® TrueHD and DTS-HD Master Audio ™ decoding

The Bridge IIIP-compatible with iPod and iPhone

EzSet/EQ ^™ auto calibration

Energy-saving subwoofer trigger output

Component video input

Convenient learning remote control

Intuitive on-screen menu

Dolby® Virtual Speaker technology

Full-colour and multi-language on-screen menus

5.1-channel integrated home theatre system featuring a 3-D Blu-ray Disc ^TM receiver with Dolby ^® TrueHD, DTS-HD Master Audio ^TM surround-sound decoding and HDMI ^® inputs

■ Key Features

■ HDMI® v.1.4a with 3-D and Audio Return Channel: Delivers digital video and audio at the highest quality level (up to 1080p)
■ Digital amplifier technology: Delivers high power from a small package that uses less energy and generates less heat
■ Four identical dual-midrange two-way satellite speakers: Maintain consistent sound from speaker to speaker, making moving sounds clearer and more realistic, even at higher volumes
■ Dedicated, two-way midrange centre speaker: Voice-matched to the satellite speakers for clear dialogue even at higher volumes
■ Compact powered subwoofer: Downward-firing to extend and enhance the bass response
■ Extensive connectivity: Three HDMI v.1.4a inputs, three digital audio inputs and two analogue inputs make it easy to connect other audio/video components to your BDS system; there's even a component video connection ideal for game consoles
■ The Bridge IIIP-compatible with iPod/iPhone: System connects to iPod and iPhone via Harman Kardon The Bridge IIIP dock (not included).
■ EzSet/EQ auto calibration: Automatically tailors individual speaker volume levels to specific room conditions
■ Heavy-duty, gold-plated binding posts: Benefit from ultra-secure speaker connections and compatibility with a variety of speaker wire
■ BD-Live™ connection: Connect to your home network, and experience next-generation interactive content through BD-Live™ technology
■ DivX Certified ^® to play DivX ^® video up to HD 1080p, including premium content
■ Playlist function: Automatically recalls your favourite files stored on USB or CD-R discs, with minimal button pushing
- Dot-matrix information display: Delivers status messages and allows you to listen to music on the BDS system – without having to turn on the TV
■ Cover-art display function: See album cover and artist info while playing audio files with ID3 tags played from USB devices
■ Subwoofer trigger: When user turns system on or off, the subwoofer automatically turns on or off
■ Screen-saver function: Prevents image burn-in on CRT and plasma displays
■ Detachable IEC power cord: Simplify installation by running the power cord to the installation site before installing the unit
■ Upgradable firmware: Get system upgrades via the on-screen display to keep your receiver up to date
■ Headphone jack: Enables private listening when you connect stereo headphones directly to the BDS system
■ Speaker wall-mount hardware and all cables included

■ Specifications

BDS 570WQ Receiver

Audio Section

■ Continuous average power, stereo mode: 65 watts per channel, 20Hz – 20kHz, @ <0.1% THD, both channels driven into 6 ohms
■ Multichannel power: 65 watts per channel, 20Hz–20kHz, @ <0.1% THD, all channels driven into 6 ohms
■ Input sensitivity/impedance (line inputs): 250mV/46k ohms
■ Signal-to-noise ratio (IHF-A): -90dB
■ Frequency response @ 1W (±0.5dB): 20Hz – 20kHz

HARMAN Consumer, Inc. HARMAN Boulevard, Northridge, CA 91329 USA www.harmankarcor.com

© 2011 HARMAN International Industries, Incorporated. All rights reserved.

Harman Karoon is a trademark of HARMAN International Industries, Incorporated, registered in the United States and/or other countries. EzSet/EQ is a trademark of HARMAN International Industries, Incorporated, Blu-ray 3D, Blu-ray Disc and BD-Live are trademarks of the Blu-ray Disc Association. DivX ^® , DivX Certificæ ^® and associated logos are trademarks of Rev Corporation or its subsidiaries and are used under license. Dolby is a registered trademark of Dolby Laboratories. DTS is a registered trademark of DTS, Inc. DTS-HID and DTS-HID Master Audio are trademarks of DTS, Inc. HDMI is a registered trademark of HDMI Licensing LLC. iPhone and iPod are trademarks of Apple Inc., registered in the U.S. and other countries. iPhone/iPod not included.

Features, specifications and appearance are subject to change without notice.

FM Tuner Section

■ Frequency range: 87.5MHz – 108.0MHz (U.S. and EU)
■ Usable sensitivity IHF: >14dBf
■ Signal-to-noise ratio (mono/stereo): -60dB/-55dB

Disc Player Section

■ Supported disc formats: 127mm (5-inch) or 76mm (3-inch) BD-Video (single-layer or double-layer), DVD-Video, DVD+R/+RW, DVD-R/-RW, CDDA (CD digital audio), CD-R/RW, AVCHD discs
■ Region code (BD/DVD): B/2 (EU)
■ Audio formats: Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS ^ Digital, DTS-HD ^TM High Resolution Audio, DTS-HD Master Audio, ^* PCM, WMA (DRM-free version only): WMA9, CBR @192kbps, VBR @ 355kbps, MP3: 32kbps – 320kbps bitrates, including variable-bitrate encoding
■ Still-image format: JPEG
■ Video signal system: PAL (EU)
■ Frequency response: 20Hz – 20kHz ±0.5dB
■ Signal-to-noise ratio: -90dB (A-weighted)
■ Dynamic range: 90dB (16-bit)
■ THD/1kHz: DVD/CD: 0.1%
■ Wow & flutter: Below measurable limits

Video Section

■ Television format: PAL (selectable)

■ HDMI version: v.1.4a, with 3-D and 30/36-bit Deep Colour

General

■ Power requirement: 110 – 240V AC, 50/60Hz
■ Power consumption: 110W maximum; <1W standby
■ Dimensions (H x W x D): 102mm x 401mm x 260mm
■ Weight: 6.5kg
■ Finish: Gloss white

HKTS 16WQ Speaker System

■ Frequency response: 45Hz – 20kHz (−6dB)

SAT-TS11 Satellites

■ Midrange transducer: 75mm (3") cone, video-shielded
■ High-frequency transducer: 13mm (½") dome, video-shielded
■ Nominal impedance: 8 ohms
■ Recommended power: 10-120 watts
■ Sensitivity (2.83V/1m): 86dB @ 1 watt/1 meter
■ Dimensions (H x W x D): 243mm x 100mm x 92mm
■ Weight: 1.0kg
■ Finish: Gloss white

CEN-TS11 Center

■ Midrange transducer: Two 75mm (3") cone, video-shielded
■ High-frequency transducer: 19mm (3/4") dome, video-shielded
■ Nominal impedance: 8 ohms
■ Recommended power: 10-120 watts
■ Sensitivity (2.83V/1m): 86dB @ 1 watt/1 meter
■ Dimensions (H x W x D): 102mm x 241mm x 92mm
■ Weight: 1.0kg
■ Finish: Gloss white

HKTS 210SUB Powered Subwoofer

■ Low-frequency transducer: 200mm (8") cone
■ Amplifier power: 200 watts RMS
■ Enclosure type: Sealed
■ Power requirement: 220V – 240V AC, 50Hz/60Hz (EU)
■ Dimensions (H x W x D): 353mm x 267mm x 267mm; height measurement includes feet
■ Weight: 9kg
■ Finish: Gloss white
