USER MANUAL FOXBOX Rx HDMI Extron

Fiber Optic Extenders

FOXBOX Tx / Rx HDMI

High Resolution Fiber Optic Transmitters and Receivers

Safety Instructions

Safety Instructions • English

WARNING: This symbol, ,when used on the product, is intended to alert the user of the presence of uninsulated dangerous voltage within the product's enclosure that may present a risk of electric shock.

TENTION: This symbol, when used on the product, is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide, part number 68-290-01, on the Extron website, www.extron.com.

© 2019 Extron Electronics. All rights reserved.

Trademarks

All trademarks mentioned in this guide are the properties of their respective owners.

The following registered trademarks ^® , registered service marks ^SM , and trademarks ^TM are the property of RGB Systems, Inc. or Extron Electronics (see the current list of trademarks on the Terms of Use page at www.extron.com):

Registered Trademarks®)

Extron, Cable Cubby, ControlScript, CrossPoint, DTP, eBUS, EDID Manager, EDID Minder, Flat Field, FlexOS, Global Configurator, Global Scripter, GlobalViewer, Hideaway, HyperLane, IP Intercom, IP Link, Key Minder, LinkLicense, LockIt, MediaLink, MediaPort, NetPA, PlenumVault, PoleVault, PowerCage, PURE3, Quantum, Show Me, SoundField, SpeedMount, SpeedSwitch, System INTEGRATOR, TeamWork, TouchLink, V-Lock, VideoLounge, VN-Matrix, VoiceLift, WallVault, WindoWall, XTP, XTP Systems, and ZipClip

Registered Service Mark ^(SM) : S3 Service Support Solutions

Trademarks ^(TM)

AAP, AFL (Accu-Rate Frame Lock), ADSP (Advanced Digital Sync Processing), Auto-Image, CableCover, CDRS (Class D Ripple Suppression), Codec Connect, DDSP (Digital Display Sync Processing), DMI (Dynamic Motion Interpolation), Driver Configurator, DSP Configurator, DSVP (Digital Sync Validation Processing), eLink, EQIP, Everlast, FastBite, FOX, FOXBOX, IP Intercom HelpDesk, MAAP, MicroDigital, Opti-Torque, ProDSP, QS-FPC (QuickSwitch Front Panel Controller), Room Agent, Scope-Trigger, ShareLink, SIS, Simple Instruction Set, Skew-Free, SpeedNav, StudioStation, Triple-Action Switching, True4K, VectorTM 4K , WebShare, XTRA, and ZipCaddy

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference. This interference must be corrected at the expense of the user.

ATTENTION:

• This unit was tested with shielded I/O cables on the peripheral devices. Shielded cables must be used to ensure compliance with FCC emissions limits.
• For more information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide on the Extron website.

Conventions Used in this Guide

Notifications

The following notifications are used in this guide:

WARNING: Potential risk of severe injury or death.

CAUTION: Risk of minor personal injury.

NOTE: A note draws attention to important information.

Software Commands

Commands are written in the fonts shown here:

^AR Merge Scene,,∅p1 scene 1,1 ^B 51 ^W^C.∅

[∅1] R∅∅∅4∅∅3∅∅∅∅4∅∅∅∅8∅∅∅∅6∅∅ [∅2] 35 [17] [∅3]

Esc X1 * X18 * X20 * X23 * X21 CE ←

NOTE: For commands and examples of computer or device responses used in this guide, the character “∅” is used for the number zero and “O” is the capital letter “O.”

Computer responses and directory paths that do not have variables are written in the font shown here:

Reply from 208.132.180.48: bytes=32 times=2ms TTL=32

C:\Program Files\Extron

Variables are written in slanted form as shown here:

ping xxx.xxx.xxx.xxx -t

SOH R Data STX Command ETB ETX

Selectable items, such as menu names, menu options, buttons, tabs, and field names are written in the font shown here:

From the File menu, select New.

Click the OK button.

Specifications Availability

Product specifications are available on the Extron website, www.extron.com.

Extron Glossary of Terms

A glossary of terms is available at http://www.extron.com/technology/glossary.aspx.

Contents

Introduction ...... 1

About this Guide....1

About the FOXBOX Tx/Rx HDMI....1

Transmitter.... 2

Receiver 3

Both Units 3

System Compatibility .... 3

Features 4

Installation 5

Installation Overview 5

Connections 5

Transmitter Connections, Controls, and Indicators 5

Receiver Connections, Controls, and Indicators 9

Making Connections....12

Operation 16

Troubleshooting — If No Image Appears......17

Remote Control....18

Simple Instruction Set Control 18

Host-to-Unit Communications 18

Using the Command and Response Tables .. 20

FOX Extenders Control Program....28

Installing the Software....28

Starting the Program 29

Using the Program....31

Updating the Firmware 38

Equipment Mounting 42

Mounting the Unit 42

Tabletop Use 42

Mounting kits....42

UL Rack-Mounting Guidelines 42

Introduction

WARNING: The FOXBOX Tx/Rx HDMI outputs continuous invisible light, which may be harmful to the eyes; use with caution.

This guide contains information about the ultra-high performance Extron FOXBOX Tx/Rx HDMI fiber optic transmitters and receivers (see figure 1 on the next page).

About the FOXBOX Tx/Rx HDMI

The FOXBOX HDMI Fiber Optic Extender is an ultra-high performance fiber optic transmitter and receiver set for long haul transmission of HDCP-compliant HDMI video, audio, and RS-232 control signals over fiber optic cabling. The transmitter and receiver can extend HDMI signals up to 30 km (18 miles).

NOTE: For HDCP compliance:

• A FOXBOX HDMI or PowerCage FOX HDMI transmitter must be paired with a FOXBOX HDMI or PowerCage FOX HDMI receiver.
• You must connect both fiber optic cables between the transmitter and receiver.
• A signal cannot be daisy-chained and retain HDCP compliance.
• The bidirectional Consumer Electronics Control (CEC) is not supported.

Figure 1. Typical FOXBOX Tx/Rx HDMI Application

Transmitter

The FOXBOX Tx HDMI transmitter accepts HDMI video or DVI-D video (with an applicable adapter), at resolutions up to 1920 x 1200 at 60 Hz. The video input can also include embedded audio. The transmitter also loops the HDMI input through for a local monitor.

The transmitter can also accept an analog audio input on 3.5mm mini jack. A front panel DIP switch selects either the embedded audio or the separate analog audio for the unit to transmit to the receiver.

The transmitter accepts a one-way (transmitter-to-receiver) RS-232 serial communication (for applications such as projector control) serial signal input. The transmitter can receive an optional return (receiver-to-transmitter) stream of serial RS-232 communications, such as projector responses.

The transmitter converts the HDMI video, the selected audio, and the RS-232 serial communication into a proprietary data stream and outputs it as an optical signal on a single LC connector to a compatible fiber optic receiver. It also can receive a proprietary optical signal from the receiver consisting of the RS-232 return from a controlled device.

Receiver

The FOXBOX Rx HDMI receiver accepts a proprietary optical signal on a single LC connector from a compatible fiber optic transmitter or daisy-chained receiver.

The receiver outputs a single link of HDMI video, digital audio (embedded in the HDMI output), analog audio, and RS-232 serial commands.

If the receiver is appropriately configured and has a second fiber optic cable installed, it also can either:

• Receive an RS-232 return from a controlled device and send it to the transmitter via a proprietary optical signal.
• Output a daisy-chained signal to another receiver.

If either RS-232 return or daisy-chained communications are implemented, the receiver outputs a proprietary signal on the second fiber optic cable carrying the signal.

For video resolutions up to 1600 x 1200, 1080p, or 1920 x 1200, the video output of the receiver is a perfect, pixel-for-pixel recreation of the video signal input to the transmitter.

With the appropriate adapter, the single link of HDMI video output by FOXBOX Rx HDMI can be converted to DVI-D video.

The receiver has built-in alternating pixels, color bars, and grayscale test patterns to assist in setting up the display equipment.

Both Units

The transmitter and receiver have many controls, including image and audio adjustments, that are available under RS-232 Simple Instruction Set (SISTM) control. Both units have image, audio, fiber light status, and lost-light alarm indicators.

System Compatibility

The FOXBOX Tx HDMI transmitter operates in either of two modes, selected under RS-232 control, for compatibility with other, non-HDMI, units:

• Plus — Support resolutions up to 1920 x 1200 @ 60 Hz. The fiber optic output of the transmitter can be received only by one of four receivers: a FOXBOX HDMI Rx, a FOXBOX DVI Plus Rx, a PowerCage HDMI Rx, or a PowerCage FOX DVI Plus Rx.
• Non-Plus — Supports resolutions up to 1600 x 1200 @ 60 Hz. The fiber optic output of the transmitter can be received by any FOXBOX, PowerCage FOX, and FOX 500 VGA and DVI unit, including the Plus and non-Plus units.

The FOXBOX Rx HDMI receiver operates interchangeably with all FOXBOX, PowerCage FOX, and FOX 500 VGA and DVI units, including Plus and non-Plus units.

NOTES:

• Although the receiver can operate with non-HDMI transmitters, the video output is not HDCP-compliant.
• The transmitter and receiver are not compatible with the FOX AV, PowerCage FOX AV, FOX 3G HD-SDI, PowerCage FOX 3G HD-SDI, and FOX 3G DVC models.

Features

• Ultra high performance — Offers pixel-for-pixel HDMI or DVI-D (with an adapter) video transmission, up to 1920 x 1200 at 60 Hz (in Plus mode) or 1600 x 1200 at 60 Hz (in non-plus mode).
  • Video input — The transmitter accepts a single link of HDMI or DVI-D video.
• Loop-through on transmitter — The transmitter has an HDMI loop-through on a HDMI connector that allows connection of a local monitor.
• EDID emulation mode (Display Data Channel [DDC]) — The FOXBOX Tx HDMI transmitter provides a selector switch for specifying the rate of the incoming digital video signal. EDID emulation mode allows proper operation when no local monitor is present.
  • Video output — The receiver outputs a single link of HDMI video.
• Extron fiber optic product compatibility — Enables ultra-long distance HDMI-to-analog RGB and analog RGB-to-HDMI conversion without the need for extra signal conversion devices.
• Compatibility with FOX 500 DA6 distribution amplifier and FOX Matrix Switchers
• Analog audio input — The transmitters accept an unbalanced stereo or mono audio input on a 3.5 mm mini jack.
• Analog audio input gain/attenuation — The input audio level of the analog audio can be adjusted within a range of -18 dB (attenuation) to +10 dB (gain) via the RS-232 link.
• Analog audio output — The receiver outputs balanced or unbalanced stereo audio on a 5-pole captive screw connector and digital audio embedded in the HDMI output.
• Links monitoring — The panels of the transmitter and receiver have indicators for monitoring image and audio transmission and both fiber optic links.
• Loss-of-light alarms — The panels of the transmitters and receivers have discrete outputs that indicate if either of the fiber optic links have suffered a loss of the light signal.
  FOX Extenders Control Program — For RS-232 remote control from a PC, the Extron FOX Extenders Control Program, which runs under Microsoft® Windows®, provides a graphical interface and drag-and-drop/point-and-click operation.
• Simple Instruction Set — The transmitter and receiver use the SIS for easy remote control operation.
  • Analog audio level — The analog audio output is at the consumer level (-10 dBV).
• Upgradable firmware — The firmware that controls the operation of each unit can be upgraded in the field via an RS-232 link without taking the unit out of service. Firmware upgrades are available for download on the Extron Web site, www.extron.com, and they can be installed using the FOX Extenders Control Program.
• Memory presets — 30 memory presets are a time-saving feature that lets you store input size and position settings relative to a specific input resolution. You can then recall those settings, when needed, using the SIS or the control software.
• Rack mounting — Both FOXBOX HDMI units are rack mountable in any conventional 19-inch wide rack, using an Extron 9.5-inch or 6-inch deep rack shelf.
• Power — The 100 VAC to 240 VAC, 50-60 Hz external power supply for each unit provides worldwide power compatibility.

Installation

This sections details the installation of the FOXBOX Tx/Rx HDMI, including:

• Installation Overview
- Connections
- Operation

Installation Overview

Follow these steps to install and set up an Extron FOXBOX HDMI transmitter and receiver system for operation:

1. Turn off all of the equipment. Ensure that the video sources and the output display are all turned off and disconnected from the power source.
2. Mount the transmitter and one or more receiver (see Mounting the Unit on page 42).
3. Connect the cables and configure the receivers (see "Connections," below).
4. Plug in the power supplies, then turn on the display devices and the input devices.

Connections

Transmitter Connections, Controls, and Indicators

FOXBOX Tx HDMI Rear Panel

Front Panel
Figure 2. FOXBOX Tx Transmitter Connectors

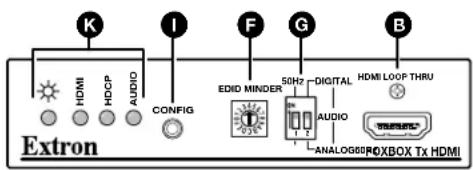

A HDMI Input connector (see below)
© Audio connector (see the next page)
E Alarm outputs port
EDID Minder switch (see page 8)
Configuration port
K Indicators
B HDMI Loop-through Connector
RS-232 Over Fiber port
Fiber optic connectors (see page 7)
H DIP switches
DC power connector

A HDMI Input connector (FOXBOX HDMI only) — Connect a single link of HDMI or DVI-D (with the appropriate adapter) to this HDMI connector (see HDMI connector on page 12).

The FOXBOX Tx HDMI also accepts embedded digital audio on this connector.

B HDMI Loop-through connector — If desired, connect a local monitor to this HDMI connector.

FOXBOX Tx/Rx HDMI • Installation 5

Audio connector (see figure 2 on the previous page) — Plug an audio input into the transmitter via this stereo mini jack connector.

AUDIO INPUT

NOTE: See figure 3 to identify the tip, ring, and sleeve when you are making connections for the transmitter from existing audio cables. A mono audio connector consists of the tip and sleeve. A stereo audio connector consists of the tip, ring, and sleeve.

RCA Connector

3.5 mm Stereo Plug Connector (balanced)
Figure 3. Typical Audio Connectors

The input audio level can be set via an SIS command (see page 22) to the transmitter or using the FOX Extenders Control Program (see page 32).

RS-232 Over Fiber port — If you want the FOXBOX to pass serial command signals to the receiver, for serial control of a projector for example, connect the host device to the transmitter via the first three leftmost poles (Tx, Rx, and ± ) of this 5-pole captive screw connector (see RS-232 connections on page 13 to wire this connector).

NOTES:

• If you connect only one fiber optic cable (item F, on the next page), or you configure the receiver for daisy-chaining, you will not receive reports from the controlled device. To receive responses from the controlled device, you must install two fiber optic cables and leave link 2 enabled (via an SIS command (see page 25) to the receiver or using the FOX Extenders Control Program (see page 34).
• The FOXBOX can pass RS-232 commands and responses at rates up to 115200 baud.

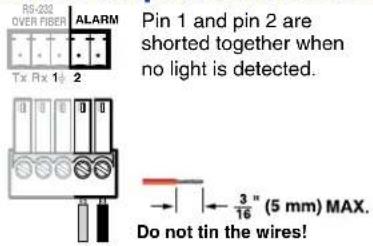

E Alarm outputs port — For remote monitoring of the status of fiber optic link 2, connect a locally-constructed or furnished monitoring device to the transmitter via the two rightmost poles (1 and 2) of this 5-pole captive screw connector. When the transmitter does not detect a light link on fiber cable Rx (optional), pin 1 and pin 2 of this port are shorted together (see Alarm outputs connection on page 13 to wire this connector).

Fiber optic connectors and LEDs (see figure 2 on page 5)—

WARNING: The FOXBOX Tx/Rx HDMI outputs continuous invisible light, which may be harmful to the eyes; use with caution.

• Ensure that you use the proper fiber cable for your transmitter/receiver pair. Typically, singlemode fiber has a yellow jacket and multimode cable has an orange or aqua jacket.
• Only one fiber optic cable, transmitter-Tx-to-receiver-Rx, is required for video, audio, and serial command transmission. But, if you connect only one fiber optic cable, or if your receiver is configured to daisy-chain the optical signal:
• The HDMI signal output by the receiver is not HDCP-compliant.
• You will not receive RS-232 reports from the controlled device.
• To receive responses from the controlled device and for HDCP compliance, you need to install both fiber optic cables and leave link 2 enabled (via an SIS command (see page 25) to the receiver or using the FOX Extenders Control Program (see page 34).

① Tx (required) — For all one-way video, audio, and serial communications from the transmitter to the receiver, connect a fiber optic cable to the Tx LC connector.

Connect the free end of this fiber optic cable to the Rx connector on the FOXBOX HDMI receiver (item 🔒 on figure 4 on page 10) or to any other compatible Extron FOX device.

② Rx (optional) — Connect a fiber optic cable for all one-way return serial communications from the receiver to the transmitter.

Connect the free end of this fiber optic cable to the Tx connector on a FOXBOX Rx HDMI receiver (item Ⓞ on figure 4 on page 10) or to any other compatible Extron FOX device.

Tx Link and Rx Link LEDs — When lit, the link is active (light is received).

EDID Minder switch (see figure 2 on page 5)— Set this switch to one of the positions below to select the source of the DDC or a specific resolution.

Position 0 — A user-recorded EDID that has been captured from the display connected to the HDMI loop-thru connector on the transmitter (item B on figure 2 on page 5) or manually imported via an SIS command on page 22 to the transmitter.

Position 1 — The EDID is selected via the front panel Configuration port using an SIS command or the FOX Extenders Control Program.

Position 2 - F — Specify a resolution. The table below identifies the switch positions and the associated resolutions.

Pos.	Source or resolution Pos.	Resolution Pos.	Resolution
0	User recorded EDID 6 1280	X*00 C	1600x1200
1	RS-232 7 1280x1024 D 168	0x1050
2	800x600 8 1360x768 E 192	0x1080 (1080p)
3	1024x768 9 1366x768 F 19	20x1200
4	1280x720 (720p)	A 1400x1050
5	1280x768	B 1440x900

H DIP switches —

50 Hz / 60 Hz switch — This switch selects the vertical refresh rate of the resolution selected by the EDID Minder hex switch (item G on figure 2 on page 5). Up selects the 50 Hz rate and down selects the 60 Hz refresh rate.

Audio switch — This switch selects which audio input, the audio embedded in the HDMI input or the analog audio, is sent to the receiver. Up selects the digital (embedded) audio and down selects the analog audio.

Configuration port — Connect a controlling device, such as a PC, to this port via a 2.5 mm mini jack TRS RS-232 cable for RS-232 protocol control of all FOXBOX functions. See Front panel Configuration ports on page 14 for more details on the adapter cable. See Remote Control on page 18 for SIS commands and software control.

The TRS RS-232 cable is included with the FOXBOX Tx HDMI transmitter.

DC power connector — Plug the included external 12 VDC power supply into this connector. See Power supply wiring on page 15, to wire the connector.

K Indicators —

Power LED — This LED lights to indicate that power is applied to the unit.

HDMI LED — This LED lights when the transmitter detects an input signal on its video input.

HDCP LED — This LED lights when the input signal is HDCP encrypted.

Audio LED — This LED lights when the transmitter detects a low level audio signal for a short period of time on the selected (embedded or analog) input. It returns to unlit if the audio signal drops below the minimum threshold for a short period of time.

Receiver Connections, Controls, and Indicators

Rear panel

Figure 4. FOXBOX Rx Receiver Rear Panel Features

L HDMI Input connector (see below)

M HDMI Loop-through Connector

N Audio connector

RS-232 Over Fiber port

P Alarm outputs port

Fiber optic connectors (see page 10)

Remote RS-232 port (see page 11)

s DC power connector

L HDMI Output connector — Connect a video display to this HDMI connector (see HDMI connector on page 12).

M HDMI Audio switch — This switch mutes (Off position) and unmutes (On position) the embedded audio output on the HDMI output connector. The audio on the captive screw output always remains active regardless of the setting of this switch.

N Audio output connector — This 5-pole, 3.5 mm captive screw connector outputs the transmitted, unamplified, line level audio. Connect audio devices, such as an audio amplifier or powered speakers. See Audio output connector on page 14 to wire a captive screw connector for the appropriate output type and impedance level.

- RS-232 Over Fiber port — If you want the FOXBOX to pass serial command signals to a secondary device, for serial control of a projector for example, connect the secondary device to the receiver via the first three leftmost poles (Tx, Rx, and 12 ) of this 5-pole captive screw connector. See RS-232 connections on page 13 to wire this connector.

NOTES:

• If you connect only one fiber optic cable (item Ⓞ, on the next page), or you configure the receiver for daisy-chaining, you will not receive reports from the controlled device. To receive responses from the controlled device, you must install two fiber optic cables and leave link 2 enabled (via an SIS command (see page 25) to the receiver or using the FOX Extenders Control Program (see page 34).
• The FOXBOX can pass RS-232 commands and responses at rates up to 115200 baud.

P Alarm outputs port — For remote monitoring of the status of fiber optic

link 1, connect a locally-constructed or furnished monitoring device to the receiver via the two rightmost poles (1 and 2) of this 5-pole captive screw

connector. When the receiver does not detect a light link on fiber cable Rx,

pin 1 and pin 2 of this port are shorted together (see Alarm outputs connection on page 13 to wire this connector).

Fiber optic connectors and LEDs (see figure 4 on the previous page) —

WARNING: The FOXBOX Tx/Rx HDMI outputs continuous invisible light, which may be harmful to the eyes; use with caution.

- You can connect the transmitter to one or more receivers in one of three ways:

- One way (transmitter-Tx-to-receiver-Rx) only — Connect fiber cable ③ (from transmitter connector ①) only.

- Two way (transmitter to receiver and return) — Connect fiber cable ③ (from transmitter connector ①) and fiber cable ④ back to the transmitter (connector ②). See figure 5.

- One way (transmitter to receiver) with daisy chain (receiver to receiver) — Connect fiber cable ③ from a fiber optic source and cable ④ to the next receiver in the daisy chain. See figure 6. Set each receiver in the daisy chain to daisy chain mode Up to 10 properly-configured receivers can be connected in a daisy chain to a single transmitter.

- See the transmitter fiber connector NOTES on page 7, which also apply to these connectors.

Figure 5. Two Way Configuration
Figure 6. Daisy Chain Configuration

① Rx (required) — For all one-way video, audio, and serial communications from the transmitter to the receiver, connect a fiber optic cable to the Rx LC connector.

Connect the free end of this fiber optic cable to the Tx connector on the FOXBOX Tx transmitter (item F on page 7) or to any other compatible Extron FOXBOX device.

② Tx (optional) — Connect a fiber optic cable to the Tx LC connector for either of the following functions:

Normal configuration — For all one-way return serial communications from the receiver to the Rx connector on the transmitter. See figure 5.

Daisy chain configuration — For daisy-chained video, audio, and serial communications to the Rx connector on another receiver. See figure 6.

NOTE: The Tx connector emits light in either case and the Rx port receives light.

Connect the free end of this fiber optic cable to either:

The Rx connector on the FOXBOX Tx transmitter (item ② on page 7) or to any other compatible Extron FOX device

The Rx connector on another receiver in the daisy chain

Tx Link and Rx Link LEDs — When lit, the link is active (light is received).

Remote RS-232 port (see figure 4 on page 9) — For serial control of the receiver, connect a host device, such as a computer, touch panel control, or RS-232 capable PDA, to the transmitter via this 3-pole captive screw connector. See RS-232 connections on page 13 to wire this connector. See Remote Control on page 18 for SIS commands and software control.

SC DC power connector — Plug the included external 12 VDC power supply into this connector. See Power supply wiring on page 15, to wire the connector.

Front panel

Figure 7. FOXBOX Rx Receiver Front Panel Features

Power LED — This LED lights to indicate that power is applied to the unit.
U Indicators —

HDMI LED — HDMI video input

HDCP LED — This LED lights when the output signal is HDCP encrypted.

Audio LED — This LED lights on the receiver when the transmitter detects a low level audio signal for a short period of time. It returns to unlit if the audio signal drops below the minimum threshold for a short period of time.

Configuration port — Connect a controlling device, such as a PC, to this port via a 2.5 mm mini jack TRS RS-232 cable for RS-232 protocol control of all FOXBOX functions. See Front panel Configuration ports on page 14 for more details on the adapter cable. See Remote Control on page 17 for SIS commands and software control.

The TRS RS-232 cable is included with the FOXBOX Tx HDMI transmitter.

Making Connections

HDMI connector

HDMI signals run at a very high frequency and are especially prone to errors caused by bad video connections, too many adapters, or excessive cable length. To avoid the loss of an image or jitter, follow these guidelines:

• Do not exceed 16.4 feet (5 meters) on the input or buffered loop-through of the FOXBOX HDMI transmitter or the output of the FOXBOX HDMI receiver.
• Use only the cable designed for HDMI signals that is supplied by Extron.
• Limit or avoid the use of adapters.
• Use only cables specifically intended for HDMI or DVI signals. Use of non-HDMI or non-DVI cables or modified cables can result in a missing video output.

To securely fasten an HDMI cable to a device:

1. Plug the HDMI cable into the panel connection (see figure 8, ①).

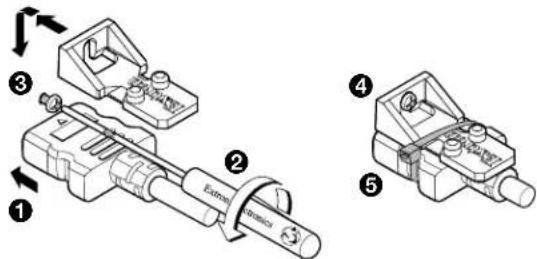

Figure 8. Installing the LockIt Lacing Bracket

1. Loosen the HDMI connection mounting screw from the panel enough to allow the LockIt lacing bracket to be placed over it (2). The screw does not have to be removed.

2. Place the LockIt lacing bracket on the screw and against the HDMI connector, then tighten the screw to secure the bracket (③).

ATTENTION:

• Do not overtighten the HDMI connector mounting screw. The shield to which it fastens is very thin and can easily be stripped.

• Ne serrez pas trop la vis de montage du connecteur HDMI. Le blindage auquel elle est attachée est très fin et peut facilement être dénudé.

• Loosely place the included tie wrap around the HDMI connector and the LockIt lacing bracket as shown (④).

• While holding the connector securely against the lacing bracket, use pliers or similar tools to tighten the tie wrap, then remove any excess length (⑤).

RS-232 connections

The Remote RS-232 port on the receiver only is for remote control of the receiver. The RS-232 Over Fiber port on both units is for transmission of serial signals, such as projector control signals, between the transmitter and receiver. See figure 9 to properly wire the connectors.

NOTE: Cross the Tx and Rx lines once between the source and the target.

Figure 9. RS-232 Over Fiber Connector

NOTE: The length of exposed wires is important. The ideal length is 3/16 inch (5 mm).

• Longer bare wires can short together.
• Shorter wires are not as secure in the connectors and could be pulled out.

Alarm outputs connection

Figure 10. Alarm Connector

NOTE: The length of exposed wires is critical (see the RS-232 connector NOTE above.)

Audio output connector

See figure 11 to properly wire a captive screw output connector. The connector is included with transmitter, but you must supply the audio cable. Use the supplied tie-wrap to strap the audio cable to the extended tail of the connector.

Figure 11. Captive Screw Connector Wiring for Stereo Audio Output

ATTENTION:

• For unbalanced audio, connect the sleeves to the ground contact. DO NOT connect the sleeves to the negative (-) contacts.
• Pour l'audio asymétrique, connectez les manchons au contact au sol. NE PAS connecter les manchons aux contacts négatifs (-).

NOTE: The length of exposed wires is important (see the RS-232 connector NOTE on the previous page for more information.)

Front panel Configuration ports

NOTE: These ports are for remote control of the unit, not for the over fiber RS-232 link.

The Configuration ports on the transmitter and receiver are 2.5 mm mini stereo jacks. The 9-pin D to 2.5 mm mini jack TRS RS-232 cable, included with the transmitter, can be used for this connection.

9-pIn D Connection TRS Plug

Pin 2 Rx line on the computer Tip

Pin 3 Tx line on the computer Ring

Pin 5 Signal ground on the computer Sleeve

Figure 12. 9-pin TRS RS-232 cable

This port is RS-232 only, with the following protocols:

9600 baud
- 1 stop bit

- no parity

8 data bits

- no flow control

NOTE: The maximum distances to the controlling device can vary up to 200 feet (61 m). Factors such as cable gauge, baud rates, environment, and output levels (from the unit and the controlling device) all affect transmission distance. Distances of about 50 feet (15 m) are typically not a problem. In some cases, the unit may be capable of serial communications via RS-232 up to 250 feet (76 m) away.

See Remote Control on page 18 for definitions of the SIS commands (serial commands to control the transmitter via the Configuration port) and software control.

Power supply wiring

ATTENTION:

Figure 13 shows how to wire the connector. Use the supplied tie-wrap to strap the power cord to the extended tail of the connector.

Figure 13. Power Connector Wiring

CAUTION:

ATTENTION :

- The length of exposed wires is important. The ideal length is 3/16 inch (5 mm).

• Any longer and the exposed wires may touch, causing a short circuit between them.
• Any shorter and the wires can be easily pulled out even if tightly fastened by the captive screws.

- Do not tin the power supply leads before installing them in the connector. Tinned wires are not as secure in the connector and could be pulled out.

To verify the polarity before connection, plug in the power supply with no load and check the output with a voltmeter.

Operation

After the transmitter, all receivers, and their connected devices are powered up, the system is fully operational. If any problems are encountered, verify that the cables are routed and connected properly, and that all display devices have identical resolutions and refresh rates. If your problems persist, call the Extron S3 Sales & Technical Support Hotline. See the Extron website for the Extron office nearest you.

To take advantage of the various adjustments and test patterns available in the FOXBOX, you need to connect a computer or other RS-232 capable device to the front panel Configuration port on either unit or the rear panel Remote RS-232 port on the receiver and operate using either SIS commands or the FOX Extenders Control Program (see Remote Control on page 18).

Troubleshooting — If No Image Appears

1. Ensure that all devices are plugged in and powered on. The transmitter and receiver are receiving power if their power LEDs are lit.
2. Ensure an active input is applied to the transmitter. The transmitter is receiving an active input if the HDMI LED is lit.
3. Ensure that the proper signal format is supplied.
4. Check the cabling and make corrections as necessary.
5. Call the Extron S3 Sales & Technical Support Hotline if necessary (see www.extron.com for the phone number in your region of the world).

Remote Control

This section includes:

• Simple Instruction Set Control
• FOX Extenders Control Program

The transmitter and receiver each have a front panel Configuration port, a 2.5 mm mini stereo jack (see Front panel Configuration ports on page 14). The receiver has a rear panel Remote RS-232 port, a 3-pole captive screw connector (see RS-232 connections on page 13). Any of these ports can be connected to a host device such as a computer running the HyperTerminal or DataViewer utility, or a control system to make serial control of the transmitter and receiver possible.

The default serial port protocol for all ports is as follows:

9600 baud

- No parity

8-bit

- No flow control

- 1 stop bit

NOTE: RS-232 commands and FOX Extenders Control Program functions are transmitter- or receiver-specific or may have different responses depending on the unit connected. You must connect to the appropriate device for the command or function to work properly or to get the expected response.

Simple Instruction Set Control

Host-to-Unit Communications

SIS commands consist of one or more characters per field. No special characters are required to begin or end a command character sequence. When a command is valid, the switcher executes the command and sends a response to the host device. All responses from the transmitter or receiver to the host end with a carriage return and a line feed (CR/LF = ←), which signals the end of the response character string. A string is one or more characters.

Symbol Definitions for Transmitter SIS Commands

← = CR/LF (carriage return/line feed)
← = Carriage return (no line feed)

| = Pipe (can be used interchangeably with the character)

- = Space (hard) character

Esc = Escape key (hex 1B)

W = Can be used interchangeably with the Esc character

[X1] = EDID hex switch position

= User captured EDID 8 = 1360× 768

01 = RS-232 control 09 = 1366 x 768

2=800×60010=1400×1050

03 = 1024 × 768 11 = 1440 × 900

04 = 720p* 12 = 1600 × 1200

05 = 1280 × 768 13 = 1680 × 1050

06 = 1280 × 800 14 = 1080p*

07 = 1280 × 1024 15 = 1920 × 1200

* 720p and 1080p also include a block for embedded audio; all other positions are video only

X2 = Refresh rate

1 = 50 Hz 2 = 60 Hz

X3 = EDID

See the table on page 21.

X4 = Native resolution

Resolution and rate in an easily-viewed format, such as "800x600@60Hz".

X5 = EDID record

128 or 256 bytes

X6 = Input Audio Format

∅ = follow switch 2 = force analog audio

1 = force digital audio 3 = Auto (digital if present, else analog)

X7 = Audio gain adjustment range

∅∅ to 1∅

X8 = Audio level adjustment range

-18 to +10 (in 1.0 dB steps)

X9 = Audio attenuation adjustment range

00 to 18

X10 = Switch position and enable or disable status

= off (down) or disable 1 = on (up) or enable

X11 = HDCP authorized device

= off 1 = on

X12 = Link and input status

= link or input not detected 1 = link or input detected

X13 = Internal temperature

nnnF•nnC

X14 = Transmission mode

SM = singlemode MM = multimode

X15 = Firmware version

V.VV

X17 = Frequency

n.nn

Unit-initiated Messages

When a local event, such as an equipment power-up, occurs, the unit responds by sending a message to the host. The unit-initiated messages are listed below:

(c) Copyright 20nn, Extron Electronics FOXBOX Tx HDMI, Vx.xx, 60-1174-xx

- or -

(c) Copyright 20nn, Extron Electronics FOXBOX Rx HDMI, Vx.xx, 60-1174-xx

The connected unit issues the appropriate copyright message (above) when it first powers on. Vx.xx is the firmware version number; 60-1174-xx is the part number of the connected unit.

Reconfig

The unit sends the Reconfig message whenever the video input signal to the transmitter is changed.

1LnkX12•2LnkX12•VidX12•AudX12

The unit sends the status message whenever a change in the fiber link and video connection occurs.

EmbedAudX10

The unit sends the Embedded audio message whenever a change in the position of the receiver rear panel HDMI Audio switch occurs.

Error Responses

When the unit receives a valid SIS command, it executes the command and sends a response to the host device. If the switcher is unable to execute the command because the command is invalid or it contains invalid parameters, the transmitter or receiver returns an error response to the host. The error response codes are:

E10 - Invalid command

E11 - Invalid preset number

E13 - Invalid parameter

E14 - Invalid command for this configuration

Timeout

Pauses of 10 seconds or longer between command ASCII characters result in a timeout. The command operation is aborted with no other indication.

Using the Command and Response Tables

The command and response tables begins on the next page. Symbols are used throughout the table to represent variables in the command and response fields. Command and response examples are shown throughout the table. The ASCII to HEX conversion table below is for use with the command and response table.

ASCII to Hex

Conversion Table

Esc

1B

CR

∅D

LF

∅A

Space →

20

!

21

"

22

#

23

$ 24

%

25

&

26

'

27

(

28

)

29

*

2A

+

2B

, 2C

-

2D

•

2E

/

2F

∅

30

1

31

2

32

3

33

4 34

5

35

6

36

7

37

8

38

9

39

:

3A

;

3B

< 3C

=

3D

>

3E

?

3F

@

40

A

41

B

42

C

43

D 44

E

45

F

46

G

47

H

48

|

49

J

4A

K

4B

L 4C

M

4D

N

4E

O

4F

P

50

Q

51

R

52

S

53

T 54

U

55

V

56

W

57

X

58

Y

59

Z

5A

[

5B

\ 5C

]

5D

^

5E

-

5F

.

60

a

61

b

62

c

63

d 64

e

65

f

66

g

67

h

68

i

69

j

6A

k

6B

l 6C

m

6D

n

6E

o

6F

p

70

q

71

r

72

s

73

t 74

u

75

v

76

w

77

x

78

y

79

z

7A

{

7B

l 7C}

7D

~

7E

DEL

7F

Command and Response Table for Transmitter SIS Commands

Command Function		SIS Command (Host to Unit)			Response (Unit to Host)		Additional description
Switch status
Request EDID and refresh rate switch positions		EscStat←			EdidMdrX1•VrateX2←
Example:		EscStat←			EdidMdr15•Vrate2←		EDID switch is set to 15 (1080p) and the vertical rate switch is set to 2 (60 Hz).
Request EDID switch position		Esc2Stat← X1←
Request Refresh rate switch position		Esc3Stat← X2←
Switch mode
NOTES:The table below the commands defines the value of each EDID value.The front panel EDID minder rotary switch on the transmitter must be in position 1 for the variables to be changeable via an SIS command. The unit returns the E14 error if the switch is in other than position 1.
Set EDID resolution and refresh rate		EscAX3EDID←			Edid•AX3←		Assign an EDID value of X3.
Example:		EscA58EDID←			Edid•A58←		Assign an EDID value of 720p at 60 Hz.
View assigned EDID		EscAEDID← X3←					The assigned EDID value is X3.
Save EDID		EscS∅EDID←			EdidS∅←		Save the resolution of the display connected to the transmitter pass-through port to EDID location 0.
X3	Value	X3	Value	X3	Value	X3	Value	X3 Value
∅∅	User captured EDID
DVI Pro values (with HDMI-to-DVI adapters)
∅1	800x600 @ 50 Hz	∅7	1280x768 @ 50 Hz	13	1360x768 @ 50 Hz	19	1440x900 @ 50 Hz	25 1680x1050 @ 50 Hz
∅2	800x600 @ 60 Hz	∅8	1280x768 @ 60 Hz	14	1360x768 @ 60 Hz	20	1440x900 @ 60 Hz	26 1680x1050 @ 60 Hz
∅3	1024x768 @ 50 Hz	∅9	1280X*00 @ 50 Hz	15	1366x768 @ 50 Hz	21	1600x900 @ 50 Hz	27 1920x1080 @ 50 Hz
∅4	1024x768 @ 60 Hz	10	1280X*00 @ 60 Hz	16	1366x768 @ 60 Hz	22	1600x900 @ 60 Hz	28 1920x1280 @ 60 Hz
∅5	1280x720 @ 50 Hz	11	1280x1024 @ 50 Hz	17	1400x1050 @ 50 Hz	23	1600x1200 @ 50 Hz	29 1920x1200 @ 50 Hz
∅6	1280x720 @ 60 Hz	12	1280x1024 @ 60 Hz	18	1400x1050 @ 60 Hz	24	1600x1200 @ 60 Hz	30 1920x1200 @ 60 Hz
HDMI PC values, all with 2-channel embedded audio
31	1024x768 @ 50 Hz	36	1280X*00 @ 60 Hz	41	1366x768 @ 50 Hz	46	1440x900 @ 60 Hz	51 1680x1050 @ 50 Hz
32	1024x768 @ 60 Hz	37	1280x1024 @ 50 Hz	42	1366x768 @ 60 Hz	47	1600x900 @ 50 Hz	52 1680x1050 @ 60 Hz
33	1280x768 @ 50 Hz	38	1280x1024 @ 60 Hz	43	1400x1050 @ 50 Hz	48	1600x900 @ 60 Hz	53 1920x1200 @ 50 Hz
34	1280x768 @ 60 Hz	39	1360x768 @ 50 Hz	44	1400x1050 @ 60 Hz	49	1600x1200 @ 50 Hz	54 1920x1200 @ 60 Hz
35	1280X*00 @ 50 Hz	40	1360x768 @ 60 Hz	45	1440x900 @ 50 Hz	50	1600x1200 @ 60 Hz
HDMI HDTV values, all with 2-channel embedded audio
55	480p @ 60 Hz	57	720p @ 50 Hz	59	1080i @ 50 Hz	61	1080p @ 50 Hz
56	576p @ 50 Hz	58*	720p @ 60 Hz	60	1080i @ 60 Hz	62	1080p @ 60 Hz
* Default value

KEY: X1 = EDID hex switch position	∅0 = User captured EDID	∅4 = 1280x720* (720p)	∅8 = 1360x768	12 = 1600x1200
	∅1 = RS-232 control	∅5 = 1280x768	∅9 = 1366x768	13 = 1680x1050
	∅2 = 800x600	∅6 = 1280X*00	1∅ = 1400x1050	14 = 1920x1080p* (1080p)
	∅3 = 1024x768	∅7 = 1280x1024	11 = 1440x900	15 = 1920x1200
* 720p and 1080p also include a block for embedded audio; all other positions are video only
X2 = Refresh rate	1 = 50 Hz	2 = 60 Hz
X3 = EDID See the table above.

Command and Response Table for Transmitter SIS Commands (continued)

Command Function	SIS Command (Host to Unit)	Response (Unit to Host)	Additional description
Switch mode (continued)
Show native EDID value	EscNEDID←X4←		Show the native resolution of the display connected to the receiver.
Import EDID	EscI0EDID←X5	EdidI←
Audio Input Selection
Set input audio format	EscIX6AFMT←	AfmtIX6←	Sets the input audio format.
View input audio format	EscIAFMT←X6←		View the input audio format setting.
Audio input gain and attenuation
NOTES:The set gain (G) and set attenuation (g) commands are case sensitive. The increment level, decrement level, and show level are not case sensitive.When the controlling PC is connected to the receiver, the PowerCage FOX can perform this command only if the receiver-Tx-to-transmitter-Rx fiber cable is connected. The unit returns the E14 error if the Rx fiber is not connected.
Set input audio gain to a +dB value	X7G Aud	X8←	Set the input level to X8 dB (gain).
Example:	2G	Aud+∅2.∅←	Set the input level to +2 dB (gain).
Set input audio attenuation to a -dB value	X9g Aud	X8←	Set the input level to X8 dB (attenuation).
Increment input level	+G	AudX8←	Increase the audio level by 1 dB.
Example:	+G	Aud+∅3.∅←	Increment the input level from +2 dB to +3 dB.
Decrement input level	-G	Aud-∅1.∅←	Decrease the audio level from 0 dB to -1 dB.
Show input level	G	X8←
Input reports as an HDCP authorized device
HDCP authorized device on	EscE1HDCP←	HdcpE1←	Set the transmitter as an HDCP authorized device.
HDCP authorized device off	EscE0HDCP←	HdcpE0←	Set the transmitter as not an HDCP authorized device.
View HDCP authorized device status	EscEHDCP←X11←		Show HDCP authorized device status.

KEY: X4 = Native resolution Resolution and rate in an easily-viewed format, such as "800x600@60Hz"
X5 = EDID record 128 or 256 bytes
X6 = Input Audio Format
∅ = follow switch (default)
2 = force analog audio
1 = force digital audio
3 = Auto (digital if present, else analog
X7 = Audio gain adjustment range 00 to 10
X8 = Audio level adjustment range
X9 = Audio attenuation adjustment range
X10 = Enable or disable status
X11 = HDCP authorized device
-18 to +10 (in 1.0 dB steps)
00 to 18
∅ = off (down) or disable
∅ = off
1 = on (up) or enable
1 = on (default)

Command and Response Table for Transmitter SIS Commands (continued)

Command Function	SIS Command (Host to Unit)	Response (Unit to Host)	Additional description
Status requests
View link 1 (Tx-to-Rx) status	1S	X12←
View link 2 (Rx-to-Tx) status	2S	X12←
View input video status	3S	X12←
View input audio status	4S	X12←
View all signal status	5S	SigIX12•Sig0X12•HdcpIX12•Hdcp0X12←	Report the status of the HDMI input, HDMI output, HDCP encoding on the input, and HDCP encoding on the output.
View HDMI signal status	6S	SigIX12•Sig0X12←	Report the status of the HDMI input and HDMI output (always -- for a transmitter).
View HDCP status	7S	HdcpIX12•Hdcp0X12←	Report the status of the HDCP encoding on the input and HDCP encoding on the output.
View temperature	20S	X13F•X13C←	Show temperature in degrees Fahrenheit and Celsius.
Information requests
Information request	I	1LnkX12•2LnkX12•VidX12•AudX12•X14•Tx←	The unit responds with the current status (signal detected) of optical link 1, optical link 2, the video input, and the audio link; the fiber optic transmission mode (singlemode or multimode); and the device type (Tx).
Show firmware version	Q	X15←
Example:	Q	1.23←	The factory-installed firmware version is 1.23 (sample value only).
Request part number	N	60-nnnn-nn←
Input sync detection	1LS	X17horizontal, X17vertical←	Shows horizontal frequency in kHz and vertical freq in Hz. 000.0,000.0 if no signal is detected.
Resets
Reset audio	EscZA←	Zpa←	Reset audio setting to default levels (0 dB gain).
System reset	EscZXXX←	Zpx←	Reset all settings to factory defaults.

KEY: X12 = Link and input status 0 = link or input not detected 1 = link or input detected

X13 = Internal temperature nnnF•nnC

X14 = Transmission mode SM = singlemode MM = multimode

X15 = Firmware version v.vv

X17 = Sync frequency xxx.xx (frequency in kHz [H] or Hz [V])

Symbol definitions for receiver SIS commands

← = Carriage return/line feed
← = Carriage return (no line feed)

| = Pipe (can be used interchangeably with the character)

- = Space (hard) character

Esc = Escape key (hex 1B)

W = Can be used interchangeably with the Esc character

X10 = Mute/auto memory status and enable or disable status

X12 = Link and input status

X13 = Internal temperature

X14 = Transmission mode

X15 = Firmware version v.vv

X16 = Sync frequency

X17 = Switch position

X18 = Horizontal and vertical position

X19 = Memory preset number

X20 = Test pattern

X21 = Rx link and daisy chain enable

X22 = Video delay (0 plus six steps at 0.25 seconds per step)

X23 = Video bit depth

= off or disable 1 = on or enable

= link or input not detected 1 = link or input detected

nnnF•nnC

SM = singlemode MM = multimode

xxx.xx (frequency in kHz [H] or Hz [V])

= off (right) 1 = on (left)

000 through 255

∅1 to 3∅

= none 2 = grayscale

1 = color bars 3 = alternating pixels

= disable 2 = daisy chain enable

1 = return link enable

∅ = 0 second

1 = 0.25 second 4 = 1.0 second

2 = 0.5 second (default) 5 = 1.25 second

3 = 0.75 second 6 = 1.5 second

= auto 1 = 8-bit

Command and Response Table for Receiver SIS Commands

Command Function	SIS Command (Host to Unit)	Response (Unit to Host)	Additional description
Video mute
Mute output	1B	Blk1←	Blank the video output.
Unmute output	∅B	Blk∅←	Output video.
Show video mute status	B	X10←	Video mute status is X10.
Horizontal shift
Set a horizontal position	X18H	HphX18←	Set horizontal centering to X18.
Increment position	+H	HphX18←	Shift the image one pixel to the right.
Decrement position	-H	HphX18←	Shift the image one pixel to the left.
Show position	H	X18←
Vertical shift
Set a vertical position	X18/	VphX18←	Set vertical centering to X18.
Increment position	+/	VphX18←	Shift the image down one line.
Decrement position	-/	VphX18←	Shift the image up line.
Show position	/	X18←
List sync frequency
View input frequency	1LS	X16, X16←	Shows horizontal frequency in kHz and vertical frequency in Hz. 000.0,000.0 if no signal is detected.
Memory presets
Save preset	X19, Spr	X19←	Command code is a comma.
Recall preset	X19, Rpr	X19←	Command code is a period.
Auto memory
Disable auto memory	55*0#	Img0←
Enable auto memory	55*1#	Img1←
Show auto memory status	55#	X10←
Audio mute
Mute the audio	1Z	Amt1←	Silence the audio output of the receiver.
Unmute the audio	∅Z	Amt∅←	The receiver outputs audio.
Show audio mute status	Z	X10←	Audio mute status is X10.
Test pattern
NOTE: You must have a video input connected to the transmitter and the transmitter-Tx-to-receiver-Rx fiber cable connected for the receiver to output a selected test pattern. The test pattern turns off if the input signal rate changes or is disconnected or if power is removed.
Output color bars	1J	Tst1←	Set the receiver to output the color bars test pattern.
Output grayscale	2J	Tst2←	Set the receiver to output the grayscale test pattern.
Output alternating pixels	3J	Tst3←	Set the receiver to output the alternating pixels test pattern.
Turn test pattern off	∅J	Tst∅←	Set the receiver to output the input video (no test pattern is selected).
Show test pattern status	J	X20←
Disable and enable return link and daisy chain
NOTE: The disable return link function is primarily used and recommended when the transmitting device is a FOX 500 DA6 and the receiver is connected to any of outputs 2 through 6 on the DA.
Disable return link	66*0*0#	Rle*0*0←	Disable link 2.
Enable return link to transmitter	66*0*1#	Rle*0*1←	Enable link 2 (default setting).
Enable daisy chain	66*0*2#	Rle*0*2←	Enable receiver daisy chain mode.
Show return link and daisy chain status	66*0#	∅*X21←
Video bit depth
Set video bit depth to auto	EscV0BITD←	BitdV0←
Force video to 8-bit depth	EscV1BITD←	BitdV1←
View video bit depth	EscVBITD← X23←
HDCP notification
Enable notification	EscN1HDCP←	HdcpN1←
Disable notification	EscN0HDCP←	HdcpN0←
View notification status	EscNHDCP← X10←
KEY: X10 = Auto memory and HDCP status ∅ = off 1 = onX19 = Memory preset number ∅1 to 30X20 = Test pattern ∅ = none 2 = grayscaleX21 = Rx link and daisy chain enable ∅ = disable 1 = return link enable 2 = daisy chain enableX23 = Video bit depth ∅ = auto 1 = 8-bitVideo shutdown delay
NOTES:The Set Video Delay command delays the digital video to help monitors sync correctly during an input rate change.Onlyvideo is delayed; embedded audio is not delayed.
Set delay	3*X22# Dly	X22←	Delay video by an interval of X22.
Example:	3*3#	Dly3←	Delay video by an interval of 0.75 seconds (3 x 0.25 seconds).
View delay	3#	X22←
Switch and signal status requests
Request Audio switch status	EscStat← X17←		Show the position of the Audio switch:ø = off (embedded audio is muted) or 1 = on (unmute).
NOTE: The audio on the captive screw audio output always remains active regardless of the setting of this switch.
Check audio embed	Esc5Stat←	EmbedAudX12←	Show if audio is embedded in the video stream:ø = not detected or 1 = detected.
View link 1 (Tx-to-Rx) status	1S	X12←
View link 2 (Rx-to-Tx) status	2S	X12←
View input video status	3S	X12←
View input audio status	4S	X12←
View all signal status	5S	SigI X12• SigO X12• HdcpI X12• HdcpO X12←	Report the status of the HDMI input, HDMI output, HDCP encoding on the input, and HDCP encoding on the output.
View HDMI signal status	6S	SigI X12• SigO X12←	Report the status of the HDMI input and HDMI output (always -- for a transmitter).
View HDCP status	7S	HdcpI X12• HdcpO X12←	Report the status of the HDCP encoding on the input and HDCP encoding on the output.
View temperature	20S	X13F • X13C←	Show temperature in degrees Fahrenheit and Celsius.

KEY: X12 = Link status = light or signal input not detected

1 = light or signal detected

X13 = Internal temperature nnnF•nnC

X17 = Switch position 0 = off (right) 1 = on (left)

X22 = Video delay 0 = 0 second

(0 plus six steps at 0.25 seconds per step)

1 = 0.25 second

2 = 0.5 second (default)

3 = 0.75 second

4 = 1.0 second

5 = 1.25 second

6 = 1.5 second

Command and Response Table for Receiver SIS Commands (continued)

Command Function	SIS Command (Host to Unit)	Response (Unit to Host)	Additional description
Information requests
Information request	I	1Lnk 12 •2Lnk 12 •Vid 12 •Aud 12 • 14 •Rx←	The unit responds with the current status (signal detected) of optical link 1, optical link 2, the video input, and the audio link; the fiber optic transmission mode (singlemode or multimode); and the device type (Rx).
Show firmware version	Q	15 ←
Example:	Q	1.23←	The factory-installed firmware version is 1.23 (sample value only).
Request part number	N	60-nnnn-nn←
Input sync detection	1LS	17_horizontal, 17_vertical ←	Shows horizontal frequency in kHz and vertical freq in Hz. 000.0,000.0 if no signal is detected.
Resets
Reset audio	EscZA←	Zpa←	Reset audio setting to default levels (0 dB gain).
System reset	EscZXXX←	Zpx←	Reset all settings to factory defaults.
KEY: 12 = Link status = light or signal input not detected1 = light or signal detected 14 = Transmission mode SM = singlemode MM = multimode 15 = Firmware version v.vv 17 = Switch position = off (right) 1 = on (left)

FOX Extenders Control Program

The Extron FOX Extenders program, which communicates with the transmitter and receiver pair via the Remote RS-232 port of either unit provides an easy way to operate the pair.

The program is compatible with Windows 2000, Windows XP, or later. This software and updates to it can be downloaded from the Extron Web site (www.extron.com).

Installing the Software

Download the software as follow:

NOTES:

• This procedural description is illustrated as using Internet Explorer. Depending on the browser you use, some steps or indications may be different.

• Steps 1 through 7, below, are also used to download firmware update packages.

• Visit the Extron website and click the Download tab (see figure 14, ①).

Figure 14. Downloading the Room Agent Software Package

1. Click the Software link or Firmware link as appropriate (②).
2. Click the desired filtering letter (③) to jump to the nearest page of downloads.
3. Click Download for the FOX Extenders (4).

The Log in dialog box appears (see figure 15).

Figure 15. Log in Center Dialog Box

1. Enter the E-Mail address and Password associated with your Extron website account (see figure 15 on the previous page, ①).

TIPS:

• Contact the Extron S3 Sales & Technical Support Hotline to obtain website credentials.

• Click Keep me logged in to eliminate steps 5 through 7 in future downloads.

• Click Log in to copy the software to the computer (2).

• If your browser asks you to confirm that you want to continue, click Run or make a similar confirmation (see figure 16, ①).

Do you want to run or save FOXExtender_v1x7.exe (14.4 MB) from extron.com?

This type of file could harm your computer.

Run

▼

Cancel

Figure 16. Download Warning and Confirmation

NOTE: Figure 16 may appear different or may not appear at all, depending on your Web browser choice and its security settings.

1. For a firmware download, exit this procedure and return to Updating the Firmware on page 38.

2. Follow the instructions that appear on the screen. By default, the installation creates a C:\Program Files\Extron\FOX_Extenders directory, and it places four icons into a group folder named "Extron Electronics\FOX Extender Control Program" The four installed icons are:

3. Check for FOX Extenders updates

4. FOX Extenders
   • FOX Extenders Help
5. Uninstall FOX Extenders

Starting the Program

Start the Extron FOX Extenders program as follows:

1. Click Start > Programs > Extron Electronics > FOX Extenders Control Program > FOX Extenders.

The Communication Setup window appears (see figure 17).

Figure 17. Communication Setup Window

1. Select the Com port to which your transmitter or receiver is connected. Click OK. The FOX Extenders Control Program window opens (see figure 18 on the next page).

Figure 18. FOX Extenders Control Program Window

NOTES:

• Figure 16 is an amalgam of program displays. Some controls and displays are available when connected to the transmitter only and some when connected to the receiver only. These functions are identified in the descriptions that follow.
• Only one fiber optic cable, transmitter-Tx-to-receiver-Rx, is required for serial command transmission. But, if you connect only one fiber optic cable, the transmitter will not receive reports from the controlled device. For the transmitter to receive responses from the controlled device, you must install two fiber optic cables and leave link 2 enabled (via an SIS command (see page 25) to the receiver or using the FOX Extenders Control Program (see page 34).

Using the Program

Status panel

Figure 19. Status Panel

The Status panel provides indications of the connection status.

• HDMI indicator — This indicator is green when the transmitter detects a sync signal on its HDMI video input
• Audio indicator — This indicator is green when the transmitter detects a low level audio signal for a short period. This indicator goes dark if the audio signal drops below the minimum threshold for a short period.
• Link 1 indicator — This indicator is green when the receiver detects light on the fiber optic cable connected to the Tx port.

NOTE: The receiver detects the transmitter-Tx-to-receiver-Rx light. It reports the status to the transmitter via the optional Rx cable.

If the PC is connected to the transmitter and either the secondary (receiver-Tx-to-transmitter-Rx) cable is not connected in your system or the receiver is in the daisy chain mode, the Link 1 indicator in the control program does not show green (detected), whether the receiver detects the link or not.

- Link 2 (Optional) indicator — This indicator is green when the transmitter detects light on the fiber optic cable connected to the Rx port.

NOTE: The transmitter detects the receiver-Tx-to-transmitter-Rx light. It reports the status to the receiver via the Tx cable.

If the PC is connected to the receiver and either the primary (transmitter-Tx-to-receiver-Rx) cable is disconnected or the receiver is in the daisy chain mode, the Link 2 indicator in the control program will not show green (detected), whether the transmitter detects the link or not.

The Status panel also shows to which unit the controlling PC is connected, the FOXBOX model (multimode or singlemode), the internal temperature, and the video input frequency. The Other side entry cannot be read when connected to a FOXBOX HDMI.

Control tab functions

Click the Control tab to access the picture and audio adjustments functions described below.

Figure 20. Control Tab

Video Adjustment panel

NOTE: The Video Adjustment panel controls are available only if you are connected to the receiver and an active video input is connected to the transmitter.

The Video Adjustment panel provides Shift Horizontal and Shift Vertical fader controls that let you change the position of the display on the screen.

Audio Adjustment panel

NOTE: The Audio Adjustment panel controls are available only if you are connected to the transmitter.

Audio Gain/Attenuation fader — Click and drag the Audio Gain/Attenuation fader control to select the input audio gain or attenuation value, from -18 dB to +10 dB in 1.0 dB increments.

Memory Preset panel

NOTE: The Memory Preset panel controls are available only if you are connected to the receiver.

The Memory Preset panel provides a means to save and recall memory presets. Memory presets are stored values of the horizontal and vertical position saved in nonvolatile memory. When the FOXBOX is powered down and later powered back up, the settings are available for selection using the Recall button. Saving the settings to a preset using the Save button overwrites the settings previously written to that preset.

Mute panel

NOTE: The Mute panel controls are available only if you are connected to the receiver.

Click the Video Mute radio button, the Audio Mute radio button, or both in the Mute panel to turn the video and audio mutes on and off.

I/O Configuration tab functions

Click the I/O Configuration tab to access the functions described below.

Figure 21. I/O Tab

Output Configuration panel

NOTE: The Output Configuration panel control is available only if you are connected to the receiver.

The Video Shutdown Delay setting delays the digital video to help monitor sync correctly during an input rate change. Only video is delayed; embedded audio is not delayed.

HDCP panel

NOTE: • The HDCP Authorized controls are available only if you are connected to the transmitter.
- The HDCP Notification controls are available only if you are connected to the receiver.

Both sets of radio buttons cannot be available for selection at the same time.

• HDCP Authorized radio buttons — The HDCP authorized function determines whether the transmitter operates as an HDCP authorized device or not. An HDCP authorized device allows an HDMI source to output HDCP-encrypted video. A non-authorized setting is useful for video sources that always encrypt their output if the connected device (the transmitter in this example) is HDCP capable. If the display connected to the receiver is not HDCP compliant, this automatic encryption would result in no display.
• HDCP Notification radio buttons — The HDCP notification function in the receiver enables a connected display to show a green or black screen if the transmitted HDMI video is HDCP encrypted and the display is not HDCP capable.

Plus Mode Transmission panel

Plus Mode Transmission

Enabled Disabled

NOTE: The Plus Mode Transmission radio buttons are available only if you are connected to the transmitter.

The Plus Mode Transmission radio buttons allow you to enable and disable Plus mode. Plus mode enabled forces the transmitter to emulate a FOXBOX DVI Plus or PowerCage FOX DVI Plus transmitter for compatibility with one of four receivers: a FOXBOX HDMI Rx, a FOXBOX DVI Plus Rx, a PowerCage HDMI Rx, or a PowerCage FOX DVI Plus Rx.

Plus mode disabled allows the output of the transmitter to be received by any FOXBOX, PowerCage FOX, and FOX 500 VGA and DVI unit, including the Plus and non-Plus units.

Video Bit Depth panel

Video Bit Depth

Auto 8 bit

NOTE: The Video Bit Depth panel radio buttons are available only if you are connected to the receiver.

The Video Bit Depth radio buttons allow you to force the bit depth to 8 bits or to set it to auto.

Advanced tab functions

Click the Advanced tab to access the functions described below.

NOTE: The Advanced functions are available only if you are connected to the receiver.

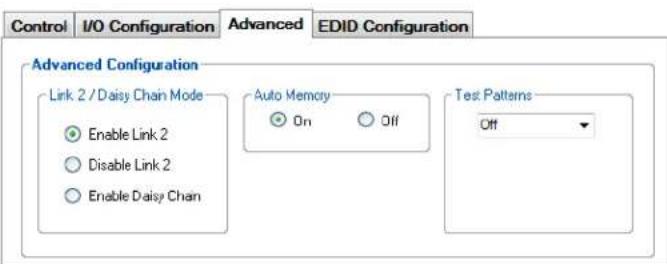

Figure 22. Advanced Tab

Link 2 and Daisy Chain radio buttons

Link 2 / Daisy Chain Mode

Enable Link 2
Disable Link 2
Enable Daisy Chain

Select among the Enable Link 2, Disable Link 2, and Enable Daisy Chain radio buttons to define the function of the receiver Tx LC connector; either:

• Routing RS-232 over fiber to the transmitter
• No function
• Routing the signal received on the Rx LC connector to the next receiver in a daisy chain

NOTE: The disable return link function is primarily used and recommended when the transmitting device is a FOX 500 DA6 and the receiver is connected to any of outputs 2 through 6 on the FOX DA.

Auto Memory radio buttons

Select the Auto Memory radio button to automatically apply saved position settings when the sensed input resolution changes.

Test Patterns drop box

Select one of three built-in test patterns; Colorbars, Grayscale, and Alternating Pixels; as necessary to help adjust the color, brightness, contrast, and focus of the display. Select Off to output the video that is input to the transmitter.

NOTE: You must have a video input connected, the transmitter-Tx-to-receiver-Rx fiber cable connected, and the receiver must not be in daisy-chain mode for the receiver to output a selected test pattern.

The test pattern turns off if the input signal rate is changed or disconnected or if power is removed.

EDID Configuration tab

Click the EDID Configuration tab to access the functions described below.

NOTE: The EDID configuration functions are available only if you are connected to the transmitter.

Figure 23. EDID Tab

EDID is a data structure used to communicate video display information, including native resolution and vertical refresh rate requirements, to a source device. The source device then outputs the optimal video format for the display based on the provided EDID data, ensuring proper video image quality.

Assigned EDID panel

NOTES:

• The Assigned EDID panel control is available only if you are connected to the transmitter and the transmitter front panel EDID Minder hex switch is in position 1. If the hex switch is not in position 1, the Assigned EDID panel advises you "To change EDID, set rotary switch from #n to #1.
  • “The default EDID is 720p @ 60 Hz.

The Assigned EDID panel provides a drop-down list that lets you manually set the EDID resolution and refresh rate and reports the position of the transmitter front panel EDID Minder hex switch.

Save EDID panel

The Save EDID button lets you save the EDID resolution and refresh rate from the transmitter HDMI Loop Thru monitor. The data is saved to the user-captured EDID location (front panel EDID Minder hex switch position 0).

Import EDID panel

Use this panel to import EDID files to the FOX Tx HDMI as follows:

1. Click the Browse () button to locate and select the desired EDID file on the connected PC. The Open dialog box opens (see figure 24).

Figure 24. Importing an EDID

1. Navigate to the folder containing the EDID file.
2. Select the EDID file (①).
3. Click the Open button (②). The Open dialog box closes.
4. Click the Import button (Import). The EDID is imported and assigned to the input.

Export EDID panel

EDID files on the FOX Tx HDMI can be exported to the connected PC. To open and view them, use the Extron EDID Manager software, available at www.extron.com. The EDID Manager software

aids in troubleshooting any EDID related issues that may occur during configuration or operation of an AV system.

Export an EDID as follows:

1. Select the desired EDID to export from the drop-down list (see figure 25, ①).

Figure 25. Exporting an EDID

1. Click the Export button (②). The Save As dialog box opens (see figure 26).

Figure 26. Importing an EDID

1. Navigate to the folder where you want to save the EDID and enter a file name (①).
2. Click the Save button (②). The EDID setting is exported.

Updating the Firmware

Firmware can be updated for each unit via the front panel Configuration port on that unit using the Extron Firmware Loader utility from the Windows-based control program.

NOTES:

• There are different files for the transmitter (Tx) and receiver (Rx).
- Your computer must be connected directly to the unit for the firmware to be updated.

Update the unit firmware as follows:

1. Perform steps 1 through 7 of Installing the Software, on page 28, to download the firmware upgrade from the Extron website.
2. Click Run in the File Download dialog box (see figure 25 on the next page, ①). A Security Warning dialog box opens.
3. Click Run in the Security Warning dialog box (2). The PC downloads the firmware update from the Extron website and starts the Extron Installation Program to extract the firmware file.
4. Click Next (③). The program extracts the firmware files and places them in a folder that is identified in the InstallShield Wizard window.

ATTENTION:

• Note the folder to which the firmware file is saved. When downloaded from the Extron website, the firmware is placed in a subfolder of:
• 64-bit Windows OS: C:\Program Files (X*6)\Extron\Firmware.
  • 32-bit Windows OS: C:\Program Files\Extron\Firmware.

• The original factory-installed firmware is permanently available on the unit. If the attempted firmware upload fails, the unit reverts to the factory-installed firmware.

• Click Finish to exit the program (4).

Figure 27. Extracting Firmware Upgrade Files

6. Ensure that:

• The computer is connected to the front panel Configuration port (see item 1 on page 8) or top panel Configuration port (see item 7 on page 11) of the unit to be updated.
  • The FOX Extenders Control Program is running.

• Click the Firmware Loader button (💡) on the tool bar.

NOTE: If the Firmware Loader button does not appear on the tool bar, the Firmware Loader software is not installed. Install it as follows:

a. On the Extron website, click the Download tab.
b. On the Download Center page, click Software on the left sidebar menu.
c. Locate the Firmware Loader line and click the Download link at the far right.
d. Follow the instructions on the download screens to save the installer file to your computer.
e. In Windows Explorer or another file browser, locate the Firmware Loader executable file in the file system on your computer and double-click it to open it.
f. Follow the instructions on the Installation Wizard screens to install the Firmware Loader on your computer. Unless you specify otherwise, the installer program places the Firmware Loader file, "FWLoader.exe" in C:\Program Files\Extron\FWLoader.
If the Extron and FWLoader folders do not yet exist in your Program Files folder, the installer creates them.

1. If you have not previously updated firmware for the FOXBOX unit before, on the Add Device screen (see figure 28), select the RS-232 tab (1).

Figure 28. Add Device Screen

If you have previously updated firmware for this model, click Cancel (2). The Firmware Loader window appears. Proceed to step 11 on the next page.

NOTE: Although the screen also has a TCP/IP tab, the FOXBOX unit does not have a LAN port. Do not select the TCP/IP tab.

1. From the drop-down lists on the RS-232 screen, select the appropriate Com port number and baud rate (③) (the default is 9600).

2. Click OK (4). The Firmware Loader window appears (see figure 29 on the next page)

Figure 29. Extron Firmware Loader Window

1. Select the FOXBOX unit (1)

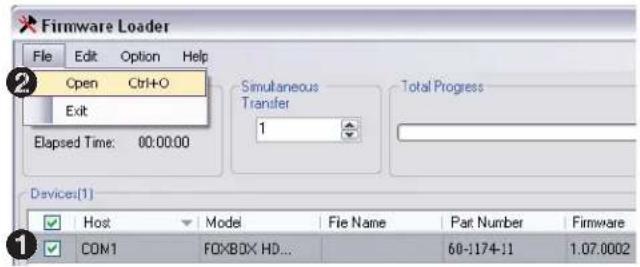

2. Click File > Open (②). The Choose Firmware File screen appears (see figure 30).

Figure 30. Choose Firmware File Window

1. Navigate to and select the new firmware file (1).
2. Click Open (2). The Choose Firmware File window closes.

NOTE: When downloaded from the Extron website, the firmware is placed in a subfolder of C:\Program Files\Extron\Firmware.

1. In the Firmware Loader window, click Begin (see figure 31, ①).

The Total Progress and Progress status bars show the progress of the upload. The firmware upload to the unit may take several minutes. Once the status bars have progressed from 0% to 100%, and Status is listed as Completed, the firmware loader utility resets the unit.

Figure 31. Firmware Loader Screen

1. Click Exit to close the Firmware Loader.

Equipment Mounting

This section provides procedures for mounting the transmitter and receiver.

Mounting the Unit

ATTENTION:

Either of the 1-inch high, quarter-rack width (transmitter) or half-rack width (receiver) units can be placed on a tabletop, mounted on a rack shelf, or mounted under or through a desk or other furniture. The receiver can be mounted to a projector bracket.

Tabletop Use

Affix the included rubber feet to the bottom of the unit and place it in any convenient location.

Mounting kits

Mount the unit using any optional compatible mounting kit listed on the Extron website (www.extron.com), in accordance with the directions included with the kit. For rack mounting, see "UL Rack-Mounting Guidelines," below.

UL Rack-Mounting Guidelines

The following Underwriters Laboratories (UL) requirements pertain to the installation of the unit into a rack.

• Elevated operating ambient temperature — If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consider installing the equipment in an environment compatible with the maximum ambient temperature (TMA = +122 °F, +50 °C) specified by Extron.
• Reduced air flow — Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised.
• Mechanical loading — Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven mechanical loading.
• Circuit overloading — Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.
• Reliable earthing (grounding) — Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (such as use of power strips).

Extron Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America, and Central America:

Extron Electronics

1230 South Lewis Street

Anaheim, CA 92805

U.S.A.

Japan:

Extron Electronics, Japan

Kyodo Building, 16 Ichibancho

Chiyoda-ku, Tokyo 102-0082

Japan

Europe and Africa:

Extron Europe

Hanzeboulevard 10

3825 PH Amersfoort

The Netherlands

China:

Extron China

686 Ronghua Road

Songjiang District

Shanghai 201611

China

Asia:

Extron Asia Pte Ltd

135 Joo Seng Road, #04-01

PM Industrial Bldg.

Singapore 368363

Singapore

Middle East:

Extron Middle East

Dubai Airport Free Zone

F13, PO Box 293666

United Arab Emirates, Dubai

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions, or if modifications were made to the product that were not authorized by Extron.

NOTE: If a product is defective, please call Extron and ask for an Application Engineer to receive an RA (Return Authorization) number. This will begin the repair process.

USA: 714.491.1500 or 800.633.9876

Europe: 31.33.453.4040

Asia: 65.6383.4400

Japan: 81.3.3511.7655

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.
