Product Type Refrigerator
Brand Midea
Model MDRT346MTF28AP
Total Net Capacity 346 Liters
Freezer Capacity 98 Liters
Refrigerator Capacity 248 Liters
Dimensions (H x W x D) 1850 x 595 x 668 mm
Weight 72 kg
Power Supply 220-240V ~ 50Hz
Energy Consumption 0.78 kWh/24h (estimated)
Noise Level 42 dB
Climate Class SN, N, ST
Cooling System Static with auto defrost freezer
Temperature Control Mechanical thermostat
Interior Lighting LED lamp
Adjustable Shelves Yes (glass shelves)
Ice Maker Included (manual ice tray)
Door Hinge Reversible
Refrigerant R600a
Cleaning and Maintenance Unplug before cleaning, use mild detergent, avoid abrasive cleaners
Safety Certification CE, RoHS compliant
Spare Parts Availability Available through authorized service centers
Warranty 2 years (standard)

Frequently Asked Questions - MDRT346MTF28AP MIDEA

How do I adjust the temperature on my Midea MDRT346MTF28AP refrigerator?
The temperature is controlled by a mechanical dial located inside the refrigerator compartment. Turn the dial to a higher number for colder temperatures and a lower number for warmer temperatures. The recommended setting is between 3 and 4.
How often should I defrost the freezer?
The freezer features auto defrost, so manual defrosting is not required. However, you should periodically clean the freezer to remove any frost buildup if it occurs.
Can I reverse the door opening direction?
Yes, the door hinge is reversible. Refer to the user manual for step-by-step instructions. Typically, you need to remove the door, swap the hinge brackets, and reattach the door on the opposite side.
Why is there water pooling inside the refrigerator?
Water pooling can be due to a blocked defrost drain. Clean the drain hole with a pipe cleaner or warm water. Also ensure the door is properly closed to prevent excess moisture.
What is the recommended temperature for storing food?
The refrigerator temperature should be set between 2°C and 4°C, and the freezer at -18°C or lower. Use a thermometer to verify if needed.
How do I clean the refrigerator?
Unplug the appliance first. Clean the interior with a soft cloth and mild detergent. Avoid harsh chemicals. Wipe the exterior with a damp cloth. Clean the condenser coils at least twice a year.
What does the 'SN, N, ST' climate class mean?
It indicates the ambient temperature ranges the refrigerator can operate in: SN (10°C to 32°C), N (16°C to 32°C), ST (16°C to 38°C). Your refrigerator is suitable for most indoor environments.
How can I change the interior light bulb?
The refrigerator uses an LED light which is not user-serviceable. If the light fails, contact an authorized service center for replacement.
Is the appliance energy efficient?
The estimated energy consumption is 0.78 kWh per 24 hours, which is moderate for its size. For best efficiency, keep the refrigerator away from heat sources and ensure good ventilation.
Where can I purchase spare parts?
Spare parts can be ordered through Midea authorized service centers or from the official Midea website. Always use genuine parts to maintain safety and performance.

User questions about MDRT346MTF28AP MIDEA

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Uncategorized in PDF format for free! Find your manual MDRT346MTF28AP - MIDEA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MDRT346MTF28AP by MIDEA.

USER MANUAL MDRT346MTF28AP MIDEA

Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.

EN

USER MANUAL

CONTENTS

1 Safety warnings

2 Proper use of the refrigerator

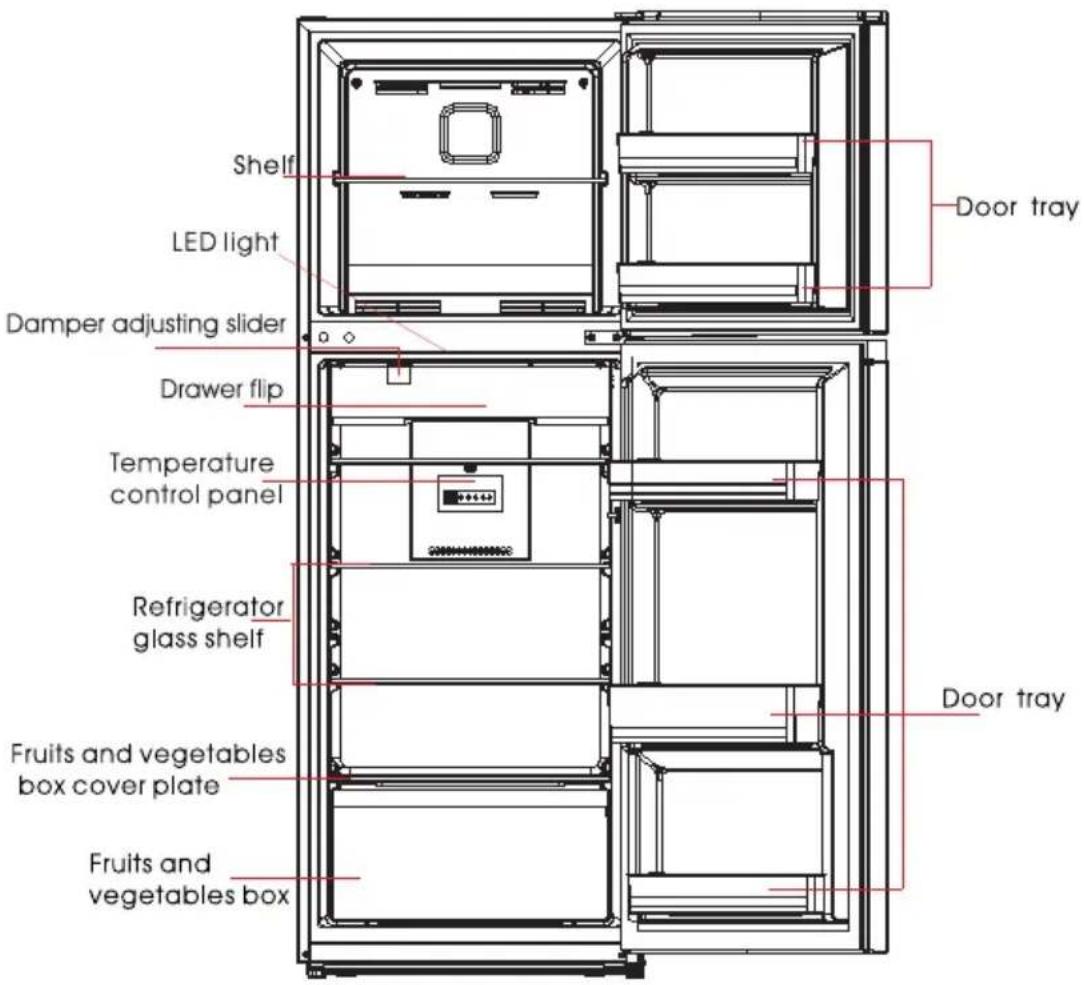

3 Structure and functions

4 Maintenance and care of the refrigerator

Warning: risk of fire / flammable materials

THIS appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

THIS appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.) Children should be supervised to ensure that they do not play with the appliance.

IF the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

DO not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

THE appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Please abandon the refrigerator according to local regulators for it use flammable blowing gas and refrigerant.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

DO not use extension cords or ungrounded (two prong) adapters.

DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

-Take off the doors.

-Leave the shelves in place so that children may not easily climb inside.

THE refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.

REFRIGERANT

and cyclopentane foaming material used for the appliance are

flammable. Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

CHILDREN

should be supervised to ensure that they do not play with the appliance.

FOR EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

TO avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

– Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. (note 1)

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star ** frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. (note 2)

- One ✕ -, two ✕ - and three-star ⚗ * * * compartments are not suitable for the freezing of fresh food. note 3

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note 1,2,3: Please confirm whether it is applicable according to your product compartment type.

WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

WARNING: Connect to potable water supply only. (Suitable for ice making machine)

TO Prevent A Child From Being Entrapped, Keep Out Of Reach Of Children And Not In The Vicinity Of Freezer (Or Refrigerator)." (Suitable for products with locks)

1 2. Meaning of safety warning symbols

MIDEA MDRT346MTF28AP - 2. Meaning of safety warning symbols - 1This is a prohibition symbol.Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user.
Prohibition symbol
MIDEA MDRT346MTF28AP - 2. Meaning of safety warning symbols - 2This is a warning symbol.It is required to operate in strict observance of instructions marked with this symbol; or otherwise damage to the product or personal injury may be caused.
Warning symbol
MIDEA MDRT346MTF28AP - 2. Meaning of safety warning symbols - 3This is a cautioning symbol.Instructions marked with this symbol require special caution. Insufficient caution may result in slight or moderate injury, or damage to the product.
Note symbol

This manual contains lots of important safety information which shall be observed by the users.

Diagram showing hand gesture with checkmark and a robot holding a button, alongside a separate panel with a checkmark and a robot.

MIDEA MDRT346MTF28AP - 3 Electricity related warnings. - 2

natural_image Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

MIDEA MDRT346MTF28AP - 3 Electricity related warnings. - 3

natural_image Simple line drawing of a room interior with a monitor and equipment (no text or symbols)

MIDEA MDRT346MTF28AP - 3 Electricity related warnings. - 4

natural_image Simple line drawing of a refrigerator with a top-mounted appliance and a hanging door (no text or symbols)
  • Do not pull the power cord when pulling the power plug of the refrigerator. Please firmly grasp the plug and pull out it from the socket directly.
  • To ensure safe use, do not damage the power cord or use the power cord when it is damaged or worn.

  • Please use a dedicated power socket and the power socket shall not be shared with other electrical appliances. The power plug should be firmly contacted with the socket or else fires might be caused.

  • Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.

- Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire.

- Do not use electrical appliances on the top of the appliance, unless they are of the type recommended by the manufacturer.

1 4 Warnings for using.

MIDEA MDRT346MTF28AP - 4 Warnings for using. - 1

natural_image Simple line drawing of a refrigerator with tools and a crossed-out box, no text or symbols present
  • Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist
  • Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.

MIDEA MDRT346MTF28AP - 4 Warnings for using. - 2

natural_image Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.
  • The gaps between refrigerator doors and between doors and refrigerator body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gen tle when close the refrigerator door to avoid falling articles.
  • Do not pick foods or containers with wet hands in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite.

MIDEA MDRT346MTF28AP - 4 Warnings for using. - 3

natural_image Line drawing of a person cleaning the refrigerator with open doors and shelves (no text or symbols)

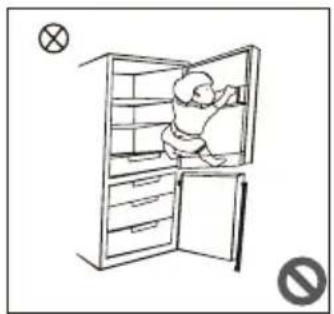

- Do not allow any child to get into or climb the refrigerator; otherwise suffocation or falling injury of the child may be caused.

MIDEA MDRT346MTF28AP - 4 Warnings for using. - 4

natural_image Simple line drawing of a distressed object with a cross symbol and warning symbols (no text or labels)
  • Do not place heavy objects on the top of the refrigerator considering that objects may fall when close or open the door, and accidental injuries might be caused.
  • Please pull out the plug in case of power failure or cleaning. Do not connect the refrigerator to power supply within five minutes to prevent damages to the compressor due to successive starts.

1.5 Warnings for placement

MIDEA MDRT346MTF28AP - Warnings for placement - 1

natural_image Illustration of hands holding a tray with a bottle, eraser, and containers (no text or symbols)
  • Do not put flammable, explosive, vo latile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.
  • Do not place flammable items near the refrigerator to avoid fires.

Bread Drugs Natural waste

- The refrigerator is intended for household use, such as storage of foods; it shall not be used for other purposes, such as storage of blood, drugs or biological products, etc.

Freezing chamber Beer

- Do not store beer, beverage or other fluid contained in bottles or enclosed containers in the freezing chamber of the refrigerator; or otherwise the bottles or enclosed containers may crack due to freezing to cause damages.

1.6 Warnings for energy

Warning for energy

1) Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.
2) The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold;
3) The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage comparisons or cabinets;
4) The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
5) The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.
6) The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside.

1.7 Warnings for disposal

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with

MIDEA MDRT346MTF28AP - Warnings for disposal - 1

corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

MIDEA MDRT346MTF28AP - Warnings for disposal - 2

When the refrigerator is scrapped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.

MIDEA MDRT346MTF28AP - Warnings for disposal - 3

Correct Disposal of this product :

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your ____ used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

2 Proper use of refrigerators

2 1 Placement.

MIDEA MDRT346MTF28AP - 1 Placement. - 1

natural_image Simple line drawing of a person pushing a cardboard box to lift a refrigerator (no text or symbols)

- Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body.

MIDEA MDRT346MTF28AP - 1 Placement. - 2

natural_image Simple line drawing of a refrigerator with a sad face, sun, and potted plant (no text or symbols)

- Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.

- Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.

MIDEA MDRT346MTF28AP - 1 Placement. - 3

natural_image Simple line drawing of a refrigerator and a window (no text or symbols)

- The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy (rotate left or right to adjust the wheel for levelling if unstable).

30cm 10cm 10cm

- The top space of the refrigerator shall be greater than 30cm, and the refrigerator should be placed against a wall with a free distance more than 10cm to facilitate heat dissipation.

Precautions before installation:

Before installation or adjusting of accessories, it shall be ensured that the refrigerator is disconnected from power.

Precautions shall be taken to prevent fall of the handle from causing any personal injury.

2.2 Leveling feet

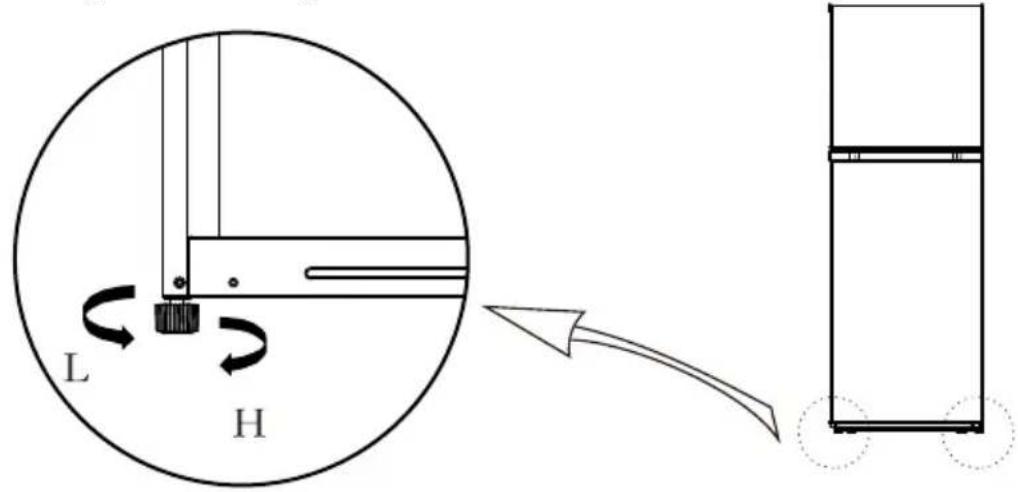

Schematic diagram of the leveling feet
L H

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

Adjusting procedures:

a. Turn the feet clockwise to the refrigerator; raise
b. Turn the feet counterclockwise to lower the refrigerator;
c. Adjust the right and left feet based on the procedures above to a horizontal level.

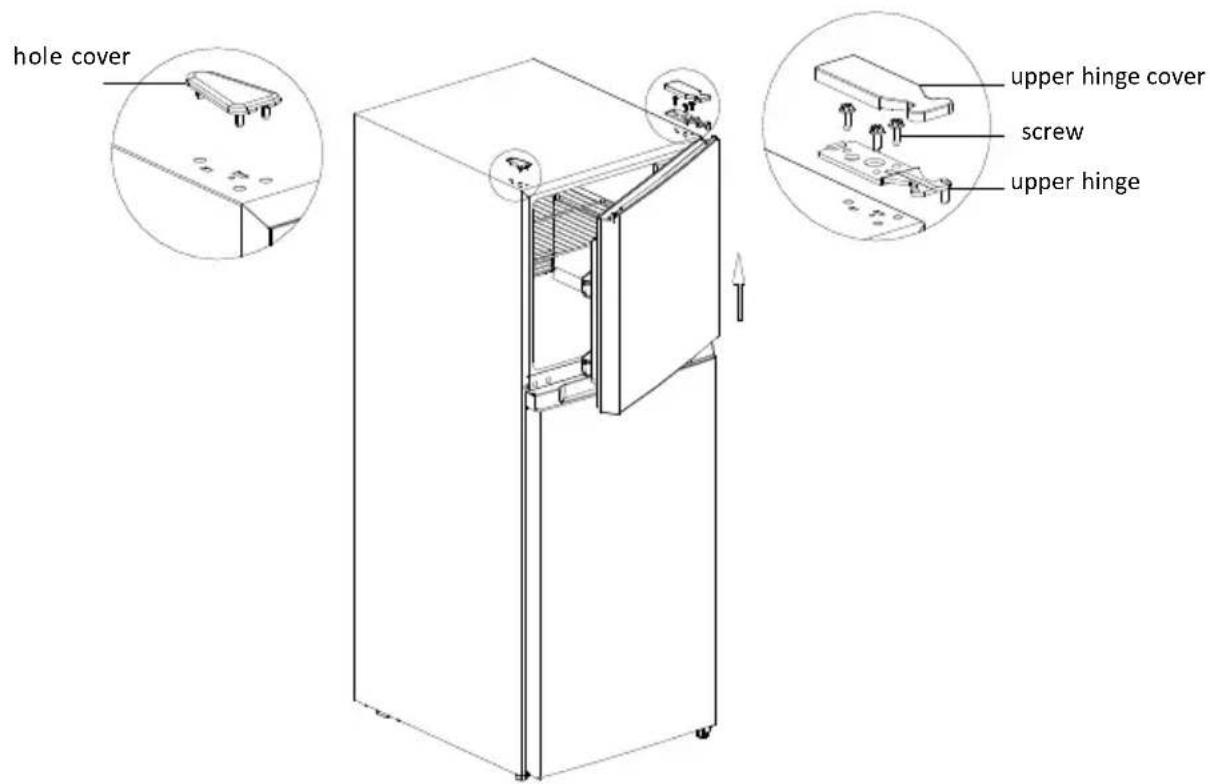

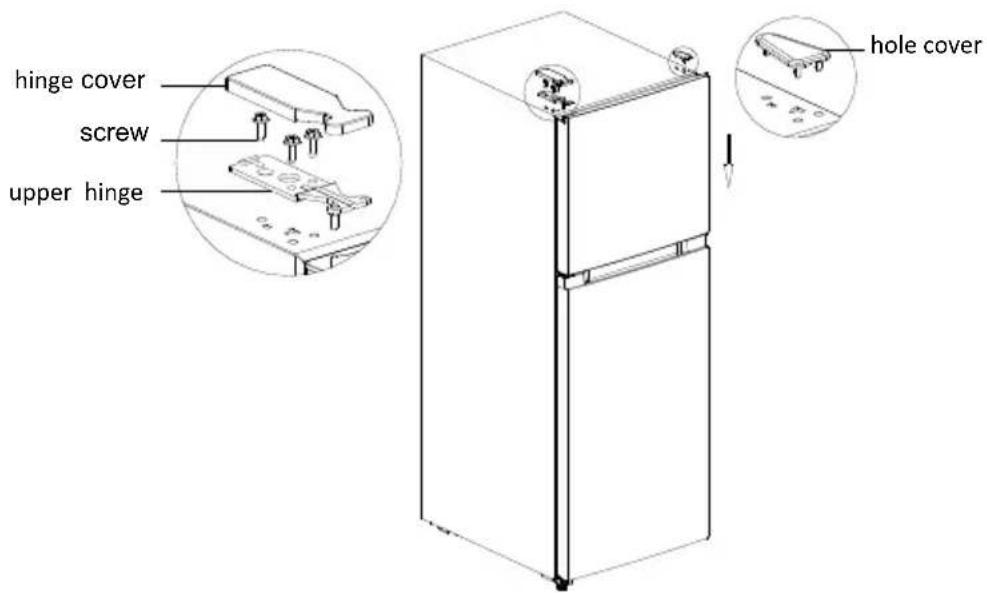

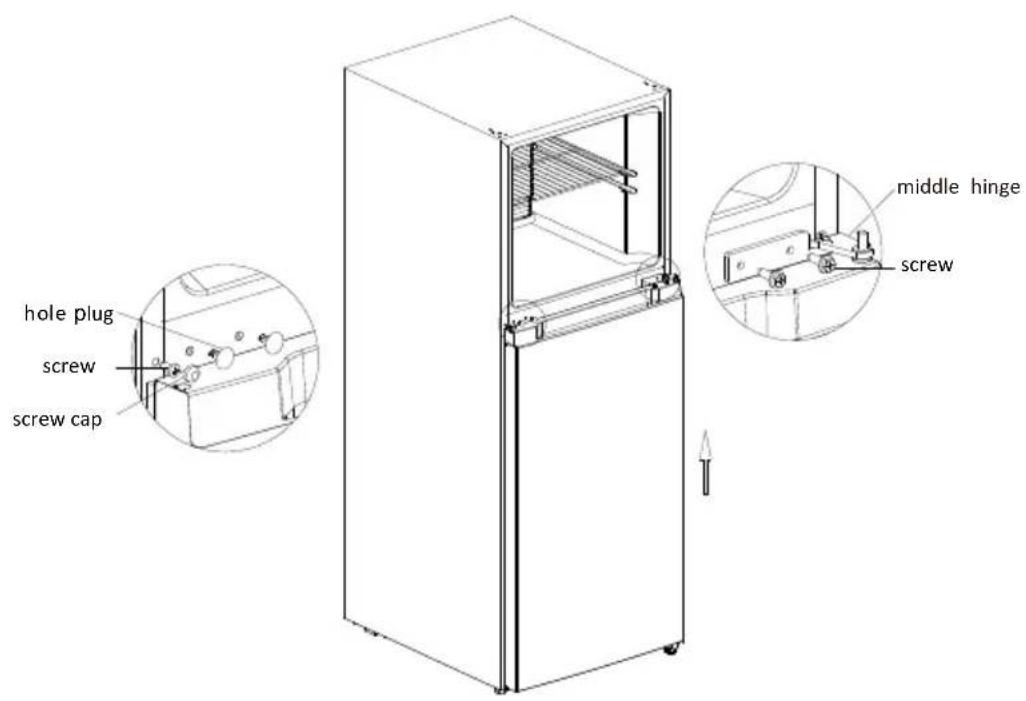

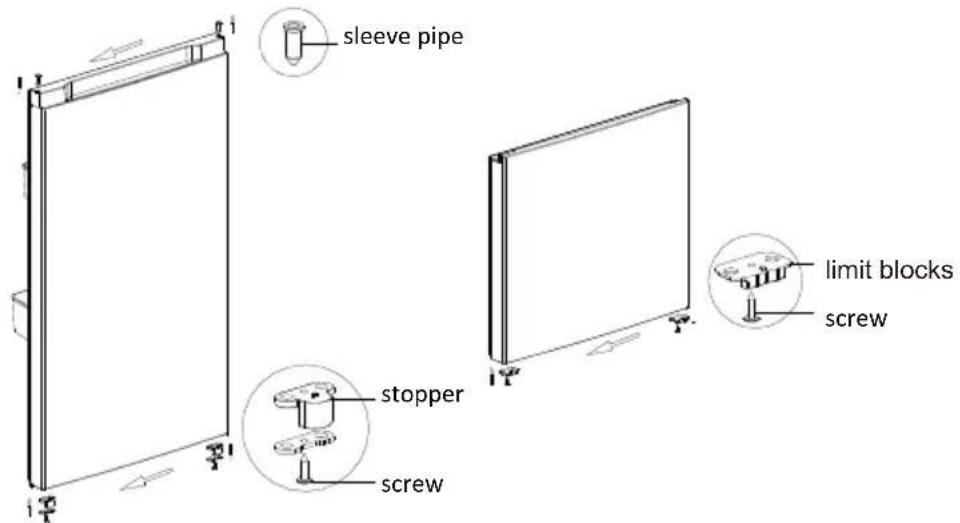

2.3 Door Right-Left Change

List of tools to be provided by the user
MIDEA MDRT346MTF28AP - Leveling feet - 2Cross screwdriverMIDEA MDRT346MTF28AP - Leveling feet - 3Putty knifethin-blade screwdriver
MIDEA MDRT346MTF28AP - Leveling feet - 45/16"socket and ratchetMIDEA MDRT346MTF28AP - Leveling feet - 5Masking tape
Parts to be used for door reverse
SNpartsQuantityNotes
1Right upper hinge1Pre-installed on the refrigerator and to be used when changing the door
2Right upper hinge cover1Pre-installed on the refrigerator and to be used when changing the door
3Upper hinge axle sleeve1Pre-installed on the refrigerator and to be used when changing the door
4Upper hinge screw3Pre-installed on the refrigerator and to be used when changing the door
5Hole cover1Pre-installed on the refrigerator and to be used when changing the door
6Middle hinge screw2Pre-installed on the refrigerator and to be used when changing the door
7Middle hinge1Pre-installed on the refrigerator and to be used when changing the door
8Hole plug2Pre-installed on the refrigerator and to be used when changing the door
9Middle beam screw1Pre-installed on the refrigerator and to be used when changing the door
10Middle beam screw cap1Pre-installed on the refrigerator and to be used when changing the door
11Adjustable foot1Pre-installed on the refrigerator and to be used when changing the door
12Lower hinge screw3Pre-installed on the refrigerator and to be used when changing the door
13Lower hinge assembly1Pre-installed on the refrigerator and to be used when changing the door
14Lower end cover screw of freezing door1Pre-installed on the refrigerator and to be used when changing the door
15Lower end cover limiting block of freezing door1Pre-installed on the refrigerator and to be used when changing the door
16Lower end cover screw of refrigerator door1Pre-installed on the refrigerator and to be used when changing the door
17Lower end cover limiting block of refrigerator door1Pre-installed on the refrigerator and to be used when changing the door
18Upper end cover axle sleeve of refrigerator door1Pre-installed on the refrigerator and to be used when changing the door

1) Please power off this appliance before conduct this operation. Remove all food from door shelves.

2) Remove hole cap, the upper hinge cover, fitting screws of upper hinge, upper hinge and sleeve pipe, then uplift the freezer door until it is separated from cabinet completely.

hole cover upper hinge cover screw upper hinge

3) Unscrew the middle hinge screws, remove the middle hinge, and remove the two hole plug, a screw, a screw cap on the middle beam, then remove the refrigerator door.

hole plug screw screw cap middle hinge screw

4) Remove the adjusting feet, lower hinge screw and lower hinge assembly, then install the lower hinge assembly on the other side of the box and install the adjusting feet on the side of the adjusting feet opening.

Lower hinge assembly screw Adjusting feet

5) Dismantle the limit blocks and screws on the lower cover of both refrigerator door and freezer door, install them on the other side of both doors; then install the sleeve pipe on the upper cover of the refrigerator door on the other side.

sleeve pipe stopper screw limit blocks screw

6) Install the compartment door on the lower hinge and then install the middle hinge Refrigerator andhole caps.

MIDEA MDRT346MTF28AP - Leveling feet - 10

natural_image Technical line drawing of a refrigerator with internal compartments and two circular insets showing internal components (no text or symbols)

7) Install the freezer door on the middle hinge, and install the upper hinge, hinge cover and hole cover.

hinge cover screw upper hinge hole cover

(The picture above is only for reference. The actual configuration w or statement by the distributor)

ill depend on the physical product

2 4 Changing the Light.

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

2.5 Starting

MIDEA MDRT346MTF28AP - Starting - 1

natural_image Simple line drawing of a smiling refrigerator with a power outlet (no text or symbols)

- Before initial start, keep the refrigerator still for two hours before connecting it to power supply.

- Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours, or for above 4 hours in summer when the ambient temperature is high.

545mm 545mm 978mm 135 929mm

- Spare enough space for convenient opening of the doors and drawers or statement by the distributor.

2.6 Energy saving tips

  • The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
  • Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
  • Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
  • Appliance storage bins should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
  • Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

3 Structure and functions

3.1 Key components

Shelf LED light Damper adjusting slider Drawer flip Temperature control panel Refrigerator glass shelf Fruits and vegetables box cover plate Fruits and vegetables box Door tray Door tray

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

Refrigerating chamber

  • The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and other food consumed in the short term.
  • Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
  • Foods are recommended to be sealed up before putting into the refrigerator.
  • The glass shelves can be adjusted up or down for a reasonable amount of storage space and easy use.

Freezing chamber

  • The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to store frozen foods and making ice.
  • The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be consumed in short term.
  • Chunks of meat are preferably to be divided into small pieces for quick freezing and easy access. Please be noted food shall be consumed within the shelf time.

3.2 Functions

TEMPERATURE CONTROL SETTING COLD — — COLDEST SUPER COOL A ① ② ③ ④ ⑤

Notes:

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

1) Setting button

A: Setting button

2) Display screen

LED: gear(COLD)①

LED: gear ②

LED: gear (MID)③

LED: gear ④

LED: gear (COLDER)⑤

3) Display

When the refrigerator is on power, the display screen all LED light for 3 seconds, the default temperature is MID gear).(③)

When there is a failure, the LED light shows the fault code (loop display), the LED light displays as following table:

Error codeError description
LED5,4flashingTemperature sensor failure of refrigerating chamber
LED5,3 flashingDefrost temperature sensor failure of freezing chamber
LED5,2 flashingThe ambient temperature sensor failure

4) Gear setting

Every time you pre ss setting button, the gear changes once, after setting the gear15s, the refrigerator will run according to the setting value.

Gear adjustment to:

MIDEA MDRT346MTF28AP - Functions - 2

The refrigerator can keep memory of following running status when power off.

6) Damper adjusting slider

COLDER FRIDGE

COLDER FREEZER

The initial position of the damper adjusting slider is on the far right side.

For better user experience, it is recommended to push the slider to right position, and turn the SETTING KEY to MID position. If it is not enough cool inside the refrigerator compartment, please check whether the slider is in left position, turn the slider to the right side.

4. Maintenance and care of the appliance

4.1 Overall cleaning

  • Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.
  • Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.
  • The interior of the refrigerator should be cleaned regularly to avoid odor.
  • Please turn off the power before cleaning interior, remove all foods, drinks, shelves, drawers, etc.
  • Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.
  • For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.
  • Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator or contaminated food.
  • Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally.
  • Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.

- Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.

- Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

MIDEA MDRT346MTF28AP - Overall cleaning - 1

Please unplug the refrigerator for defrost and cleaning.

MIDEA MDRT346MTF28AP - Overall cleaning - 2

natural_image Illustration of various household items including a gas cylinder, alcohol spray bottle, and a kettle with a steaming cup (no text or symbols)

4.2 Cleaning the glass shelf

  • Lift up the front of glass shelf, and then pull out;
  • Remove the glass shelf and clean as needed;
  • The reverse operation is for installation of glass shelf.

MIDEA MDRT346MTF28AP - Cleaning the glass shelf - 1

natural_image Line drawing of a door with a handle and lever mechanism, no text or symbols present

4 Defrosting.3

- The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel.

4 Out of operation.4

  • Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.
  • Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor.
  • Moving: Bef ore the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and fix them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45^ .

MIDEA MDRT346MTF28AP - Out of operation.4 - 1

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted; otherwise the service life may be impaired.

5 Trouble shooting

You may try to solve the following simple problems by yourself. If them cannot be solved, please contact the after-sales department.

Failed operationCheck whether the appliance is connected to power or whether the plug is in well contact. Check whether the voltage is too low. Check whether there is a power failure or partial circuits have tripped.
OdorOdorous foods shall be tightly wrapped. Check whether there is any rotten food. Clean the inside of the refrigerator.
Long-time operation of the compressorLong operation of the refrigerator is normal in summer when the ambient temperature is high. It is not recommended having too much food in the appliance at the same time. Food shall get cool before being put into the appliance. The doors are opened too frequently.
Light fails to get litCheck whether the refrigerator is connected to power supply and whether the illuminating light is damaged.
Doors cannot be properly closedThe door is stuck by food packages. The refrigerator is tilted.
Loud noiseCheck whether the floor is level and whether the refrigerator is placed stably. Check whether accessories are placed at proper locations.
Door seal fails to be tightRemove foreign matters on the door seal. Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating).
Water pan overflowsThere is too much food in the chamber or food stored contains too much water, resulting in heavy defrosting. The doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting.
Hot housingHeat dissipation of the built-in condenser via the housing, which is normal. When housing becomes hot due to high ambient temperature and storage of too much food, it is recommended to provide sound ventilation to facilitate heat dissipation.
Surface condensationCondensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noiseBuzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal. Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : MIDEA

Model : MDRT346MTF28AP

Category : Uncategorized
