| Product Type | Control Panel / Signal Processor |
| Brand | Extron |
| Model | NBP VC1 EU |
| Dimensions (H x W x D) | 1.7 x 4.4 x 3.0 inches |
| Weight | 0.5 lb (approx.) |
| Power Supply | 12V DC, 1A external power supply |
| Power Consumption | 5W (max) |
| Input Interfaces | 1 x HDMI |
| Output Interfaces | 1 x HDMI |
| Control Interfaces | Ethernet, RS-232 |
| Video Signal Type | HDMI 1.4 |
| Maximum Resolution | 1920 x 1200 @ 60 Hz |
| Audio Support | Embedded audio pass-through |
| HDCP Support | Yes, HDCP 1.4 |
| Enclosure Material | Metal |
| Mounting Options | Desktop, optional rack-mount kit |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Cooling | Passive (fanless) |
| Certifications | CE, FCC Class A |
| Included Accessories | 12V power supply, quick start guide |
| Maintenance | Wipe with a dry, lint-free cloth. Do not use liquids. |
| Safety | Read all instructions before use. Keep dry. |
| Warranty | 3 years (Extron standard) |
| Repairability | No user-serviceable parts. Contact Extron support. |
Frequently Asked Questions - NBP VC1 EU Extron
User questions about NBP VC1 EU Extron
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Panneau de commande réseau in PDF format for free! Find your manual NBP VC1 EU - Extron and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. NBP VC1 EU by Extron.
USER MANUAL NBP VC1 EU Extron
Network Button Panels
NBP Network Button Panels
NBP VC1 D
NBP 50
NBP 100
NBP 105 D
NBP 106 D
NBP 108 D
NBP 110 D
NBP 200
NBP 104 EU
NBP 108 EU
NBP VC1 EU
NBP VC2 EU
User Guide
IP Link Pro® Products
Safety Instructions • English
WARNING: This symbol, when used on the product, is intended to alert the user of the presence of uninsulated dangerous voltage within the product's enclosure that may present a risk of electric shock.
ATTENTION: This symbol, when used on the product, is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide, part number 68-290-01, on the Extron website, www.extron.com.
All trademarks mentioned in this guide are the properties of their respective owners.
The following registered trademarks ( ^® ), registered service marks ( ^SM ), and trademarks ( ^TM ) are the property of RGB Systems, Inc. or Extron (see the current list of trademarks on the Terms of Use page at www.extron.com):
| Registered Trademarks (®) |
| Extron, Cable Cubby, ControlScript, CrossPoint, DTP, eBUS, EDID Manager, EDID Minder, eLink, Everlast, Flat Field, FlexOS, Glitch Free, Global Configurator, Global Scripter, GlobalViewer, Hideaway, HyperLane, IP Intercom, IP Link, Key Minder, LinkLicense, LockIt, MediaLink, MediaPort, NAV, NetPA, PlenumVault, PoleVault, PowerCage, PURE3, Quantum, ShareLink, Show Me, SoundField, SpeedMount, SpeedSwitch, StudioStation, System INTEGRATOR, TeamWork, TouchLink, V-Lock, VN-Matrix, VoiceLift, WallVault, WindoWall, XPA, XTP, XTP Systems, and ZipClip |
| Registered Service Mark(SM): S3 Service Support Solutions |
| Trademarks(TM) |
| AAP, AFL (Accu-RATE Frame Lock), ADSP (Advanced Digital Sync Processing), AVEdge, CableCover, CDRS (Class D Ripple Suppression), Codec Connect, DDSP (Digital Display Sync Processing), DMI (Dynamic Motion Interpolation), Driver Configurator, DSP Configurator, DSP Configurator Pro, DSVP (Digital Sync Validation Processing), EQIP, FastBite, Flex55, FOX, FOXBOX, InstaWake, IP Intercom HelpDesk, MAAP, MicroDigital, Opti-Torque, PendantConnect, ProDSP, QS-FPC (QuickSwitch Front Panel Controller), Room Agent, Scope-Trigger, SIS, Simple Instruction Set, Skew-Free, SpeedNav, Triple-Action Switching, True4K, True8K, VectorTM 4K, WebShare, XTRA, and ZipCaddy |
FCC Class A Notice
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference. This interference must be corrected at the expense of the user.
NOTE: For more information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide on the Extron website.
Battery Notice
This product contains a battery. Do not open the unit to replace the battery. If the battery needs replacing, return the entire unit to Extron (for the correct address, see the Extron Warranty section on the last page of this guide).
CAUTION: Risk of explosion. Do not replace the battery with an incorrect type. Dispose of used batteries according to the instructions.
Conventions Used in this Guide
Notifications
The following notifications are used in this guide:
WARNING: Potential risk of severe injury or death.
CAUTION: Risk of minor personal injury.
NOTE: A note draws attention to important information.
TIP: A tip provides a suggestion to make working with the application easier.
Software Commands
Commands are written in the fonts shown here:
^AR Merge Scene,,0p1 scene 1,1^B 51^W^C.0
[01] R000400300004000080000600 [02] 35 [17] [03]
Esc X1 *X17 *X20 *X23 *X21 CE ←
NOTE: For commands and examples of computer or device responses used in this guide, the character “0” is the number zero and “O” is the capital letter “o.”
Computer responses and directory paths that do not have variables are written in the font shown here:
Reply from 208.132.180.48: bytes=32 times=2ms TTL=32
C:\Program Files\Extron
Variables are written in italics as shown here:
ping xxx.xxx.xxx.xxx -t
SOH R Data STX Command ETB ETX
Selectable items, such as menu names, menu options, buttons, tabs, and field names are written in the font shown here:
From the File menu, select New. Click the OK button.
Specifications Availability
Product specifications are available on the Extron website, www.extron.com.
Extron Glossary of Terms
A glossary of terms is available at https://www.extron.com/technology/glossary.aspx.
Contents
Introduction....1
Before You Begin....1
What This Guide Covers....1
Conventions Used in This Guide....1
About the Network Button Panels....2
Decorator-style Models 2
US Gang Models....3
EU Models....4
Cable Cubby Model....5
Features 5
Application Diagrams....6
PC System Requirements 8
Hardware Features and Installation — Wall-mountable Models 9
Overall Configuration Procedure 10
Step 1: Get Ready....11
Preparation Checklist....11
Accessibility and Americans with Disabilities Act (ADA) Compliance 11
Step 2: Prepare the Installation Site 12
Decorator-style and US Gang Model Site Preparation 13

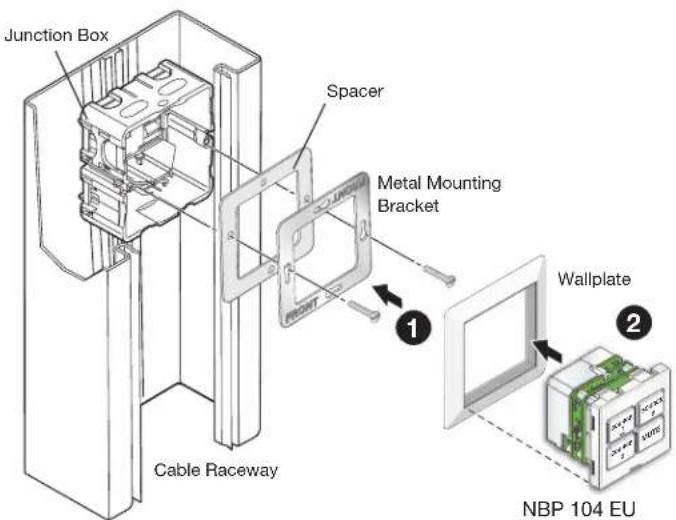

EU Model Site Preparation....14
Step 3: Change Buttons, Button Labels, or Faceplate (Optional)....16
Instructions for Decorator-style and EU Models....16
Instructions for US Gang Models 20
Step 4: Cable All Devices 21
Grounding and Cabling Order....21

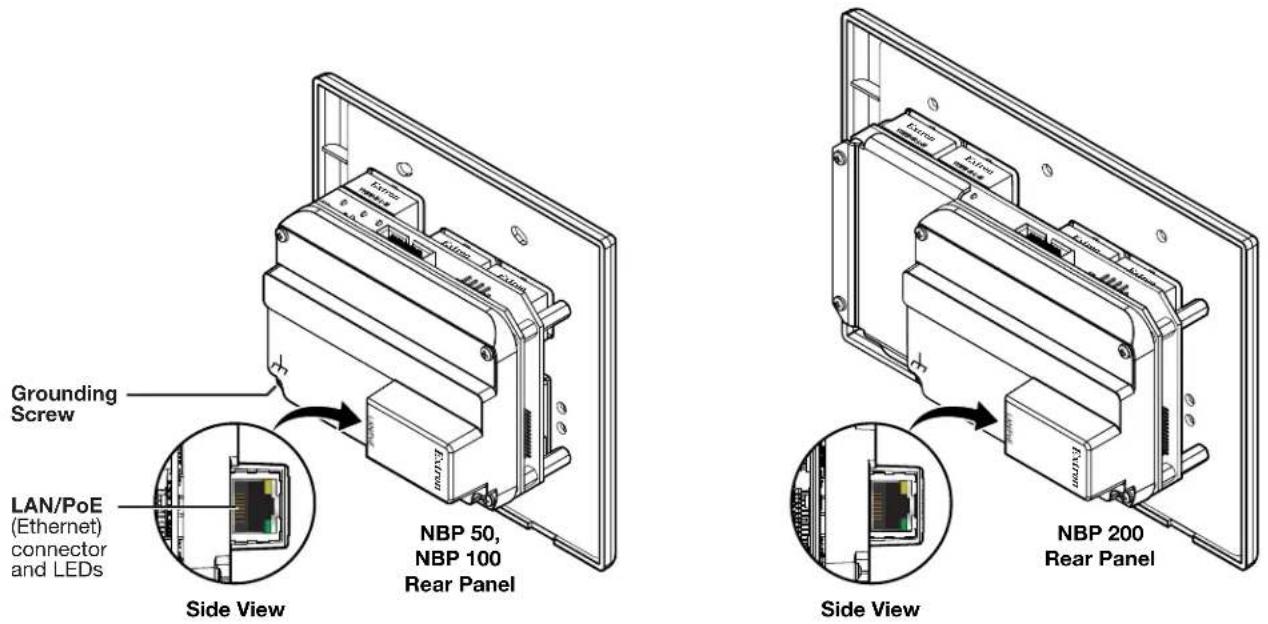

Rear and Side Panel Features and Cabling (Decorator-style, US Gang, and EU Models) 22
Step 5: Set up the NBP for Network Communication....24
Step 6: Configure the System....24
Step 7: Test and Troubleshoot....25
Step 8: Complete the Physical Installation ....25
Mounting....25

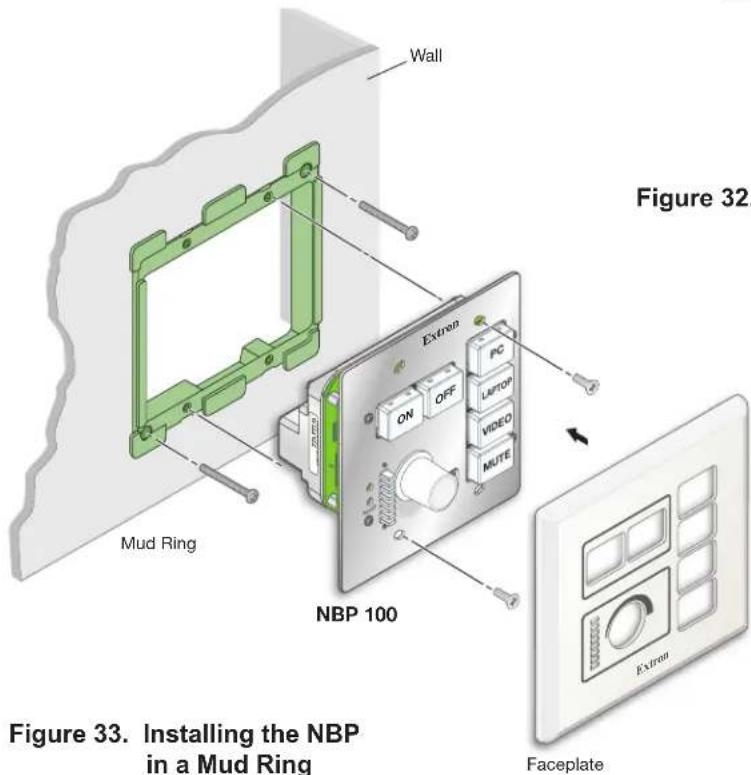

Decorator-style and US Gang Models 25

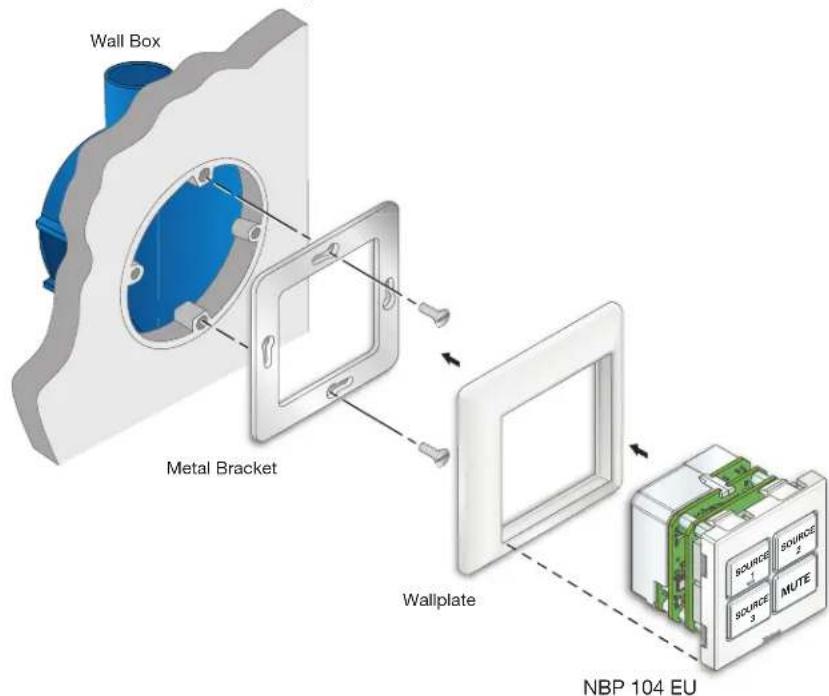

EU Models....27
Hardware Features and Installation — NBP 1200C 28
Overall Configuration Procedure, NBP 1200C 29
Step 1: Get Ready (NBP 1200C)....30
Preparation Checklist....30
Accessibility and Americans with Disabilities Act (ADA) Compliance 30
Included Parts 31
Step 2: Prepare the Installation Site, Cut the Table or Furniture ....31
Prepare the Site 32

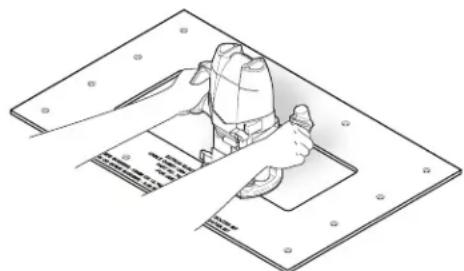

Cut the Table 32
Step 3: Assemble AAP, Pass-through, and Power Modules....33
Assemble Connectivity Modules 33

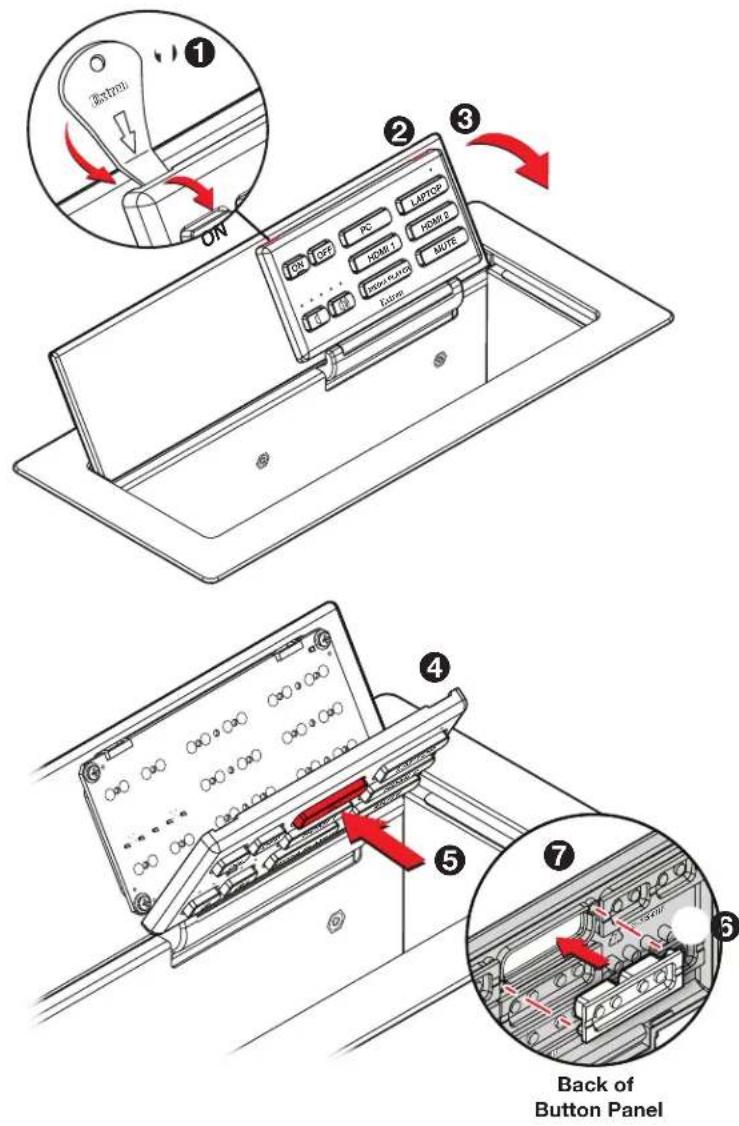

Step 4: Change Buttons (optional) ....34
Step 5: Install Modules and a Retractor Bracket ....35
Retractor Bracket 35
AAP Module, Cable Pass-through Module, and Power Module....36
Step 6: Mount the NBP 1200C to the Table....37
Insert the NBP 1200C Enclosure Into the Table....37

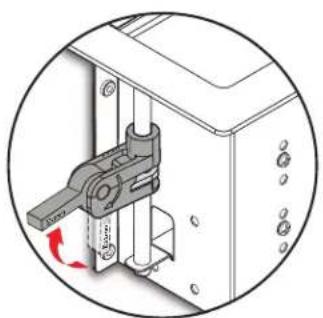

Under the Table, Adjust the Side Clamps on the Enclosure....37
Step 7: Install Retractors ....38
Step 8: Install Cables in the Cable Cubby ....38
Step 9: Cable the NBP 1200C and Other Devices in the System 39
Bottom Panel Features (NBP 1200C)....39
Cabling 39
Step 10: Set up the NBP 1200C for Network Communication....41
Step 11: Configure the System....41
Step 12: Test and Troubleshoot....41
Operation....42

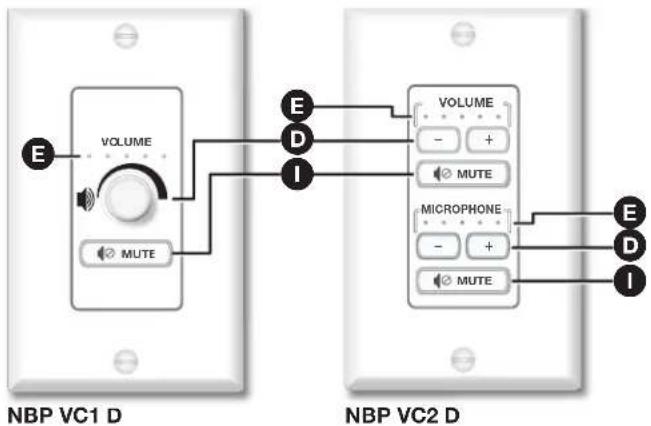

Front Panel Features (All Models) and NBP 1200C Bottom Panel Features 42
Reset Features (All Models) and Mounting Holes (Wall Mounted Models)....45
Wallplates and Faceplates 46
Buzzer (Decorator-style Models and NBP 1200C)......46
Buttons 46

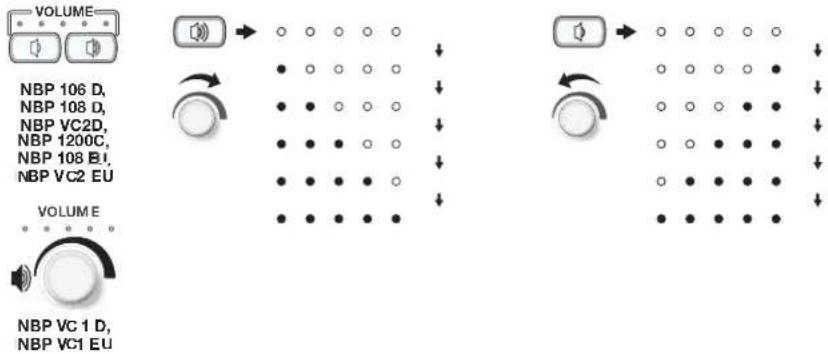

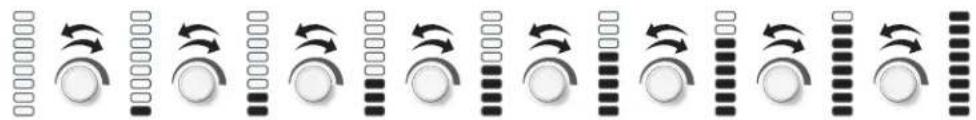

Volume Controls and LEDs 47
Reset Features and Resetting the Unit 50

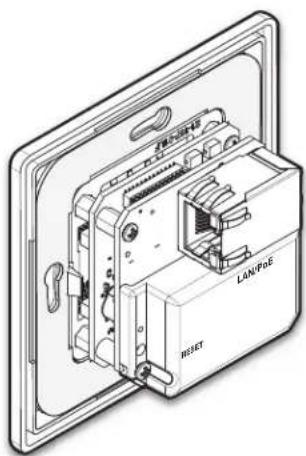

Locating the Reset Button and LED 50
Resetting the Unit....50
Software-Based Configuration and Control.... 52
Configuration and Control: an Overview....52
Basic Setup Steps: a Guide to this Section and Other Resources....53
Downloading the Software and Getting Started ....53
Locating Software, Firmware, and Driver Files on the Extron Website....53
Things to Do After Installing GC and Before Starting a Project....55
Using GC: Helpful Tips 55
Troubleshooting 56
Power Connections....56
Data Connections....56
Device Control Connections and Configuration 56
Reference Information 58
Network Port Requirements 58
Secure Sockets Layer (SSL) Certificates 58
IEEE 802.1X Certificates....59
Certificate File Requirements....59
Private Key File Requirements....59
Removing the NBP EU from the Mounting Surface....60
Best Practices for Cleaning Your Extron Products 60
Firmware Updates 61
Determining the Firmware Version 61
Using Toolbelt Software 61
Using a Browser....61
Updating the Firmware 61
Locating and Downloading the Firmware....62
Installing Firmware 62
Introduction
This section covers the following basic information you should know about this guide and the product before installation:
- Before You Begin
• About the Network Button Panels
• Application Diagrams
• PC System Requirements
Before You Begin
What This Guide Covers
This user guide provides instructions for an experienced installer to install an Extron Network Button Panel (NBP). This guide includes detailed information and recommends best practices for cabling the NBP. It provides a brief overview of the configuration process, and reference information.
Configure the IP-related settings of the NBP using Toolbelt software. Then you can configure the control processor and overall system using Extron Global Configurator Professional (GC Professional) or Global Configurator Plus (GC Plus), or program them using Global Scripter or ControlScript programming software. The system configuration includes button configurations for the NBPs.
This guide does not contain instructions on detailed software-related setup steps or details of configuration within the software. Those are covered in the help files for each software package or scripting program. The software help files describe how to use each program to download drivers, add AV devices to a configuration, configure basic functions, and set up schedules, macros, e-mail alerts, button configurations, and the like.
Conventions Used in This Guide
- Throughout this guide a Network Button Panel is also referred to as an "NBP" or "button panel."
- The NBPs are compatible with the following control devices:
• IPCP Pro and IPL Pro control processors
• IPCP Pro Q xi and IPCP Pro xi control processors
• Workspace automation controllers
• Meeting space collaboration systems
In this guide, those devices are referred to as "control processors."
For details on those devices, see the IPCP Pro Series User Guide, IPL Pro Series User Guide, IPCP Pro Q xi and xi Series User Guide, or the user guide for the supported control processor used in your system (available from www.extron.com).
- Global Configurator software is referred to as "GC," which can be run as Global Configurator Professional ("GC Professional") or Global Configurator Plus ("GC Plus").
- "ControlScript programming" encompasses ControlScript Deployment Utility (CSDU), ControlScript Extension, and Global Scripter (GS).
- The GlobalViewer Enterprise application is sometimes referred to as "GVE."
About the Network Button Panels
The NBP Network Button Panels allow users to remotely control AV equipment in conjunction with an Extron control processor. This equipment includes, but is not limited to, display devices, switchers, source devices, and various other items such as lights, a projector lift, or a screen motor.
See the help files for the configuration and programming software to determine how many NBPs can be included in a system.
The IP settings for NBPs are configured via Toolbelt software. Configure button behavior as part of the system configuration you create within a Global Configurator, ControlScript, or ControlScript Deployment Utility project. The project configuration is saved, built, and uploaded into the control processor.
Decorator-style Models
The NBP 105 D, NBP 106 D, NBP 108 D, NBP 110 D, and NBP VC2 D feature soft backlit buttons. The NBP VC1 D features a soft backlit button and a rotary knob. All decorator-style models fit into a standard US one-gang junction box or mud ring, and include a decorator-style wallplate.
Figure 1. NBP 105 D Front (Left) and Rear (Center) Views Without Wallplate and NBP VC1 D Front (Right) With Wallplate
US Gang Models
The NBP 50, NBP 100, and NBP 200 feature hard, translucent buttons that can easily be relabeled. These models fit into a standard US two-gang (NBP 50, NBP 100) or three-gang (NBP 200) junction box or mud ring.

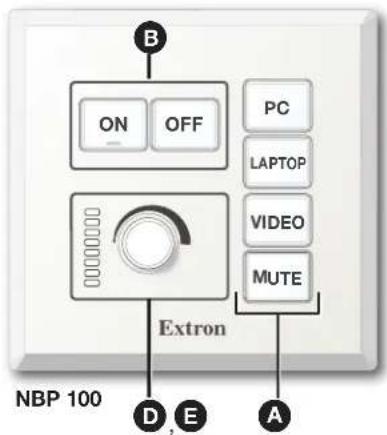

Figure 2. NBP 100 Front (Left) and Rear (Right) Views
Figure 3. NBP 200 Front (Left) and Rear (Right) Views
EU Models
The NBP 104 EU features hard backlit buttons, the NBP 108 EU and NBP VC2 EU feature soft backlit buttons. The NBP VC1 EU features a soft backlit button and a rotary knob. All EU fit most standard one-gang European junction boxes.
Figure 4. NBP 104 EU (Top) and NBP 108 EU (Bottom)


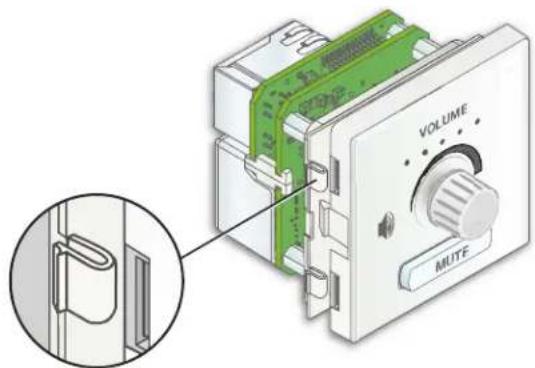

Figure 5. NBP VC1 EU (Left) and NBP VC2 EU (Right)

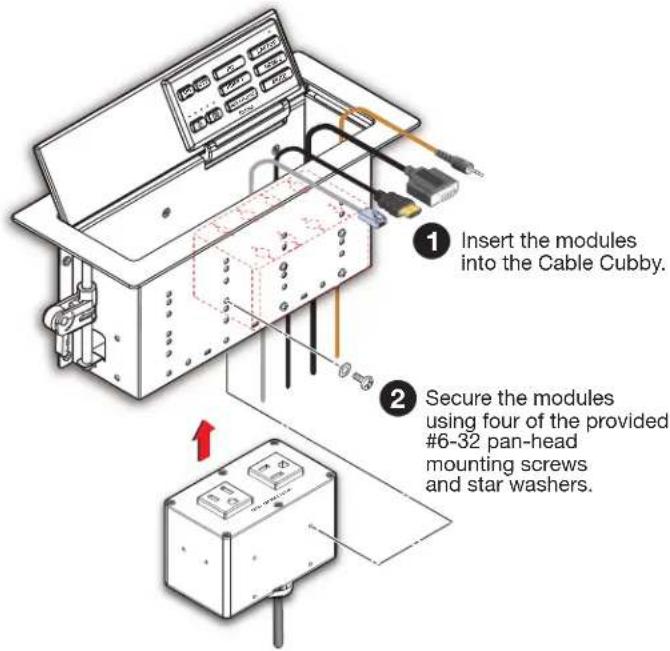

Cable Cubby Model
The NBP 1200C features soft backlit buttons. It is mounted in a Cable Cubby enclosure so it can be integrated into a table, desk, or lectern.
Features
General features
- Configurable buttons — The system configuration sets button illumination (levels and whether each button is lit steadily or blinking) and functions (commands, macros, and so forth).
- A variety of mounting options — The NBP can be mounted in furniture or a wall, in a lectern, table, or in a surface mount box, depending on the model.
- Power over Ethernet (PoE) — The NBPs support power over Ethernet, providing the unit with both power and an Ethernet signal over a single connector.
Network and configuration features
- Global compatibility — The NBPs use industry standard Ethernet communication protocols, including DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, and UDP/IP.
• Network connection — The NBPs support 10Base-T up to 100Base-T Ethernet communication. - Additional security features — Each control processor can use the included Secure Sockets Layer (SSL) certificate or a user-supplied, customized security certificate (see Secure Sockets Layer (SSL) Certificates on page 58). IEEE 802.1X Authentication is also supported in these devices and in the control systems with which they work, once enabled. For details see IEEE 802.1X Certificates on page 59.

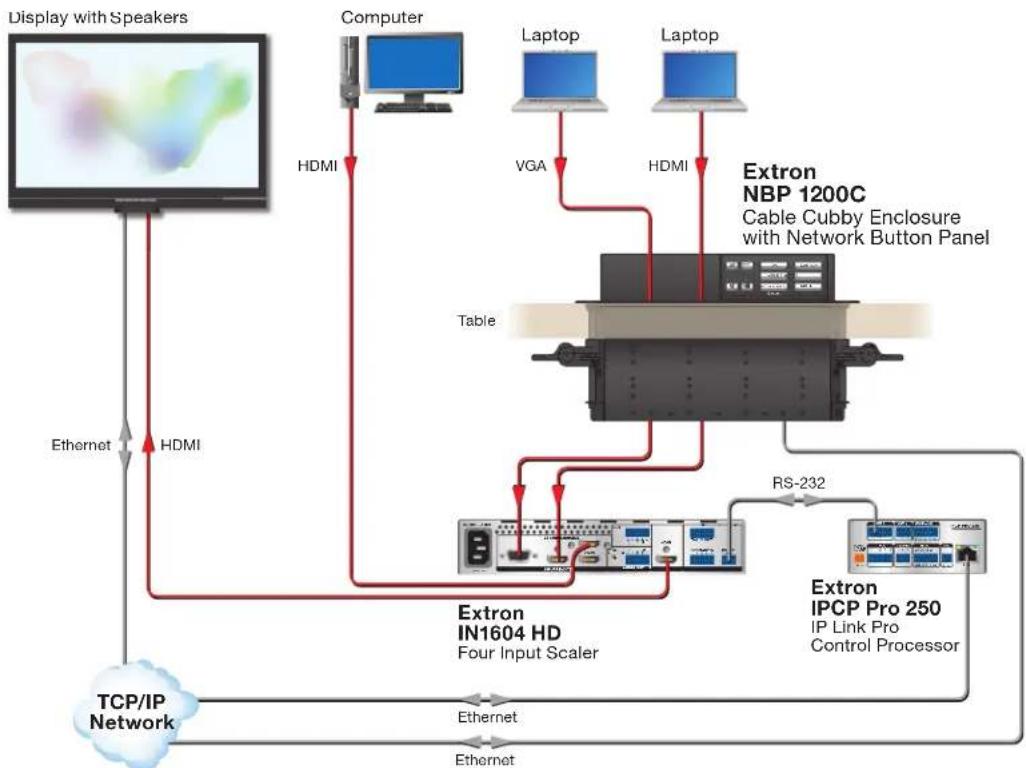

Application Diagrams
The following figures provide examples of NBP button panels integrated into AV systems.
Figure 7. An NBP 100 and NBP 200 Application
Figure 8. A Collaboration System Featuring Network Button Panels
Figure 9. A Typical NBP 1200C Application
PC System Requirements
To find the minimum hardware and software requirements for the PC you use to configure or program the system:
- Visit the Download page (https://www.extron.com/download/index.aspx) on the Extron website and navigate to the web page for the specific software package (such as Global Configurator). Minimum system requirements are listed in the description section. In some cases, minimum device firmware version requirements are also listed there.
- If system requirements are not listed on the software package web page, contact an Extron support representative.
Hardware Features and Installation — Wall-mountable Models
This section covers the following material for the decorator-style, US gang, and EU models:
• Overall Configuration Procedure
- Step 1: Get Ready
- Step 2: Prepare the Installation Site
- Step 3: Change Buttons, Button Labels, or Faceplate (Optional)
- Step 4: Cable All Devices
- Step 5: Set up the NBP for Network Communication
- Step 6: Configure the System
• Step 7: Test and Troubleshoot
- Step 8: Complete the Physical Installation
- Mounting
Overall Configuration Procedure
Figure 10. Overall Installation and Configuration Steps
Step 1: Get Ready
Preparation Checklist
Use the following checklist to prepare for the installation.
- Familiarize yourself with the features of the button panel (see Front Panel Features (All Models) and NBP 1200C Bottom Panel Features on page 42, Rear and Side Panel Features and Cabling (Decorator-style, US Gang, and EU Models) on page 22, and Bottom Panel Features and Cabling (NBP 1200C) on page 39)
- Download and install the latest version of the software, firmware, and device drivers needed to discover, configure, or program the control processor to interact with the NBPs and control the connected AV products. See the user guide for the device (available from www.extron.com) for details on software and drivers.
- Obtain network information for the unit from the network administrator. You need the following details for each IP Link Pro device, including the control processor, and each NBP:
• DHCP setting (on or off) - Subnet mask
- Username
• Device (NBP) IP address - Gateway IP address
- Passwords
NOTE: If DHCP is on, you do not need the IP addresses and subnet mask.
- Write down the MAC address of each IP Link Pro device (such as the NBP) to be used.
- Obtain model names and setup information for the AV devices to be controlled in the system.
- Each NBP button panel comes with a factory-installed Secure Sockets Layer (SSL) security certificate. If you intend to install a different SSL certificate, contact your IT department to obtain the certificate or for instructions on how to obtain one. See Secure Sockets Layer (SSL) Certificates on page 58 for requirements and guidelines regarding SSL certificates.
- For systems that will use IEEE 802.1X security, obtain a PEM-encoded security certificate and private key (see IEEE 802.1X Certificates on page 59) from your IT department.
Accessibility and Americans with Disabilities Act (ADA) Compliance
When planning where to install the NBP, consider factors affecting accessibility of the controller such as height from the floor, distance from obstructions, and how far a user must reach to press the buttons. For guidelines, see sections 307 ("Protruding Objects") and 308 ("Reach Ranges") of the 2010 ADA Standards for Accessible Design available at https://archive.ada.gov/regs2010/2010ADAStandards/2010ADAStandards.pdf or https://www.ada.gov/law-and-regs/design-design-standards/2010-stds/.
Step 2: Prepare the Installation Site
Steps and hardware required depend on the model being installed. See the following sections for details:
• Decorator-style and US Gang Model Site Preparation on page 13
• EU Model Site Preparation on page 14
ATTENTION:
- Read any installation instructions and regulatory guidelines that come with the mounting device (raceway, junction box, surface mounting box, mud ring) before installing the mounting device.
- If the NBP is not mounted to a grounded metal junction box or a grounded metal equipment rack, Extron recommends connecting the unit to an earth ground to protect the unit from electrostatic discharge. For details, see the grounding instructions on page 21.
Select and prepare the site before cabling the NBP. This may include cutting a hole in the installation surface or installing a cabling raceway, running the cables to that site, installing the wall box, and pulling cables through it.
Decorator-style and US Gang Model Site Preparation
The NBP button panels fit standard US junction boxes or mud rings.
| Model Gang Size | |
| NBP 105 D, NBP 106 D, NBP 108 D, NBP 110 D, NBP VC1 D, NBP VC2 D | 1 |
| NBP 50, NBP 100 2 | |
| NBP 200 3 |
Optional mud rings, UL Listed junction boxes, external junction boxes, and surface mounting boxes are available for use with the button panels. Read any installation instructions and UL guidelines that come with the mounting devices, then install the box or mud ring in the opening at the installation site.
To prepare the site:
- Using the size of the junction box or mud ring for reference, cut the hole in the mounting surface. Protect the surface prior to and during cutting so the surface is not damaged.
NOTES:
- The approximate cutout dimensions for an Extron-supplied two-gang mud ring are 4.1" W x 3.75" H (104 mm W x 95 mm H).
-

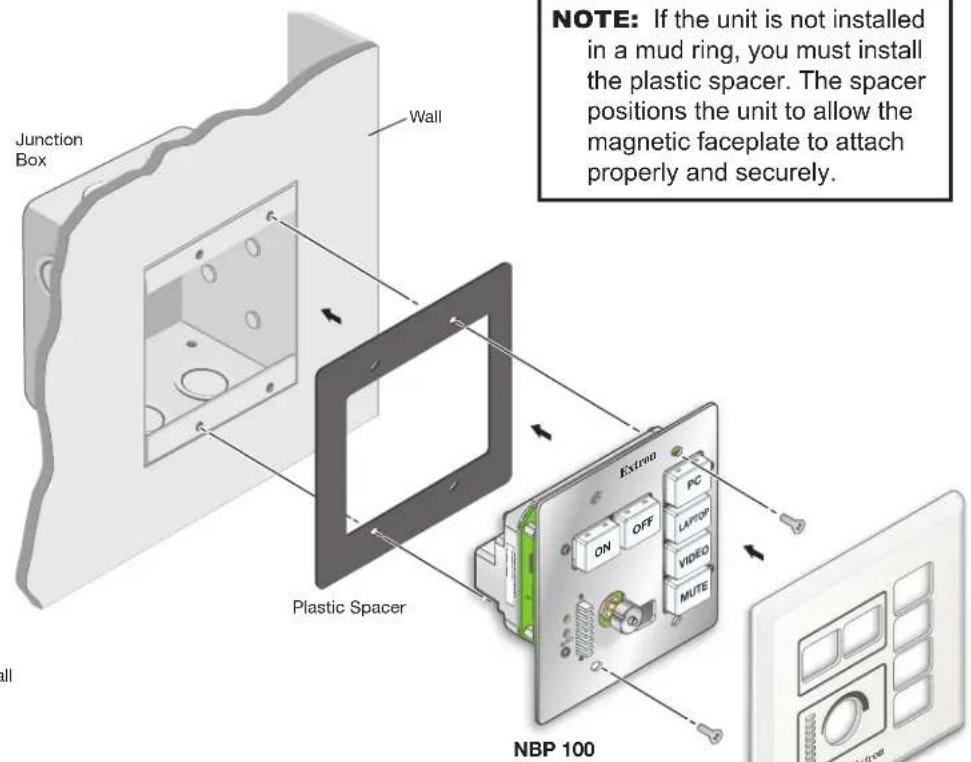

If mounting the NBP 100 directly to the mounting surface, cut a hole of approximately 3.6" W x 2.9" H (91 mm W x 74 mm H).
-
Run cables to the mounting location, leaving enough slack for device installation.
- Install the junction box or mud ring into the wall or furniture.
- Secure the cables with a clamp for strain relief and so they do not slip back down into the wall or furniture.
Figure 11. Installing a Mud Ring
EU Model Site Preparation
The NBP EU models fit a standard one-gang EU wall (junction) box, Extron Flex55 enclosure, or external wall box that that accepts 55 mm x 55 mm modules. These models may not fit in all in-wall junction boxes, so check the fit prior to installation. The installer must provide the box. Read any installation instructions and regulatory guidelines that come with the wall box before installation.
Wall box and direct mounting
- For installation into a wall or furniture: Measure, mark, and carefully cut a hole in the mounting surface.
• If using a wall box, use the box as the reference for what size hole to cut.
• If mounting directly to the mounting surface, use the following hole size:
114.3 mm W x 50.8 mm H (4.50 inches W x 2.00 inches H).
For all types of installations: Run cables to the junction box and secure the cables with a clamp.
-
Secure the box to the stud, wall, or furniture.
-
Attach the mounting bracket (metal) to the junction box or external wall box.
a. Hold the mounting bracket with the desired side facing you and feed the cables through the bracket.
- To install the NBP EU securely so it cannot easily be removed after installation, hold and install the bracket so that the side labeled "Front" faces out toward you and the unlabeled side faces the wall or furniture.
- To install the NBP EU so it can be removed easily, hold and install the bracket so the unlabeled side faces outward toward you and the side labeled "Front" faces the wall or furniture.
Figure 12. Mounting the Bracket to an EU Wall Box
b. Keeping the bracket level, insert the provided screws through the holes in the bracket, into the threaded holes on the box, and tighten the screws to secure the bracket to the mounting surface.
NOTE: To remove the unit from the wallplate after installation, see Removing the NBP EU from the Mounting Surface on page 60.
Raceway mounting
The NBP EU models can be mounted in a cable raceway..
NOTE: You may need to insert the Extron-provided spacer between the raceway and the mounting bracket to close a gap between the mounting bracket and wall plate to make the installation flush and secure. See the diagram at right.
The spacer looks like the mounting bracket, but has "Optional Spacer" and "Place behind bracket" stamped into its surface. The spacer also has a slightly larger center opening than the mounting bracket does and it has holes instead of slots..
Figure 13. Installing a Spacer Between the Mounting Bracket and Raceway (side view)
- Run cables to the raceway where the junction box will be.
- Mount an EU junction box to the raceway (see figure 14, ①) following the instructions provided by the box manufacturer.
- If required, install a spacer (see ②), aligning the screw holes with the holes in the junction box.
-
Hold the mounting bracket with the desired side facing you and align the holes in the mounting bracket (③) with the holes in the spacer and the junction box or external wall box.
-
To install the NBP EU securely so it cannot easily be removed after installation, hold and install the bracket so that the side labeled "Front" faces out toward you and the unlabeled side faces the wall or furniture.
-
To install the NBP EU so it can be removed easily, hold and install the bracket so the unlabeled side faces outward toward you and the side labeled "Front" faces the wall or furniture.
-
Fasten the mounting bracket and spacer to the junction box using the two provided screws (4). Leave the screw heads protruding approximately 1/8 inch (3.18 mm) from the surface of the spacer. Ensure that the bracket is oriented correctly so the NBP will be mounted upright. Rotate the bracket, if necessary.
-
Tighten the screws to secure the bracket and spacer to the junction box.
- Disconnect power from all devices at the source and run the network cable through the raceway, junction box, spacer, mounting bracket, and wallplate. Terminate the cable, if that has not been done already.

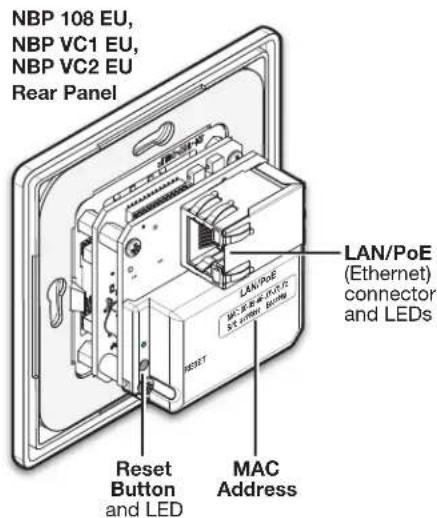

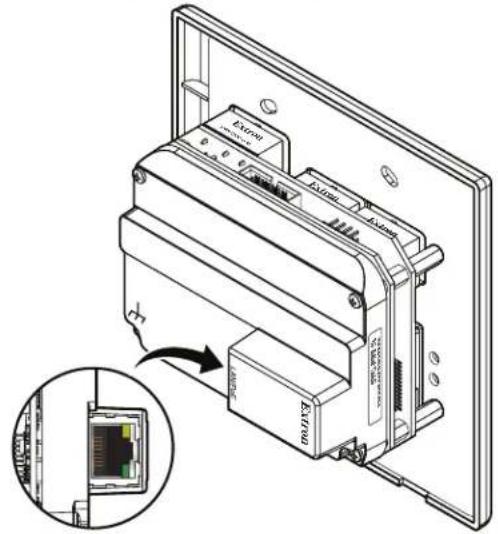

- Connect the cable to the rear panel connector on the NBP (see Step 4: Cable All Devices on page 21).
Figure 14. Installing Spacers, Mounting Bracket, and NBP in a Raceway
Step 3: Change Buttons, Button Labels, or Faceplate (Optional)
Instructions for Decorator-style and EU Models
If desired, replace the faceplate and rotary encoder knob (NBP VC1 D, NBP VC1 EU), or replace one or more buttons or button pairs using available additional buttons. Optional button kits are available in various languages. Faceplates are available in black, as well as white. For the NBP VC1 D and NBP VC1 EU, the rotary encoder knob must be removed in order to replace buttons.
NOTE: A custom button builder tool is available at
https://www.extron.com/product/custombuttonbuilder/index.aspx where you can order standard stock buttons or custom-labeled buttons for the NBP models that have soft buttons.
For NBP models with customizable label inserts (NBP 50/100/200 and NBP 104 EU), you can use Extron Button Label Generator software to create custom labels that can be printed on transparent material.
Replacing buttons or a faceplate on a decorator-style or EU NBP
The faceplate must be removed to access buttons.
To replace the buttons or the faceplate:

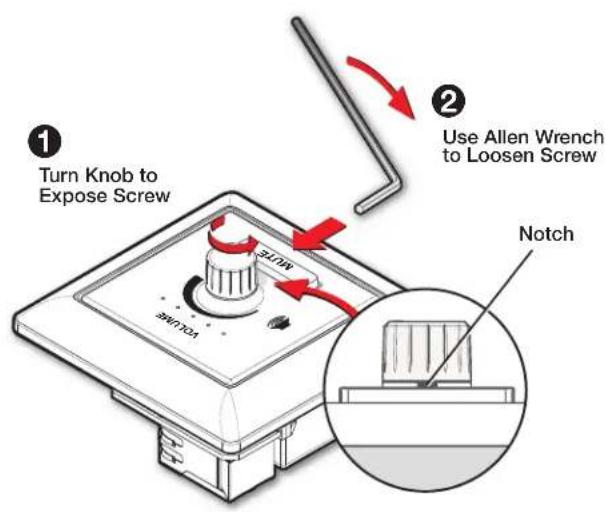

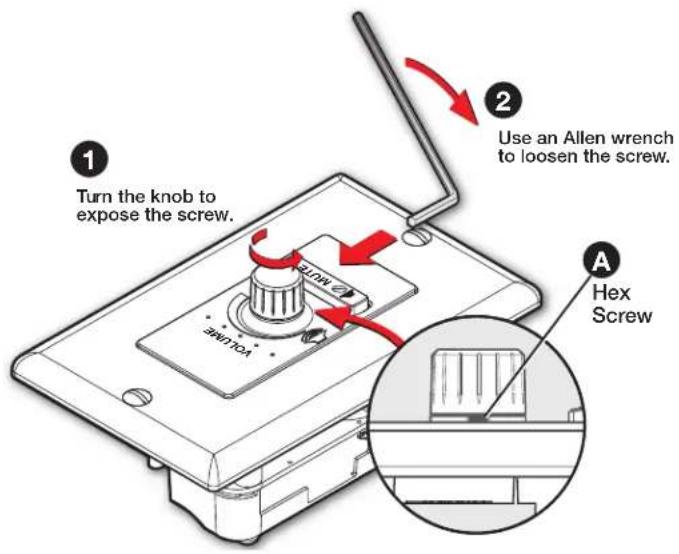

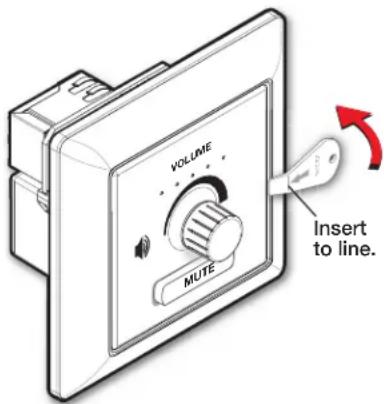

- For the NBP VC1 D and NBP VC1 EU only, remove the rotary encoder knob (see Removing the knob (NBP VC1 models) on the next page).
- If already installed, remove the wallplate. Save the two screws for later use.
- For decorator-style models, remove the faceplate as follows:
a. Insert the tip of a small, flat-bladed screwdriver (such as an Extron Tweeker) through one of the slots at the top or bottom of an NBP D model, as shown in figure 15 at right.
b. Angle the screwdriver to press gently down on the tab to release and pry the faceplate from the mounting plate.
c. If the faceplate has not fully detached from the circuit board, repeat steps 3a and 3b with the hole and tabs at the opposite end of the mounting plate.
d. Lift the faceplate away from the mounting plate.
For EU models, remove the faceplate as follows:
a. Insert the tip of a small, flat-bladed screwdriver (such as an Extron Tweeker) through one of the slots at the sides of an EU model faceplate, as shown at right (①). There are four slots per faceplate, two on each side.
b. Press the tab into the body of the NBP EU to release the faceplate from the circuit board.
c. Repeat steps 3a and 3b with the remaining slots and tabs around the edges of the faceplate.
d. Lift the faceplate away from the circuit board (②).
Figure 15. Using a Screwdriver to Release the Faceplate Tabs, Rear View (D models)
Figure 16. Pressing Faceplate Mounting Tabs to Remove the Faceplate (EU models)
- Remove any buttons to be replaced as follows:
a. Press the button or button pair from the front of the faceplate out through the back of its opening. If necessary, pull the buttons out gently from the back.
NOTE: The smaller buttons are arranged in pairs connected by a rubbery membrane.
b. If you are replacing the faceplate, repeat step 4a until all buttons are removed.
c. Set the removed buttons aside for later use.
- Insert a button or button pair as follows:
a. Insert a new button or button pair from the back into the appropriate opening in the faceplate.
b. Align the two pegs in the upper left and lower right corners of the button or button pair (as shown at right) with the corresponding holes in the faceplate. Press the button or buttons into the faceplate so the buttons and pegs are seated into the holes and faceplate opening.
c. Repeat steps 5a and 5b for any additional buttons to be replaced or installed.
Figure 18. Inserting Buttons (Decorator-style model shown)
- Reattach the original faceplate or attach the replacement faceplate to the NBP as follows:
a. Decorator-style models:
Align the tabs (at top and bottom) and pegs (at upper left and lower right corners) on the back of the faceplate with the slots and holes on front of the mounting plate.
Figure 19. Aligning and Reattaching the Faceplate (Decorator-style models)
EU models:
Align the two EU mounting tabs on the sides of the faceplate with the slots on the sides of NBP EU. Align the four faceplate mounting tabs (shown in the inset in figure 20) on the NBP EU with the corresponding slots in the sides of the faceplates.
Figure 20. Aligning and Reattaching the Faceplate (EU models)
b. Decorator-style models:
Gently but firmly press the faceplate against the mounting plate until the tabs and pegs are inserted into the slots and holes, and the tabs click into place.
EU models:
Gently but firmly press the faceplate against the NBP EU until all the tabs are inserted into the slots and the ridge on each tab snaps into place in the faceplate.
NOTE: It is important to make sure that ALL four tabs are securely snapped into place.
- For the NBP VC1 D and NBP VC1 EU only, place the volume control knob back on its shaft and use the small Allen wrench to tighten the set screw to secure the knob
Removing the knob (NBP VC1 models)
The NBP VC1 D and NBP VC1 EU have a rotary knob for volume control. Before replacing buttons, remove the knob, as shown here.
- Turn the knob (see figures 21 and 22, ①) to expose the hex screw (see A) holding the knob in place. You may need to view the unit from the bottom and look through the faceplate notch below the Volume knob
Figure 21. Removing the Knob From an NBP VC1 D
Figure 22. Removing the Knob From an NBP VC1 EU
- Insert the provided 0.05 inch ( 120 ) Allen wrench and turn the wrench in the direction shown (②) to loosen the screw.
- Pull the knob straight out away from the faceplate to remove it.
Once the knob is removed, the wallplate and faceplate can be removed and the buttons replaced as described in the preceding sections.
Replacing the knob (NBP VC1 models)
To replace the knob, align the knob and press it straight down onto the rotary shaft, then use the Allen wrench to gently tighten the hex screw to secure the knob to the unit.
Instructions for US Gang Models
The faceplate, button labels, and knob can easily be changed at any time. Some button labels ship with the unit. You can create and print your own customized labels using Extron Button Label Generator software, which is available in the software Download Center page on the Extron website.
Removing and replacing a faceplate
To replace a faceplate:
- Remove the faceplate by holding the body of the unit with one hand, gripping the sides of the faceplate with the other hand, and pulling the faceplate away from the unit.
- Align the openings of the new faceplate with the buttons and knob and with the LEDs and place the faceplate against the unit. The magnetic catches fasten the faceplate onto the unit.
TIP: You can wait until the unit is mounted to the junction box or mud ring before placing the new faceplate on the unit.
Replacing button labels
To change a button label:
- Remove the faceplate (see step 1 of "Removing and replacing a faceplate", above).
- For each button label to be replaced, gently separate the button lens cap from its white diffuser. To do this, insert the end of the provided Extron removal (pry) tool into the corner notch and gently twist the tool (see figure 23, ①).
- Remove the label insert from the translucent button cap.
- Select one of the button labels from the printed label sheets included with the unit. Remove the label from its backing and remove the clear, protective film from the front of the label.
- Insert the button label into the button cap (see ②). Check for correct label orientation.
- Align the cap with the white diffuser and the panel opening, and press the clear cap into place on the button.
- Reattach the faceplate to the unit (see step 2 in "Removing and replacing a faceplate", above).
Changing a knob
To change a knob:
- Remove the faceplate as described in step 1 of "Removing and replacing a faceplate", above.
- Firmly grasp the knob and pull it away from the NBP.
- Align the ridge inside the new knob with the channel on the knob control and allow the magnet in the knob to snap into place.
- Reattach the faceplate to the unit (see step 2 in "Removing and replacing a faceplate").
Figure 23. Replacing Button Labels on a US Gang Model NBP
Step 4: Cable All Devices
Grounding and Cabling Order
- For the US gang models, if the button panel is not mounted to a grounded metal junction box or a grounded metal equipment rack, Extron recommends connecting the unit to an earth ground to protect the unit from electrostatic discharge.
To ground the unit:
a. Securely terminate a grounding cable with a ring terminal.
b. Remove the grounding screw in the lower left corner of the rear panel, insert the grounding cable, replace and securely fasten the screw (see the figure at right). Do not over-tighten the screw. Maximum torque is 2 inch-pounds (0.2 Newton-meter).
c. Connect the other end of the grounding cable to an earth ground.
- For all models, connect the NBP to the network (see Rear and Side Panel Features and Cabling (Decorator-style, US Gang, and EU Models) on the next page), and cable devices to the control processor (see the user guide for the appropriate device).
NOTE: Connector wiring functions are identical for all models.
Figure 24. Connecting a Grounding Wire to the NBP
- Connect power cords and power on the control processor or receiver and other devices.
Rear and Side Panel Features and Cabling (Decorator-style, US Gang, and EU Models)
LAN (Ethernet) and PoE connector and LEDs — Connect the unit to a network via this connector for control and Power over Ethernet. Use the following diagrams as a guide.
Network connection lets you configure the control system and the NBP. For details of communication protocols, ports, and services used, see the Control Systems Network Ports, Protocols, and Licenses Guide, part 68-2961-01, available at www.extron.com.
All NBP one-gang decorator-style models have identical rear panel features.
Figure 25. Rear Panel Features — US Gang Models
Figure 26. Rear Panel Features — EU Models
Figure 27. Rear Panel Features — Decorator-style NBPs
Figure 28. LAN/PoE Port Details
IMPORTANT NOTES:
- The factory configured passwords for this device have been set to the device serial number. Passwords are case sensitive. Performing a Full Factory Reset (see Resetting the Unit on page 50) sets the passwords to extron.
- DHCP is off by default.
ATTENTION:
Activity LED (on connector) — This yellow LED blinks to indicate network activity.
Link LED (on connector) — This green LED lights to indicate a good network connection.
MAC address — This is the unique user hardware ID number (Media Access Control [MAC] address) of the unit (for example, 00-05-A6-05-1C-A0). You may need this address during configuration. The label is on the back panel for decorator-style models (see figure 27 on page 23) and EU models (see figure 26 on page 22), and on the front panel for the NBP 100 and NBP 200 (see figure 53 on page 45).
1
MAC: 00-05-A6-XX-XX-XX
Step 5: Set up the NBP for Network Communication
- Connect the NBP button panel and the PC to be used for setup to the same Ethernet subnetwork.
- Start Toolbelt and use it to set DHCP on or to set the IP address, subnet, gateway IP address, DHCP status, and related settings. Network setup is essential prior to configuration.
Use the flowchart at right as a guide to setting up the unit for network use.
NOTES:
- If using a host name instead of an IP address the user must enter a qualified host name (Username.HostName.Domain).
For example: somename.somedomain.com.
- If using 802.1X security, see the Extron 802.1X Technology Reference Guide and the Toolbelt Help file for additional details on system setup.
Network Communication Setup
Connect the NBP and PC to the same network. Apply power to all devices.
Open the Toolbelt software.
Start Device Discovery.
Toolbelt displays a list of all Extron control devices connected to the network.
Using the MAC address, locate the desired device in the list and select it. Enter credentials, if needed.
Use the Set IP feature in Toolbelt or use the ToolbeltManage > Network Settings tab feature to enable DHCP or to enter the IP address, subnet address, and gateway, then configure other network settings as needed.
Figure 29. Network Setup
Step 6: Configure the System
Use Global Configurator (GC Plus or GC Professional) to configure the control processor. Alternatively, use the ControlScript Deployment Utility to program the control processor. That configuration sets the control and monitoring behavior for all the AV devices and control accessories (such as the NBP button panels) in the system. An outline of the main configuration and programming steps is included in the user guide for the control processor.
NOTE: See the Toolbelt Help File, Global Configurator Help File or ControlScript Deployment Utility Help File as needed for step-by-step instructions and detailed information. The help file for GC includes an introduction to the software, and how to start a project and configuration.
When configuration or programming is completed, save the project or program script, then build and upload the system configuration to the control processor.
Step 7: Test and Troubleshoot
- Test the system (see the user guide for the control processor for an outline of the system testing and troubleshooting procedure).
- Make adjustments to wiring or configuration as needed. Remember that the rear panel port on the button panel is not accessible after the NBP is mounted.
Step 8: Complete the Physical Installation
Mount the unit to a wall or furniture (see "Mounting", below). Before mounting the NBP, make sure that the Ethernet cable has been fed through the wall or furniture and is connected to the NBP rear panel.
NOTES:
- Extron recommends taking safety precautions to avoid electrostatic discharge issues during installation.
- For best results, Extron recommends grounding the NBP if the junction box or mud rings are not already grounded (see the grounding instructions on page 21).
Mounting
Decorator-style and US Gang Models
Mount the NBP decorator-style and US gang models as follows:
- Insert the cabled NBP into the mud ring or junction box within the wall or furniture, aligning the mounting holes in the NBP with those in box or mud ring.
- Secure the NBP to the junction box, wall or surface mounting box, or mud ring as follows (see figure 30 to figure 33):
a. For decorator-style models: Insert the included screws through the mounting holes at the top and bottom of the NBP and into the corresponding threaded holes in the box or mud ring (see figure 30 and figure 31).
Figure 30. Installing the NBP 105 D in a Mud Ring
Figure 31. Installing the NBP 105 D in a Junction Box
For US gang models: Insert the included screws through the mounting holes at the top and bottom of the unit, through the plastic spacer (if not using a mud ring), and into the corresponding threaded holes in the box or mud ring (see figure 32 and figure 33).
Figure 32. Installing the NBP in a Junction Box
NOTE: Extron recommends taking precautions to avoid electrostatic discharge issues during installation.
b. Using a Phillips screwdriver, lightly tighten the mounting screws until snug.
ATTENTION:
- For decorator-style models: Insert the included screws through the circular holes in the wallplate and the tabs on the NBP (see figure 30 and figure 31 on page 25). Hand tighten the screws using a flat bladed screwdriver until snug.
- For US gang models: Align the faceplate openings with the buttons, knob, and LEDs, and place the faceplate against the unit (see figure 32 and figure 33 on the previous page). The magnetic catches fasten the faceplate onto the front of the unit.
EU Models
Mount the EU models as follows:
-
Align the NBP EU wallplate to the mounting bracket (metal), which you attached to the mounting surface during site preparation (see figure 34, ①).
-
Insert the cabled NBP EU (②) into the wallplate. Press the entire assembly into the metal bracket until the tabs on either side of the unit snap into place. The NBP EU is now secured to the metal bracket by two catches (one on each side) that hold the wallplate in place.
NOTE: To remove the unit from the wallplate after installation, see Removing the NBP EU from the Mounting Surface on page 60.
Figure 34. Mounting the EU Models
Hardware Features and Installation — NBP 1200C
This section covers the following material for the NBP 1200C:
• Overall Configuration Procedure, NBP 1200C
• Step 1: Get Ready (NBP 1200C)
- Step 2: Prepare the Installation Site, Cut the Table or Furniture
- Step 3: Assemble AAP, Pass-through, and Power Modules
- Step 4: Change Buttons (optional)
- Step 5: Install Modules and a Retractor Bracket
• Step 6: Mount the NBP 1200C to the Table
• Step 7: Install Retractors
- Step 8: Install Cables in the Cable Cubby
- Step 9: Cable the NBP 1200C and Other Devices in the System
- Step 10: Set up the NBP 1200C for Network Communication
• Step 11: Configure the System
• Step 12: Test and Troubleshoot
Overall Configuration Procedure, NBP 1200C
Figure 35. Overall Installation and Configuration Steps for the NBP 1200C
Step 1: Get Ready (NBP 1200C)
Preparation Checklist
Use the following checklist to prepare for the installation.
- Familiarize yourself with the features of the button panel (see Front Panel Features (All Models) and NBP 1200C Bottom Panel Features on page 42 and Bottom Panel Features and Cabling (NBP 1200C) on page 39)
- Download and install the latest version of the software, firmware, and device drivers needed to discover, configure, or program the control processor to interact with the NBPs and control the connected AV products. See the user guide for the control processor (available from www.extron.com) for details on software and drivers.
- Obtain network information for the unit from the network administrator. You need the following details for each IP Link Pro device, including the control processor and each NBP:
• DHCP setting (on or off)
- Subnet mask
- Username
• Device (NBP) IP address
- Gateway IP address
- Passwords
NOTE: If DHCP is on, you do not need the IP addresses and subnet mask.
- Write down the MAC address of each IP Link Pro device (such as the NBP) to be used.
- Obtain model names and setup information for the AV devices to be controlled in the system.
- Each NBP button panel comes with a factory-installed Secure Sockets Layer (SSL) security certificate. If you intend to install a different SSL certificate, contact your IT department to obtain the certificate or for instructions on how to obtain one. See Secure Sockets Layer (SSL) Certificates on page 58 for requirements and guidelines regarding SSL certificates.
- For systems that will use IEEE 802.1X security, obtain a PEM-encoded security certificate and private key (see IEEE 802.1X Certificates on page 59) from your IT department.
- Verify that you have all the included parts (see Included Parts on page 31) and have all the necessary tools for installing the Cable Cubby.
- Before cutting a hole in any furniture, select the best location for the NBP 1200C.
- Ensure that the product is oriented so that the lid opens in the desired direction.
- Ensure there is enough space for all the system cables and components, including cable retractors, if they are to be installed.
- Check all relevant regulations.
Accessibility and Americans with Disabilities Act (ADA) Compliance
When planning where to install the NBP, consider factors affecting accessibility of the device such as height from the floor, distance from obstructions, and how far a user must reach to press the buttons. For guidelines, see sections 307 ("Protruding Objects") and 308 ("Reach Ranges") of the 2010 ADA Standards for Accessible Design available at https://archive.ada.gov/regs2010/2010ADAStandards/2010ADAStandards.pdf or https://www.ada.gov/law-and-regs/design-standards/2010-stds/.
Included Parts
Figure 36. NBP 1200C Included Parts
| Item | Qty | Item | Qty | Item | Qty |
| 1 NBP 1200C | 1 | 6 Retractor pin and clip | 1 | 9 Grommet hole plugs | 6 (3/8")2 (1/4") |
| 2 Connectivity bracket | 1* | 7 #6-32 pan-head mounting screws and star washers | 8 | ||
| 3 AAP frame plate | 1 | Extron removal tool (not shown) | 1 | ||
| 4 Cable grommet plate | 1 | 8 #4-40 module screws | 8 | Extron Tweeker (small screwdriver) (not shown) | 1 |
| 5 Retractor bracket | 1 | Blank buttons (not shown) | 1 |
NOTE: *A single connectivity bracket is provided. It can be used with either the AAP frame plate or the cable grommet plate.
Step 2: Prepare the Installation Site, Cut the Table or Furniture
ATTENTION:
NOTE: Extron recommends connecting the unit to an earth ground to protect the unit from electrostatic discharge. Use the provided #6-32 star washers and mounting screws to connect the ground wire to the CableCubby enclosure.
Select and prepare the site before cabling the NBP. This includes cutting a hole in the installation surface, running the cables to that site, and installing the Cable Cubby enclosure and its components (connectivity brackets, AAP modules, and optional retractors). It may also require installing a cabling raceway and pulling cables through it.
Prepare the Site
To prepare the site:
- Decide on the method for cutting a hole in the table (see "Cut the Table" below).
- If necessary, obtain the correct cut-out template and verify the dimensions (see the template information below).
- Protect the surface prior to and during cutting so the surface is not damaged.
Cut the Table
CAUTION: Wear safety glasses when operating power equipment. Failure to comply can result in eye injury.
Hand Router and Routing Template Jigsaw and Paper Cut-out Template CNC Wood Router
The cut-out template (the NBP 1200C Cut Out Template) and dimensions are available online on the NBP 1200C page at www.extron.com.
If using a CNC wood router or other precise machinery, use the exact cut-out dimensions:
User Access Width 10.00" (254.0 mm)
Depth 4.00" (101.6 mm)
NOTE: The metal router guide must be purchased separately. It is reusable and should not be discarded when the installation is complete.
Step 3: Assemble AAP, Pass-through, and Power Modules
A variety of modules allow you to populate the Cable Cubby enclosure with a combination of AAPs, cable pass-through plates, retractors, or power modules. The NBP 1200C accommodates your choice of any two modules, allowing you to customize the device to meet your needs.
Assemble Connectivity Modules
The NBP 1200C ships with a single connectivity bracket that can be used with either the AAP frame plate or the cable grommet plate. Follow the steps below to assemble the connectivity modules of your choice before mounting them into the NBP 1200C.
NOTE: After assembling the modules, proceed to Step 5: Install Modules and a Retractor Bracket on page 35.
AAP module
The AAP plate accommodates up to three single-space AAPs. Assembly procedures are shown in the figure below.
1
Secure up to three single-space AAPs in the AAP plate.
3
Secure the AAP plate on the connectivity brackets using four of the provided #4-40 module screws.
Insert cables through the bottom of the connectivity bracket. Connect cables to the AAPs.
Figure 37. Assembling the AAP Module
Cable pass-through module
The cable pass-through module accommodates up to eight AV cables. Assemble the cable grommet plate, and plugs in the module as shown in the figure below.
1
Insert cables through the b of the connectivity bracket and into the holes of the grommet plate.
You may need to bend the plate gently to slide the cable past the slot opening.
2
Secure the grommet plate on the connectivity bracket using four of the provided #4-40 module screws.
3
Snap the included hole plugs into any unused holes.
Figure 38. Assembling the Cable Pass-through Module
Step 4: Change Buttons (optional)
If desired, replace one or more buttons using available additional buttons. Optional button kits are available in various languages.
NOTE: A custom button builder tool is available at https://www.extron.com/article/custombuttonbuilder where you can order custom-labeled buttons for the NBP.
1 Insert the Extron removal tool into one of the removal slots in the top edge of the button panel. Carefully release the corner of the panel.
② Repeat step 1 to release the opposite corner of the panel.
③ilt the lid forward to prevent the buttons from falling out.
4ull the top of the button panel forward. The panel is attached to the lid with a hinge that allows access to the buttons without the panel becoming completely detached. You can now return the lid to the fully open position.
From the front of the panel, press the button until it is free of the panel.
From the back of the button panel, insert the replacement button into the appropriate slot. Ensure the text is in the correct orientation. Align the two pegs on the button with the holes on the button panel.
7 press the button into the faceplate until the pegs on the button are seated securely in the holes.
⑧ repeat steps 5-7 for any other buttons that need to be replaced.
⑨ilt the lid forward to prevent the buttons from falling out.
10 Tilt the lid and the button panel backwards.
1)ress the top corners so that they snap back into place, securely attaching the button panel to the lid.
If the corners do not snap back easily, you may need to adjust how the button panel is seated in the hinge attaching it to the lid (12).
Step 5: Install Modules and a Retractor Bracket
Determine where the modules are to be installed in the Cable Cubby enclosure. Any combination of two modules can be installed. The modules can be installed on either side of the enclosure and at various heights.
NOTES:
- Ensure that there is enough room above the modules for the Cable Cubby lid to close completely. This also requires that any retractor brackets be installed as close as possible to the bottom of the enclosure.
- Extron recommends mounting the power module on the left side of the enclosure.
- For any cables that must be connected to modules, feed them up through the table or other furniture before attaching them to each module.
- Use a screwdriver to secure the modules with the screws.
Retractor Bracket
Use the retractor bracket to mount cable retractors in the Cable Cubby enclosure. The retractor bracket accommodates up to three Retractor Series or Retractor Series XL cable retraction modules.
The retractors must be purchased separately. Visit www.extron.com to find available retractor models, retractor filler modules, and optional retractor brackets.
If you require retractors, insert the retractor bracket as shown in figure 28.
NOTE: Do not mount the retractors in the retractor bracket until after the Cable Cubby is mounted (see Step 7: Install Retractors on page 38.)
Install retractor filler modules in any unused retractor mounting spaces.
Secure the bracket using four of the provided #6-32 pan-head mounting screws with star washers. Tighten the screws using a screwdriver.
Insert the bracket as shown. The bracket may be installed on the left or right side of the enclosure and at the lowest height.
Figure 39. Installing the Retractor Bracket
Install the retractor bracket as close as possible to the bottom of the enclosure to ensure that there is sufficient clearance at the top of the retractor inside the CableCubby. If the bracket is installed too high in the Cable Cubby, the lid will not close due to contact with the retractor module.
For full details on how to install a Retractor, see the Retractor Series Installation Guide, available on the Retractor Series or Retractor Series XL product page at www.extron.com).
An optional Cable Cubby Retractor Bracket Kit – Double allows two cable retractors to be mounted at the outer edges of the enclosure with one of the other modules mounted centrally. These brackets must be purchased separately and they are sold in pairs.
AAP Module, Cable Pass-through Module, and Power Module
Insert the modules into the Cable Cubby as shown in figure 29.
Figure 40. Installing the Connectivity and Power Modules
AC power and AC+USB power modules are available for US, Europe, and other major world markets. They must be purchased separately (see www.extron.com). If you install a power module, you must ground the unit using the provided #6-32 star washers and mounting screws.
- Most AC power modules provide two unswitched AC outlets.
- The AC+USB power modules provide one or two AC outlets and two USB power outlets.
WARNING: Risk of Electric Shock. To ensure proper electrical grounding, use the provided #6-32 mounting screws with the star washers.
Step 6: Mount the NBP 1200C to the Table
Insert the NBP 1200C Enclosure Into the Table
CAUTION: The flanged edges of the top of the surface enclosure are sharp. These edges are also soft and may be easily nicked or bent. Exercise caution when handling the enclosure to prevent personal injury or damage to the enclosure.
Figure 41. Inserting the NBP 1200C Enclosure into the Table
Under the Table, Adjust the Side Clamps on the Enclosure
1 Rotate the side clamp outward and ensure that the lever is down.
Figure 42. Securing the Cable Cubby Enclosure
Step 7: Install Retractors
Retractors can be installed in a vertical, angular, or horizontal orientation. No adjustment of the enclosure screws is needed if the retractors are mounted vertically. To mount at an angle or horizontally, adjust the enclosure screws as shown below. When the retractors are mounted horizontally, the retractor mechanism must be secured to the underside of the table (see the Cable Retractor Setup Guide, available at www.extron.com).
To secure the retractors in the retractor bracket, follow the instructions in figure 32.
Figure 43. Installing Retractors
Step 8: Install Cables in the Cable Cubby
Figure 44. Route and Connect AV Cables
CAUTION: Risk of Electric Shock. This equipment must be grounded.
Step 9: Cable the NBP 1200C and Other Devices in the System
Bottom Panel Features (NBP 1200C)
Figure 45. NBP 1200C Bottom Panel Features
Cabling
- Run a network cable to the NBP 1200C.
- Connect the NBP to the network via the LAN/PoE port on the bottom panel of the NBP 1200C (as shown in figure 45). Details of LAN/PoE port connection, LED behavior, protocol, addresses, and credentials are shown in figure 46.
Cabling:
- For 10Base-T (10 Mbps) networks, use a CAT 3 or better cable.
- For 100Base-T (max. 155 Mbps) networks, use a CAT 5 cable.
Activity LED (on connector) — This yellow LED blinks to indicate network activity.
Link LED (on connector) — This green LED lights to indicate a good network connection.
Figure 46. NBP 1200C LAN/PoE Port Details
IMPORTANT NOTES:
- The factory configured passwords for this device have been set to the device serial number. Passwords are case sensitive. Performing a Full Factory Reset (see Resetting the Unit on page 50) sets the passwords to extron.
- DHCP is off by default.
ATTENTION:
MAC address — This is the unique user hardware ID number (Media
Access Control [MAC] address) of the unit (for example, 00-05-A6-05-1C-A0). You may need this address during configuration. The label is on the bottom panel of the NBP 1200C (as shown in figure 34 on page 39).
- Cable devices to the control processor (see the user guide for the appropriate device), and connect the control processor to the same network as the NBP.
- Connect power cords and power on the control processor and other devices.
Step 10: Set up the NBP 1200C for Network Communication
- Connect the NBP button panel and the PC to be used for setup to the same Ethernet subnetwork.
- Start Toolbelt and use it to set DHCP on or to set the IP address, subnet, gateway IP address, DHCP status, and related settings. Network setup is essential prior to configuration.
Use the flowchart at right as a guide to setting up the unit for network use.
NOTES:
- If using a host name instead of an IP address the user must enter a qualified host name (Username.HostName.Domain).
For example: somename.somedomain.com. - If using 802.1X security, see the Extron 802.1X Technology Reference Guide and the Toolbelt Help file for additional details on system setup.
Figure 47. Network Setup
Step 11: Configure the System
Use Global Configurator (GC Plus or GC Professional) to configure the control processor. Alternatively, use the ControlScript deployment utility to program the control processor. That configuration sets the control and monitoring behavior for all the AV devices and control accessories (such as the NBP button panels) in the system. An outline of the main configuration and programming steps is included in the user guide for the control processor.
When configuration or programming is completed, save the project or program script, then build and upload the system configuration to the control processor.
Step 12: Test and Troubleshoot
- Test the system (see the user guide for the control processor for an outline of the system testing and troubleshooting procedure).
- Make adjustments to wiring or configuration as needed.
Operation
This section of the guide covers the following topics:
- Front Panel Features (All Models) and NBP 1200C Bottom Panel Features — Locations and descriptions of items on the front panel and the bottom panel features of the NBP 1200C
- Reset Features and Resetting the Unit — Locations of the Reset button and LED and information about the available reset modes and how to reset the NBP button panel
Front Panel Features (All Models) and NBP 1200C Bottom Panel Features
Some features and indications are described in the Rear and Side Panel Features and Cabling (Decorator-style, US Gang, and EU Models) section starting on page 22 and Bottom Panel Features and Cabling (NBP 1200C) on page 39 with a description of the rear or bottom panel LAN port. The rest are detailed in this section.
NOTE: The system and NBPs must be configured in order to function. See Software-based Configuration and Control starting on page 52, and see the Global Configurator Help File, Toolbelt Help File or ControlScript Deployment Utility Help File for information about the software, and step by step instructions for basic setup.
All the function, power, mute, volume buttons or knob, and volume LEDs must be configured or programmed to carry out their functions. The buttons are backlit by LEDs.
- Buttons that are configured or programmed but are inactive are dimly lit.
- Buttons that are not configured are dimly lit.
- The NBP decorator models can buzz or chirp each time a button is pressed.
NBP 105 D
NBP 106 D
NBP 108 D
NBP 110 D

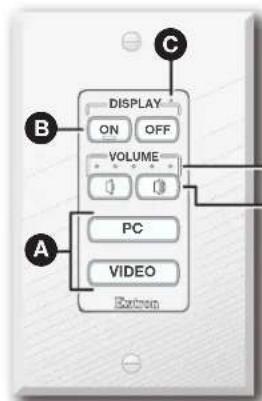

Figure 48. Decorator-style NBP Front Panels With Wallplates
Figure 49. US Gang NBP Front Panels With Faceplates
A Function buttons — Configure these buttons to light and function as desired.
B Power buttons — These buttons (present on certain models only) are usually used to control the power to the display device. The On button has a nub that can be felt with fingertips.
Communications LED (NBP 106 D, 108 D, 108 EU, 1200C) — This LED indicates the configuration and connection status of the NBP.
- Unlit — Normal operation (the NBP is configured and connected to an IPCP Pro control processor).
- Blinking red — The NBP has been configured but is not connected to an IPCP Pro control processor.
- Lit steadily — The NBP has not been configured.
Volume buttons (on certain decorator-style models, NBP 50, NBP 108 EU, NBP VC2 EU, NBP 1200C) or volume knob (on NBP VC1 D, NBP VC1 EU, NBP 100, and NBP 200) or microphone volume buttons (NBP VC2 D, NBP VC2 EU) — Configure Volume buttons, Microphone buttons, or the volume knob to increment or decrement audio volume.
Figure 50. NBP 1200C Front Panel
Figure 51. NBP EU Model Front Panels
Volume LEDs (see figure 48, figure 49, and figure 50 on the previous page and figure 51 and figure 52 on this page) — Volume LEDs (present only on models with Volume buttons or a volume knob) light to act as a meter to indicate the volume level.
F Cable Cubby lid (NBP 1200C, see figure 50 on the previous page) — The lid tilts back to 130°. Friction washers ensure the lid holds any angle set by the user. A switch in the hinge activates the buttons when the lid is fully open and deactivates them when the lid is closed to prevent accidental button presses.
Button panel removal slots (NBP 1200C, see figure 50) — Use the Extron removal tool in these slots to release the top of the panel when replacing buttons.
Button panel hinge (NBP 1200C, see figure 50) — Holds the bottom of the panel in place, allowing the panel to tilt forward when replacing buttons.
Mute button (VC1 models and VC2 D, figure 51 and figure 52) — Configure the Mute button as desired to mute output audio (for volume controls) or input audio (for microphone controls).
subgraph_NBP_VC1_D[" NBP VC1 D "]
E --> VOLUME
VOLUME --> MUTE
MUTE --> VOLUME
end
subgraph_NBP_VC2_D[" NBP VC2 D "]
E --> VOLUME
VOLUME --> MICROPHONE
MICROPHONE --> VOLUME
VOLUME --> MICROPHONE
MICROPHONE --> VOLUME
VOLUME --> MICROPHONE
MICROPHONE --> VOLUME
VOLUME --> MICROPHONE
MICROPHONE --> VOLUME
VOLUME --> MICROPHONE
MICROPHONE --> VOLUME
VOLUME --> MICROPHONE
MICROPHONE --> VOLUME
VOLUME --> MICROPHONE
MICROPHONE --> VOLUME
VOLUME --> MICROPHONE
MICROPHONE --> I
end
Figure 52. NBP VC1 D (Left), NBP VC2 D (Right) Front Panels
Reset Features (All Models) and Mounting Holes (Wall Mounted Models)
Figure 53. NBP Front Panels Without Faceplates or Wallplates
Figure 54. NBP EU Series Rear Panel Features
Figure 55. NBP 1200C Bottom Panel Features
A Reset button and LED (see figure 53 to figure 55, above)—Pressing this recessed button (present on all models) prepares the unit to use factory firmware, toggles the DHCP client on or off, or causes various product settings to be reset to the factory defaults (see Reset Features and Resetting the Unit on page 50). The LED is normally off except during resets and immediately after boot-up.
Wallplates and Faceplates
Each decorator-style NBP is shipped with a white faceplate and white wallplate and also a black faceplate and black wallplate.
Each US gang model is shipped with a white faceplate and a black faceplate. Each NBP VC1 D, NBP VC1 EU, NBP 100, or NBP 200 is also shipped with a white knob and a black knob.
See Step 3: Change Buttons, Button Labels, or Faceplate (Optional) on page 16 for instructions on how to change the faceplate, wallplate, buttons, or button labels for wall-mountable models. See Step 4: Change Buttons (optional) on page 34 for instructions on changing buttons on an NBP 1200C.
Buzzer (Decorator-style Models and NBP 1200C)
The NBP decorator-style models and the NBP 1200C have a buzzer located on a circuit board within the unit. The behavior of the buzzer can be configured using Global Configurator or programmed with ControlScript Deployment Utility to be globally disabled or to beep as desired when a button is pressed.
Buttons
All the buttons are backlit so they are visible in low light conditions.
You can configure the active (selected) buttons to light brighter than inactive buttons. The light intensity and blink rate can be set during configuration.
Each button can be configured with a variety of commands and functions, as desired.
Volume Controls and LEDs
You must configure these buttons (NBP decorator-style models, NBP 108 EU, NBP VC2 EU, NBP 1200C) or knob (NBP VC1 D, NBP VC1 EU, NBP 100, or NBP 200). They can be used for any function and behavior and to control any device. However, the most common configuration is as follows:
-
On the decorator-style, button-based models, NBP 108 EU, and NBP 1200C:
Press the increase volume button to increase the audio volume. Press the decrease volume button to decrease volume. -
On the NBP 50: Press the increase volume button to increase the audio volume.
Press the decrease volume button ☐ to decrease volume.
- On the NBP 100 and 200, NBP VC1 D or NBP VC1 EU, rotate the volume knob clockwise to increase the audio volume, counterclockwise to decrease volume.
- On decorator-style models, the NBP VC1 EU, and NBP 1200C, the Mute button can be configured to turn audio output (or microphone input) off or on.
The Volume LEDs directly above the buttons (NBP 106 D, NBP 108 D, NBP VC2 D, NBP 1200C, NBP 108 EU, NBP VC2 EU) to the left of (NBP 100, NBP 200), or above (NBP VC1 D, NBP VC1 EU) the knob can be configured as follows:
- Blink to indicate increases or decreases or to show volume level status (see “Volume control options” below for additional details)
- Light in patterns such as upward or downward sweeps to indicate increases or decreases for increment or decrement adjustments, or to indicate a volume level range for range-based adjustments (see “Volume control options” below for additional details)
For all models, when audio mute is active, mute would typically be indicated by a slowly blinking LED (shown in the diagrams at right), no matter which port is used for audio control or what mode (range-based) is being used. When the audio is unmuted, the volume returns to the previously used level.
Volume control options
Global Configurator software and ControlScript Deployment Utility programming let you configure the volume buttons (decorator-style models including the NBP VC2 D, NBP 108 EU, NBP VC2 EU, or NBP 50, NBP 1200C) and volume knob (NBP VC1 D, NBP VC1 EU, NBP 100, NBP 200) to control audio volume using serial or IR control commands together with a COM or IR port on the control processor.
You can specify incremental adjustments or range-based adjustments (via device driver only). See the Global Configurator Plus and Global Configurator Professional Help File or the ControlScript Deployment Utility Help File for details on these types of volume adjustments and on how to configure the volume LEDs (for the desired lighting behavior).
Range-based volume adjustment
If the system is configured for use with some projectors, the most common way to configure the LEDs on the NBPs is to indicate volume ranges (with steadily lit LEDs), as shown in the following diagrams.
Range-based Volume Adjustment — NBP 105 D, NBP 106 D, NBP VC2 D, NBP 1200C, NBP 104 EU, NBP 108 EU, NBP VC2 EU
Range-based Volume Adjustment - NBP VC1 D, NBP VC1 EU
Figure 56. Range-based Volume Adjustment LED Behavior, NBP D Models, NBP EU Models, NBP 1200C
Minimum.
0% of
Max
Volume
1% to
12% of
Max.
Volume
13% to
25% of
Max.
Volume
26% to
37% of
Max.
Volume
38% to
50% of
Max.
Volume
51% to
62% of
Max
Volume
63% to
75% of
Max.
Volume
m = 311
-
广力云智慧零售收银系统
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none exist in the GT, violating the rule to ignore such lines. Hence, the OCR result is inconsistent with the Ground Truth.
76% to
37% of
Max.
Volume
)
f 1
(No text)
e
88% to
100% of
Max.
Volume
Figure 57. Range-based Volume Adjustment LED Behavior, NBP 100, NBP 200, NBP VC1 D
NOTE: Volume LEDs light based on the percentage of the user-set minimum-maximum range.
Increment/decrement volume adjustment
If the system is configured for increment/decrement volume adjustment, typically you would configure the volume LEDs to be off except during adjustment. In the most common configuration, when the volume is adjusted, the LEDs light briefly in a scrolling pattern to the right or top (increment) or to the left or down (decrement), as shown in the following examples.
Figure 58. Volume LED Increment/Decrement Behavior for NBP 105 D, NBP 106 D, NBP VC2 D, NBP 1200C, NBP VC1 D, NBP 108 EU, NBP VC1 EU, NBP VC2 EU
Figure 59. Volume LED Increment/Decrement Behavior for NBP 100, NBP 200
Reset Features and Resetting the Unit
Locating the Reset Button and LED
The Reset button and LED (shown at right) are located on the front panel of each decorator-style or US gang series unit, behind the wallplate or faceplate (see figure 53, F, on page 45), on the rear panel of each EU model (see figure 54, F), or on the bottom panel of the NBP 1200C (see figure 55, F).
Resetting the Unit
There are several reset modes that are available by pressing the Reset button. The Reset button is recessed, so use an Extron Tweeker, a pointed stylus, or a ballpoint pen to access it. See the reset modes table on the following page for a summary of the modes.
ATTENTION:
NOTE: If you press and hold the Reset button continuously, the LED blinks every 3 seconds, and the unit enters a different mode, from the Reset Network Settings mode through the Full Factory Reset mode. For Full Factory Reset mode the LED blinks three times, the third blink indicating the last mode. The modes are separate functions, not a continuation from one mode to the next.
| NBP Series Reset Mode Summary | |||
| Mode | Use This Mode to... | Activation Result | |
| Use Factory Firmware | Temporarily boot up the unit with factory-installed firmware for a single power cycle in the event that a firmware update has failed or if incompatibility issues arise with user-loaded firmware | To start the Use Factory Firmware reset mode and replace firmware:1. On the NBP, press and hold the recessedResetbutton while applying power to the unit. Keep holding the button down until the Reset LED blinks twice, then release the button. The LED blinks slowly during bootup. The unit enters factory firmware mode.2. Upload new firmware to the unit as desired (seeUpdating the Firmwareon page 61 for details).NOTE:Do notcontinue to operate the NBP button panel using the factory firmware version. If you want to use the factory default firmware version, you must upload that version again (see theToolbelt Help File or Global Configurator Help File for firmware upload instructions). | The button panel reverts to the factory default firmware. Event scripting does not start if the unit is powered on in this mode. All user files and settings such as button configurations, adjustments, and IP settings are maintained.NOTE:To return the unit to the firmware version that was running prior to the reset, cycle power to the unit. |
| Toggle DHCP Client | Enable or disable the DHCP client | To enable or disable the DHCP client for the LAN port:1. Press theResetbutton five times (consecutively).2. Release the button. Do not press the button within 3 seconds following the fifth press. | The Reset LED blinks 6 times if the DHCP client is enabled.The Reset LED blinks 3 times if the DHCP client is disabled. |
| NOTES:By default DHCP is off and the unit uses a static IP address.When you disable DHCP, the unit reverts to using the previously-set static IP address. | |||
| Reset Network Settings | Reset network settings and port maps to factory defaults without affecting user-loaded files | To reset all network settings:1. Press and hold theResetbutton for about 6 seconds until the Reset LED blinks twice (once at 3 seconds, again at 6 seconds).2. Release and press theResetbutton momentarily (for <1 second) within 1 second*.* Nothing happens if the momentary press does not occur within 1 second.NOTE:This reset also turns DHCP off. | Reset Network Settings mode:Sets the IP address back to factory default (192.168.254.253)Sets the subnet back to factory default (255.255.255.0)Sets the default gateway address to the factory default (0.0.0.0)Sets domain and host names to factory defaultTurns DHCP offDisables 802.1X authentication. |
| Full Factory Reset | Start over with configuration and uploading | To reset the unit to all factory default settings:1. Hold down theResetbutton for about 9 seconds until the Reset LED blinks three times (once at 3 seconds, again at 6 seconds, again at 9 seconds).2. Release and press theResetbutton momentarily (for <1 second) within 1 second*.* Nothing happens if the momentary press does not occur within 1 second. | Full Factory Reset mode performs a complete reset to factory defaults (except the firmware).Does everything Reset Network Settings mode doesRemoves (clears) all user-loaded files and configurations from the NBPClears driver-port associations (Ethernet) and port configurations |
NOTES:
- After performing a Reset Network Settings or a Full Factory Reset, use Toolbelt to set the IP address again for use on your network.
- The factory configured passwords for this device have been set to the device serial number. Passwords are case sensitive. Performing a Full Factory Reset sets the passwords to extron.
Software-Based Configuration and Control
This section of the guide is divided into the following topics:
- Configuration and Control: an Overview
- Basic Setup Steps: a Guide to this Section and Other Resources
- Downloading the Software and Getting Started
- Troubleshooting
Configuration and Control: an Overview
An NBP and the control processor or collaboration system receiver with which it works must be configured before use in order to recognize and accept commands and pass them on to the controlled devices. They can be configured and controlled via a host computer attached to the same network (see LAN (Ethernet) and PoE connector and LEDs on page 22 and Bottom Panel Features and Cabling (NBP 1200C) on page 39 for details about the LAN port and cabling to connect the NBP button panel to the network).
- Configure the NBP and the control processor by using the Global Configurator software (GC Professional or GC Plus), or program the control processor using Global Scripter or ControlScript Deployment Utility. See the Extron website for full system hardware and software requirements for GC.
- The default web pages embedded within each device provide a means to view general hardware information, network settings, and, if configured, project information. You cannot configure these devices via the embedded web pages.
NOTE: See the diagram within LAN (Ethernet) and PoE connector and LEDs and Bottom Panel Features and Cabling (NBP 1200C) for the default login credentials for the NBP internal web pages.
Basic Setup Steps: a Guide to this Section and Other Resources
NOTE: GC projects can be created offline and uploaded to the hardware at a later date.
Follow the steps in Hardware Features and Installation — Wall-mountable Models on page 9 or in Hardware Features and Installation — NBP 1200C on page 28. The overall process for setting up a button panel and system is as follows:
Figure 60. Overall Configuration Steps
Downloading the Software and Getting Started
Software updates and a large variety of device drivers can be downloaded from the Download page on the Extron website (www.extron.com/download/index.aspx). When you locate the desired software or driver package, follow the on-screen directions to download and install it.
Locating Software, Firmware, and Driver Files on the Extron Website
There are three main ways to find software, firmware, and device drivers within www.extron.com:
• Via links from the web page for the specific product
- Via the Download Center page (click on the Download tab at the top of any page within the Extron website.)
• Via links from search results
NOTE: For some software you have the option to click the Download button to begin downloading the software file. For other software there is a link for contacting an Extron support representative who can provide you access to the latest version.
To obtain Extron control product software, you must have an Extron Insider account. Extron provides training to our customers on how to use the software. For Global Configurator Professional, you must first attend Extron training, pass a proficiency test, and achieve Extron Control Professional Certification before being able to access all the features of that program.
Via links from the web page for the specific product
-
Navigate to the web page for the specific product model by performing one of the following:
-
Enter the model name into the search field in the upper right of any Extron web page and clicking the magnifying glass icon, then select the correct result from the drop-down list.
-
In the upper left of the Extron home page click PRODUCTS to open the Products page. Select the product category from the cards in the center of the page or the list on the left, then select the model name from the resulting page.
-
Click the Downloads tab in the middle of the product page. A list of available software, firmware, and documents for that model appears on screen.
-
Click on the name of the desired software or firmware to start downloading the file.
NOTE: Device drivers must be accessed via the Download page, as described in the following instructions.
Via the Download Center page
- Either:
a. Click on the Download tab at the top of any page within the Extron website to access the Download page.
b. Click on the link for the desired software product category (such as Global Configurator Professional, firmware, or control system device drivers) in the center of the screen. A page opens that allows you to make more specific selections from within that category.
Or...
a. From the Download tab drop-down menu, select Firmware or Software, as appropriate. Enter the model name or product series name in the Search Firmware or Search Software field.
b. Select the correct result from the drop-down list, if needed. A link opens to allow you to download the software or firmware.
- For software, click on the link for the specific software that you need. A software product page opens that provides a description of the software package, a list of system requirements, a list of features, and access to the release notes, in addition to a download link.
For drivers:
a. Click on the Control System Drivers button.
b. Select the name of the control processor from the drop-down list.
c. Click the link directly below the search fields to download the current "Pro Series driver package" of all available drivers supported by the control processor. Alternatively, navigate through the alphabetically arranged list, search for, locate, and select the device or devices for which you need a driver file.
d. To download a single driver rather than the package, click on the appropriate link in the row for the product you want to control to download the driver or to download the "communication sheet." The communication sheet provides details that may be helpful for working with the product and its control driver.
- For some software you can click the Download or Download Now button to begin downloading the software file. For other software there is a link for contacting an Extron support representative who can provide you access to the latest version.
For drivers, navigate through the alphabetically arranged list to select and download a driver for a specific device.
Via links from search results
-
Type the specific name of the software package (such as Global Configurator, Global Scripter, or ControlScript Deployment Utility) into the Search field in the upper right of the Extron web page and click the magnifying glass icon. A search results page opens.
-
Click on the name of the software package. A software product page opens that provides a description of the software package, a list of system requirements, a list of features, and access to the release notes, in addition to a download link.
- For some software you can click the Download or Download Now button to begin downloading the software file. For other software there may be a link for contacting an Extron support representative who can provide access to the latest version.
Things to Do After Installing GC and Before Starting a Project
- Read the Global Configurator Help File, included with the software, for details and step-by-step procedures on how to start a GC Professional or GC Plus project and perform basic setup tasks for a control processor. The help file provides a wealth of information on settings and how to use the software. It includes examples of how to use the features of GC and step by step instructions for typical configuration tasks.
- Obtain network addresses and related information from your network administrator.
- Set up the IP addresses for the NBP units and for the control processor (see Step 5: Set up the NBP for Network Communication on page 24 and Step 10: Set up the NBP 1200C for Network Communication on page 41 for an overview of how to set up the network properties of the unit). For details, see the GC help file or Toolbelt help file, which contains instructions on how to set the IP address, gateway IP address, subnet mask, mail server IP address, domain name, web port, SMTP username, and SMTP password so that each device is able to communicate with the network.
Using GC: Helpful Tips
- A setup guide (the Network Button Panel — Decorator-Style Series Setup Guide, Network Button Panel — US Gang Series Setup Guide, NBP 1200C Cable Cubby Enclosure with Network Button Panel Setup Guide, or the Network Button Panel — EU Series Setup Guide) ships with each NBP unit. The setup guides include a quick reference to the front, rear, and bottom panel features and cover basic hardware installation.
- See Front Panel Features (All Models) and NBP 1200C Bottom Panel Features on page 42, Rear and Side Panel Features and Cabling (Decorator-style, US Gang, and EU Models) on page 22, and Bottom Panel Features and Cabling (NBP 1200C) on page 39 for features and for settings for configuring the LAN port.
- If you plan to configure the system at the installation site, Extron recommends downloading drivers for all the devices in the installation before you go out to the site.
- The Global Configurator project file (*.gcpro or *.gcplus) contains configuration settings and it can be saved to a directory or folder for backup or for installation on another control processor. Saving a configuration is recommended before you perform a firmware upgrade.
• IP addresses, subnet masks, and gateway address are required during network setup of the system. -
The unit name is any name (for example, Room730-NBP100 or ConfRmSystemNBP) that you want to use to label a specific device. The default is a combination of the product name and part of the hardware (MAC) address. This can be changed to your choice of alphanumeric characters and hyphens (-). The following rules apply:
-
Spaces are not permitted within the name of a unit or at the start or the end of a name.
- Underscores ( _ ) are not permitted.
- Valid characters are A-Z, a-z, 0-9, and - (hyphen).
- The unit does not distinguish between upper and lower case letters.
- The name cannot start with a number or a hyphen, and it cannot end with a hyphen.
• Maximum name length is 63 characters.
Troubleshooting
Turn on the input devices (DVD players, Blu-ray players, PCs, and other sources), output devices (display screens, projectors), the control processor, and the PC. Push a front panel button or (for the NBP VC1 D or US gang models) rotate the Volume knob.
If an input or output AV device cannot be remotely controlled (does not respond as expected), check the following:
Power Connections
- Ensure that all devices are plugged in.
• Make sure that each device is receiving power. The front panel buttons light if the unit is receiving power.
Data Connections
- Check the cabling connections and make adjustments as needed. The Link LEDs on the control processor, the network button panels, and on the PC should be lit green steadily if a network connection is detected. If these LEDs are not lit, the cable is faulty or not plugged in, it is the wrong type of cable or is miswired (see LAN (Ethernet) and PoE connector and LEDs on page 22 and Bottom Panel Features and Cabling (NBP 1200C) on page 39), or the network is "down."
- Try to "ping" each device by entering one of the following at the command prompt on the PC:
NOTE: The following commands include the default IP addresses for their respective devices and ports.
- ping 192.168.254.250 — for a control processor without AV LAN, or for an IPCP Pro or IPCP Pro Q xi control processor AV LAN port when the DHCP server is disabled (default)
• ping 192.168.253.250 — for the LAN port of a control processor with AV LAN
• ping 192.168.245.1 — for a control processor AV LAN port if the DHCP server is enabled
• ping 192.168.254.253 — for an NBP button panel
Or ping the IP or web address provided to you by your system administrator.
If you get no response:
• Make sure your unit is using the appropriate subnet mask (check with your system administrator).
- Make sure your PC and network do not have a software firewall program that might block the IP address of the devices.
- Ensure that the network is functioning. Try to ping another device, for example.
- If contact is established with the unit, but the NBP internal web pages cannot be accessed by your browser program, verify that your browser is configured for direct network connection and is not set up to use a proxy server. Use the Internet network options or preferences menu in the browser to check the settings.
Device Control Connections and Configuration
- Verify that ports are wired correctly and that ground (earthing) wires are connected to the proper pins on the control processor, and, if applicable, on controlled devices.
- Verify that the NBP is grounded (see grounding instructions on page 21).
- Verify that the appropriate drivers were used while creating the GC configuration file and that the correct commands and signal types (IR or RS-232) are associated with the appropriate ports on the control processor and on the other devices.
- Verify that the NBP buttons and knobs (where applicable) are configured correctly.
- For digital input and output connections, verify whether the application requires the +5 VDC pull-up resistor within the control processor for TTL circuits and use the software to check whether it is selected within the configuration.
- Verify that input current at any digital input or output port on the control processor does not exceed 250 mA.
- Verify that input at the volume control port on an IPCP Pro 250, IPCP Pro 255 Q xi, or IPCP Pro 250 xi does not exceed 10 VDC and that the amplifier is cabled correctly, as well.
If you still experience problems, call the Extron S3 Sales & Technical Support Hotline or the Extron S3 Control Systems Support Hotline (1.800.633.9877).
Reference Information
This section of the guide includes the following reference items:
• Network Requirements
- Removing the NBP EU from the Mounting Surface
- Secure Sockets Layer (SSL) Certificates
• Best Practices for Cleaning Your Extron Products
• IEEE 802.1X Certificates
To read product specifications, visit the product page for the NBP model at www.extron.com.
Network Port Requirements
Network administrators may find it useful to know which ports, protocols, and services are used by the button panels, control processors, touchpanels, Global Configurator Plus and Professional software, Toolbelt, and Extron Control software. A list of protocols used for inbound and outbound communication for each type of device or software is available in the Control Systems Network Ports, Protocols, and Licenses Guide, part number 68-2961-01, available at www.extron.com.
The controllers use various licensed third-party software packages during operation. To view details about third-party packages and associated licensing, click the License Information button in the internal web pages of the control processor or receiver. A License Information window opens. To view a copy of a listed package license, in the License Information window, click the link in the License column for the relevant package. This opens a copy of the package license in a separate window. A list of licenses is also available in the Control Systems Network Ports, Protocols, and Licenses Guide at www.extron.com.
Secure Sockets Layer (SSL) Certificates
Extron NBP button panels, IP Link Pro controllers, and collaboration system receivers ship with factory-installed SSL certificates created by Extron. If you want or are required to use a different SSL certificate at your installation site, then you can use system utilities in the Toolbelt software to change the SSL certificate at any time. The Toolbelt Help File provides instructions on how to apply an SSL certificate to a controller.
NOTES:
- You must run Toolbelt as an administrator.
- Some certificates require a passphrase that is created when the certificate is created. If a passphrase is required, you must enter that passphrase before uploading and applying the certificate.
These devices support standard OpenSSL certificate encodings such as .pem (Privacy-enhanced Electronic Mail) and .der (Distinguished Encoding Rules) file types. PEM file types are ASCII encoded and are the required format for uploading to the Extron control product. DER file types are binary encoded and can typically have several file extension variations, such as .crt and .cer. There are many standard tools that can convert from DER to PEM file encodings if needed.
NOTE: A DER format file must be converted to PEM encoding before uploading it to the button panel, control processor, or collaboration receiver.
To properly create the certificate for uploading to Extron control devices, ensure that the certificate file meets the following requirements:
- contains X.509 certificate information
- contains public and private keys
- uses PEM encoding
NOTE: ITU-T standard X.509 covers aspects of public key encryption, digital cryptography, certificates, and validation.
Contact your IT administrator for more information on what tools and policies are required to obtain or create the SSL certificate and, if necessary, the corresponding passphrase.
IEEE 802.1X Certificates
IEEE 802.1X is a standard that enables port-based network access control via an authentication server. The protocol requires that all devices must be authenticated before gaining privileges to access the secure part of the network.
The Extron implementation of 802.1X supports PEAP - MSCHAPV2 and EAP - TLS methods of authentication. This section of the guide details the requirements for any certificate file (machine or CA) and the private key file (for the machine certificate) to be used in the system.
Extron provides resources for learning about 802.1X implementation:
- The Extron 802.1X Technology Reference Guide, available from www.extron.com, is the primary resource for background information, system planning, topology, and how to set up these systems.
- The Toolbelt Help file provides detailed step-by-step information on using the software to set up 802.1X for IP Link Pro control systems and on troubleshooting.
- The 802.1X Primer white paper, also available from www.extron.com, provides a general overview of the protocol and its use within a control system.
NOTES:
- You must run Toolbelt as an administrator.
- Machine certificates require a private key file, which can be encrypted.
Certificate File Requirements
PEM (Privacy-enhanced Electronic Mail) file types are ASCII encoded, and they are the required format for 802.1X authentication for the control processors. DER (Distinguished Encoding Rules) file types are binary encoded and can typically have several file extension variations, such as .crt and .cer.
NOTE: DER encoded files (files with .der, .crt, or .cer extensions that are encoded in DER binary format) must be converted to a PEM encoded file type (.pem) before being used for authentication.
DER encoded certificates must be converted to PEM encoding using a third-party tool. Contact your IT administrator for more information on required tools.
To create the 802.1X security certificate for uploading to Extron control products, ensure that the certificate file meets the following requirements:
- It contains X.509 certificate information.
- It contains a private key (for machine certificates only).
- It is PEM encoded.
- It has a file extension that is .crt or .pem
- Its file name consists of the following types of valid characters:
• Alphanumerical (A-Z, a-z, 0-9) characters - Some special characters (colon [:], underscore [ ], and hyphen [-])
NOTE: Spaces are not permitted anywhere in the name.
Private Key File Requirements
Private key files are required only when employing machine certificates. Follow these requirements for creating a private key:
- Its file name consists of the following types of valid characters:
• Alphanumerical (A-Z, a-z, 0-9) characters -
Some special characters (colon [:], underscore [ ], and hyphen [-])
-
It has a file extension that is .key or .pem.
- It can have optional encryption (via password or passphrase).
Removing the NBP EU from the Mounting Surface
Before you can replace buttons or faceplates on an NBP EU, if the unit is installed in a wall or furniture, you must remove the unit from the metal mounting bracket and installation surface. To help with this task, Extron provides a removal tool (shown at right) with the unit.
Use only this provided removal tool.
To remove the NBP EU from the mounting surface:
- Insert the flat tip of the removal tool in the center of the right or left edge of the NBP EU, between the faceplate and wallplate.
- Push the tool into the gap until the line on the tool aligns with the edge of the faceplate.
- Press (angle) the removal tool outward from the NBP EU, toward the mounting surface (as shown in the figure at right) to release the tab that secures the NBP EU within the wallplate.
- Repeat steps 1 through 3 on the opposite side of the NBP EU. The unit should tilt out from the wallplate.
NOTE: The wallplate is removed at the same time you remove the NBP EU from the bracket and mounting surface.
Figure 61. Inserting and Pressing the Removal Tool
Best Practices for Cleaning Your Extron Products
It may be necessary to clean your Extron Network Button Panels. Frequently touched elements, such as buttons, require regular cleaning to ensure their surfaces remain sanitary. Plastic surfaces and cosmetic finishes can be damaged by long term exposure to chemicals. Therefore, Extron recommends the following guidelines when cleaning the NBPs.
The NBPs can be safely cleaned with:
- 70% concentration or higher isopropyl alcohol
-
Disinfectant cleaners that:
-
Are non-ammonium based (for example, contains no ammonium chloride)
- Contain 2% or less sodium hypochlorite (for example, 2% bleach, 98% water)
It is important to follow these general guidelines when cleaning:
- Spray the cleaner on a lint-free cloth until the cloth is damp.
- Do not spray the cleaner directly onto the product.
- Gently clean the product surface using the cloth.
Your health and safety are our top priority. Keeping devices clean, especially those in high-traffic environments and high-use applications, is a crucial step in minimizing the spread of infections. Please contact us if you have any questions about the guidelines or if you have a question about cleaning the product.
Firmware Updates
If the need arises, you can replace the NBP firmware. This section covers the following firmware-related topics:
• Determining the Firmware Version
- Updating the Firmware
Determining the Firmware Version
To check which firmware version the button panel is using, do one of the following:
• View the device information in Toolbelt.
• View the general status information section of the NBP embedded web page.
Before using those methods, connect the NBP and the PC to the same network. For details see the Hardware Features and Installation — Wall-mountable Models section starting on page 9, Hardware Features and Installation — NBP 1200C on page 28, and the Software-based Configuration and Control section starting on page 52.
Using Toolbelt Software
- Open the Toolbelt software.
- Either add the desired NBP manually or start device discovery and select the desired device from the list of discovered devices.
- Click on the IP address link or on the Manage icon (gear) in the row for the desired control processor, select the applicable device management tabs, and view the device information.
Using a Browser
The NBP comes with a factory default embedded web page where you can check the firmware version as follows:
- Start a browser program.
- Type the IP address of the NBP into the address field of the browser and log on to the internal web page.
- Look for the version within one of the information panes.
Updating the Firmware
Firmware upgrade tools require the PC and the NBP to both be connected to an Ethernet network. The instructions for updating the firmware assume you have installed the appropriate software on your PC first.
NOTES:
- You should save the existing configuration to a file (see the Global Configurator Help File for instructions) before replacing the firmware. If the file is saved, the configuration can be restored to the control processor or collaboration system receiver later using GC.
- Check the Extron website for firmware-related documents, instructions, patch files, and new firmware files before loading new firmware. We recommend that you read the firmware release notes (available from www.extron.com) before beginning the firmware update.
Locating and Downloading the Firmware
- Visit the Extron website to find the latest firmware file for the NBP button panel. The easiest way to locate files is through the Downloads tab on the web page for the specific model.
- Download the executable installer file (* .exe) from the website and run the installer program. The program automatically stores the firmware file on the PC in C:\Program Files\Extron\Firmware within a folder specific to that version.
- Write down the firmware filename and location for later use. The filename ends in .eff such as 49-476-50-x.xx.xxxx-yyyy.eff where x.xx.xxxx is the version number.
NOTE: The firmware update file must have a filename extension of .eff. If the file does not have that extension, it does not work properly.
Installing Firmware
Firmware can be replaced by using one of the following:
- Global Configurator (using the Update Firmware link to Toolbelt)
• Toolbelt (the stand-alone program)
These methods allow you to browse to find and select the appropriate . eff file on your PC and then click an Upload button to initiate the firmware upload to the unit.
NOTE: Toolbelt allows you to update multiple devices with the same firmware version simultaneously.
Allow at least a couple minutes for the firmware to finish uploading. At the end of the upload process, the unit partially reboots and loses its connection to the PC. Therefore, to continue monitoring the unit using the web page or Toolbelt, you need to refresh the web page or reconnect via Toolbelt after the firmware update.
Extron Warranty
Extron warrants its powered products against defects in materials and workmanship for a period of three years from the date of invoice. In the event of malfunction during the warranty period, Extron will repair or replace a product to whatever extent it shall deem necessary to restore the product to proper operating condition.
This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions or non-Extron authorized modification to the product. Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage. Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.
Powered Warranty Exception
Everlast™ Power Supplies — Extron warrants Everlast power supplies against any defects in materials and workmanship for a period of seven years from the date of invoice. In the event of a malfunction during the warranty period, Extron will repair or replace the power supply to its original operating condition. Extron engineers will examine the returned product and determine whether the Everlast Power Supply Warranty or Powered Product Warranty applies.
Speakers — Extron warrants Flat Field®, SoundField®, SpeedMount®, Column Array, and System INTEGRATOR® speakers against any defects in materials and workmanship for a period of five years from the date of invoice.
Touchscreens — Extron warrants touchscreen display and overlay components against any defects in materials and workmanship for a period of one year from the date of invoice.
Annotator 300 — Extron warrants the Annotator 300 against any defects in materials and workmanship for a period of five years from the date of invoice.
Non-Powered Warranty Exception
Cable Cubby, Hideaway Surface Access Enclosures and Retractors — Extron warrants Cable Cubby cable access enclosures, HSA Hideaway Surface Access enclosures, and Retractor cable retraction modules for a period of three years from the date of invoice.
Active Cables and Active Adapters — Extron warrants active cables and active adapter cables for a period of three years from the date of invoice.
Cable Termination Tools and Dies — Extron warrants cable termination tools for a period of three years from the date of invoice, excluding the die.
Return Information
Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.
NOTE: To assure the highest level of service, a return authorization number must be obtained from Extron before products are returned for service. Products must be shipped to Extron, prepaid along with proof of purchase only after obtaining a Return Authorization (RA) number from the Extron Customer Support department.
Please contact Extron to receive an RA (Return Authorization) number:
USA: 714.491.1500 or 800.633.9876
Asia: 65.6383.4400
Europe: 31.33.453.4040 or 800.3987.6673
Japan: 81.3.3511.7655
Africa and Middle East: 971.4.299.1800
- Network Button Panels
- Safety Instructions • English
- FCC Class A Notice
- Battery Notice
- Conventions Used in this Guide
- Notifications
- Software Commands
- Specifications Availability
- Extron Glossary of Terms
- Contents
- Introduction....1
- Hardware Features and Installation — Wall-mountable Models 9
- Hardware Features and Installation — NBP 1200C 28
- Operation....42
- Software-Based Configuration and Control.... 52
- Reference Information 58
- Firmware Updates 61
- Introduction
- Before You Begin
- What This Guide Covers
- About the Network Button Panels
- Decorator-style Models
- US Gang Models
- EU Models
- Cable Cubby Model
- Features
- General features
- Network and configuration features
- Application Diagrams
- PC System Requirements
- Hardware Features and Installation — Wall-mountable Models
- Step 1: Get Ready
- Preparation Checklist
- Accessibility and Americans with Disabilities Act (ADA) Compliance
- Step 2: Prepare the Installation Site
- ATTENTION:
- Decorator-style and US Gang Model Site Preparation
- NOTES:
- EU Model Site Preparation
- Wall box and direct mounting
- Raceway mounting
- Step 3: Change Buttons, Button Labels, or Faceplate (Optional)
- Instructions for Decorator-style and EU Models
- Replacing buttons or a faceplate on a decorator-style or EU NBP
- a. Decorator-style models:
- EU models:
- b. Decorator-style models:
- Removing the knob (NBP VC1 models)
- Replacing the knob (NBP VC1 models)
- Instructions for US Gang Models
- Removing and replacing a faceplate
- Replacing button labels
- Changing a knob
- Step 4: Cable All Devices
- Grounding and Cabling Order
- To ground the unit:
- Rear and Side Panel Features and Cabling (Decorator-style, US Gang, and EU Models)
- IMPORTANT NOTES:
- Step 5: Set up the NBP for Network Communication
- Network Communication Setup
- Figure 29. Network Setup
- Step 6: Configure the System
- Step 7: Test and Troubleshoot
- Step 8: Complete the Physical Installation
- Mounting
- Decorator-style and US Gang Models
- Hardware Features and Installation — NBP 1200C
- Step 1: Get Ready (NBP 1200C)
- Step 2: Prepare the Installation Site, Cut the Table or Furniture
- Prepare the Site
- Cut the Table
- Step 3: Assemble AAP, Pass-through, and Power Modules
- Assemble Connectivity Modules
- AAP module
- Cable pass-through module
- Step 4: Change Buttons (optional)
- Step 5: Install Modules and a Retractor Bracket
- Retractor Bracket
- AAP Module, Cable Pass-through Module, and Power Module
- Step 6: Mount the NBP 1200C to the Table
- Step 7: Install Retractors
- Step 9: Cable the NBP 1200C and Other Devices in the System
- Cabling
- Cabling:
- Step 10: Set up the NBP 1200C for Network Communication
- Step 11: Configure the System
- Step 12: Test and Troubleshoot
- Operation
- Front Panel Features (All Models) and NBP 1200C Bottom Panel Features
- Wallplates and Faceplates
- Buzzer (Decorator-style Models and NBP 1200C)
- Buttons
- Volume Controls and LEDs
- Volume control options
- Range-based volume adjustment
- Increment/decrement volume adjustment
- Reset Features and Resetting the Unit
- Locating the Reset Button and LED
- Resetting the Unit
- Software-Based Configuration and Control
- Configuration and Control: an Overview
- Basic Setup Steps: a Guide to this Section and Other Resources
- Downloading the Software and Getting Started
- Locating Software, Firmware, and Driver Files on the Extron Website
- Via links from the web page for the specific product
- Via the Download Center page
- Via links from search results
- Things to Do After Installing GC and Before Starting a Project
- Using GC: Helpful Tips
- Troubleshooting
- Power Connections
- Data Connections
- Device Control Connections and Configuration
- Reference Information
- Network Port Requirements
- Secure Sockets Layer (SSL) Certificates
- IEEE 802.1X Certificates
- Certificate File Requirements
- Private Key File Requirements
- Removing the NBP EU from the Mounting Surface
- Use only this provided removal tool.
- Best Practices for Cleaning Your Extron Products
- Firmware Updates
- Determining the Firmware Version
- Using Toolbelt Software
- Using a Browser
- Updating the Firmware
- Locating and Downloading the Firmware
- Installing Firmware
- Extron Warranty
- Powered Warranty Exception
- Non-Powered Warranty Exception
- Return Information
Brand : Extron
Model : NBP VC1 EU
Category : Panneau de commande réseau
