USER MANUAL Asher CF1141 Crosley

Line drawing of a simple cabinet with vertical slats and a side table base (no text or symbols)

PART LIST

A		B		C		D2	E3
Top Panel1 PC		Left Panel1 PC		Right Panel1 PC		Fixed Shelf1 PC		Bottom Panel1 PC
F		G		H3		I2		J
Door1 PC		Leg4 PCS		Back Panel1 PC		Metal Wire4 PCS		Cover1 PC

HARDWARE LIST

#1	∅1/4"*25mm	#2	#3 #4 #5	∅1/4"*11mm ∅1/4"*13mm
		∅1/4"*51mm
Short Bolt12 PCS (Extra 1)		Long Bolt4 PCS (Extra 1)		Spring Washer16 PCS (Extra 1)	Flat Washer16 PCS (Extra 1)		Barrel Nut4 PCS (Extra 1)
#6		#7	#8 #9 #10	[HXS2]7*3.5*12mm			[HCS28]8*3*15mm
		∅8*30mm
Hex Nut8 PCS (Extra 1)		Wood Dowel20 PCS (Extra 1)		Short Screw12 PCS (Extra 1)	Door Hinge2 PCS		Round HeadScrew18 PCS (Extra 1)
#11	4mm*90	#12		#13	#14	[M2]	#15
Allen Wrench1 PC		Wrench1 PC		Binding Post1 SET (Extra 1)	Small AllenWrench1 PC		Safety Strap Kit1 SET

ADDITIONAL TOOLS (Not Provided)

Note: It is not recommended to use power tools during assembly.

Phillips Head Screwdriver

Note: Wood dowels are intended for alignment. Additional clearance between wood dowel and pre-drilled hole is intentional for ease of assembly.

Please do not use tools to assemble this unit unless specifically indicated.

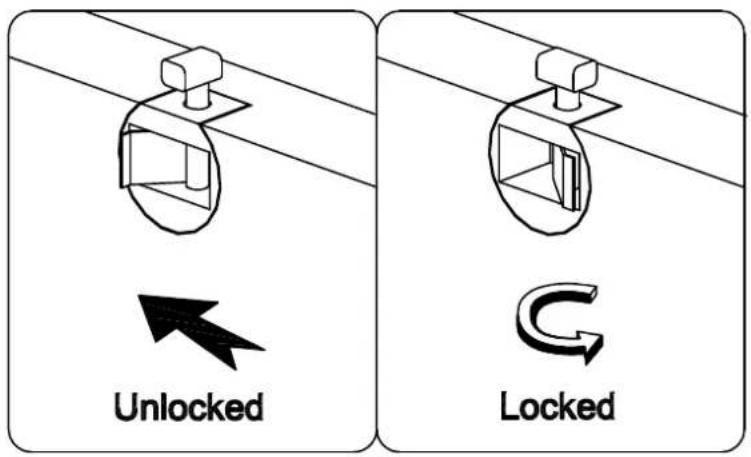

Unlocked Locked

Reference the images above any time the instructions state "lock the hardware"

Note: Be sure to check all hardware is locked when completed.

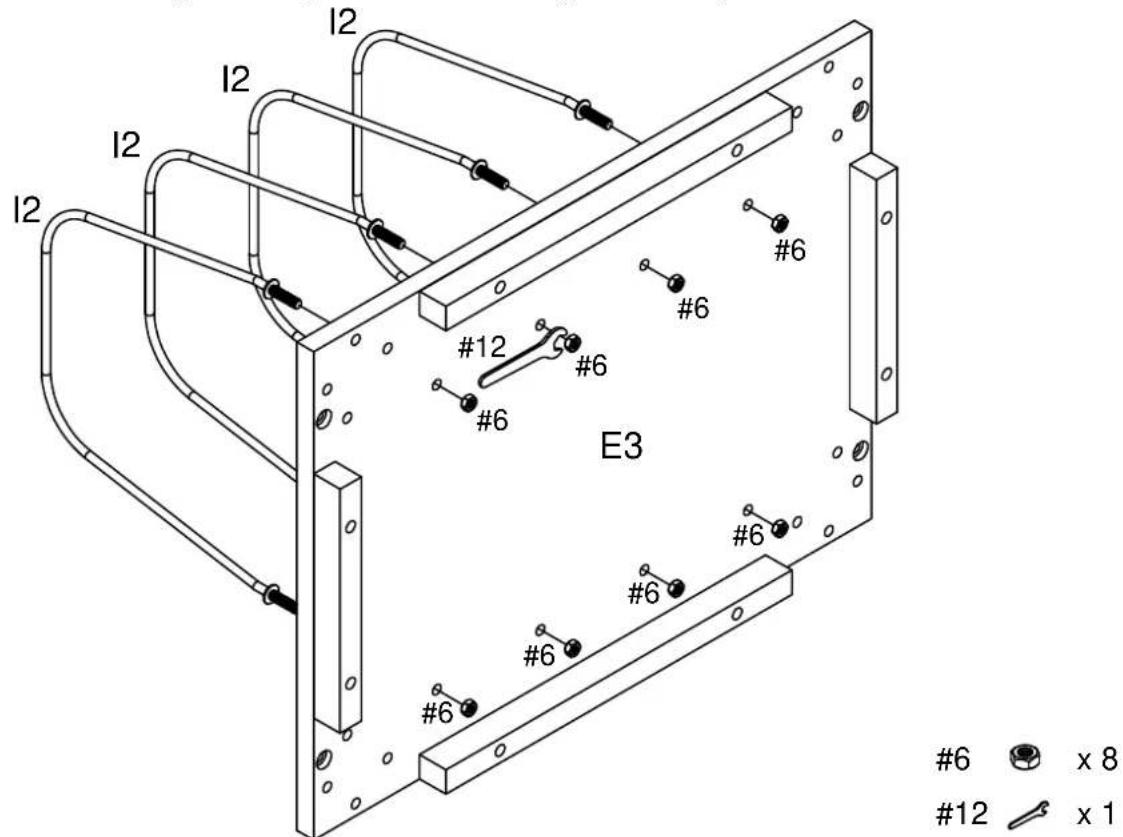

Step 1. Attach metal wires (part I2) to bottom panel (part E3) using hex nuts (part #6) and wrench (part #12).

E3 #6 x 8 #12 x 1 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 #6 @12000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

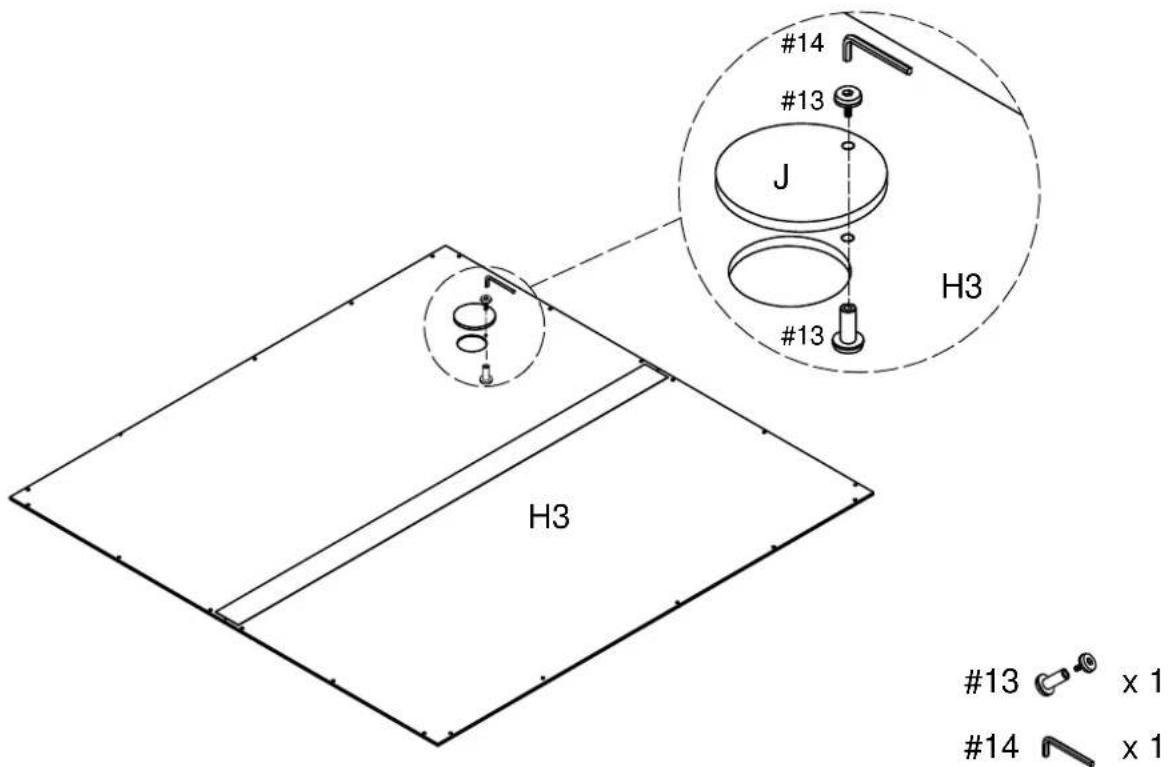

Step 2. Attach covers (part J) to back panel (part H3) using binding posts (part #13) and small allen wrench (part #14).

#14 #13 J H3 #13 H3 #13 x 1 #14 x 1

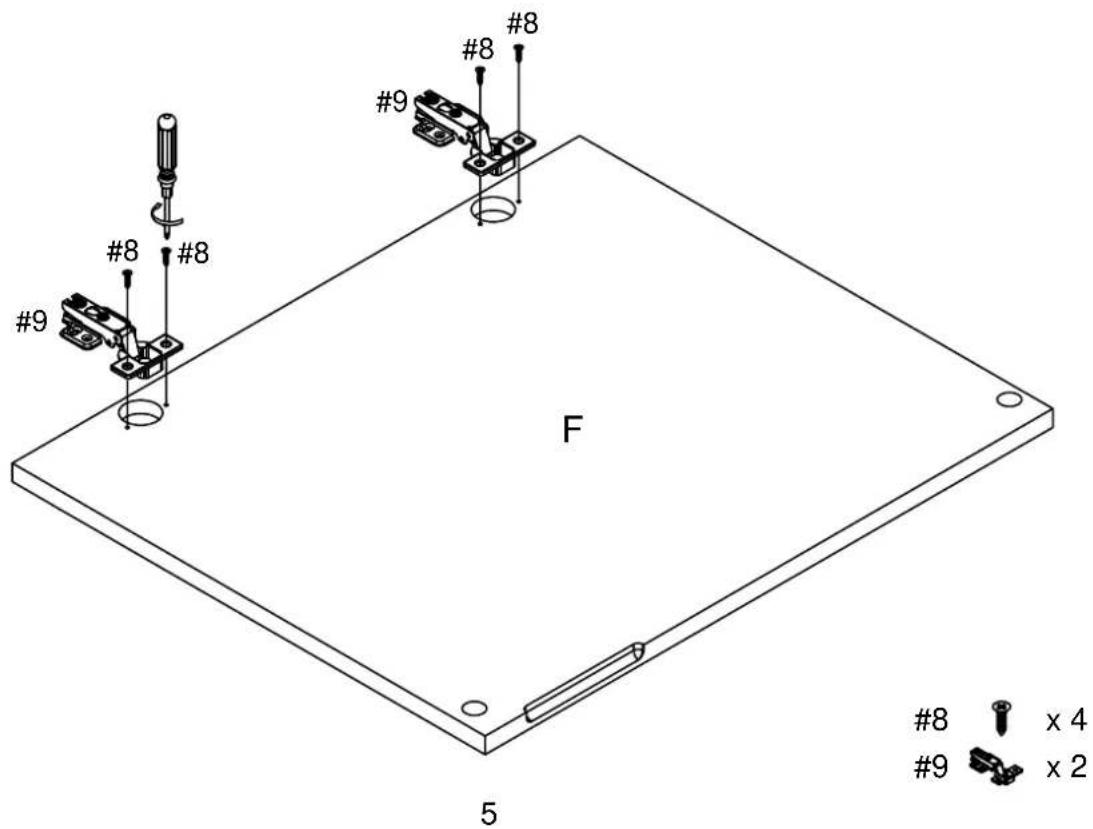

Step 3. Attach door hinges (part #9) to door (part F) using short screws (part #8) and phillips head screwdriver.

#8 #9 #8 #9 #8 #8 F 5 #8 x 4 #9 x 2

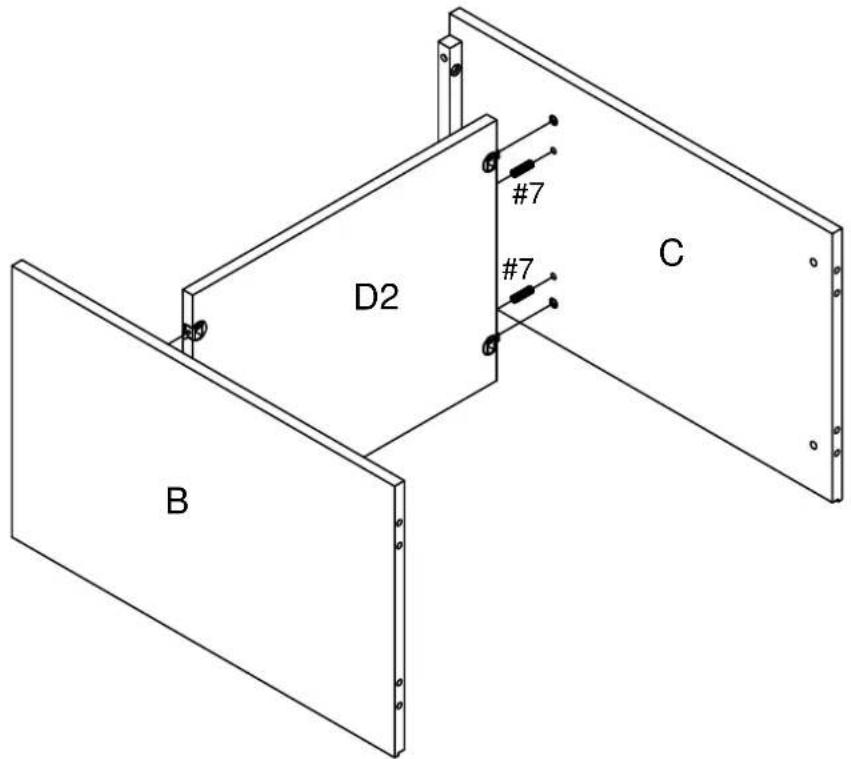

Step 4. Attach fixed shelf (part D2) to panels (parts B & C) using wood dowels (part #7) and locked the hardware.

D2 B C #7 #7

7 × 4

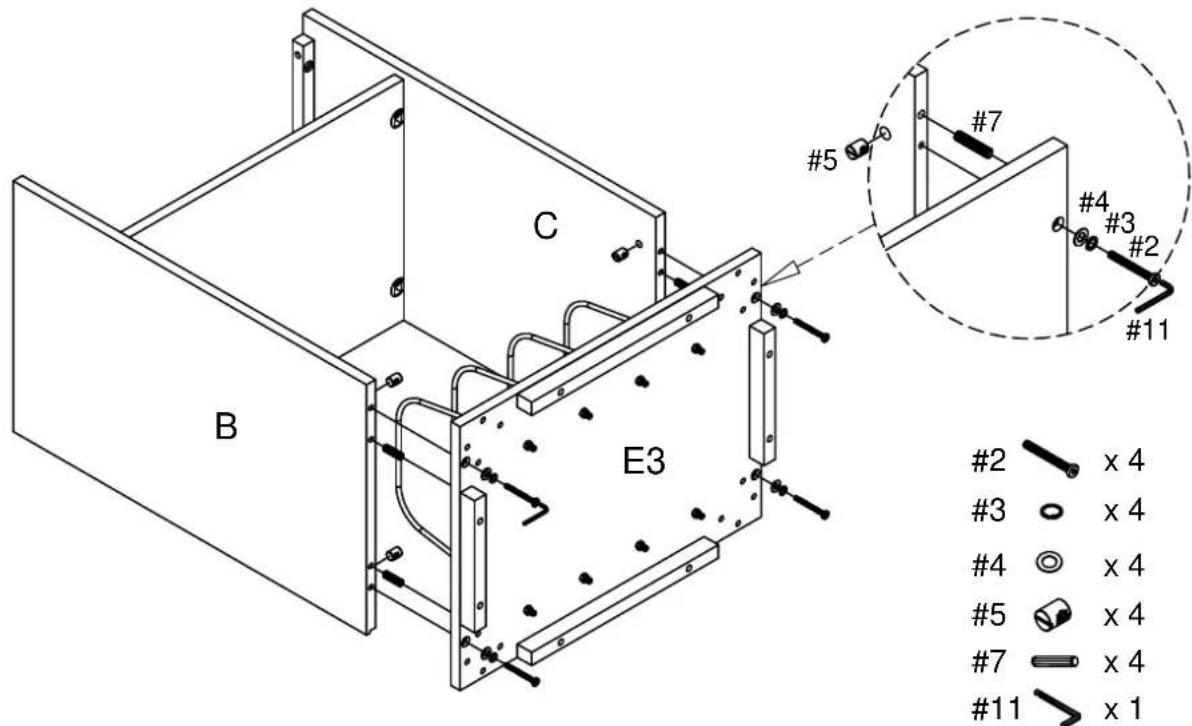

Step 5. Attach bottom panel (part E3) to left panel (part B) and right panel (part C) using wood dowels (part #7), long bolts (part #2), barrel nuts (part #5), spring washers (part #3), flat washers (part #4) and allen wrench (part #11).

B C E3 #5 #7 #4 #3 #2 #11 #2 x 4 #3 x 4 #4 x 4 #5 x 4 #7 x 4 #11 x 1

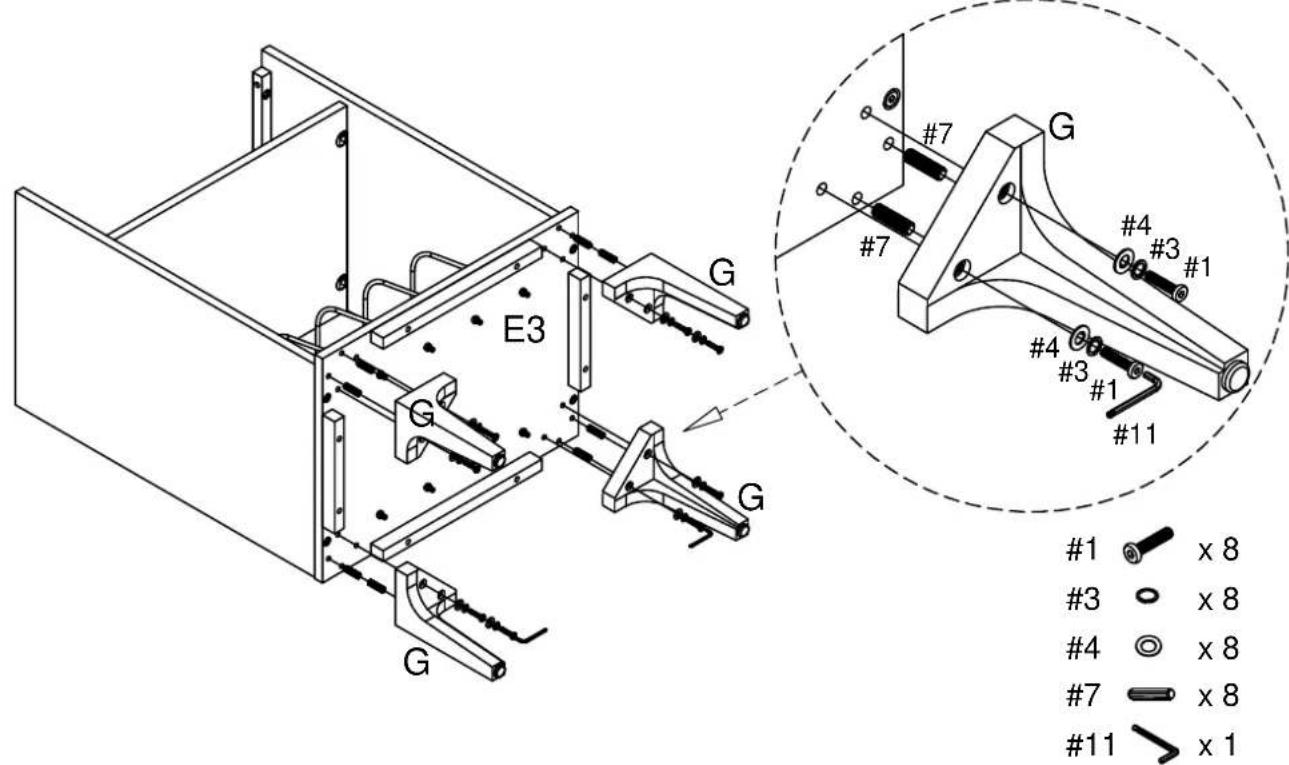

Step 6. Attach legs (part G) to bottom panel (part E3) using wood dowels (part #7), short bolts (part #1), spring washers (part #3), flat washers (part #4) and allen wrench (part #11).

E3 G G G G #7 G #4 #3 #1 #4 #3 #1 #11 #1 x 8 #3 x 8 #4 x 8 #7 x 8 #11 > x 1

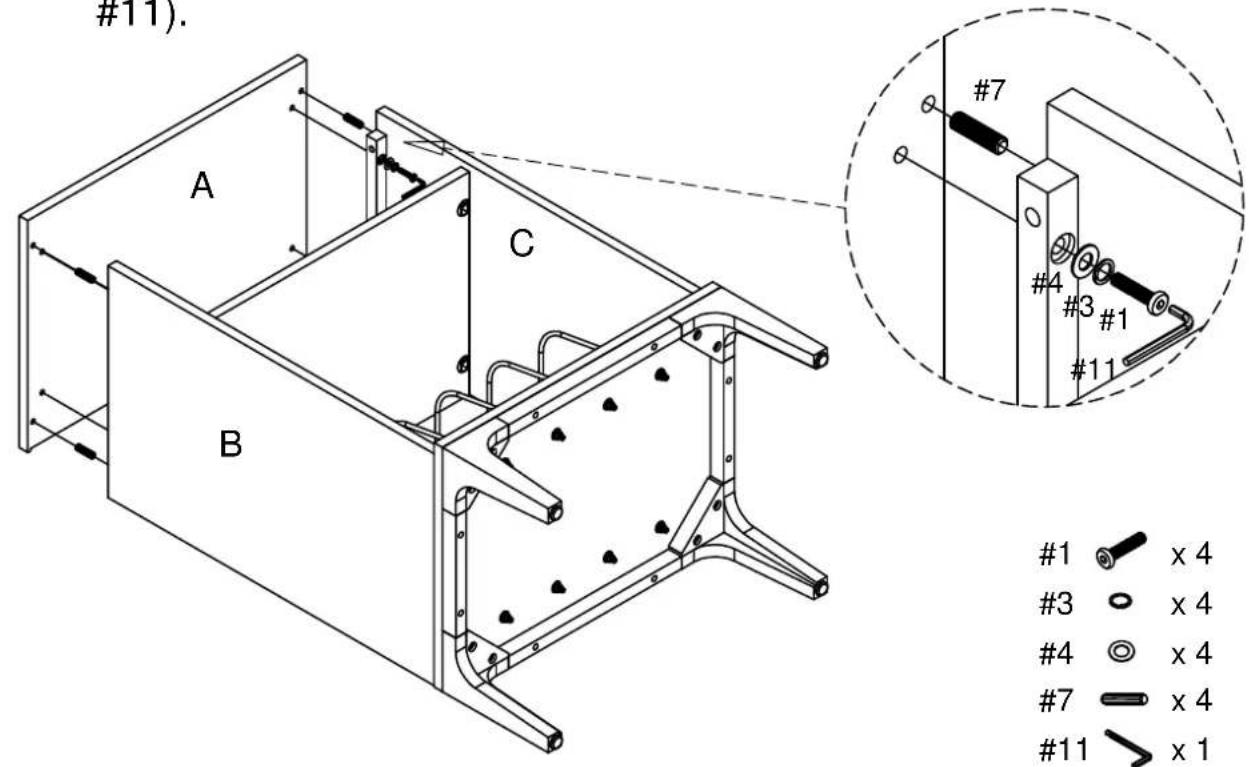

Step 7. Attach top panel (part A) to left panel (part B) and right panel (part C) using wood dowels (part #7), short bolts (part #1), spring washers (part #3), flat washers (part #4) and allen wrench (part #11).

#11). A C B #7 #4 #3 #1 #11 #1 x 4 #3 x 4 #4 x 4 #7 x 4 #11 > x 1

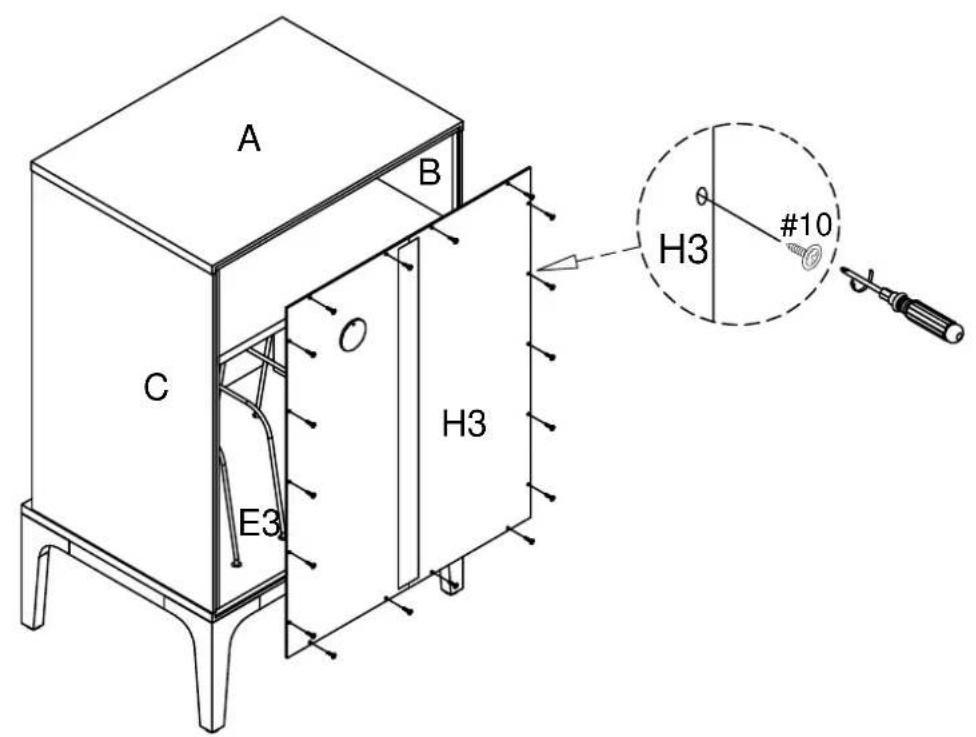

Step 8. Carefully turn unit upright. Attach back panel (part H3) to assembled unit (parts A, B, C & E3) using round head screws (part #10) and phillips head screwdriver.

A B C O H3 E3 #10 H3

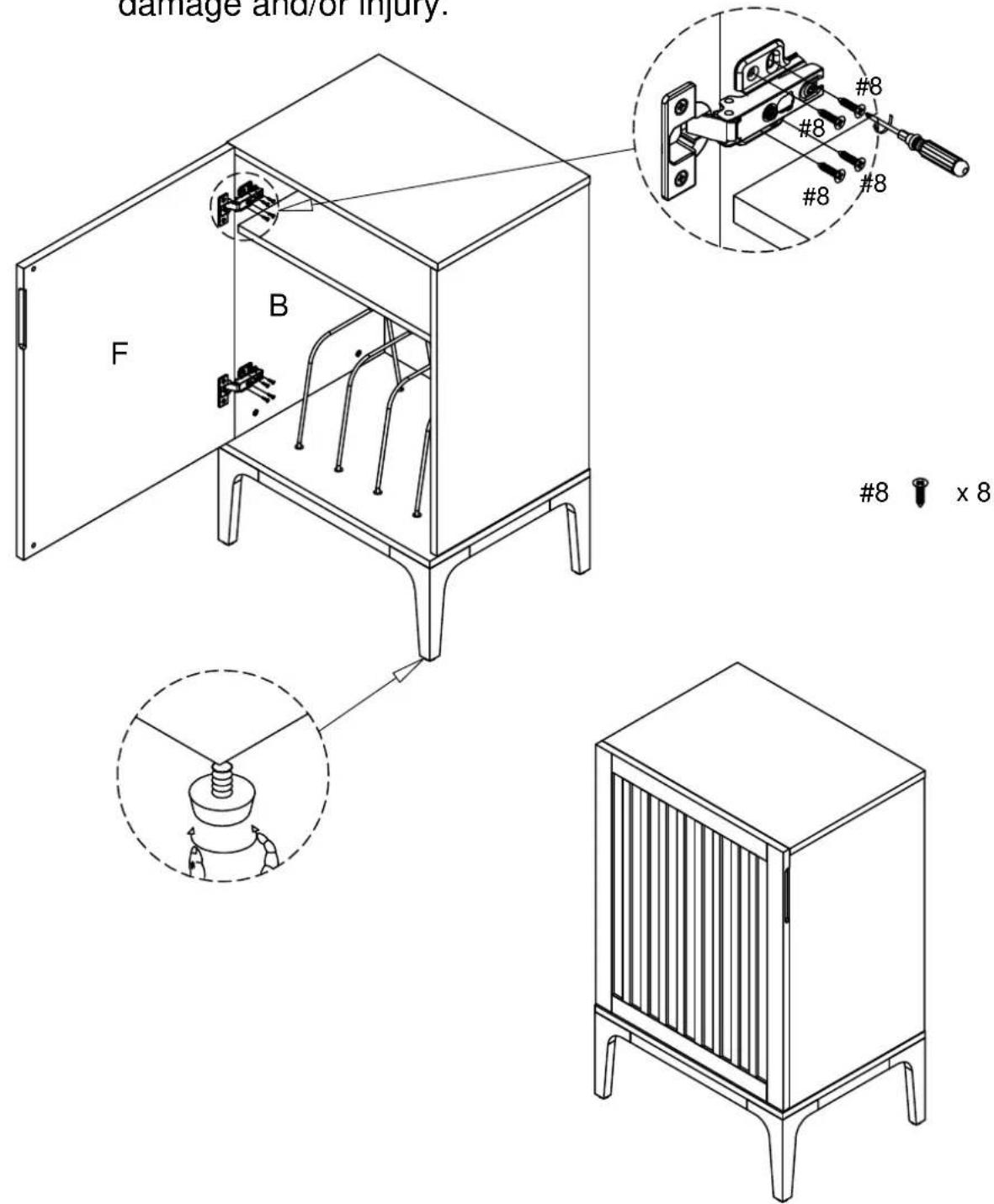

Step 9. Attach door (part F) to left panel (part B) using short screws (part #8) and phillips head screwdriver.

NOTE: It is important to adjust levelers once fully assembled and upright. Extend adjustable leveler until it's firmly in contact with the floor. If relocating, adjust leveler as needed until it's firmly in contact with the floor in new location.

Important: Safety strap kit (part #15) must be installed to prevent tipping, damage and/or injury.

damage and/or injury. F B #8 #8 #8 #8 #8 x 8

#15	A	B	C8*3*15mm	D8*4*35mm	E
Safety Strap Kit1 SET	Wall Anchor1 PC	Bracket2 PCS	Short Screw1 PC	Long Screw1 PC	Safety Wall Strap1 PC

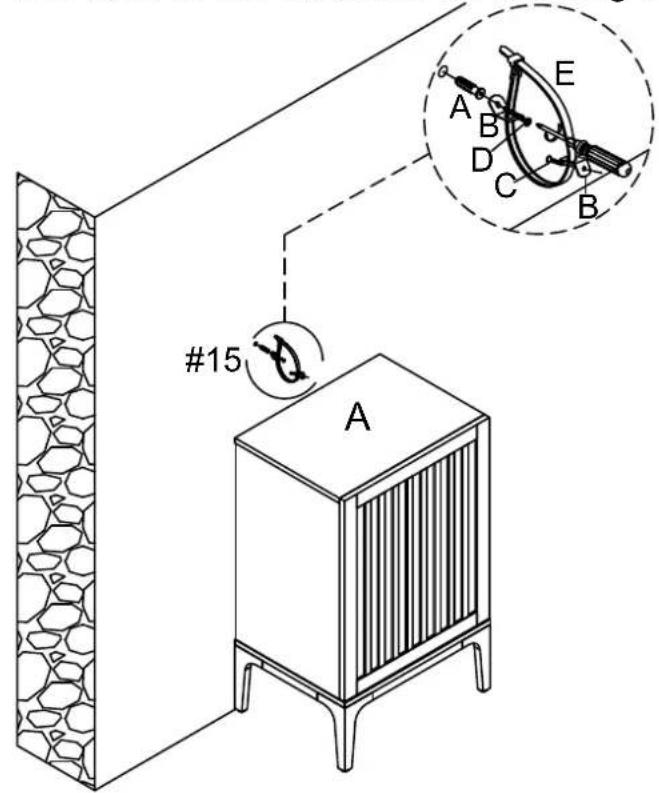

SAFETY WALL STRAP INSTALLATION

Note: It is highly recommended to install this safety strap kit to prevent tipping, damage and/or injury.

1. Insert short screw (C) and safety wall strap (E) through bracket (B) and attach to top panel (part A) using phillips head screwdriver.
2. Drill a 11/32" hole where you want to secure the unit. The drilled hole will be at the same height as the hole in top panel (part A) where bracket (B) is attached. Tap wall anchor (A) into the hole.
3. Insert long screw (D) and safety wall strap (E) through bracket (B) into wall anchor (A) using phillips head screwdriver.

Note: This item is not intended for clothing storage use.

A #15 B C D E

WARNING

Children have died from furniture tipover. To reduce the
risk of furniture tipover: • ALWAYS install tipover restraint provided.
- NEVER put a TV on this product. - NEVER allow children to stand, climb or hang on drawers.
doors, or shelves.
- NEVER open more than one drawer at a time. - Plain harvest items in the
- Place heaviest items in the lowest drawers. This is a permanent label. Do not remove!

ADJUST YOUR DOORS TO MAKE THE GAPS MORE EVEN (OPTIONAL).

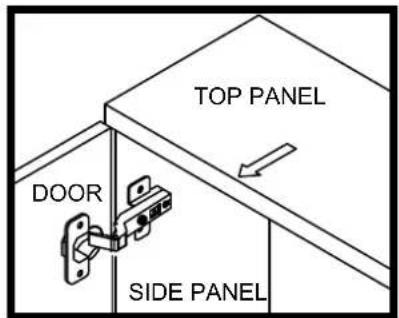

STEP 1: Open the door

TOP PANEL DOOR SIDE PANEL

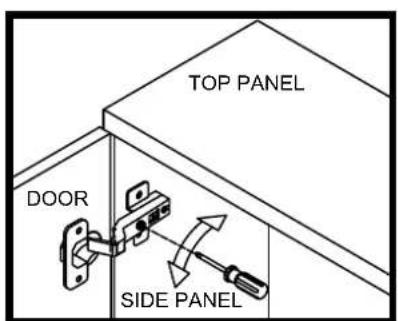

STEP 2: Adjust the gap between door panel and side panel.

TOP PANEL DOOR SIDE PANEL

Loosen the screw indicated a little, adjust the hinge to right position (see step 2a & 2b) then tighten the screw.

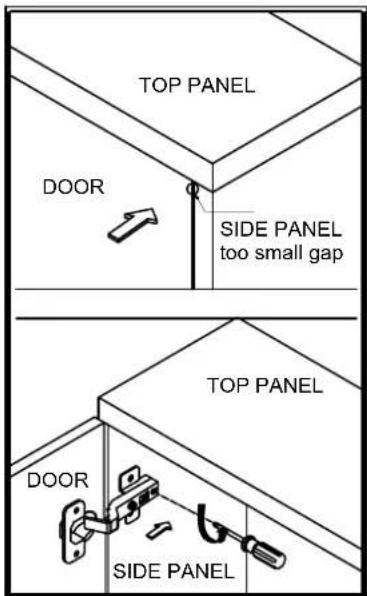

TOP PANEL DOOR SIDE PANEL too small gap TOP PANEL DOOR SIDE PANEL

Push the hinge back a little.

STEP 2b MOVE DOOR OUTSTEP 2a MOVE DOOR

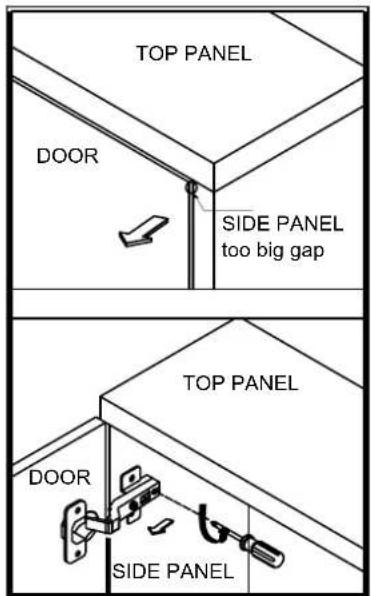

TOP PANEL DOOR SIDE PANEL too big gap TOP PANEL DOOR SIDE PANEL

Push the hinge forward a little.

STEP 3: To adjust the gap between two door.

TOP PANEL DOOR SIDE PANEL

Loosen or tighten the screw indicated a little adjust the gap between doors panels (see step 3a & 3b).

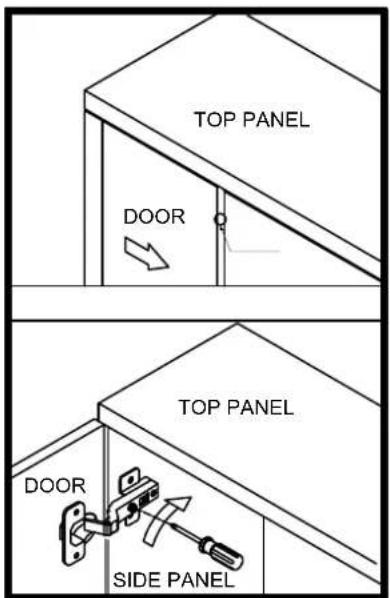

STEP 3a MOVE DOOR RIGHT STEP 3b MOVE DOOR LEFT

TOP PANEL DOOR TOP PANEL DOOR SIDE PANEL

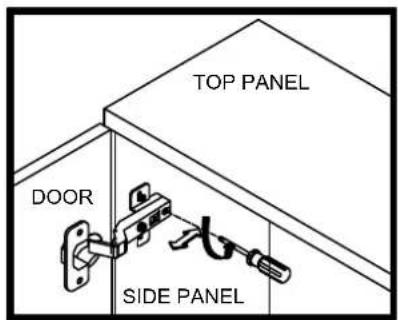

Turn the screw clockwise a little as shown to make the gap small.

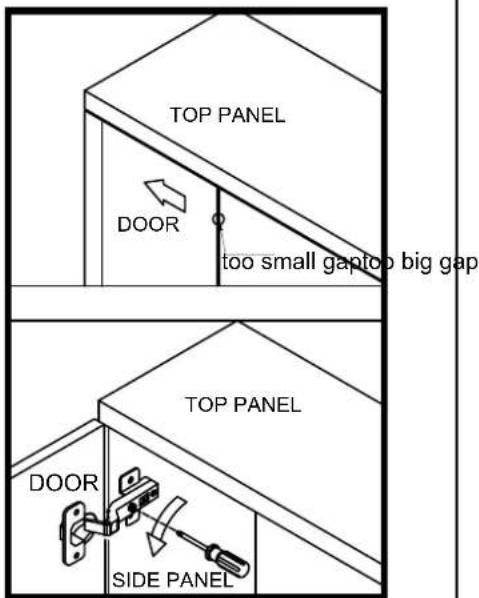

TOP PANEL DOOR too small gaptop big gap TOP PANEL DOOR SIDE PANEL

Turn the screw counterclockwise a little as shown to make the gap big.
