EH 6443 IX - Cooker LERAN - Free user manual and instructions

Product Type	Freestanding Cooker
Brand	LERAN
Model	EH 6443 IX
Color	Stainless Steel
Width	60 cm
Depth	60 cm
Height	85 cm
Weight	Approximately 50 kg
Power Supply	230 V ~ 50/60 Hz
Total Power Consumption	Approximately 10 kW (gas + electric)
Number of Gas Burners	4
Burner Types	1 rapid, 2 semi-rapid, 1 auxiliary
Oven Type	Electric, conventional
Oven Capacity	Approximately 65 L
Grill Function	Yes
Thermostat Range	50°C - 250°C
Safety Features	Flame failure device on gas burners, child lock, oven door safety
Cleaning	Enamel surfaces, removable oven door for easy cleaning
Energy Class	A (for oven)
Spare Parts Availability	From authorized LERAN service centers
Installation	Requires professional installation for gas and electrical connections

Frequently Asked Questions - EH 6443 IX LERAN

How do I clean the oven interior?

Clean the oven interior with a damp cloth and mild detergent. Do not use abrasive cleaners. For stubborn stains, use a ceramic hob scraper carefully.

What should I do if the gas burners do not ignite?

Check if the gas supply is turned on and the flame failure device is clean. If using an igniter, ensure it sparks. If not, replace the oven spark plug or contact service.

Can I use the oven and grill simultaneously?

Yes, the oven and grill can be used at the same time. However, note that the total power consumption may increase. Refer to the user manual for details.

How do I adjust the gas flow for LPG conversion?

Conversion to LPG requires changing the injectors and adjusting the bypass screws. This should be done by a qualified technician following the instructions in the manual.

What type of cookware is suitable for gas burners?

Use cookware with a flat, stable base that fits the burner grate. Avoid oversized pans that may cause flame spread. Stainless steel and cast iron are ideal.

Why is the oven not heating up?

Check the power supply and ensure the oven is properly connected. If the oven still does not heat, the heating element or thermostat may be faulty. Contact service.

How do I replace the oven light bulb?

Disconnect the cooker from the power supply. Remove the glass cover, then replace the bulb with a 25W/300°C halogen bulb (G9 base). Reattach the cover.

Can I install the cooker next to a refrigerator?

It is not recommended due to heat emission. If necessary, leave a gap of at least 10 cm on each side and ensure proper ventilation.

How do I lock the oven door during pyrolytic cleaning?

This model does not have pyrolytic cleaning. The oven door can be locked manually by turning the small lever at the hinge (if applicable). Refer to manual.

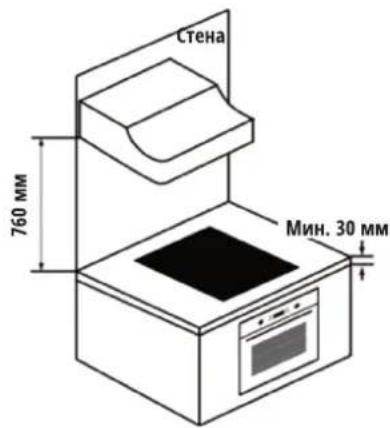

What are the dimensions for recessed installation?

For recessed installation, a cutout of approximately 56 x 48 cm is required. Ensure adequate ventilation clearance around the cooker.

USER MANUAL EH 6443 IX LERAN

Simple line drawing of a 3D rectangular device with a handle, enclosed in a circular border (no text or symbols)

Prohibition symbol of a circular object with flame-like patterns, crossed out by a diagonal line (no text or numbers present)

Prohibition sign showing a fork pressing down on a table with a diagonal line (no text or symbols)

Prohibition symbol of a can crossed out, no text present

Pure diagram of a coiled wire with terminal connectors, no text or symbols present

Prohibition symbol of a cooking pot with a crossed-out box, no text or numbers present

Symbol of crossed-out books with a diagonal line crossing over it, no text or numbers present.

Symbolic illustration of a submerged object with waves, enclosed in a circle (no text or symbols)

Prohibition symbol of a cooking pot with an exclamation mark, enclosed in a circle (no text or numbers present)

Symbol of a hand holding a board, crossed out by a diagonal line (no text or symbols present)

Illustration of a person giving a thumbs-up gesture, enclosed in a circular frame (no text or symbols)

Symbol of crossed-out electrical circuit lines without any text or labels

Simple line drawing of a hand pressing down on a surface, enclosed in a circular frame (no text or symbols)

Pure technical diagram of a rectangular frame with four labeled corner points (A, B, C, D) and no text or symbols beyond labels.

Simple line drawing of a mechanical bracket with a bolt and mounting base, enclosed in a circle (no text or symbols)

Simple line drawing of a cooking pot with crossed-out X marks (no text or symbols)

Simple line drawing of a cooking pot with crossed X marks (no text or symbols)

Simple line drawing of a cooking pot with lid and side handles (no text or symbols)

Simple line drawing of a cooking pot with crossed-out X marks (no text or symbols)

Simple line drawing of a cooking pot with X-shaped marks and flames, no text or symbols present.

Simple line drawing of a cooking pot with crossed-out X marks (no text or symbols)

Simple line drawing of a cooking pot with lid and side handles (no text or symbols)

Diagram of a cooking pot with crossed arrows indicating pressure or flow direction (no text or symbols)

Simple line drawing of a cooking pot with upward and downward arrows indicating direction (no text or symbols)

Two concentric circles with a shaded center, no text or symbols present

A

Simple concentric circle diagram with no text or symbols

B
