RL-ARM - Scanstrut - Free user manual and instructions

Product Type	Radar Leveling Arm
Brand	Scanstrut
Model	RL-ARM
Category	Marine Accessories
Material	Marine-grade aluminum
Weight	1.5 kg
Dimensions (L x W x H)	30 cm x 15 cm x 10 cm
Color	Silver / Black
Mounting Type	Deck or pole mount
Adjustable Angle	Yes, via locking knob
Load Capacity	Up to 20 kg
Installation	Bolt-on with included hardware
Maintenance	Rinse with fresh water after use
Safety	Check all bolts periodically
Included Accessories	Mounting hardware, adjustment knobs
Repair	Replaceable parts available
Warranty	2 years
Country of Origin	United Kingdom
Application	Radar antennas, GPS, satellite domes
Special Features	Corrosion resistant, UV stable

Frequently Asked Questions - RL-ARM Scanstrut

How do I install the RL-ARM?

Use the provided drilling template to mark holes, drill pilot holes, attach the base plate with included bolts, then secure the arm. Tighten all bolts to the recommended torque.

Is the RL-ARM compatible with all radar brands?

The RL-ARM is designed for standard radar bolt patterns. Check your radar's mounting hole dimensions; adapters may be needed for non-standard patterns.

How do I adjust the angle of the arm?

Loosen the central adjustment knob, tilt the arm to the desired angle, then retighten the knob firmly. Do not overtighten.

What maintenance does the RL-ARM require?

After each use, rinse with fresh water to remove salt residue. Annually, lubricate the pivot joint with a marine-grade grease and check for wear.

Can the RL-ARM be used on a sailboat?

Yes, the RL-ARM is marine-rated and suitable for both powerboats and sailboats, including those in saltwater environments.

What is the maximum weight the arm can support?

The RL-ARM has a load capacity of up to 20 kg (44 lbs). Ensure your radar or device does not exceed this limit.

Are replacement parts available for the RL-ARM?

Yes, Scanstrut offers replacement knobs, bolts, and pivot components. Contact Scanstrut customer service or visit their website.

Does the RL-ARM come with installation instructions?

Yes, a printed manual is included in the box. A PDF version can also be downloaded from the Scanstrut website.

What tools are needed for installation?

You will need a drill with appropriate drill bits, a screwdriver, a wrench (size included in hardware), and a tape measure.

Is the RL-ARM corrosion resistant?

Yes, it is constructed from marine-grade aluminum and stainless steel fasteners, making it highly resistant to corrosion in marine environments.

USER MANUAL RL-ARM Scanstrut

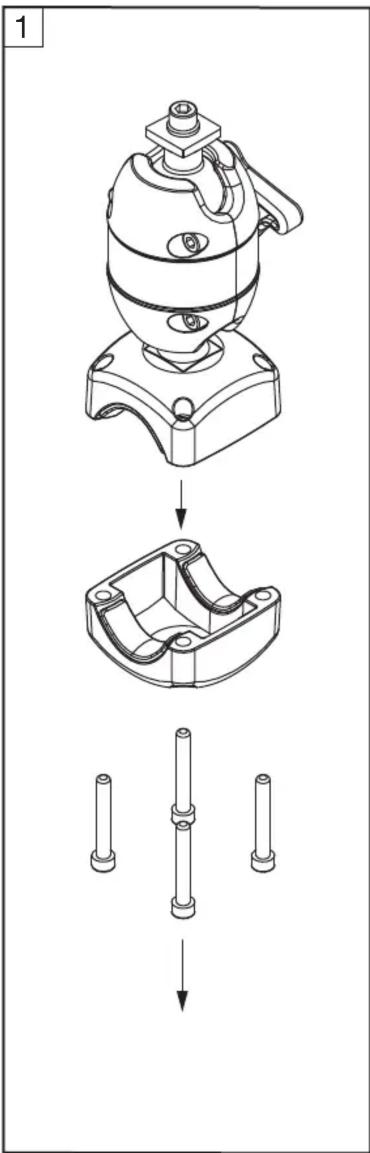

Technical line drawing of a mechanical component labeled 'Parts List' with no visible text or symbols on the diagram itself.

Line drawing of a mechanical device with three cylindrical arms and a central housing (no text or symbols)
