Product Type	HDBaseT Extender
Model	AT-HD50RSL
Brand	Atlona
Maximum Transmission Distance	50 meters (164 ft) over CAT5e/6
Supported Video Resolutions	480i/p, 576i/p, 720p, 1080i/p, 3D
HDMI Compliance	HDMI 1.4 with Deep Color and 3D
HDCP Compliance	HDCP 1.4
Audio Support	LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio
IR Pass-through	Yes, 20 kHz to 60 kHz
Power Supply	5V DC, 2A (included)
Power Consumption	2.5 W (typical)
Dimensions (W x D x H)	120 x 80 x 25 mm (4.7 x 3.1 x 1 in)
Weight	210 g (0.46 lbs)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Housing Material	Metal (aluminum)
LED Indicators	Power, Link, HDCP, Source
Connectors	1 x HDMI input (Type A), 1 x HDMI output (Type A), 1 x RJ45 (output), 1 x IR emitter jack, 1 x IR receiver jack, 1 x DC power jack
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use liquid cleaners.
Safety Precautions	Keep away from water and moisture. Do not disassemble. Use only supplied power adapter.
Spare Parts Availability	Power adapter (5V/2A) available as spare part. Contact Atlona support for other parts.
Repair Information	For repairs, contact authorized Atlona service centers. Do not attempt self-repair. Warranty void if opened.
Mounting	Surface mount using provided brackets or screws (not included)

Frequently Asked Questions - AT-HD50RSL Atlona

How do I connect the Atlona AT-HD50RSL?

Connect an HDMI source to the transmitter unit's input, then run a CAT5e/6 cable from the transmitter's RJ45 output to the receiver's RJ45 input. Finally, connect the receiver's HDMI output to your display. Power both units with the included 5V adapters.

What is the maximum distance supported?

The AT-HD50RSL supports transmission up to 50 meters (164 feet) over CAT5e/6 cabling for 1080p video. Distance may decrease with higher resolutions or lower cable quality.

Does it support 4K resolution?

No, this model is designed for 1080p and 3D signals. For 4K, consider Atlona's 4K HDBaseT extenders.

How do I pass IR signals through the extender?

Connect the included IR emitter to the receiver unit and the IR receiver to the transmitter unit. The IR receiver module should be placed near your source device to pick up remote commands.

What type of cable is required?

Use solid core CAT5e or CAT6 cable with RJ45 connectors. Shielded cable (STP) is recommended for longer runs or noisy environments.

Why is there no video on the display?

Check that both units are powered and the LED indicators are lit. Ensure the HDMI cable is securely connected and the source is outputting a supported resolution. Verify the CAT cable is not longer than 50m and is properly terminated.

Can I use a switch or patch panel in the CAT cable path?

It is not recommended to use switches or patch panels as they may disrupt the HDBaseT signal. For best results, use a direct cable run between transmitter and receiver.

How do I clean the device?

Use a soft, dry cloth to wipe the exterior. Do not use any liquid cleaners or abrasive materials. Keep the ventilation slots clear of dust.

Is the power adapter included?

Yes, each unit (transmitter and receiver) comes with a 5V DC 2A power adapter. Use only the supplied adapters.

What does the LED blinking mean?

A blinking Power LED indicates the device is booting or in standby. A steady Link LED means a valid HDBaseT connection. If the HDCP LED is off, the source or display may have HDCP compatibility issues.

USER MANUAL AT-HD50RSL Atlona

Atlona HDMI over Single CAT5e/6 Distribution Series

AT-HDRS

Two AT-HD15SRS connectors with visible port labels, no text or symbols on the devices themselves.

User Manual

Table of Contents

1. Introduction 3
2. Package Contents 3
3. Features ......
4. Specifications 4
5. CAT5e/6 Termination 4
6. Panel Descriptions

a. AT-HD50SS

b. AT-HD50RSL 6

C. AT-HDSR

d. AT-HD15SRS 7

1. Connection and Installation 8
2. Safety Information 9
3. Warranty
4. Atlona Product Registration 11

Introduction

The Atlona HDMI over Single CAT5e/6 Distribution Series creates the ability to extend any HDMI source up to 130ft (40M). Using the AT-HD50RSL of the series you can cascade from a source to up to 10 devices and up to a combined distanced of 1300ft (400M).

Package Contents

AT-HD50SS

• 1 x AT-HD50SS
• 1 x 5V DC locking universal power supply
• 1 x User Manual

AT-HD50RSL

• 1 x AT-HD50RSL
• 1 x 5V DC locking universal power supply
• 1 x User Manual

AT-HDRS

• 1 x AT-HDRS
• 1 x 5V DC locking universal power supply
• 1 x User Manual

AT-HD15SRS

• 1 x AT-HD15SRS
• 1 x User Manual

Features

• Multiple HDMI extender options. AT-HDRS, AT-HD50RSL with the transmitter AT-HD50SS extend up to 130ft at 1080p over a single CAT5e/6/7 cable.
• AT-HD50RSL's unique CAT5e/6 loop out feature allows an HDMI source to be split to up to 10 HDMI/DVI displays.
  • Supports 3D pass through
  • Digital and Analog audio supported
  • Dolby TrueHD and DTS-HD Master Audio supported on pass through.
• HDCP compliant

Specifications

Bandwidth Frequency	6.75 Gbps
Resolutions Video: up to 1080p
	Vesa: up to 1600x1200
Temperature Operational: 32°F to 104°F or 0°C to 40°C
	Storage: -4°F to 140°F or -20°C to 60°C
	AT-HD50SS AT-HD50RSL AT-HDRS AT-HD15SRS
Inputs 1 x HDMI 1 x RJ45 1 x RJ45 1 x RJ45
Outputs	1 x HDMI1 x RJ451 x 3.5mm audio	1 x HDMI1 x RJ451 x 3.5mm audio	1 x HDMI 1 x HDMI
Dimensions - Inch 1.1 x 7 x 4.3 1.1 x 7 x		4.3 1 x 3.3 x 3.5 0.8 x 1 x 1.8
(H x W x D) MM 27 x	180 x 108 27 x 180 x 108 25 x 85 x 90 20 x 25 x 45
Weight - Ounces	17.6	17.6	6.2 .8
Weight - Grams	515	515	175 22
Power Consumption	1W	1W	1W	0.5W

CAT5e/6 Cable

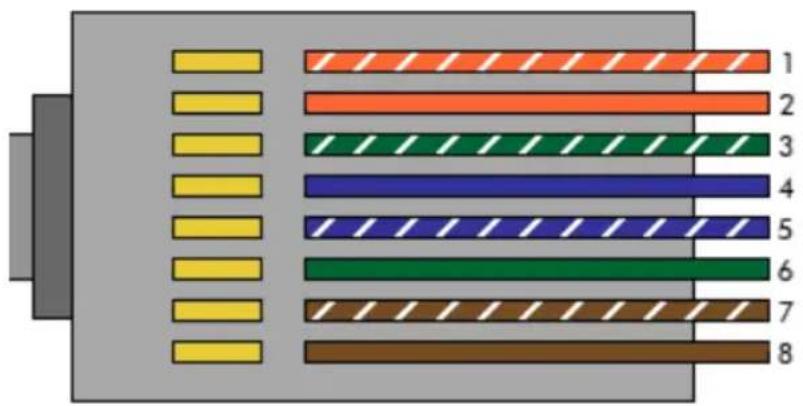

For the CAT5e/6 cables used in these products' set up, please be sure to use a 568B termination as pictured below.

1. White - Orange
2. Orange
3. White - Green
4. Blue
5. White - Blue
6. Green
7. White - Brown
8. Brown

Panel Description

AT-HD50SS

1. Signal LED: Green LED will light up when receiving an HDMI signal. The light will be off when receiving a DVI signal.

2. DIP Switch: Determines resolution and audio. See table below.

3. HDMI IN: HDMI/DVI source connects here. (a DVI to HDMI adapter will be needed to use a DVI source)

4. Audio OUT: Connect a 3.5mm cable to an analog audio device (AVR/Amp).

5. HDMI OUT: Loop out for in zone HDTV.

6. CAT5e/6 OUT: Use to connect to either AT-HD50RSL, AT-HD14SS, AT-HD19SS, AT-HDRS, or AT-HD15SRS. If connected to the AT-HD50RSL, AT-HD14SS, or AT-HD19SS cascading is possible.

7. 5V DC: Connect to the included power supply.

Dip Switch Position		Video Audio Description
Pin 1 Pin	2
Off ↑	Off ↑	1080p Multi-channel		Preset 1: Sets EDID to 1080p with multi-channel audio (including Dolby TrueHD and DTS-HD Master Audio)
Off ↑	On ↓	1080p 2 Channel		Preset 2: Sets EDID to 1080p with 2Ch audio (will work with most HDTVs)
On ↓	Off ↑	720p/1080i	2 Channel	Preset 3: Sets EDID to 720p/1080i with 2Ch audio for older HDTVs or sources that do not have 1080p
On ↓	On ↓	Learn Learn		EDID Learn: Learns the EDID of the connected display, or in the case of an AVR it will learn the audio of the AVR and pass through resolution of the HDTV.

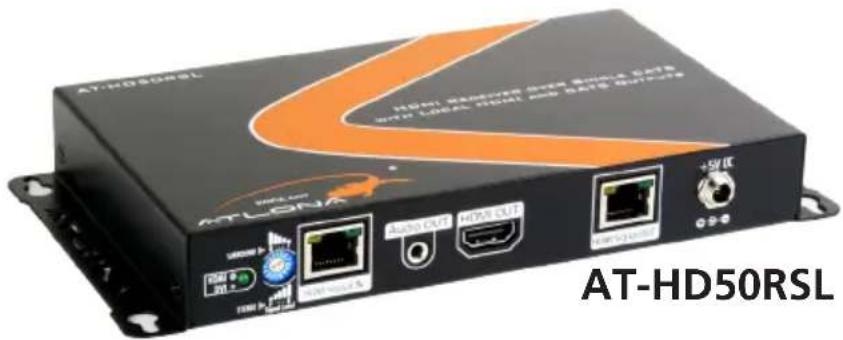

AT-HD50RSL

1. Signal LED: Green LED will light up when receiving an HDMI signal. The light will be off when receiving a DVI signal.

2. Signal optimizer: Change the level of the equalization for the received CAT5e/6/7 signal. Adjust until the video is optimized on the display.

0 to 7 (longest to shortest distance) adjusts picture and audio when receiving digital audio.

8 to F (longest to shortest distance) adjusts picture and audio when receiving stereo audio.

1. CAT5e/6 IN: Receive HDMI/DVI source signal from AT-HD50SS, AT-HD14SS, AT-HD19SS, or AT-HD50RSL.

2. Audio OUT: Connect the 3.5mm cable to any analog audio device (AVR/Amp).

3. HDMI OUT: Loop out HDMI for in zone HDTV.

4. CAT5e/6 OUT: Connect to an AT-HD14SS, AT-HD19SS, AT-HD50SS, or another AT-HD50RSL for cascading or an AT-HDRS or AT-HD15SRS for connection to an HDTV.

5. 5V DC: Connect to the included power supply.

AT-HDRS

1. Signal adjuster: Change the level of the equalization for the received CAT5e/6 signal. Adjust until the video is correct on the display.

0 to 7 (longest to shortest distance) adjusts picture and audio when receiving digital audio.

8 to F (longest to shortest distance) adjusts picture and audio when receiving stereo audio.

1. 5V DC: Connect to the included power supply.

2. HDMI OUT: connect to in zone HDTV

3. CAT5e/6/7 IN: Receive HDMI/DVI source signal from AT-HD50SS, AT-HD14SS, AT-HD19SS, or AT-HD50RSL.

AT-HD15SRS

Two black USB connectors with labeled ports, one showing a port and the other a network interface (no text or symbols on the devices themselves)

1. HDMI OUT: Connect to in zone HDTV
2. CAT5e/6 IN: Receive HDMI/DVI source signal from AT-HD50SS, AT-HD14SS, AT-HD19SS, or AT-HD50RSL.

Connection

Safety Information

Safeguards

To reduce the risk of electric shock, do not expose this product to rain or moisture

If the wall plug does not fit into your local power socket, hire an electrician to replace your obsolete socket.

Do not modify the wall plug. Doing so will void the warranty and safety features.

This equipment should be installed near the socket outlet and the device should be easily accessible in the case it requires disconnection.

Precautions

FCC regulations state that any unauthorized changes or modifications to this equipment, not expressly approved by the manufacturer, could void the user's authority to operate this equipment.

Operate this product using only the included external power supply. Use of other power supplies could impair performance, damage the product, or cause fires.

In the event of an electrostatic discharge this device may automatically turn off. If this occurs, unplug the device and plug it back in.

Protect and route power cords so they will not be stepped on or pinched by anything placed on or against them. Be especially careful of plug-ins or cord exit points from this product.

Avoid excessive humidity, sudden temperature changes or temperature extremes.

Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements, fish tanks, and swimming pools.

Use only accessories recommended by Atlona to avoid fire, shock, or other hazards.

Unplug the product before cleaning. Use a damp cloth for cleaning and not cleaning fluid or aerosols. Such products could enter the unit and cause damage, fire, or electric shock. Some substances may also mar the finish of the product.

Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-HD50SS, AT-HD50RSL, AT-HDRS, or AT-HD15SRS. Opening the product will void the warranty.

Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.

Warranty

Limited Warranty

Atlona Technologies warrants that (a) its products (AT-HD50SS, AT-HD50RSL, AT-HDRS, or AT-HD15SRS) will perform substantially in accordance with the accompanying written materials for a period of 3 years from the date of receipt and (b) that the product will be free from defects in materials and workmanship under normal use and service for a period of 3 years. In the event applicable law imposes any implied warranties, the implied warranty period is limited to 3 years from the date of receipt. Some jurisdictions do not allow such limitations on duration of an implied warranty, so the above limitation may not apply to customers that fall within those areas.

Customer Remedies

Atlona Technologies' and its suppliers' entire liability and Customer's exclusive remedy shall be, at Atlona Technologies' decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer's receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. In example but not limited to: power surges (electrical storms, local power outage), dropping the product (or items on the product), contact with fluids, and physical misconduct (i.e. kicking or punching). Any replacement product will be warranted for the remainder of the original warranty period.

No other warranties

To the maximum extent permitted by applicable law, Atlona Technologies and its suppliers disclaim all other warranties, either expressed or implied, including, but not limited to, implied warranties of merchantability and fitness for a particular purpose, with regard to the product and any related written materials. This Limited Warranty gives customer specific legal rights. Customers may have other rights depending on the jurisdiction.

No liability for damages

To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, incidental, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. Atlona Technologies' and its suppliers' entire liability under any provision of this agreement shall be limited to the amount actually paid by you for the product. Some Jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damage. The above limitations may not apply to you in such jurisdictional cases.

Atlona Product Registration

Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase.

Registration creates an ownership record if your product is lost or stolen and helps ensure you'll receive notification of performance issues and firmware updates.

At Atlona, we respect and protect your privacy, assuring you that your registration information is completely secure. Atlona product registration is completely voluntary and failure to register will not diminish your limited warranty rights.

To register go to: http://www.atlona.com/registration
