Grand Touring GTO526 - Car Speaker JBL - Free user manual and instructions

Product Type	Car Speaker (Coaxial)
Brand	JBL
Model	Grand Touring GTO526
Speaker Size	5.25 inches (130 mm)
Speaker Type	2-Way Coaxial
Peak Power	180 Watts
RMS Power	45 Watts
Impedance	4 Ohms
Frequency Response	60 Hz - 21 kHz
Sensitivity	92 dB @ 1W/1m
Mounting Depth	1.85 in (47 mm)
Cutout Diameter	4.625 in (117 mm)
Cone Material	Polypropylene
Tweeter	0.5 in (13 mm) Soft Dome
Weight	2.2 lbs (1 kg)
Power Source	Passive (Car Audio System)
Key Features	High-quality sound, easy installation, durable build
Maintenance & Cleaning	Wipe with dry cloth; avoid moisture
Safety	Ensure proper mounting to prevent rattling or damage
Spare Parts & Repairability	Not user-serviceable; contact JBL service center
General Information	Designed for car audio systems; compatible with most vehicles

Frequently Asked Questions - Grand Touring GTO526 JBL

What is the speaker size of the JBL GTO526?

The JBL GTO526 is a 5.25-inch (130 mm) coaxial speaker.

What is the power handling of this speaker?

It handles 45 Watts RMS and 180 Watts peak power.

What is the impedance of the GTO526?

The speaker has a 4-ohm impedance.

Does the JBL GTO526 come with mounting hardware?

Yes, it typically includes mounting screws and wire connectors.

How do I install the JBL GTO526 speakers?

Install by connecting wires to the terminals, securing the speaker in the cutout, and tightening screws. Ensure proper polarity.

Will the GTO526 fit in my car?

Check the cutout diameter (4.625 in) and mounting depth (1.85 in) to ensure compatibility.

What is the frequency response of this speaker?

It reproduces frequencies from 60 Hz to 21 kHz.

How to clean the JBL GTO526 speakers?

Clean with a soft, dry cloth. Avoid water or cleaning agents.

Can I use the GTO526 in a marine environment?

No, it is designed for in-car use only and not water-resistant.

What is the warranty for the JBL GTO526?

Warranty varies by region; check JBL's official warranty policy or contact support.

USER MANUAL Grand Touring GTO526 JBL

m ultielements owner's manual

THANK YOU

for purchasing JBL Grand Touring® Series

automotive speakers. We've organized

this manual to make your installation

as simple and trouble-free as possible.

Please read it thoroughly before proceeding.

Remember to keep your sales receipt and this manual

in a safe place so both are available for future reference.

Designed and

Engineered

in the USA

INSTALLATION WARNINGS AND TIPS

ABOUT THESE INSTRUCTIONS

Installation of automotive stereo components can require extensive experience with a variety of mechanical and electrical procedures. Although these instructions explain how to install Grand Touring Series multielement speakers in a general sense, they do not show the exact installation methods for your particular vehicle. If you do not feel you have the experience, do not attempt the installation yourself, but instead ask your authorized JBL car audio dealer about professional installation options.

LOUD MUSIC AND HEARING

Playing loud music in an automobile can hinder your ability to hear traffic as well as permanently damage your hearing. The maximum volume levels achievable with JBL speakers, combined with high power amplification, may exceed safe levels for extended listening. We recommend using low volume levels when driving. JBL accepts no liability for hearing loss, bodily injury, or property damage as a result of use or misuse of this product.

REAR DECK PRECAUTION

In some cars, fuel tanks may be located directly beneath the rear deck. Before installation, make sure there is adequate speaker basket clearance before considering this location!

INSTALLATION TIPS

• A lways wear protective eyewear when using any tools.
• Turn off all audio components and other electrical devices before you start. Disconnect the (−) negative lead from your vehicle's battery.
• Keep speakers in their package until final installation. When moving a speaker, always rest it with the cone or dome facing up. Never use force to install any speaker.
• Check clearances on both sides of a planned mounting surface before drilling any holes or installing any screws. Remember that the screws can extend behind the surface.
• A t the installation sites, locate and make a note of all fuel lines, hydraulic brake lines, vacuum lines and electrical wiring. Use extreme caution when cutting or drilling in and around these areas.
• Before drilling or cutting holes, use a utility knife to remove unwanted fabric or vinyl, to keep material from snagging in a drill bit or saw.
• For door installations, check the clearance with the windows throughout the range of the window's travel, and verify that a mounted speaker will not interfere with the window crank or power window mechanism.
• If mounting speakers elsewhere, check for clearance around rear deck torsion bars, glove box or other structural elements.
• Do not mount speakers where they will get wet.

INSTALLATION

Figure 1. Mounting the GTO426, GTO526, GTO626, GTO636, GTO926 or GTO936 using the supplied grille.

Rotate tweeter so it is angled toward the listener using the UniPivot™ (patent no. 6,002,780) feature on the GTO526, GTO626, GTO926 and GTO8626.

Figure 2. Modifying the GTO426 to be installed in locations requiring fewer than four mounting "ears."

NOTE: Grip the tab (preferably with pliers) and bend to detach it from the speaker.

INSTALLATION

Figure 3. Mounting the GTO8626 and GTO6426.

NOTE: The GTO8626 and GTO6426 speakers are designed to be installed under factory grilles. Consequently, no grilles are packaged with these models.

NOTE: The GTO326 mounts similarly.

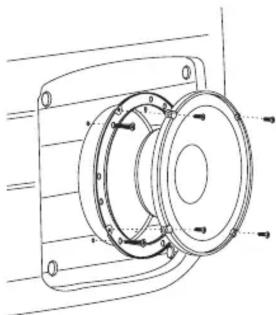

Figure 4. Mounting the GTO626 or GTO636 using the supplied grilles.

Rotate tweeter so it is angled
toward the listener using the UniRivert™/patent no. 6.002.780)
UniFivot (patent no. 6,002,780) feature on the CT050C CT060C
feature on the GTO526 GTO926 and GTO8626.
Mounting the GTO626 or GTO636 in 165mm speaker locations.

Figure 5.

Figure 6. Mounting the GTO626 and GTO636 in standard speaker locations.

NOTE: The GTO626 and GTO636 use an adapter to fit a variety of different 6" openings. Select an appropriate adapter ring and secure it to the vehicle using the sheet-metal screws provided, then attach the speaker to the ring with the machine screws.

JBL

SPECIFICATIONS

GTO326 GTO426 GTO526 GTO626 GT0636 GTO926 GTO936 GTO6426 GTO8626

Type:	3-1/2"two-way	4"two-way	5-1/4"two-way	6-1/2"two-way	6-1/2"three-way	6" x 9"two-way	6" x 9"three-way	4" x 6"two-way	6" x 8" (and 5" x 7")two-way
SpeakerImpedance:	4 ohms	4 ohms	4 ohms	4 ohms	4 ohms	4 ohms	4 ohms	4 ohms	4 ohms
PowerHandling:	25W RMS,75W Peak	35W RMS,105W Peak	45W RMS,135W Peak	60W RMS,180W Peak	60W RMS,180W Peak	100W RMS,300W Peak	100W RMS,300W Peak	40W RMS,120W Peak	60WRMS,180W Peak
Sensitivity(2.83V, 1m):	89dB	89dB	89dB	90dB	90dB	91dB	91dB	89dB	90dB
FrequencyResponse:	90Hz – 21kHz	90Hz – 21kHz	70Hz – 21kHz	55Hz – 21kHz	55Hz – 21kHz	50Hz – 21kHz	50Hz – 21kHz	75Hz – 21kHz	50Hz – 21kHz
MountingDepth:	1-7/16"(37mm)	2-1/8"(54mm)	2-3/8"(61mm)	2-1/8"(54mm)	2-1/8"(54mm)	3-1/4"(83mm)	3-1/4"(83mm)	1-13/16"(47mm)	2-7/16"(62mm)
Cut-OutDiameter:	3-5/16"(85mm)	3-5/8"(93mm)	4-11/16"(120mm)	5-1/8"(131mm)	5-1/8"(131mm)	8-13/16" x 6"(224mm x 153mm)	8-13/16" x 6"(224mm x 153mm)	5-3/4" x 3-5/16"(147mm x 85mm)	7-3/16" x 4-15/16"(183mm x 126mm)

GENERAL CARE

The loudspeaker grilles may be cleaned with a damp cloth. Do not use any cleaners or solvents on the grilles or the speaker cones.

A valid serial number is required for warranty coverage.

Features, specifications and appearance are subject to change without notice.

Declaration of Conformity

CE

We, H arman Consumer International

2, route de Tours

72500 Chateau-du-Loir

France

declare in own responsibility that the products

described in this owner's manual are in compliance with technical standards:

EN 50081-1:1992

EN 50082-1:1997

Emmanuel Millot Harman Consumer International Chateau-du-Loir, France 2/03

JBL Consumer Products

250 Crossways Park Drive, Woodbury, NY 11797 USA

1.800.336.4JBL (4525) • FAX [phone] • www.jbl.com

© 2003 Harman International Industries, Incorporated

JBL is a registered trademark of

Harman International Industries, Incorporated.

Part No. GTMEOM2/03

H A Harman International Company

JBL
