Product Type	4-inch 2-Way Car Speaker
Brand	Infinity
Model	Kappa 42.5I
Speaker Size	4 inches
Speaker Configuration	2-Way (Woofer and Tweeter)
Impedance	4 ohms
Power Handling (RMS)	50 Watts RMS
Power Handling (Peak)	150 Watts Peak
Sensitivity	90 dB (2.83V @ 1m)
Frequency Response	75 Hz - 21 kHz
Mounting Depth	1-13/16 inches (47 mm)
Cut-Out Diameter	3-5/8 inches (93 mm)
Crossover Type	In-line crossover (required)
Tweeter Type	Fixed (non-rotatable)
Included Accessories	Grille, mounting hardware, crossover
Mounting Location	Doors, rear deck, kick panels
Safety Warnings	Disconnect battery before installation; avoid hearing damage; check clearance for fuel lines
Maintenance	Clean with dry cloth; avoid water exposure
Certifications	CE compliant

Frequently Asked Questions - Kappa 42.5I INFINITY

What is the recommended amplifier power for the Infinity Kappa 42.5I?

The speaker handles 50W RMS and 150W peak. An amplifier delivering 25-75W RMS per channel is ideal for optimal performance.

Can I install the Kappa 42.5I in my car doors?

Yes, it is designed for door mounting. Ensure clearance for the window mechanism and check depth (1-13/16") before installation.

Does the Kappa 42.5I come with a grille?

Yes, a grille is included. For custom-fit models like the 32.5cf, grilles are not included, but the 42.5i comes with one.

Is a crossover required for this speaker?

Yes, an in-line crossover is included and must be used to prevent damage. Do not omit or substitute it.

What is the cut-out diameter for the 42.5I?

The cut-out diameter is 3-5/8 inches (93 mm). Ensure your mounting location matches this size.

Can I use the Kappa 42.5I with a factory stereo?

Yes, but for best results use an external amplifier. The 4-ohm impedance is compatible with most factory head units.

How do I connect the crossover?

Connect the crossover between the amplifier output and the speaker. Wires are keyed and color-coded for correct polarity. The larger terminal is positive (+).

What tools are needed for installation?

Basic tools: screwdriver, drill, wire cutters, utility knife, and protective eyewear. Also need a battery disconnect tool.

Is the Kappa 42.5I weather-resistant?

No, avoid mounting where it can get wet. It is for interior use only.

What is the frequency response of the Kappa 42.5I?

The frequency response is 75 Hz - 21 kHz, suitable for full-range audio reproduction.

USER MANUAL Kappa 42.5I INFINITY

Infinity®

kappa series

42.5i, 52.5i, 62.5i, 63.5i,

652.5i, 692.5i, 693.5i,

32.5 c f, 462.5 c fp, 572.5 cf

instructions

INSTALLATION WARNINGS AND TIPS

ABOUT THESE INSTRUCTIONS

Installation of automotive stereo components can require extensive experience with a variety of mechanical and electrical procedures. Although these instructions explain how to install Kappa Series multi-element speakers in a general sense, they do not show the exact installation methods for your particular vehicle. If you do not feel you have the experience, do not attempt the installation yourself, but instead ask your authorized Infinity car audio dealer about professional installation options.

LOUD MUSIC AND HEARING

Playing loud music in an automobile can hinder your ability to hear traffic as well as permanently damage your hearing. The maximum volume levels achievable with Infinity speakers, combined with high power amplification, may exceed safe levels for extended listening. We recommend using low volume levels when driving. Infinity accepts no liability for hearing loss, bodily injury, or property damage as a result of use or misuse of this product.

REAR DECK PRECAUTION

In some cars, fuel tanks may be located directly beneath the rear deck. Before installation, make sure there is adequate speaker basket clearance before considering this location!

ABOUT THE CROSSOVER

Except for the 462.5cfp, each Kappa Series multi-element speaker includes a crossover for in-line connection to an amplifier output and is required for proper operation (see Figure 7 on the next page). The attached crossover wires are keyed and color-coded to aid in correct polarity connections. Do not omit the crossover or substitute another one – doing so will damage the speaker.

INSTALLATION TIPS

• Always wear protective eyewear when using any tools.
- T urn off all audio components and other electrical devices before you start. Disconnect the (-) negative lead from your vehicle's battery.
- Keep speakers in their package until final installation. When moving a speaker, always rest it with the cone or dome facing up. Never use force to install any speaker.
- Check clearances on both sides of a planned mounting surface before drilling any holes or installing any screws. Remember that the screws can extend behind the surface.
- At the installation sites, locate and make a note of all fuel lines, hydraulic brake lines, vacuum lines and electrical wiring. Use extreme caution when cutting or drilling in and around these areas.
- Before drilling or cutting holes, use a utility knife to remove unwanted fabric or vinyl, to keep material from snagging in a drill bit or saw.
- F or door installations, check the clearance with the windows throughout the range of the window's travel, and verify that a mounted speaker will not interfere with the window crank or power window mechanism.
- If mounting speakers elsewhere, check for clearance around rear deck torsion bars, glove box or other structural elements.
- Do not mount speakers where they will get wet.

INSTALLATION

Figure 1. Mounting the 42.5i, 52.5i, 62.5i, 63.5i, 692.5i, 693.5i, 32.5cf or 572.5cf.

NOTE: The 32.5cf, 462.5cfp and 572.5cf speakers are designed to be installed under factory grilles. Consequently, no grilles are packaged with these models.

NOTE: If you are mounting the 572.5cf in a 6" x 8" location, use the adapter provided.

Figure 2. Modifying the 42.5i to be installed in locations requiring fewer than 4 mounting "ears". (The 62.5i and 63.5i may be similarly modified.)

NOTE: Grip the tab with pliers and bend to detach it from the speaker.

Technical diagram of a mechanical assembly with concentric components and directional arrows (no text or labels)

ROTATE TWEETER SO IT
IS ANGLED TOWARD
THE LISTENER USING
THE UNIPIVOT
Ipatent no. 6,002,780)
FEATURE ON THE 52.5i
62.5i, 652.5i, 572.5cf
AND 692.5i.

Line drawing of a hand holding a speaker component with a pointer indicating the lever (no text or symbols present)

INSTALLATION

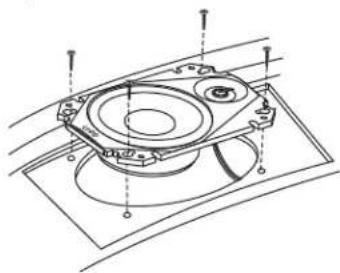

Figure 3. Mounting the 572.5cf or 462.5cfp. The 32.5cf (not shown) is mounted in a similar way.

NOTE: The 32.5cf, 462.5cfp, and 572.5cf speakers are designed to be installed under factory grilles. Consequently, no grilles are packaged with these Kappa models.

Technical line drawing of a speaker or fan assembly with concentric ovals and base plate (no text or symbols)

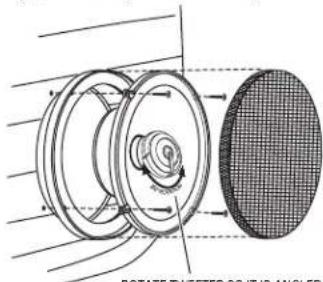

Figure 4. Mounting the 62.5i with the grille.

ROTATE TWEETER SO IT IS ANGLED TOWARD THE LISTENER USING THE UNIPIVOT™ (patent no. 6,002,780) FEATURE ON THE 52.5i, 62.5i, 652.5i, 572.5cf AND 692.5i.

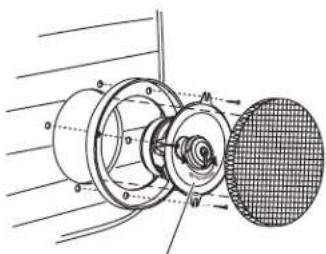

Figure 6. Mounting the 62.5i in a 165mm speaker location.

Technical line drawing of a mechanical component with no visible text or symbols

ROTATE TWEETER SO IT IS ANGLED TOWARD THE LISTENER USING THE UNIPIVOT® (patent no. 6,002,780) FEATURE ON THE 52.5i, 62.5i, 652.5i, 572.5cf AND 692.5i.

CONNECTIONS

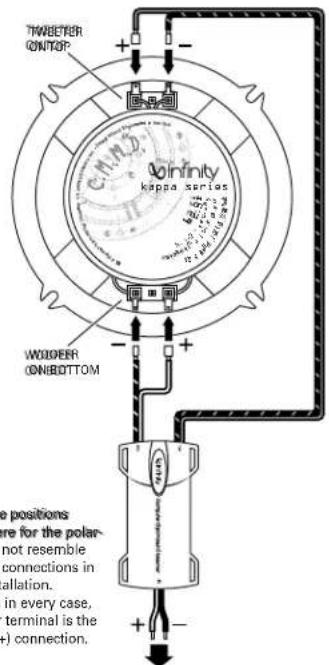

Figure 7. Connecting an in-line crossover to a 62.5i and an amplifier output. Other speaker models are connected in a similar way.

To Amp Output

Figure 3a.

Technical line drawing of a mechanical component with mounting holes and central housing (no text or symbols)

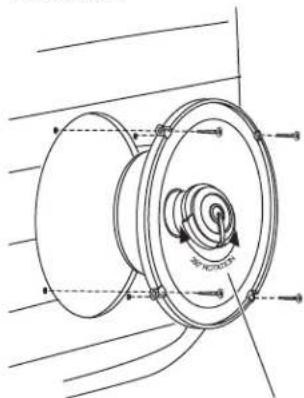

Figure 5. Mounting the 62.5i in a standard speaker location.

ROTATE TWEETER SO IT IS ANGLED TOWARD THE LISTENER USING THE UNIPIVOT" (patent no. 6,002,780) FEATURE ON THE 52.5i, 62.5i, 652.5i, 572.5cf AND 692.5i.

NOTE: The positions shown here for the polarities may not resemble the exact connections in every installation. However, in every case, the larger terminal is the positive (+) connection.

SPECIFICATIONS

42.5i

Type: 4" 2-Way

Speaker Impedance: 4 ohms

Power Handling: 50W RMS, 150W Peak

Sensitivity (2.83V, 1m): 90dB

Frequency Response: 75Hz - 21kHz

Mounting Depth: 1-13/16" (47mm)

Cut-Out Diameter: 3-5/8" (93mm)

52.5i

Type: 5-1/4" 2-Way

Speaker Impedance: 4 ohms

Power Handling: 55W RMS, 165W Peak

Sensitivity (2.83V, 1m): 90dB

Frequency Response: 55Hz - 21kHz

Mounting Depth: 2-1/16" (53mm)

Cut-Out Diameter: 4-11/16" (120mm)

62.5i

Type: 6-1/2" 2-Way

Speaker Impedance: 4 ohms

Power Handling: 75W RMS, 225W Peak

Sensitivity (2.83V, 1m): 90dB

Frequency Response: 45Hz - 21kHz

Mounting Depth: 2-3/16" (56mm)

Cut-Out Diameter: 5" (127mm)

63.5i

Type: 6-1/2" 3-Way

Speaker Impedance: 4 ohms

Power Handling: 75W RMS, 225W Peak

Sensitivity (2.83V, 1m): 90dB

Frequency Response: 45Hz - 22kHz

Mounting Depth: 2-3/16" (56mm)

Cut-Out Diameter: 5" (127mm)

652.5i

Type: 165mm 2-Way

Speaker Impedance: 4 ohms

Power Handling: 75W RMS, 225W Peak

Sensitivity (2.83V, 1m): 90dB

Frequency Response: 45Hz – 21kHz

Mounting Depth: 2-7/16" (62mm)

Cut-Out Diameter: 5-1/2" (140mm)

692.5i

Type: 6" x 9" 2-Way

Speaker Impedance: 4 ohms

Power Handling: 110W RMS, 330W Peak

Sensitivity (2.83V, 1m): 90dB

Frequency Response: 35Hz – 21kHz

Mounting Depth: 3-3/16" (81mm)

Cut-Out Diameter: 5-7/8" x 8-11/16"

(150mm x 221mm)

693.5i

Type: 6" x 9" 3-Way

Speaker Impedance: 4 ohms

Power Handling: 110W RMS, 330W Peak

Sensitivity (2.83V, 1m): 90dB

Frequency Response: 35Hz - 22kHz

Mounting Depth: 3-3'16" (81mm)

Cut-Out Diameter: 5-7/8" x 8-11/16"

(150mm x 221mm)

32.5cf

Type: 3-1/2" 2-Way,

Custom-Fit

Speaker Impedance: 4 ohms

Power Handling: 35 W RMS, 105W Peak

Sensitivity (2.83V, 1m): 90dB

Frequency Response: 85Hz – 21kHz

Mounting Depth: 1-5/8" (42mm)

Cut-Out Diameter: 3-3/16" (81mm)

462.5cfp

Type: 4" x 6" 2-Way,

Custom-Fit Plate

Speaker Impedance: 4 ohms

Power Handling: 60W RMS, 180W Peak

Sensitivity (2.83V, 1m): 90dB

Frequency Response: 75Hz - 21kHz

Mounting Depth: 1-3/4" (45mm)

Cut-Out Diameter: 3-5/8"

(93mm x 134mm)

572.5cf

Type: 5" x 7" 2-Way,

Custom-Fit

Speaker Impedance: 4 ohms

Power Handling: 100W RMS, 300W Peak

Sensitivity (2.83V, 1m): 90dB

Frequency Response: 40Hz – 21kHz

Mounting Depth: 2-3/8" (61mm)

Cut-Out Diameter: 4-7/8" x 7-1/8"

(124mm x 181mm)

Declaration of Conformity

CE

We, H arman Consumer International

2, route de Tours

72500 Chateau-du-Loir

France

declare in own responsibility, that the products

described in this owner's manual are in compliance

with technical standards:

EN 50081-1:1992

EN 50082-1:1997

Vincent Delanoe

Harman Consumer International

Chateau-du-Loir, France. 1:02

TECHNOLOGY - PERFORMANCE - DESIGN

Infinity Systems, Inc., 250 Crossways Park Drive, Woodbury, NY 11797 USA

[phone] • FAX [phone] • www.infinitysystems.com

© 2002 Infinity Systems, Inc. • P/N: KAPSEROM1/02 • Printed 1/02

H A Harman International Company
