Cacao - Chair Chipolino - Free user manual and instructions

Product Type	High Chair
Brand	Chipolino
Model	Cacao
Dimensions (L x W x H)	55 x 45 x 80 cm
Product Weight	4 kg
Maximum Load	15 kg (approx.)
Recommended Age	6 months to 3 years
Material	Plastic seat with metal frame
Safety Features	5-point harness, anti-slip feet, stable base
Adjustable Features	3-position recline, 4-height positions, removable tray
Tray	Removable and dishwasher safe
Cleaning	Wipe with damp cloth; seat pad machine washable (if included)
Assembly Required	Yes, simple assembly with included tools
Certification	EN 14988:2012 compliant
Country of Origin	China
Warranty	2 years
Spare Parts Availability	Order directly from manufacturer or authorized retailers
Repairability	Parts can be replaced; manual includes instructions
Color	Cacao (brown/natural tone)

Frequently Asked Questions - Cacao Chipolino

What is the recommended age for the Chipolino Cacao high chair?

The Chipolino Cacao high chair is suitable for children from 6 months to 3 years, or up to a maximum weight of 15 kg.

How do I adjust the height of the chair?

The chair has 4 height positions. To adjust, squeeze the tabs on the frame and slide the seat to the desired height until it clicks into place.

Can the tray be removed for cleaning?

Yes, the tray is removable and can be placed in the top rack of the dishwasher for easy cleaning.

Is the seat pad washable?

Yes, the seat pad is machine washable on a gentle cycle. Air dry recommended.

Does the chair have a safety harness?

Yes, it includes a 5-point safety harness to keep your child secure while seated.

How do I assemble the high chair?

Assembly is simple with included tools. Follow the step-by-step instructions in the manual. Typically, you attach the legs, footrest, and seat.

What is the maximum weight capacity?

The maximum load capacity is 15 kg (approx. 33 lbs). Do not exceed this limit.

Can I use the chair without the tray?

Yes, the tray can be removed allowing the child to sit at the table with the family using the table clamp feature (if accessible).

How do I clean the frame?

Wipe the frame with a damp cloth and mild soap. Do not immerse in water.

Where can I get spare parts?

Spare parts can be ordered directly from Chipolino via their website or from authorized retailers. Contact customer support for assistance.

USER MANUAL Cacao Chipolino

IMPORTANT! READ CAREFULLY AND KEEP THIS USER'S MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE!

INSTRUCTION MANUAL FOR HIGH CHAIR „CACAO”

This high chair ChipoliNo has been manufactured in accordance with the requirements of Directive 2001/95/EC of the European Parliament and of the Council and complies with European Standards EN 14988 Children's high chairs-Requirements and test methods and regulations of the national legislation, as well as the Consumer Protection Law.

ATTENTION! YOUR CHILD WILL BE MOST SECURE IF YOU FOLLOW THE INSTRUCTIONS AND RECOMMENDATIONS GIVEN IN THIS USER'S MANUAL:

✿ WARNING! NEVER LEAVE YOUR CHILD UNATTENDED!

✿ WARNING! THIS PRODUCT IS SUITABLE FOR CHILDREN, WHO CAN SIT ALONE UNAIDED (MINIMUM AGE 6 MONTHS), AGED UP TO 3 YEARS AND WEIGHING NO MORE THAN 15 KG.

✿ WARNING! ALWAYS USE THE SAFETY BELTS, WHEN THE CHILD IS IN THE CHAIR! ALWAYS CHECK IF THEY ARE SECURELY FIXED TO THE HIGH CHAIR'S FRAME!

✿ WARNING! DANGER OF FALLING: DO NOT LET THE CHILD CLIMB ON THE PRODUCT!

✿ WARNING! DO NOT USE THE HIGH CHAIR BEFORE HAVING MADE SURE THAT ALL PARTS ARE IN GOOD ORDER AND ARE SET IN THE CORRECT POSITION!

✿ WARNING! BE AWARE OF THE RISK OF OPEN FIRES AND OTHER SOURCES OF STRONG HEAT IN THE VICINITY OF THE PRODUCT.

✿ WARNING! BE AWARE OF THE RISK IN CASE THE CHILD IS NEAR SOLID SURFACES ON WHICH HE CAN STEP AND PUSH HIMSELF UP.

✿ WARNING! DO NOT PLACE THIS PRODUCT NEAR A WINDOW AS IT CAN BE USED AS A STEP BY THE CHILD AND CAUSE THE CHILD TO FALL OUT OF THE WINDOW.

DO NOT PLACE THIS PRODUCT NEAR A WINDOW WHERE CORDS FROM BLINDS OR CURTAINS COULD STRANGLE A CHILD.

◆ Adult assembly is required!

Do not allow children younger than 3 years near the high chair during the assembly or disassembly, in order to prevent the risk of injury!

This high chair is not suitable and must not be used by children, who cannot sit unaided!

This high chair must not be used for children weighing more than 15 kg!

The high chair has a single seat, intended for one child only.

Do not lift the chair by the food tray!

- Discontinue using the product if you find any missing or damaged parts!

Do not let your child stand in the high chair!

✿ Never lift, move, make any setting or repair to the chair, while there is a child in it!

Do not place the chair on elevated and/or uneven surfaces, while there is a child in it!

Do not place the chair near stairs, pools or other hazardous areas!

Use the high chair only by its purpose!

All additional belts which are not supplied by the manufacturer must comply with EN 13210.

Do not use any spare parts or other components, which are not approved by the producer! The producer does not take any responsibility for the safety of the child when you have not used the proper and original spare parts, approved and provided by him!

Do not apply any changes or modifications to the high chair's construction! Contact the dealer or an authorized repair service for advice and/or repair instead!

Do not allow children younger than 3 years near the high chair during the assembly or disassembly, in order to prevent the risk of injury or swallowing of small parts!

- Keep children away when unfolding and folding the product to avoid injury

The packaging of the product must be kept out of the reach of children to avoid the risk of strangulation!

MAIN FEATURES OF THE PRODUCT

High chair is suitable for one child aged up to 3 years and weighing not more than 15 kg, who can sit alone unaided.
Kids chair for children aged from 1 to 3 years after removing the food tray and the 5-point safety belt.
◆ 5- point safety belt.
Food tray.

Line drawing of a multi-level outdoor chair with a seat and ladder (no text or symbols)

HIGH CHAIR KIDS CHAIR

Line drawing of a wooden folding chair with seat and legs (no text or symbols)

MAIN PARTS

1 - Legs x 2
2 – Support bar x2
3 - Backrest I x 1
4 - Backrest II x 1
5 – Food tray x 1
6 - Seat x 1
7 - Footrest x 1

TOOLS AND FIXINGS

Allen wrench 1
Bush (for Step 1) 4
Screw M6x40 (for Step 2) 4
Plate (for Step 3) 4
Screw M6x40 (for Step 4) 4

IMPORTANT! Make sure the parts shown are available.

HIGH CHAIR ASSEMBLY INSTRUCTIONS

ATTENTION! FOLLOW EXACTLY THE INSTRUCTIONS GIVEN AND THE ORDER FOR ASSEMBLY AND USAGE, DESCRIBED IN TEXTS AND PICTURES. YOU WILL NEED A SCREWDRIVER TO COMPLETE THE ASSEMBLY.

IMPORTANT! TIGHTEN THE SCREWS WELL. IF ANY SCREWS ARE LOOSE, THIS MAY CAUSE THE CHAIR TO DISINTEGRATE AND INJURE THE CHILD.

ATTENTION! CHECK THE STABILITY OF FIXING AFTER EACH OPERATION!

To assemble the chair, follow the pictures given below.

STEP 1: Installing the support bars (2) to the legs (1)

Insert the bushes (for Step 1) in the openings in the support bars (2).

STEP 2: Fixing the support bar (2) to the legs (1)

Tighten screws M6x40 (for Step 2), using the allen wrench.

STEP 3: Installing backrest I (3) and backrest II (4) to the legs (1)

Insert the plates (for Step 3) in the backrests' openings, as shown in the picture.

STEP 4: Fixing the backrests (3 and 4) to the legs (1)

Tighten screws M6x40 (for Step 4), using the allen wrench.

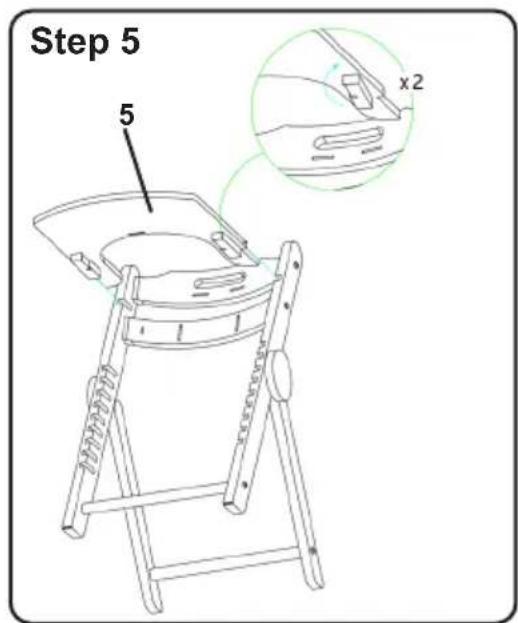

STEP 5: Installing the food tray (5)

Press the two buttons on bottom of the food tray and insert it in the grooves in the legs, as shown in the picture. Release the buttons. You will hear a „click“ and tray will be fixed.

To remove the tray, press the buttons and pull the tray out.

STEP 6: Installing the seat (6) and footrest (7)

Press the two buttons on bottom of the seat and insert it in the grooves in the legs, as shown in the picture. Release the buttons. You will hear a „click“ and seat will be fixed.

Install the footrest the same way as the seat.

To remove the seat and footrest, press the buttons and pull them out.

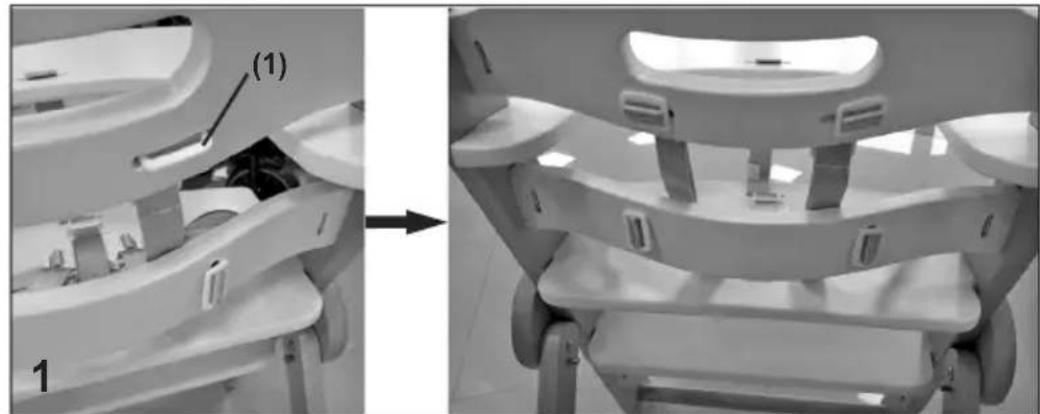

RESTRAINT SYSTEM (5-point safety belt)

Medical imaging of a medical device showing internal components before and after assembly (no visible text or symbols)

Two-panel technical image showing a mechanical assembly and a close-up of a component labeled (2), with no visible text or symbols.

1. Insert the buckles (1) of the harness in the openings in the backrests. Twist the buckles at 90^irc , in order to fix them to the backrests. Insert the additional piece in the opening in the food tray and seat and close the Velcro.
2. Insert the free end (2) of the crotch belt and open it in order to fix it to the food tray.

Note: In order to remove the belt, repeat the same actions in reverse order.

1. Press the button on the buckle (3) and split the belts.

Move the plastic sliders (4) up/down and to the sides to adjust straps length.

ATTENTION! Safety harnesses must not be worn out or torn and buckles must be strong, without any damages and provide secure connection!

IMPORTANT! Belts should not be twisted, they must fi the baby well and their length should not be adjusted while they are fastened!

USING AS A KIDS CHAIR

Line drawing of a two-step folding chair assembly, showing change from top to side (no text or symbols)

IMPORTANT! Before using the product as a kids chair, you must remove the food tay (5) and 5-point safety harness.

ATTENTION! USE THE PRODUCT AS A KIDS CHAIR ONLY FOR CHILDREN AGED FROM 1 UP TO 3 YEARS!

• Clean the wooden and metal parts with damp cotton cloth or sponge.
  Do not use abrasive, bleach or other aggressive detergents.
  ❖ Always after cleaning leave the high chair fully dry and after that use it or store it.
  Do not put any objects and things in high chair or on the top of it to avoid damages of the structure.
  Always store your high chair indoors. Do not expose to direct environment influence - sun, rain, moisture and high temperature intervals.

STHCO024xxx
