USER MANUAL Yorkshire 5386CH Moen
Yorkshire Technical Specification
Towel Ring
5386
Stock Numbers:
q 5386PB – Towel Ring
Polished Brass Finish
Concealed Screw Mounting
q 5386CH (BP5386CH) – Towel Ring
Polished Chrome Finish
Concealed Screw Mounting
q 5386CB (BP5386CB) – Towel Ring
Chrome & Brass Finish
Concealed Screw Mounting
q BP5386SN – Towel Ring
Satin Nickel Finish
Concealed Screw Mounting
"BP" skus in wholesale packaging
Materials:
Towel Ring is die cast from highest quality zinc alloy (zamac). Castings are triple plated in a polished brass, polished chrome or combination chrome and brass finish.

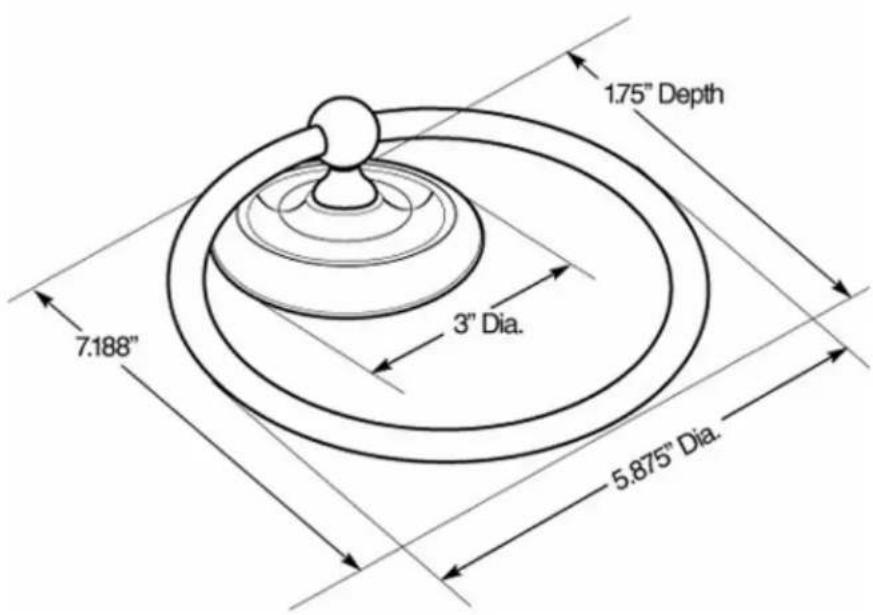

Dimensions:
- Position the mounting plate on the wall at desired location with "UP" facing you.
- One at a time, place each anchor screw through the mounting plate, centered in each large hole. Using a Phillips screwdriver, turn the anchor screw while applying pressure. Screw will self drill and tap into drywall. Do not over tighten.
- Place assembly over the mounting plate, setscrew facing down.
- Tighten setscrew.
Cleaning Instructions:
To preserve the fine finish of this product, clean only with a soft damp cloth. Dry well. Do not use commercial or abrasive cleaners.
Stock Number:____ Towel Ring By CSI Bath Furnishings
