Abbott ABB-3007-BK - Lighting Crystorama - Free user manual and instructions

Product Type	Chandelier
Brand	Crystorama
Model	Abbott ABB-3007-BK
Fixture Width	20 in (estimated)
Adjustable Height	Up to 42 in (using provided rods: 3x12 in + 1x6 in)
Canopy Dimensions	Width 6 in, Height 0.75 in
Rod Specifications	Long rods: 12 in x 0.6 in (3 pieces); Short rod: 6 in x 0.6 in (1 piece)
Candle Sleeve Dimensions	Width 1 in, Height 2 in
Weight	Approx. 5 lbs (estimated)
Bulb Type	8 candelabra bulbs (E12), 60W max each; LED recommended for extended use
Maximum Wattage	480W total
Voltage	120V (standard US)
Location Rating	Dry rated (indoor use only)
Installation	Hardwired; requires professional electrician per local codes
Mounting	Ceiling mount on junction box
Material	Metal (black finish); glass candle sleeves
Maintenance	Wipe clean with dry cloth; do not use harsh chemicals
Safety Warning	Contains lead - known to cause cancer/birth defects. See www.P65warnings.ca.gov
Included Parts	Mounting hardware, canopy, canopy screws, rods (3 long + 1 short), lamp body, candle sleeves
Spare Parts Availability	Replacement rods, canopy, candle sleeves available (see part numbers in manual)

Frequently Asked Questions - Abbott ABB-3007-BK Crystorama

How do I determine the hanging height?

Decide the desired height and select the appropriate combination of rods. The fixture comes with 3 long rods (12 in each) and 1 short rod (6 in). Connect them to achieve your preferred length.

What type of bulbs does this chandelier use?

It requires 8 candelabra base (E12) bulbs, each with a maximum of 60 watts. LED bulbs are recommended for extended lifespan and energy efficiency.

Is this fixture dimmable?

Dimming capability depends on the bulbs used. If you install dimmable LED bulbs and a compatible dimmer switch, the fixture can be dimmed.

Can I install this outdoors?

No, this fixture is dry rated for indoor use only. Do not expose it to moisture or outdoor conditions.

How do I clean and maintain the chandelier?

Turn off power and allow bulbs to cool. Wipe with a dry, soft cloth. Avoid abrasive cleaners or chemicals that may damage the finish.

What is the warranty period?

Crystorama typically offers a 1-year warranty against manufacturing defects. Check the included documentation or contact customer support for details.

Are replacement parts available?

Yes, replacement parts such as rods, canopy, and candle sleeves are available. Refer to the part numbers in the manual (e.g., XFW3007BKROD12IN for long rods).

Can I use bulbs with a higher wattage than 60W?

No, do not exceed 60W per bulb to avoid overheating and fire risk. LED bulbs are recommended for their lower wattage and longer life.

Is professional installation required?

Yes, all electrical components must be installed by a licensed electrician in accordance with the National Electric Code and local codes.

Does this fixture have a safety warning?

Yes, the product contains lead, which is known to the state of California to cause cancer and birth defects. For more information, visit www.P65warnings.ca.gov.

USER MANUAL Abbott ABB-3007-BK Crystorama

All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate

local electrical codes.

You will need 8-Candelabra

60 Watts Max

USE LED BULBS FOR EXTENDED USE

This fixture is dry rated

How to Install:

1. Determine the desired hanging height and choose the correct length of rod.
2. Feed fixture wires through the rod and canopy. Connect the rods together and then screw the canopy onto the top of rods.

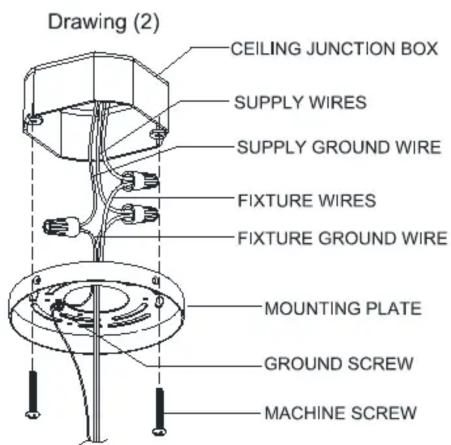

3. The canopy of the fixture can now be mounted to the ceiling by following instruction Drawing 2.
4. Place the Candle Sleeve over the Socket, then Install the Bulb to the Socket.

Bulb replacement:

1. Install the Bulb into the Socket.

WARNING: This product can expose you to lead, which is known to the state of california to cause cancer and / or birth defects or reproductive harm. For more information go to www.P65warnings.ca.gov

Part Number

Part Numbers

A. (1) Mounting Hardware
B. (1) Canopy; w6" x h0.75" (XFW3007BKCAN6IN)
C. (3) Canopy Screw; w0.16"x h0.48"
D. (3) Long Rod; w0.6"x h12" (XFW3007BKROD12IN)
E. (1) Short Rod; w0.6"x h6" (XFW3007BKROD6IN)
F. (1) Lamp Body
G. (8) Bulbs (Not Included)
H. (8) Candle Sleeve; w1"x h2"(XFW3003BKCDL2IN)
