USER MANUAL BG-S8 Vello

Close-up of a black leather buckle with a circular hole, no visible text or symbols

BG-S8

BATTERY GRIP

Designed for the

Sony a6600

Mirrorless Camera

VELLO®

Thank you for choosing Vello.

The Vello BG-S8 battery grip offers extended shooting time and a comfortable hand position when shooting in a vertical (portrait) orientation. It's compatible with the Sony a6600 mirrorless camera, and it accepts up to two Sony NP-FZ100 rechargeable batteries. Its alternate shutter-release button works with the included Multi-Terminal cable.

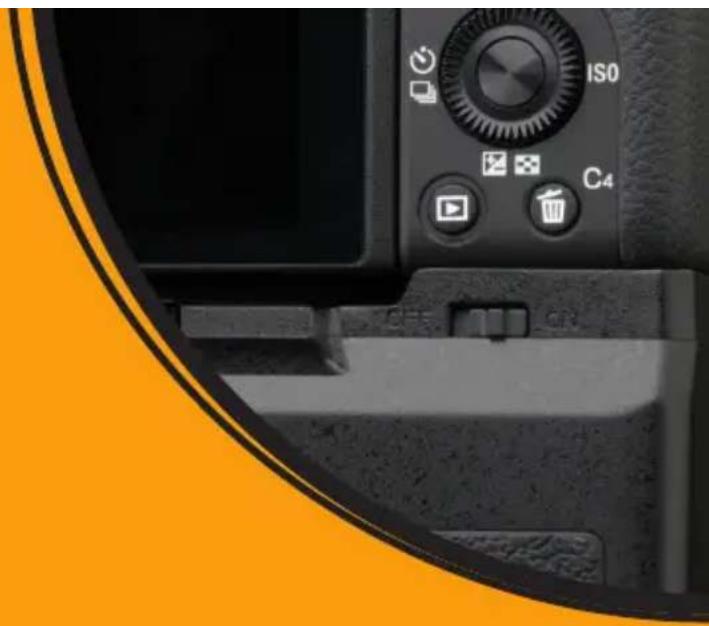

Close-up of a camera mode dial showing settings like ISO, C4, and play button (no readable text beyond labels)

Please read through this entire manual before using the BG-S8 battery grip.

Precautions

1. The BG-S8 should be used only with compatible devices specified in this manual.
2. Use only with the batteries and battery holders recommended in this manual.
3. If you notice smoke, noise, or an unusual smell from the battery pack, discontinue use immediately. Remove the batteries and take the device to a Vello authorized reseller.

4. The battery level may not display properly if batteries are installed before mounting the grip.

5. Remove batteries from the grip when not in use.

6. Do not attempt to disassemble.
7. Avoid exposing this product to water or extreme humidity, and keep it in a dry, cool place.
8. Keep out of reach of children.
9. All images are for illustrative purposes only.

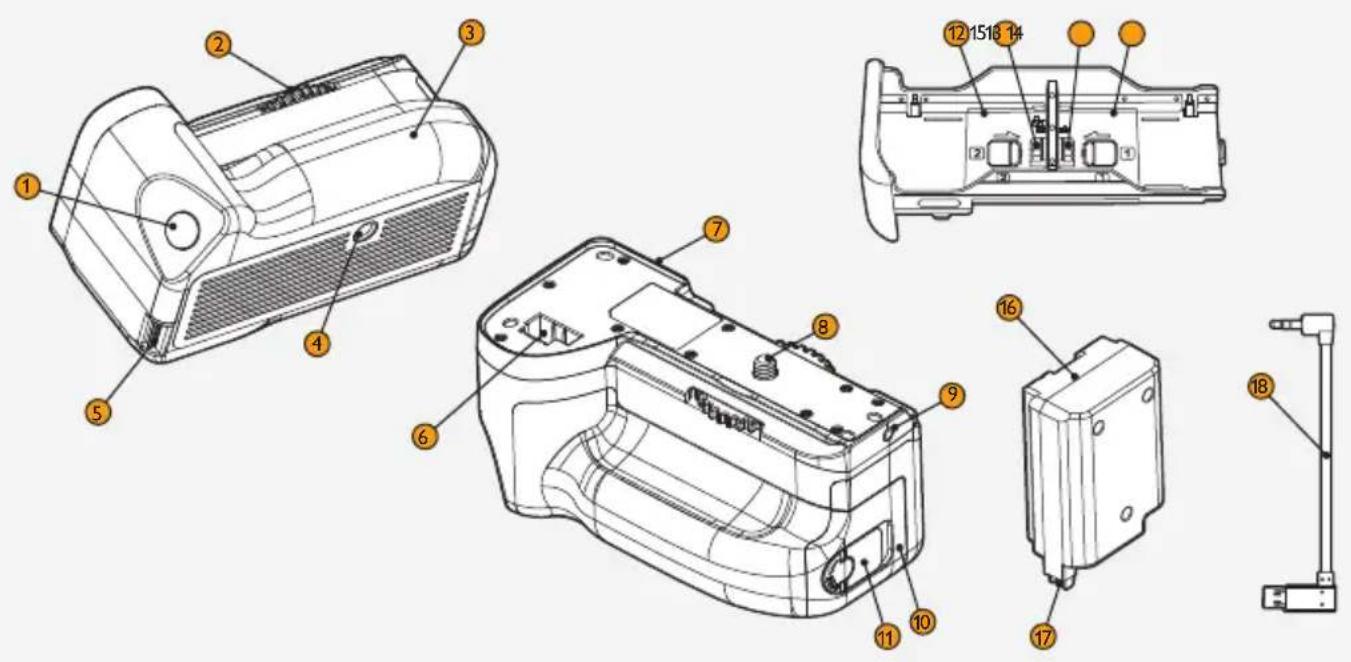

Overview

① Shutter release button
② Thumbwheel lock
③ Nonslip grip
④ Tripod socket
⑤ Hand-strap mount
⑥ Connection plate cover recess

⑦ Power ON/OFF switch
⑧ Mounting screw
⑨ Shutter-release socket
10 Battery tray
11 Battery tray lock
12 Battery slot 2

13 Slot 2 contacts
14 Slot 1 contacts
15 Battery slot 1
16 Battery pack adapter
17 Battery pack adapter contacts
18 Shutter release cable

Attaching the Battery Grip

1. Ensure that the camera power is turned off.

Technical diagram of a mechanical assembly with an orange arrow indicating a component (no text or symbols present)

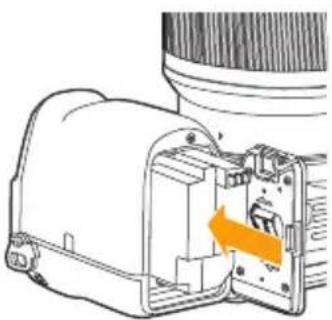

1. Open the camera's battery chamber door, and insert the battery pack adapter.

Technical line drawing of a camera module with no visible text or symbols

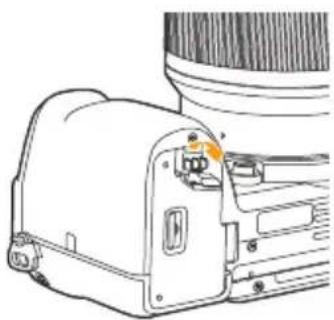

1. Open the camera's connection plate cover, and close the battery chamber door. This will leave the battery pack adapter's contacts exposed.

Diagram of a camera module with two views of the base (no text or symbols)

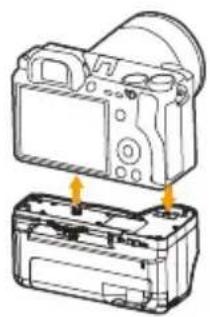

1. Align the camera's tripod socket with the BG-S8's mounting screw, and insert the camera's connection plate cover into the recess.

Line drawing of a digital camera with an orange arrow indicating motion (no text or symbols)

1. Rotate the thumbwheel counterclockwise until it's firmly tightened.

Diagram of a mechanical device with labeled parts and directional arrows indicating motion (no text or symbols present)

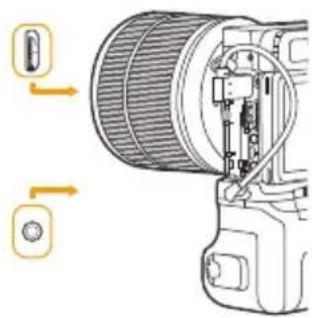

1. Connect the shutter release cable from the 2.5 mm socket on the battery grip to the Multi-Terminal port on the camera body.

Inserting the Batteries

Technical line drawing of a mechanical device with no visible text or symbols

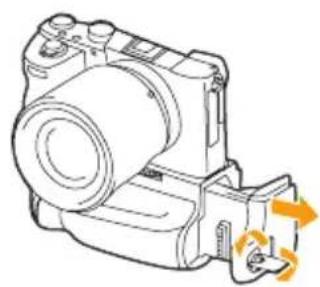

1. Lift and rotate the battery tray's lock counterclockwise and remove the tray from the grip.

Technical diagram of a mechanical component with arrows indicating motion or force (no text or symbols)

1. Align the contacts of the first battery with slot 1, and slide the battery in and down until it clicks. Repeat this step for the second battery.

Line drawing of a mechanical device with no visible text or symbols

1. Insert and lock the battery tray inside the battery grip.

Technical line drawing of a mechanical component with no visible text or symbols

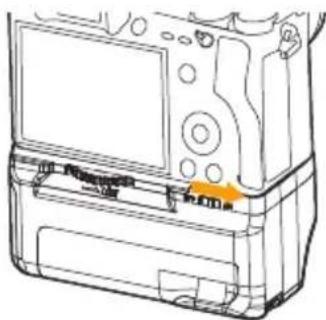

1. Turn on your camera and switch the battery grip's power switch to the ON position.

Note: When removing the grip, turn off the grip and camera power, and remove the batteries.

Specifications

Power source Up to two NP-FZ100 rechargeable Li-ion batteries
Shutter-release socket 2.5 mm
Operating temperature 32°F to 104°F	(0°C to 40°C)
Dimensions (H × W × D) 2.4 × 4.8 × 2.6 in. (61 × 121.8 × 65.7 mm)
Weight 6.8 oz. (194 g) without batteries
