ROEM-HON - Car radio PAC - Free user manual and instructions

Product Type	Universal Remote Control
Brand	PAC
Model	ROEM-HON
Dimensions (H x W x D)	150 x 80 x 25 mm
Weight	200 g (including batteries)
Power Supply	2 x AAA batteries (not included)
Main Functions	Power on/off, volume control, channel selection, input switch, and dedicated device control
Cleaning and Maintenance	Wipe with a soft, dry cloth. Do not use liquids or cleaners.
Safety Precautions	Keep away from moisture and heat. Do not disassemble. Use only specified batteries.
Spare Parts and Repairability	Contact PAC customer service for any spare parts or repair.
Compatibility	Designed for most TV, DVD, and audio devices (check compatibility with your device)

Frequently Asked Questions - ROEM-HON PAC

How do I set up the ROEM-HON PAC universal remote?

Insert two AAA batteries into the remote, then point it at your device. Press the device button (TV, DVD, etc.) and hold the SET button until the LED blinks. Enter the code from the code list or use the search function.

What devices are compatible with this remote?

The remote is designed to work with most TVs, DVD players, set-top boxes, and audio systems. Check the included code list or visit the manufacturer's website for a full list.

How do I replace the batteries?

Slide the battery cover off the back of the remote. Remove old batteries and insert two new AAA batteries, matching the + and - marks. Replace the cover.

Why is my remote not working?

Ensure batteries are fresh and installed correctly. Check for obstructions between the remote and device. Try reprogramming the remote or resetting it by removing batteries for 10 seconds.

How do I program the remote without a code?

Turn on your device. Press and hold the device button (e.g., TV) and SET button simultaneously until the LED lights up. Then press the power button repeatedly until the device turns off. Press SET to save.

What is the range of the remote?

The remote typically works up to 8 meters (26 feet) in a straight line from the device. Range may vary based on obstacles and angle.

How do I clean the remote?

Use a soft, dry cloth to wipe the exterior. Do not use water, cleaning fluids, or abrasive materials as they may damage the remote.

Can I use this remote for multiple devices?

Yes, you can program the remote to control up to four different devices (e.g., TV, DVD, audio, and auxiliary). Use the dedicated mode buttons to switch between them.

What does the LED on the remote indicate?

The LED blinks when a button is pressed or during programming. A steady light indicates the remote is in setup mode. If the LED is dim or off, replace the batteries.

How do I reset the remote to factory settings?

Remove the batteries. Press and hold any button for 5 seconds to discharge any residual power. Reinsert batteries. The remote is now reset and will need to be reprogrammed.

USER MANUAL ROEM-HON PAC

Cables for replacing Factory head unit.

Installation instructions for cables on list "A"

This “A” cable, is used when replacing a factory radio. (the appropriate cable from list “B” is also required). One end of cable plugs into or connects to your new aftermarket head unit and the other end plugs into the 18 pin connector of the OEM-1. When using the complete OEM-1 system the radio will be current protected by the vehicle fuse. The installer must decide to transfer any other fuses or noise filters from the harness provided with the head unit. Use the wire / terminal identification chart below to locate the correct power wires.

While every effort has been made to insure this cable was made to connect properly to your aftermarket head unit, changes in models and configurations do occur. To prevent potential damage consult your stereo's owners manual and check wire function (as shown below) with that of the head unit you have. Move any wires that are not in the correct pin location for you head unit.

Installation instructions for cables on list "B"

This “B” cable, is used when replacing a factory radio. (the appropriate cable from list “A” is also required). One end of this cable plugs into the vehicle dash harness that was removed from the factory radio. (the AMP-UNV harness must be spiced into the vehicle harness, use the 16 pin chart below for wire identification) The other end plugs into the 16 pin connector of the OEM-1.

WIRE AND TERMINAL IDENTIFICATION

Output of the OEM-1, 16 pin connector (cable "B" or AMP-RCA). Looking into connector / wire side of cable.

WIRE COLOR	CIRCUIT			CIRCUIT	WIRE COLOR
ORANGE	ILLUMINATION	8	16	IGNITION SWITCH 12V	RED
BLUE/WHITE	AMP TRIGGER	7	15	BATTERY	YELLOW
BLACK	GROUND	6	14	POWER ANTENNA	BLUE
PURPLE/ BLK	RIGHT REAR (-)	5	13	RIGHT REAR (+)	PURPLE
GREEN/ BLACK	LEFT REAR (-)	4	12	LEFT REAR (+)	GREEN
	N/C	3	11	N/C
GRAY/ BLACK	RIGHT FRONT (-)	2	10	RIGHT FRONT (+)	GRAY
WHITE/ BLACK	LEFT FRONT (-)	1	9	LEFT FRONT (+)	WHITE

Input of the OEM-1, 18 pin connector (cable "A" or "C"). Looking into connector / wire side of cable.

WIRE COLOR	CIRCUIT			CIRCUIT	WIRE COLOR
WHITE/ BLK	LEFT FRONT (-)	9	18	LEFT FRONT LOW LEVEL (+)	WHITE/ RED
GRAY/ BLK	RIGHT FRONT (-)	8	17	LEFT FRONT HIGH LEVEL (+)	WHITE
GREEN/ BLK	LEFT REAR (-)	7	16	RIGHT FRONT LOW LEVEL (+)	GRAY/ RED
PURPLE/ BLK	RIGHT REAR (-)	6	15	RIGHT FRONT HIGH LEVEL (+)	GRAY
BLACK	GROUND	5	14	LEFT REAR LOW LEVEL (+)	GREEN/ RED
BLUE	POWER ANTENNA	4	13	LEFT REAR HIGH LEVEL (+)	GREEN
ORANGE	ILLUMINATION/ DIMMER	3	12	RIGHT REAR LOW LEVEL (+)	PURPLE/ RED
BLUE/WHITE	AMP TRIGGER	2	11	RIGHT REAR HIGH LEVEL (+)	PURPLE
RED	IGNITION/ SWITCHED	1	10	BATTERY	YELLOW

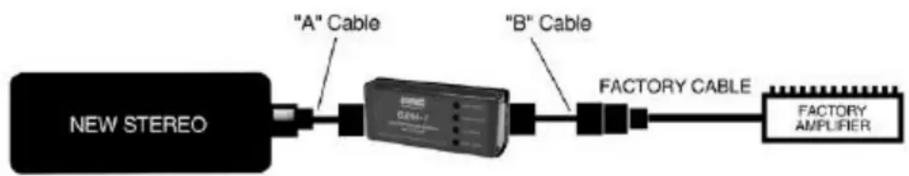


Cables for adding or replacing factory amplifier.

Installation instructions for cables on list "C"

This “C” cable, is used when replacing or adding aftermarket amplifiers to a factory amplified system. (the cable model # AMP-RCA is also required) This cable plugs in between the factory radio and the dash harness that was removed from the factory radio. The 18 pin connector then plugs into the OEM-1. The factory system remains unchanged using this cable. The ADD-UNV cable is used for universal connection to the vehicle harness for vehicles not listed. (splicing required) Audio should be at a low level when using this cable.

Use the AMP-RCA cable connected to the 16 pin connector of the OEM-1 to connect your aftermarket amplifier. The AMP-RCA provides 2 pair of female RCA jacks and a remote turn on lead.

Installation instructions for the AMP-RCA cable

This cable is used when replacing or adding aftermarket amplifiers to a factory amplified system. (the appropriate cable from list "C" is also required) The AMP-RCA cable connects to the 16 pin connector of the OEM-1 and provides 2 pair of female RCA jacks and a remote turn on lead for connection to your aftermarket amplifier.

