Product Type	Large Diaphragm Condenser Microphone
Polar Pattern	Cardioid
Frequency Response	30 Hz - 20 kHz
Sensitivity	-35 dB re 1V/Pa
Impedance	200 ohms
Diaphragm	Gold-sputtered 1.3 inch
Phantom Power Required	48V DC
Connector	3-pin XLR
Dimensions (L x Diameter)	190 mm x 48 mm (7.48 in x 1.89 in)
Weight	540 g (1.2 lbs)
Included Accessories	Shock mount, carrying case, microphone clip
Signal-to-Noise Ratio	80 dB
Max SPL	130 dB SPL (0.5% THD)
Self Noise	14 dB
Output Level	-35 dB re 1V/Pa
Microphone Type	Condenser
Maintenance	Wipe with dry cloth; store in low-humidity environment
Power Source	External 48V phantom power

Frequently Asked Questions - V67N MXL

Does the MXL V67N require phantom power?

Yes, the MXL V67N is a condenser microphone that needs 48V phantom power to operate. Ensure your audio interface or mixer provides this.

What is the polar pattern of the V67N?

It has a cardioid polar pattern, which captures sound primarily from the front and reduces noise from the sides and rear.

What accessories come with the microphone?

The V67N typically includes a shock mount, a carrying case, and a microphone clip.

What type of cable does the V67N use?

It uses a standard 3-pin XLR cable (male to female) for balanced audio.

Is the MXL V67N good for vocals?

Yes, it is popular for vocal recording due to its warm sound and smooth high-frequency response.

What is the frequency response of the V67N?

The frequency response ranges from 30 Hz to 20 kHz, with a gentle presence boost around 5-10 kHz.

Can I use the V67N with a USB interface?

Yes, if the interface has an XLR input with phantom power, you can connect it directly.

How do I clean the V67N?

Gently wipe the exterior with a dry, lint-free cloth. Avoid moisture on the diaphragm. Store in a dry case.

What is the included shock mount for?

The shock mount isolates the microphone from vibrations and handling noise, ensuring cleaner recordings.

How does the V67N compare to the MXL 990?

The V67N has a warmer, vintage sound compared to the brighter MXL 990. It also features a higher-quality gold-sputtered diaphragm.

USER MANUAL V67N MXL

Marshall Electronics

Professional Audio Division

Phone: [phone] ■ 800-800-6608 ■ Fax: [phone]

www.mxlmics.com ■ [e-mail]

Small Diaphragm

Instrument Microphone

Thank you for choosing the MXL V67N Condenser microphone. With proper care, this mic will provide many years of satisfaction. To get the best results, please take a few moments to read this manual.

Enjoy your microphone!

The MXL Team

General Characteristics

This microphone includes two interchangeable capsules with gold-sputtered diaphragms. One capsule is designed for a cardioid pick-up pattern; the other capsule is designed for an omni-directional pickup pattern. Condenser microphones are very sensitive, readily revealing very subtle sonic details. They also tend to pick up sounds outside the pattern more than some designs, which can lead to powerful feedback if you are not careful. We strongly advise experimentation with placement and isolation requirements with the gain initially set low to avoid equipment (and ear) damage.

Contents

Unpack your MXL V67N microphone carefully and verify that all of the following items are included:

• MXL V67N microphone
• Omni-directional capsule
• Hard mount mic stand adapter

If any of these items are missing or damaged, contact the company from which you purchased the microphone.

Power Requirement

The MXL V67N requires 48V phantom power ( ± 4V). If no sound is picked up by the microphone, make sure that the phantom power on your mixer or separate power supply is switched on.

Microphone Cable

The microphone cable can have a profound effect on the sound of any microphone. Even the finest microphone will sound poor if the interconnect cable allows noise to enter or causes distortion and loss of information. We recommend that you use the best microphone cable that your budget will allow.

Care

Dust and foreign material can reduce the performance of a microphone over time, so you should store the MXL V67N in its case when not in use.

Specifications

Type Pressure gradient condenser mic
Diaphragm 22mm Gold-sputtered, 6 micron
Frequency Response 20 Hz – 20 kHz
Polar Pattern Cardioid/Omni
Impedance <300 ohms
Sensitivity -49dB re 1 V/Pa
S/N Ratio 78 dB
Equivalent Noise -16dBA (A weighted IEC 651)
Max SPL for 0.5% THD 148dB SPL
Power Requirement 48V Phantom Power (+/- 4V)
Current Consumption 5.2mA
Size 124mm x 23mm
Weight	0.2 lbs
Metal Finish	Green with gold grill

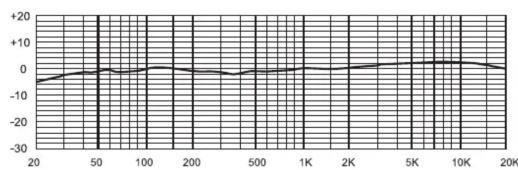

Frequency Chart

Polar Pattern

Warranty

Marshall microphones are guaranteed against defects in materials and workmanship for one year from date of purchase. Should you encounter any problem with this unit, promptly contact the company from which you purchased it from for assistance. The original dated sales receipt will be necessary for any warranty claim. Do not send any unit directly to us without prior authorization from our service department. Warranty coverage is limited to repair or replacement (at our option) of the microphone, and does not cover incidental damages due to use of this unit, nor damage caused by accidental misuse of this product.
